fold seats DODGE CALIBER 2010 1.G User Guide

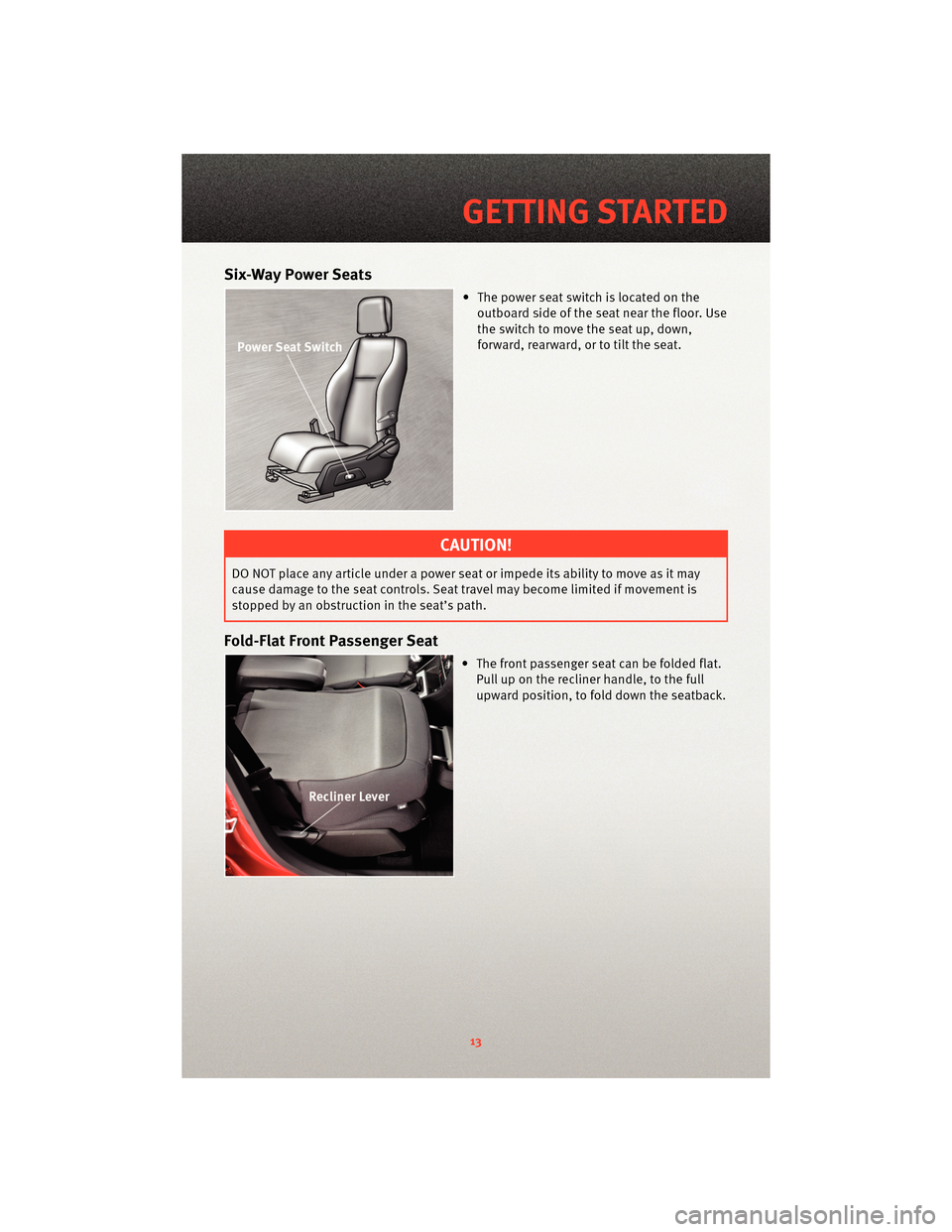

Six-Way Power Seats
• The power seat switch is located on theoutboard side of the seat near the floor. Use
the switch to move the seat up, down,
forward, rearward, or to tilt the seat.
CAUTION!
DO NOT place any article under a power seat or impede its ability to move as it may
cause damage to the seat controls. Seat travel may become limited if movement is
stopped by an obstruction in the seat’s path.
Fold-Flat Front Passenger Seat
• The front passenger seat can be folded flat.Pull up on the recliner handle, to the full
upward position, to fold down the seatback.
13
GETTING STARTED

REAR SEATS
Folding Rear Seatback
• To fold each rear seatback, pull the strap
forward to move the seatback forward and
flat.
Reclining Rear Seatback
• To recline each rear seatback, pull the strap forward just enough to release the seatback
latch. Then push the seatback to a reclined
position, approxim ately 35 degrees
maximum, and release the strap.
HEATED SEATS
Front Heated Seats
• The controls for the fr ont heatedseats are
located on the center instrument panel
area.
• Press the switch once to select High-level heating. Press the switch a second time to
select Low-level heating. Press the switch a
third time to shut the heating elements Off.
WARNING!
• Persons who are unable to feel pain to the skin because of advanced age, chronicillness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other
physical conditions must exercise care when using the seat heater. It may cause
burns even at low temperatures, especially if used for long periods of time.
• Do not place anything on the seat that insulates against heat, such as a blanket or cushion. This may cause the seat heater to overheat. Sitting in a seat that has been
overheated could cause serious burns due to the increased surface temperature of
the seat.
GETTING STARTED
14
