DODGE CALIBER 2011 1.G Owners Manual

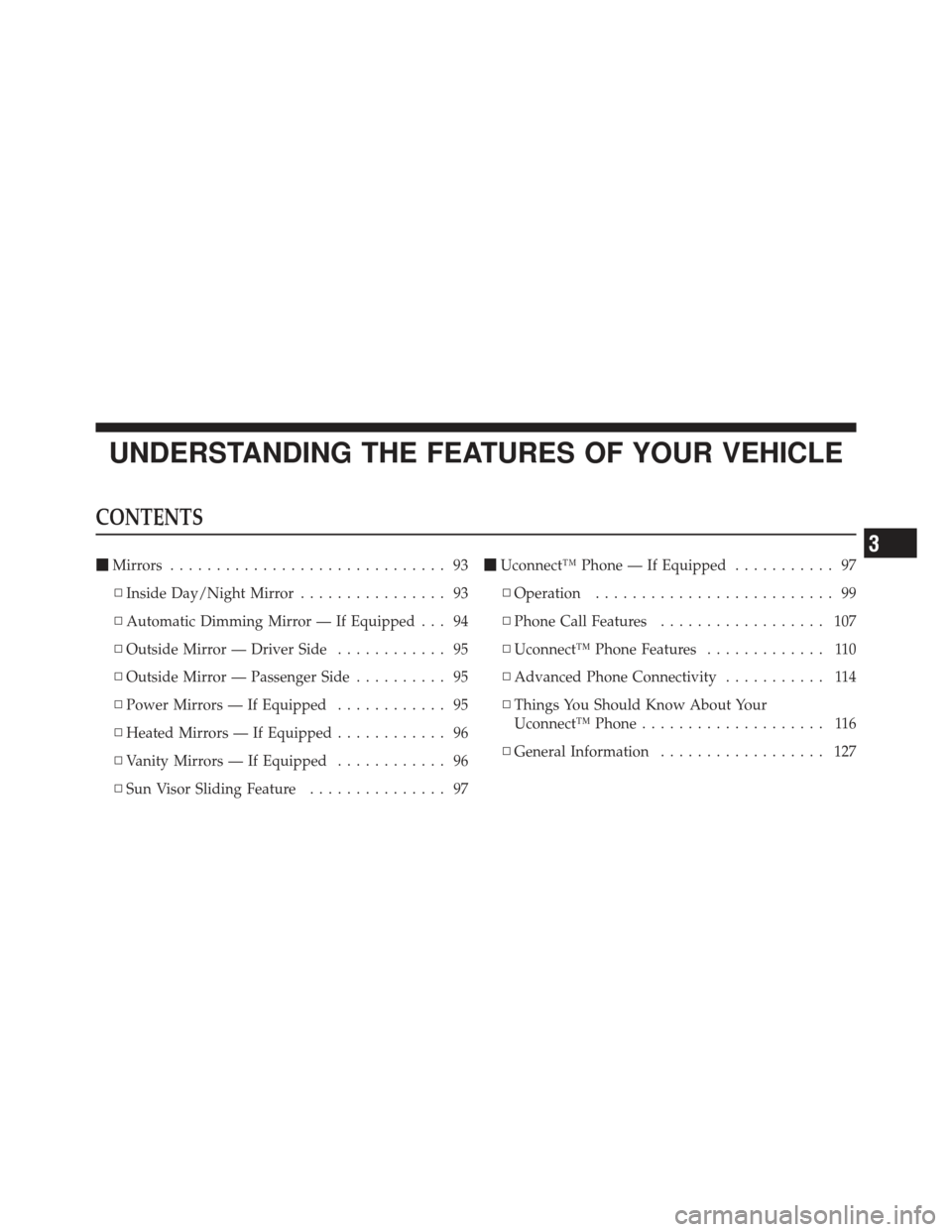

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 93
▫ Inside Day/Night Mirror ................ 93
▫ Automatic Dimming Mirror — If Equipped . . . 94
▫ Outside Mirror — Driver Side ............ 95
▫ Outside Mirror — Passenger Side .......... 95
▫ Power Mirrors — If Equipped ............ 95
▫ Heated Mirrors — If Equipped ............ 96
▫ Vanity Mirrors — If Equipped ............ 96
▫ Sun Visor Sliding Feature ............... 97
Uconnect™ Phone — If Equipped ........... 97
▫ Operation .......................... 99
▫ Phone Call Features .................. 107
▫ Uconnect™ Phone Features ............. 110
▫ Advanced Phone Connectivity ........... 114
▫ Things You Should Know About Your
Uconnect™ Phone .................... 116
▫ General Information .................. 127
3

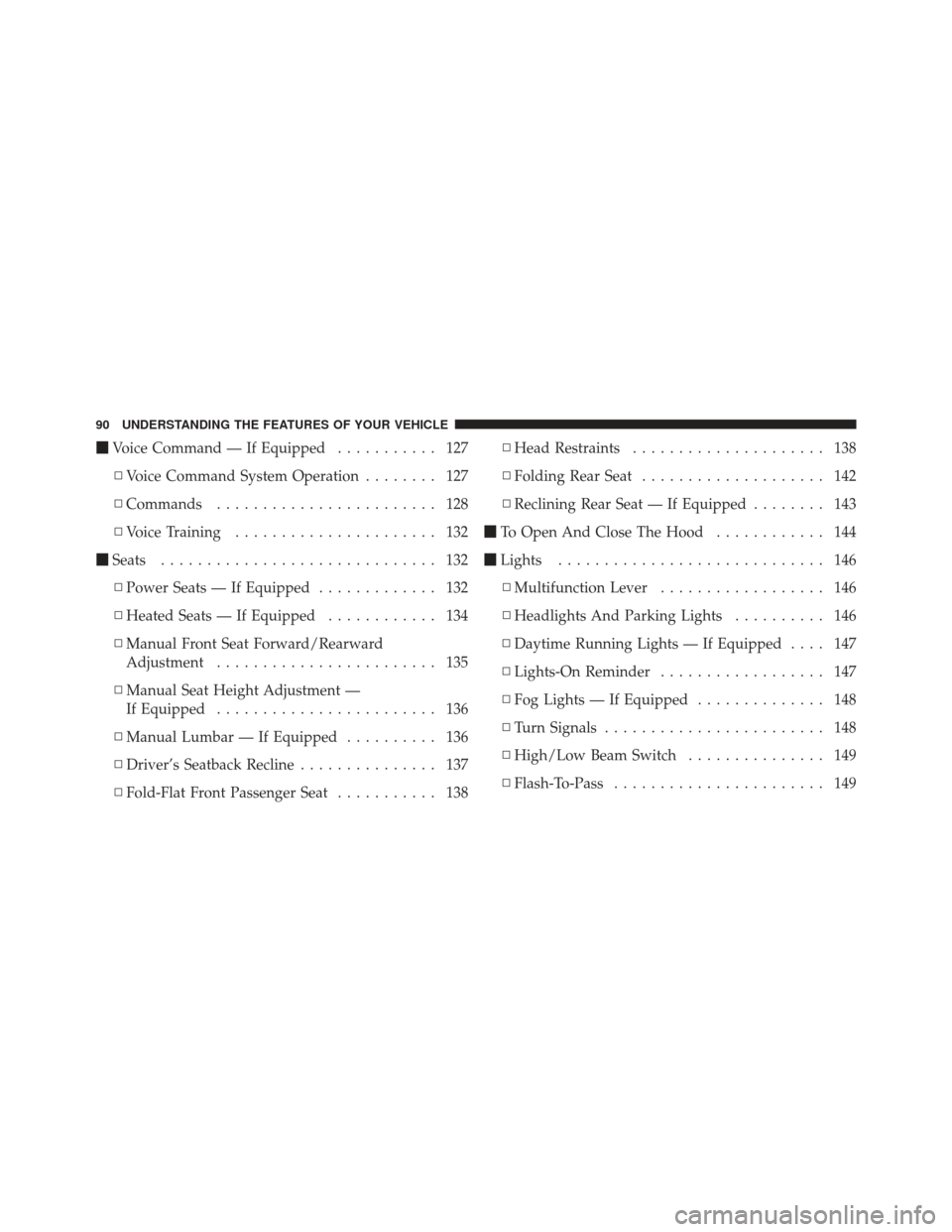

Voice Command — If Equipped ........... 127
▫ Voice Command System Operation ........ 127
▫ Commands ........................ 128
▫ Voice Training ...................... 132
 Seats .............................. 132
▫ Power Seats — If Equipped ............. 132
▫ Heated Seats — If Equipped ............ 134
▫ Manual Front Seat Forward/Rearward
Adjustment ........................ 135
▫ Manual Seat Height Adjustment —
If Equipped ........................ 136
▫ Manual Lumbar — If Equipped .......... 136
▫ Driver’s Seatback Recline ............... 137
▫ Fold-Flat Front Passenger Seat ........... 138▫
Head Restraints ..................... 138
▫ Folding Rear Seat .................... 142
▫ Reclining Rear Seat — If Equipped ........ 143
 To Open And Close The Hood ............ 144
 Lights ............................. 146
▫ Multifunction Lever .................. 146
▫ Headlights And Parking Lights .......... 146
▫ Daytime Running Lights — If Equipped .... 147
▫ Lights-On Reminder .................. 147
▫ Fog Lights — If Equipped .............. 148
▫ Turn Signals ........................ 148
▫ High/Low Beam Switch ............... 149
▫ Flash-To-Pass ....................... 149
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

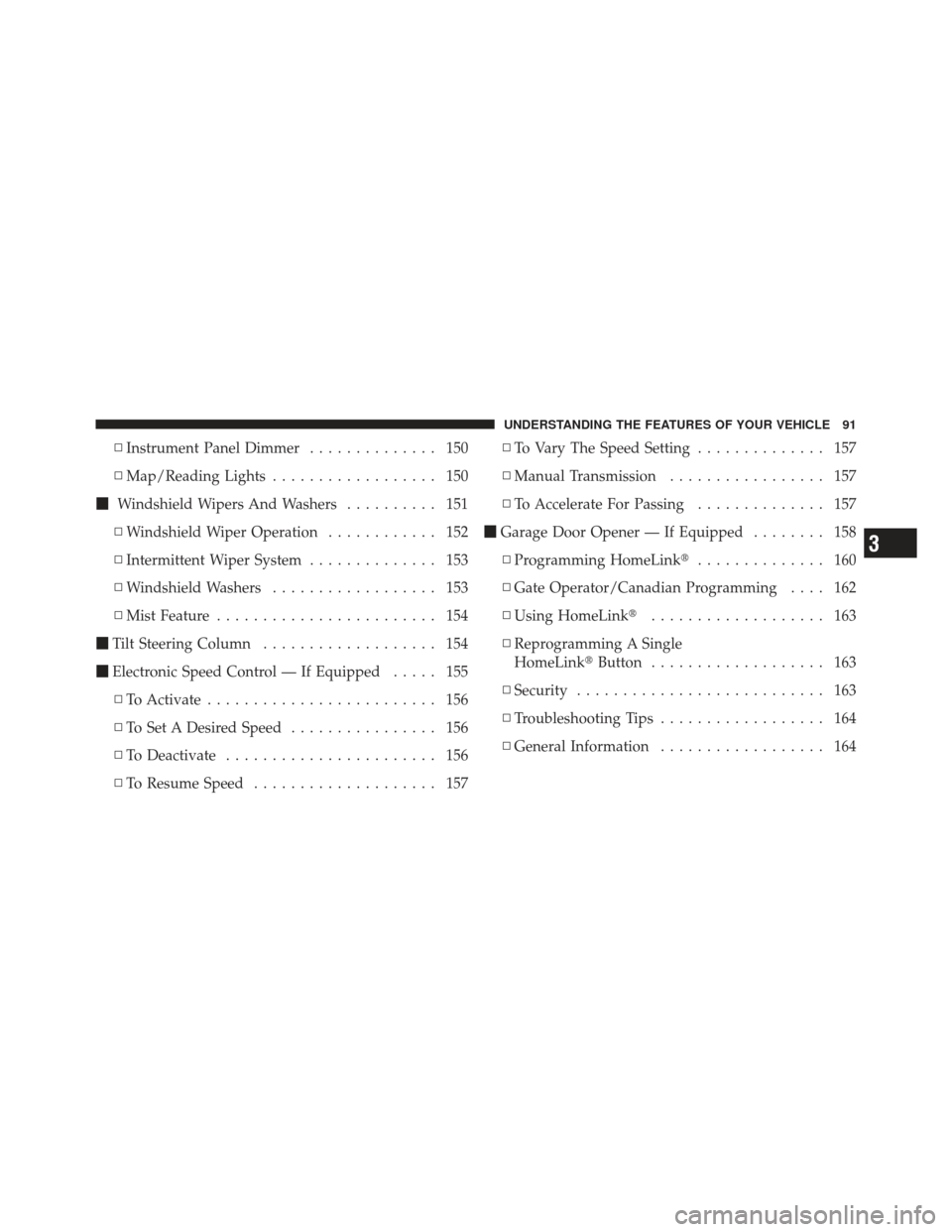

▫Instrument Panel Dimmer .............. 150
▫ Map/Reading Lights .................. 150
 Windshield Wipers And Washers .......... 151
▫ Windshield Wiper Operation ............ 152
▫ Intermittent Wiper System .............. 153
▫ Windshield Washers .................. 153
▫ Mist Feature ........................ 154
 Tilt Steering Column ................... 154
 Electronic Speed Control — If Equipped ..... 155
▫ To Activate ......................... 156
▫ To Set A Desired Speed ................ 156
▫ To Deactivate ....................... 156
▫ To Resume Speed .................... 157 ▫
To Vary The Speed Setting .............. 157
▫ Manual Transmission ................. 157
▫ To Accelerate For Passing .............. 157
 Garage Door Opener — If Equipped ........ 158
▫ Programming HomeLink .............. 160
▫ Gate Operator/Canadian Programming .... 162
▫ Using HomeLink ................... 163
▫ Reprogramming A Single
HomeLink Button................... 163
▫ Security ........................... 163
▫ Troubleshooting Tips .................. 164
▫ General Information .................. 164
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

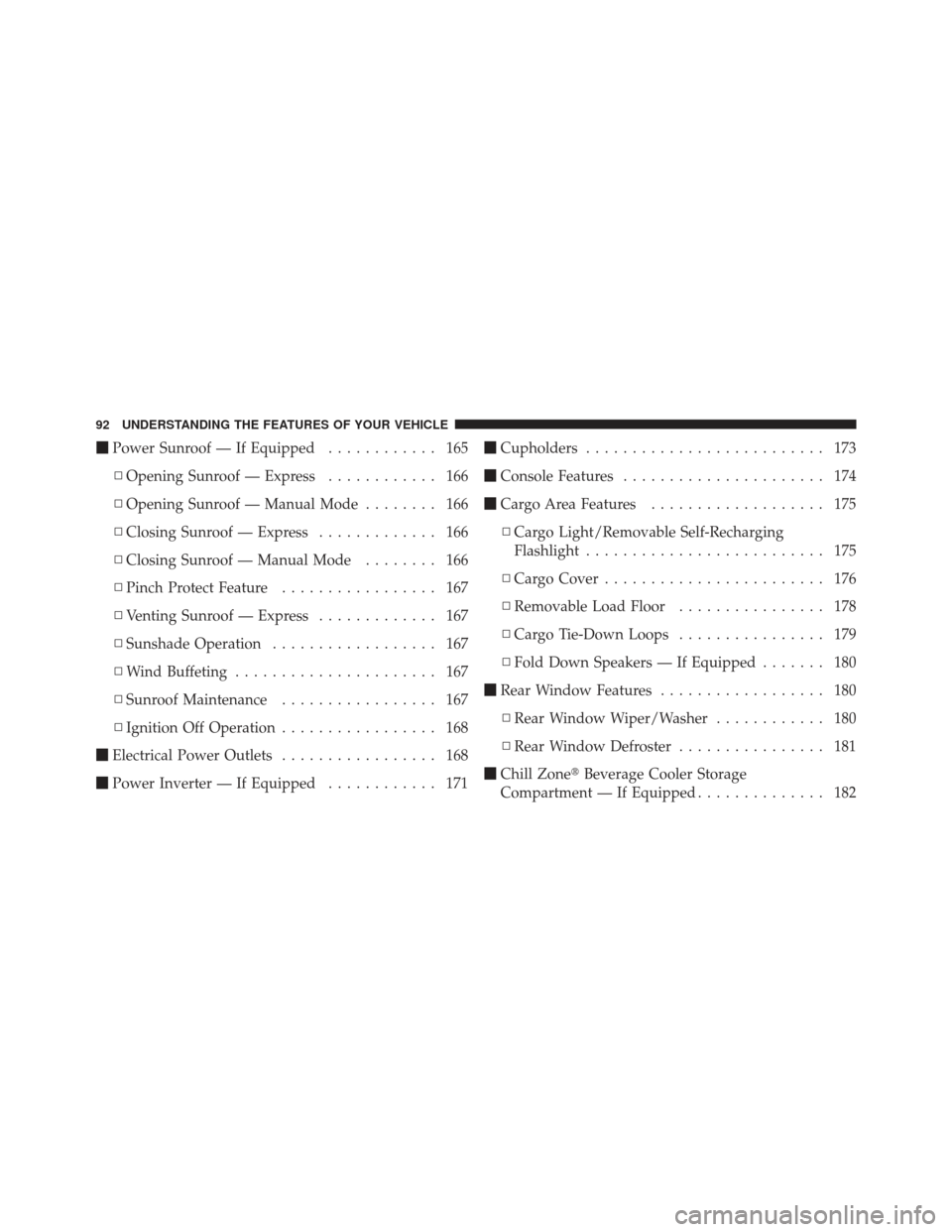

Power Sunroof — If Equipped ............ 165
▫ Opening Sunroof — Express ............ 166
▫ Opening Sunroof — Manual Mode ........ 166
▫ Closing Sunroof — Express ............. 166
▫ Closing Sunroof — Manual Mode ........ 166
▫ Pinch Protect Feature ................. 167
▫ Venting Sunroof — Express ............. 167
▫ Sunshade Operation .................. 167
▫ Wind Buffeting ...................... 167
▫ Sunroof Maintenance ................. 167
▫ Ignition Off Operation ................. 168
 Electrical Power Outlets ................. 168
 Power Inverter — If Equipped ............ 171
Cupholders .......................... 173
 Console Features ...................... 174
 Cargo Area Features ................... 175
▫ Cargo Light/Removable Self-Recharging
Flashlight .......................... 175
▫ Cargo Cover ........................ 176
▫ Removable Load Floor ................ 178
▫ Cargo Tie-Down Loops ................ 179
▫ Fold Down Speakers — If Equipped ....... 180
 Rear Window Features .................. 180
▫ Rear Window Wiper/Washer ............ 180
▫ Rear Window Defroster ................ 181
 Chill Zone Beverage Cooler Storage
Compartment — If Equipped .............. 182
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

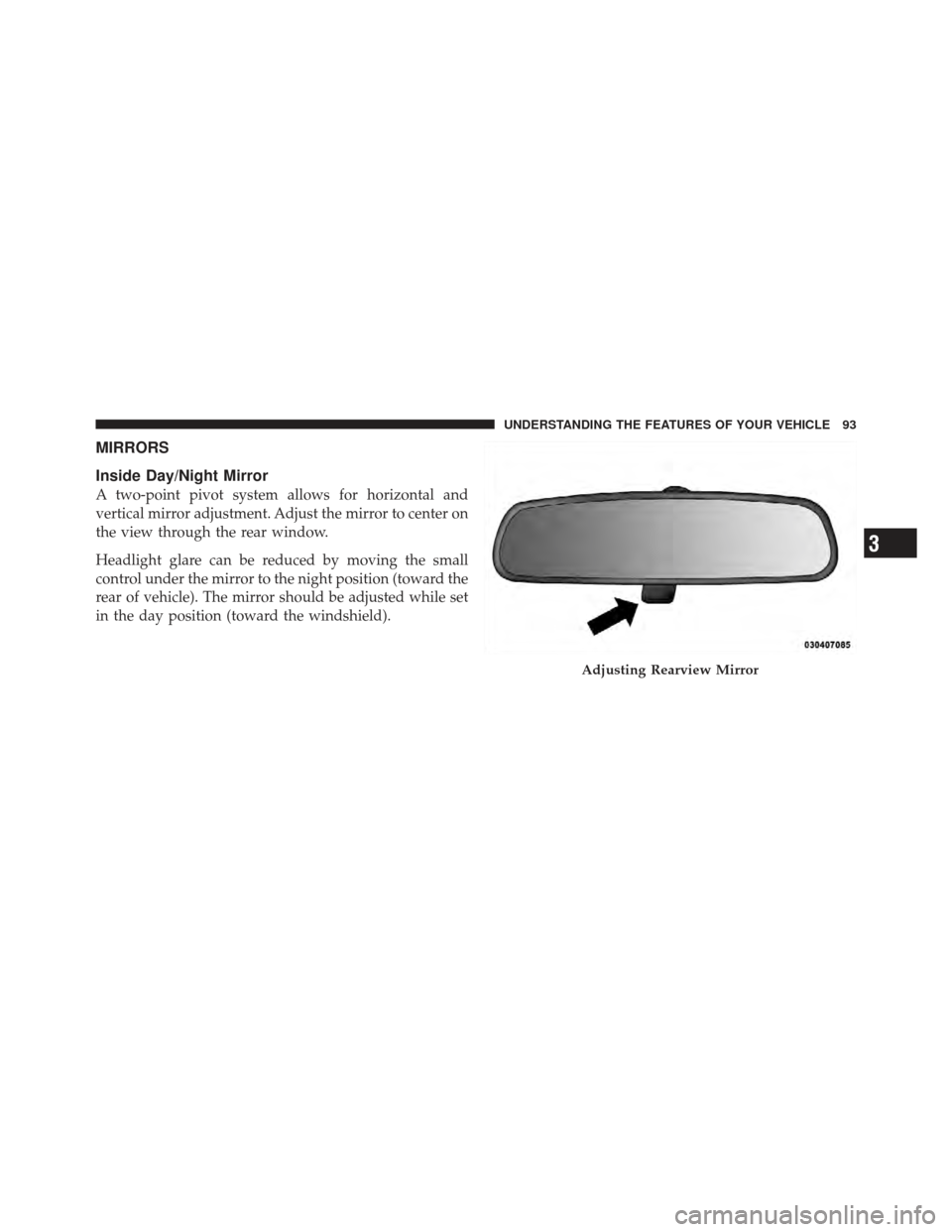

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of vehicle). The mirror should be adjusted while set
in the day position (toward the windshield).
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

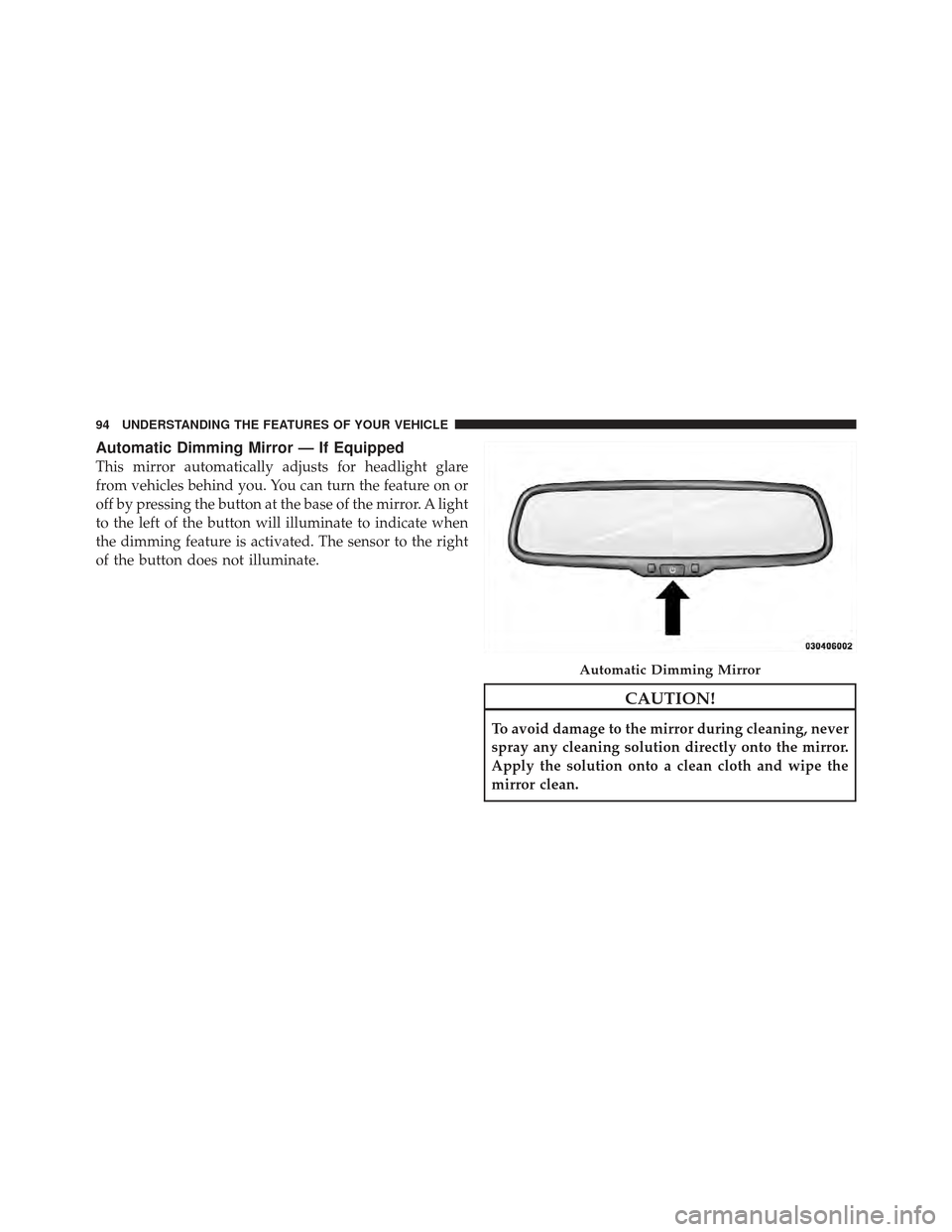

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

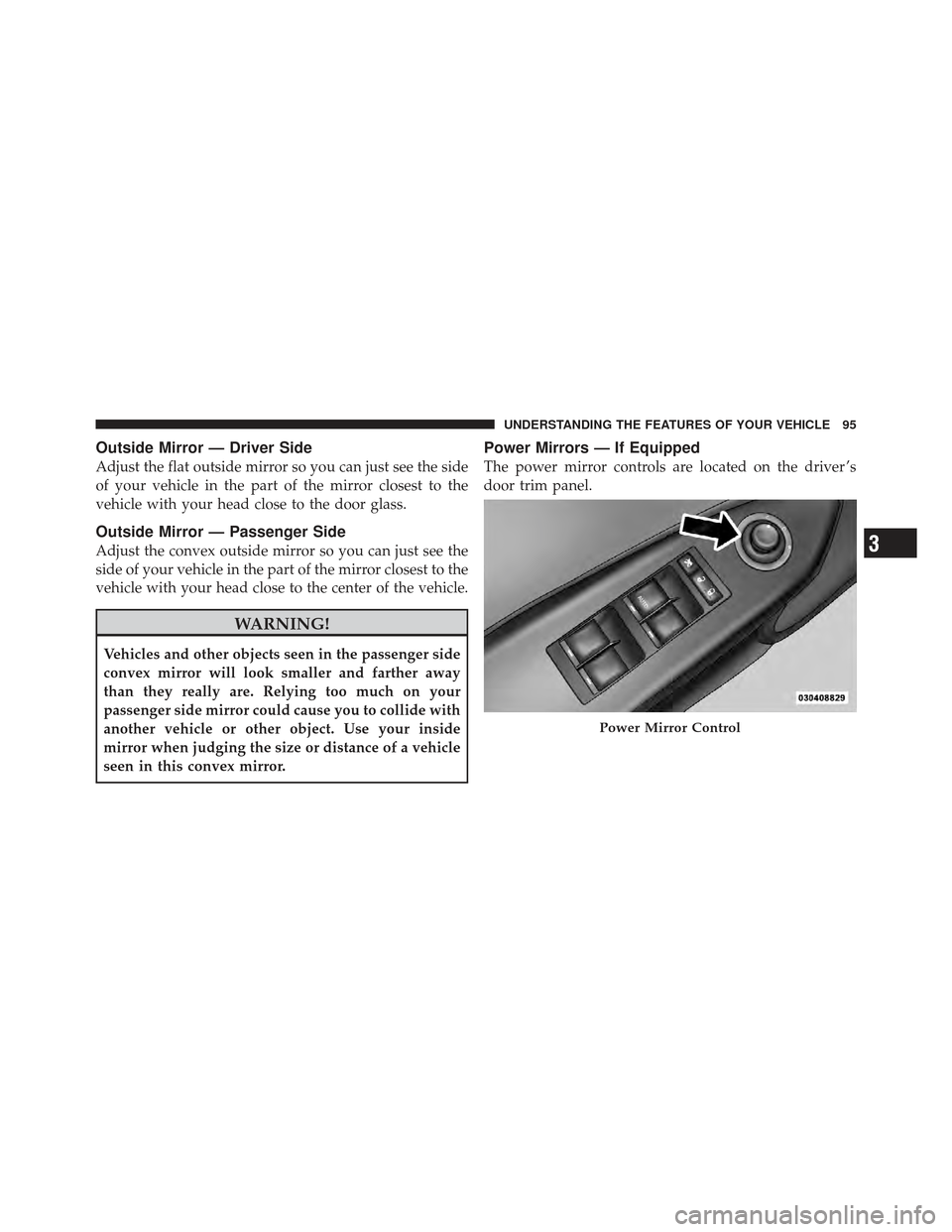

Outside Mirror — Driver Side
Adjust the flat outside mirror so you can just see the side
of your vehicle in the part of the mirror closest to the
vehicle with your head close to the door glass.
Outside Mirror — Passenger Side
Adjust the convex outside mirror so you can just see the
side of your vehicle in the part of the mirror closest to the
vehicle with your head close to the center of the vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Power Mirrors — If Equipped
The power mirror controls are located on the driver ’s
door trim panel.
Power Mirror Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

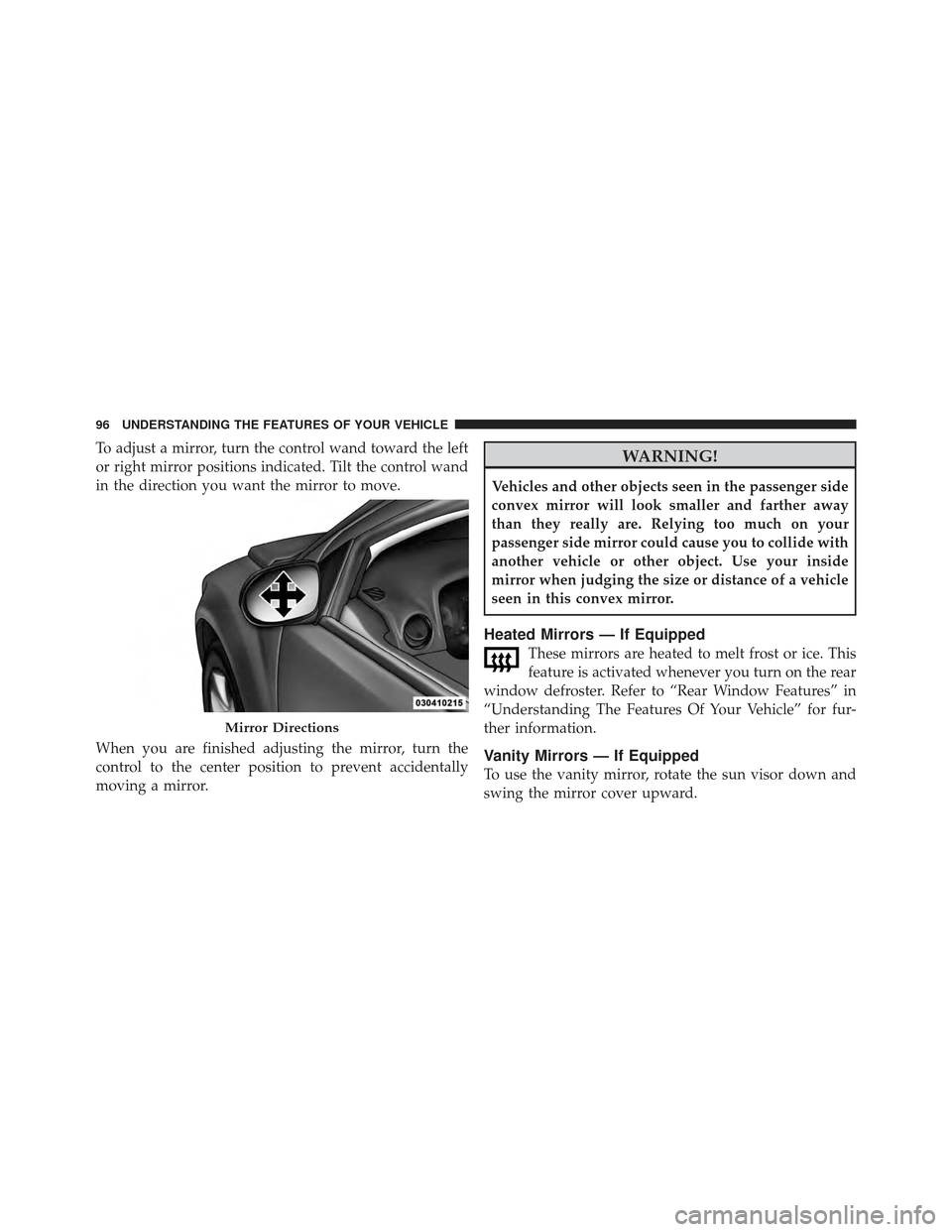

To adjust a mirror, turn the control wand toward the left
or right mirror positions indicated. Tilt the control wand
in the direction you want the mirror to move.
When you are finished adjusting the mirror, turn the
control to the center position to prevent accidentally
moving a mirror.WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.
Vanity Mirrors — If Equipped
To use the vanity mirror, rotate the sun visor down and
swing the mirror cover upward.
Mirror Directions
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

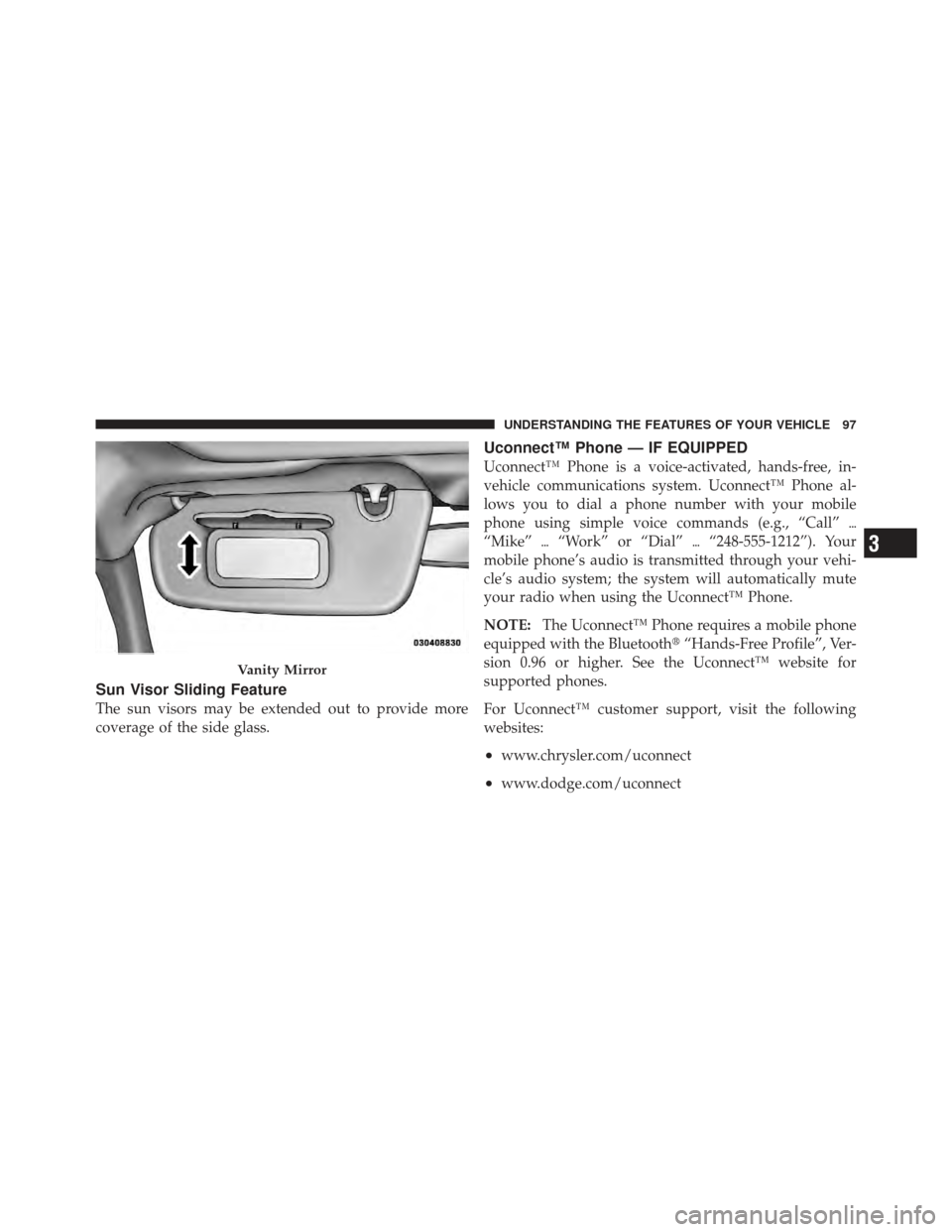

Sun Visor Sliding Feature
The sun visors may be extended out to provide more
coverage of the side glass.
Uconnect™ Phone — IF EQUIPPED
Uconnect™ Phone is a voice-activated, hands-free, in-
vehicle communications system. Uconnect™ Phone al-
lows you to dial a phone number with your mobile
phone using simple voice commands (e.g., “Call”\b
“Mike” \b“Work” or “Dial” \b“248-555-1212”). Your
mobile phone’s audio is transmitted through your vehi-
cle’s audio system; the system will automatically mute
your radio when using the Uconnect™ Phone.
NOTE: The Uconnect™ Phone requires a mobile phone
equipped with the Bluetooth “Hands-Free Profile”, Ver-
sion 0.96 or higher. See the Uconnect™ website for
supported phones.
For Uconnect™ customer support, visit the following
websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
Vanity Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

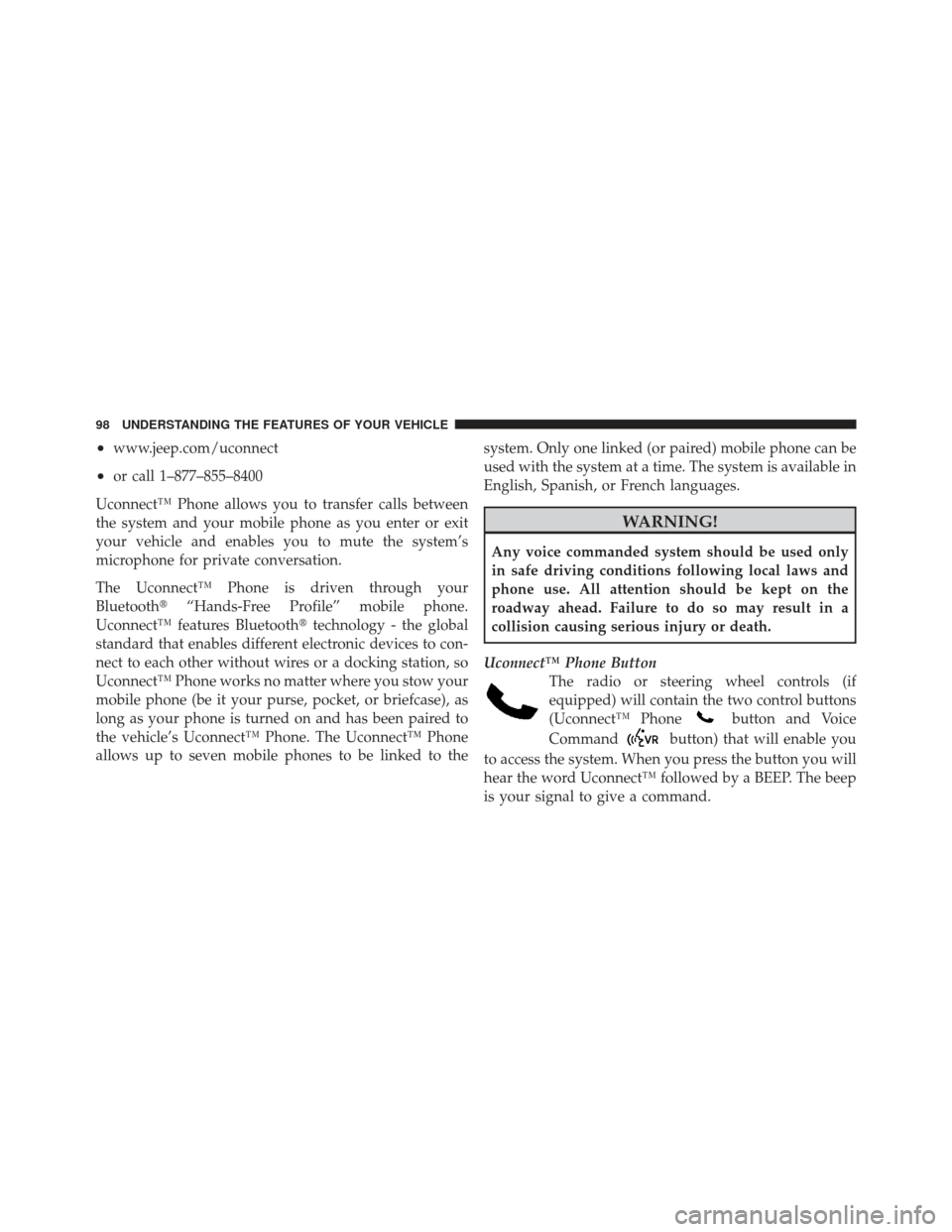

•www.jeep.com/uconnect
•or call 1–877–855–8400
Uconnect™ Phone allows you to transfer calls between
the system and your mobile phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.
The Uconnect™ Phone is driven through your
Bluetooth “Hands-Free Profile” mobile phone.
Uconnect™ features Bluetooth technology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
Uconnect™ Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or briefcase), as
long as your phone is turned on and has been paired to
the vehicle’s Uconnect™ Phone. The Uconnect™ Phone
allows up to seven mobile phones to be linked to the system. Only one linked (or paired) mobile phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.
WARNING!
Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in a
collision causing serious injury or death.
Uconnect™ Phone Button The radio or steering wheel controls (if
equipped) will contain the two control buttons
(Uconnect™ Phone
button and Voice
Command
button) that will enable you
to access the system. When you press the button you will
hear the word Uconnect™ followed by a BEEP. The beep
is your signal to give a command.
