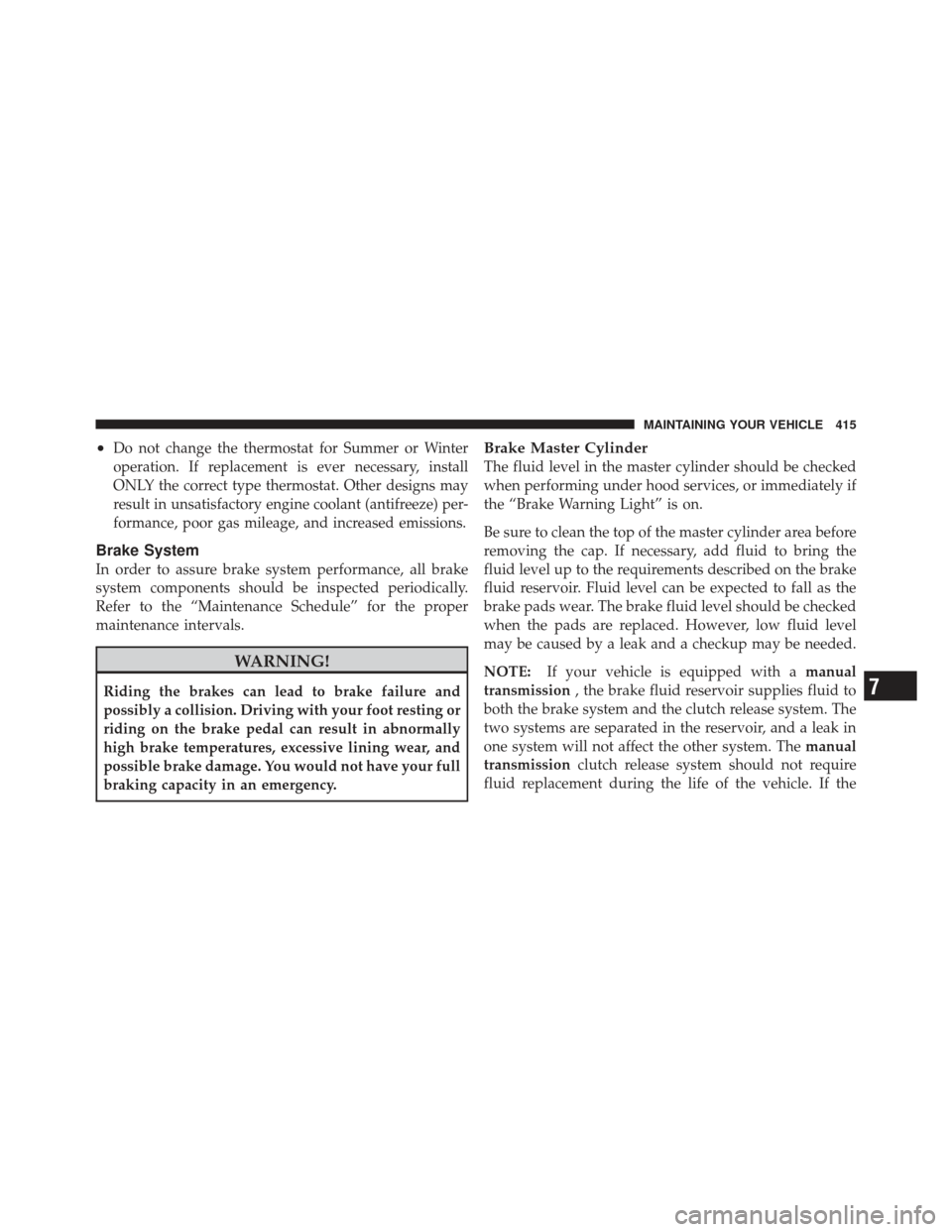

•Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install
ONLY the correct type thermostat. Other designs may
result in unsatisfactory engine coolant (antifreeze) per-
formance, poor gas mileage, and increased emissions.
Brake System
In order to assure brake system performance, all brake
system components should be inspected periodically.
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
WARNING!
Riding the brakes can lead to brake failure and
possibly a collision. Driving with your foot resting or
riding on the brake pedal can result in abnormally
high brake temperatures, excessive lining wear, and
possible brake damage. You would not have your full
braking capacity in an emergency.
Brake Master Cylinder
The fluid level in the master cylinder should be checked
when performing under hood services, or immediately if
the “Brake Warning Light” is on.
Be sure to clean the top of the master cylinder area before
removing the cap. If necessary, add fluid to bring the
fluid level up to the requirements described on the brake
fluid reservoir. Fluid level can be expected to fall as the
brake pads wear. The brake fluid level should be checked
when the pads are replaced. However, low fluid level
may be caused by a leak and a checkup may be needed.
NOTE:If your vehicle is equipped with a manual
transmission , the brake fluid reservoir supplies fluid to
both the brake system and the clutch release system. The
two systems are separated in the reservoir, and a leak in
one system will not affect the other system. The manual
transmission clutch release system should not require
fluid replacement during the life of the vehicle. If the
7
MAINTAINING YOUR VEHICLE 415

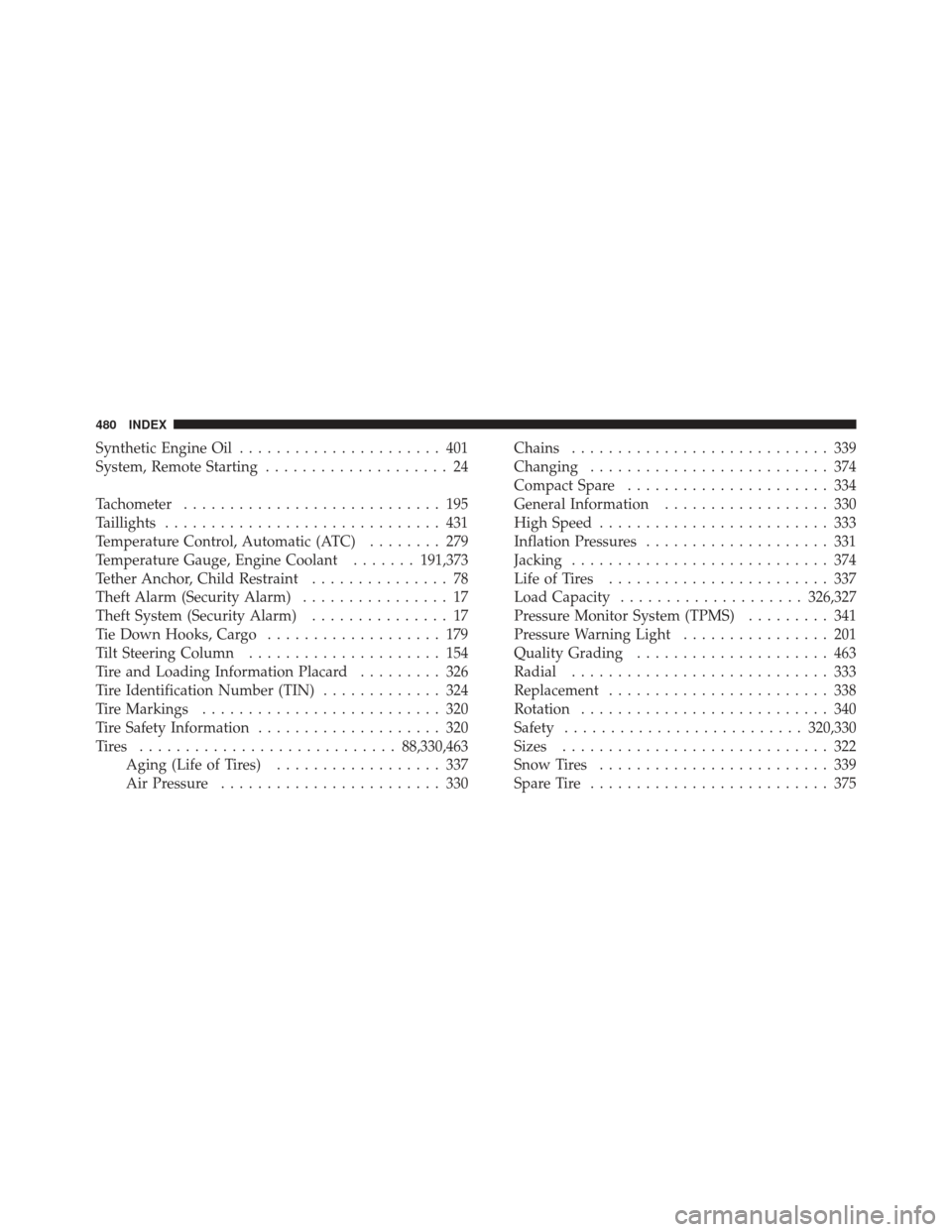

Synthetic Engine Oil...................... 401
System, Remote Starting .................... 24
Tachometer ............................ 195
Taillights .............................. 431
Temperature Control, Automatic (ATC) ........ 279
Temperature Gauge, Engine Coolant .......191,373
Tether Anchor, Child Restraint ............... 78
Theft Alarm (Security Alarm) ................ 17
Theft System (Security Alarm) ............... 17
Tie Down Hooks, Cargo ................... 179
Tilt Steering Column ..................... 154
Tire and Loading Information Placard ......... 326
Tire Identification Number (TIN) ............. 324
Tire Markings .......................... 320
Tire Safety Information .................... 320
Tires ............................ 88,330,463
Aging (Life of Tires) .................. 337
Air Pressure ........................ 330 Chains
............................ 339
Changing .......................... 374
Compact Spare ...................... 334
General Information .................. 330
High Speed ......................... 333
Inflation Pressures .................... 331
Jacking ............................ 374
Life of Tires ........................ 337
Load Capacity .................... 326,327
Pressure Monitor System (TPMS) ......... 341
Pressure Warning Light ................ 201
Quality Grading ..................... 463
Radial ............................ 333
Replacement ........................ 338
Rotation ........................... 340
Safety .......................... 320,330
Sizes ............................. 322
Snow Tires ......................... 339
Spare Tire .......................... 375
480 INDEX
