DODGE CALIBER 2012 1.G User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

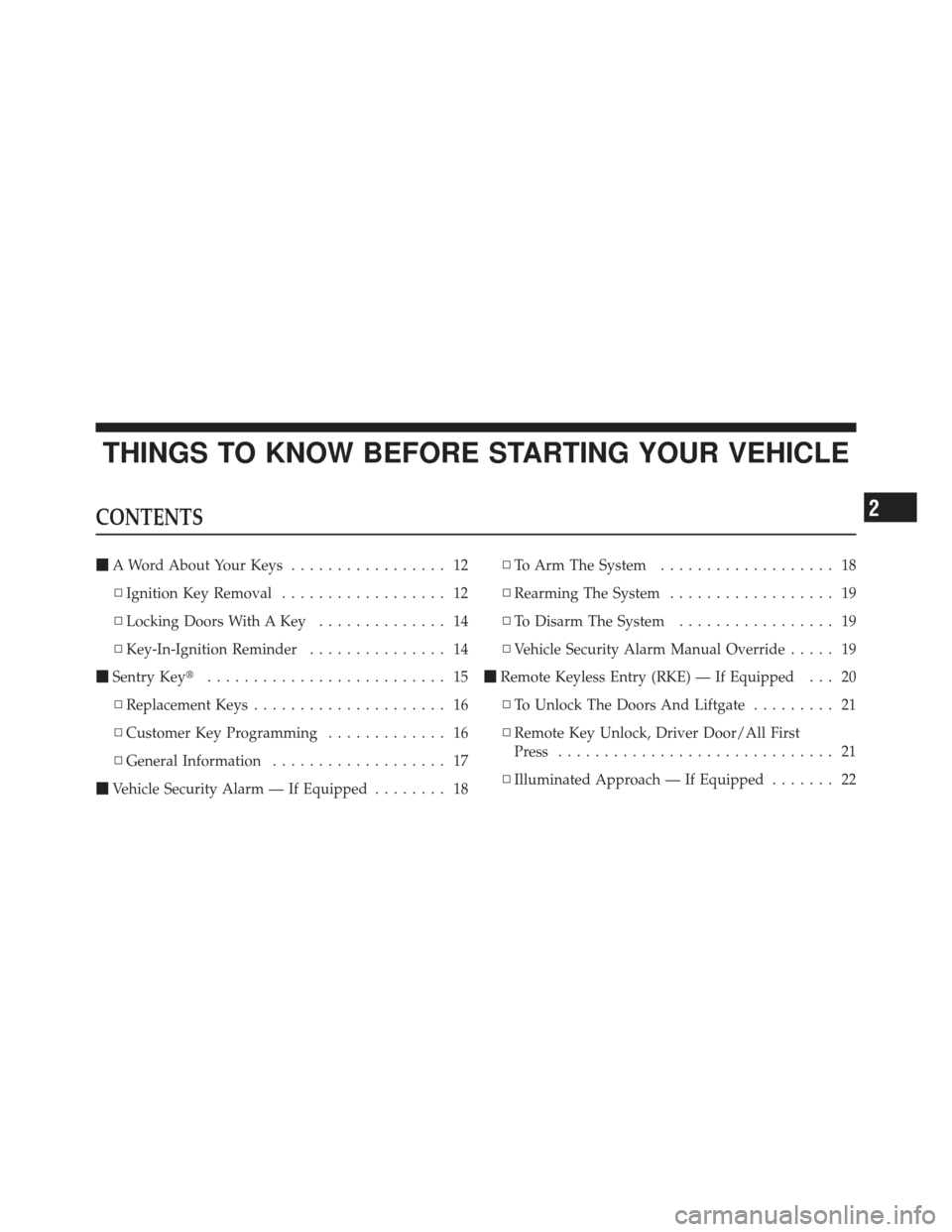

CONTENTS
A Word About Your Keys ................. 12
▫ Ignition Key Removal .................. 12
▫ Locking Doors With A Key .............. 14
▫ Key-In-Ignition Reminder ............... 14
 Sentry Key .......................... 15
▫ Replacement Keys ..................... 16
▫ Customer Key Programming ............. 16
▫ General Information ................... 17
 Vehicle Security Alarm — If Equipped ........ 18▫
To Arm The System ................... 18
▫ Rearming The System .................. 19
▫ To Disarm The System ................. 19
▫ Vehicle Security Alarm Manual Override ..... 19
 Remote Keyless Entry (RKE) — If Equipped . . . 20
▫ To Unlock The Doors And Liftgate ......... 21
▫ Remote Key Unlock, Driver Door/All First
Press .............................. 21
▫ Illuminated Approach — If Equipped ....... 22
2

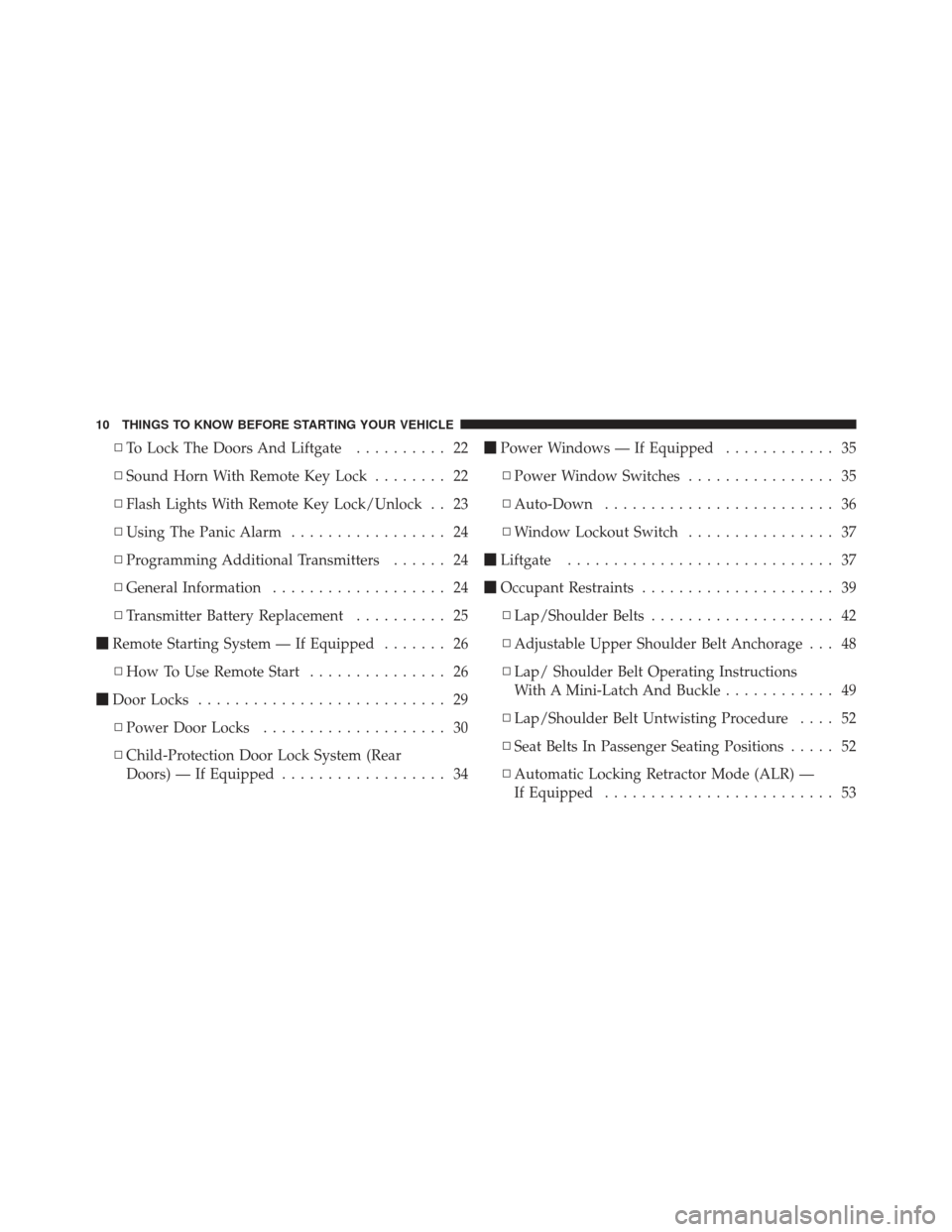

▫To Lock The Doors And Liftgate .......... 22
▫ Sound Horn With Remote Key Lock ........ 22
▫ Flash Lights With Remote Key Lock/Unlock . . 23
▫ Using The Panic Alarm ................. 24
▫ Programming Additional Transmitters ...... 24
▫ General Information ................... 24
▫ Transmitter Battery Replacement .......... 25
 Remote Starting System — If Equipped ....... 26
▫ How To Use Remote Start ............... 26
 Door Locks ........................... 29
▫ Power Door Locks .................... 30
▫ Child-Protection Door Lock System (Rear
Doors) — If Equipped .................. 34
Power Windows — If Equipped ............ 35
▫ Power Window Switches ................ 35
▫ Auto-Down ......................... 36
▫ Window Lockout Switch ................ 37
 Liftgate ............................. 37
 Occupant Restraints ..................... 39
▫ Lap/Shoulder Belts .................... 42
▫ Adjustable Upper Shoulder Belt Anchorage . . . 48
▫ Lap/ Shoulder Belt Operating Instructions
With A Mini-Latch And Buckle ............ 49
▫ Lap/Shoulder Belt Untwisting Procedure .... 52
▫ Seat Belts In Passenger Seating Positions ..... 52
▫ Automatic Locking Retractor Mode (ALR) —
If Equipped ......................... 53
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Energy Management Feature ............. 54
▫ Seat Belt Pretensioners ................. 54
▫ Supplemental Active Head Restraints (AHR)
— If Equipped ....................... 55
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 59
▫ Seat Belt Extender ..................... 61
▫ Seat Belts And Pregnant Women .......... 61
▫ Supplemental Restraint System (SRS) — Air
Bags .............................. 61
▫ Advanced Front Air Bag Features .......... 64
▫ Air Bag Deployment Sensors And Controls . . . 68 ▫
Event Data Recorder (EDR) .............. 75
▫ Child Restraints ...................... 76
 Engine Break-In Recommendations .......... 86
 Safety Tips ........................... 87
▫ Transporting Passengers ................ 87
▫ Exhaust Gas ......................... 88
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 89
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 91
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

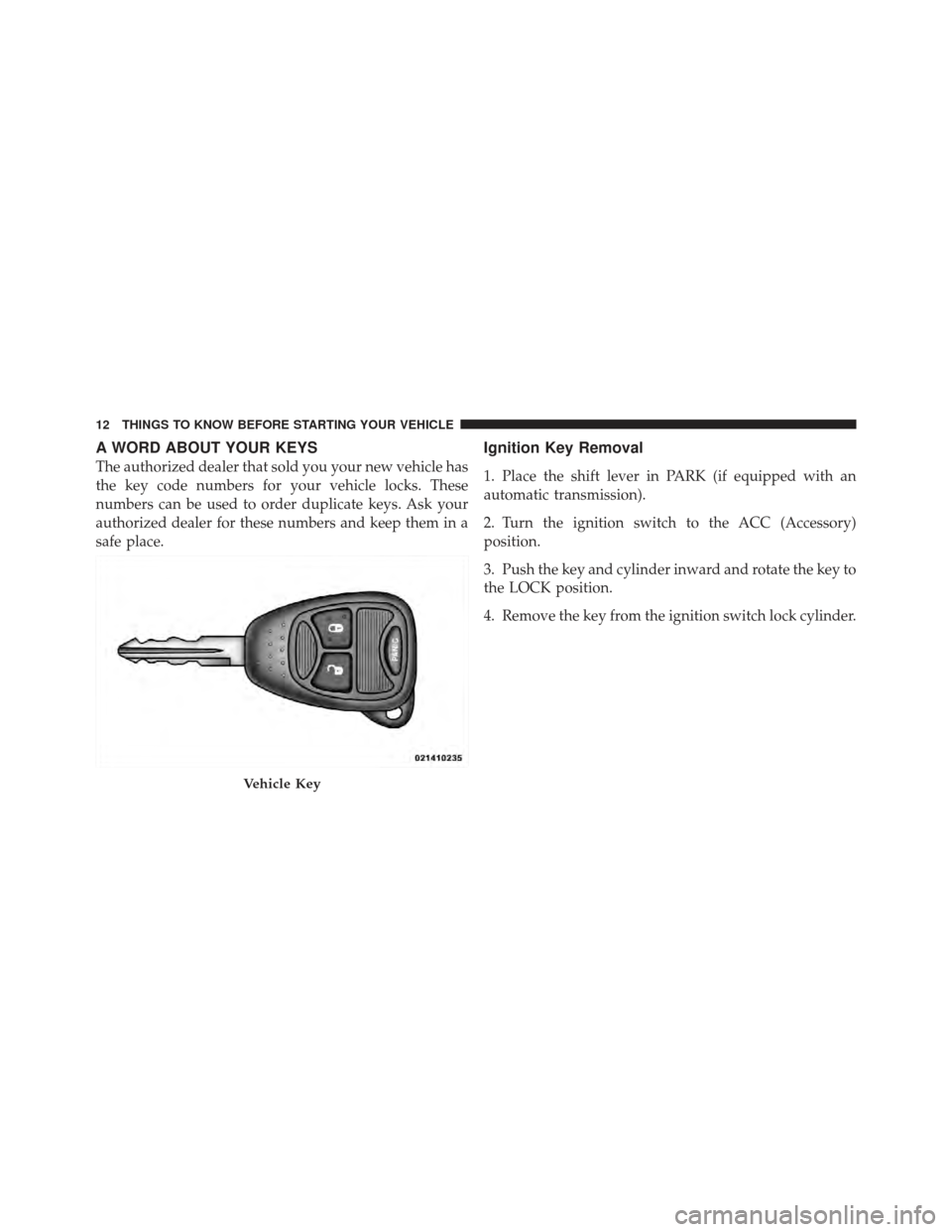

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys. Ask your
authorized dealer for these numbers and keep them in a
safe place.
Ignition Key Removal
1. Place the shift lever in PARK (if equipped with an
automatic transmission).
2. Turn the ignition switch to the ACC (Accessory)
position.
3. Push the key and cylinder inward and rotate the key to
the LOCK position.
4. Remove the key from the ignition switch lock cylinder.
Vehicle Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:If you try to remove the key before you place the
shift lever in PARK, the key may become trapped tem-
porarily in the ignition switch cylinder. If this occurs,
place the shift lever in PARK, rotate the key to the right slightly, then remove the key as described. If a malfunc-
tion occurs, the system will trap the key in the ignition
cylinder to warn you that this safety feature is inoperable.
The engine can be started and stopped but the key cannot
be removed until you obtain service.
WARNING!
•Before exiting a vehicle, always apply the parking
brake, shift the transmission into PARK, and re-
move the key fob from the ignition. When leaving
the vehicle, always lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.

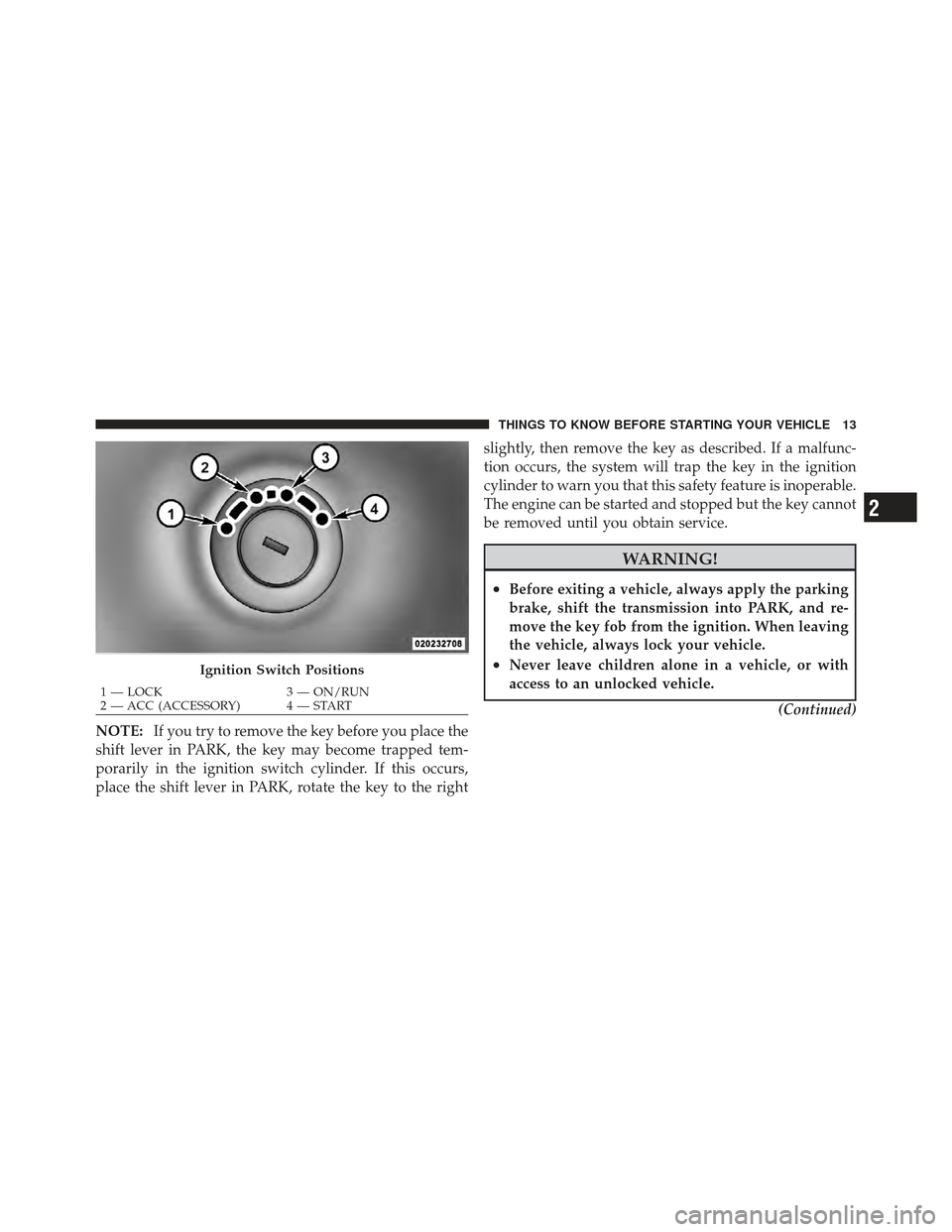

(Continued)Ignition Switch Positions
1 — LOCK3 — ON/RUN
2 — ACC (ACCESSORY) 4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

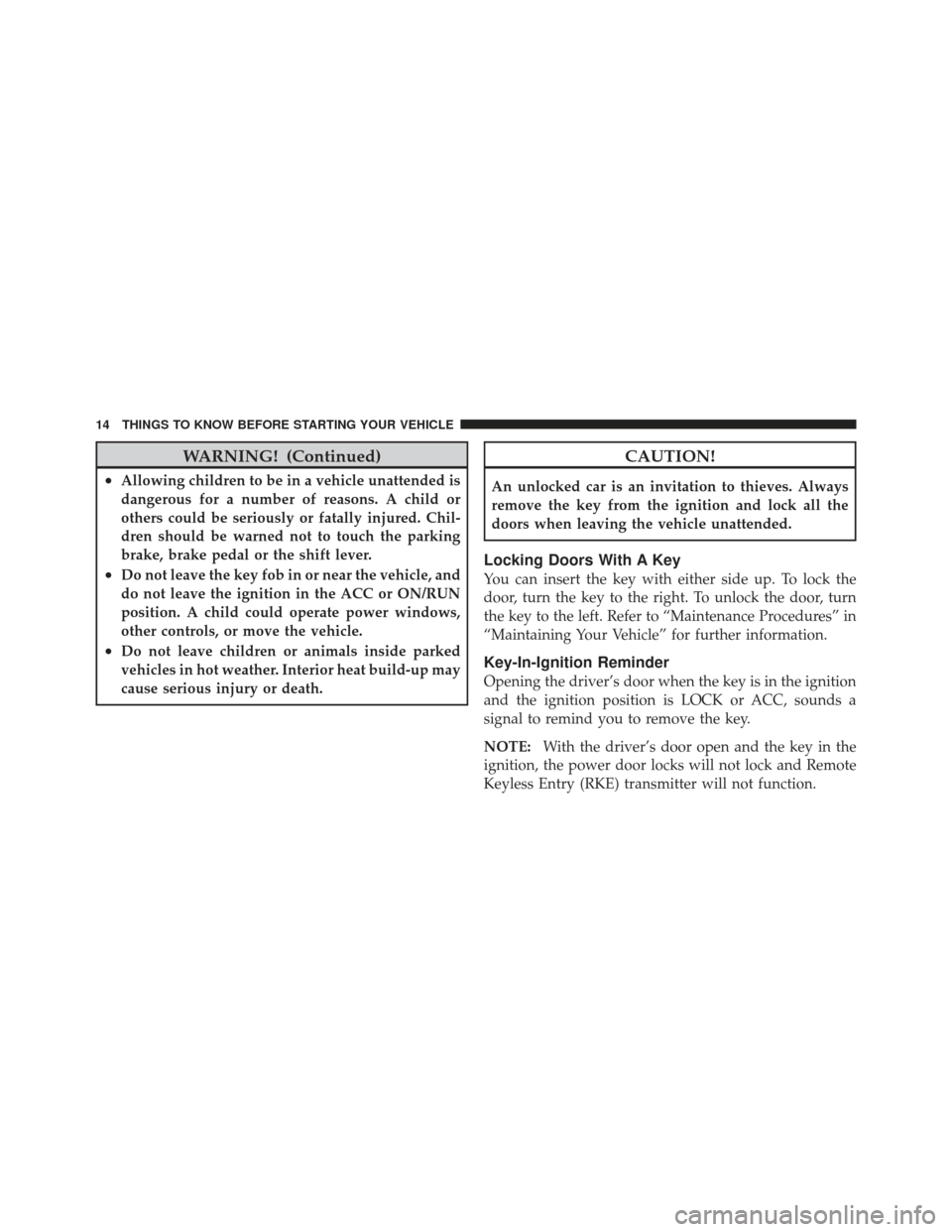

WARNING! (Continued)
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•Do not leave the key fob in or near the vehicle, and
do not leave the ignition in the ACC or ON/RUN
position. A child could operate power windows,
other controls, or move the vehicle.
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all the
doors when leaving the vehicle unattended.
Locking Doors With A Key
You can insert the key with either side up. To lock the
door, turn the key to the right. To unlock the door, turn
the key to the left. Refer to “Maintenance Procedures” in
“Maintaining Your Vehicle” for further information.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition position is LOCK or ACC, sounds a
signal to remind you to remove the key.
NOTE:With the driver’s door open and the key in the
ignition, the power door locks will not lock and Remote
Keyless Entry (RKE) transmitter will not function.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

SENTRY KEY
The Sentry KeyImmobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
NOTE: A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!
The Sentry Key
Immobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

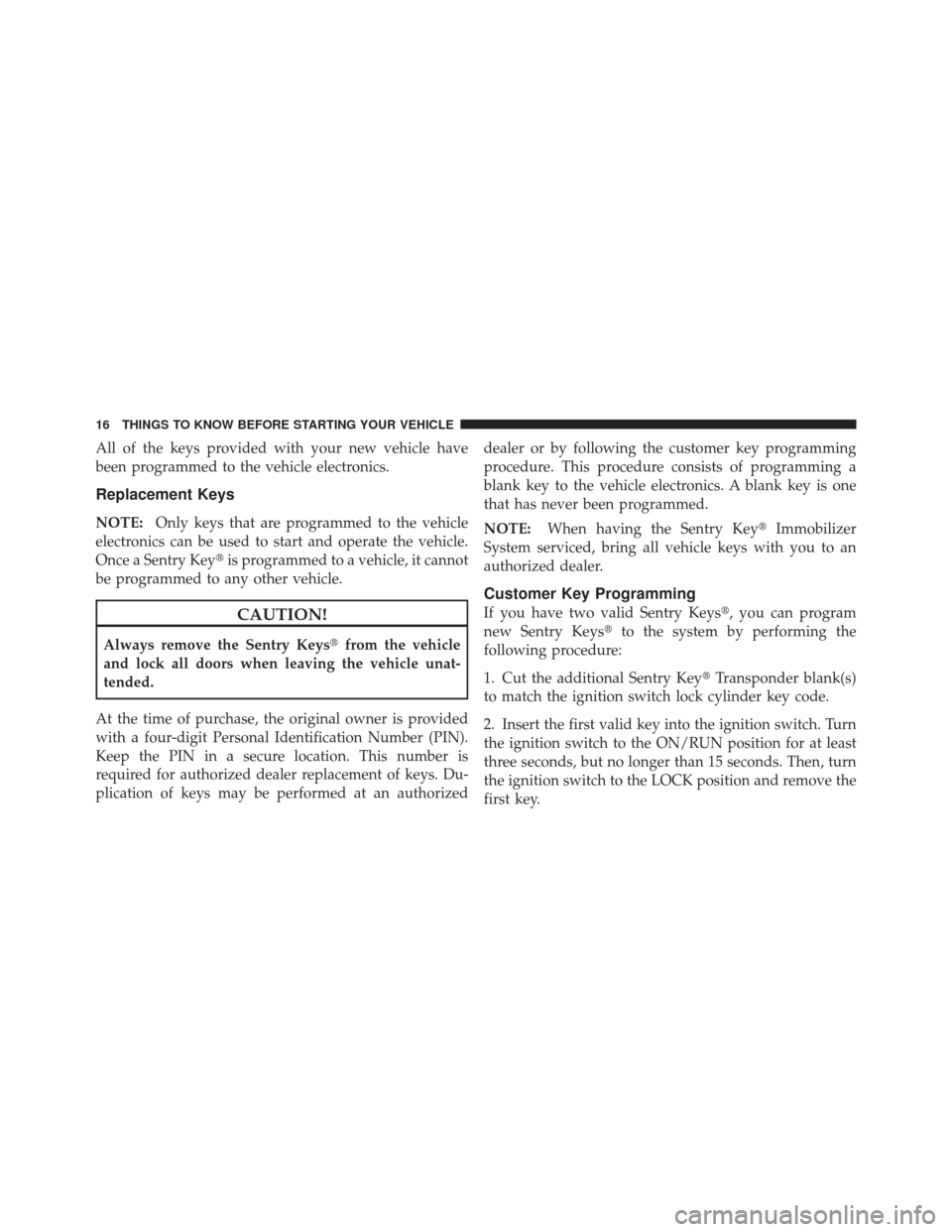

All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key is programmed to a vehicle, it cannot
be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keys from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.
NOTE:
When having the Sentry Key Immobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
Customer Key Programming
If you have two valid Sentry Keys , you can program
new Sentry Keys to the system by performing the
following procedure:
1. Cut the additional Sentry Key Transponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON/RUN position for at least
three seconds, but no longer than 15 seconds. Then, turn
the ignition switch to the LOCK position and remove the
first key.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

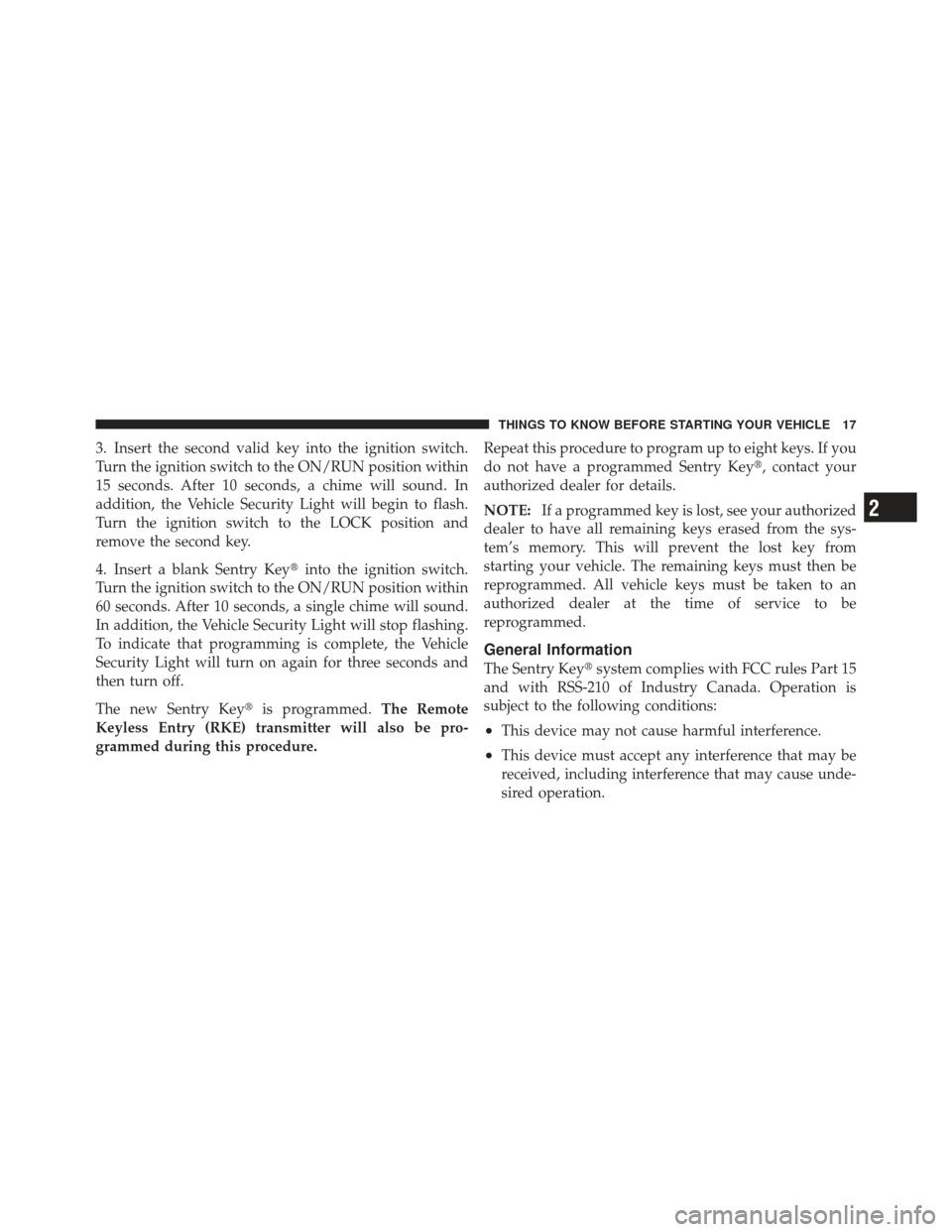

3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON/RUN position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key.
4. Insert a blank Sentry Keyinto the ignition switch.
Turn the ignition switch to the ON/RUN position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.
The new Sentry Key is programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure. Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE:
If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
General Information
The Sentry Key system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

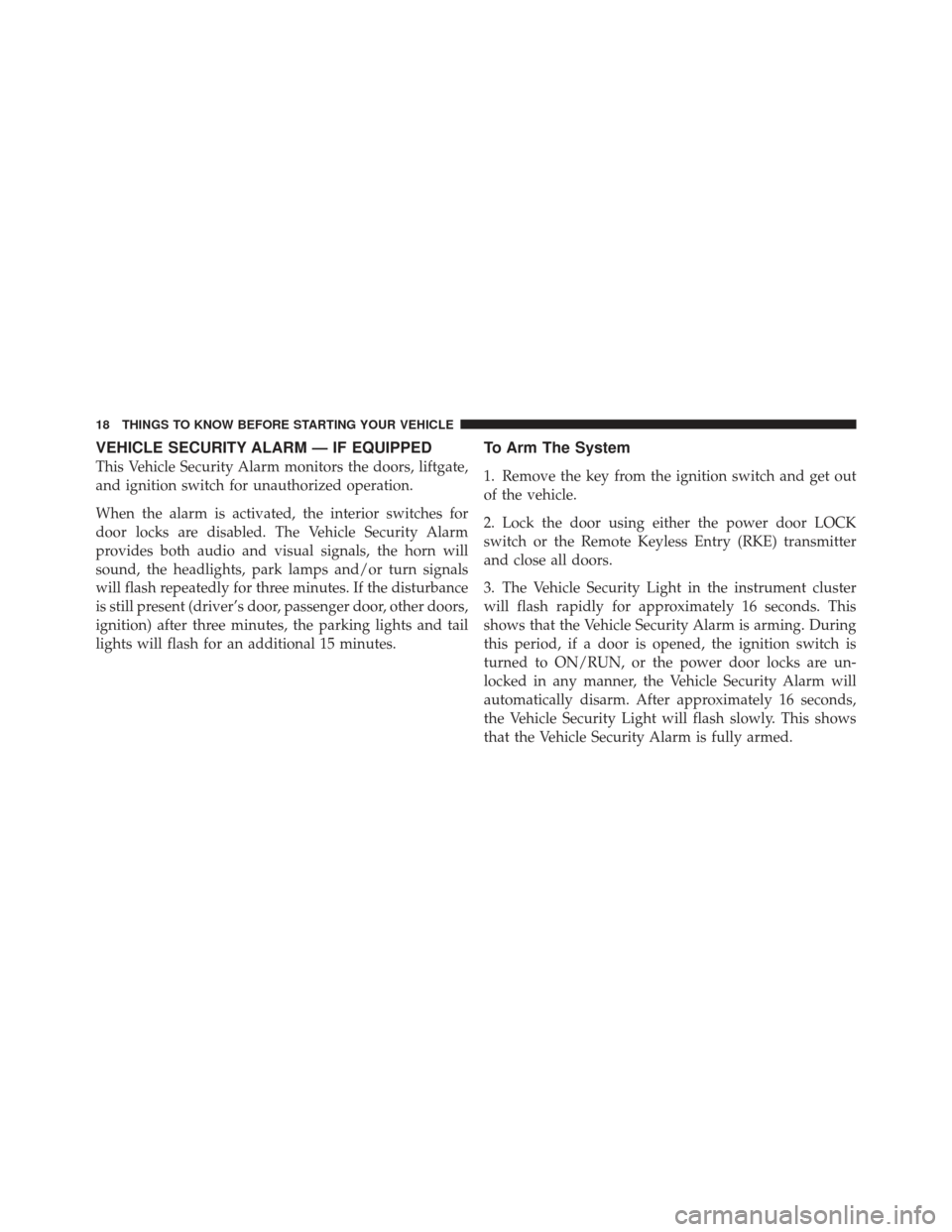

VEHICLE SECURITY ALARM — IF EQUIPPED
This Vehicle Security Alarm monitors the doors, liftgate,
and ignition switch for unauthorized operation.
When the alarm is activated, the interior switches for
door locks are disabled. The Vehicle Security Alarm
provides both audio and visual signals, the horn will
sound, the headlights, park lamps and/or turn signals
will flash repeatedly for three minutes. If the disturbance
is still present (driver’s door, passenger door, other doors,
ignition) after three minutes, the parking lights and tail
lights will flash for an additional 15 minutes.
To Arm The System
1. Remove the key from the ignition switch and get out
of the vehicle.
2. Lock the door using either the power door LOCK
switch or the Remote Keyless Entry (RKE) transmitter
and close all doors.
3. The Vehicle Security Light in the instrument cluster
will flash rapidly for approximately 16 seconds. This
shows that the Vehicle Security Alarm is arming. During
this period, if a door is opened, the ignition switch is
turned to ON/RUN, or the power door locks are un-
locked in any manner, the Vehicle Security Alarm will
automatically disarm. After approximately 16 seconds,
the Vehicle Security Light will flash slowly. This shows
that the Vehicle Security Alarm is fully armed.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
