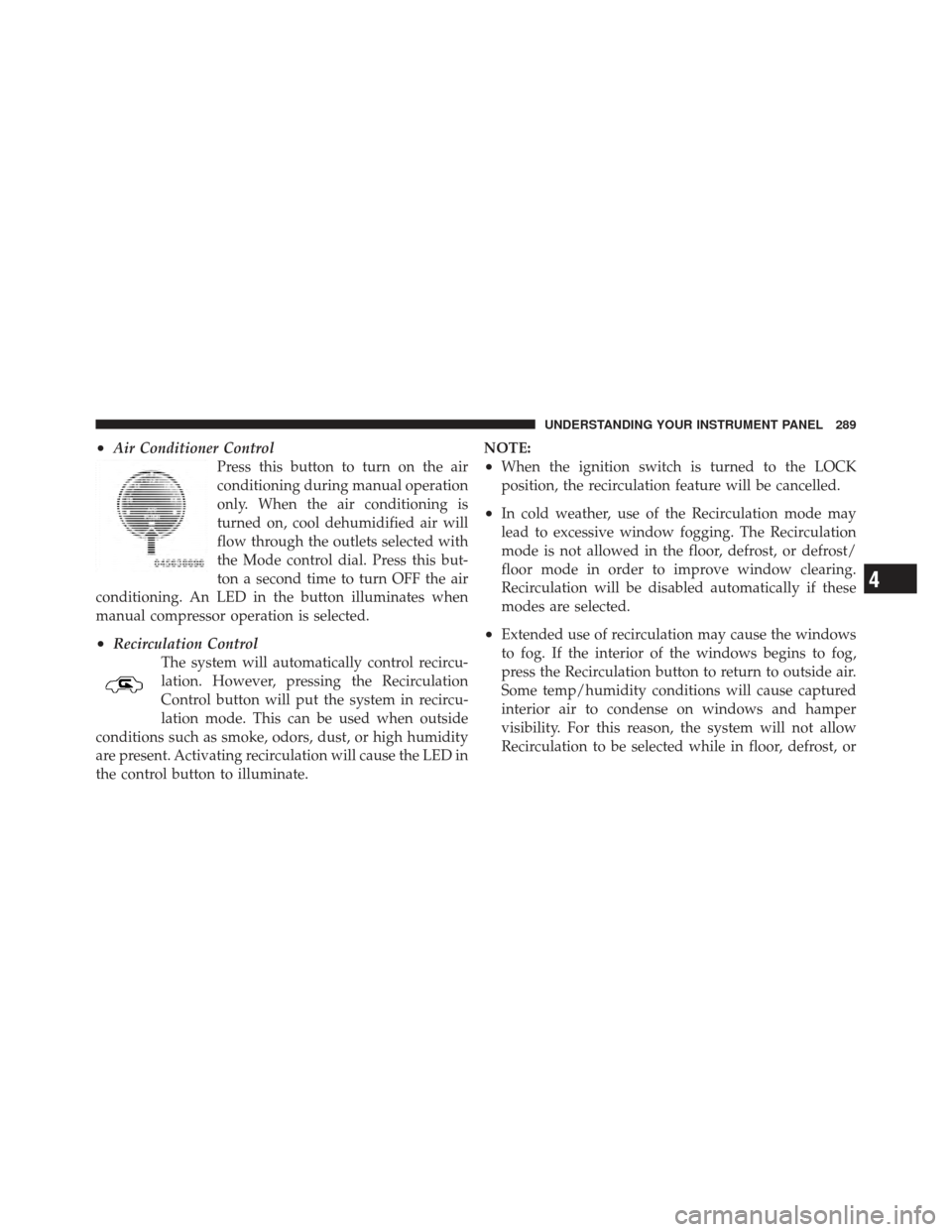

•Air Conditioner ControlPress this button to turn on the air
conditioning during manual operation
only. When the air conditioning is
turned on, cool dehumidified air will
flow through the outlets selected with
the Mode control dial. Press this but-
ton a second time to turn OFF the air
conditioning. An LED in the button illuminates when
manual compressor operation is selected.
•Recirculation Control The system will automatically control recircu-
lation. However, pressing the Recirculation
Control button will put the system in recircu-
lation mode. This can be used when outside
conditions such as smoke, odors, dust, or high humidity
are present. Activating recirculation will cause the LED in
the control button to illuminate. NOTE:
•When the ignition switch is turned to the LOCK
position, the recirculation feature will be cancelled.
•In cold weather, use of the Recirculation mode may
lead to excessive window fogging. The Recirculation
mode is not allowed in the floor, defrost, or defrost/
floor mode in order to improve window clearing.
Recirculation will be disabled automatically if these
modes are selected.
•Extended use of recirculation may cause the windows
to fog. If the interior of the windows begins to fog,
press the Recirculation button to return to outside air.
Some temp/humidity conditions will cause captured
interior air to condense on windows and hamper
visibility. For this reason, the system will not allow
Recirculation to be selected while in floor, defrost, or
4
UNDERSTANDING YOUR INSTRUMENT PANEL 289

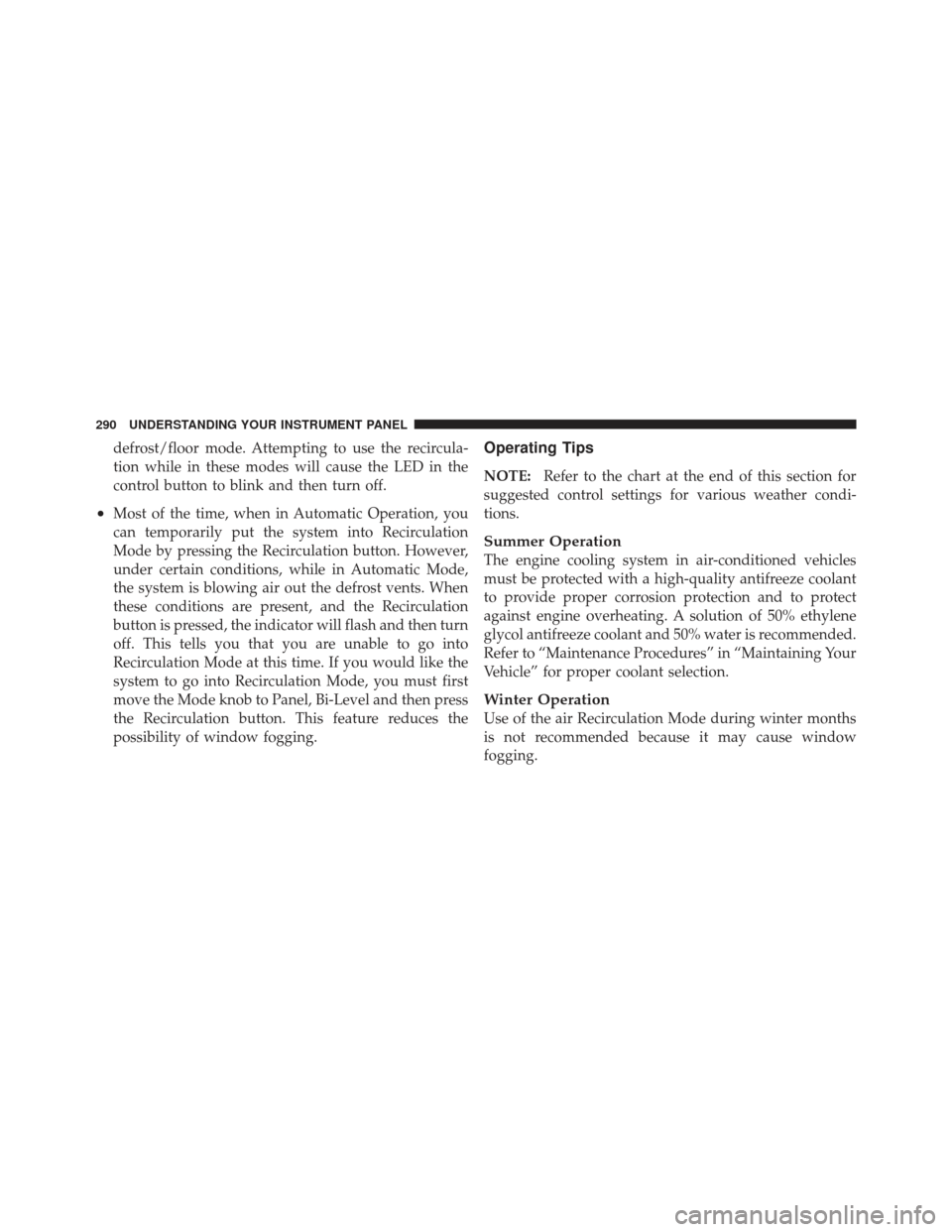

defrost/floor mode. Attempting to use the recircula-
tion while in these modes will cause the LED in the
control button to blink and then turn off.
•Most of the time, when in Automatic Operation, you
can temporarily put the system into Recirculation
Mode by pressing the Recirculation button. However,
under certain conditions, while in Automatic Mode,
the system is blowing air out the defrost vents. When
these conditions are present, and the Recirculation
button is pressed, the indicator will flash and then turn
off. This tells you that you are unable to go into
Recirculation Mode at this time. If you would like the
system to go into Recirculation Mode, you must first
move the Mode knob to Panel, Bi-Level and then press
the Recirculation button. This feature reduces the
possibility of window fogging.
Operating Tips
NOTE:Refer to the chart at the end of this section for
suggested control settings for various weather condi-
tions.
Summer Operation
The engine cooling system in air-conditioned vehicles
must be protected with a high-quality antifreeze coolant
to provide proper corrosion protection and to protect
against engine overheating. A solution of 50% ethylene
glycol antifreeze coolant and 50% water is recommended.
Refer to “Maintenance Procedures” in “Maintaining Your
Vehicle” for proper coolant selection.
Winter Operation
Use of the air Recirculation Mode during winter months
is not recommended because it may cause window
fogging.
290 UNDERSTANDING YOUR INSTRUMENT PANEL

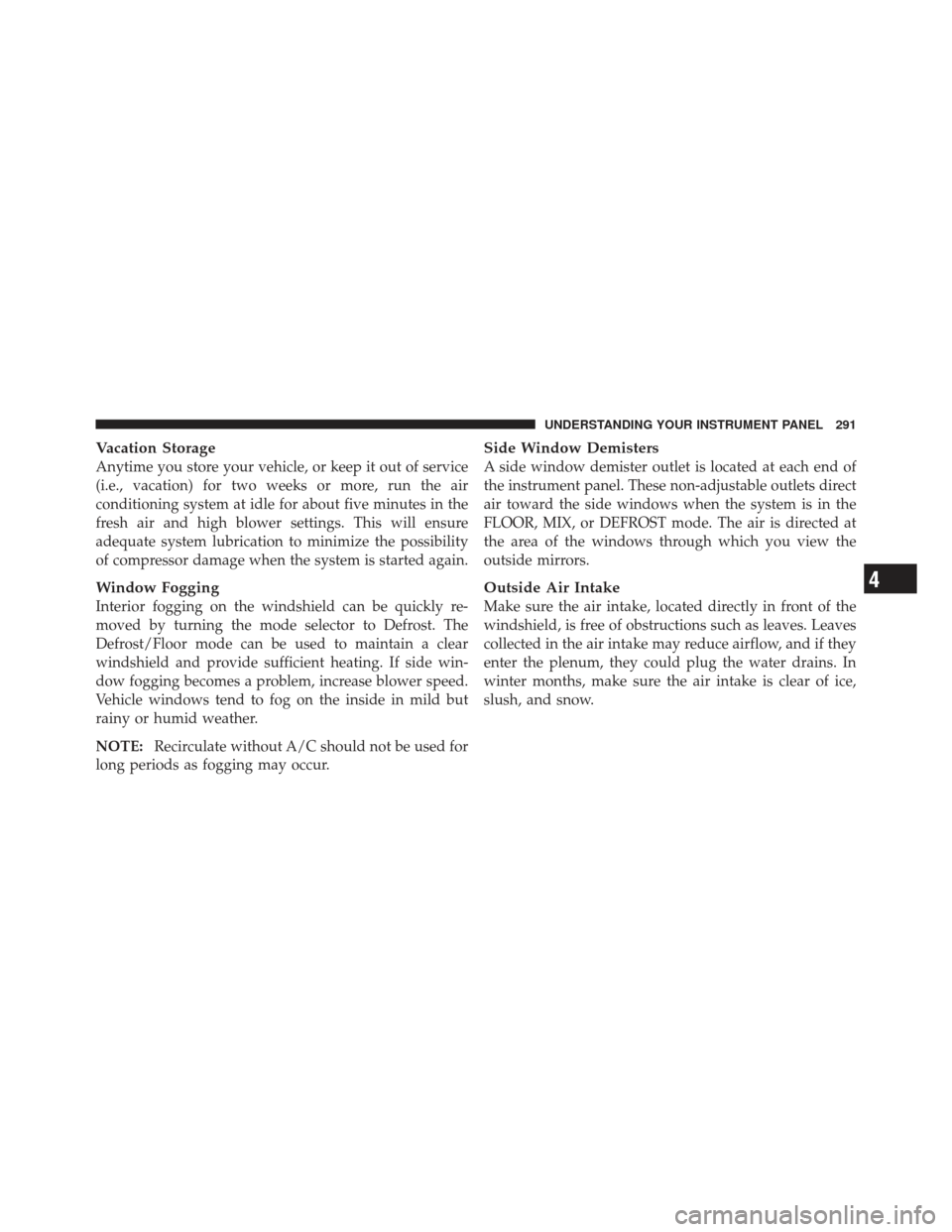

Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower settings. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
Window Fogging
Interior fogging on the windshield can be quickly re-
moved by turning the mode selector to Defrost. The
Defrost/Floor mode can be used to maintain a clear
windshield and provide sufficient heating. If side win-
dow fogging becomes a problem, increase blower speed.
Vehicle windows tend to fog on the inside in mild but
rainy or humid weather.
NOTE:Recirculate without A/C should not be used for
long periods as fogging may occur.
Side Window Demisters
A side window demister outlet is located at each end of
the instrument panel. These non-adjustable outlets direct
air toward the side windows when the system is in the
FLOOR, MIX, or DEFROST mode. The air is directed at
the area of the windows through which you view the
outside mirrors.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 291

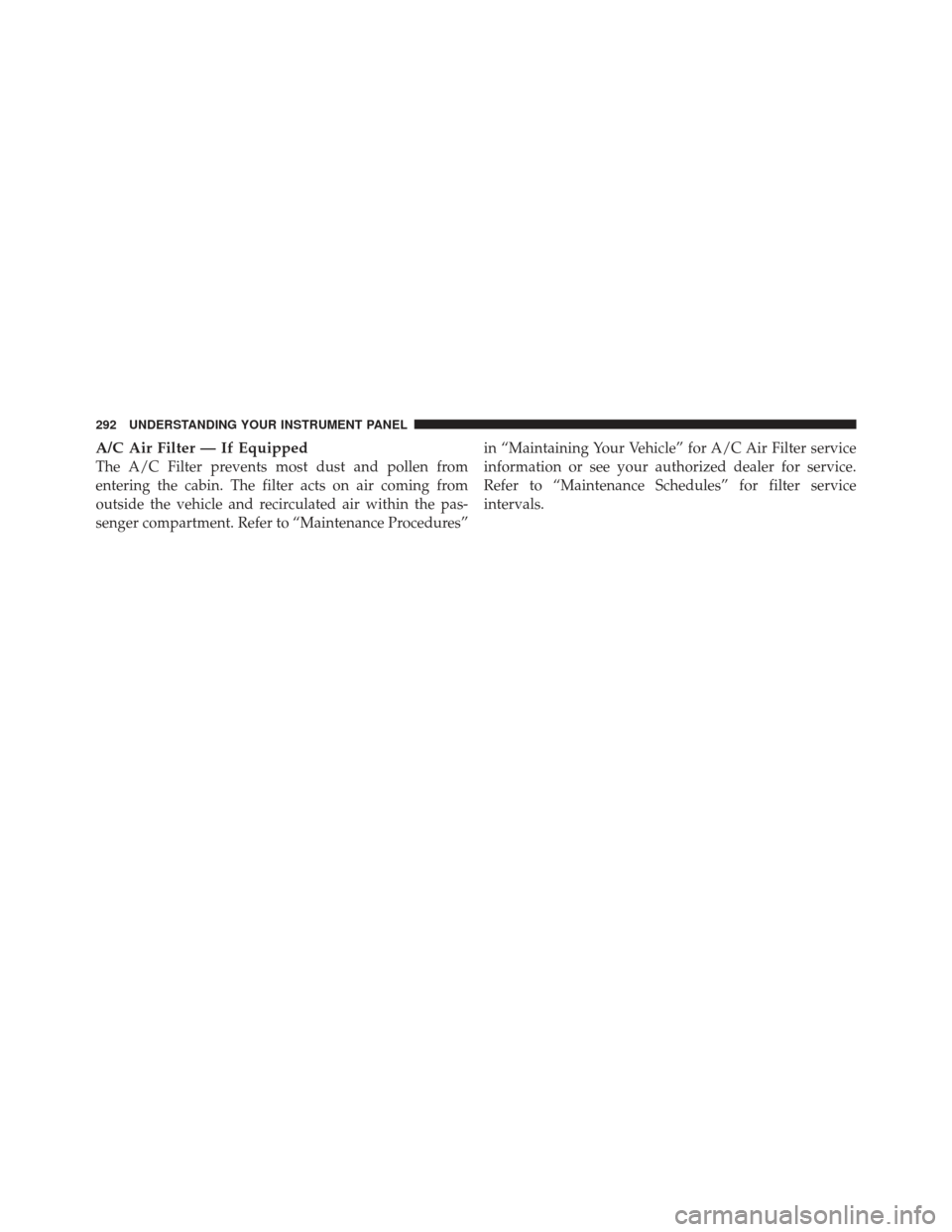

A/C Air Filter — If Equipped
The A/C Filter prevents most dust and pollen from
entering the cabin. The filter acts on air coming from
outside the vehicle and recirculated air within the pas-
senger compartment. Refer to “Maintenance Procedures”in “Maintaining Your Vehicle” for A/C Air Filter service
information or see your authorized dealer for service.
Refer to “Maintenance Schedules” for filter service
intervals.
292 UNDERSTANDING YOUR INSTRUMENT PANEL

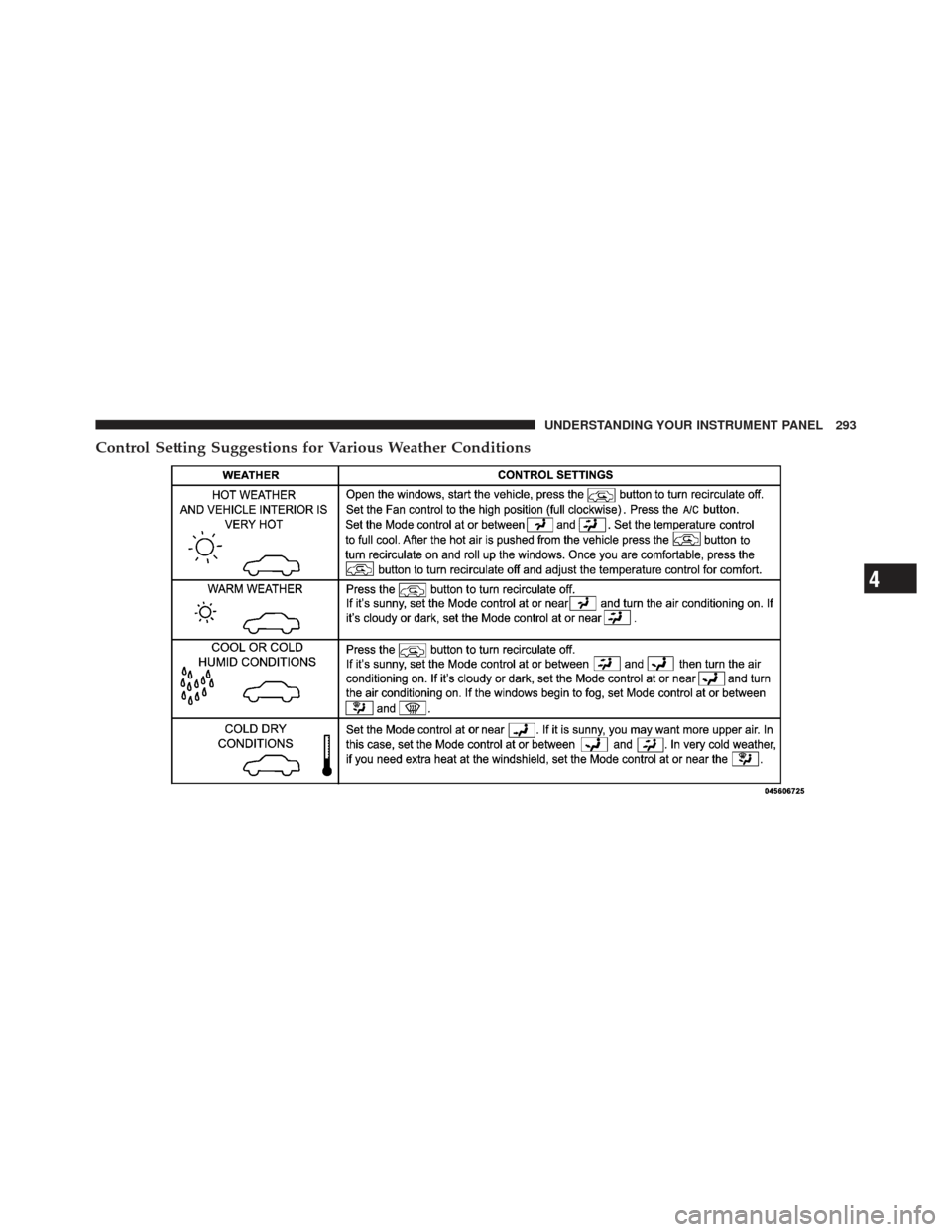

Control Setting Suggestions for Various Weather Conditions
4
UNDERSTANDING YOUR INSTRUMENT PANEL 293

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 299
▫ Manual Transmission – If Equipped ....... 299
▫ Automatic Transmission – If Equipped ..... 299
▫ Normal Starting ..................... 300
▫ Extreme Cold Weather (Below –20°F Or
29°C) ............................ 301
▫ If Engine Fails To Start ................ 301
▫ After Starting ....................... 301
 Engine Block Heater — If Equipped ........ 302
Manual Transmission — If Equipped ........ 302
▫ Five–Speed Manual Transmission ......... 302
▫ Recommended Shift Speeds ............. 303
▫ Downshifting ....................... 304
 Automatic Transmission — If Equipped ...... 304
▫ Key Ignition Park Interlock ............. 306
▫ Brake/Transmission Shift Interlock System . . 306
▫ Gear Ranges ........................ 307
 AutoStick — If Equipped ............... 312
5

▫Operation ......................... 312
▫ General Information .................. 313
 Driving On Slippery Surfaces ............. 314
▫ Acceleration ........................ 314
▫ Traction ........................... 314
 Driving Through Water ................. 315
▫ Flowing/Rising Water ................. 315
▫ Shallow Standing Water ............... 315
 Power Steering ....................... 317
▫ Power Steering Fluid Check ............. 318
 Parking Brake ........................ 319
 Brake System ........................ 321
▫ Anti-Lock Brake System (ABS) ........... 322
Electronic Brake Control System ........... 324
▫ Anti-Lock Brake System (ABS) ........... 325
▫ Brake Assist System (BAS) .............. 325
▫ Traction Control System (TCS) ........... 326
▫ Hill Start Assist (HSA) – Manual
Transmission Only ................... 326
▫ Electronic Stability Control (ESC) ......... 328
▫ ESC Activation/Malfunction Indicator Light
And ESC Off Indicator Light ............ 330
 Tire Safety Information ................. 331
▫ Tire Markings ....................... 331
▫ Tire Identification Number (TIN) ......... 335
▫ Tire Terminology And Definitions ......... 336
▫ Tire Loading And Tire Pressure .......... 337
296 STARTING AND OPERATING

Tires — General Information ............. 341
▫ Tire Pressure ....................... 341
▫ Tire Inflation Pressures ................ 342
▫ Tire Pressures For High Speed Operation . . . 343
▫ Radial Ply Tires ..................... 344
▫ Spare Tire Matching Original Equipped Tire
And Wheel – If Equipped .............. 344
▫ Compact Spare Tire – If Equipped ........ 345
▫ Full Size Spare – If Equipped ............ 346
▫ Limited-Use Spare – If Equipped ......... 346
▫ Tire Spinning ....................... 347
▫ Tread Wear Indicators ................. 348
▫ Life Of Tire ........................ 348 ▫
Replacement Tires .................... 349
 Tire Chains .......................... 351
 Snow Tires .......................... 351
 Tire Rotation Recommendations ........... 351
 Tire Pressure Monitoring System (TPMS) ..... 353
▫ Base System ........................ 355
▫ Premium System – If Equipped .......... 358
▫ General Information .................. 362
 Fuel Requirements ..................... 363
▫ 2.0L And 2.4L Engine ................. 363
▫ Reformulated Gasoline ................ 363
▫ Gasoline/Oxygenate Blends ............. 364
▫ E-85 Usage In Non-Flex Fuel Vehicles ...... 364
5
STARTING AND OPERATING 297

▫MMT In Gasoline .................... 365
▫ Materials Added To Fuel ............... 365
▫ Fuel System Cautions ................. 366
▫ Carbon Monoxide Warnings ............ 367
 Adding Fuel ......................... 367
▫ Fuel Filler Cap (Gas Cap) .............. 367
▫ Loose Fuel Filler Cap Message ........... 369
 Vehicle Loading ...................... 369
▫ Vehicle Certification Label .............. 370
 Trailer Towing ........................ 372
▫ Common Towing Definitions ............ 372▫
Installing A Trailer Hitch ............... 374
▫ Trailer Hitch Classification .............. 375
▫ Trailer Towing Weights (Maximum Trailer
Weight Ratings) ..................... 376
▫ Trailer And Tongue Weight ............. 377
▫ Towing Requirements ................. 378
▫ Towing Tips ........................ 383
 Recreational Towing (Behind Motorhome,
Etc.) ................................ 385
▫ Towing This Vehicle Behind Another
Vehicle ............................ 385
298 STARTING AND OPERATING
