Page 223 of 506

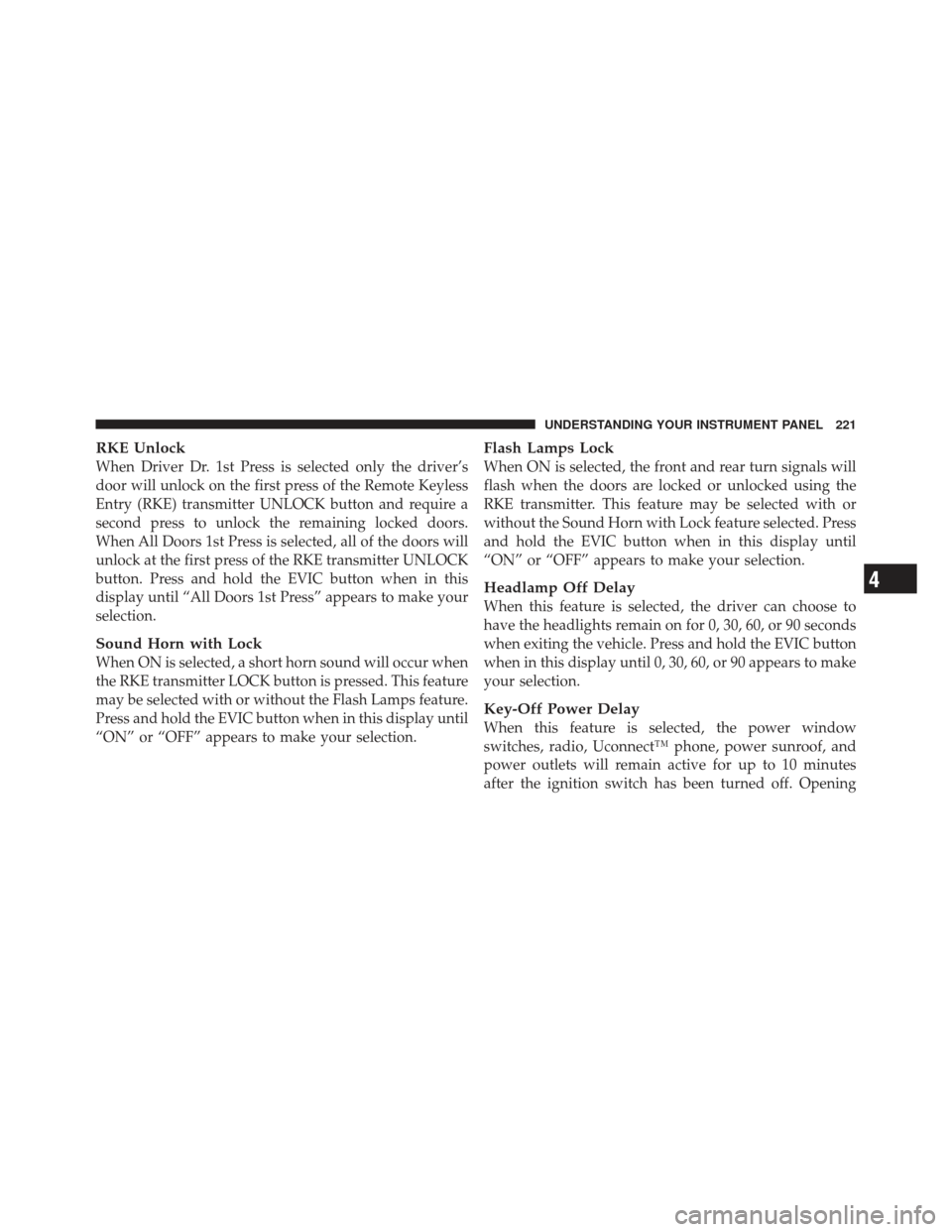

RKE Unlock
When Driver Dr. 1st Press is selected only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) transmitter UNLOCK button and require a
second press to unlock the remaining locked doors.
When All Doors 1st Press is selected, all of the doors will
unlock at the first press of the RKE transmitter UNLOCK
button. Press and hold the EVIC button when in this
display until “All Doors 1st Press” appears to make your
selection.
Sound Horn with Lock
When ON is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pressed. This feature
may be selected with or without the Flash Lamps feature.
Press and hold the EVIC button when in this display until
“ON” or “OFF” appears to make your selection.
Flash Lamps Lock
When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked using the
RKE transmitter. This feature may be selected with or
without the Sound Horn with Lock feature selected. Press
and hold the EVIC button when in this display until
“ON” or “OFF” appears to make your selection.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. Press and hold the EVIC button
when in this display until 0, 30, 60, or 90 appears to make
your selection.
Key-Off Power Delay
When this feature is selected, the power window
switches, radio, Uconnect™ phone, power sunroof, and
power outlets will remain active for up to 10 minutes
after the ignition switch has been turned off. Opening
4
UNDERSTANDING YOUR INSTRUMENT PANEL 221

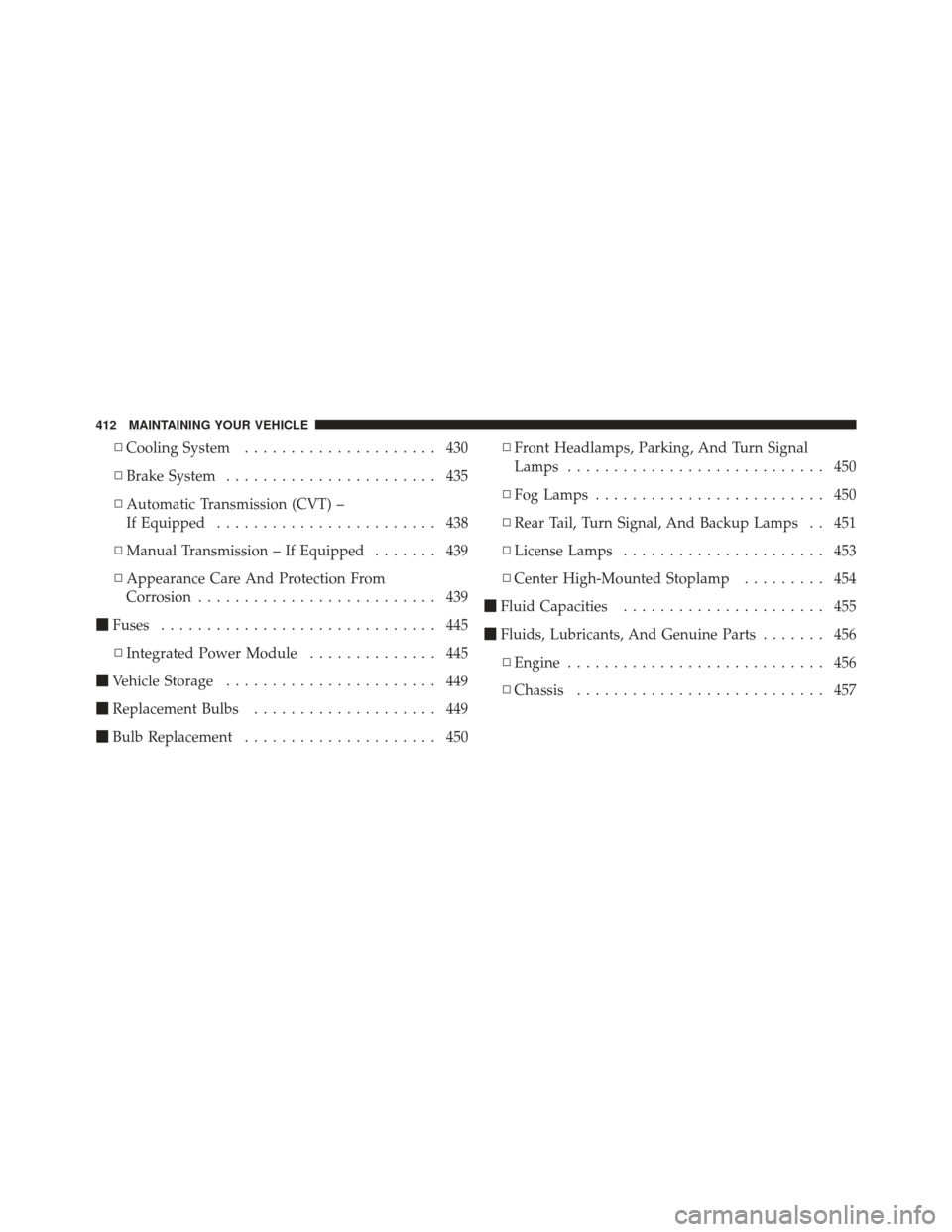

Page 414 of 506
▫Cooling System ..................... 430
▫ Brake System ....................... 435
▫ Automatic Transmission (CVT) –
If Equipped ........................ 438
▫ Manual Transmission – If Equipped ....... 439
▫ Appearance Care And Protection From
Corrosion .......................... 439
Fuses .............................. 445
▫ Integrated Power Module .............. 445
Vehicle Storage ....................... 449
Replacement Bulbs .................... 449
Bulb Replacement ..................... 450 ▫
Front Headlamps, Parking, And Turn Signal
Lamps ............................ 450
▫ Fog Lamps ......................... 450
▫ Rear Tail, Turn Signal, And Backup Lamps . . 451
▫ License Lamps ...................... 453
▫ Center High-Mounted Stoplamp ......... 454
Fluid Capacities ...................... 455
Fluids, Lubricants, And Genuine Parts ....... 456
▫ Engine ............................ 456
▫ Chassis ........................... 457
412 MAINTAINING YOUR VEHICLE

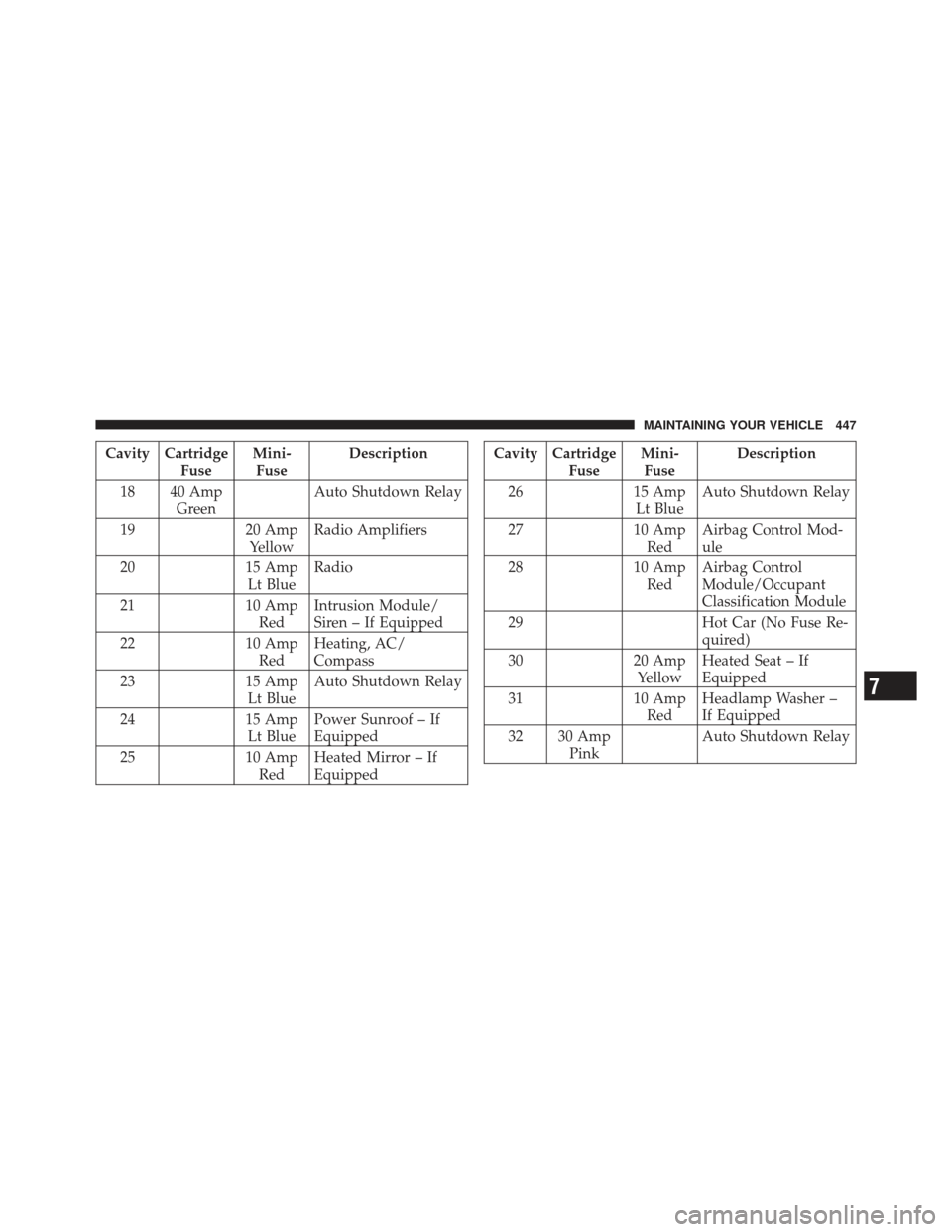

Page 449 of 506
Cavity CartridgeFuseMini-
Fuse Description
18 40 Amp Green Auto Shutdown Relay
19 20 Amp
Yellow Radio Amplifiers
20 15 Amp
Lt Blue Radio
21 10 Amp
Red Intrusion Module/
Siren – If Equipped
22 10 Amp
Red Heating, AC/
Compass
23 15 Amp
Lt Blue Auto Shutdown Relay
24 15 Amp
Lt Blue Power Sunroof – If
Equipped
25 10 Amp
Red Heated Mirror – If
EquippedCavity Cartridge
FuseMini-
Fuse Description
26 15 Amp
Lt Blue Auto Shutdown Relay
27 10 Amp
Red Airbag Control Mod-
ule
28 10 Amp
Red Airbag Control
Module/Occupant
Classification Module
29 Hot Car (No Fuse Re-
quired)
30 20 Amp
Yellow Heated Seat – If
Equipped
31 10 Amp
Red Headlamp Washer –
If Equipped
32 30 Amp Pink Auto Shutdown Relay
7
MAINTAINING YOUR VEHICLE 447
Page 450 of 506

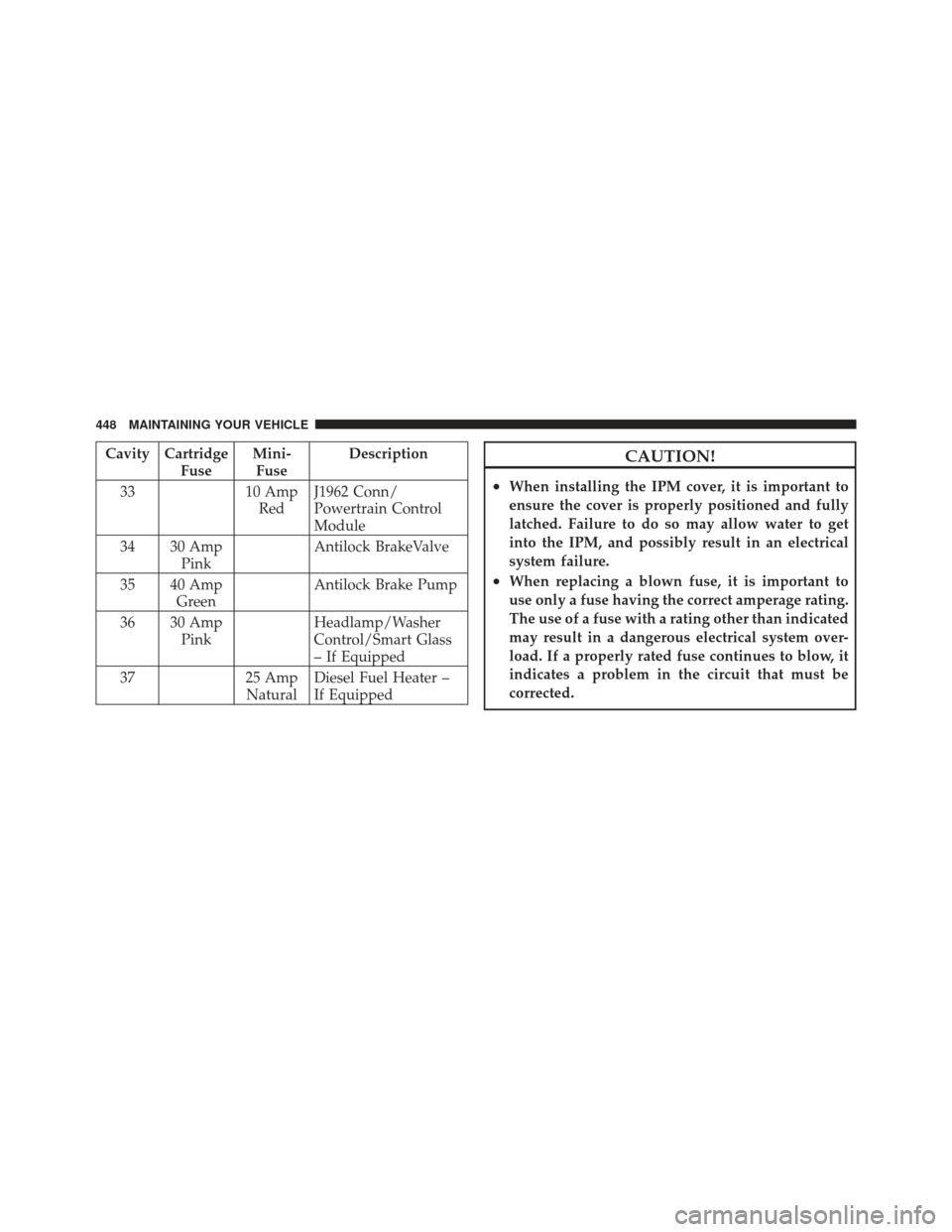

Cavity CartridgeFuseMini-
Fuse Description
33 10 Amp
Red J1962 Conn/
Powertrain Control
Module
34 30 Amp Pink Antilock BrakeValve
35 40 Amp Green Antilock Brake Pump
36 30 Amp Pink Headlamp/Washer
Control/Smart Glass
– If Equipped
37 25 Amp
Natural Diesel Fuel Heater –
If EquippedCAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
448 MAINTAINING YOUR VEHICLE
Page 451 of 506

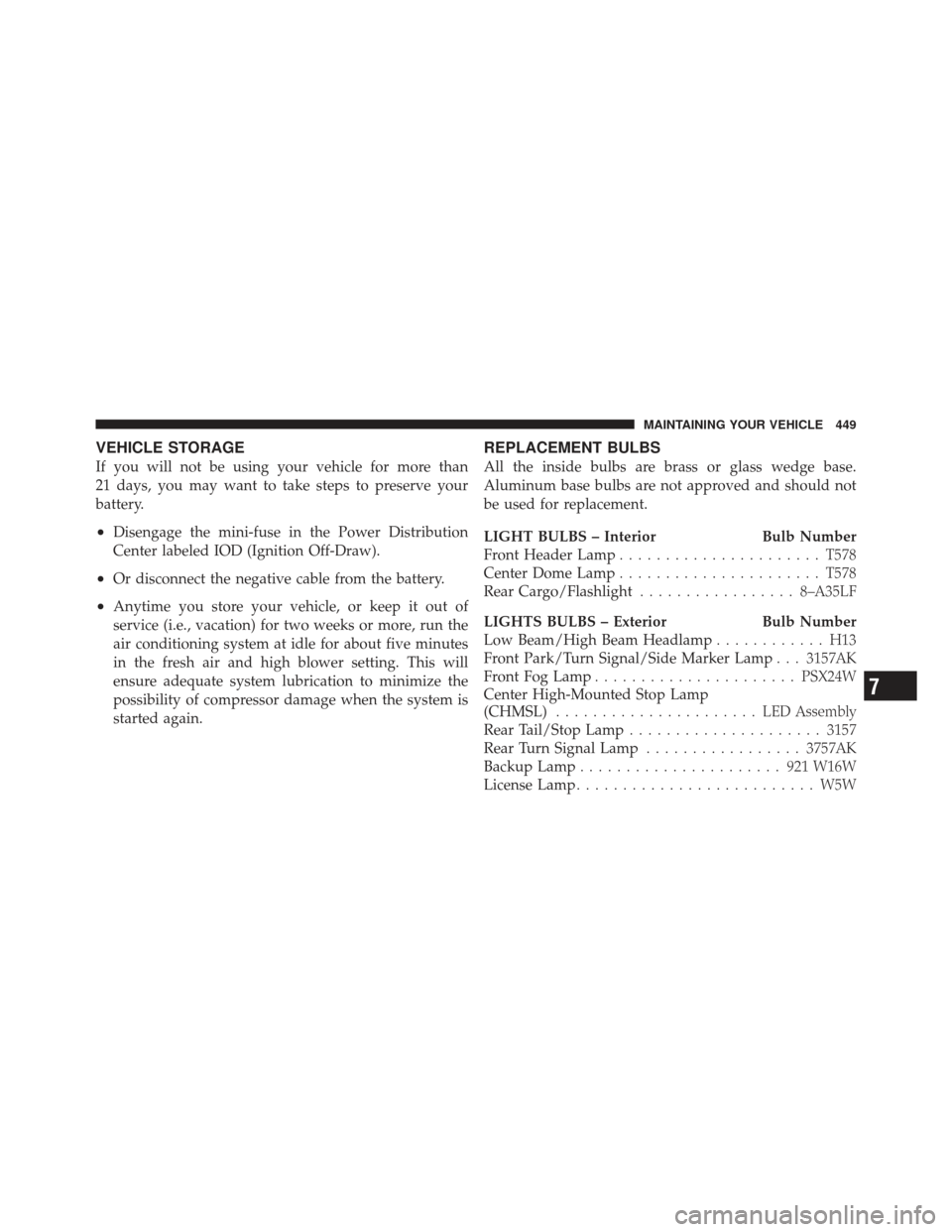

VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb Number
Front Header Lamp...................... T578
Center Dome Lamp ...................... T578
Rear Cargo/Flashlight ................. 8–A35LF
LIGHTS BULBS – Exterior Bulb Number
Low Beam/High Beam Headlamp ............ H13
Front Park/Turn Signal/Side Marker Lamp . . . 3157AK
Front Fog Lamp ...................... PSX24W
Center High-Mounted Stop Lamp
(CHMSL) ...................... LED Assembly
Rear Tail/Stop Lamp ..................... 3157
Rear Turn Signal Lamp .................3757AK
Backup Lamp ...................... 921 W16W
License Lamp .......................... W5W
7
MAINTAINING YOUR VEHICLE 449
Page 452 of 506

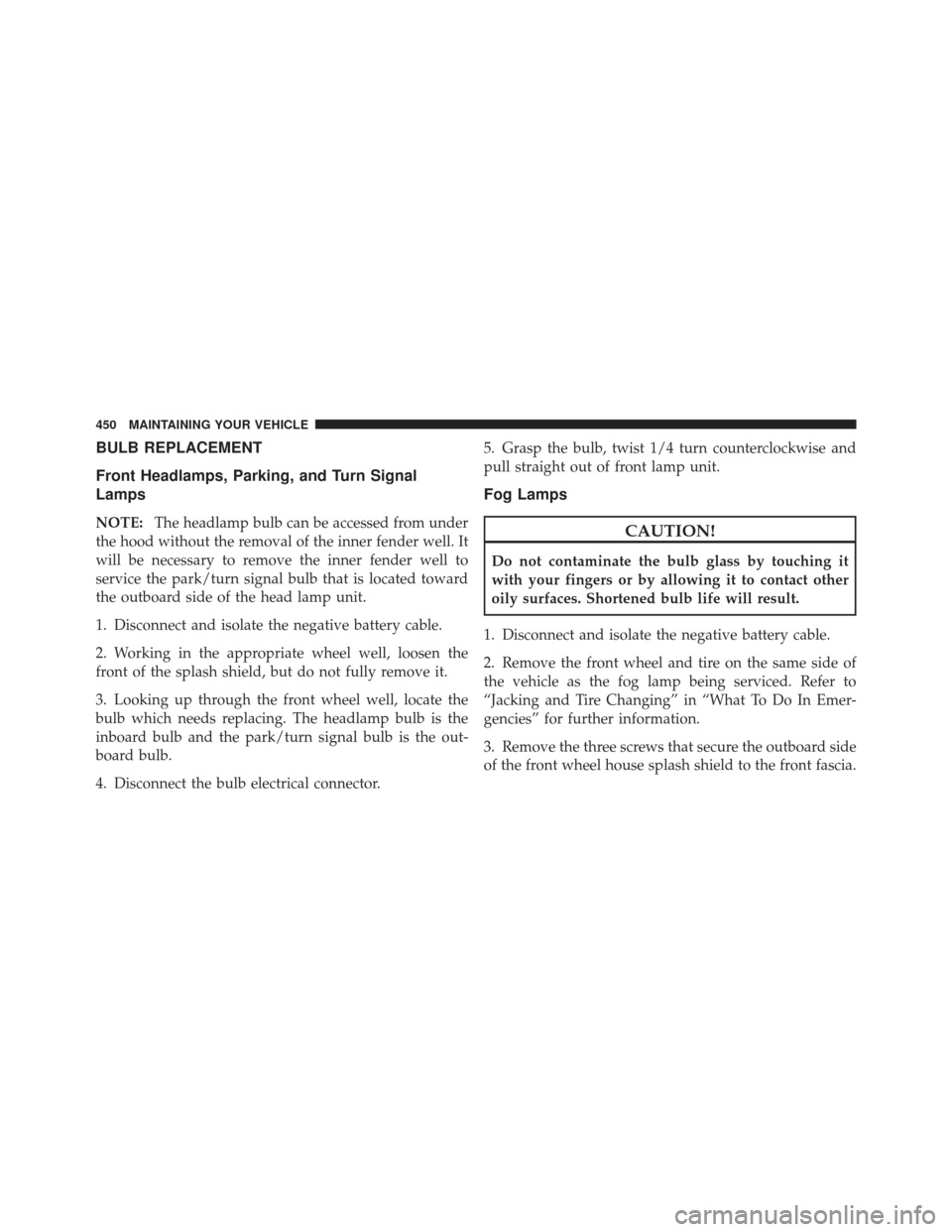

BULB REPLACEMENT
Front Headlamps, Parking, and Turn Signal
Lamps
NOTE:The headlamp bulb can be accessed from under
the hood without the removal of the inner fender well. It
will be necessary to remove the inner fender well to
service the park/turn signal bulb that is located toward
the outboard side of the head lamp unit.
1. Disconnect and isolate the negative battery cable.
2. Working in the appropriate wheel well, loosen the
front of the splash shield, but do not fully remove it.
3. Looking up through the front wheel well, locate the
bulb which needs replacing. The headlamp bulb is the
inboard bulb and the park/turn signal bulb is the out-
board bulb.
4. Disconnect the bulb electrical connector. 5. Grasp the bulb, twist 1/4 turn counterclockwise and
pull straight out of front lamp unit.
Fog Lamps
CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
1. Disconnect and isolate the negative battery cable.
2. Remove the front wheel and tire on the same side of
the vehicle as the fog lamp being serviced. Refer to
“Jacking and Tire Changing” in “What To Do In Emer-
gencies” for further information.
3. Remove the three screws that secure the outboard side
of the front wheel house splash shield to the front fascia.
450 MAINTAINING YOUR VEHICLE
