A. Turn Signal/Lights Lever (behindsteering wheel) pg. 17
B. Electronic Vehicle Information Center (EVIC) Display pg. 50
C. Electronic Vehicle Information Center (EVIC) Button pg. 50
D. Instrument Cluster pg. 6
E. Wiper/Washer Lever (behind steering wheel) pg. 18
F. Audio System (non-touch-screen-radio shown) pg. 24 G. Climate Controls pg. 21
H. Power Outlet/Cigar Lighter pg. 55
I. Transmission Gear Selector
J. SWITCH PANEL
− Heated Seat Switches pg. 15
− Electronic Stability Control pg. 58
− Hazard Switch K. Speed Control Lever pg. 19
L. Steering Wheel Tilt Lever (below
steering wheel at base of instrument
panel) pg. 16
M. Hood Release pg. 75
N. Power Mirrors
O. Power Door Locks
P. Power Windows
CONTROLS AT A GLANCE
5

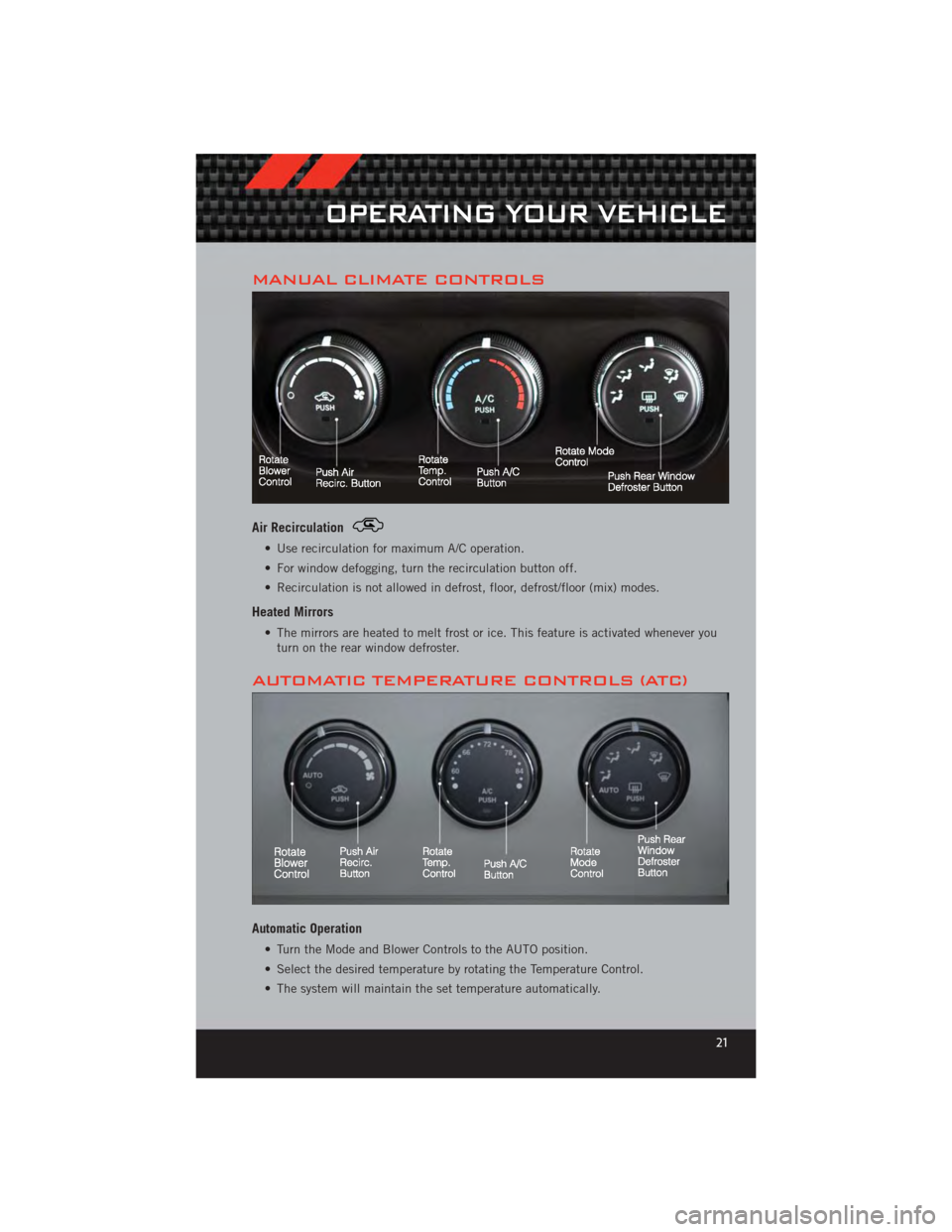

MANUAL CLIMATE CONTROLS
Air Recirculation
• Use recirculation for maximum A/C operation.
• For window defogging, turn the recirculation button off.
• Recirculation is not allowed in defrost, floor, defrost/floor (mix) modes.
Heated Mirrors
• The mirrors are heated to melt frost or ice. This feature is activated whenever youturn on the rear window defroster.
AUTOMATIC TEMPERATURE CONTROLS (ATC)
Automatic Operation
• Turn the Mode and Blower Controls to the AUTO position.
• Select the desired temperature by rotating the Temperature Control.
• The system will maintain the set temperature automatically.
OPERATING YOUR VEHICLE
21
