DODGE CALIBER SRT 2009 1.G User Guide

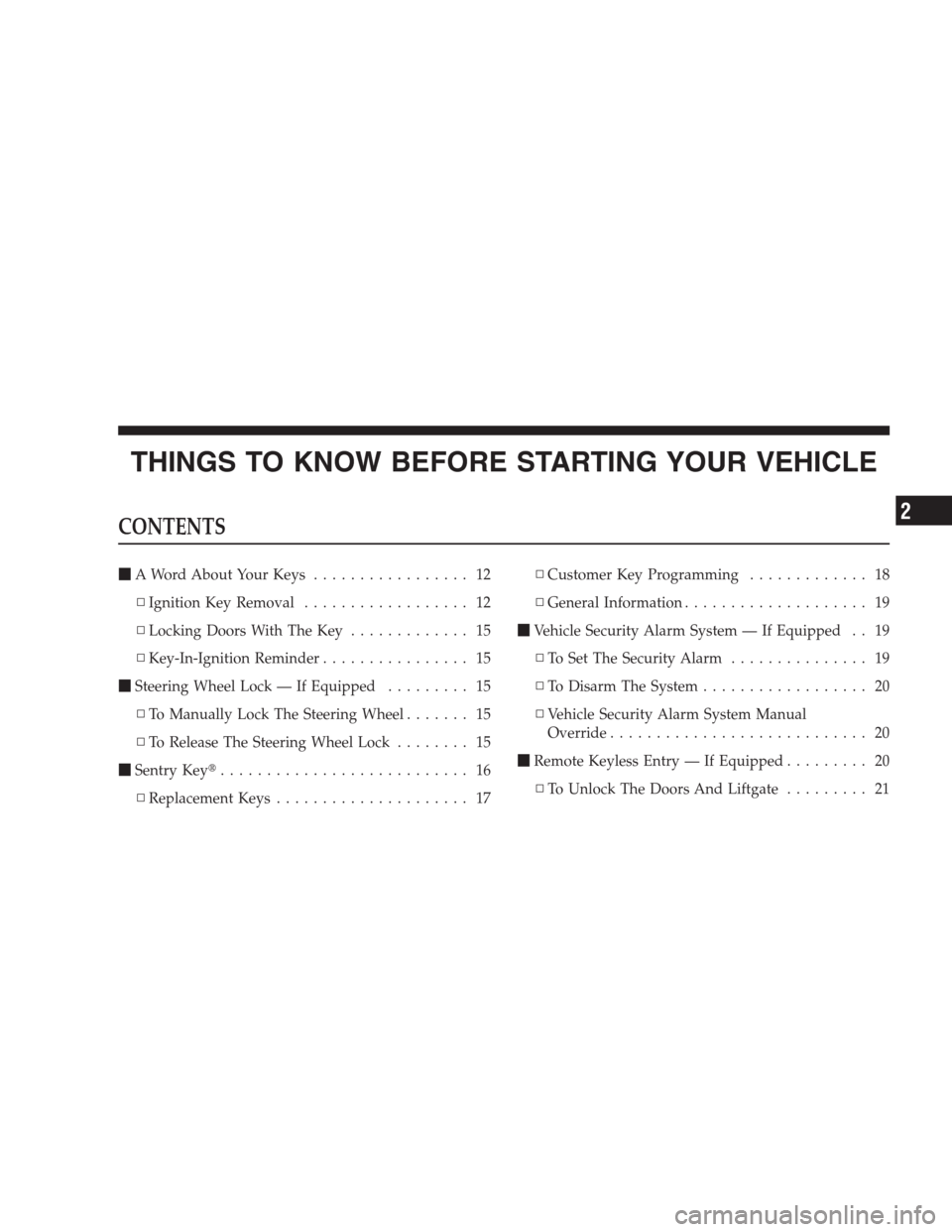

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys................. 12
▫Ignition Key Removal.................. 12
▫Locking Doors With The Key............. 15
▫Key-In-Ignition Reminder................ 15
Steering Wheel Lock — If Equipped......... 15
▫To Manually Lock The Steering Wheel....... 15
▫To Release The Steering Wheel Lock........ 15
Sentry Key........................... 16
▫Replacement Keys..................... 17▫Customer Key Programming............. 18
▫General Information.................... 19
Vehicle Security Alarm System — If Equipped . . 19
▫To Set The Security Alarm............... 19
▫To Disarm The System.................. 20
▫Vehicle Security Alarm System Manual
Override............................ 20
Remote Keyless Entry — If Equipped......... 20
▫To Unlock The Doors And Liftgate......... 21
2

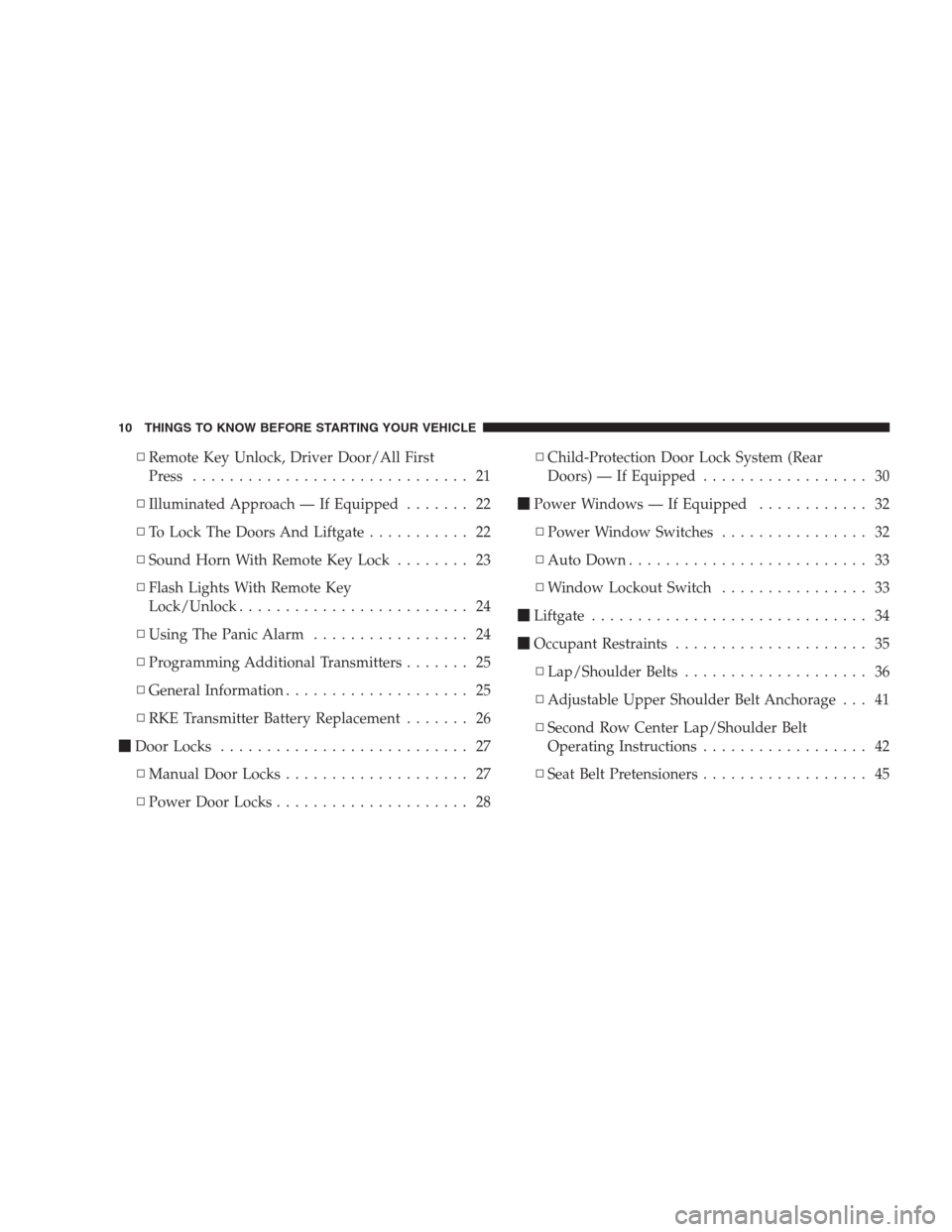

▫Remote Key Unlock, Driver Door/All First
Press .............................. 21
▫Illuminated Approach — If Equipped....... 22
▫To Lock The Doors And Liftgate........... 22
▫Sound Horn With Remote Key Lock........ 23
▫Flash Lights With Remote Key
Lock/Unlock......................... 24
▫Using The Panic Alarm................. 24
▫Programming Additional Transmitters....... 25
▫General Information.................... 25
▫RKE Transmitter Battery Replacement....... 26
Door Locks........................... 27
▫Manual Door Locks.................... 27
▫Power Door Locks..................... 28▫Child-Protection Door Lock System (Rear
Doors) — If Equipped.................. 30
Power Windows — If Equipped............ 32
▫Power Window Switches................ 32
▫Auto Down.......................... 33
▫Window Lockout Switch................ 33
Liftgate.............................. 34
Occupant Restraints..................... 35
▫Lap/Shoulder Belts.................... 36
▫Adjustable Upper Shoulder Belt Anchorage . . . 41
▫Second Row Center Lap/Shoulder Belt
Operating Instructions.................. 42
▫Seat Belt Pretensioners.................. 45

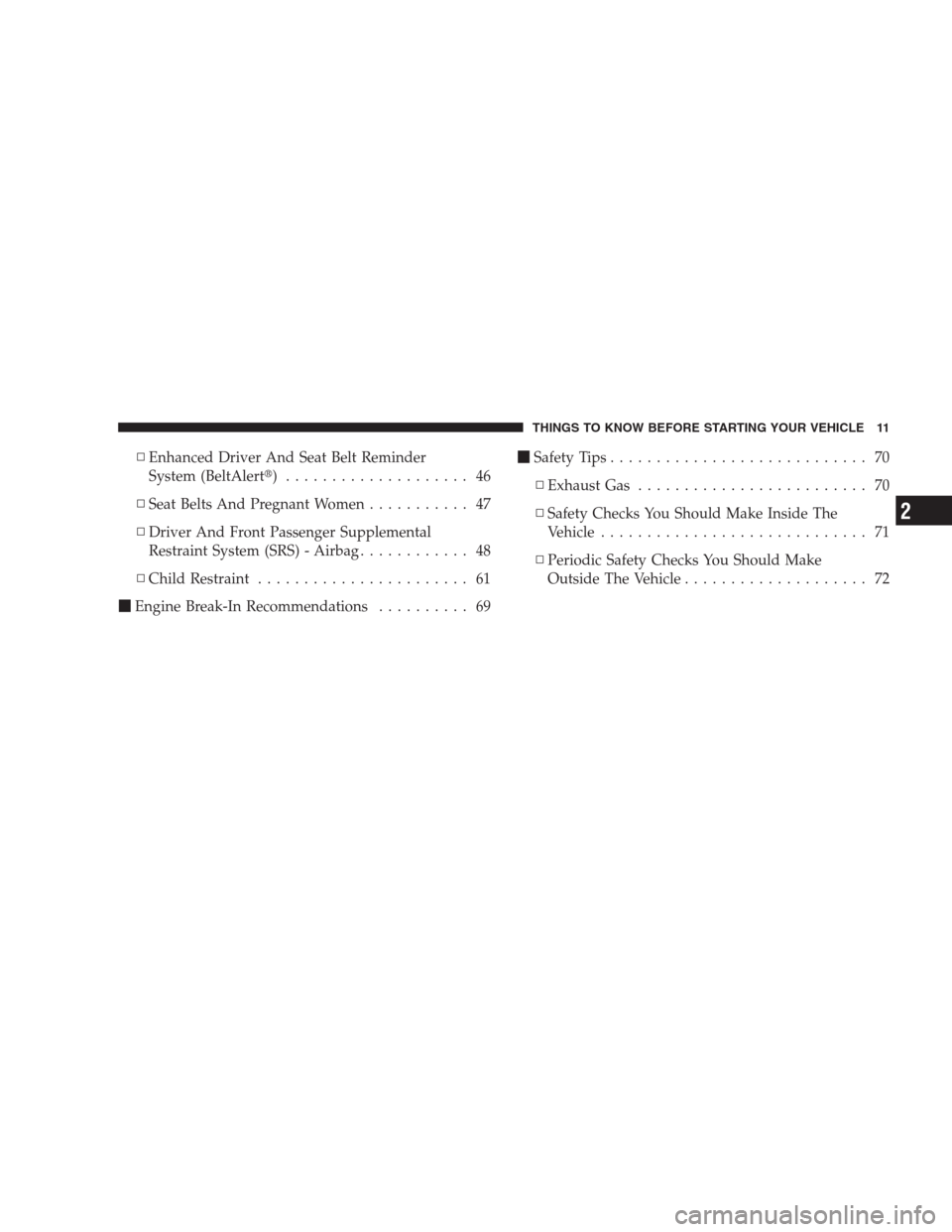

10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Enhanced Driver And Seat Belt Reminder
System (BeltAlert) .................... 46
▫Seat Belts And Pregnant Women........... 47
▫Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag............ 48
▫Child Restraint....................... 61
Engine Break-In Recommendations.......... 69Safety Tips............................ 70
▫Exhaust Gas......................... 70
▫Safety Checks You Should Make Inside The
Vehicle............................. 71
▫Periodic Safety Checks You Should Make
Outside The Vehicle.................... 72
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

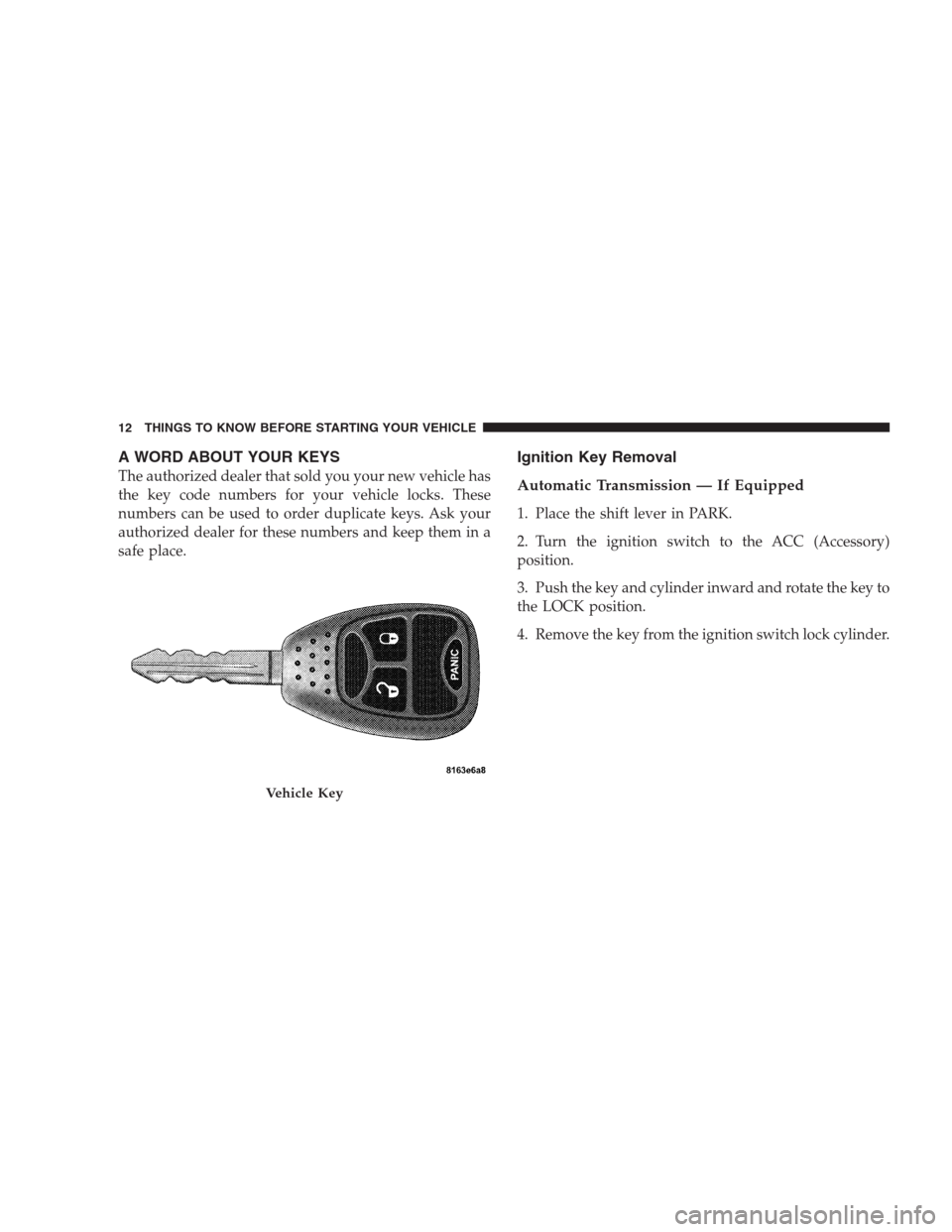

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys. Ask your
authorized dealer for these numbers and keep them in a
safe place.
Ignition Key Removal
Automatic Transmission — If Equipped
1. Place the shift lever in PARK.
2. Turn the ignition switch to the ACC (Accessory)
position.
3. Push the key and cylinder inward and rotate the key to
the LOCK position.
4. Remove the key from the ignition switch lock cylinder.
Vehicle Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:If you try to remove the key before you place the
shift lever in PARK, the key may become trapped tem-
porarily in the ignition switch cylinder. If this occurs,
rotate the key to the right slightly, then remove the key asdescribed. If a malfunction occurs, the system will trap
the key in the ignition cylinder to warn you that this
safety feature is inoperable. The engine can be started
and stopped but the key cannot be removed until you
obtain service.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.

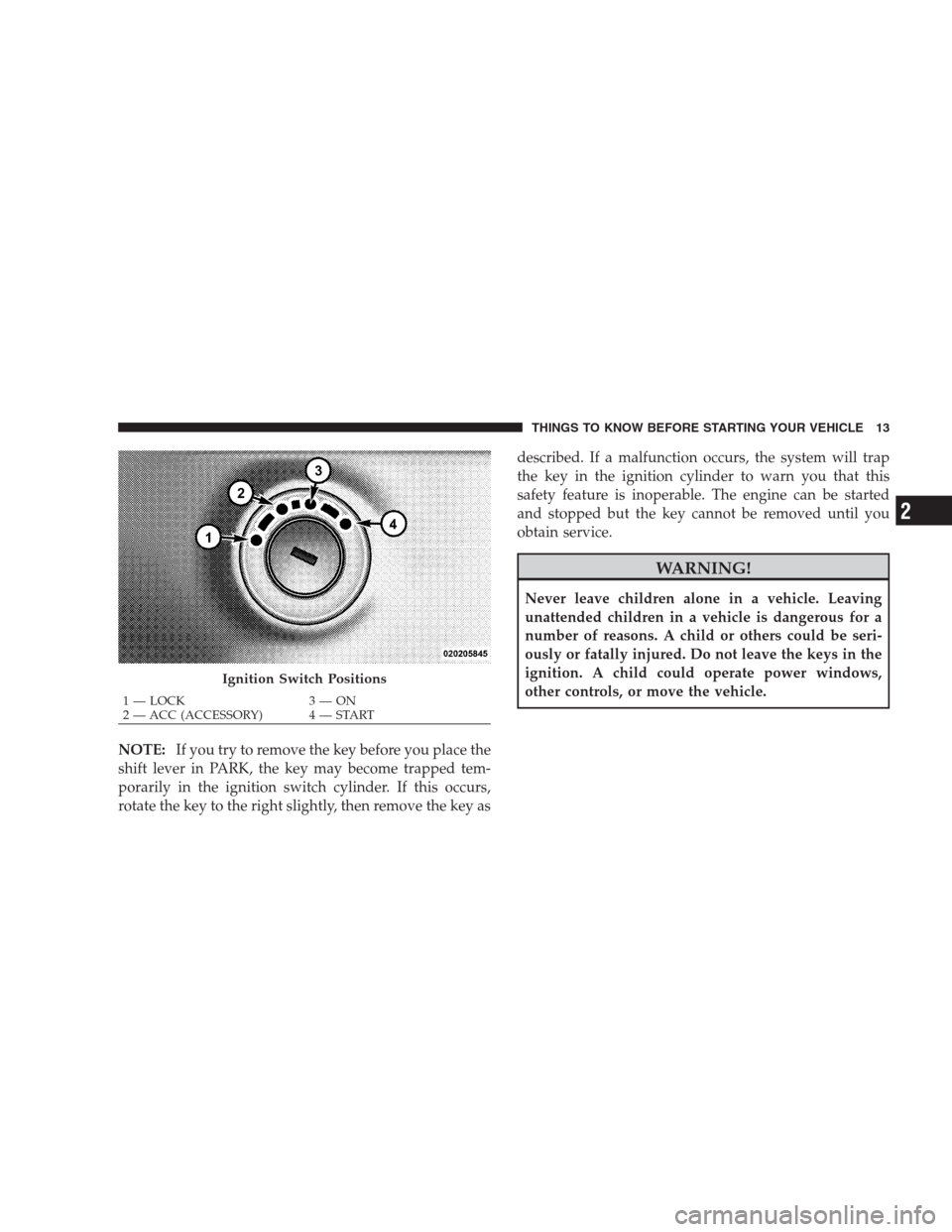

Ignition Switch Positions
1 — LOCK 3 — ON
2 — ACC (ACCESSORY) 4 — STARTTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

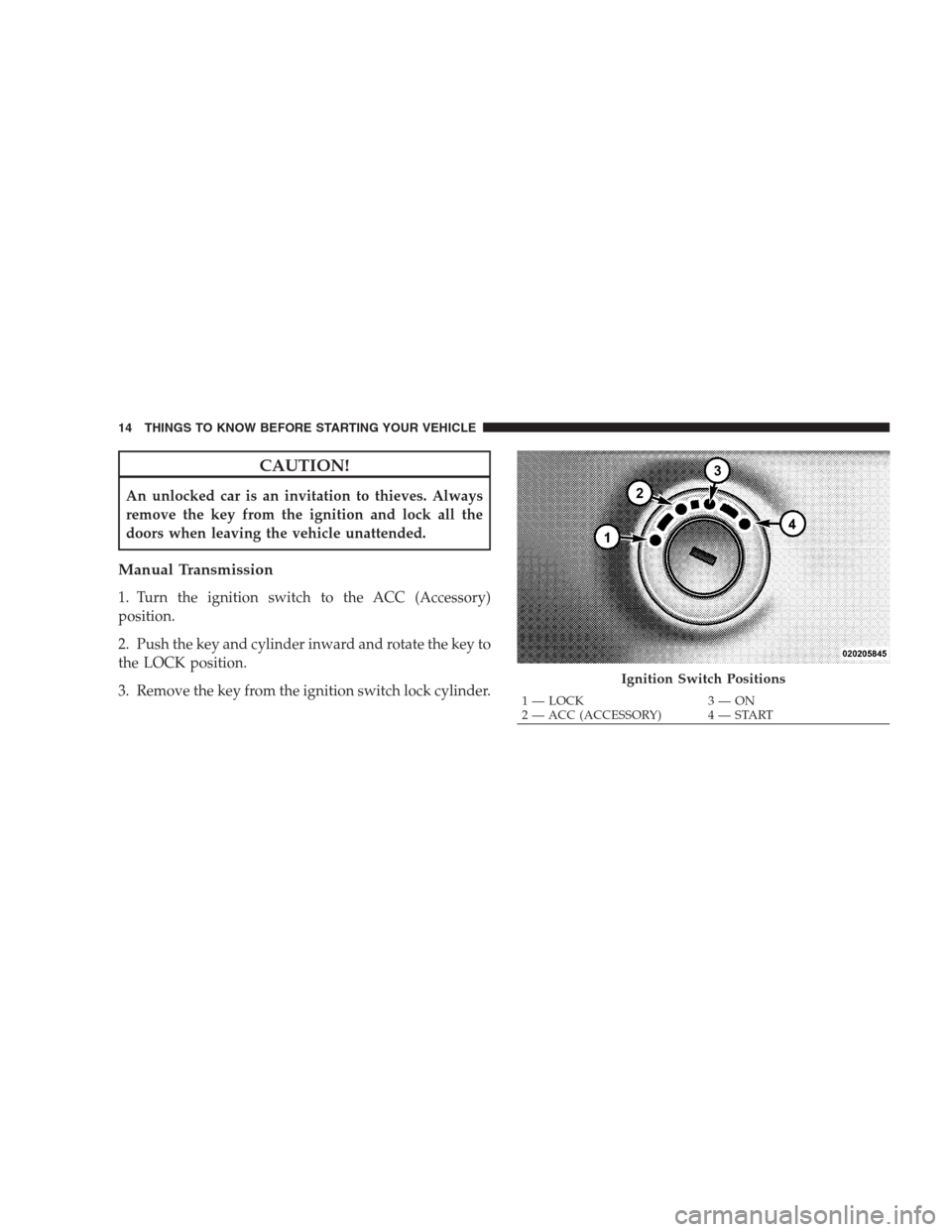

CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all the
doors when leaving the vehicle unattended.
Manual Transmission
1. Turn the ignition switch to the ACC (Accessory)
position.
2. Push the key and cylinder inward and rotate the key to
the LOCK position.
3. Remove the key from the ignition switch lock cylinder.
Ignition Switch Positions
1 — LOCK 3 — ON
2 — ACC (ACCESSORY) 4 — START 14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

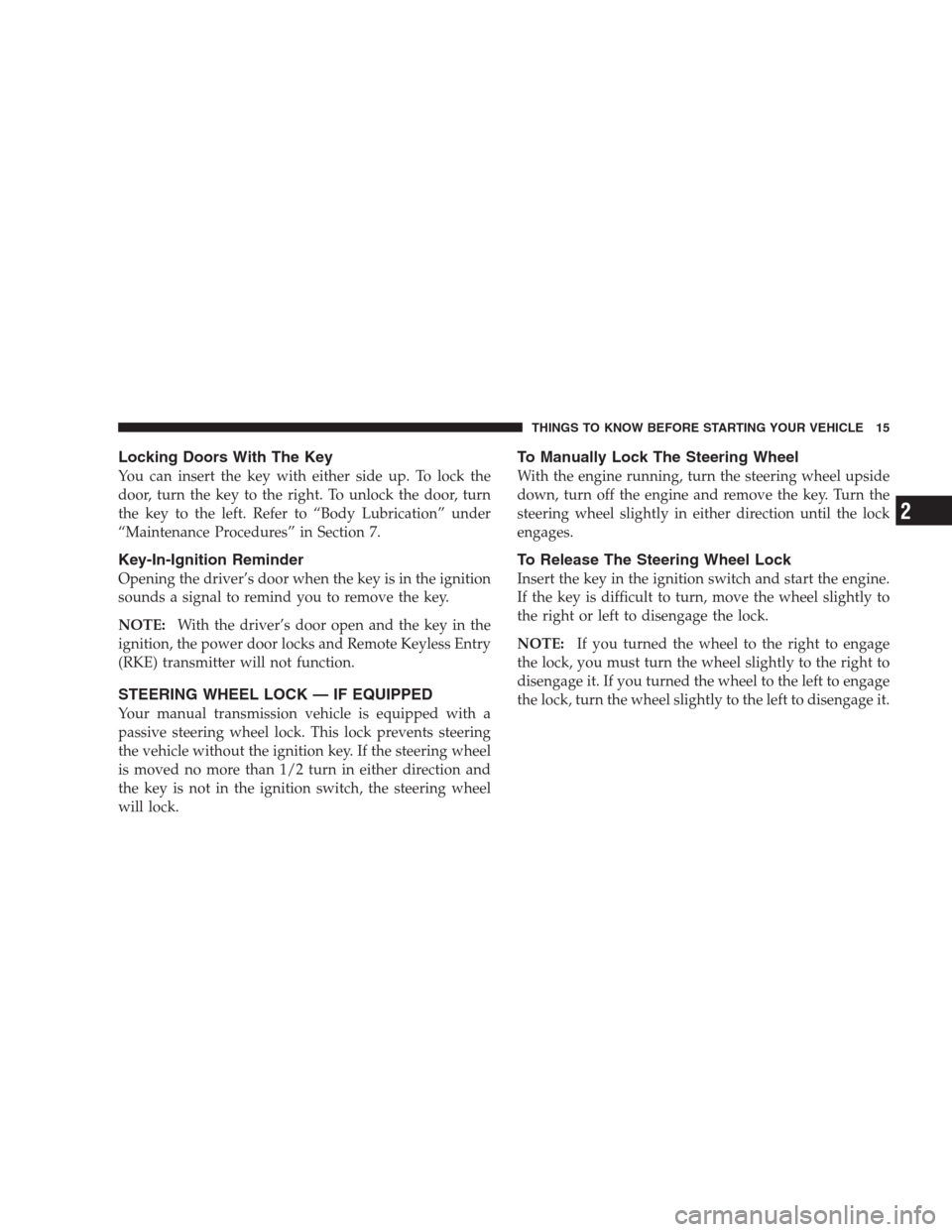

Locking Doors With The Key
You can insert the key with either side up. To lock the
door, turn the key to the right. To unlock the door, turn
the key to the left. Refer to “Body Lubrication” under
“Maintenance Procedures” in Section 7.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
sounds a signal to remind you to remove the key.
NOTE:With the driver’s door open and the key in the
ignition, the power door locks and Remote Keyless Entry
(RKE) transmitter will not function.
STEERING WHEEL LOCK — IF EQUIPPED
Your manual transmission vehicle is equipped with a
passive steering wheel lock. This lock prevents steering
the vehicle without the ignition key. If the steering wheel
is moved no more than 1/2 turn in either direction and
the key is not in the ignition switch, the steering wheel
will lock.
To Manually Lock The Steering Wheel
With the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.
To Release The Steering Wheel Lock
Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.
NOTE:If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

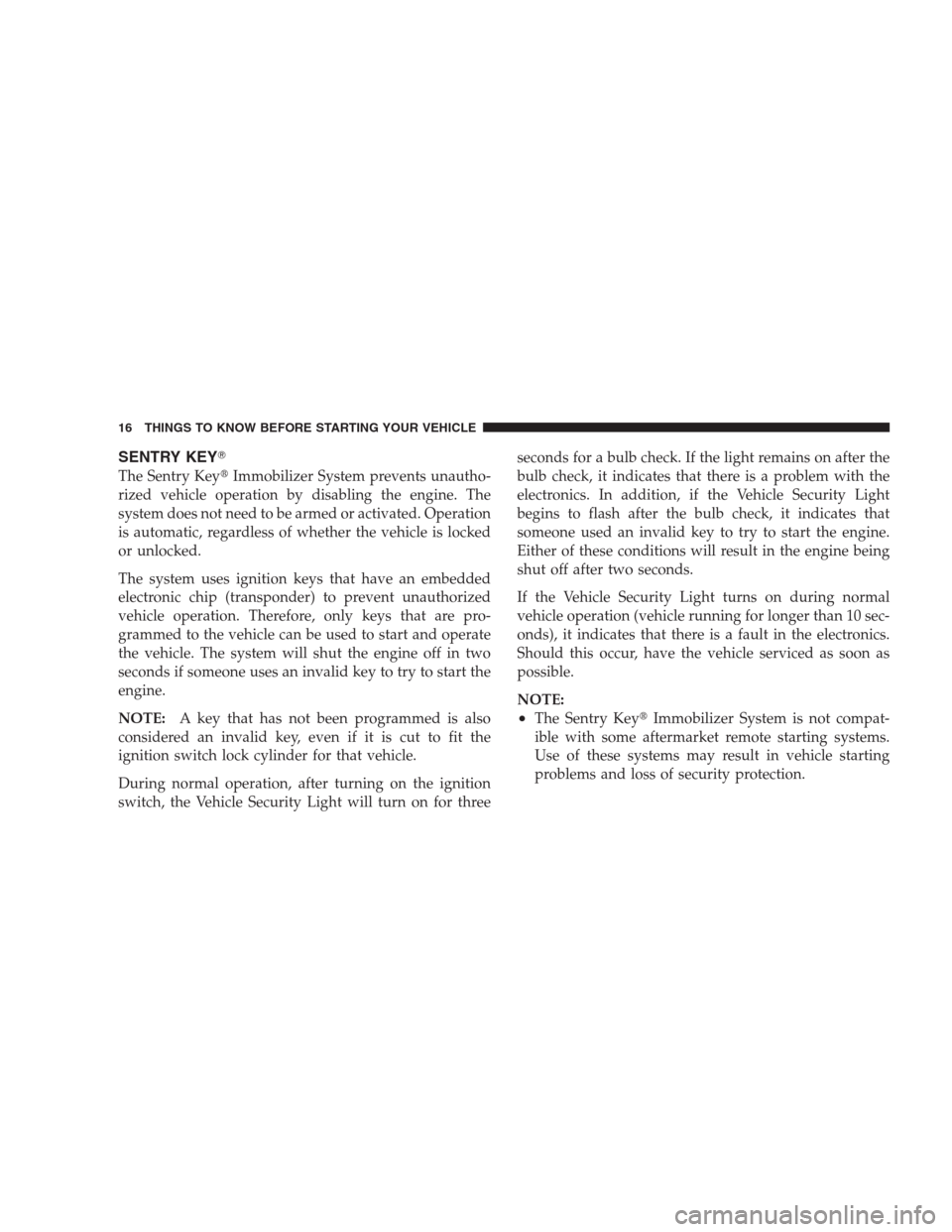

SENTRY KEY
The Sentry KeyImmobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
NOTE:A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for threeseconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.
NOTE:
•The Sentry KeyImmobilizer System is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

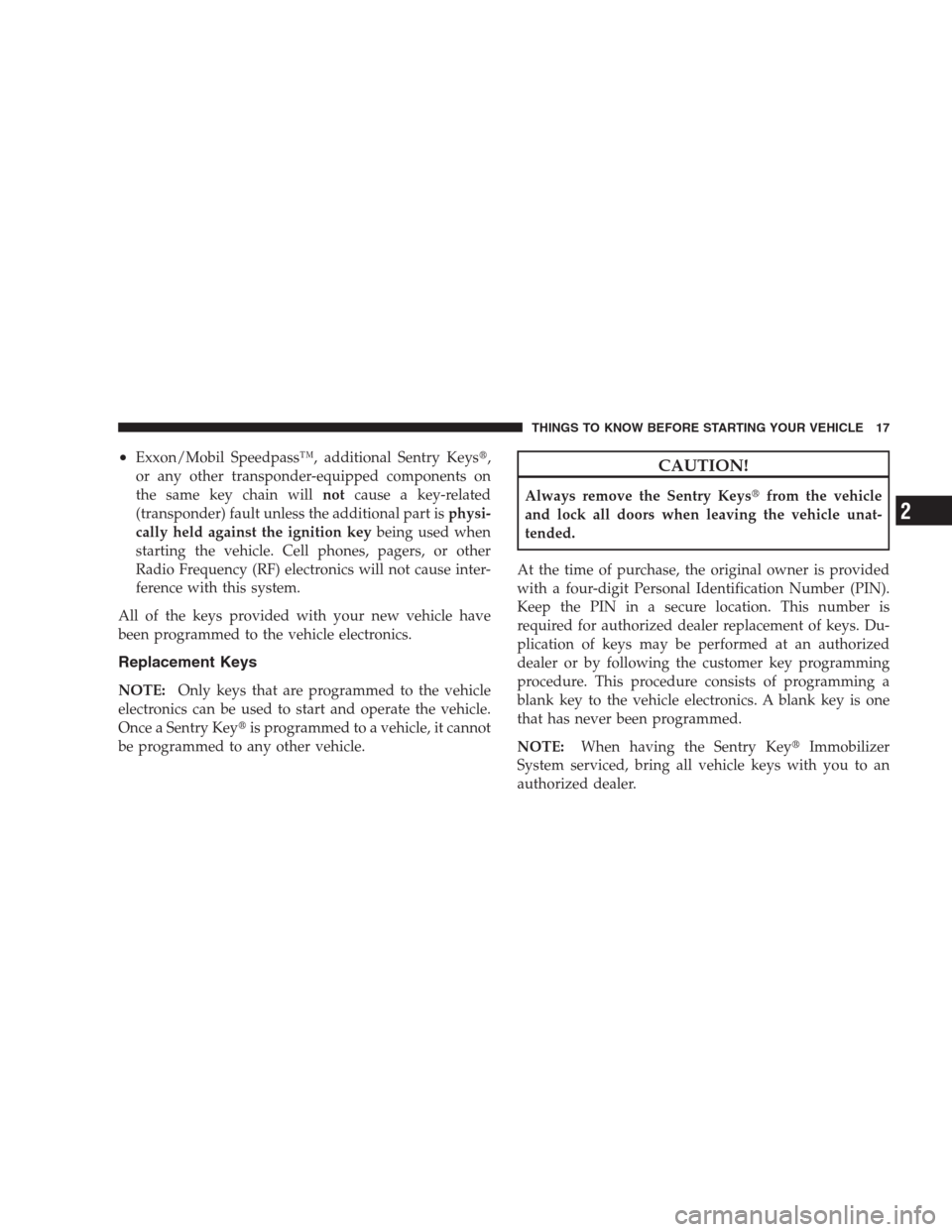

•Exxon/Mobil Speedpass™, additional Sentry Keys,
or any other transponder-equipped components on
the same key chain willnotcause a key-related
(transponder) fault unless the additional part isphysi-
cally held against the ignition keybeing used when
starting the vehicle. Cell phones, pagers, or other
Radio Frequency (RF) electronics will not cause inter-
ference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Keyis programmed to a vehicle, it cannot
be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keysfrom the vehicle
and lock all doors when leaving the vehicle unat-
tended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.
NOTE:When having the Sentry KeyImmobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

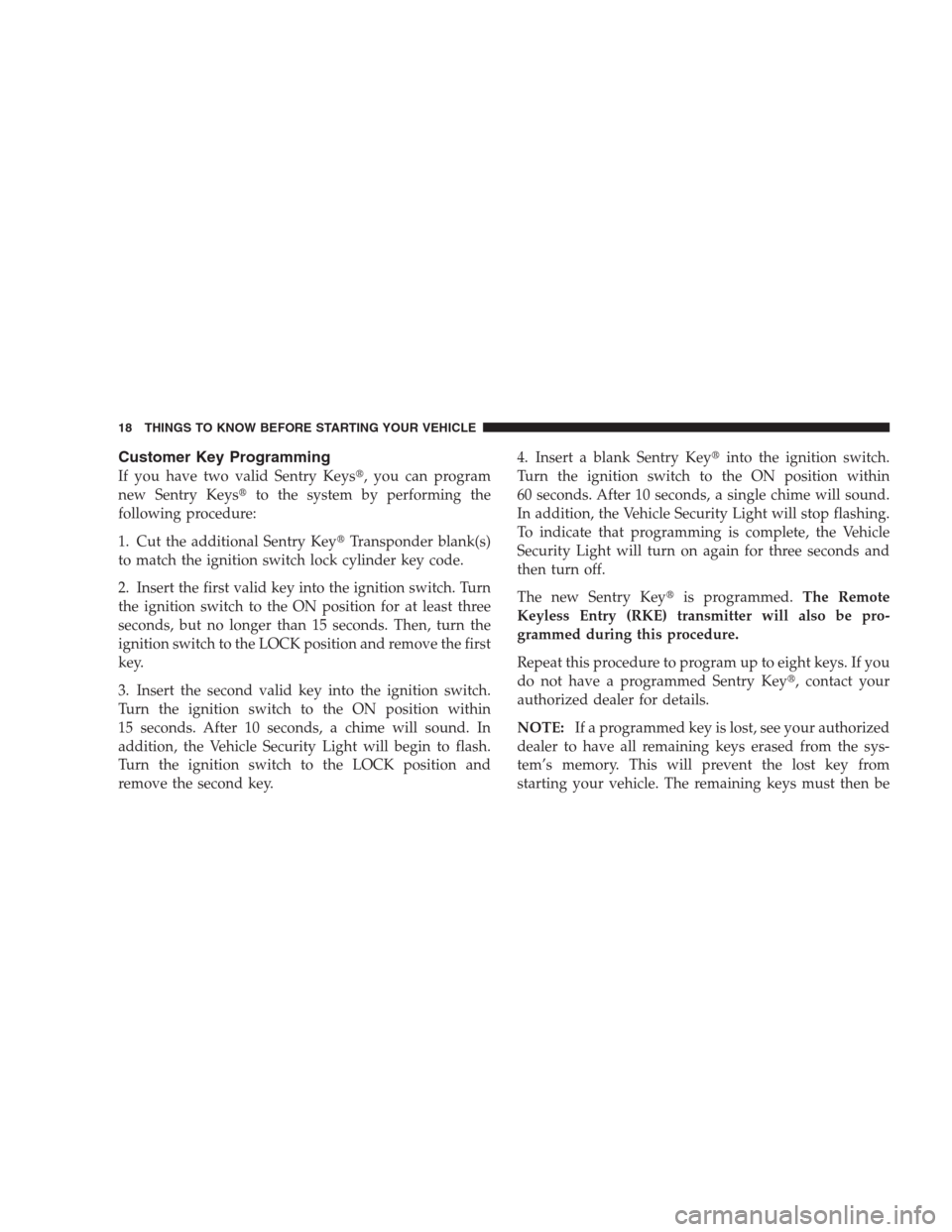

Customer Key Programming
If you have two valid Sentry Keys, you can program
new Sentry Keysto the system by performing the
following procedure:
1. Cut the additional Sentry KeyTransponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON position for at least three
seconds, but no longer than 15 seconds. Then, turn the
ignition switch to the LOCK position and remove the first
key.
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key.4. Insert a blank Sentry Keyinto the ignition switch.
Turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.
The new Sentry Keyis programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
