fog light DODGE CALIBER SRT 2009 1.G Owners Manual

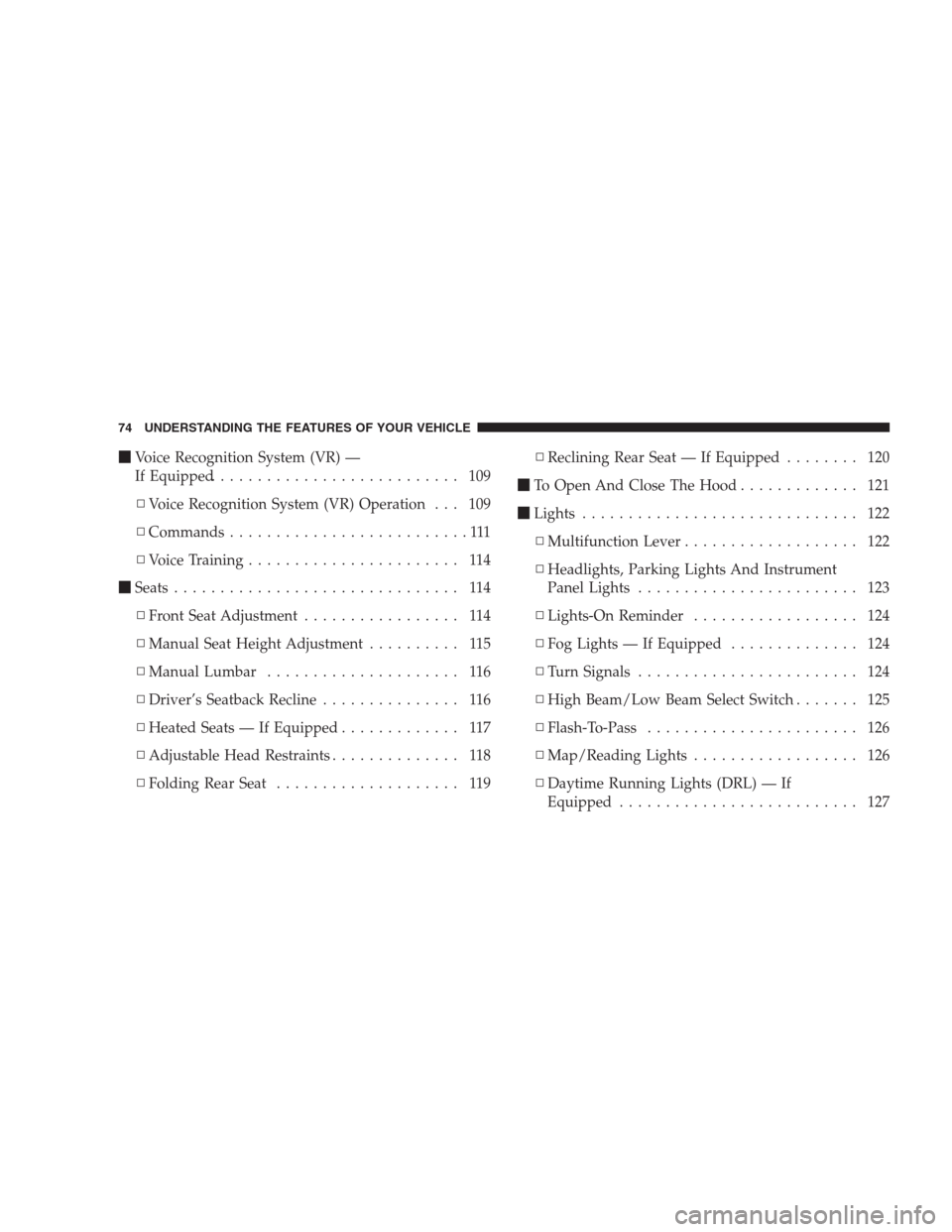

Voice Recognition System (VR) —
If Equipped........................... 109
▫Voice Recognition System (VR) Operation . . . 109
▫Commands..........................111
▫Voice Training....................... 114
Seats............................... 114
▫Front Seat Adjustment................. 114
▫Manual Seat Height Adjustment.......... 115
▫Manual Lumbar..................... 116
▫Driver’s Seatback Recline............... 116
▫Heated Seats — If Equipped............. 117
▫Adjustable Head Restraints.............. 118
▫Folding Rear Seat.................... 119▫Reclining Rear Seat — If Equipped........ 120
To Open And Close The Hood............. 121
Lights.............................. 122
▫Multifunction Lever................... 122
▫Headlights, Parking Lights And Instrument
Panel Lights........................ 123
▫Lights-On Reminder.................. 124
▫Fog Lights — If Equipped.............. 124
▫Turn Signals........................ 124
▫High Beam/Low Beam Select Switch....... 125
▫Flash-To-Pass....................... 126
▫Map/Reading Lights.................. 126
▫Daytime Running Lights (DRL) — If
Equipped.......................... 127
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

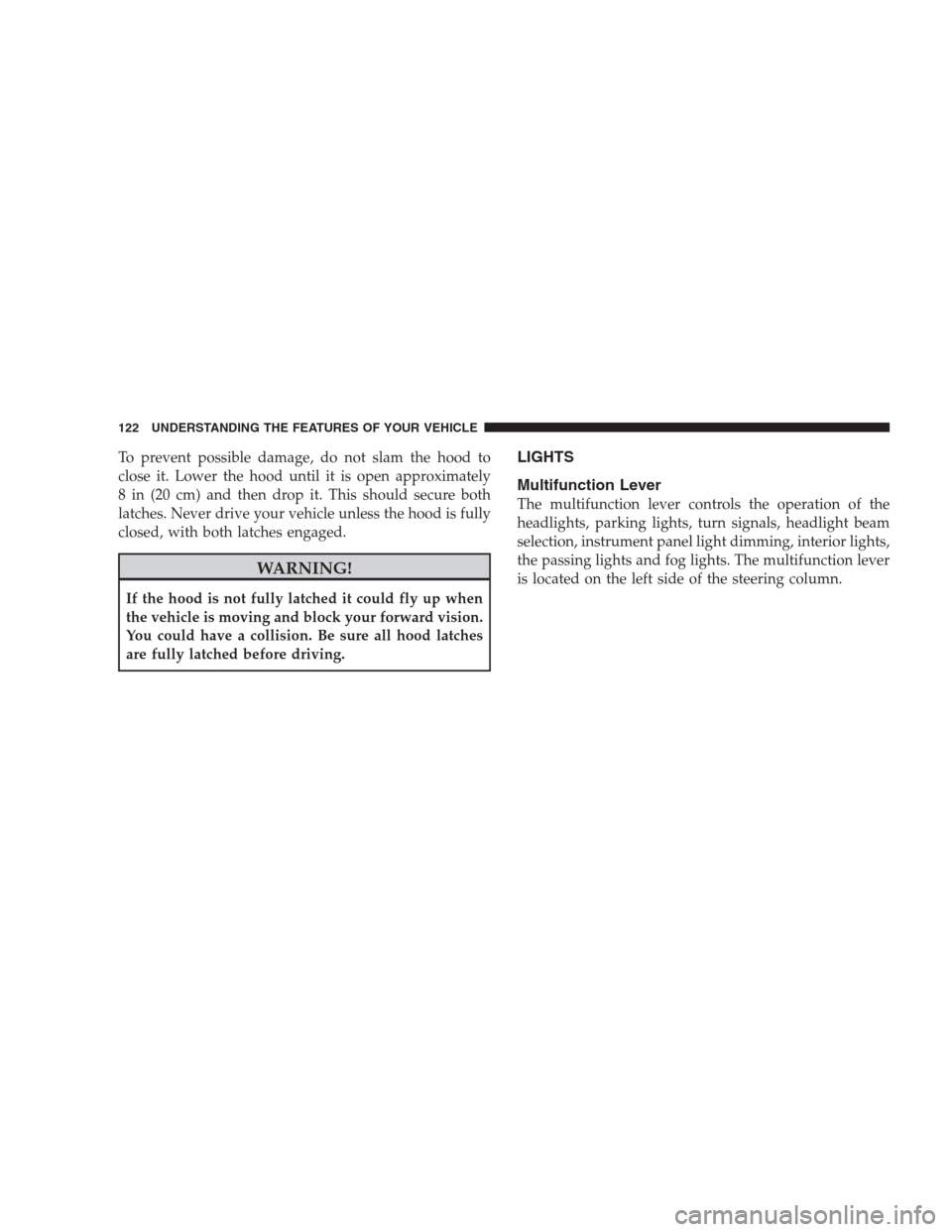

To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approximately
8 in (20 cm) and then drop it. This should secure both
latches. Never drive your vehicle unless the hood is fully
closed, with both latches engaged.
WARNING!
If the hood is not fully latched it could fly up when
the vehicle is moving and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, parking lights, turn signals, headlight beam
selection, instrument panel light dimming, interior lights,
the passing lights and fog lights. The multifunction lever
is located on the left side of the steering column.
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

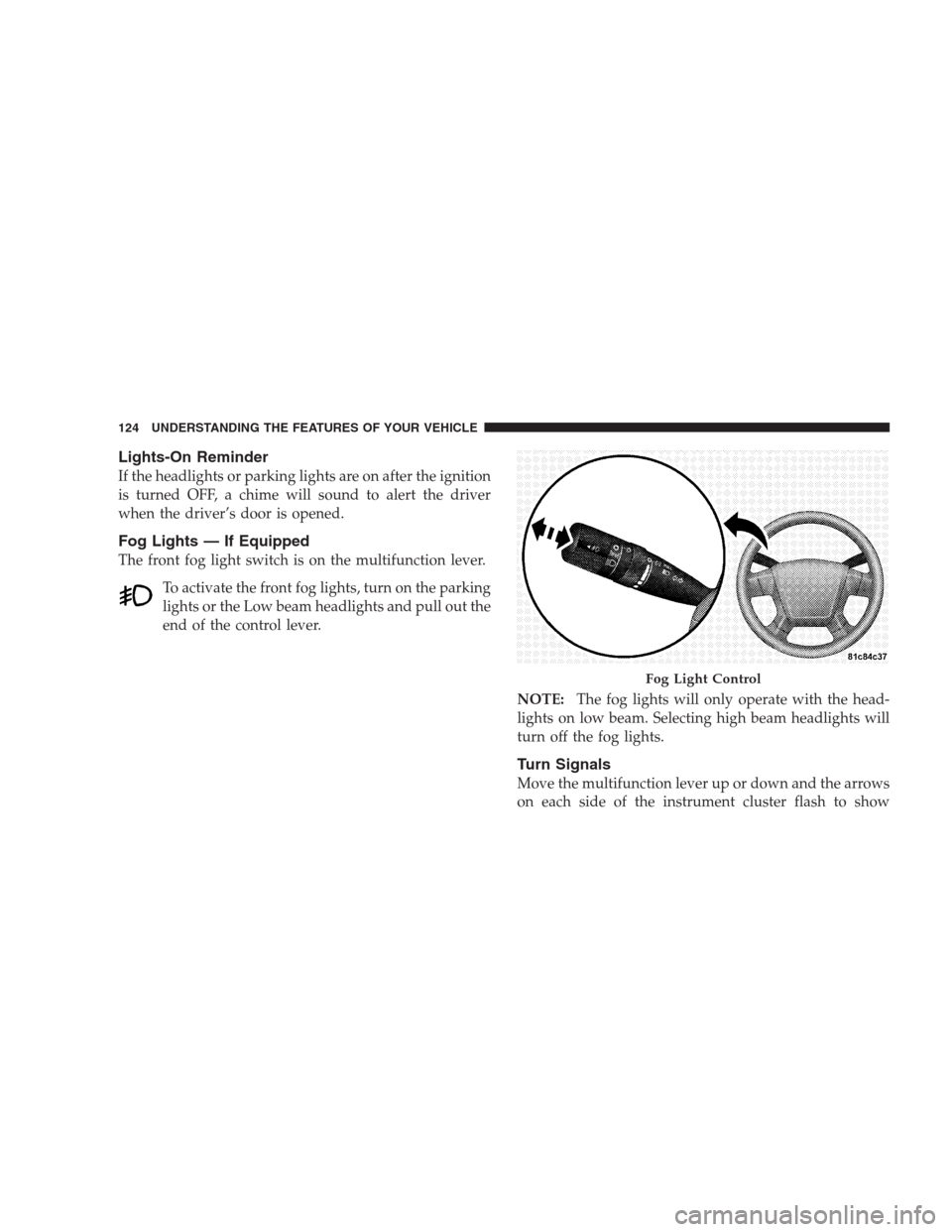

Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
Fog Lights — If Equipped
The front fog light switch is on the multifunction lever.
To activate the front fog lights, turn on the parking
lights or the Low beam headlights and pull out the
end of the control lever.
NOTE:The fog lights will only operate with the head-
lights on low beam. Selecting high beam headlights will
turn off the fog lights.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
Fog Light Control
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

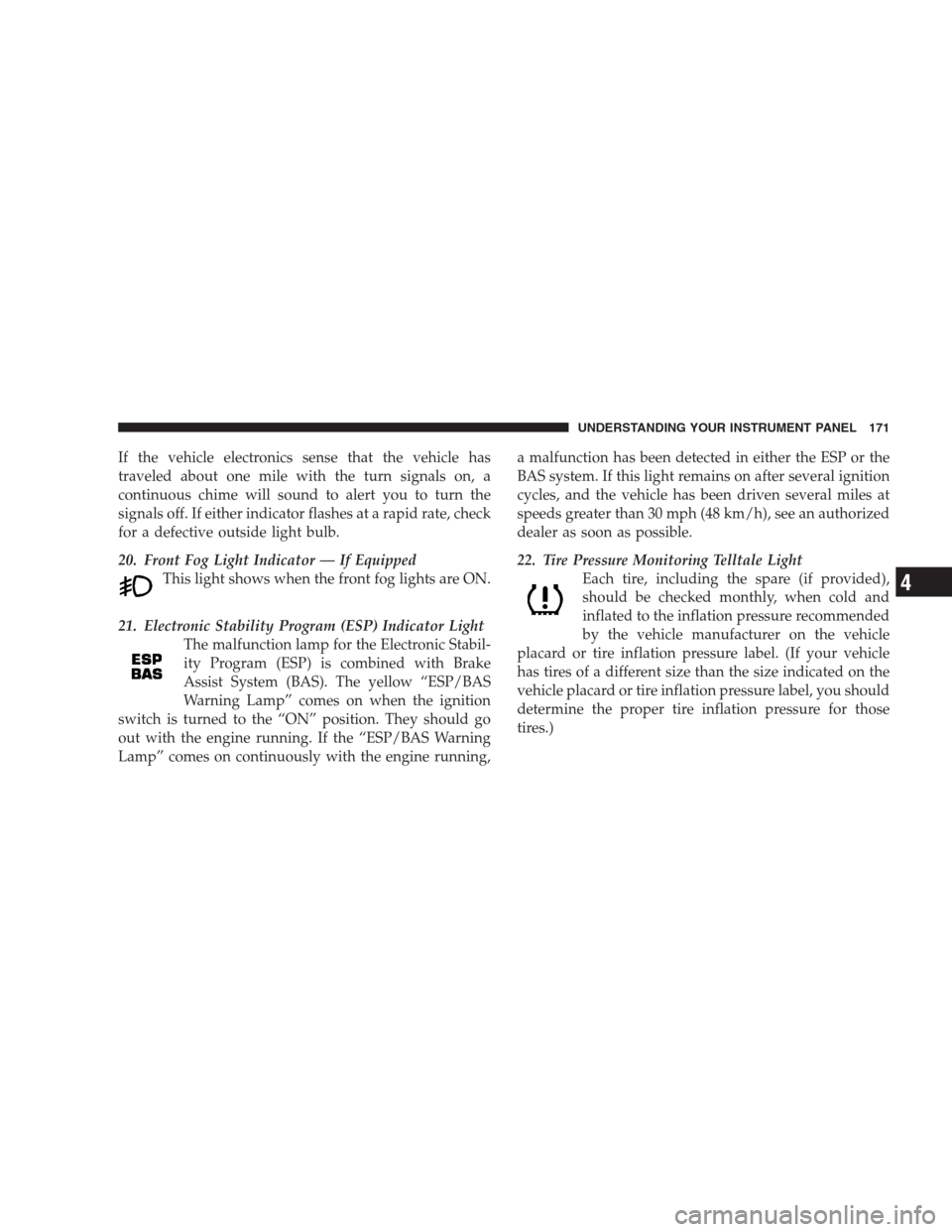

If the vehicle electronics sense that the vehicle has
traveled about one mile with the turn signals on, a
continuous chime will sound to alert you to turn the
signals off. If either indicator flashes at a rapid rate, check
for a defective outside light bulb.
20. Front Fog Light Indicator — If Equipped
This light shows when the front fog lights are ON.
21. Electronic Stability Program (ESP) Indicator Light
The malfunction lamp for the Electronic Stabil-
ity Program (ESP) is combined with Brake
Assist System (BAS). The yellow “ESP/BAS
Warning Lamp” comes on when the ignition
switch is turned to the “ON” position. They should go
out with the engine running. If the “ESP/BAS Warning
Lamp” comes on continuously with the engine running,a malfunction has been detected in either the ESP or the
BAS system. If this light remains on after several ignition
cycles, and the vehicle has been driven several miles at
speeds greater than 30 mph (48 km/h), see an authorized
dealer as soon as possible.
22. Tire Pressure Monitoring Telltale Light
Each tire, including the spare (if provided),
should be checked monthly, when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those
tires.)
UNDERSTANDING YOUR INSTRUMENT PANEL 171
4

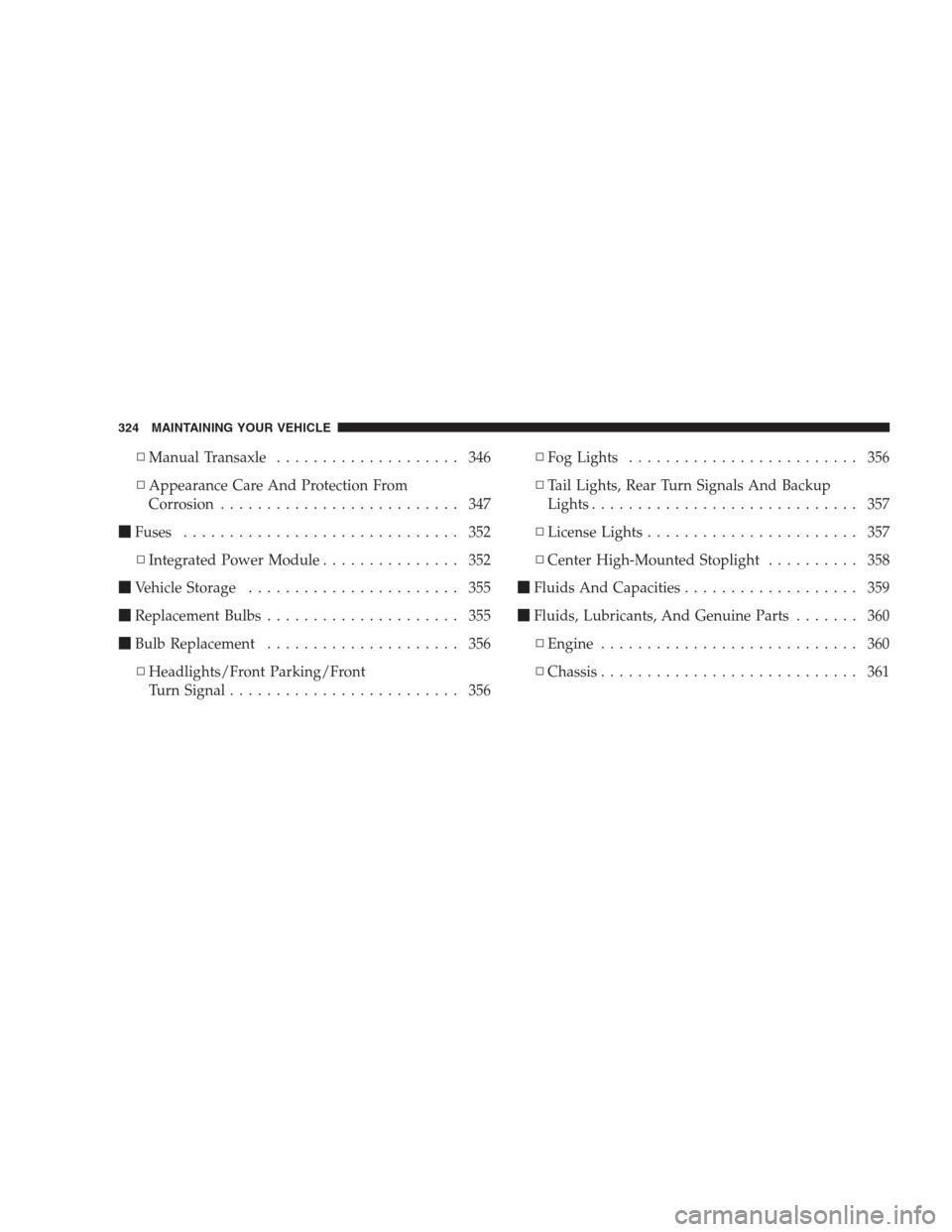

▫Manual Transaxle.................... 346
▫Appearance Care And Protection From
Corrosion.......................... 347
Fuses.............................. 352
▫Integrated Power Module............... 352
Vehicle Storage....................... 355
Replacement Bulbs..................... 355
Bulb Replacement..................... 356
▫Headlights/Front Parking/Front
Turn Signal......................... 356▫Fog Lights......................... 356
▫Tail Lights, Rear Turn Signals And Backup
Lights............................. 357
▫License Lights....................... 357
▫Center High-Mounted Stoplight.......... 358
Fluids And Capacities................... 359
Fluids, Lubricants, And Genuine Parts....... 360
▫Engine............................ 360
▫Chassis............................ 361
324 MAINTAINING YOUR VEHICLE

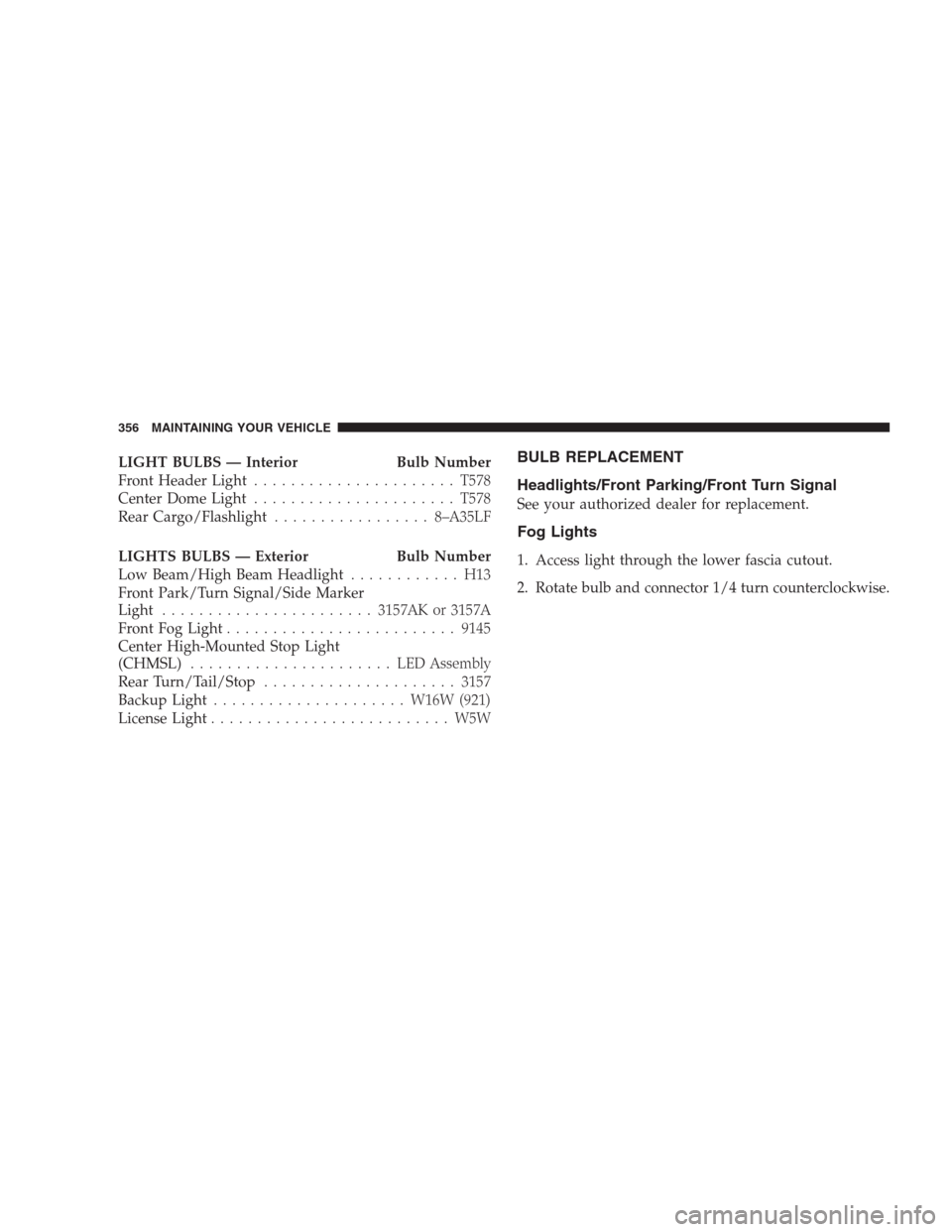

LIGHT BULBS — Interior Bulb Number
Front Header Light......................T578
Center Dome Light......................T578
Rear Cargo/Flashlight.................8–A35LF
LIGHTS BULBS — Exterior Bulb Number
Low Beam/High Beam Headlight............ H13
Front Park/Turn Signal/Side Marker
Light.......................3157AK or 3157A
Front Fog Light.........................9145
Center High-Mounted Stop Light
(CHMSL)...................... LEDAssembly
Rear Turn/Tail/Stop.....................3157
Backup Light.....................W16W (921)
License Light.......................... W5WBULB REPLACEMENT
Headlights/Front Parking/Front Turn Signal
See your authorized dealer for replacement.
Fog Lights
1. Access light through the lower fascia cutout.
2. Rotate bulb and connector 1/4 turn counterclockwise.
356 MAINTAINING YOUR VEHICLE

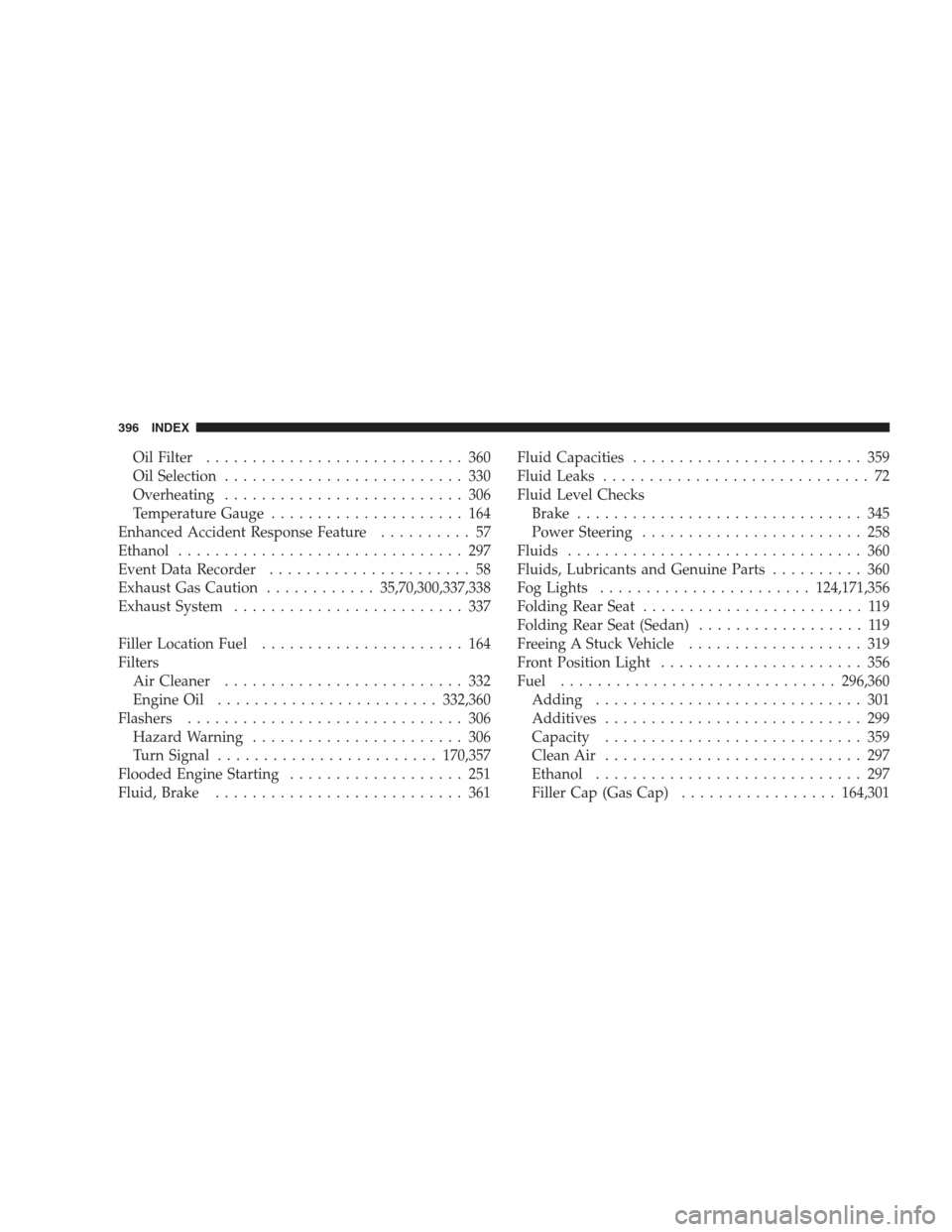

Oil Filter............................ 360
Oil Selection.......................... 330
Overheating.......................... 306
Temperature Gauge..................... 164
Enhanced Accident Response Feature.......... 57
Ethanol............................... 297
Event Data Recorder...................... 58
Exhaust Gas Caution............35,70,300,337,338
Exhaust System......................... 337
Filler Location Fuel...................... 164
Filters
Air Cleaner.......................... 332
Engine Oil........................332,360
Flashers.............................. 306
Hazard Warning....................... 306
Turn Signal........................170,357
Flooded Engine Starting................... 251
Fluid, Brake........................... 361Fluid Capacities......................... 359
Fluid Leaks............................. 72
Fluid Level Checks
Brake............................... 345
Power Steering........................ 258
Fluids................................ 360
Fluids, Lubricants and Genuine Parts.......... 360
Fog Lights.......................124,171,356
Folding Rear Seat........................ 119
Folding Rear Seat (Sedan).................. 119
Freeing A Stuck Vehicle................... 319
Front Position Light...................... 356
Fuel..............................296,360
Adding............................. 301
Additives............................ 299
Capacity............................ 359
Clean Air............................ 297
Ethanol............................. 297
Filler Cap (Gas Cap).................164,301
396 INDEX

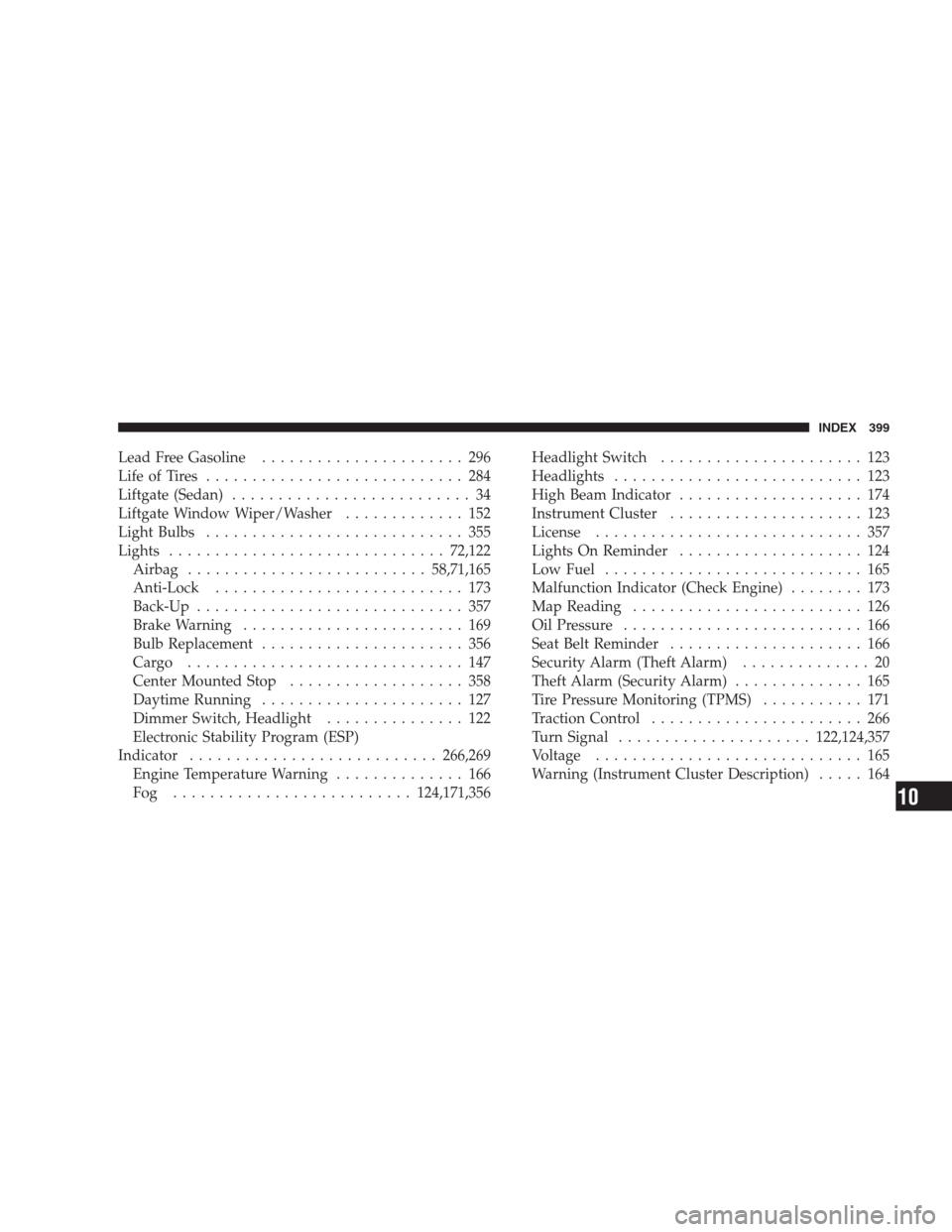

Lead Free Gasoline...................... 296
Life of Tires............................ 284
Liftgate (Sedan).......................... 34
Liftgate Window Wiper/Washer............. 152
Light Bulbs............................ 355
Lights..............................72,122
Airbag..........................58,71,165
Anti-Lock........................... 173
Back-Up............................. 357
Brake Warning........................ 169
Bulb Replacement...................... 356
Cargo .............................. 147
Center Mounted Stop................... 358
Daytime Running...................... 127
Dimmer Switch, Headlight............... 122
Electronic Stability Program (ESP)
Indicator...........................266,269
Engine Temperature Warning.............. 166
Fog ..........................124,171,356Headlight Switch...................... 123
Headlights........................... 123
High Beam Indicator.................... 174
Instrument Cluster..................... 123
License............................. 357
Lights On Reminder.................... 124
Low Fuel............................ 165
Malfunction Indicator (Check Engine)........ 173
Map Reading......................... 126
Oil Pressure.......................... 166
Seat Belt Reminder..................... 166
Security Alarm (Theft Alarm).............. 20
Theft Alarm (Security Alarm).............. 165
Tire Pressure Monitoring (TPMS)........... 171
Traction Control....................... 266
Turn Signal.....................122,124,357
Voltage............................. 165
Warning (Instrument Cluster Description)..... 164
INDEX 399
10

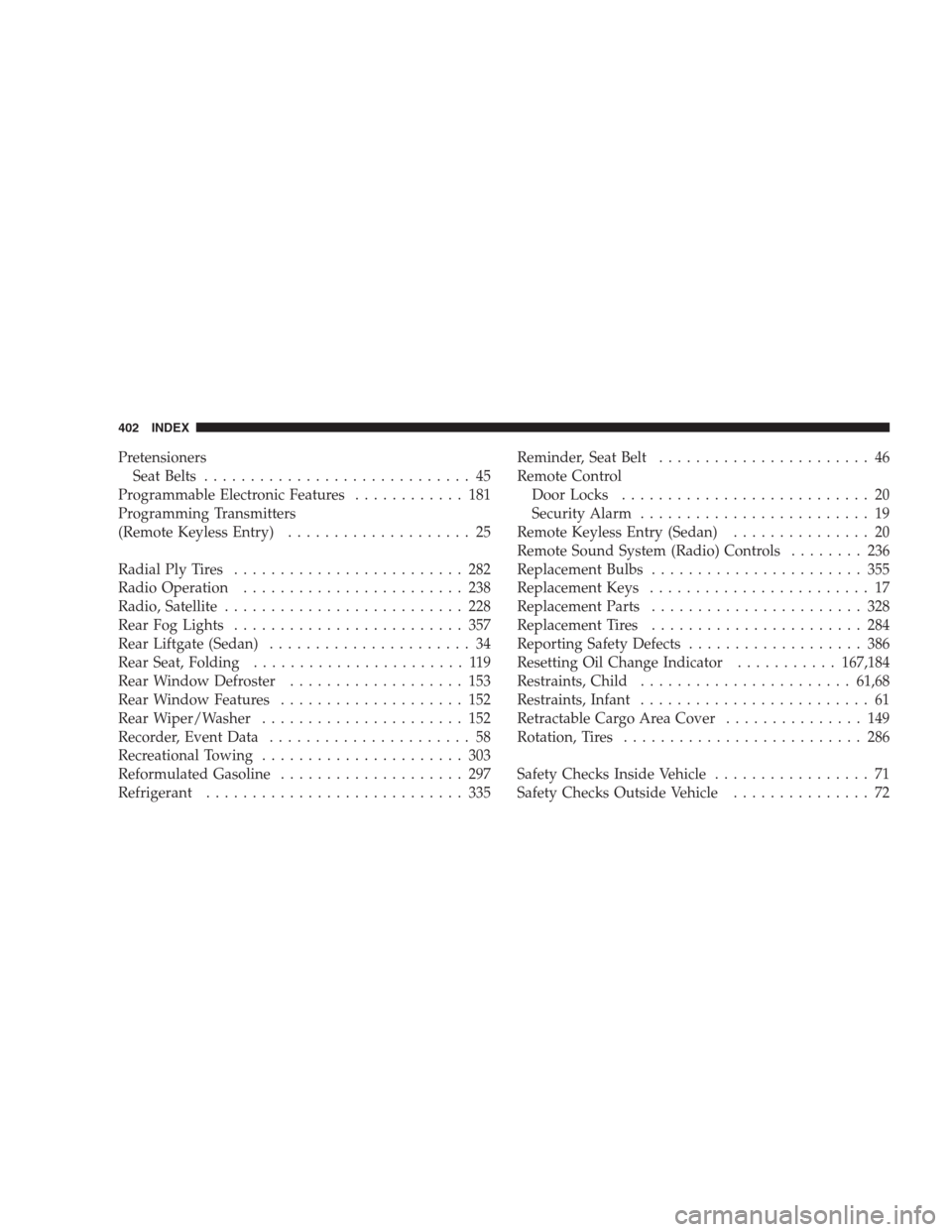

Pretensioners
Seat Belts............................. 45
Programmable Electronic Features............ 181
Programming Transmitters
(Remote Keyless Entry).................... 25
Radial Ply Tires......................... 282
Radio Operation........................ 238
Radio, Satellite.......................... 228
Rear Fog Lights......................... 357
Rear Liftgate (Sedan)...................... 34
Rear Seat, Folding....................... 119
Rear Window Defroster................... 153
Rear Window Features.................... 152
Rear Wiper/Washer...................... 152
Recorder, Event Data...................... 58
Recreational Towing...................... 303
Reformulated Gasoline.................... 297
Refrigerant............................ 335Reminder, Seat Belt....................... 46
Remote Control
Door Locks........................... 20
Security Alarm......................... 19
Remote Keyless Entry (Sedan)............... 20
Remote Sound System (Radio) Controls........ 236
Replacement Bulbs....................... 355
Replacement Keys........................ 17
Replacement Parts....................... 328
Replacement Tires....................... 284
Reporting Safety Defects................... 386
Resetting Oil Change Indicator...........167,184
Restraints, Child.......................61,68
Restraints, Infant......................... 61
Retractable Cargo Area Cover............... 149
Rotation, Tires.......................... 286
Safety Checks Inside Vehicle................. 71
Safety Checks Outside Vehicle............... 72
402 INDEX

Trip Odometer Reset Button................ 168
Turbo Cool Down....................... 252
Turn Signals......................124,170,357
UConnect(Hands-Free Phone).............. 81
Understanding Your Instrument Panel......... 161
Uniform Tire Quality Grades................ 389
Universal Transmitter..................... 134
Unleaded Gasoline....................... 296
Vanity Mirrors........................... 81
Variance, Compass....................... 185
Vehicle Identification Number (VIN)............ 6
Vehicle Loading......................... 275
Vehicle Modifications/Alterations.............. 7
Vehicle Storage......................... 355
Vehicle Theft Alarm (Security Alarm).......... 19
Voice Recognition System (VR).............. 109
Warning Lights (Instrument Cluster Description)... 164
Warnings and Cautions..................... 6Warranty Information..................... 386
Washer, Adding Fluid..................... 337
Washers, Windshield..................... 128
Washing Vehicle......................... 348
Water
Driving Through...................... 255
Wheel and Wheel Trim.................... 349
Wheel and Wheel Trim Care................ 349
Wind Buffeting......................... 143
Window Airbag (Side Curtain)............... 49
Window Fogging........................ 245
Windows.............................. 32
Power............................... 32
Windshield Washers................127,128,337
Fluid............................... 337
Windshield Wipers....................127,336
Wipers, Intermittent...................... 128
406 INDEX
