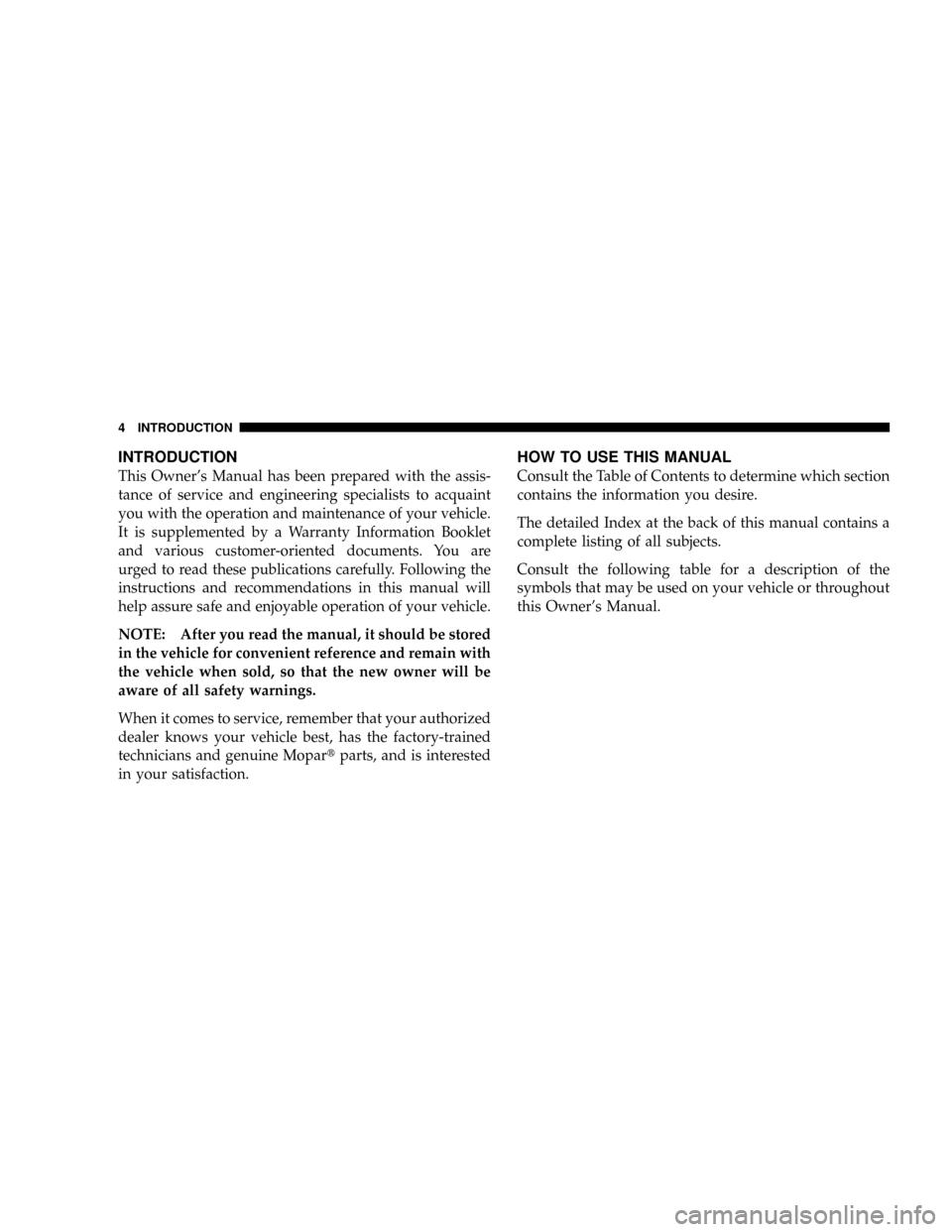

INTRODUCTION
This Owner's Manual has been prepared with the assis-
tance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by a Warranty Information Booklet
and various customer-oriented documents. You are
urged to read these publications carefully. Following the
instructions and recommendations in this manual will
help assure safe and enjoyable operation of your vehicle.
NOTE: After you read the manual, it should be stored
in the vehicle for convenient reference and remain with
the vehicle when sold, so that the new owner will be
aware of all safety warnings.
When it comes to service, remember that your authorized
dealer knows your vehicle best, has the factory-trained
technicians and genuine Mopartparts, and is interested
in your satisfaction.
HOW TO USE THIS MANUAL
Consult the Table of Contents to determine which section
contains the information you desire.
The detailed Index at the back of this manual contains a
complete listing of all subjects.
Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this Owner's Manual.
4 INTRODUCTION

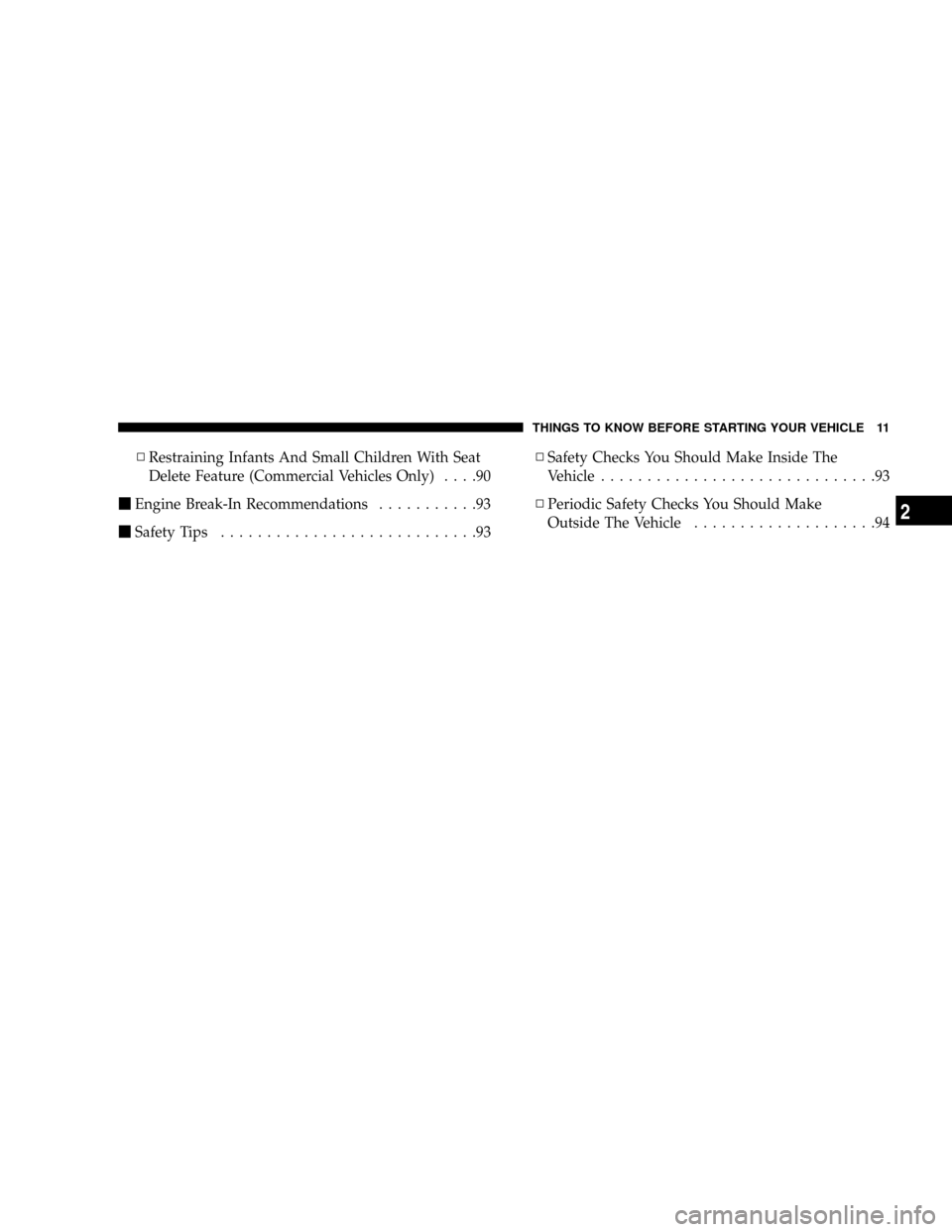

NRestraining Infants And Small Children With Seat
Delete Feature (Commercial Vehicles Only)....90
mEngine Break-In Recommendations...........93
mSafety Tips............................93NSafety Checks You Should Make Inside The
Vehicle..............................93
NPeriodic Safety Checks You Should Make
Outside The Vehicle....................94
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

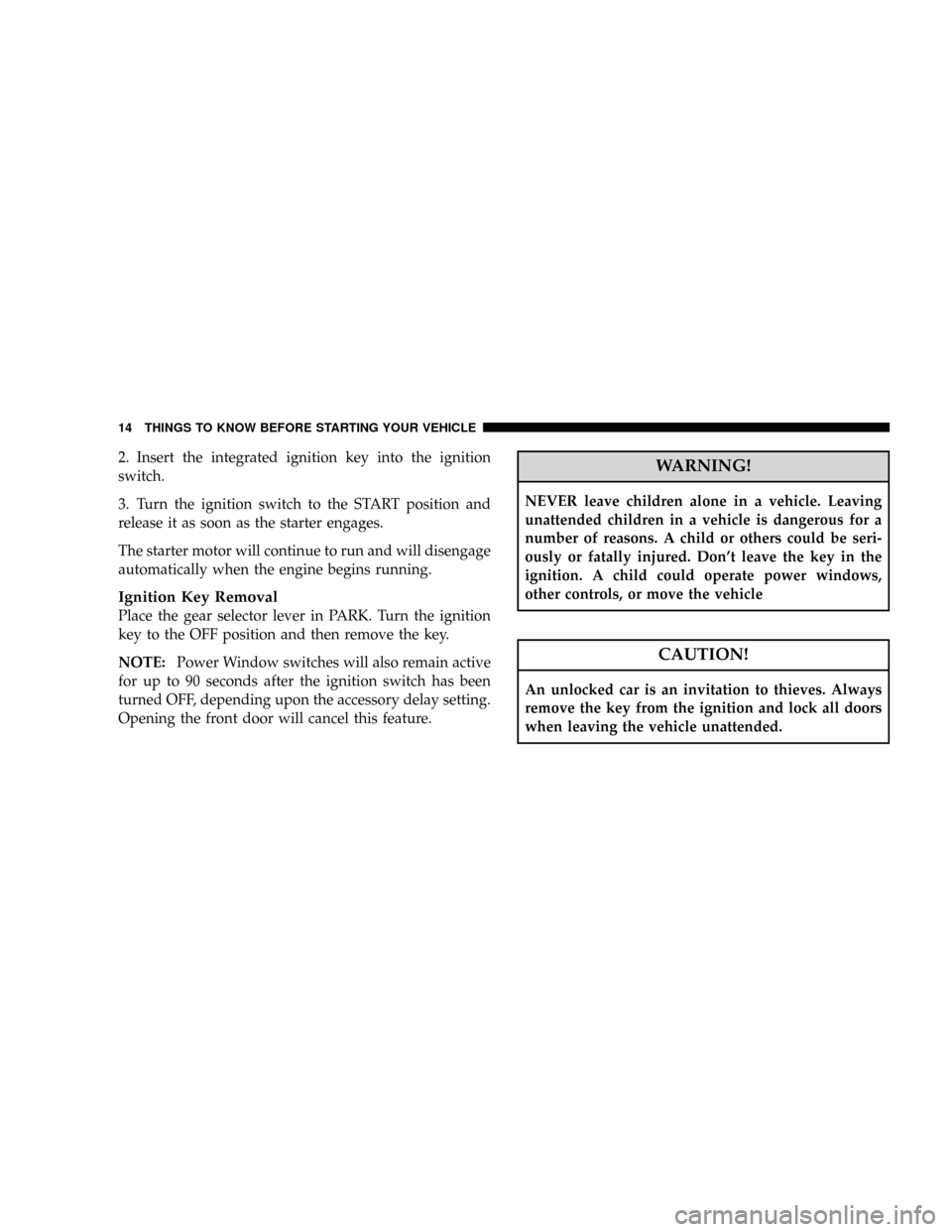

2. Insert the integrated ignition key into the ignition
switch.
3. Turn the ignition switch to the START position and
release it as soon as the starter engages.
The starter motor will continue to run and will disengage
automatically when the engine begins running.
Ignition Key Removal
Place the gear selector lever in PARK. Turn the ignition
key to the OFF position and then remove the key.
NOTE:Power Window switches will also remain active
for up to 90 seconds after the ignition switch has been
turned OFF, depending upon the accessory delay setting.
Opening the front door will cancel this feature.
WARNING!
NEVER leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don't leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

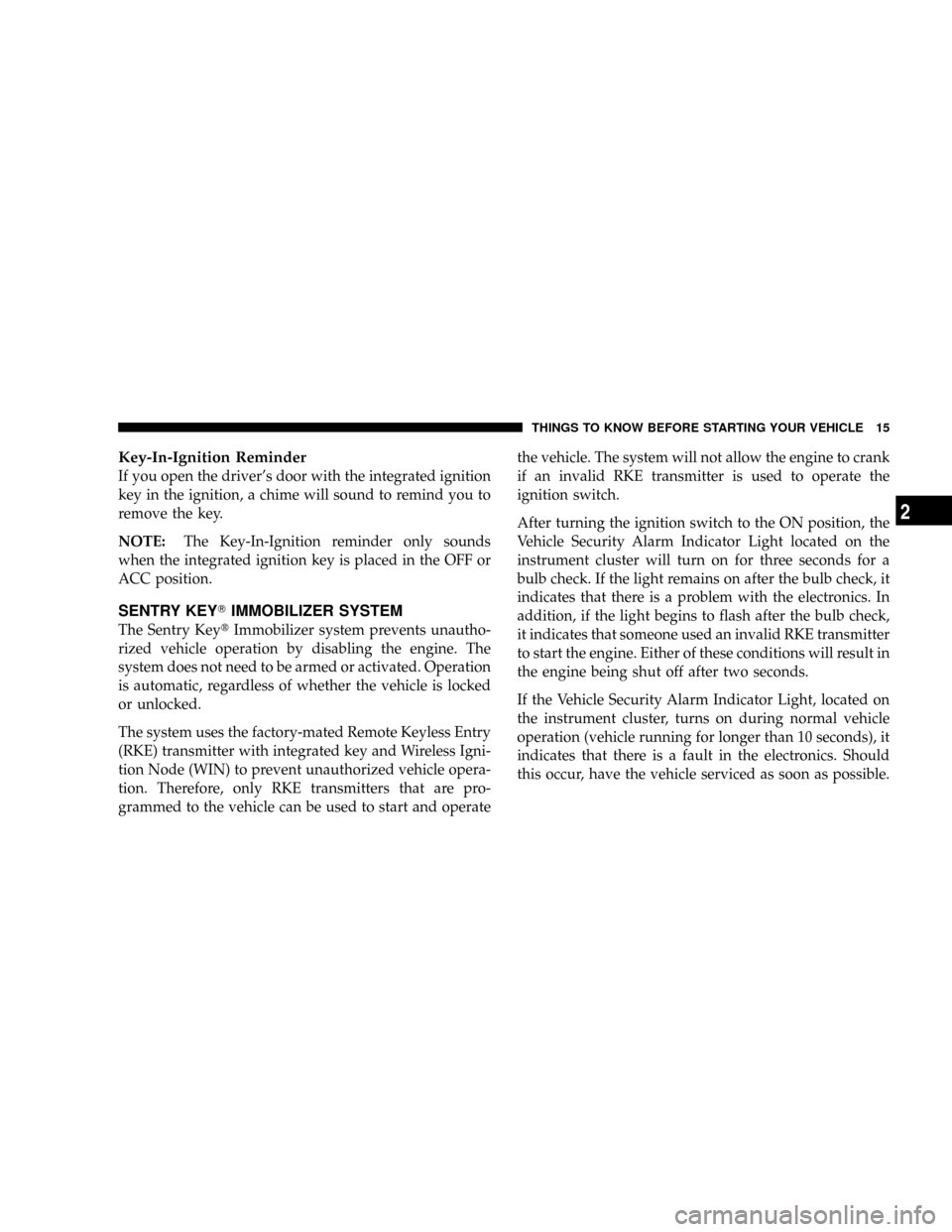

Key-In-Ignition Reminder
If you open the driver's door with the integrated ignition
key in the ignition, a chime will sound to remind you to
remove the key.
NOTE:The Key-In-Ignition reminder only sounds
when the integrated ignition key is placed in the OFF or
ACC position.
SENTRY KEYTIMMOBILIZER SYSTEM
The Sentry KeytImmobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operatethe vehicle. The system will not allow the engine to crank
if an invalid RKE transmitter is used to operate the
ignition switch.
After turning the ignition switch to the ON position, the
Vehicle Security Alarm Indicator Light located on the
instrument cluster will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid RKE transmitter
to start the engine. Either of these conditions will result in
the engine being shut off after two seconds.
If the Vehicle Security Alarm Indicator Light, located on
the instrument cluster, turns on during normal vehicle
operation (vehicle running for longer than 10 seconds), it
indicates that there is a fault in the electronics. Should
this occur, have the vehicle serviced as soon as possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

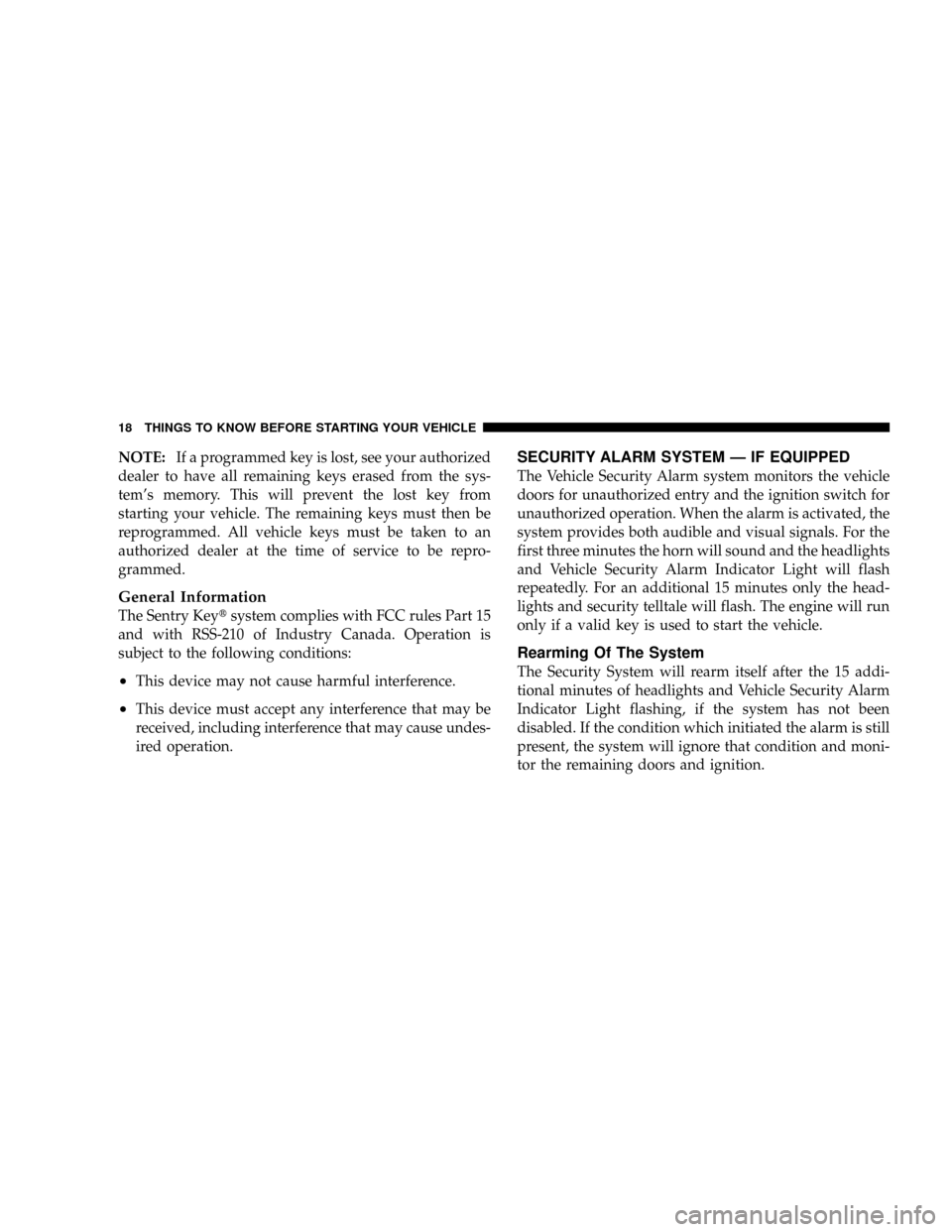

NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem's memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be repro-
grammed.
General Information
The Sentry Keytsystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
²This device may not cause harmful interference.
²This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM Ð IF EQUIPPED
The Vehicle Security Alarm system monitors the vehicle
doors for unauthorized entry and the ignition switch for
unauthorized operation. When the alarm is activated, the
system provides both audible and visual signals. For the
first three minutes the horn will sound and the headlights
and Vehicle Security Alarm Indicator Light will flash
repeatedly. For an additional 15 minutes only the head-
lights and security telltale will flash. The engine will run
only if a valid key is used to start the vehicle.
Rearming Of The System
The Security System will rearm itself after the 15 addi-
tional minutes of headlights and Vehicle Security Alarm
Indicator Light flashing, if the system has not been
disabled. If the condition which initiated the alarm is still
present, the system will ignore that condition and moni-
tor the remaining doors and ignition.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

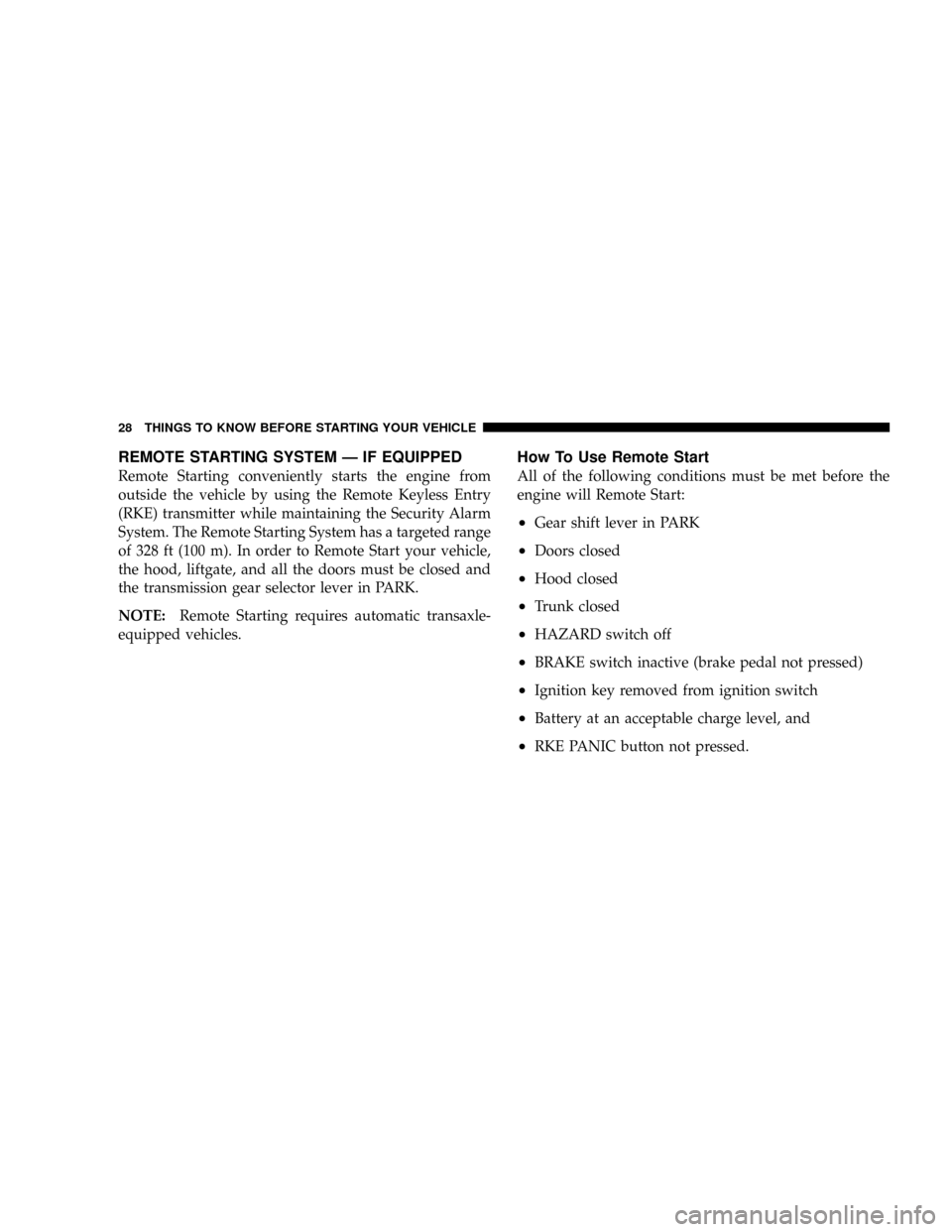

REMOTE STARTING SYSTEM Ð IF EQUIPPED
Remote Starting conveniently starts the engine from
outside the vehicle by using the Remote Keyless Entry
(RKE) transmitter while maintaining the Security Alarm
System. The Remote Starting System has a targeted range
of 328 ft (100 m). In order to Remote Start your vehicle,
the hood, liftgate, and all the doors must be closed and
the transmission gear selector lever in PARK.
NOTE:Remote Starting requires automatic transaxle-
equipped vehicles.
How To Use Remote Start
All of the following conditions must be met before the
engine will Remote Start:
²Gear shift lever in PARK
²Doors closed
²Hood closed
²Trunk closed
²HAZARD switch off
²BRAKE switch inactive (brake pedal not pressed)
²Ignition key removed from ignition switch
²Battery at an acceptable charge level, and
²RKE PANIC button not pressed.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

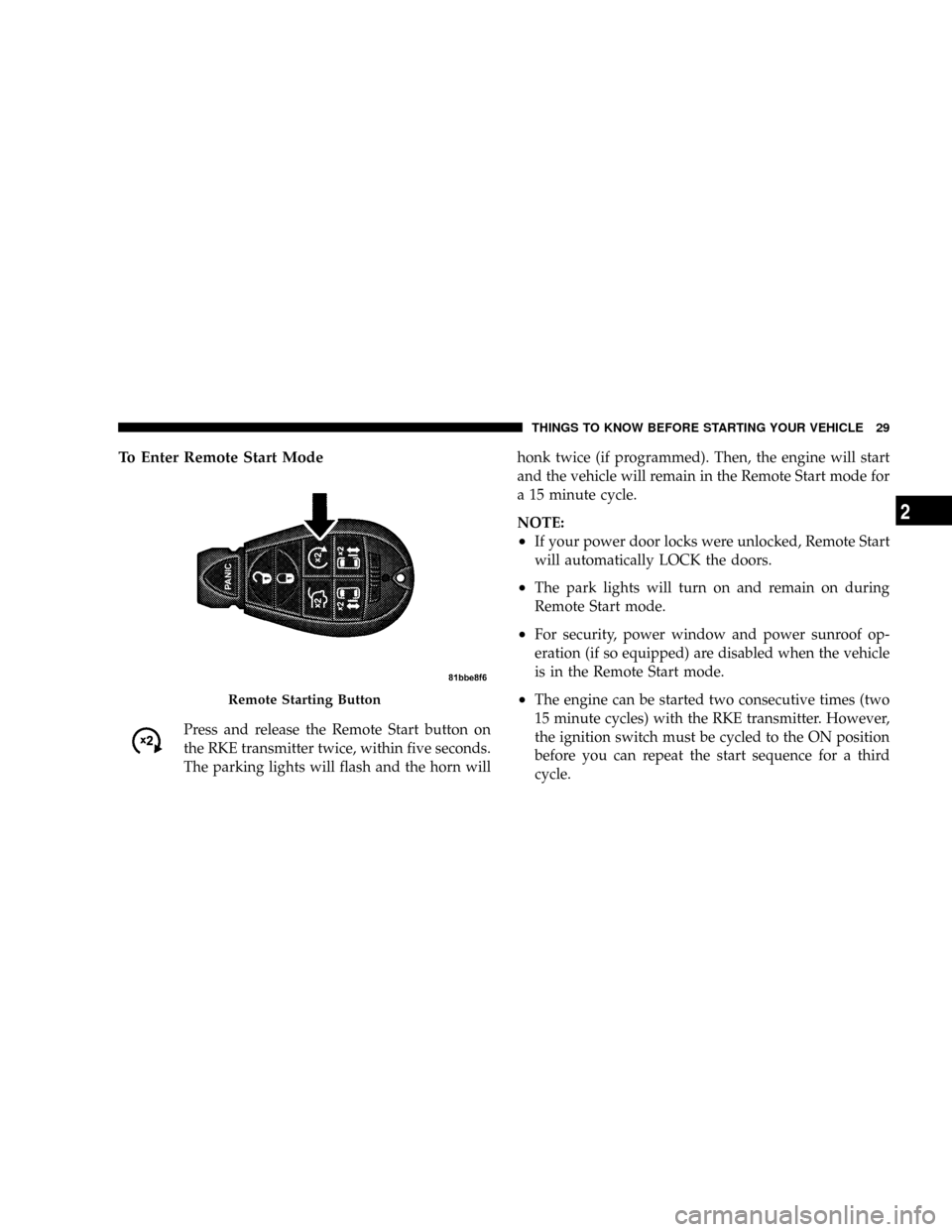

To Enter Remote Start Mode
Press and release the Remote Start button on
the RKE transmitter twice, within five seconds.
The parking lights will flash and the horn willhonk twice (if programmed). Then, the engine will start
and the vehicle will remain in the Remote Start mode for
a 15 minute cycle.
NOTE:
²If your power door locks were unlocked, Remote Start
will automatically LOCK the doors.
²The park lights will turn on and remain on during
Remote Start mode.
²For security, power window and power sunroof op-
eration (if so equipped) are disabled when the vehicle
is in the Remote Start mode.
²The engine can be started two consecutive times (two
15 minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.Remote Starting Button
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2

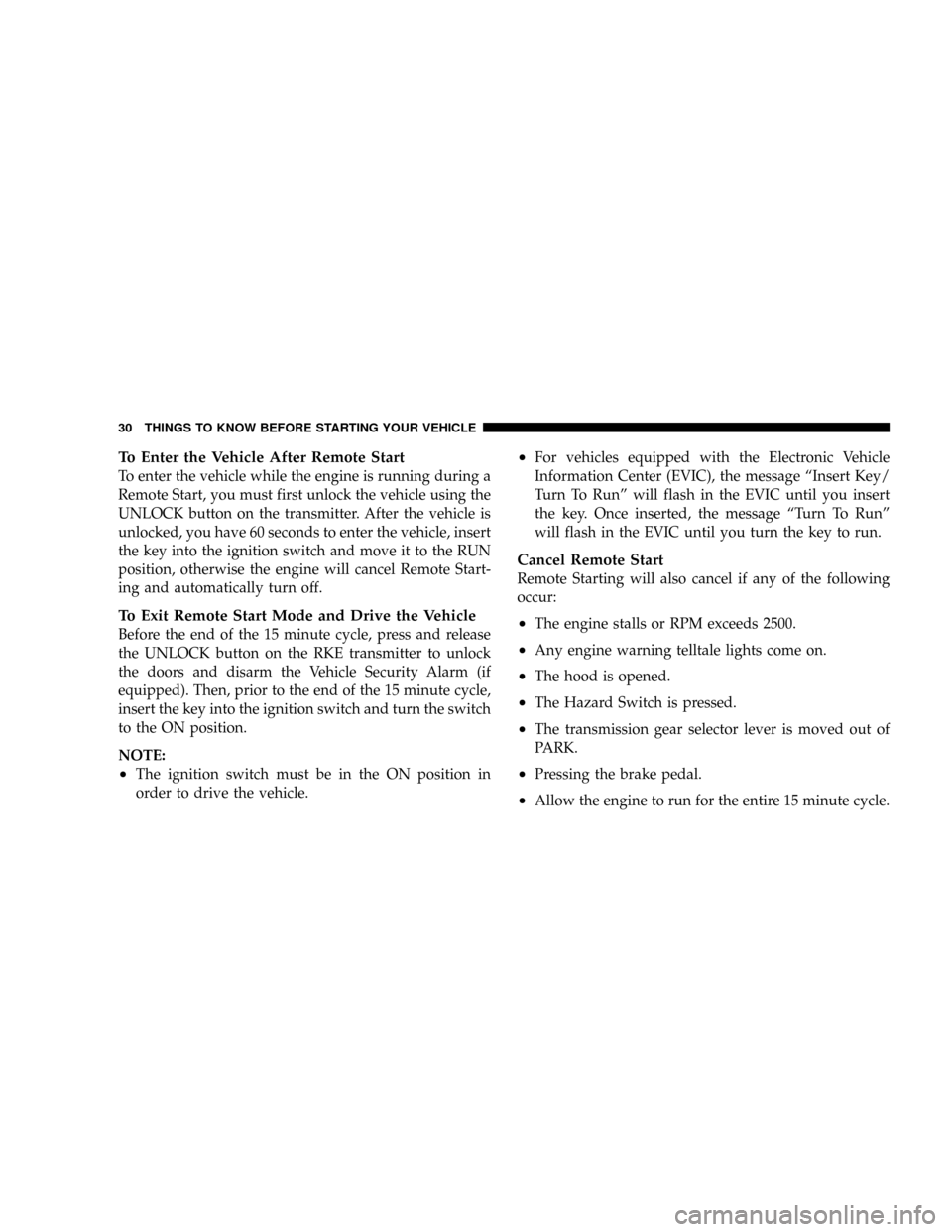

To Enter the Vehicle After Remote Start
To enter the vehicle while the engine is running during a
Remote Start, you must first unlock the vehicle using the
UNLOCK button on the transmitter. After the vehicle is
unlocked, you have 60 seconds to enter the vehicle, insert
the key into the ignition switch and move it to the RUN
position, otherwise the engine will cancel Remote Start-
ing and automatically turn off.
To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15 minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15 minute cycle,
insert the key into the ignition switch and turn the switch
to the ON position.
NOTE:
²The ignition switch must be in the ON position in
order to drive the vehicle.
²For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the message ªInsert Key/
Turn To Runº will flash in the EVIC until you insert
the key. Once inserted, the message ªTurn To Runº
will flash in the EVIC until you turn the key to run.
Cancel Remote Start
Remote Starting will also cancel if any of the following
occur:
²The engine stalls or RPM exceeds 2500.
²Any engine warning telltale lights come on.
²The hood is opened.
²The Hazard Switch is pressed.
²The transmission gear selector lever is moved out of
PARK.
²Pressing the brake pedal.
²Allow the engine to run for the entire 15 minute cycle.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

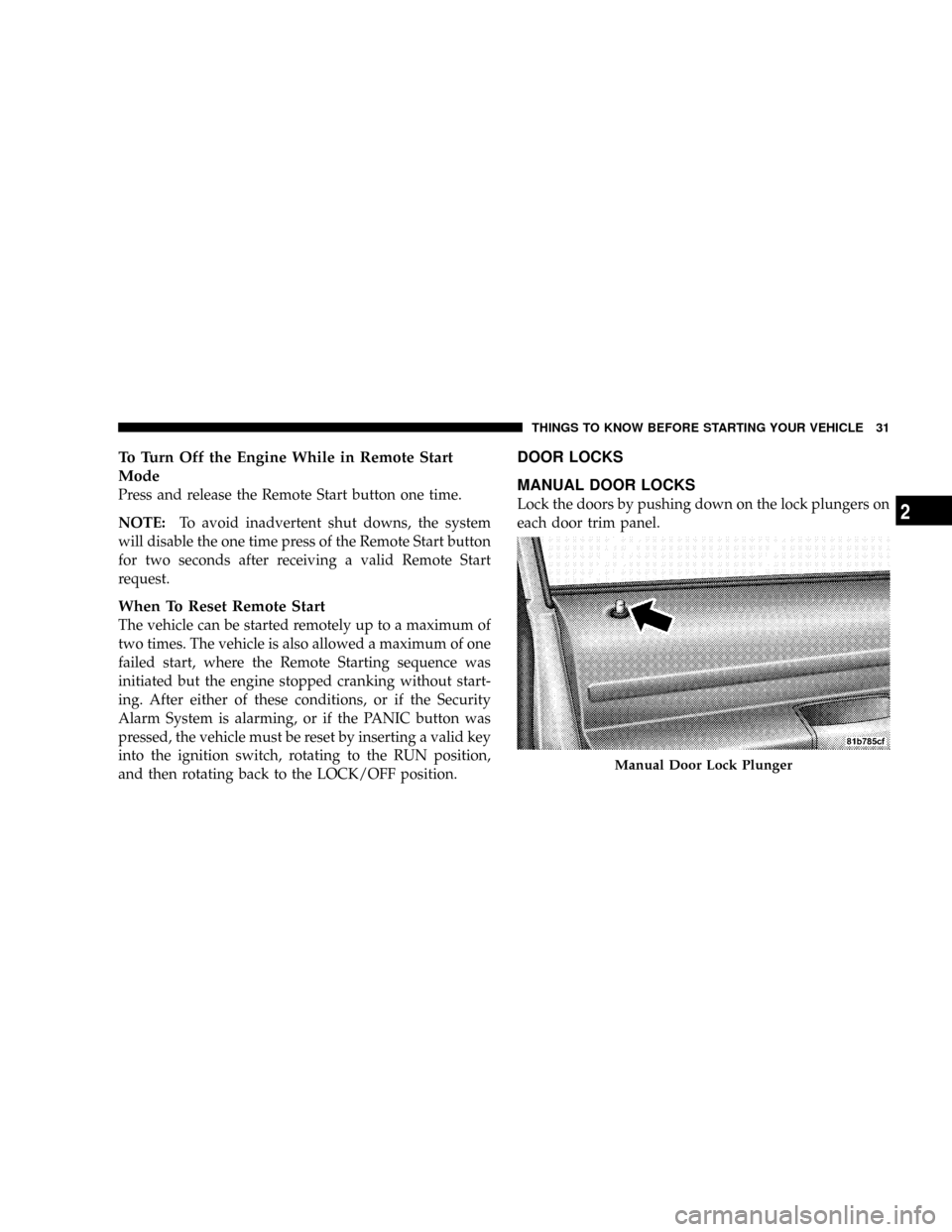

To Turn Off the Engine While in Remote Start
Mode
Press and release the Remote Start button one time.
NOTE:To avoid inadvertent shut downs, the system
will disable the one time press of the Remote Start button
for two seconds after receiving a valid Remote Start
request.
When To Reset Remote Start
The vehicle can be started remotely up to a maximum of
two times. The vehicle is also allowed a maximum of one
failed start, where the Remote Starting sequence was
initiated but the engine stopped cranking without start-
ing. After either of these conditions, or if the Security
Alarm System is alarming, or if the PANIC button was
pressed, the vehicle must be reset by inserting a valid key
into the ignition switch, rotating to the RUN position,
and then rotating back to the LOCK/OFF position.
DOOR LOCKS
MANUAL DOOR LOCKS
Lock the doors by pushing down on the lock plungers on
each door trim panel.
Manual Door Lock Plunger
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

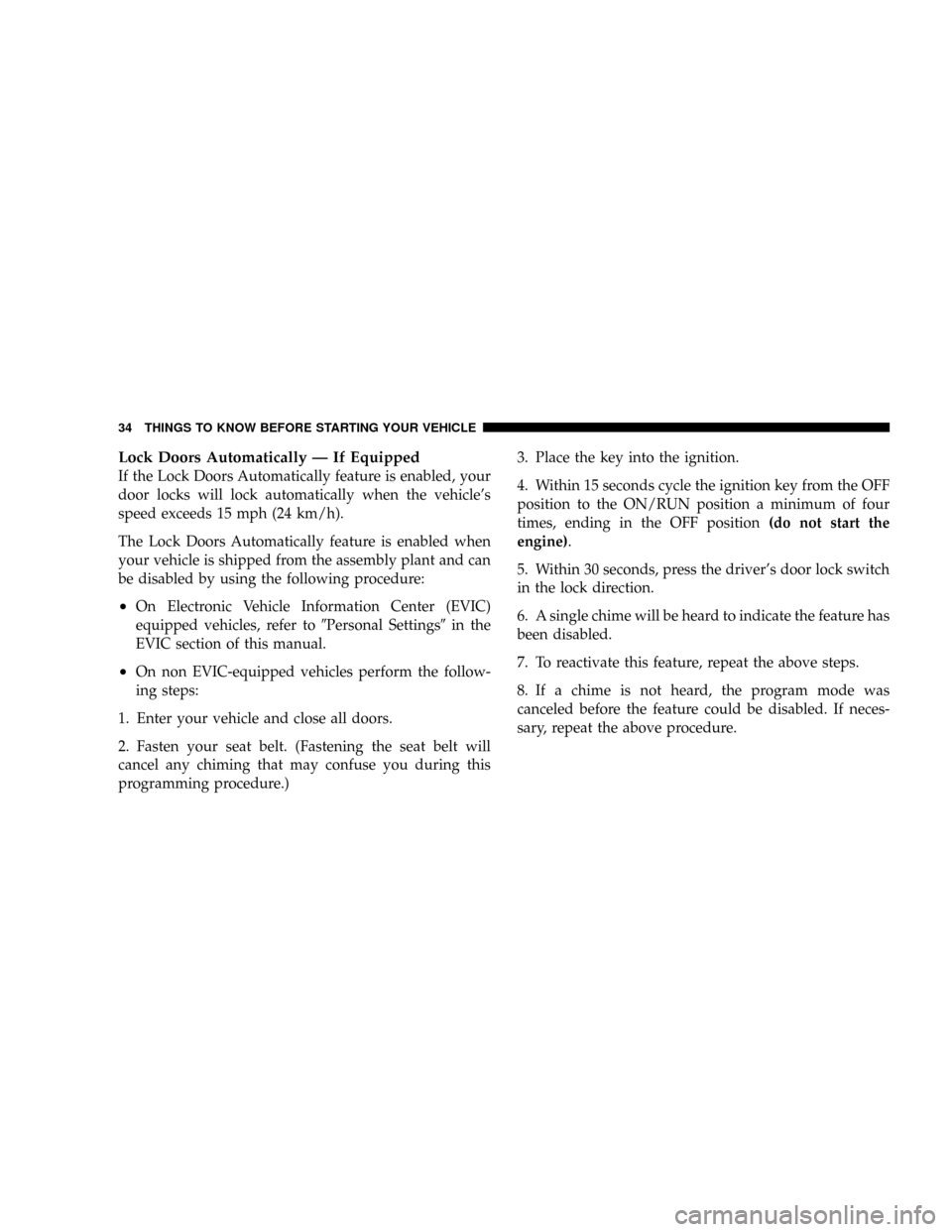

Lock Doors Automatically Ð If Equipped
If the Lock Doors Automatically feature is enabled, your
door locks will lock automatically when the vehicle's
speed exceeds 15 mph (24 km/h).
The Lock Doors Automatically feature is enabled when
your vehicle is shipped from the assembly plant and can
be disabled by using the following procedure:
²On Electronic Vehicle Information Center (EVIC)
equipped vehicles, refer to9Personal Settings9in the
EVIC section of this manual.
²On non EVIC-equipped vehicles perform the follow-
ing steps:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure.)3. Place the key into the ignition.
4. Within 15 seconds cycle the ignition key from the OFF
position to the ON/RUN position a minimum of four
times, ending in the OFF position(do not start the
engine).
5. Within 30 seconds, press the driver's door lock switch
in the lock direction.
6. A single chime will be heard to indicate the feature has
been disabled.
7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, the program mode was
canceled before the feature could be disabled. If neces-
sary, repeat the above procedure.
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
