Airbag Light
The light should come on and remain on for four seconds
as a bulb check when the ignition switch is first turned
ON. If the LED is not lit during starting and/or the light
stays on or comes ON while driving, have the system
checked by an authorized dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield.
NOTE:If the defroster is not working or you are unable
to feel air against the windshield in defrost mode, please
see your authorized dealer service center for repairs.
PERIODIC SAFETY CHECKS YOU SHOULD MAKE
OUTSIDE THE VEHICLE
Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect tread and sidewall for cuts or
cracks. Check wheel nuts for tightness, and tires (includ-
ing spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil or other fluid leaks. Also, if gasoline
fumes are detected or fuel, power steering fluid, trans-
mission fluid or brake fluid leaks are suspected, the cause
should be located and corrected immediately.
94 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

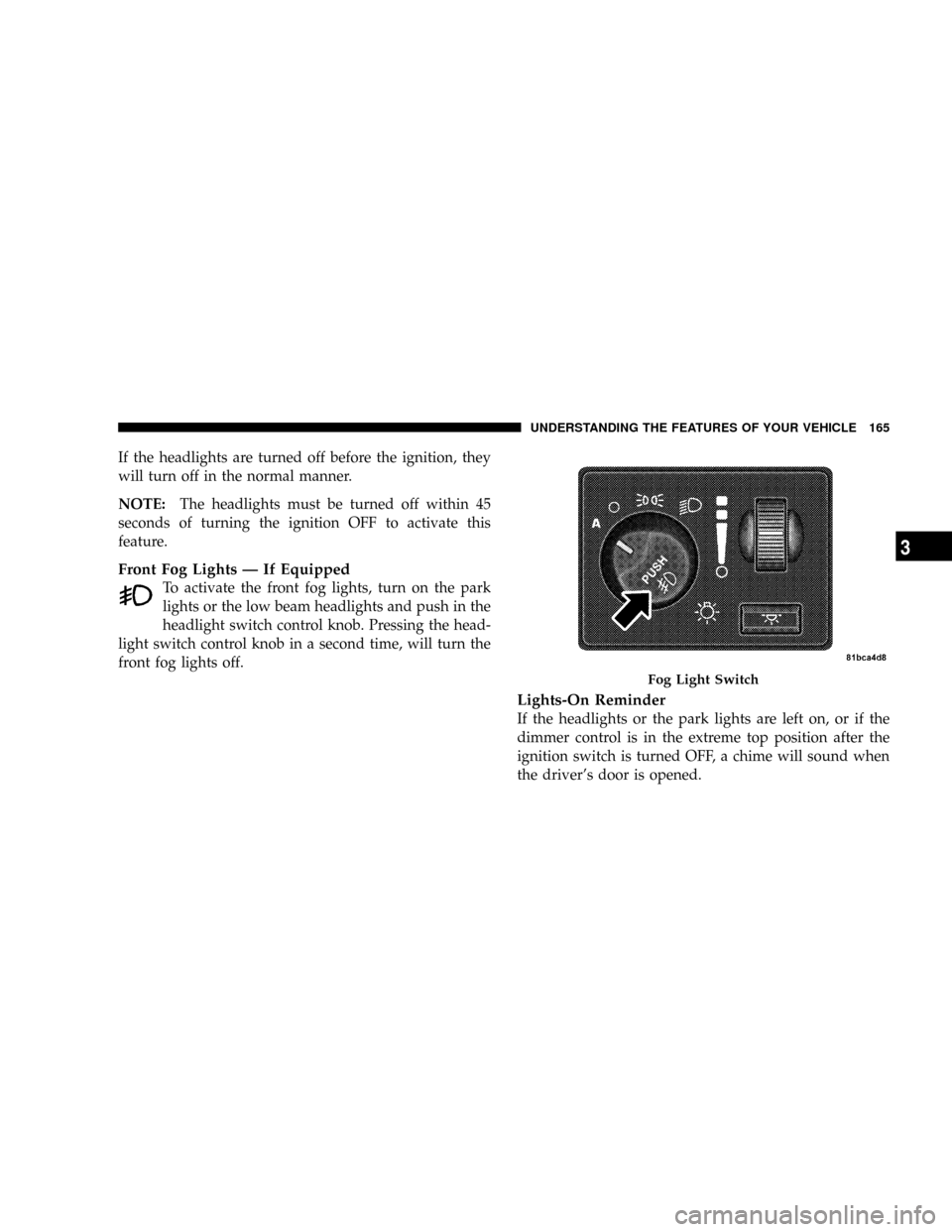

If the headlights are turned off before the ignition, they
will turn off in the normal manner.
NOTE:The headlights must be turned off within 45
seconds of turning the ignition OFF to activate this
feature.
Front Fog Lights Ð If Equipped
To activate the front fog lights, turn on the park
lights or the low beam headlights and push in the
headlight switch control knob. Pressing the head-
light switch control knob in a second time, will turn the
front fog lights off.
Lights-On Reminder
If the headlights or the park lights are left on, or if the
dimmer control is in the extreme top position after the
ignition switch is turned OFF, a chime will sound when
the driver's door is opened.
Fog Light Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165
3

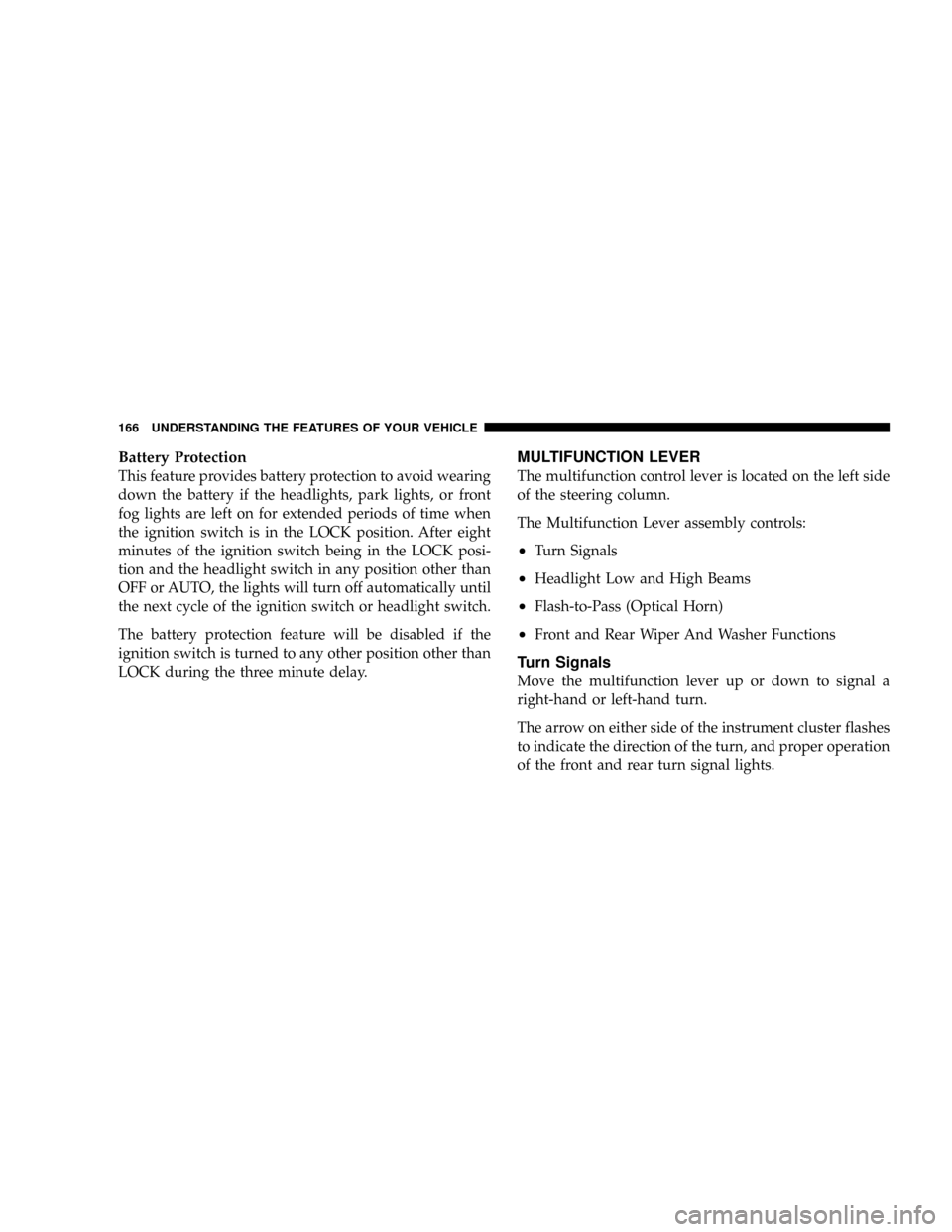

Battery Protection
This feature provides battery protection to avoid wearing
down the battery if the headlights, park lights, or front
fog lights are left on for extended periods of time when
the ignition switch is in the LOCK position. After eight
minutes of the ignition switch being in the LOCK posi-
tion and the headlight switch in any position other than
OFF or AUTO, the lights will turn off automatically until
the next cycle of the ignition switch or headlight switch.
The battery protection feature will be disabled if the
ignition switch is turned to any other position other than
LOCK during the three minute delay.
MULTIFUNCTION LEVER
The multifunction control lever is located on the left side
of the steering column.
The Multifunction Lever assembly controls:
²Turn Signals
²Headlight Low and High Beams
²Flash-to-Pass (Optical Horn)
²Front and Rear Wiper And Washer Functions
Turn Signals
Move the multifunction lever up or down to signal a
right-hand or left-hand turn.
The arrow on either side of the instrument cluster flashes
to indicate the direction of the turn, and proper operation
of the front and rear turn signal lights.
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

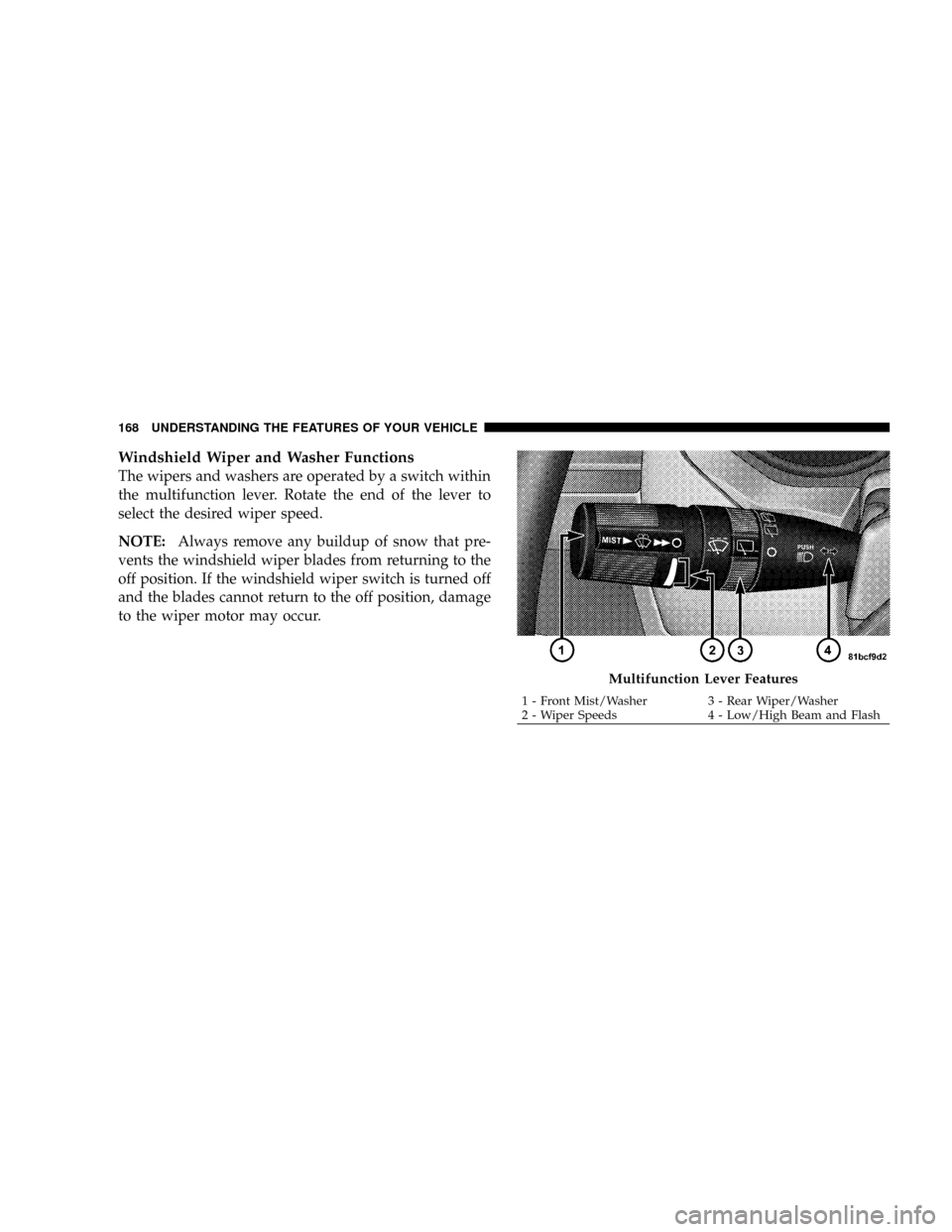

Windshield Wiper and Washer Functions
The wipers and washers are operated by a switch within
the multifunction lever. Rotate the end of the lever to
select the desired wiper speed.
NOTE:Always remove any buildup of snow that pre-
vents the windshield wiper blades from returning to the
off position. If the windshield wiper switch is turned off
and the blades cannot return to the off position, damage
to the wiper motor may occur.
Multifunction Lever Features
1 - Front Mist/Washer 3 - Rear Wiper/Washer
2 - Wiper Speeds 4 - Low/High Beam and Flash 168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

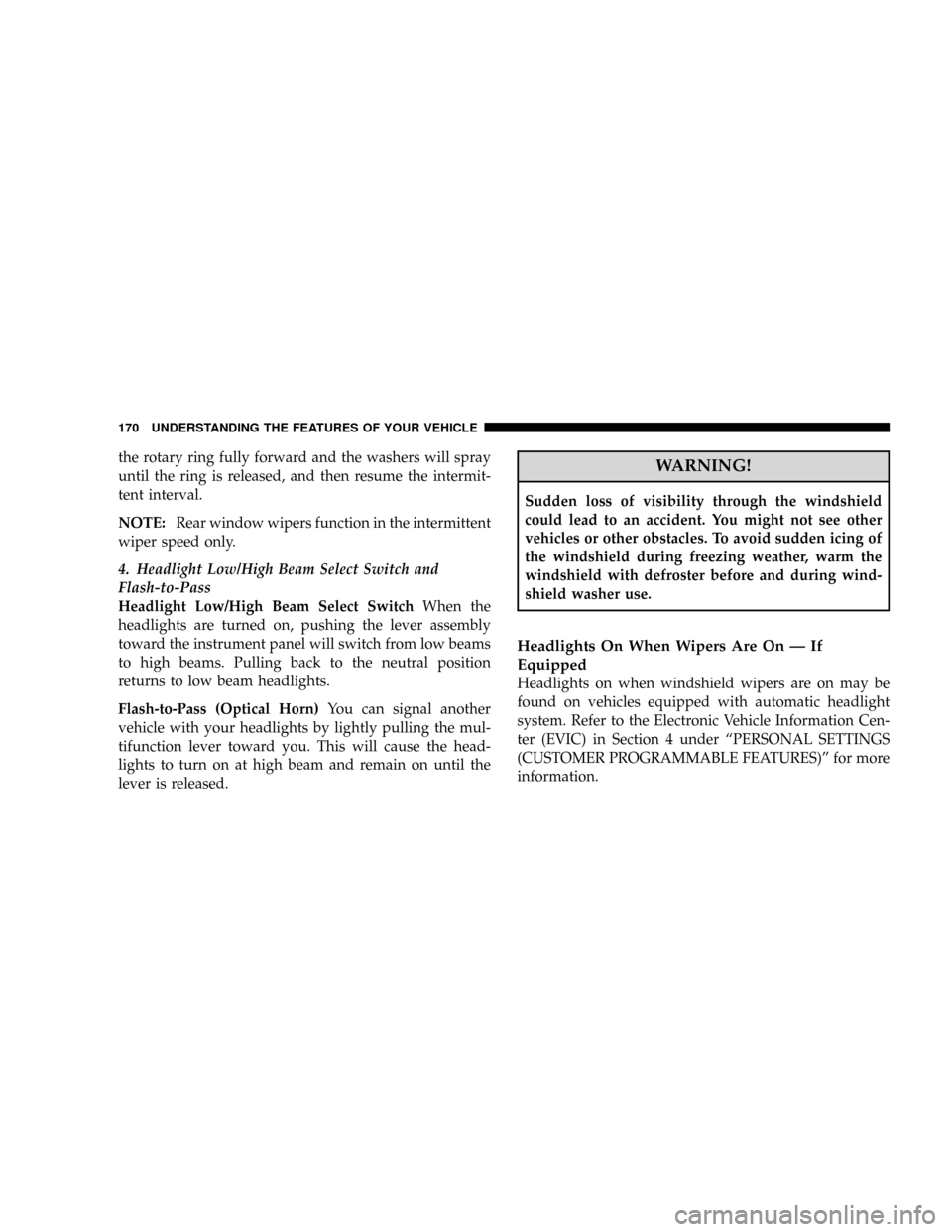

the rotary ring fully forward and the washers will spray
until the ring is released, and then resume the intermit-
tent interval.
NOTE:Rear window wipers function in the intermittent
wiper speed only.
4. Headlight Low/High Beam Select Switch and
Flash-to-Pass
Headlight Low/High Beam Select SwitchWhen the
headlights are turned on, pushing the lever assembly
toward the instrument panel will switch from low beams
to high beams. Pulling back to the neutral position
returns to low beam headlights.
Flash-to-Pass (Optical Horn)You can signal another
vehicle with your headlights by lightly pulling the mul-
tifunction lever toward you. This will cause the head-
lights to turn on at high beam and remain on until the
lever is released.WARNING!
Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with defroster before and during wind-
shield washer use.
Headlights On When Wipers Are On Ð If
Equipped
Headlights on when windshield wipers are on may be
found on vehicles equipped with automatic headlight
system. Refer to the Electronic Vehicle Information Cen-
ter (EVIC) in Section 4 under ªPERSONAL SETTINGS
(CUSTOMER PROGRAMMABLE FEATURES)º for more
information.
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

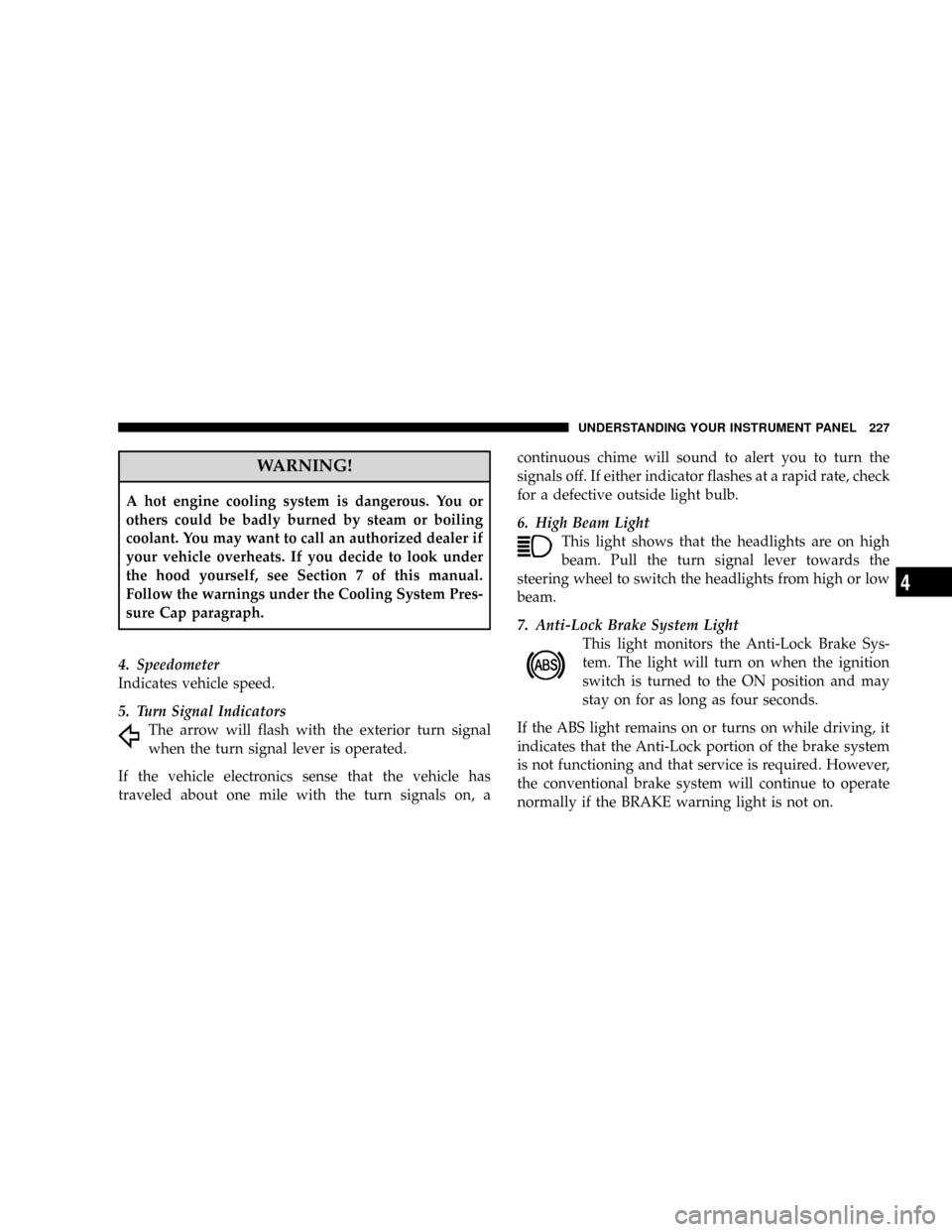

WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer if
your vehicle overheats. If you decide to look under
the hood yourself, see Section 7 of this manual.
Follow the warnings under the Cooling System Pres-
sure Cap paragraph.
4. Speedometer
Indicates vehicle speed.
5. Turn Signal Indicators
The arrow will flash with the exterior turn signal
when the turn signal lever is operated.
If the vehicle electronics sense that the vehicle has
traveled about one mile with the turn signals on, acontinuous chime will sound to alert you to turn the
signals off. If either indicator flashes at a rapid rate, check
for a defective outside light bulb.
6. High Beam Light
This light shows that the headlights are on high
beam. Pull the turn signal lever towards the
steering wheel to switch the headlights from high or low
beam.
7. Anti-Lock Brake System Light
This light monitors the Anti-Lock Brake Sys-
tem. The light will turn on when the ignition
switch is turned to the ON position and may
stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.
UNDERSTANDING YOUR INSTRUMENT PANEL 227
4

Requirements......................377,486
System Hoses......................... 461
Tank Capacity........................ 486
Fuel, Flexible.............See Flexible Fuel Vehicles
Fuel System Caution..................... 380
Fueling............................... 382
Fuses................................ 474
Garage Door Opener (HomeLinkt) ........... 185
Gas Cap (Fuel Filler Cap)...............382,384
Gasoline, Clean Air...................... 378
Gasoline (Fuel)......................... 377
Gasoline, Reformulated................... 379
Gauges
Coolant Temperature.................... 226
Fuel................................ 226
Speedometer......................... 227
Tachometer.......................... 229
Gearshift.............................. 330General Information...............18,27,131,377
Glass Cleaning.......................... 472
Grocery Bag Retainer..................... 155
Gross Axle Weight Rating...............389,394
Gross Vehicle Weight Rating.............389,393
Hands-Free Phone (UConnectŸ).......104,283,284
Hard Drive (HDD)....................280,283
Hazard
Driving Through Flowing, Rising, or Shallow
Standing Water........................ 346
Hazard Warning Flasher................... 410
Head Restraints......................... 134
Headlights............................ 163
Bulb Replacement...................... 482
Cleaning............................ 472
High Beam/Low Beam Select Switch........ 170
Lights On Reminder.................... 165
On With Wipers....................... 164
INDEX 515
10

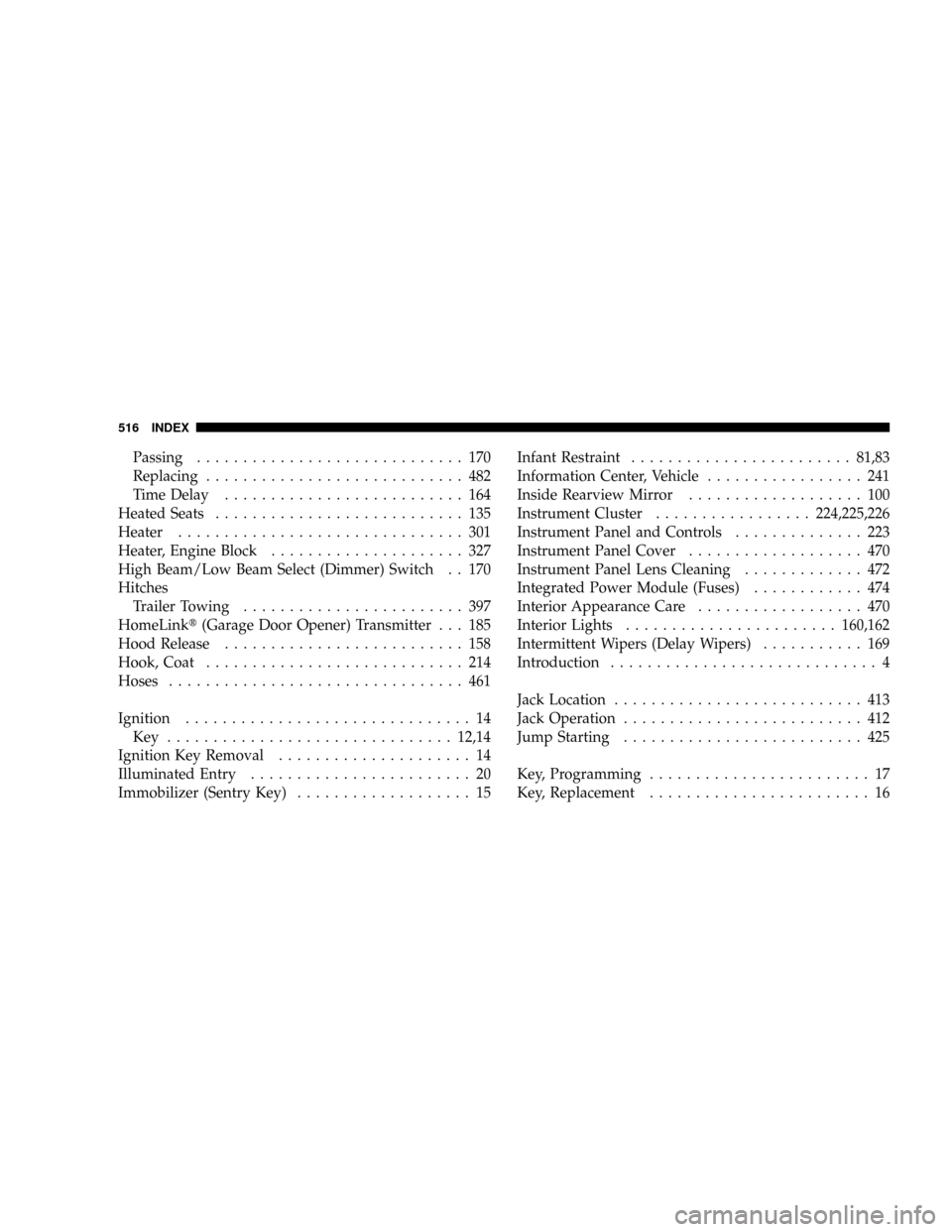

Passing............................. 170
Replacing............................ 482
Time Delay.......................... 164
Heated Seats........................... 135
Heater............................... 301
Heater, Engine Block..................... 327
High Beam/Low Beam Select (Dimmer) Switch . . 170
Hitches
Trailer Towing........................ 397
HomeLinkt(Garage Door Opener) Transmitter . . . 185
Hood Release.......................... 158
Hook, Coat............................ 214
Hoses................................ 461
Ignition............................... 14
Key ...............................12,14
Ignition Key Removal..................... 14
Illuminated Entry........................ 20
Immobilizer (Sentry Key)................... 15Infant Restraint........................81,83
Information Center, Vehicle................. 241
Inside Rearview Mirror................... 100
Instrument Cluster.................224,225,226
Instrument Panel and Controls.............. 223
Instrument Panel Cover................... 470
Instrument Panel Lens Cleaning............. 472
Integrated Power Module (Fuses)............ 474
Interior Appearance Care.................. 470
Interior Lights.......................160,162
Intermittent Wipers (Delay Wipers)........... 169
Introduction............................. 4
Jack Location........................... 413
Jack Operation.......................... 412
Jump Starting.......................... 425
Key, Programming........................ 17
Key, Replacement........................ 16
516 INDEX

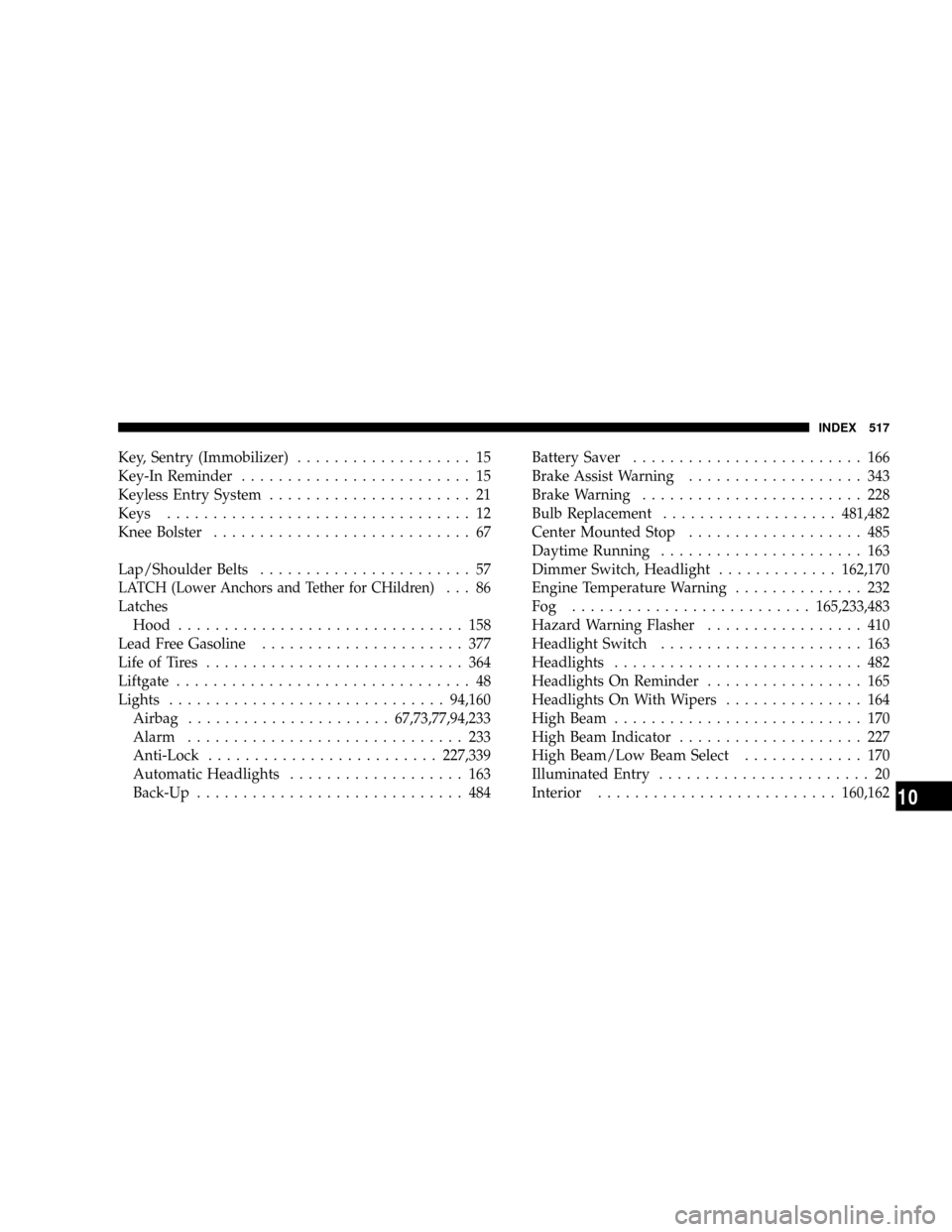

Key, Sentry (Immobilizer)................... 15
Key-In Reminder......................... 15
Keyless Entry System...................... 21
Keys................................. 12
Knee Bolster............................ 67
Lap/Shoulder Belts....................... 57
LATCH (Lower Anchors and Tether for CHildren)... 86
Latches
Hood............................... 158
Lead Free Gasoline...................... 377
Life of Tires............................ 364
Liftgate................................ 48
Lights..............................94,160
Airbag......................67,73,77,94,233
Alarm.............................. 233
Anti-Lock.........................227,339
Automatic Headlights................... 163
Back-Up............................. 484Battery Saver......................... 166
Brake Assist Warning................... 343
Brake Warning........................ 228
Bulb Replacement...................481,482
Center Mounted Stop................... 485
Daytime Running...................... 163
Dimmer Switch, Headlight.............162,170
Engine Temperature Warning.............. 232
Fog ..........................165,233,483
Hazard Warning Flasher................. 410
Headlight Switch...................... 163
Headlights........................... 482
Headlights On Reminder................. 165
Headlights On With Wipers............... 164
High Beam........................... 170
High Beam Indicator.................... 227
High Beam/Low Beam Select............. 170
Illuminated Entry....................... 20
Interior..........................160,162
INDEX 517
10
