DODGE CARAVAN 2009 User Guide

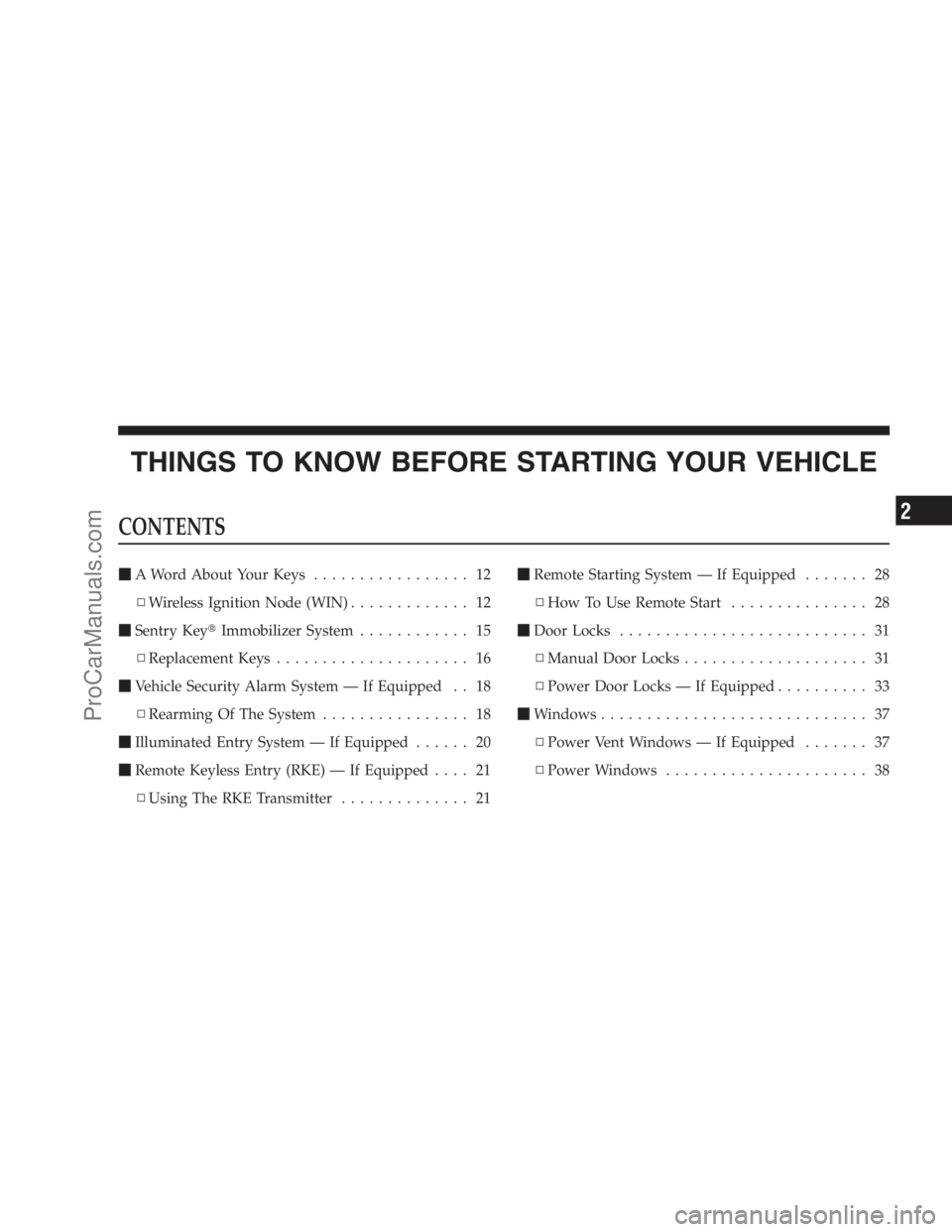

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys................. 12
▫Wireless Ignition Node (WIN)............. 12
Sentry KeyImmobilizer System............ 15
▫Replacement Keys..................... 16
Vehicle Security Alarm System — If Equipped . . 18
▫Rearming Of The System................ 18
Illuminated Entry System — If Equipped...... 20
Remote Keyless Entry (RKE) — If Equipped.... 21
▫Using The RKE Transmitter.............. 21Remote Starting System — If Equipped....... 28
▫How To Use Remote Start............... 28
Door Locks........................... 31
▫Manual Door Locks.................... 31
▫Power Door Locks — If Equipped.......... 33
Windows............................. 37
▫Power Vent Windows — If Equipped....... 37
▫Power Windows...................... 38
2
ProCarManuals.com

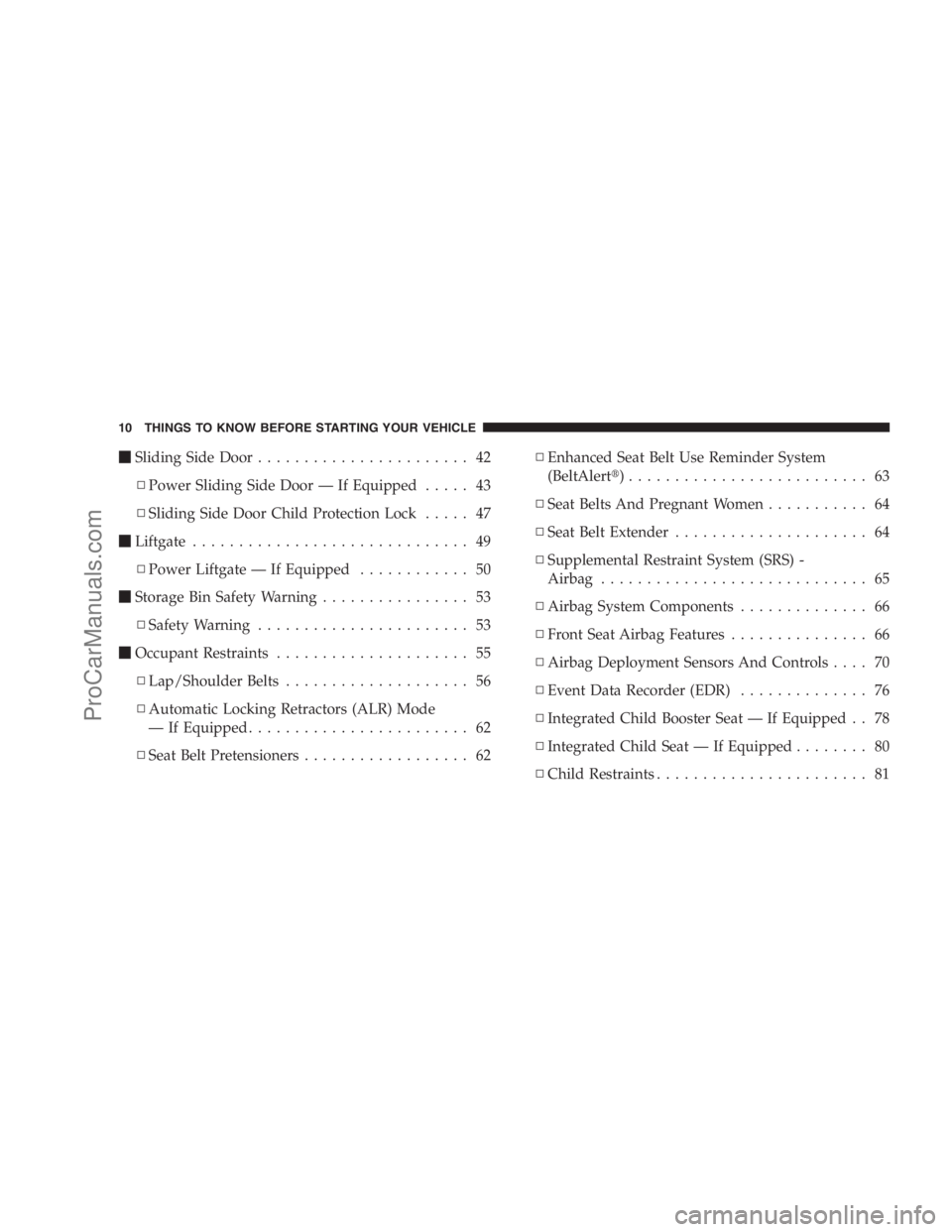

Sliding Side Door....................... 42
▫Power Sliding Side Door — If Equipped..... 43
▫Sliding Side Door Child Protection Lock..... 47
Liftgate.............................. 49
▫Power Liftgate — If Equipped............ 50
Storage Bin Safety Warning................ 53
▫Safety Warning....................... 53
Occupant Restraints..................... 55
▫Lap/Shoulder Belts.................... 56
▫Automatic Locking Retractors (ALR) Mode
— If Equipped........................ 62
▫Seat Belt Pretensioners.................. 62▫Enhanced Seat Belt Use Reminder System
(BeltAlert).......................... 63
▫Seat Belts And Pregnant Women........... 64
▫Seat Belt Extender..................... 64
▫Supplemental Restraint System (SRS) -
Airbag............................. 65
▫Airbag System Components.............. 66
▫Front Seat Airbag Features............... 66
▫Airbag Deployment Sensors And Controls.... 70
▫Event Data Recorder (EDR).............. 76
▫Integrated Child Booster Seat — If Equipped . . 78
▫Integrated Child Seat — If Equipped........ 80
▫Child Restraints....................... 81
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

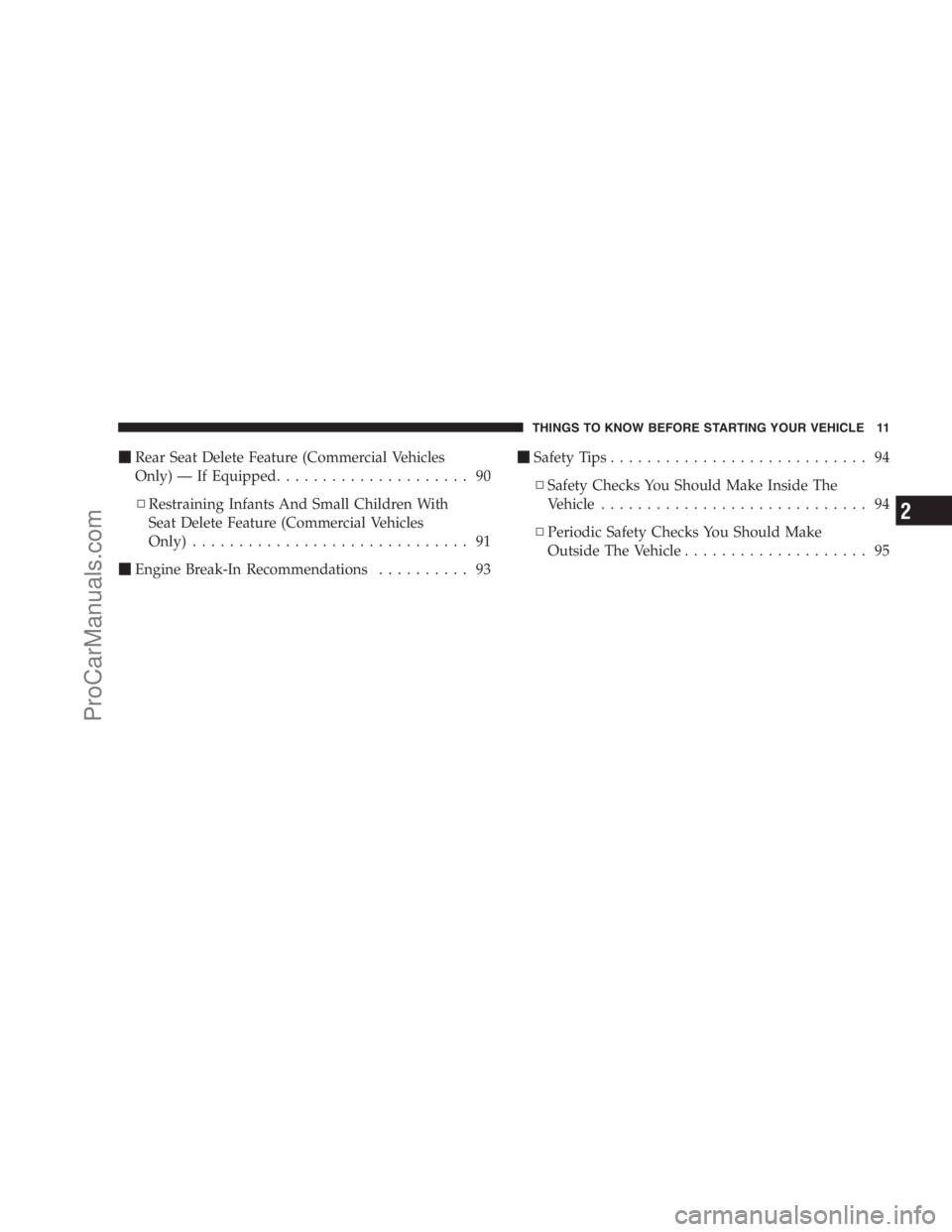

Rear Seat Delete Feature (Commercial Vehicles
Only) — If Equipped..................... 90
▫Restraining Infants And Small Children With
Seat Delete Feature (Commercial Vehicles
Only).............................. 91
Engine Break-In Recommendations.......... 93Safety Tips............................ 94
▫Safety Checks You Should Make Inside The
Vehicle............................. 94
▫Periodic Safety Checks You Should Make
Outside The Vehicle.................... 95
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2
ProCarManuals.com

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Remote Keyless Entry (RKE) transmitter
with integrated ignition key and a Wireless Ignition
Node (WIN) with integral ignition switch. You can insert
the double-sided key into the ignition switch with either
side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similarly to
an ignition switch. It has four operating positions, three
with detents and one that is spring-loaded. The detent
positions are OFF, ACC, and ON. The START position is
a spring-loaded momentary contact position. When re-
leased from the START position, the switch automatically
returns to the ON position.
WIN Ignition Positions
1–OFF 3–ON
2 – ACC (ACCESSORY) 4 – START 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

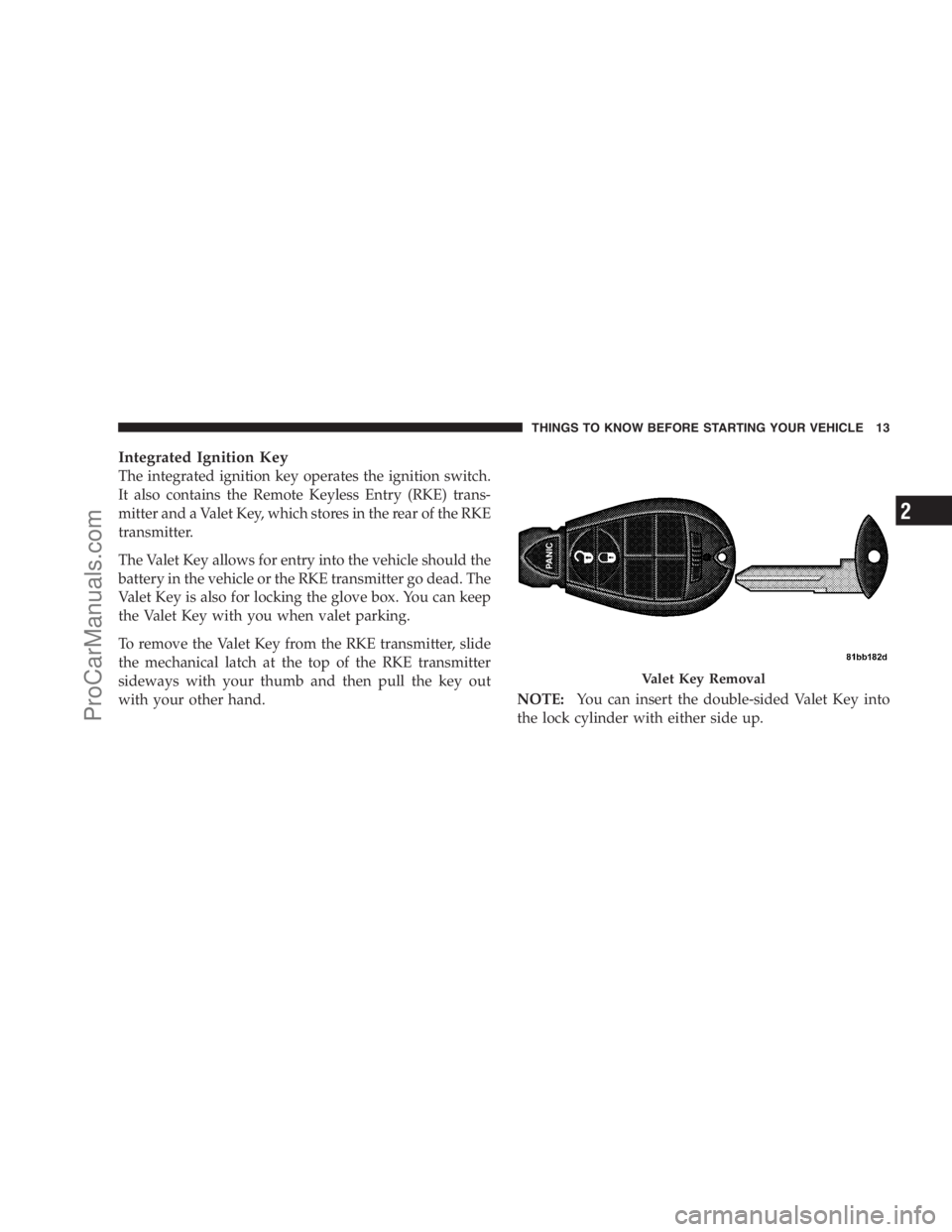

Integrated Ignition Key
The integrated ignition key operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a Valet Key, which stores in the rear of the RKE
transmitter.
The Valet Key allows for entry into the vehicle should the
battery in the vehicle or the RKE transmitter go dead. The
Valet Key is also for locking the glove box. You can keep
the Valet Key with you when valet parking.
To remove the Valet Key from the RKE transmitter, slide
the mechanical latch at the top of the RKE transmitter
sideways with your thumb and then pull the key out
with your other hand.NOTE:You can insert the double-sided Valet Key into
the lock cylinder with either side up.
Valet Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2
ProCarManuals.com

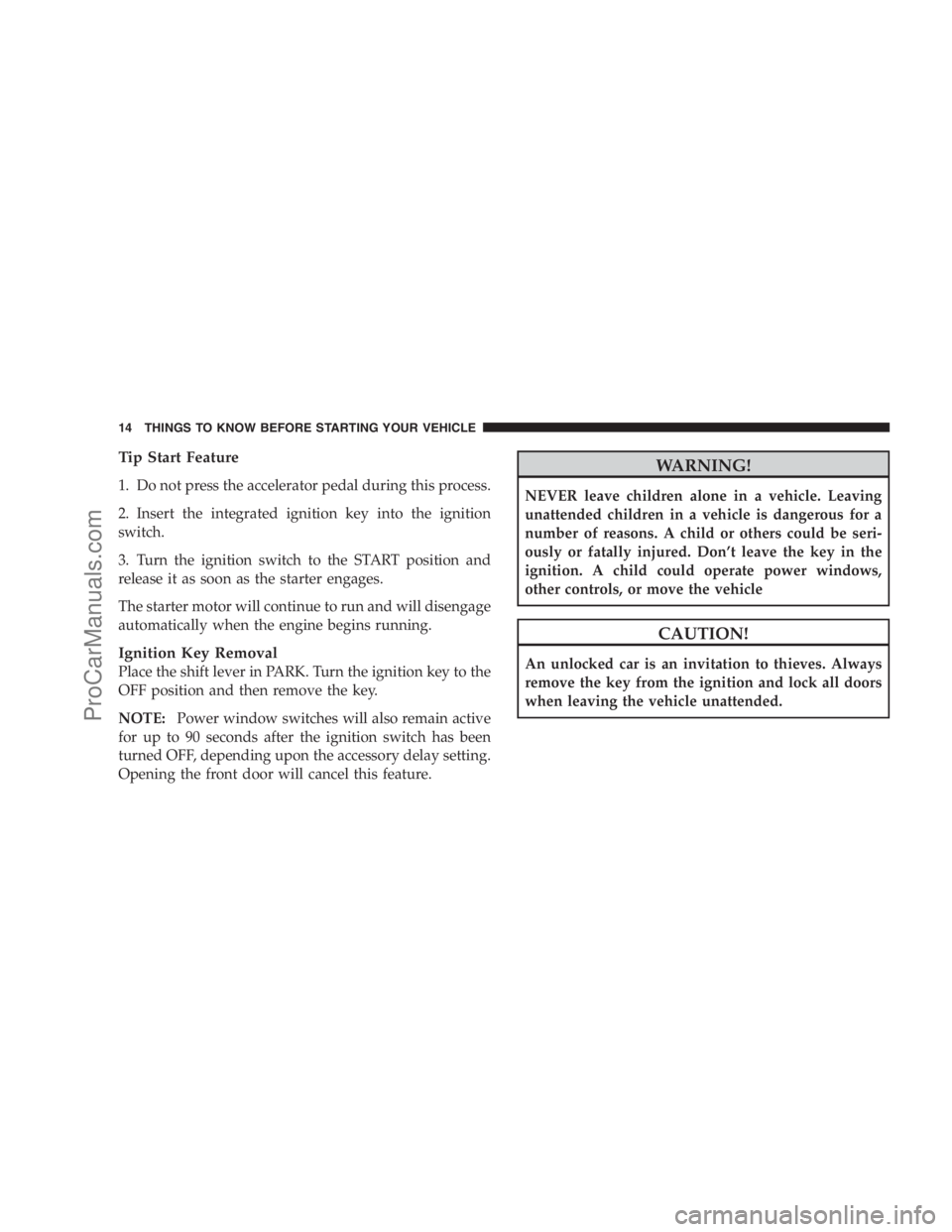

Tip Start Feature
1. Do not press the accelerator pedal during this process.
2. Insert the integrated ignition key into the ignition
switch.
3. Turn the ignition switch to the START position and
release it as soon as the starter engages.
The starter motor will continue to run and will disengage
automatically when the engine begins running.
Ignition Key Removal
Place the shift lever in PARK. Turn the ignition key to the
OFF position and then remove the key.
NOTE:Power window switches will also remain active
for up to 90 seconds after the ignition switch has been
turned OFF, depending upon the accessory delay setting.
Opening the front door will cancel this feature.
WARNING!
NEVER leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

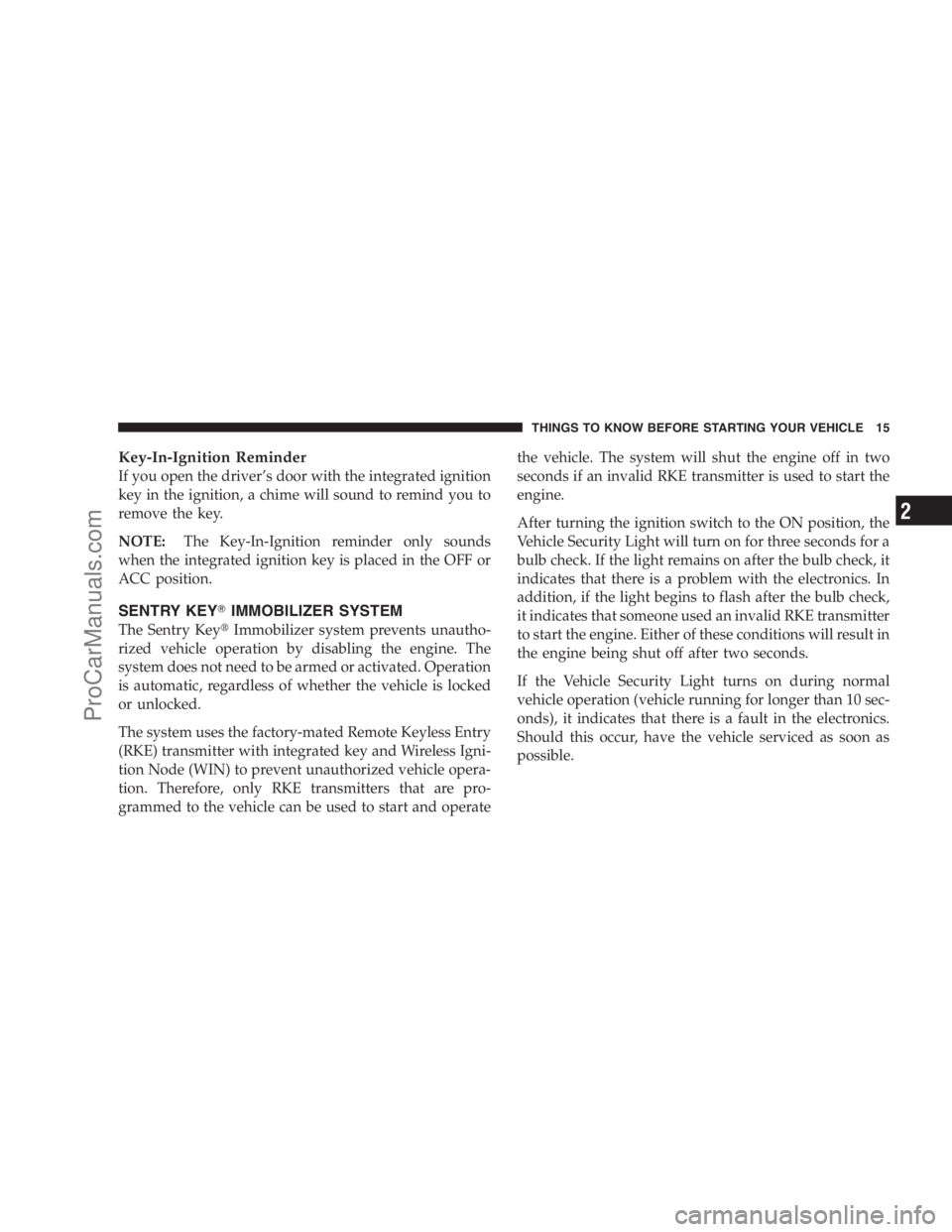

Key-In-Ignition Reminder
If you open the driver’s door with the integrated ignition
key in the ignition, a chime will sound to remind you to
remove the key.
NOTE:The Key-In-Ignition reminder only sounds
when the integrated ignition key is placed in the OFF or
ACC position.
SENTRY KEYIMMOBILIZER SYSTEM
The Sentry KeyImmobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operatethe vehicle. The system will shut the engine off in two
seconds if an invalid RKE transmitter is used to start the
engine.
After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid RKE transmitter
to start the engine. Either of these conditions will result in
the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2
ProCarManuals.com

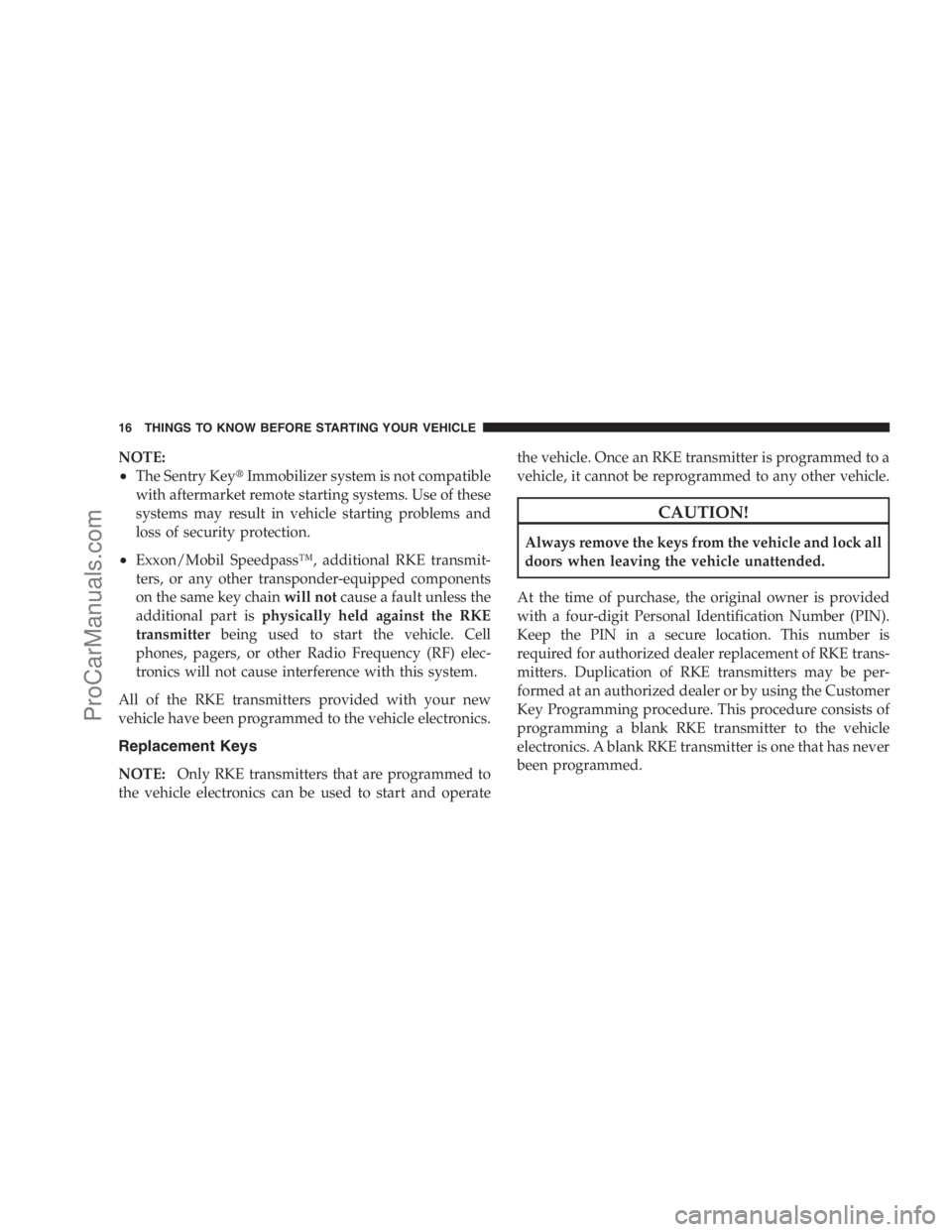

NOTE:
•The Sentry KeyImmobilizer system is not compatible
with aftermarket remote starting systems. Use of these
systems may result in vehicle starting problems and
loss of security protection.
•Exxon/Mobil Speedpass™, additional RKE transmit-
ters, or any other transponder-equipped components
on the same key chainwill notcause a fault unless the
additional part isphysically held against the RKE
transmitterbeing used to start the vehicle. Cell
phones, pagers, or other Radio Frequency (RF) elec-
tronics will not cause interference with this system.
All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only RKE transmitters that are programmed to
the vehicle electronics can be used to start and operatethe vehicle. Once an RKE transmitter is programmed to a
vehicle, it cannot be reprogrammed to any other vehicle.
CAUTION!
Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer or by using the Customer
Key Programming procedure. This procedure consists of
programming a blank RKE transmitter to the vehicle
electronics. A blank RKE transmitter is one that has never
been programmed.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

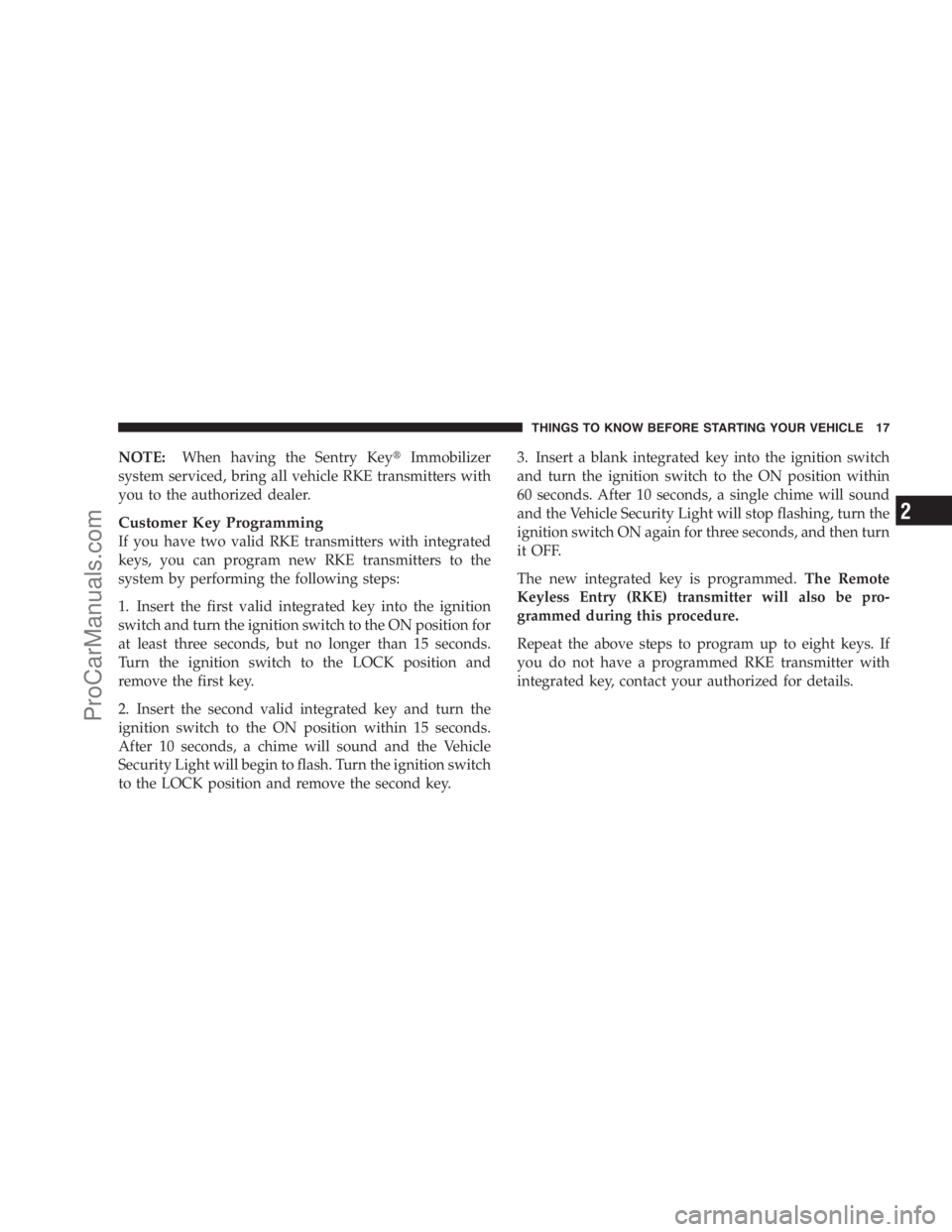

NOTE:When having the Sentry KeyImmobilizer
system serviced, bring all vehicle RKE transmitters with
you to the authorized dealer.
Customer Key Programming
If you have two valid RKE transmitters with integrated
keys, you can program new RKE transmitters to the
system by performing the following steps:
1. Insert the first valid integrated key into the ignition
switch and turn the ignition switch to the ON position for
at least three seconds, but no longer than 15 seconds.
Turn the ignition switch to the LOCK position and
remove the first key.
2. Insert the second valid integrated key and turn the
ignition switch to the ON position within 15 seconds.
After 10 seconds, a chime will sound and the Vehicle
Security Light will begin to flash. Turn the ignition switch
to the LOCK position and remove the second key.3. Insert a blank integrated key into the ignition switch
and turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound
and the Vehicle Security Light will stop flashing, turn the
ignition switch ON again for three seconds, and then turn
it OFF.
The new integrated key is programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat the above steps to program up to eight keys. If
you do not have a programmed RKE transmitter with
integrated key, contact your authorized for details.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2
ProCarManuals.com

NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM SYSTEM — IF
EQUIPPED
The Vehicle Security Alarm system monitors the vehicle
doors for unauthorized entry and the ignition switch for
unauthorized operation. When the alarm is activated, the
system provides both audible and visible signals. For the
first three minutes, the headlights and Vehicle Security
Light will flash repeatedly and the horn will sound. For
an additional 15 minutes, only the headlights and Vehicle
Security Light will flash. The engine will run only if a
valid key is used to start the vehicle.
Rearming Of The System
The Vehicle Security Alarm system will rearm itself after
the 15 additional minutes of headlights and Vehicle
Security Light flashing, if the system has not been
disabled. If the condition which initiated the alarm is still
present, the system will ignore that condition and moni-
tor the remaining doors and ignition.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com
