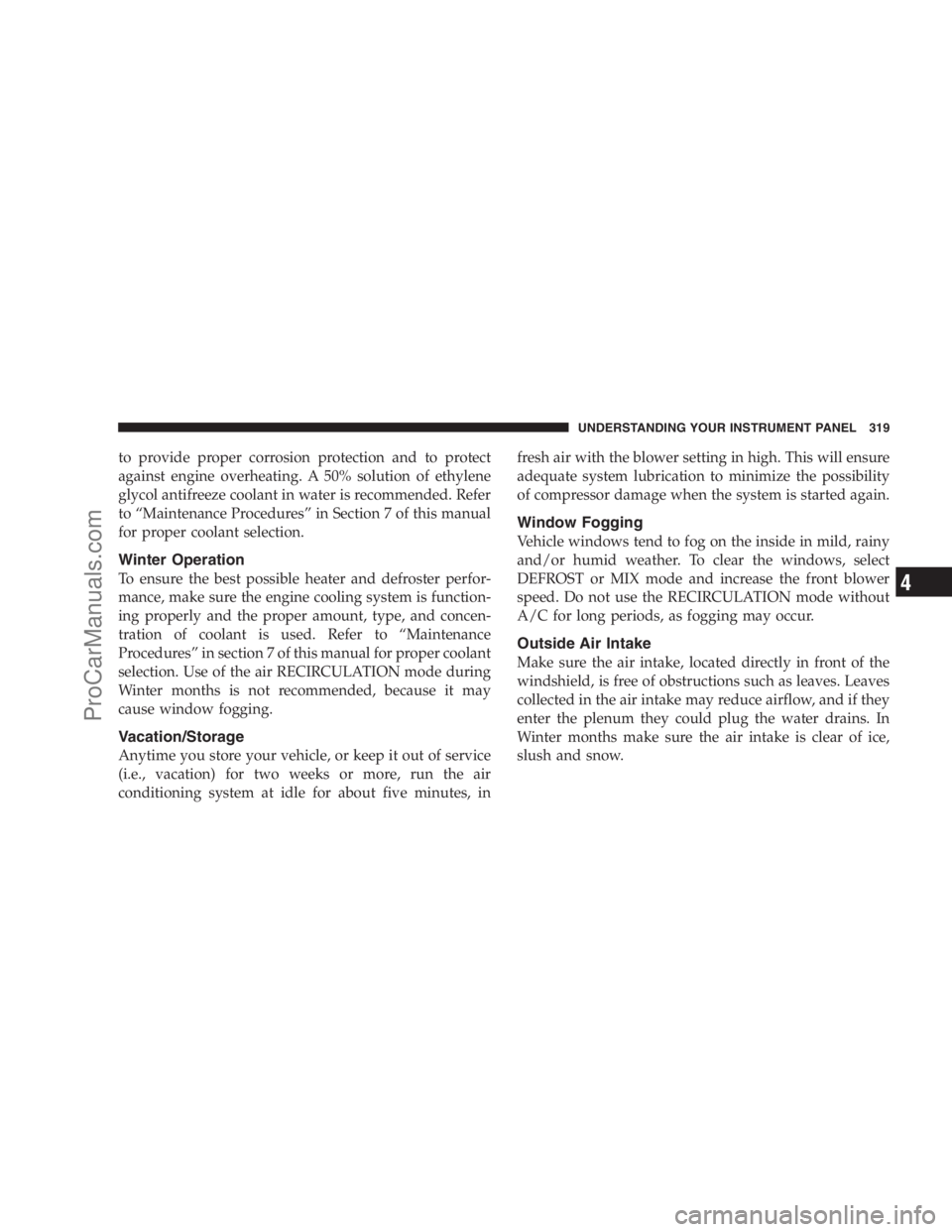

to provide proper corrosion protection and to protect
against engine overheating. A 50% solution of ethylene
glycol antifreeze coolant in water is recommended. Refer
to “Maintenance Procedures” in Section 7 of this manual
for proper coolant selection.
Winter Operation
To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is function-
ing properly and the proper amount, type, and concen-
tration of coolant is used. Refer to “Maintenance
Procedures” in section 7 of this manual for proper coolant
selection. Use of the air RECIRCULATION mode during
Winter months is not recommended, because it may
cause window fogging.
Vacation/Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes, infresh air with the blower setting in high. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
Window Fogging
Vehicle windows tend to fog on the inside in mild, rainy
and/or humid weather. To clear the windows, select
DEFROST or MIX mode and increase the front blower
speed. Do not use the RECIRCULATION mode without
A/C for long periods, as fogging may occur.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum they could plug the water drains. In
Winter months make sure the air intake is clear of ice,
slush and snow.
UNDERSTANDING YOUR INSTRUMENT PANEL 319
4
ProCarManuals.com

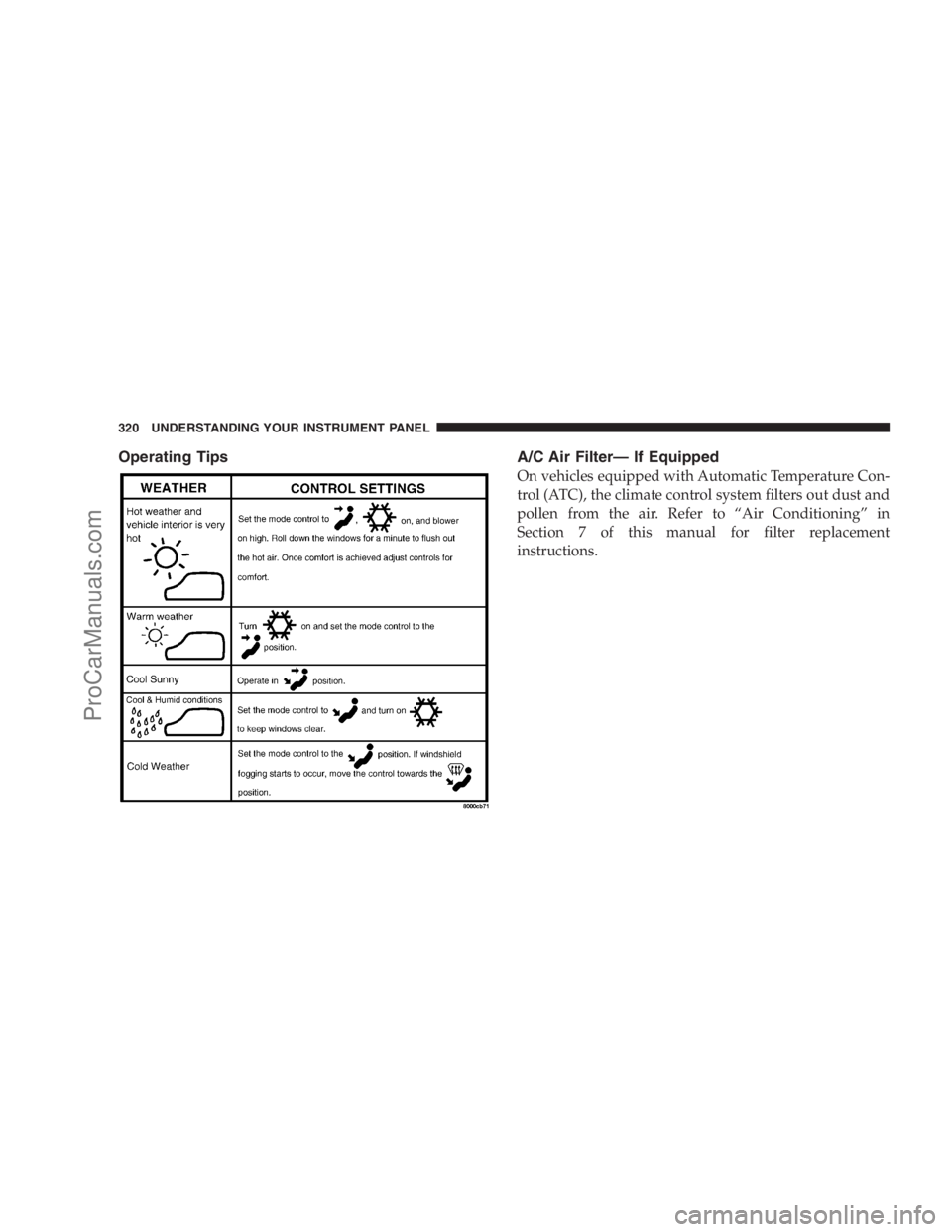

Operating Tips A/C Air Filter— If Equipped
On vehicles equipped with Automatic Temperature Con-
trol (ATC), the climate control system filters out dust and
pollen from the air. Refer to “Air Conditioning” in
Section 7 of this manual for filter replacement
instructions.
320 UNDERSTANDING YOUR INSTRUMENT PANEL
ProCarManuals.com

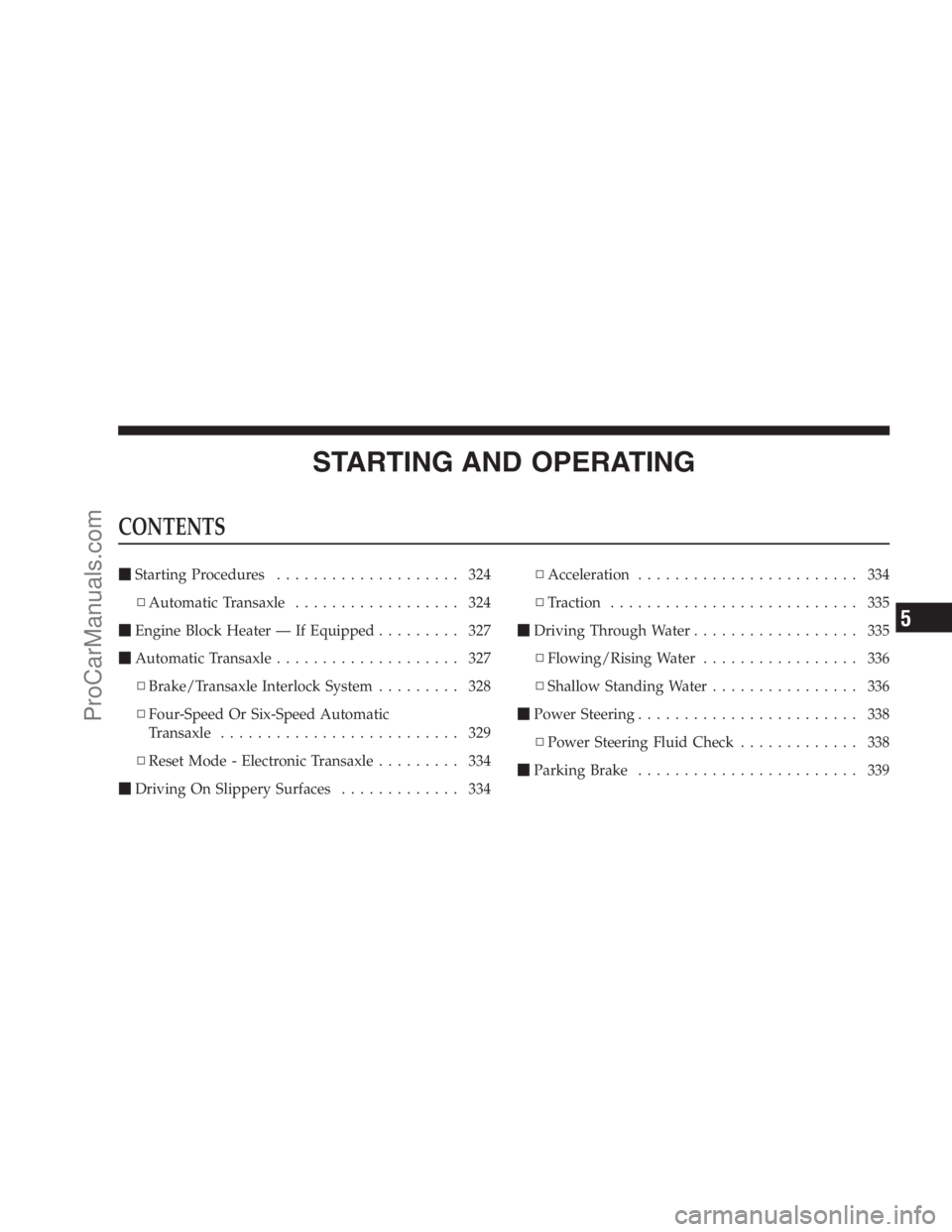

STARTING AND OPERATING
CONTENTS
Starting Procedures.................... 324
▫Automatic Transaxle.................. 324
Engine Block Heater — If Equipped......... 327
Automatic Transaxle.................... 327
▫Brake/Transaxle Interlock System......... 328
▫Four-Speed Or Six-Speed Automatic
Transaxle.......................... 329
▫Reset Mode - Electronic Transaxle......... 334
Driving On Slippery Surfaces............. 334▫Acceleration........................ 334
▫Traction........................... 335
Driving Through Water.................. 335
▫Flowing/Rising Water................. 336
▫Shallow Standing Water................ 336
Power Steering........................ 338
▫Power Steering Fluid Check............. 338
Parking Brake........................ 339
5
ProCarManuals.com

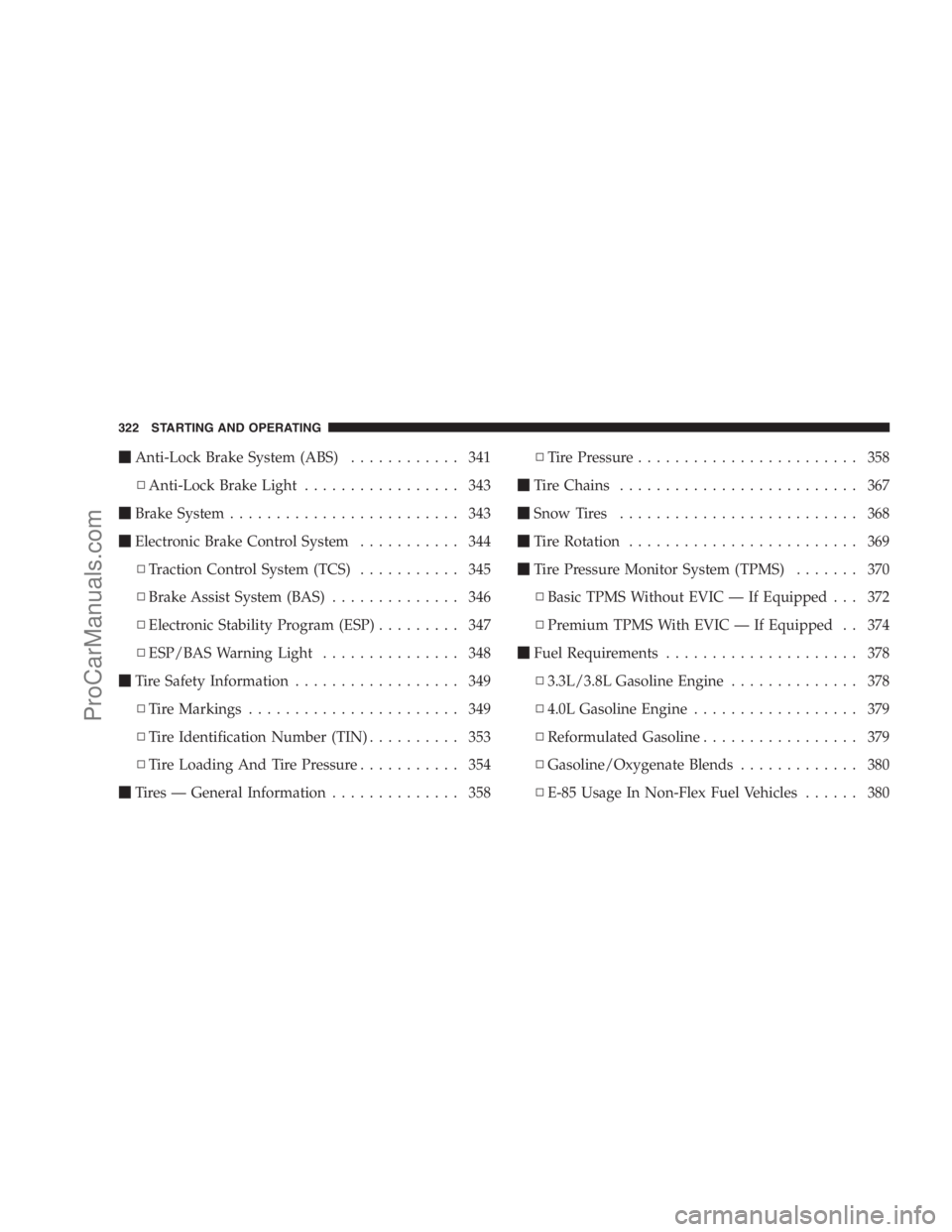

Anti-Lock Brake System (ABS)............ 341
▫Anti-Lock Brake Light................. 343
Brake System......................... 343
Electronic Brake Control System........... 344
▫Traction Control System (TCS)........... 345
▫Brake Assist System (BAS).............. 346
▫Electronic Stability Program (ESP)......... 347
▫ESP/BAS Warning Light............... 348
Tire Safety Information.................. 349
▫Tire Markings....................... 349
▫Tire Identification Number (TIN).......... 353
▫Tire Loading And Tire Pressure........... 354
Tires — General Information.............. 358▫Tire Pressure........................ 358
Tire Chains.......................... 367
Snow Tires.......................... 368
Tire Rotation......................... 369
Tire Pressure Monitor System (TPMS)....... 370
▫Basic TPMS Without EVIC — If Equipped . . . 372
▫Premium TPMS With EVIC — If Equipped . . 374
Fuel Requirements..................... 378
▫3.3L/3.8L Gasoline Engine.............. 378
▫4.0L Gasoline Engine.................. 379
▫Reformulated Gasoline................. 379
▫Gasoline/Oxygenate Blends............. 380
▫E-85 Usage In Non-Flex Fuel Vehicles...... 380
322 STARTING AND OPERATING
ProCarManuals.com

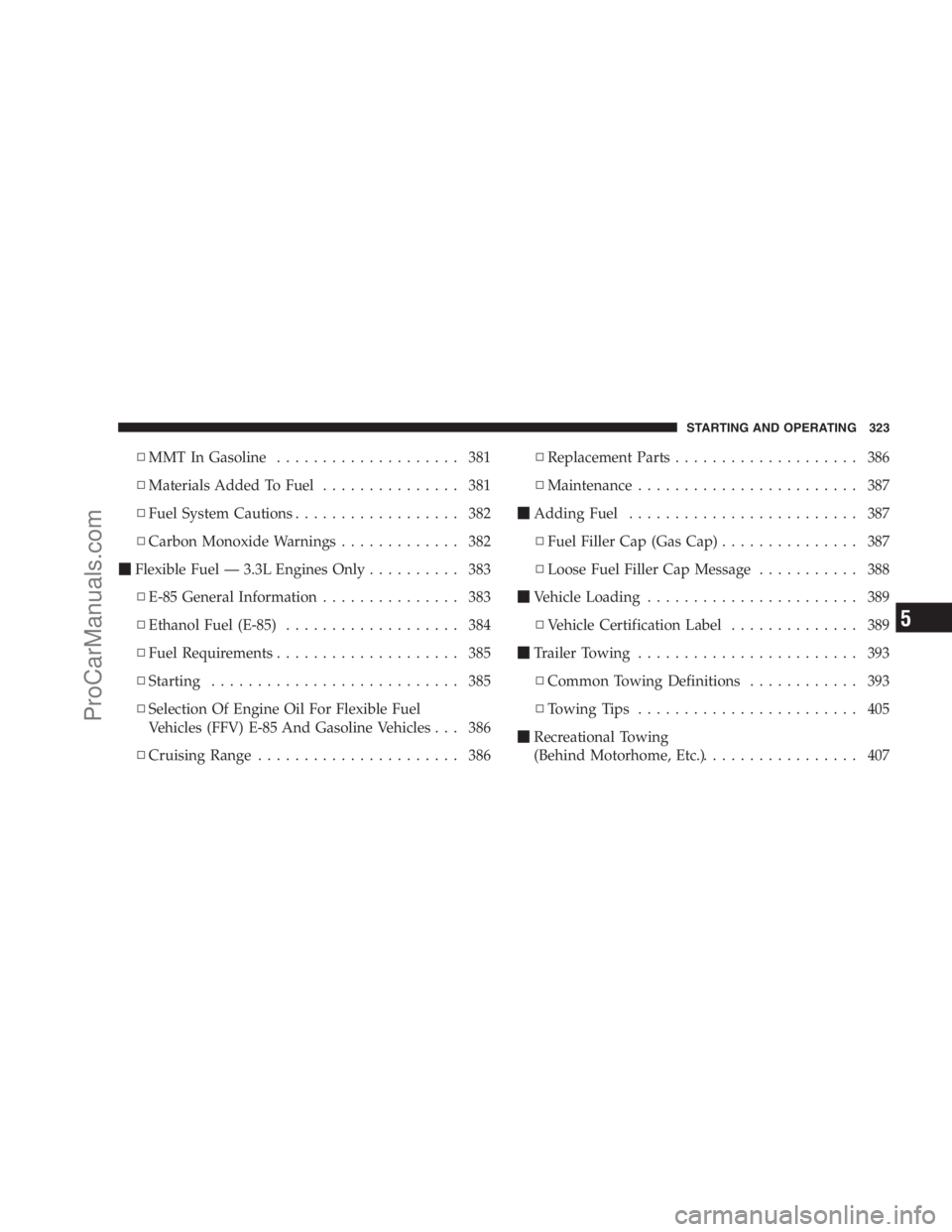

▫MMT In Gasoline.................... 381
▫Materials Added To Fuel............... 381
▫Fuel System Cautions.................. 382
▫Carbon Monoxide Warnings............. 382
Flexible Fuel — 3.3L Engines Only.......... 383
▫E-85 General Information............... 383
▫Ethanol Fuel (E-85)................... 384
▫Fuel Requirements.................... 385
▫Starting........................... 385
▫Selection Of Engine Oil For Flexible Fuel
Vehicles (FFV) E-85 And Gasoline Vehicles . . . 386
▫Cruising Range...................... 386▫Replacement Parts.................... 386
▫Maintenance........................ 387
Adding Fuel......................... 387
▫Fuel Filler Cap (Gas Cap)............... 387
▫Loose Fuel Filler Cap Message........... 388
Vehicle Loading....................... 389
▫Vehicle Certification Label.............. 389
Trailer Towing........................ 393
▫Common Towing Definitions............ 393
▫Towing Tips........................ 405
Recreational Towing
(Behind Motorhome, Etc.)................. 407
STARTING AND OPERATING 323
5
ProCarManuals.com

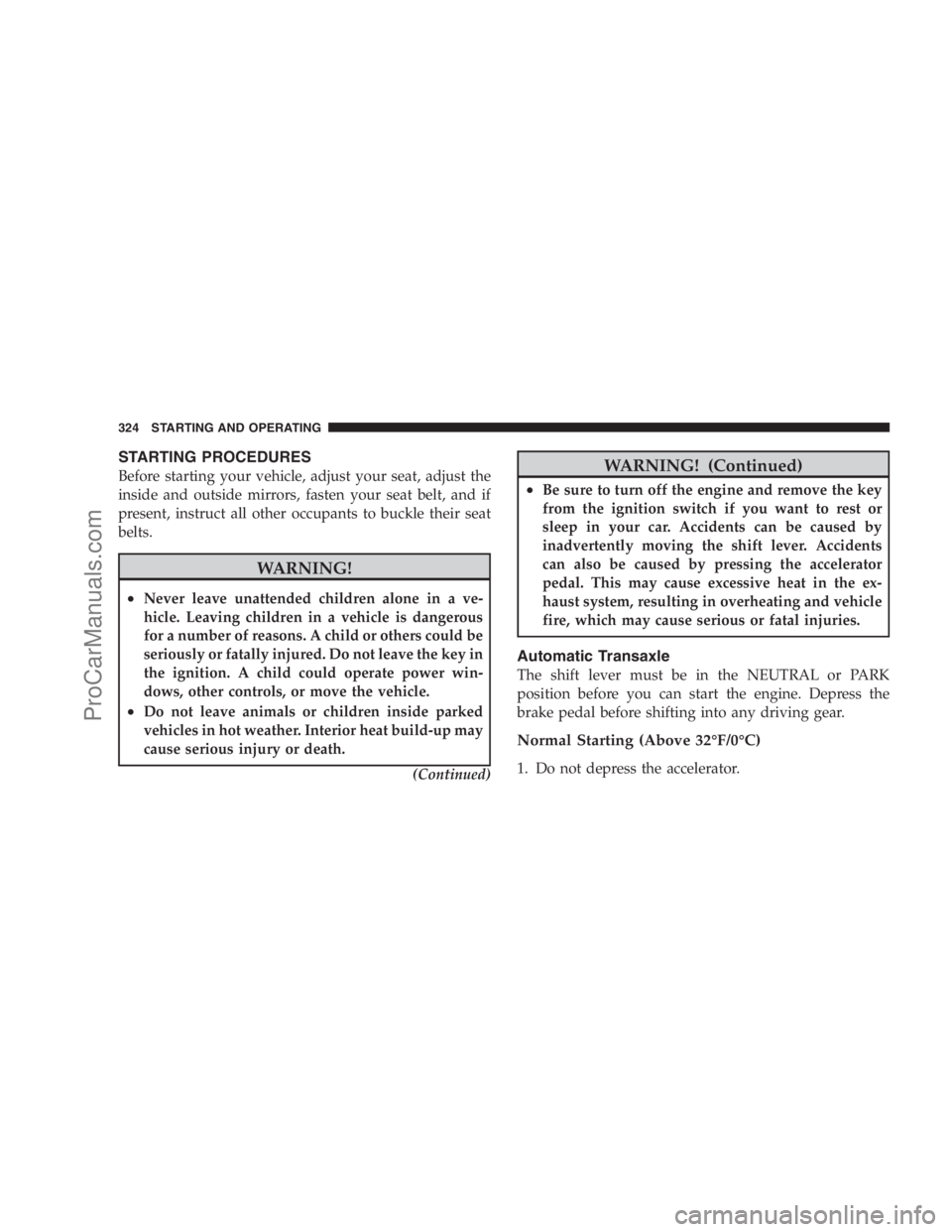

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•Never leave unattended children alone in a ve-
hicle. Leaving children in a vehicle is dangerous
for a number of reasons. A child or others could be
seriously or fatally injured. Do not leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
•Do not leave animals or children inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
(Continued)
WARNING! (Continued)
•Be sure to turn off the engine and remove the key
from the ignition switch if you want to rest or
sleep in your car. Accidents can be caused by
inadvertently moving the shift lever. Accidents
can also be caused by pressing the accelerator
pedal. This may cause excessive heat in the ex-
haust system, resulting in overheating and vehicle
fire, which may cause serious or fatal injuries.
Automatic Transaxle
The shift lever must be in the NEUTRAL or PARK
position before you can start the engine. Depress the
brake pedal before shifting into any driving gear.
Normal Starting (Above 32°F/0°C)
1. Do not depress the accelerator.
324 STARTING AND OPERATING
ProCarManuals.com

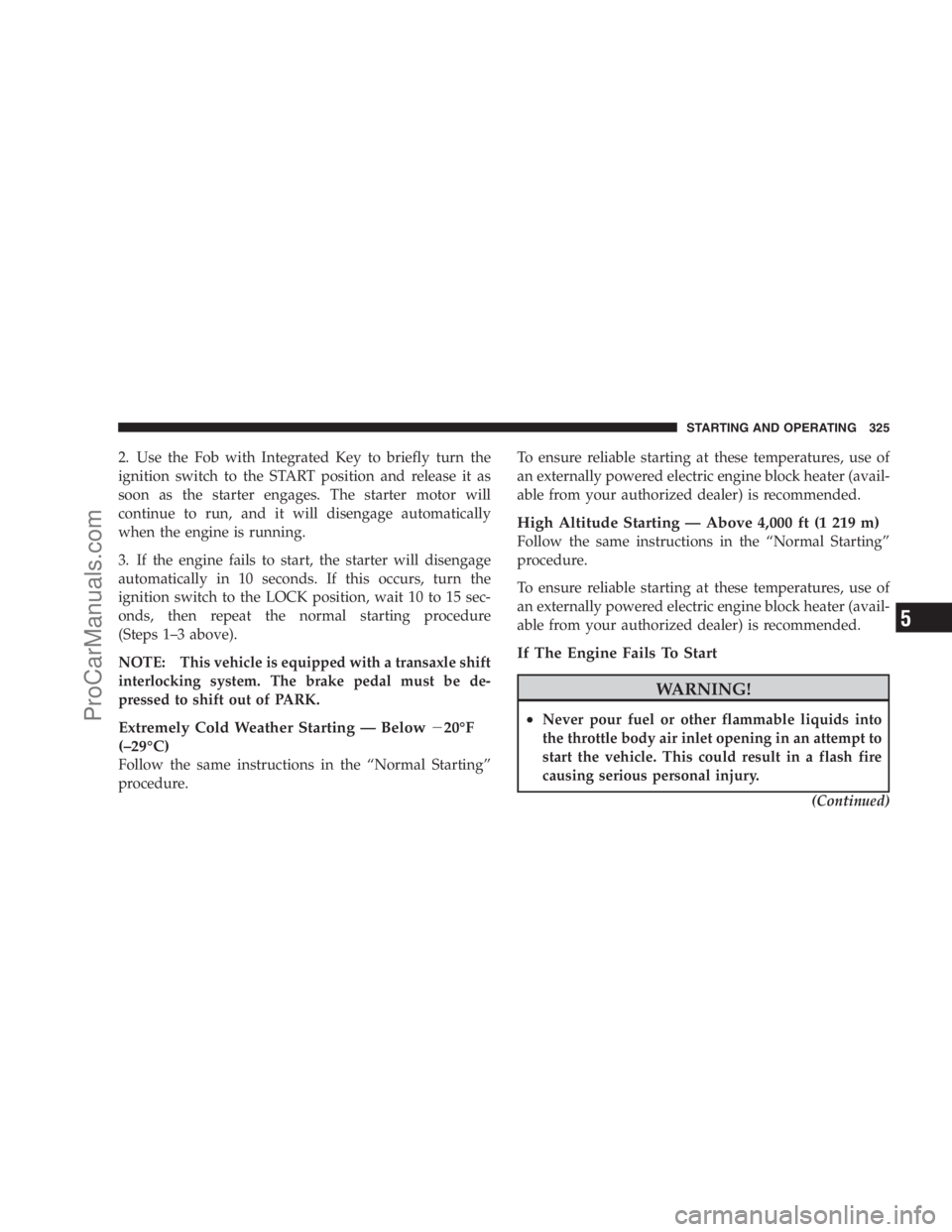

2. Use the Fob with Integrated Key to briefly turn the
ignition switch to the START position and release it as
soon as the starter engages. The starter motor will
continue to run, and it will disengage automatically
when the engine is running.
3. If the engine fails to start, the starter will disengage
automatically in 10 seconds. If this occurs, turn the
ignition switch to the LOCK position, wait 10 to 15 sec-
onds, then repeat the normal starting procedure
(Steps 1–3 above).
NOTE: This vehicle is equipped with a transaxle shift
interlocking system. The brake pedal must be de-
pressed to shift out of PARK.
Extremely Cold Weather Starting — Below20°F
(–29°C)
Follow the same instructions in the “Normal Starting”
procedure.To ensure reliable starting at these temperatures, use of
an externally powered electric engine block heater (avail-
able from your authorized dealer) is recommended.
High Altitude Starting — Above 4,000 ft (1 219 m)
Follow the same instructions in the “Normal Starting”
procedure.
To ensure reliable starting at these temperatures, use of
an externally powered electric engine block heater (avail-
able from your authorized dealer) is recommended.
If The Engine Fails To Start
WARNING!
•Never pour fuel or other flammable liquids into
the throttle body air inlet opening in an attempt to
start the vehicle. This could result in a flash fire
causing serious personal injury.
(Continued)
STARTING AND OPERATING 325
5
ProCarManuals.com

WARNING! (Continued)
•Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with an automatic
transaxle cannot be started this way. Unburned
fuel could enter the catalytic converter and once
the engine has started, ignite and damage the
converter and vehicle.
•If the vehicle has a discharged battery, booster
cables may be used to obtain a start from a booster
battery or the battery in another vehicle. This type
of start can be dangerous if done improperly. Refer
to “Jump Starting” in Section 6 of this manual.
If the engine fails to start after you have followed the
“Normal Starting” procedure, it may be flooded. Push
the accelerator pedal all the way to the floor and hold it
there while cranking the engine. This should clear any
excess fuel in case the engine is flooded.
CAUTION!
To prevent damage to the starter, DO NOT crank the
engine for more than 15–second intervals at one time.
Wait 10 to 15 seconds before trying again.
If the engine has been flooded, it may start to run, but not
have enough power to continue running when the key is
released. If this occurs, continue cranking with the accel-
erator pedal pushed all the way to the floor. Release the
accelerator pedal and the key once the engine is running
smoothly.
If the engine shows no sign of starting after two 15–
second intervals of cranking with the accelerator pedal
held to the floor, the “Normal Starting” procedure should
be repeated.
326 STARTING AND OPERATING
ProCarManuals.com

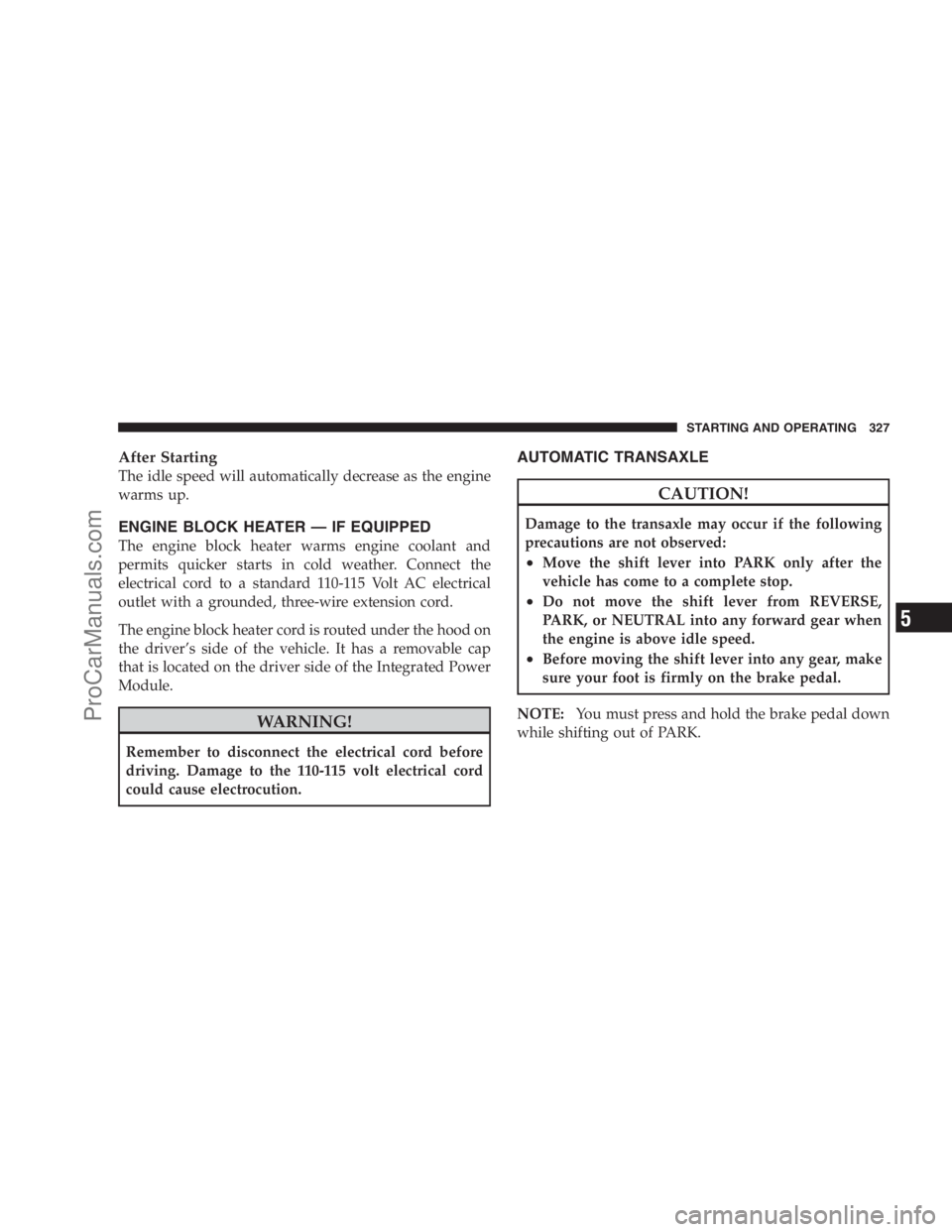

After Starting
The idle speed will automatically decrease as the engine
warms up.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms engine coolant and
permits quicker starts in cold weather. Connect the
electrical cord to a standard 110-115 Volt AC electrical
outlet with a grounded, three-wire extension cord.
The engine block heater cord is routed under the hood on
the driver’s side of the vehicle. It has a removable cap
that is located on the driver side of the Integrated Power
Module.
WARNING!
Remember to disconnect the electrical cord before
driving. Damage to the 110-115 volt electrical cord
could cause electrocution.
AUTOMATIC TRANSAXLE
CAUTION!
Damage to the transaxle may occur if the following
precautions are not observed:
•Move the shift lever into PARK only after the
vehicle has come to a complete stop.
•Do not move the shift lever from REVERSE,
PARK, or NEUTRAL into any forward gear when
the engine is above idle speed.
•Before moving the shift lever into any gear, make
sure your foot is firmly on the brake pedal.
NOTE:You must press and hold the brake pedal down
while shifting out of PARK.
STARTING AND OPERATING 327
5
ProCarManuals.com

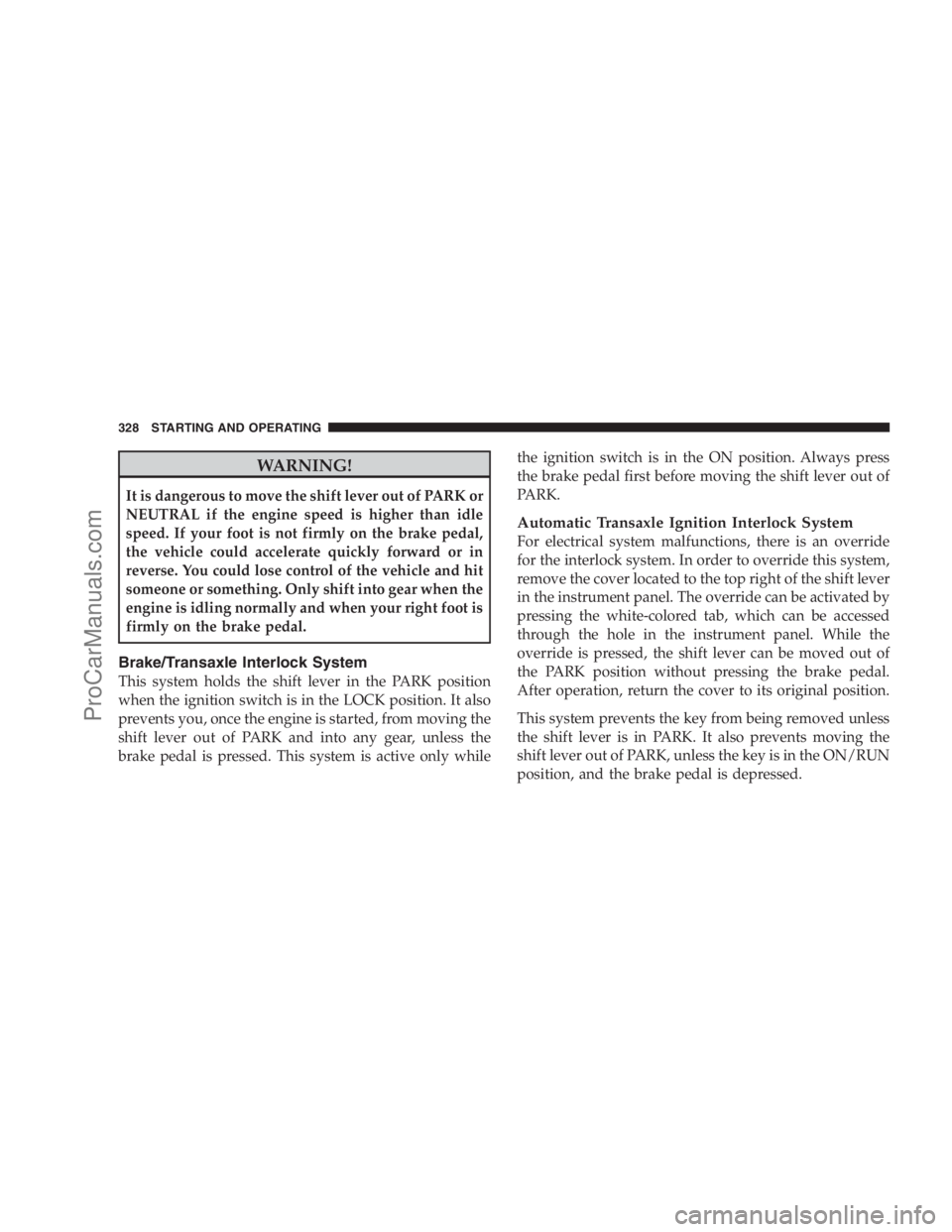

WARNING!
It is dangerous to move the shift lever out of PARK or
NEUTRAL if the engine speed is higher than idle
speed. If your foot is not firmly on the brake pedal,
the vehicle could accelerate quickly forward or in
reverse. You could lose control of the vehicle and hit
someone or something. Only shift into gear when the
engine is idling normally and when your right foot is
firmly on the brake pedal.
Brake/Transaxle Interlock System
This system holds the shift lever in the PARK position
when the ignition switch is in the LOCK position. It also
prevents you, once the engine is started, from moving the
shift lever out of PARK and into any gear, unless the
brake pedal is pressed. This system is active only whilethe ignition switch is in the ON position. Always press
the brake pedal first before moving the shift lever out of
PARK.
Automatic Transaxle Ignition Interlock System
For electrical system malfunctions, there is an override
for the interlock system. In order to override this system,
remove the cover located to the top right of the shift lever
in the instrument panel. The override can be activated by
pressing the white-colored tab, which can be accessed
through the hole in the instrument panel. While the
override is pressed, the shift lever can be moved out of
the PARK position without pressing the brake pedal.
After operation, return the cover to its original position.
This system prevents the key from being removed unless
the shift lever is in PARK. It also prevents moving the
shift lever out of PARK, unless the key is in the ON/RUN
position, and the brake pedal is depressed.
328 STARTING AND OPERATING
ProCarManuals.com
