Page 461 of 530

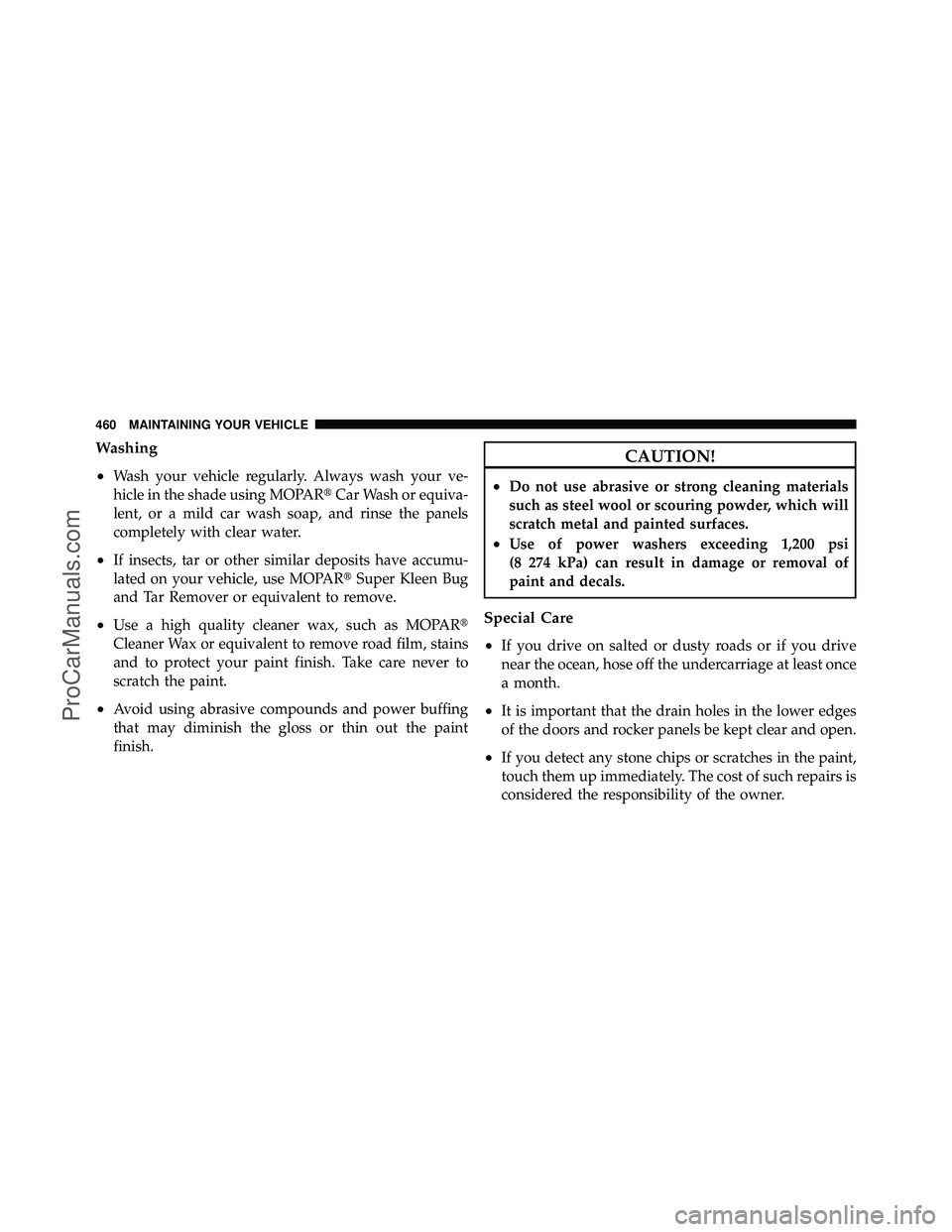

DODGE CARAVAN 2010  Owners Manual Washing
•
Wash your vehicle regularly. Always wash your ve-
hicle in the shade using MOPARCar Wash or equiva-
lent, or a mild car wash soap, and rinse the panels
completely with clear water.
•If

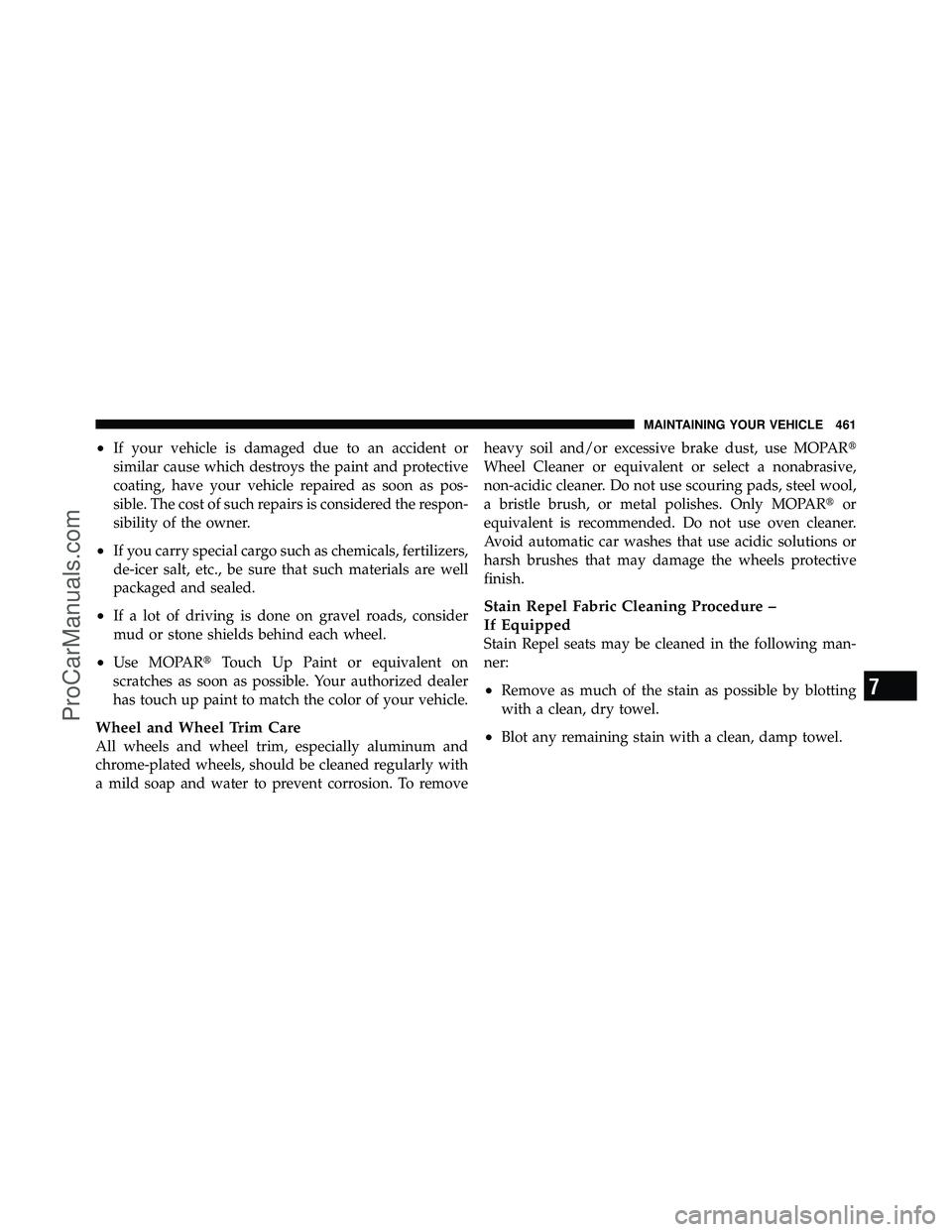

Page 462 of 530

DODGE CARAVAN 2010  Owners Manual •If your vehicle is damaged due to an accident or
similar cause which destroys the paint and protective
coating, have your vehicle repaired as soon as pos-
sible. The cost of such repairs is conside

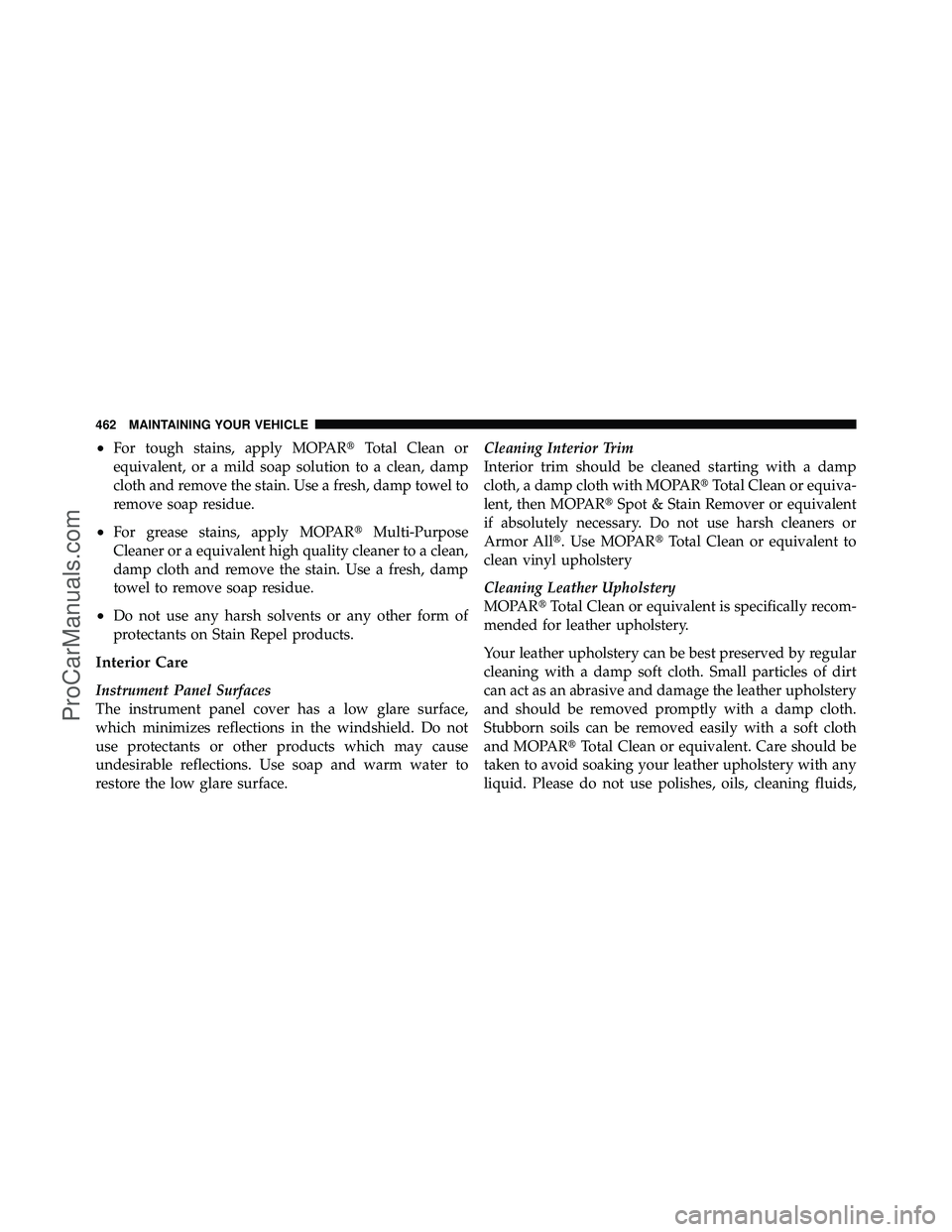

Page 463 of 530

DODGE CARAVAN 2010  Owners Manual •For tough stains, apply MOPARTotal Clean or
equivalent, or a mild soap solution to a clean, damp
cloth and remove the stain. Use a fresh, damp towel to
remove soap residue.
•For grease stains, a

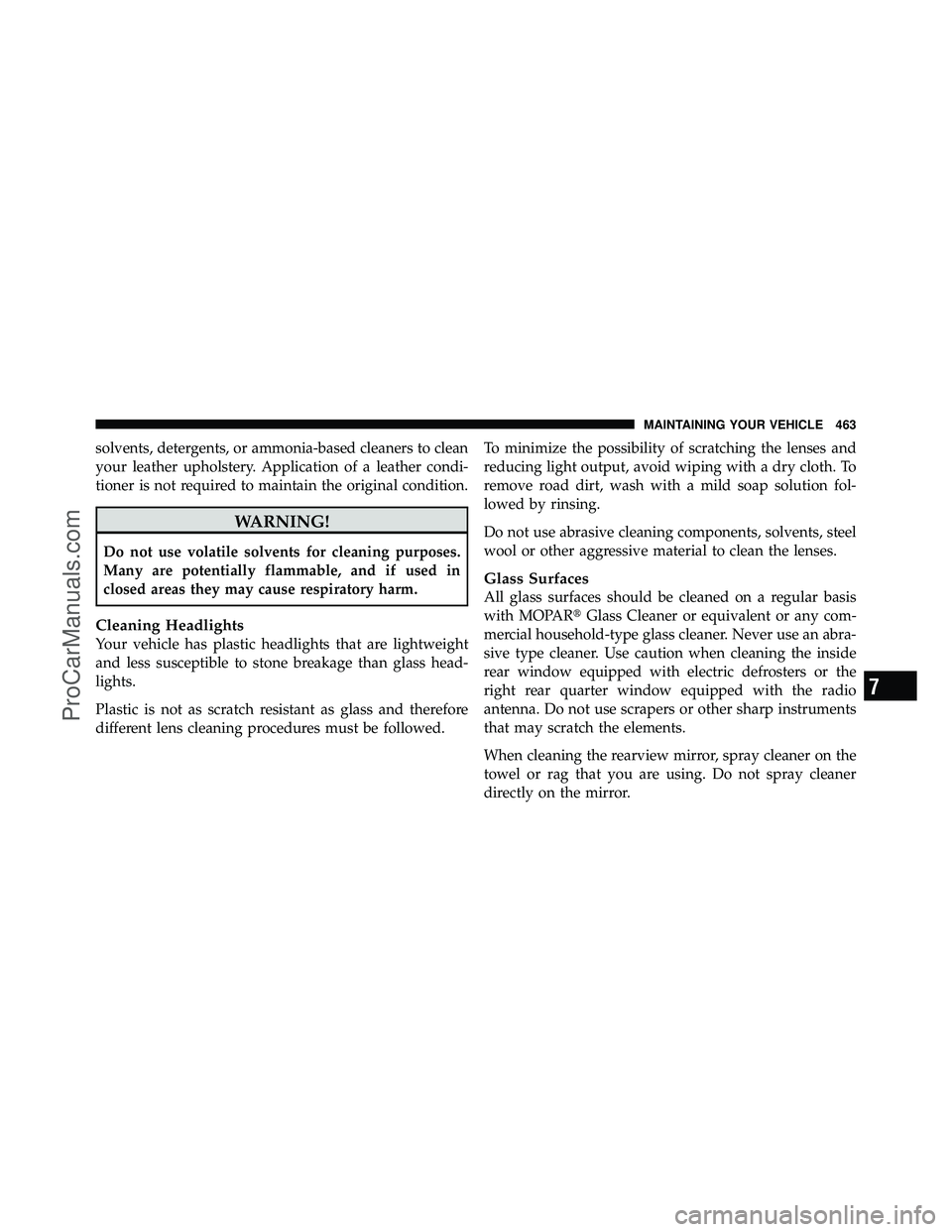

Page 464 of 530

DODGE CARAVAN 2010  Owners Manual solvents, detergents, or ammonia-based cleaners to clean
your leather upholstery. Application of a leather condi-
tioner is not required to maintain the original condition.
WARNING!
Do not use volatil

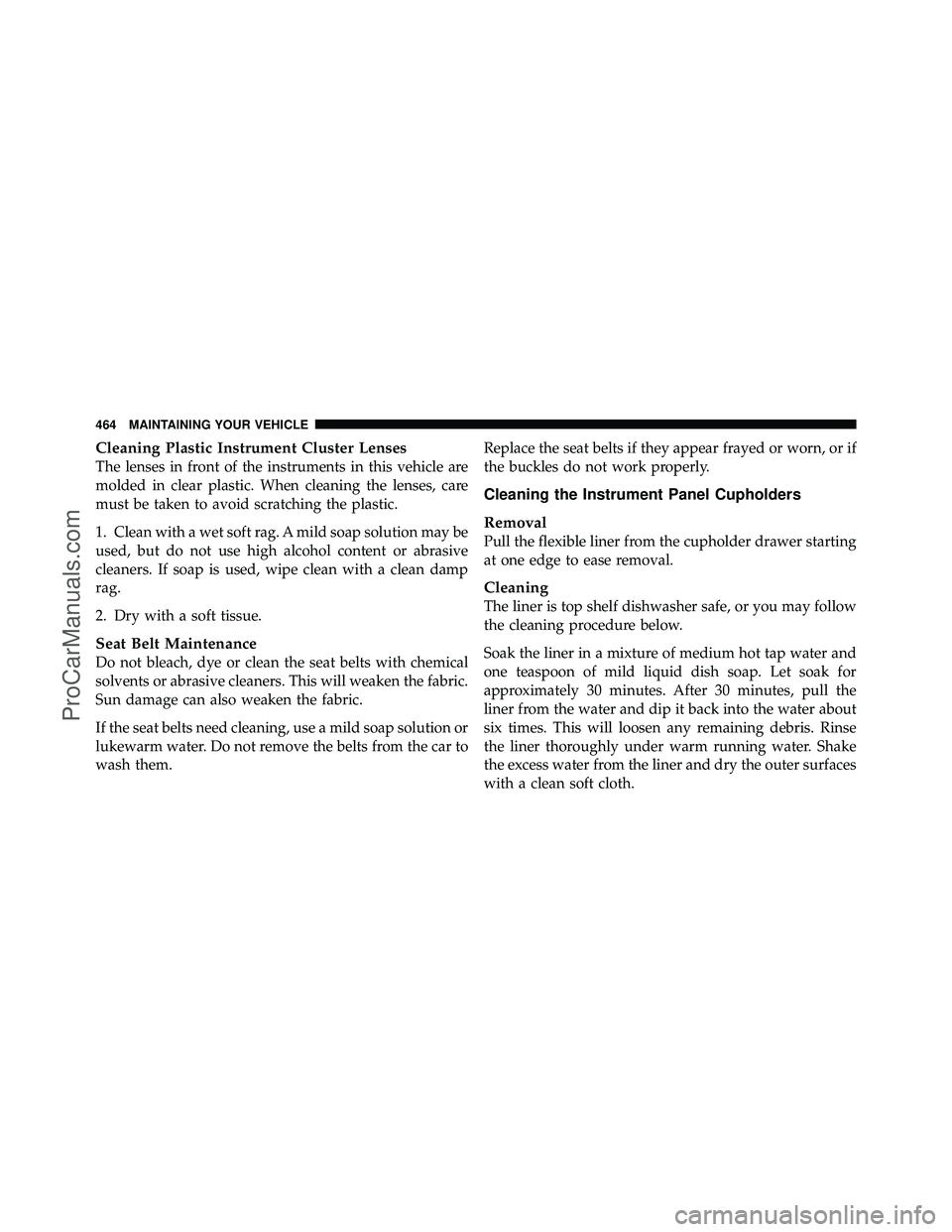

Page 465 of 530

DODGE CARAVAN 2010  Owners Manual Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plas

Page 466 of 530

DODGE CARAVAN 2010  Owners Manual Installation
Place the liner into the cupholder drawer and press the
liner into place so that the retention tabs seat into the
corresponding openings in the drawer.
FUSES
Totally Integrated Power Modu

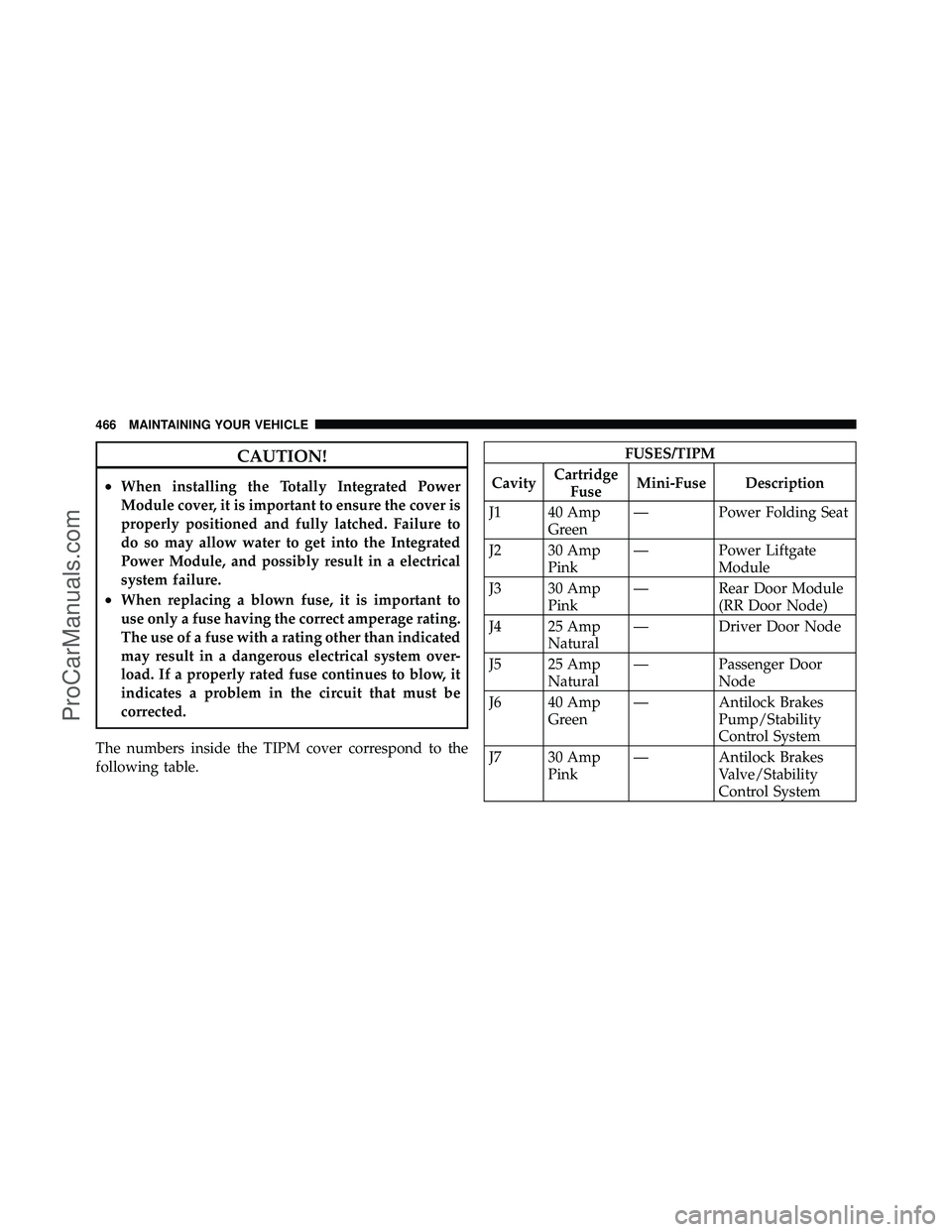

Page 467 of 530

DODGE CARAVAN 2010  Owners Manual CAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the In

Page 468 of 530

DODGE CARAVAN 2010  Owners Manual FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
J8 40 Amp Green — Power Memory
Seat – If Equipped
J9 40 Amp Green — Partial Zero Emis-
sions Vehicle
Motor/Flex Fuel
J10 30 Amp Pink — He

Page 469 of 530

DODGE CARAVAN 2010  Owners Manual FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M1 — 15 Amp BlueRear Center Brake
Lamp/Brake
Switch
M2———
M3 — 20 Amp YellowSpare Fuse
M4 — 10 Amp RedTrailer Tow
M5 — 25 Amp Natur

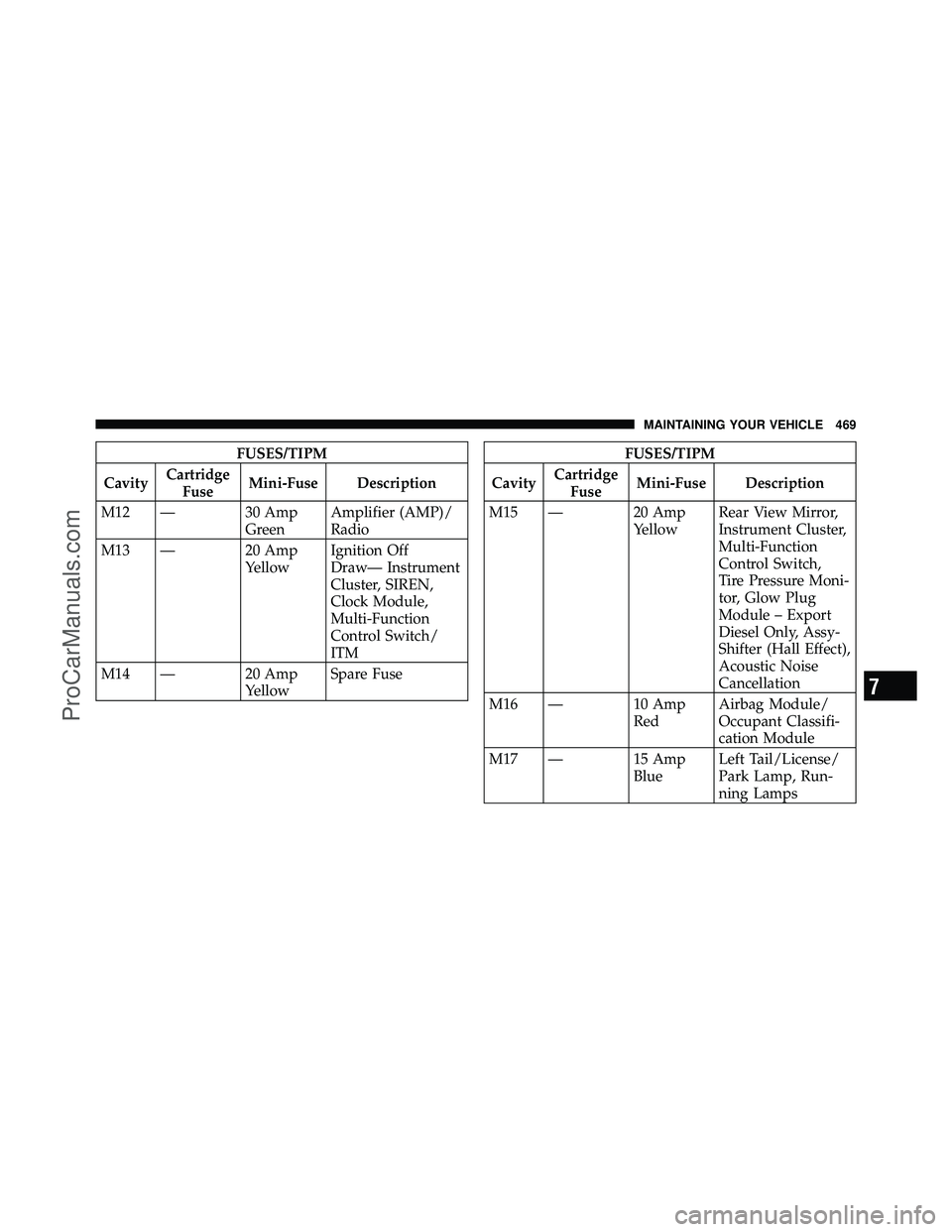

Page 470 of 530

DODGE CARAVAN 2010  Owners Manual FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M12 — 30 Amp GreenAmplifier (AMP)/
Radio
M13 — 20 Amp YellowIgnition Off
Draw— Instrument
Cluster, SIREN,
Clock Module,
Multi-Function
Cont
