DODGE CARAVAN 2011 Owners Manual

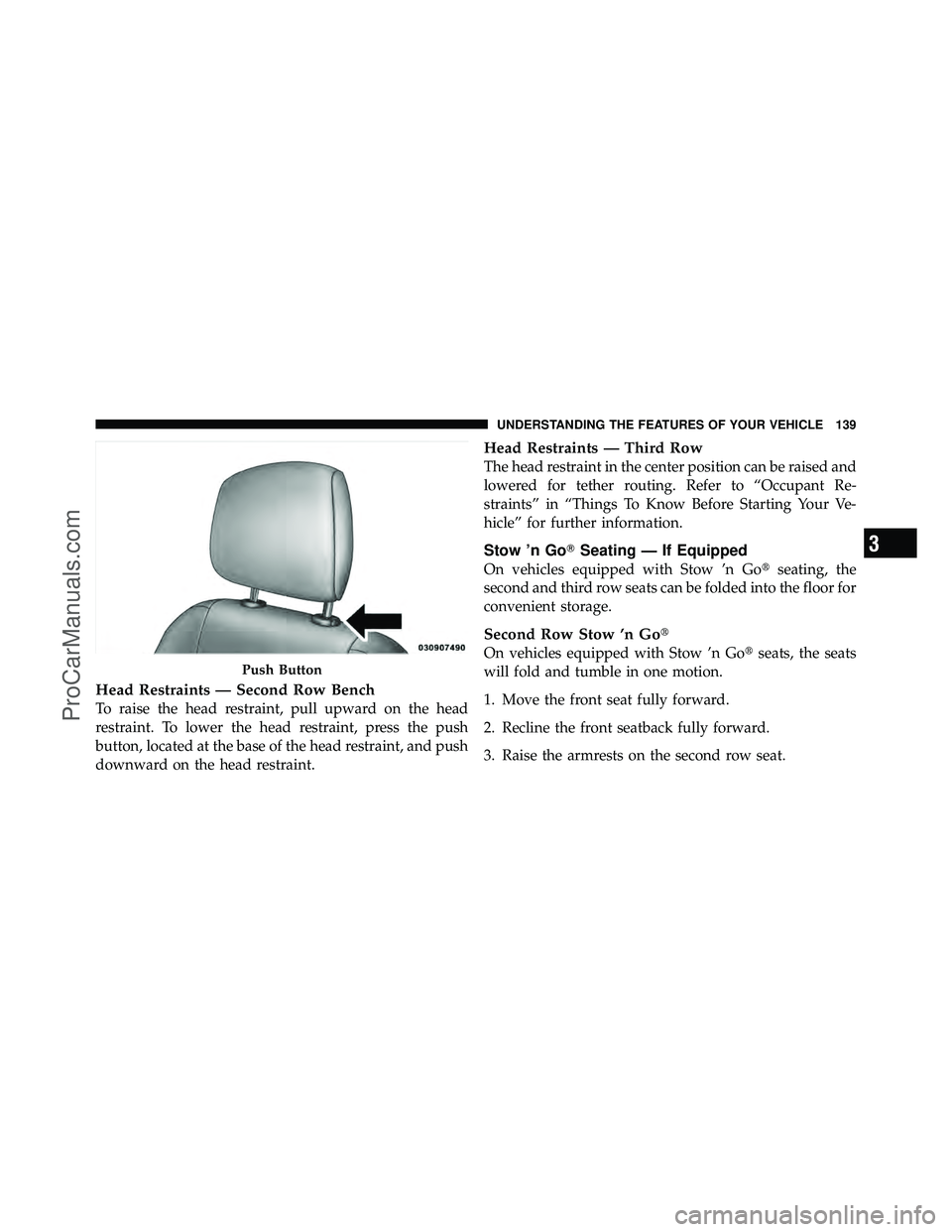

Head Restraints — Second Row Bench
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the push
button, located at the base of the head restraint, and push
downward on the head restraint.
Head Restraints — Third Row
The head restraint in the center position can be raised and
lowered for tether routing. Refer to “Occupant Re-
straints” in “Things To Know Before Starting Your Ve-
hicle” for further information.
Stow ’n GoSeating — If Equipped
On vehicles equipped with Stow ’n Go seating, the
second and third row seats can be folded into the floor for
convenient storage.
Second Row Stow ’n Go
On vehicles equipped with Stow ’n Go seats, the seats
will fold and tumble in one motion.
1. Move the front seat fully forward.
2. Recline the front seatback fully forward.
3. Raise the armrests on the second row seat.
Push Button
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139
ProCarManuals.com

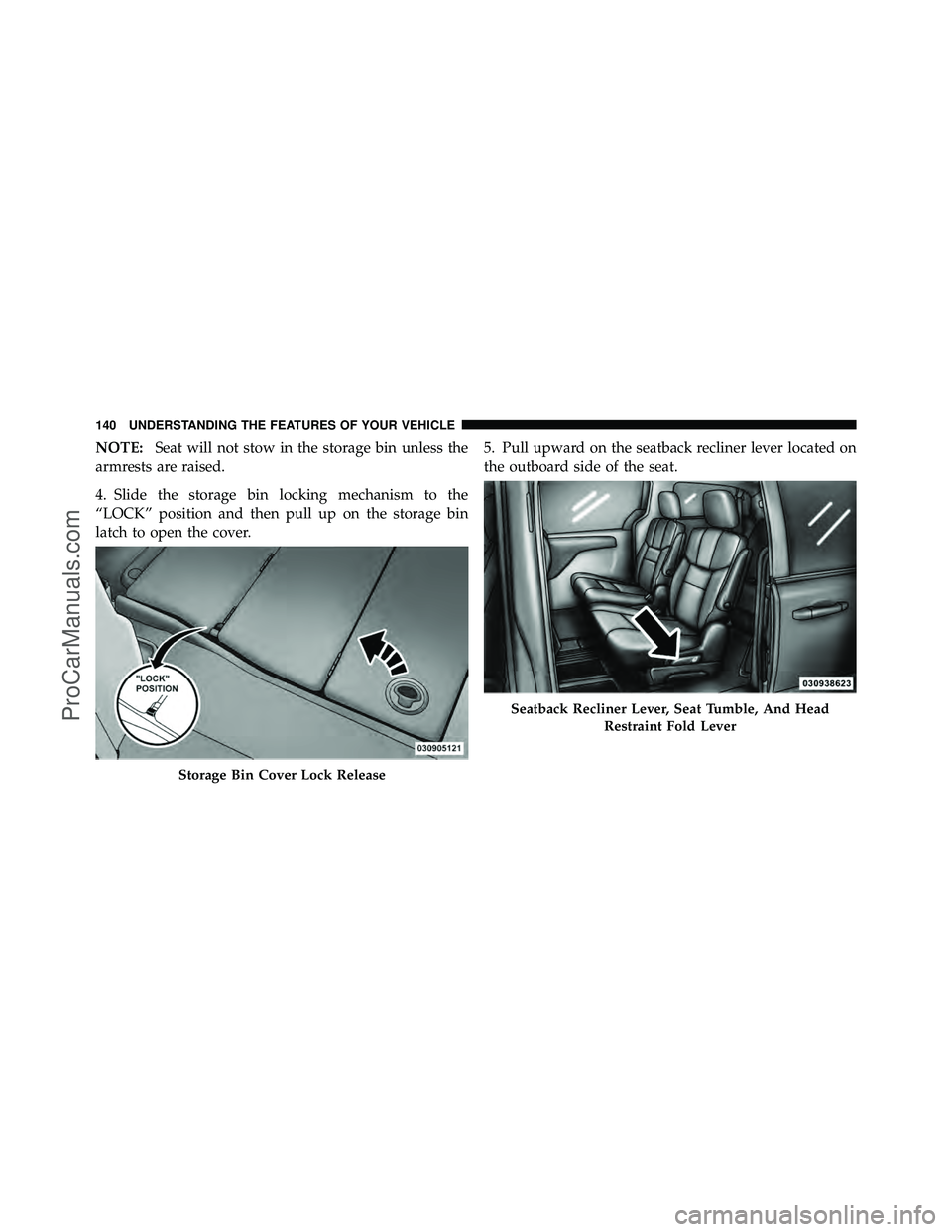

NOTE:Seat will not stow in the storage bin unless the
armrests are raised.
4. Slide the storage bin locking mechanism to the
“LOCK” position and then pull up on the storage bin
latch to open the cover. 5. Pull upward on the seatback recliner lever located on
the outboard side of the seat.
Storage Bin Cover Lock Release
Seatback Recliner Lever, Seat Tumble, And Head
Restraint Fold Lever
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

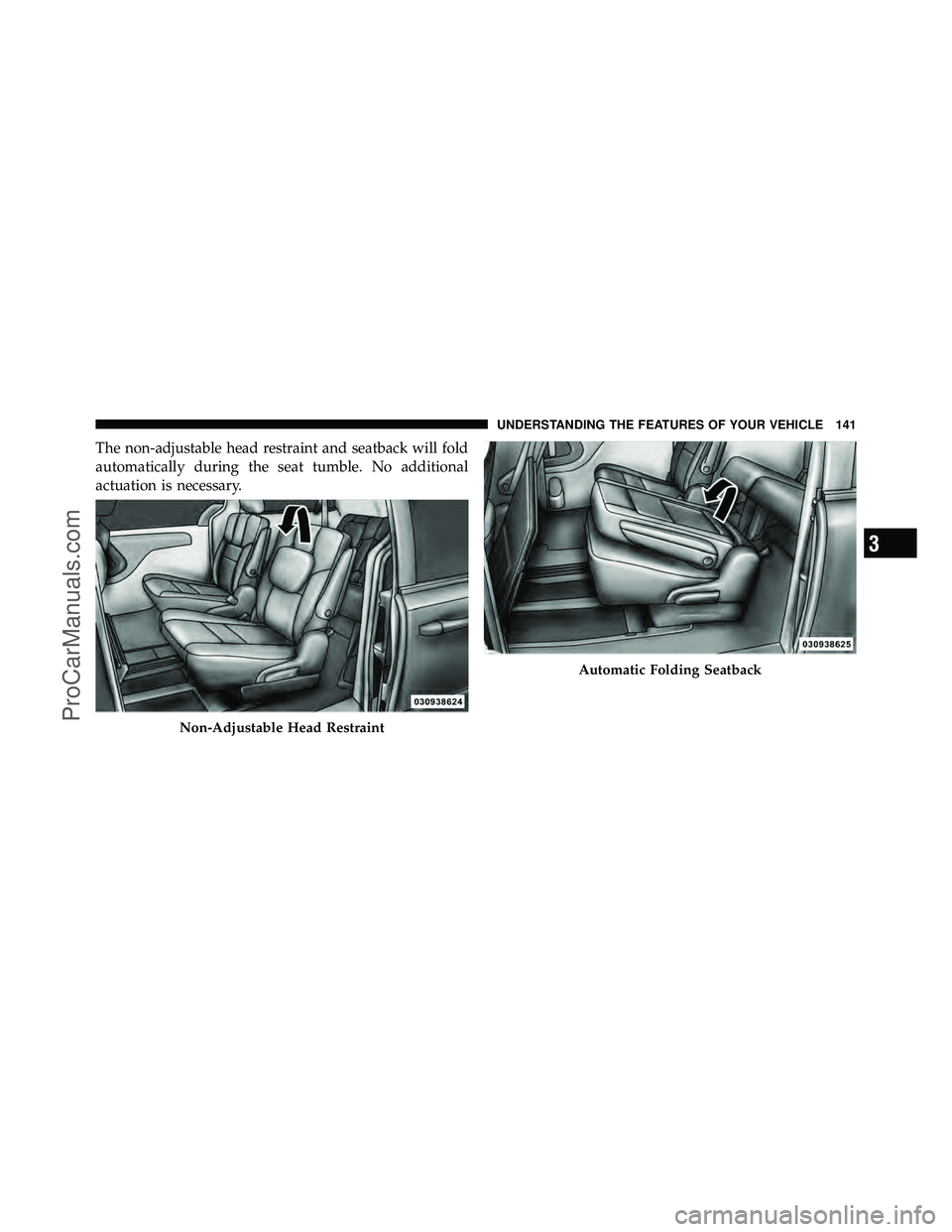

The non-adjustable head restraint and seatback will fold
automatically during the seat tumble. No additional
actuation is necessary.
Non-Adjustable Head Restraint
Automatic Folding Seatback
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
ProCarManuals.com

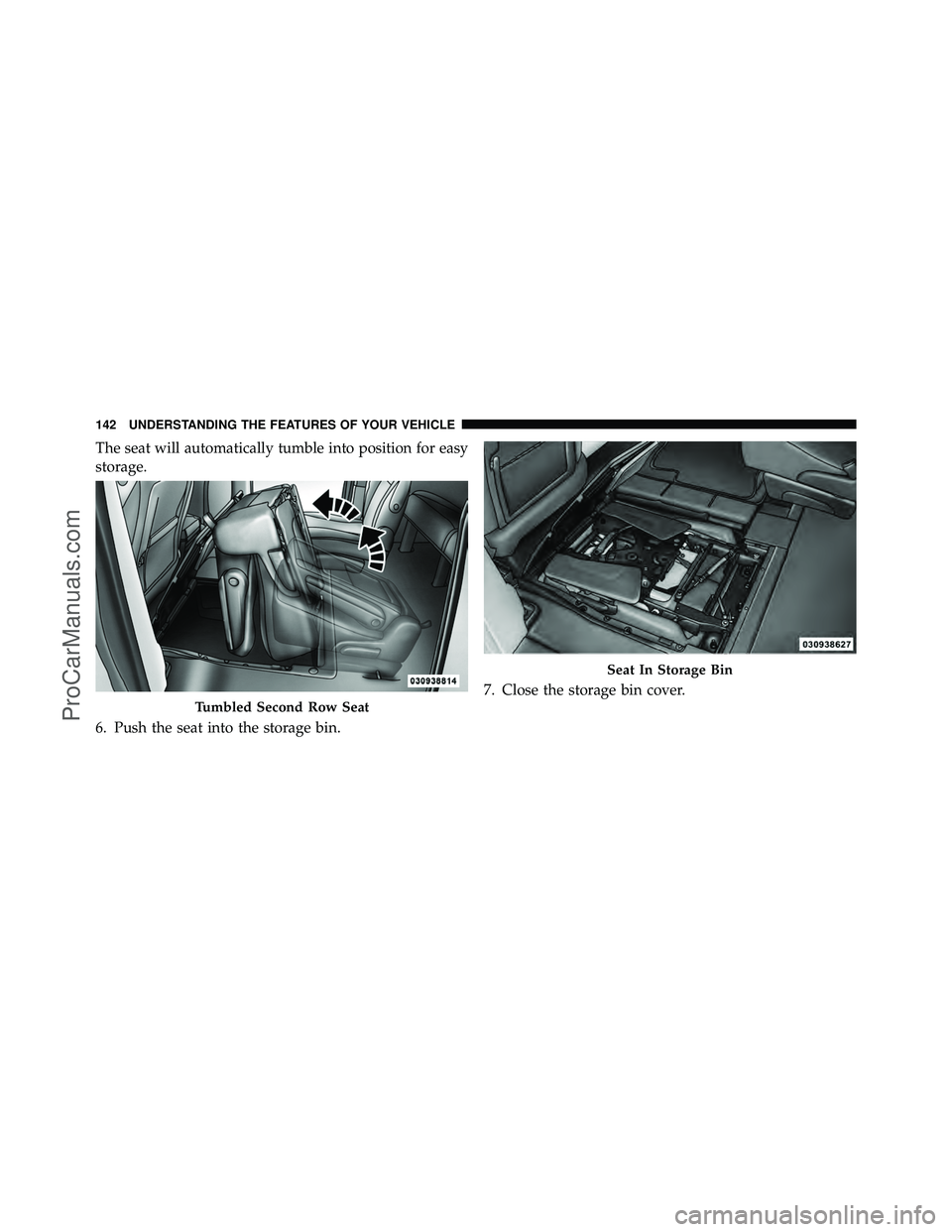

The seat will automatically tumble into position for easy
storage.
6. Push the seat into the storage bin.7. Close the storage bin cover.
Tumbled Second Row Seat
Seat In Storage Bin
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

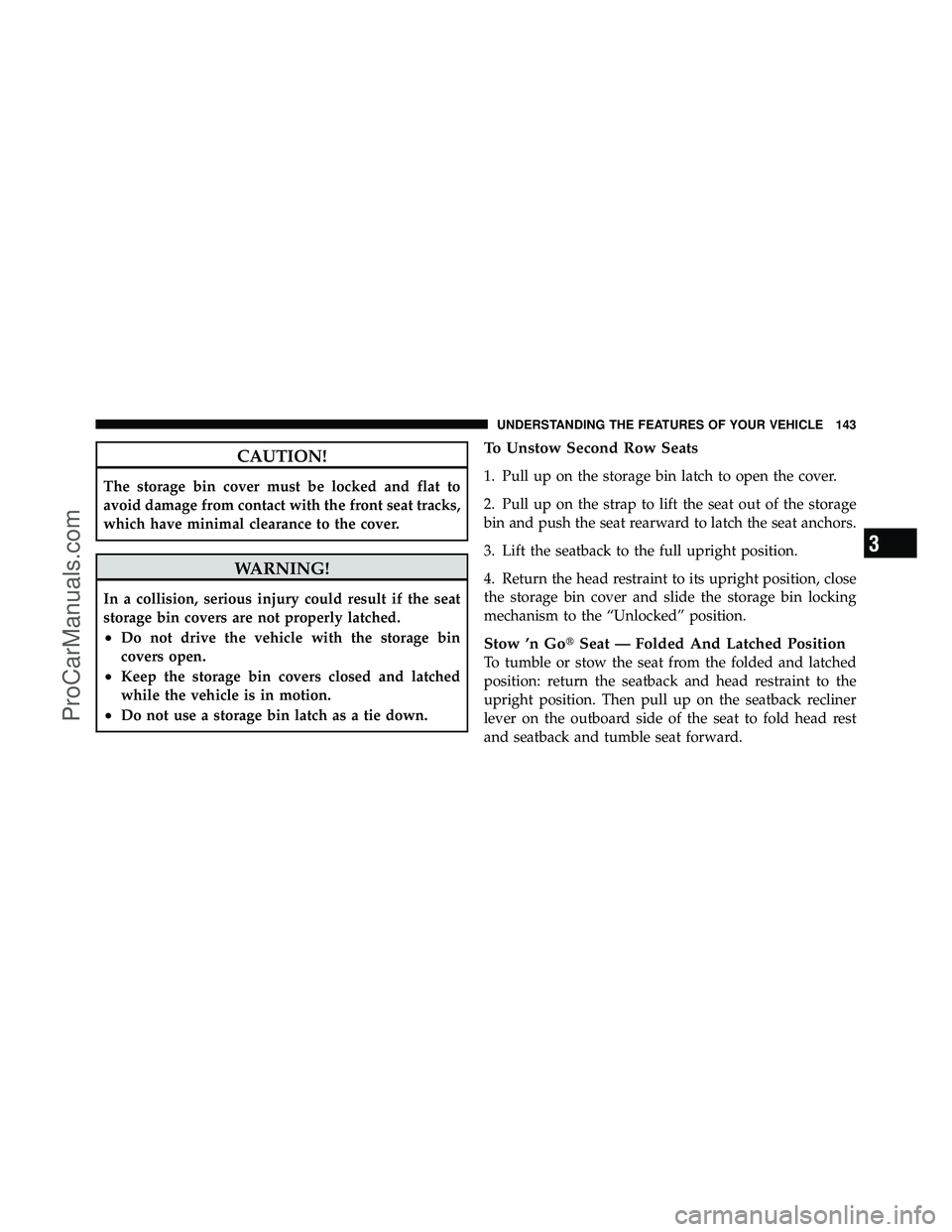

CAUTION!
The storage bin cover must be locked and flat to
avoid damage from contact with the front seat tracks,
which have minimal clearance to the cover.
WARNING!
In a collision, serious injury could result if the seat
storage bin covers are not properly latched.
•Do not drive the vehicle with the storage bin
covers open.
•Keep the storage bin covers closed and latched
while the vehicle is in motion.
•Do not use a storage bin latch as a tie down.
To Unstow Second Row Seats
1. Pull up on the storage bin latch to open the cover.
2. Pull up on the strap to lift the seat out of the storage
bin and push the seat rearward to latch the seat anchors.
3. Lift the seatback to the full upright position.
4. Return the head restraint to its upright position, close
the storage bin cover and slide the storage bin locking
mechanism to the “Unlocked” position.
Stow ’n GoSeat — Folded And Latched Position
To tumble or stow the seat from the folded and latched
position: return the seatback and head restraint to the
upright position. Then pull up on the seatback recliner
lever on the outboard side of the seat to fold head rest
and seatback and tumble seat forward.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
ProCarManuals.com

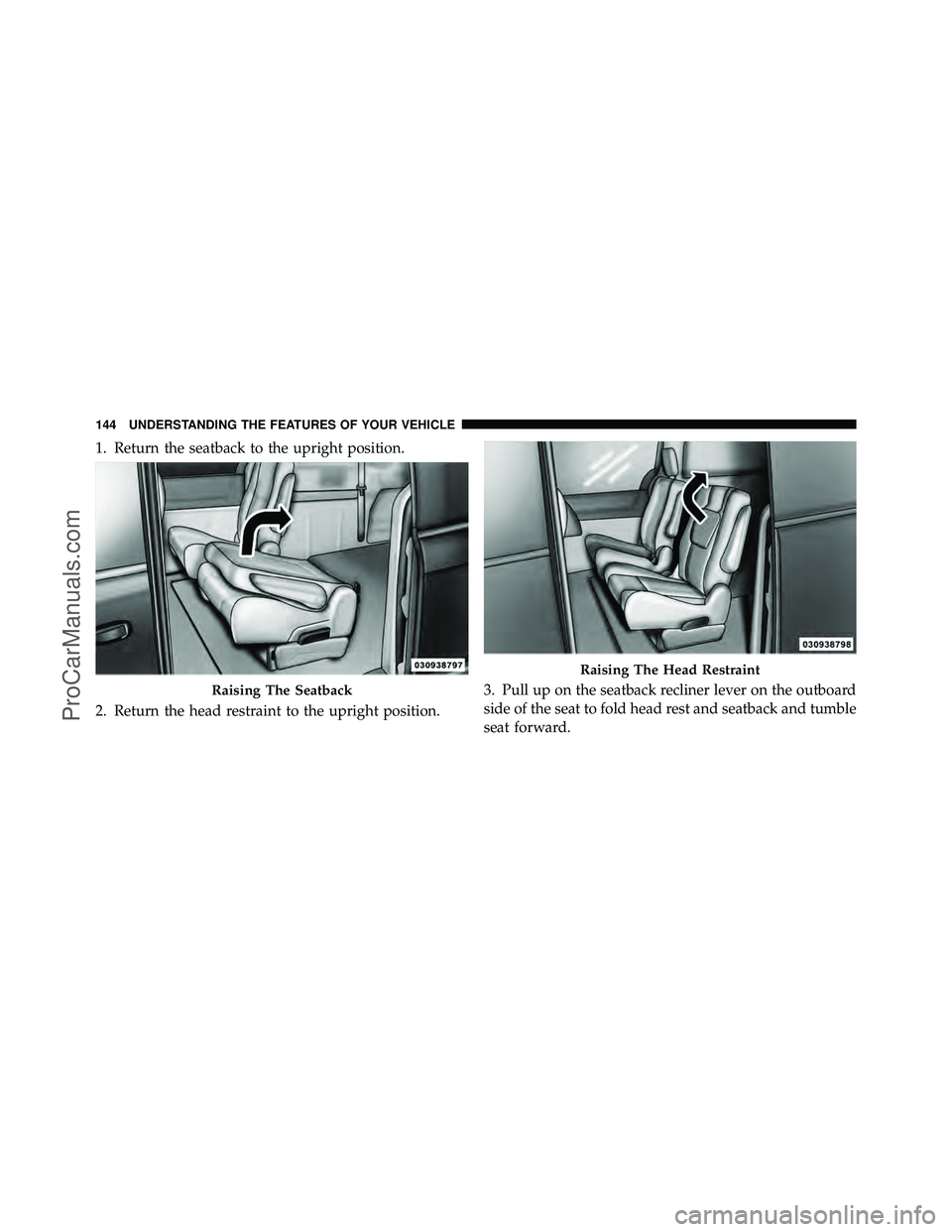

1. Return the seatback to the upright position.
2. Return the head restraint to the upright position.3. Pull up on the seatback recliner lever on the outboard
side of the seat to fold head rest and seatback and tumble
seat forward.
Raising The Seatback
Raising The Head Restraint
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

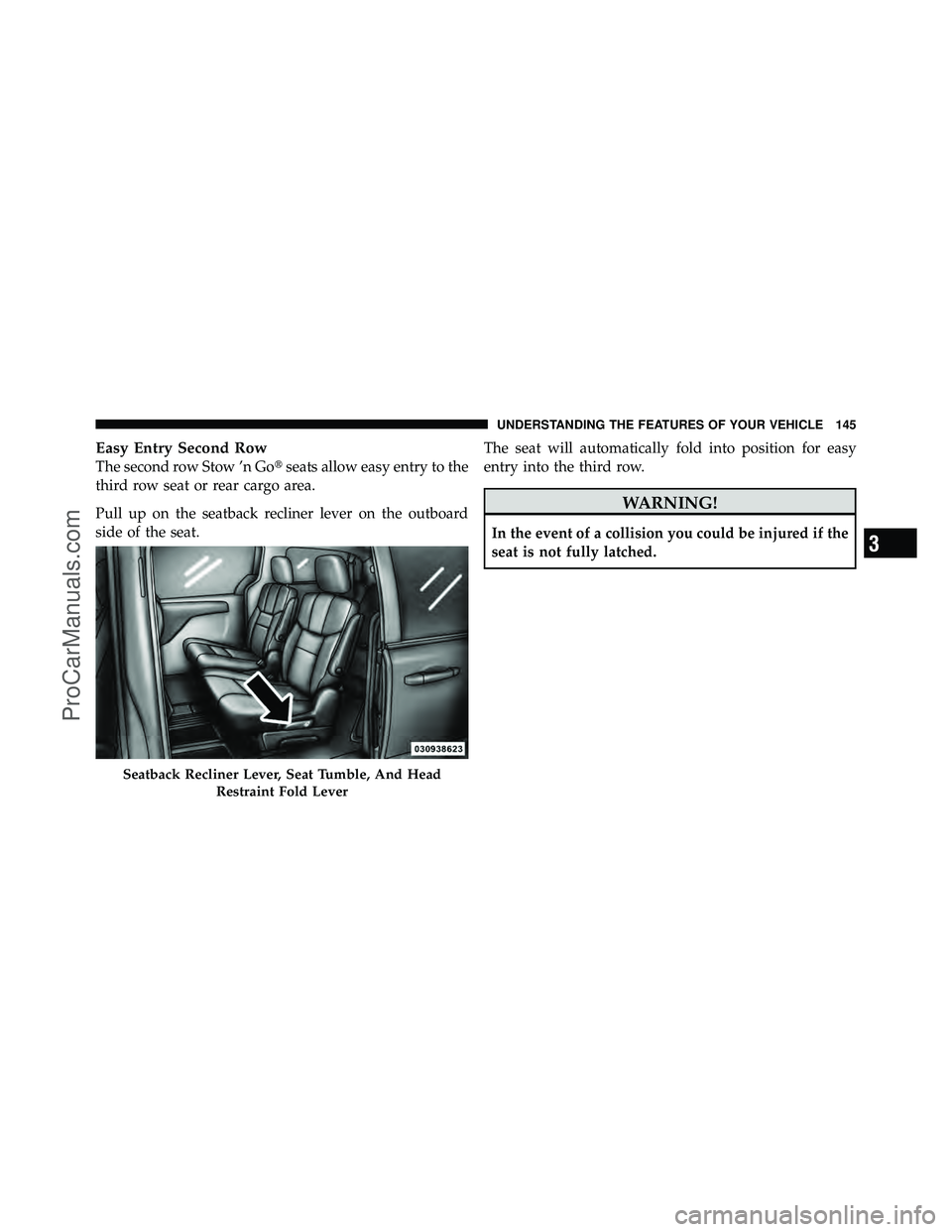

Easy Entry Second Row
The second row Stow ’n Goseats allow easy entry to the
third row seat or rear cargo area.
Pull up on the seatback recliner lever on the outboard
side of the seat. The seat will automatically fold into position for easy
entry into the third row.
WARNING!
In the event of a collision you could be injured if the
seat is not fully latched.
Seatback Recliner Lever, Seat Tumble, And Head
Restraint Fold Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
ProCarManuals.com

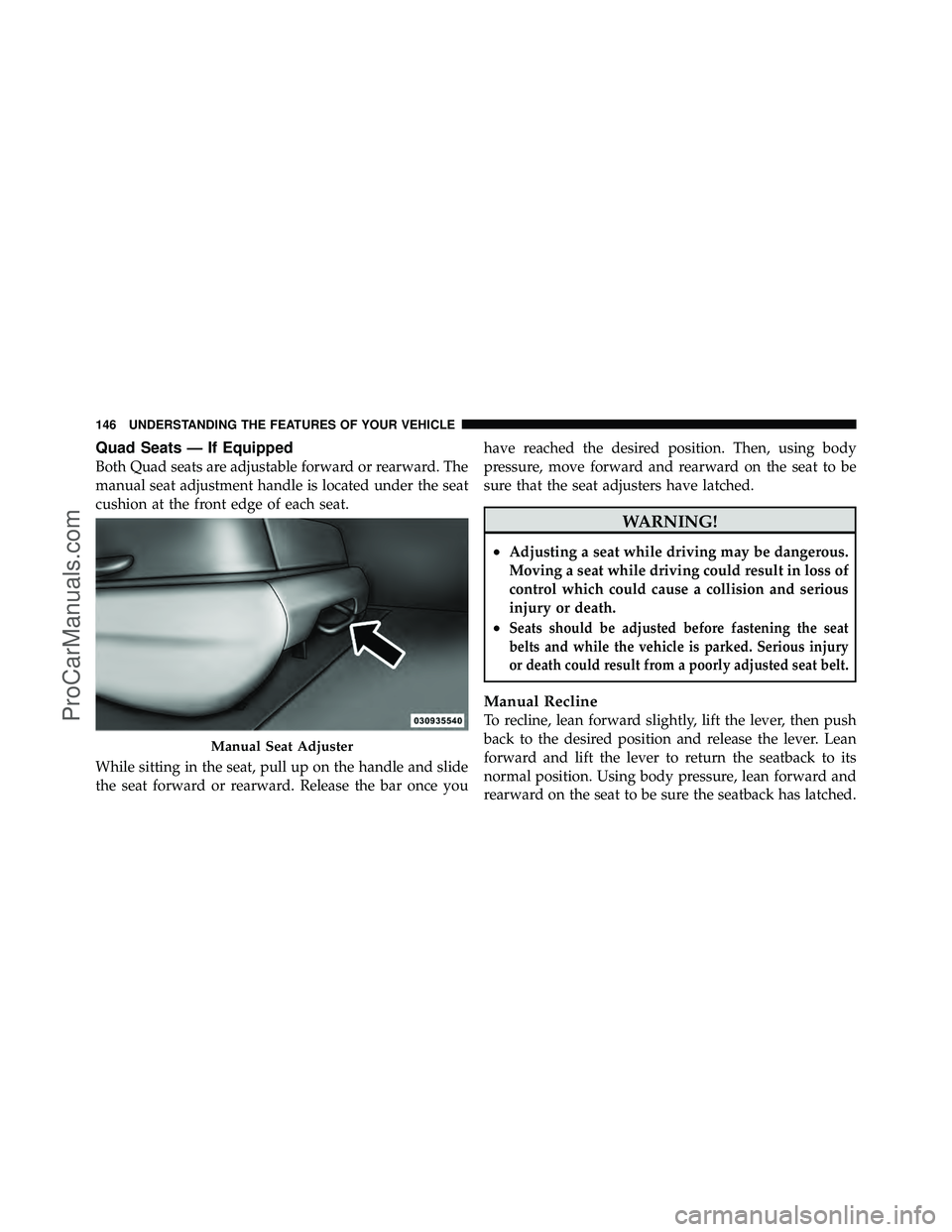

Quad Seats — If Equipped
Both Quad seats are adjustable forward or rearward. The
manual seat adjustment handle is located under the seat
cushion at the front edge of each seat.
While sitting in the seat, pull up on the handle and slide
the seat forward or rearward. Release the bar once youhave reached the desired position. Then, using body
pressure, move forward and rearward on the seat to be
sure that the seat adjusters have latched.
WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious injury
or death could result from a poorly adjusted seat belt.
Manual Recline
To recline, lean forward slightly, lift the lever, then push
back to the desired position and release the lever. Lean
forward and lift the lever to return the seatback to its
normal position. Using body pressure, lean forward and
rearward on the seat to be sure the seatback has latched.
Manual Seat Adjuster
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.

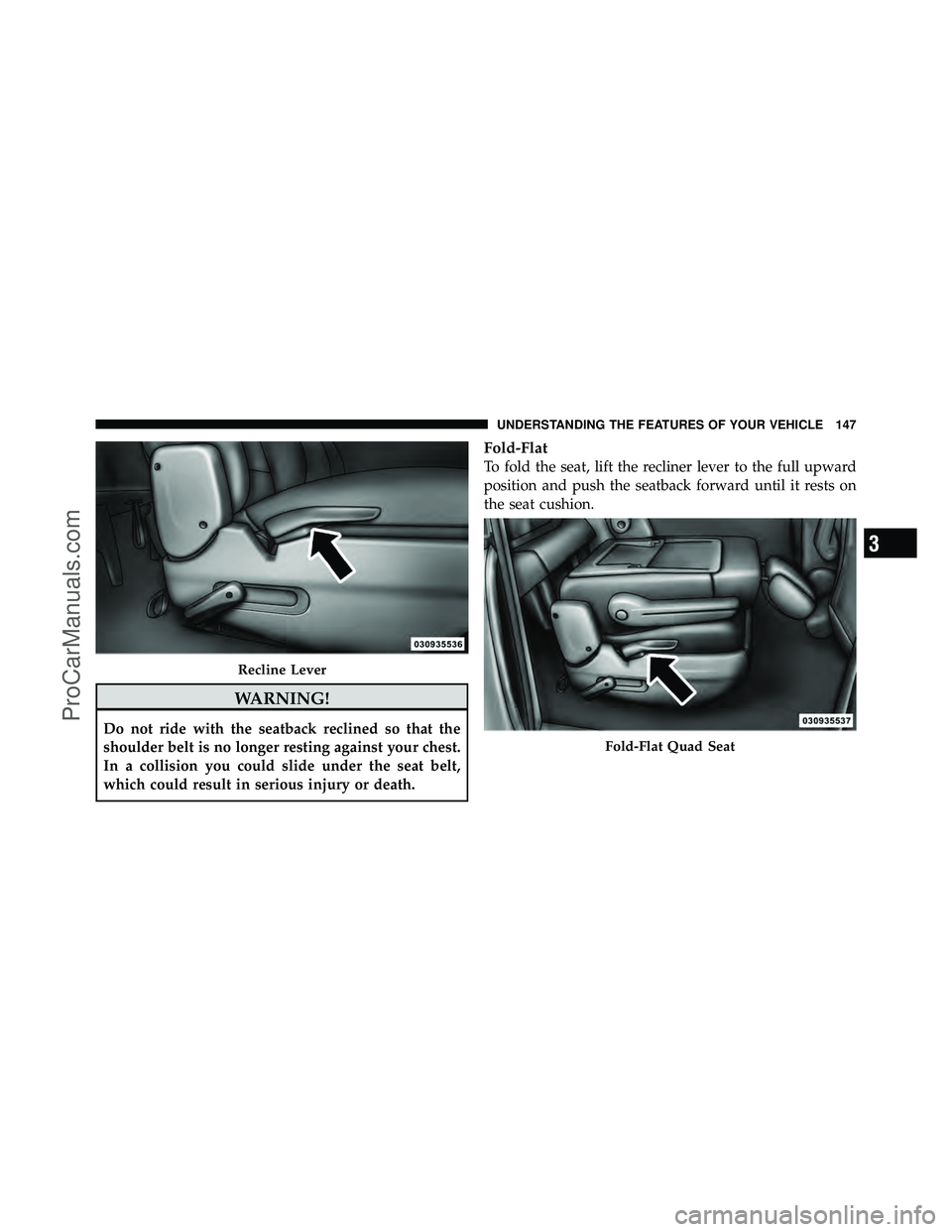

Fold-Flat
To fold the seat, lift the recliner lever to the full upward
position and push the seatback forward until it rests on
the seat cushion.
Recline Lever
Fold-Flat Quad Seat
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147
ProCarManuals.com

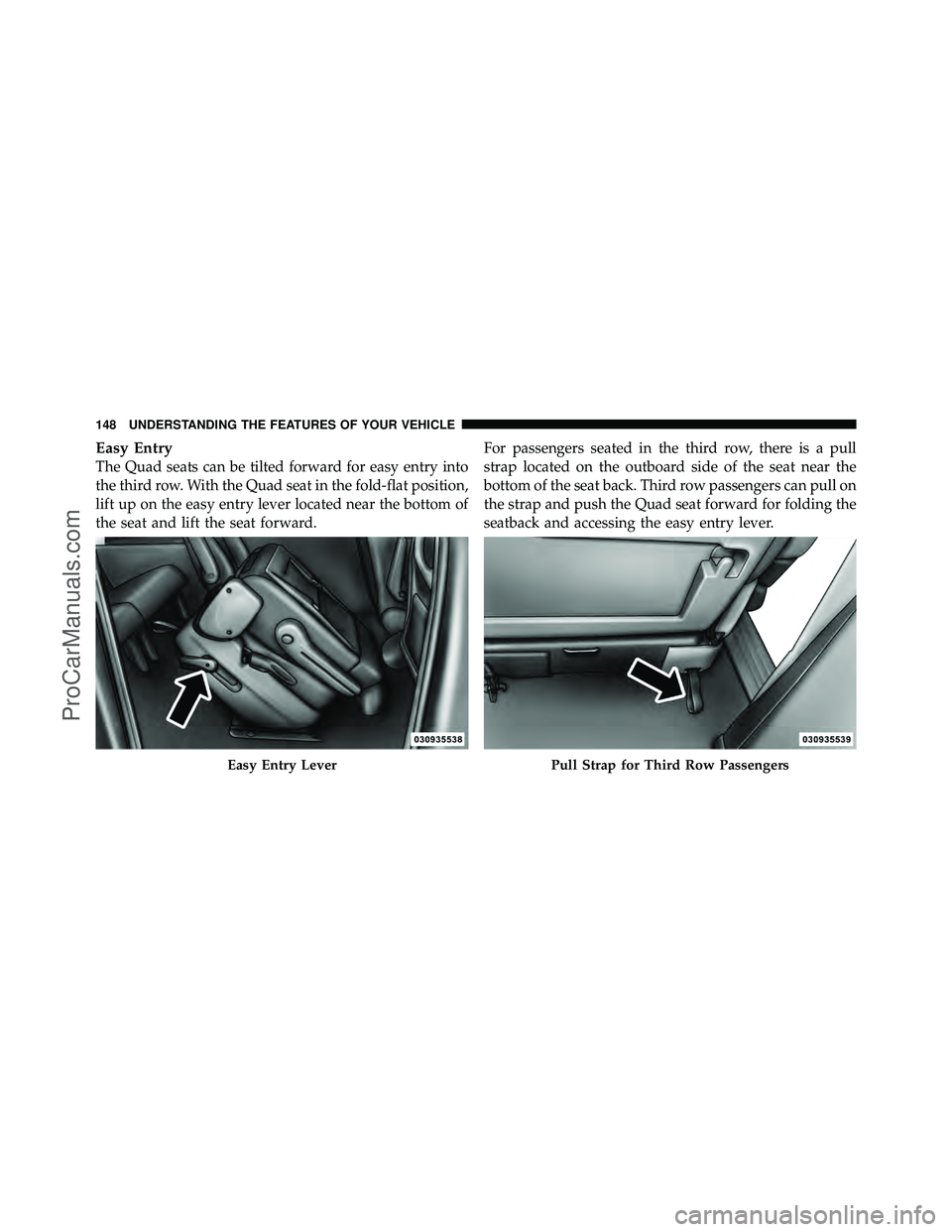

Easy Entry
The Quad seats can be tilted forward for easy entry into
the third row. With the Quad seat in the fold-flat position,
lift up on the easy entry lever located near the bottom of
the seat and lift the seat forward.For passengers seated in the third row, there is a pull
strap located on the outboard side of the seat near the
bottom of the seat back. Third row passengers can pull on
the strap and push the Quad seat forward for folding the
seatback and accessing the easy entry lever.
Easy Entry LeverPull Strap for Third Row Passengers
