DODGE CARAVAN 2012 Owners Manual

Vehicle Modifications/Alterations.............. 7
Vehicle Storage ....................... 412,585
Voice Recognition System (VR) .............. 155
Warning Flasher, Hazard .................. 513
Warning Lights
(Instrument Cluster Description) ............. 286
Warnings and Cautions ..................... 6
Warranty Information ..................... 614
Washer Adding Fluid ....................... 561
Washing Vehicle ......................... 572
Water Driving Through ..................... 435
Wheel and Wheel Trim .................... 573 Wheel and Wheel Trim Care
................ 573
Wind Buffeting ....................... 41,243
Window Fogging ........................ 412
Windows .............................. 36
Power ............................. 36
Rear Vent ........................... 36
Windshield Defroster ..................... 101
Windshield Washers ................... 204,561
Windshield Wiper Blades .................. 560
Wiper Blade Replacement .................. 560
Wipers, Intermittent ...................... 204
Zone Control (Temperature Control) .......... 393
638 INDEX
ProCarManuals.com

INSTALLATION OF RADIO TRANSMITTING
EQUIPMENTSpecial design considerations are incorporated into this
vehicle’s electronic system to provide immunity to radio
frequency signals. Mobile two-way radios and telephone
equipment must be installed properly by trained personnel.
The following must be observed during installation.
The positive power connection should be made directly to
the battery and fused as close to the battery as possible.
The negative power connection should be made to body
sheet metal adjacent to the negative battery connection.
This connection should not be fused.
Antennas for two-way radios should be mounted on the roof
or the rear area of the vehicle. Care should be used in
mounting antennas with magnet bases. Magnets may affect
the accuracy or operation of the compass on vehicles so
equipped.The antenna cable should be as short as practical and
routed away from the vehicle wiring when possible. Use
only fully shielded coaxial cable.
Carefully match the antenna and cable to the radio to
ensure a low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than
normal may require special precautions.
All installations should be checked for possible interfer-
ence between the communications equipment and the
vehicle’s electronic systems.
ProCarManuals.com

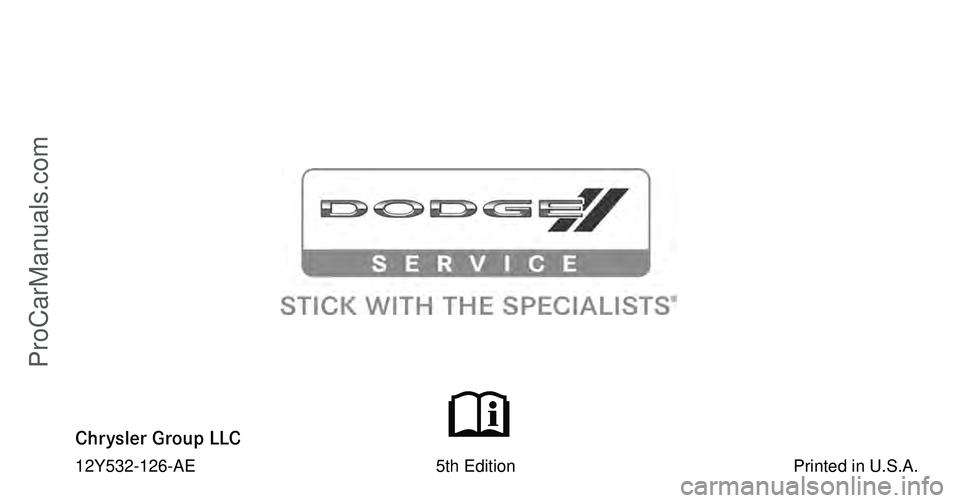

Chrysler Group LLC
12Y532-126-AE 5th Edition Printed in U.S.A.
