fog light bulb DODGE CHALLENGER 2008 Owners Manual

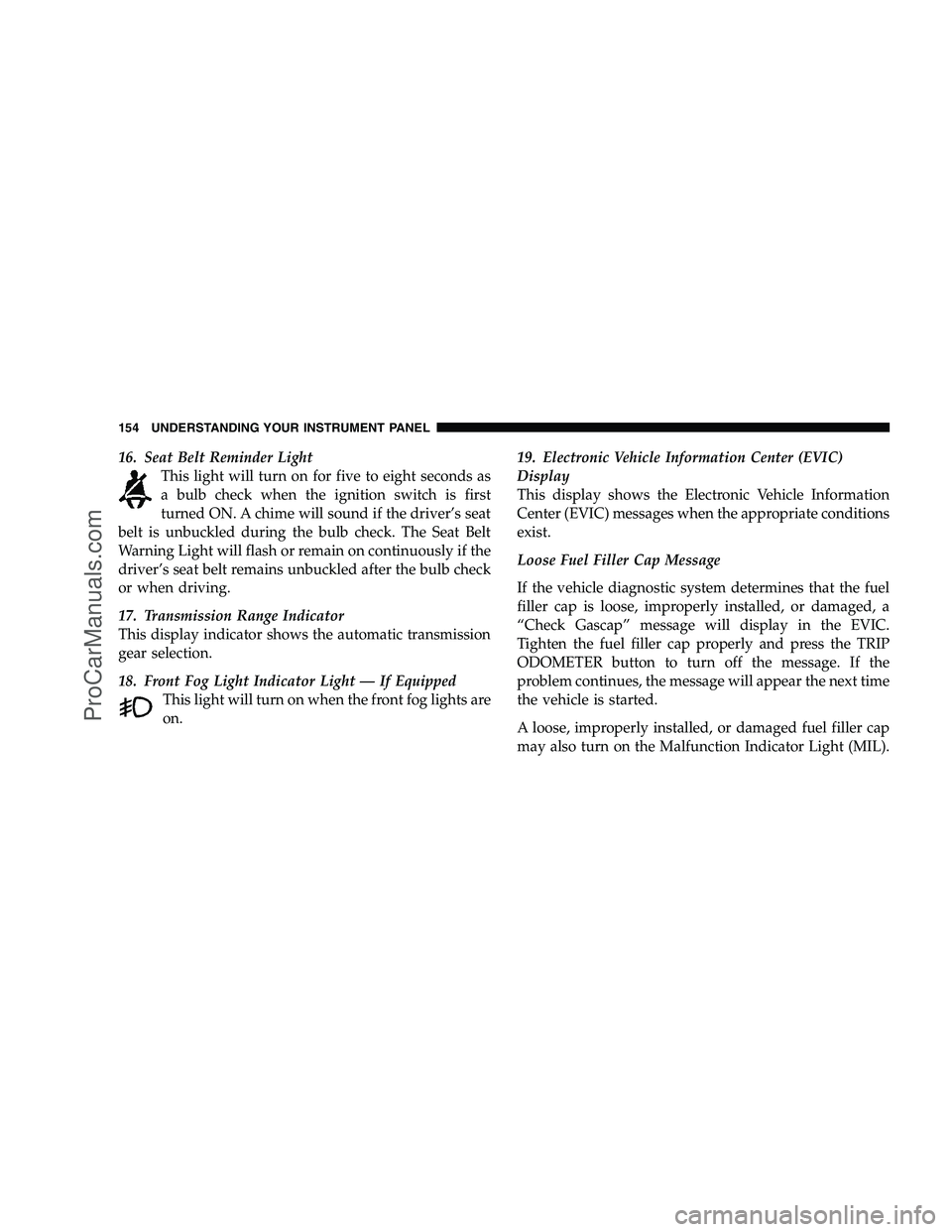

16. Seat Belt Reminder LightThis light will turn on for five to eight seconds as
a bulb check when the ignition switch is first
turned ON. A chime will sound if the driver’s seat
belt is unbuckled during the bulb check. The Seat Belt
Warning Light will flash or remain on continuously if the
driver’s seat belt remains unbuckled after the bulb check
or when driving.
17. Transmission Range Indicator
This display indicator shows the automatic transmission
gear selection.
18. Front Fog Light Indicator Light — If Equipped This light will turn on when the front fog lights are
on. 19. Electronic Vehicle Information Center (EVIC)
Display
This display shows the Electronic Vehicle Information
Center (EVIC) messages when the appropriate conditions
exist.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
“Check Gascap” message will display in the EVIC.
Tighten the fuel filler cap properly and press the TRIP
ODOMETER button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the Malfunction Indicator Light (MIL).
154 UNDERSTANDING YOUR INSTRUMENT PANEL
ProCarManuals.com

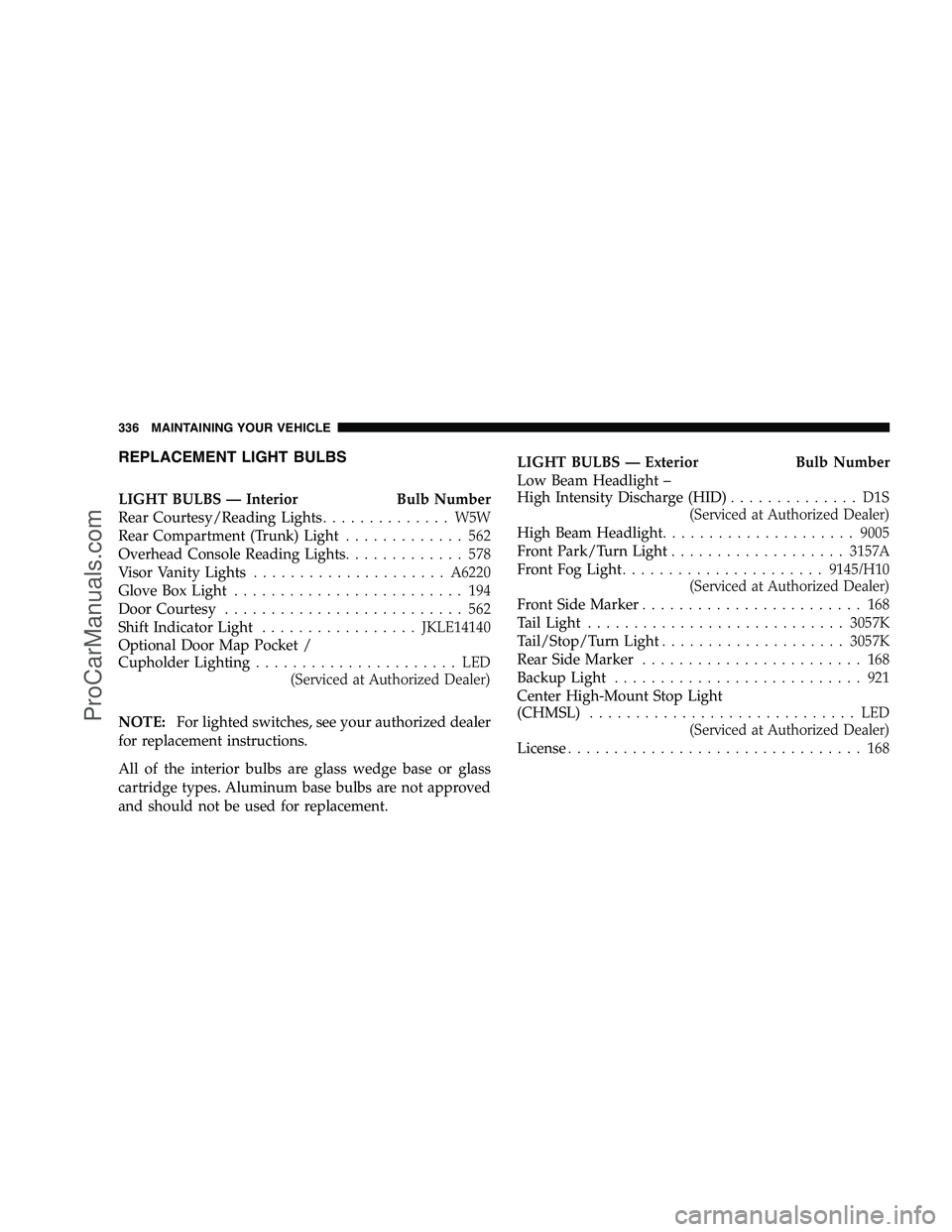

REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb Number
Rear Courtesy/Reading Lights.............. W5W
Rear Compartment (Trunk) Light ............. 562
Overhead Console Reading Lights ............. 578
Visor Vanity Lights ..................... A6220
Glove Box Light ......................... 194
Door Courtesy .......................... 562
Shift Indicator Light ................. J KLE14140
Optional Door Map Pocket /
Cupholder Lighting ...................... LED
(Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement. LIGHT BULBS — Exterior Bulb Number
Low Beam Headlight –
High Intensity Discharge (HID)
.............. D1S
(Serviced at Authorized Dealer)
High Beam Headlight ..................... 9005
Front Park/Turn Light ................... 3157A
Front Fog Light ...................... 9145/H10
(Serviced at Authorized Dealer)
Front Side Marker ........................ 168
Tail Light ............................ 3057K
Tail/Stop/Turn Light .................... 3057K
Rear Side Marker ........................ 168
Backup Light ........................... 921
Center High-Mount Stop Light
(CHMSL) ............................. LED
(Serviced at Authorized Dealer)
License ................................ 168
336 MAINTAINING YOUR VEHICLE
ProCarManuals.com

Knee Bolster............................ 46
Lane Change and Turn Signals .............. 119
Lap/Shoulder Belts ....................... 38
LATCH (Lower Anchors and Tether
forCHildren) ......................... 61,62
Latch Plate ............................. 39
Latches ................................ 70
Hood ............................... 114
Lead Free Gasoline ...................... 270
Leaks, Fluid ............................ 70
LifeofTires ............................ 259
LightBulbs .......................... 70,336
Lights .............................. 70,116
Airbag ........................ 52,55,70,152
Anti-Lock ......................... 158,236
Automatic Headlights ................... 117
Brake Assist Warning ................... 244
Brake Warning ..................... 155,234Bulb Replacement
................... 336,337
Center Mounted Stop ................... 340
Courtesy/Reading ................... 120,129
Cruise .............................. 150
Daytime Running ...................... 118
Dimmer Switch, Headlight ............. 119,120
Electronic Stability Program (ESP) Indicator . . . 244
Electronic Throttle Control Warning ......... 151
Engine Temperature Warning .............. 152
Exterior .............................. 70
Fog ............................. 118,154
Hazard Warning Flasher ................. 280
Headlight Switch ...................... 116
Headlights ........................ 116,337
Headlights On Reminder ................. 118
Headlights On With Wipers ............ 117,124
High Beam ........................ 120,153
High Beam Indicator .................... 153
High Beam/Low Beam Select ............. 120
INDEX 371
10
