start stop button DODGE CHALLENGER 2008 Owners Manual

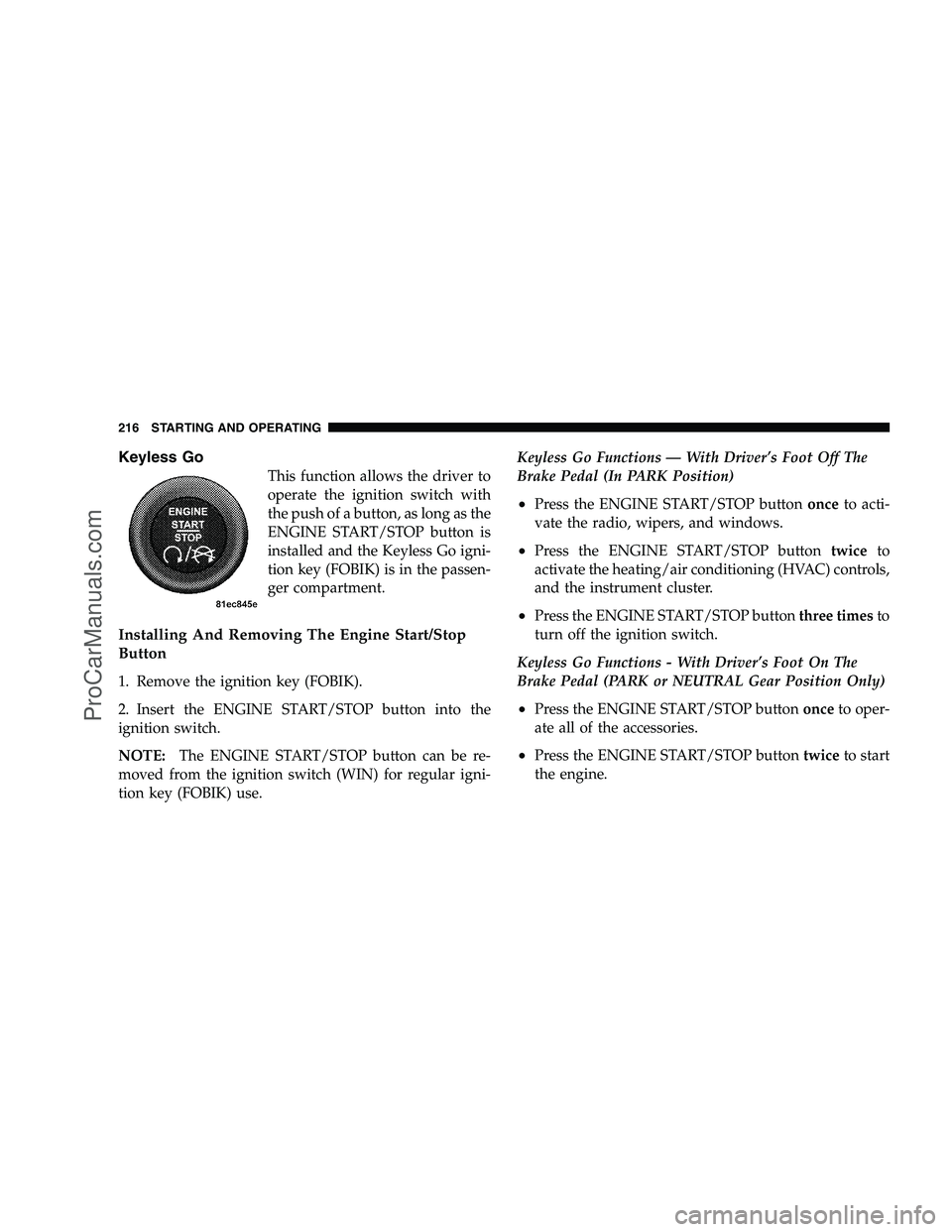

Keyless Go
This function allows the driver to
operate the ignition switch with
the push of a button, as long as the
ENGINE START/STOP button is
installed and the Keyless Go igni-
tion key (FOBIK) is in the passen-
ger compartment.
Installing And Removing The Engine Start/Stop
Button
1. Remove the ignition key (FOBIK).
2. Insert the ENGINE START/STOP button into the
ignition switch.
NOTE:The ENGINE START/STOP button can be re-
moved from the ignition switch (WIN) for regular igni-
tion key (FOBIK) use. Keyless Go Functions — With Driver’s Foot Off The
Brake Pedal (In PARK Position)
•Press the ENGINE START/STOP button
onceto acti-
vate the radio, wipers, and windows.
•Press the ENGINE START/STOP button twiceto
activate the heating/air conditioning (HVAC) controls,
and the instrument cluster.
•Press the ENGINE START/STOP button three timesto
turn off the ignition switch.
Keyless Go Functions - With Driver’s Foot On The
Brake Pedal (PARK or NEUTRAL Gear Position Only)
•Press the ENGINE START/STOP button onceto oper-
ate all of the accessories.
•Press the ENGINE START/STOP button twiceto start
the engine.
216 STARTING AND OPERATING
ProCarManuals.com

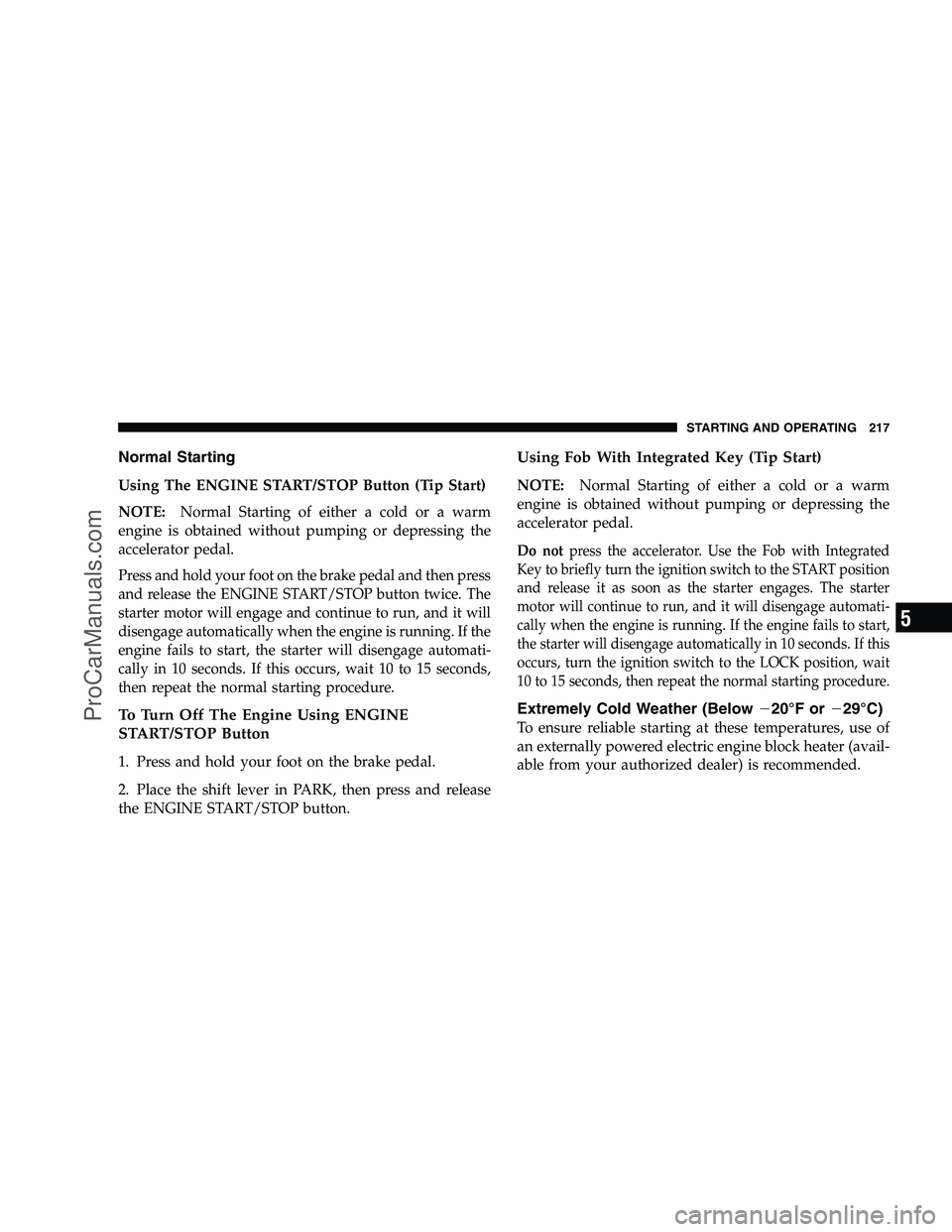

Normal Starting
Using The ENGINE START/STOP Button (Tip Start)
NOTE:Normal Starting of either a cold or a warm
engine is obtained without pumping or depressing the
accelerator pedal.
Press and hold your foot on the brake pedal and then press
and release the ENGINE START/STOP button twice. The
starter motor will engage and continue to run, and it will
disengage automatically when the engine is running. If the
engine fails to start, the starter will disengage automati-
cally in 10 seconds. If this occurs, wait 10 to 15 seconds,
then repeat the normal starting procedure.
To Turn Off The Engine Using ENGINE
START/STOP Button
1. Press and hold your foot on the brake pedal.
2. Place the shift lever in PARK, then press and release
the ENGINE START/STOP button.
Using Fob With Integrated Key (Tip Start)
NOTE: Normal Starting of either a cold or a warm
engine is obtained without pumping or depressing the
accelerator pedal.
Do not press the accelerator. Use the Fob with Integrated
Key to briefly turn the ignition switch to the START position
and release it as soon as the starter engages. The starter
motor will continue to run, and it will disengage automati-
cally when the engine is running. If the engine fails to start,
the starter will disengage automatically in 10 seconds. If this
occurs, turn the ignition switch to the LOCK position, wait
10 to 15 seconds, then repeat the normal starting procedure.
Extremely Cold Weather (Below
20°F or
29°C)
To ensure reliable starting at these temperatures, use of
an externally powered electric engine block heater (avail-
able from your authorized dealer) is recommended.
STARTING AND OPERATING 217
5
ProCarManuals.com

If Engine Fails To Start
WARNING!
•Never pour fuel or other flammable liquids into
the throttle body air inlet opening in an attempt to
start the vehicle. This could result in a flash fire
causing serious personal injury.
•Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle. If the vehicle has a discharged battery,
booster cables may be used to obtain a start from a
booster battery or the battery in another vehicle.
This type of start can be dangerous if done improp-
erly. Refer to Section 6 for proper jump-starting
procedures and follow them carefully.
Clearing A Flooded Engine - Using ENGINE
START/STOP Button
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weather proce-
dures, it may be flooded. To clear any excess fuel, press
and hold the brake pedal with your left foot, push and
hold the accelerator pedal all the way to the floor with
your right foot, and then press and release the ENGINE
START/STOP button twice. The starter motor will en-
gage automatically, run for 10 seconds, and then disen-
gage. Once this occurs, release the accelerator pedal and
the brake pedal, wait 10 to 15 seconds, then repeat the
normal starting procedure.
Clearing A Flooded Engine - Using Fob With Integrated
Key
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weather” proce-
dures, it may be flooded. To clear any excess fuel, push
the accelerator pedal all the way to the floor and hold it.
218 STARTING AND OPERATING
ProCarManuals.com

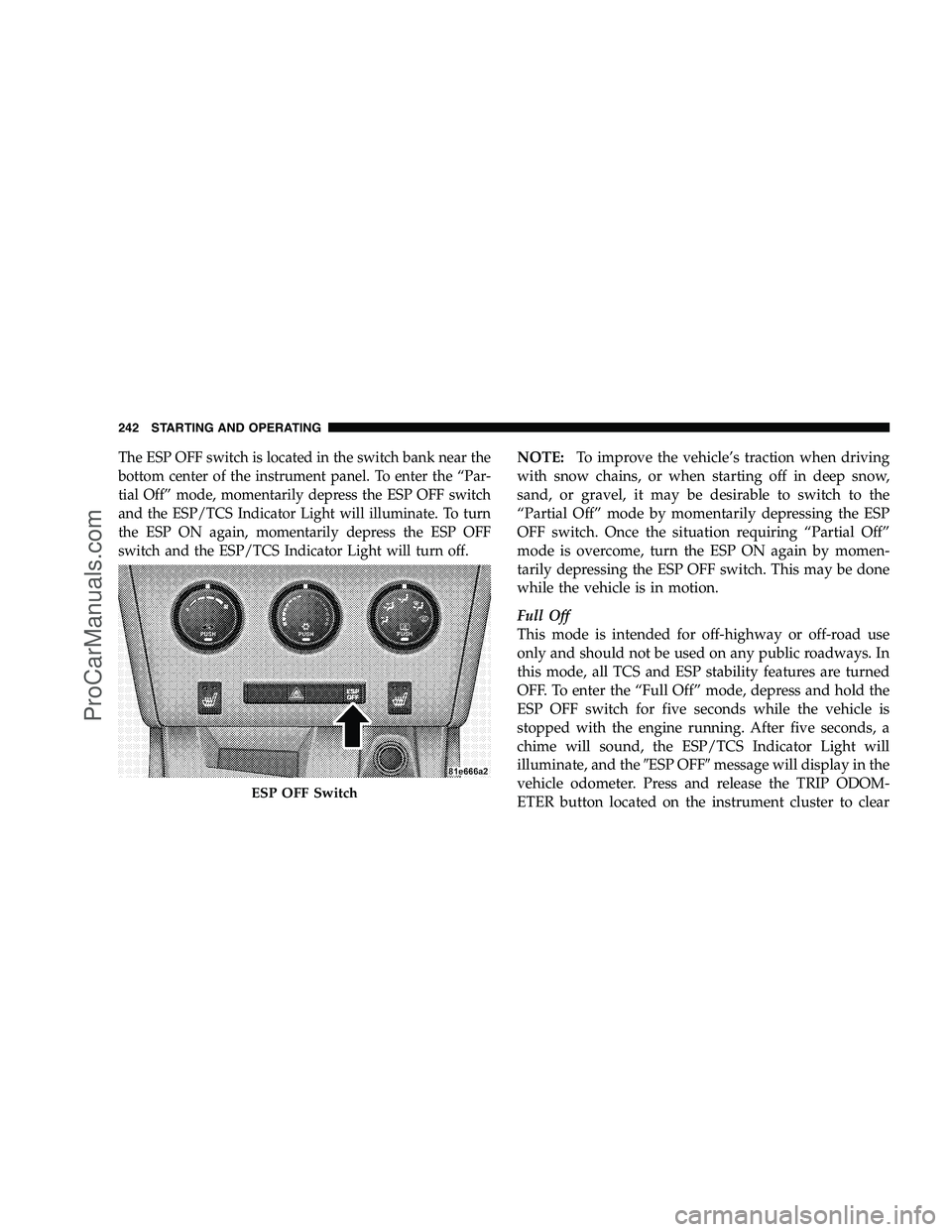

The ESP OFF switch is located in the switch bank near the
bottom center of the instrument panel. To enter the “Par-
tial Off” mode, momentarily depress the ESP OFF switch
and the ESP/TCS Indicator Light will illuminate. To turn
the ESP ON again, momentarily depress the ESP OFF
switch and the ESP/TCS Indicator Light will turn off.NOTE:To improve the vehicle’s traction when driving
with snow chains, or when starting off in deep snow,
sand, or gravel, it may be desirable to switch to the
“Partial Off” mode by momentarily depressing the ESP
OFF switch. Once the situation requiring “Partial Off”
mode is overcome, turn the ESP ON again by momen-
tarily depressing the ESP OFF switch. This may be done
while the vehicle is in motion.
Full Off
This mode is intended for off-highway or off-road use
only and should not be used on any public roadways. In
this mode, all TCS and ESP stability features are turned
OFF. To enter the “Full Off” mode, depress and hold the
ESP OFF switch for five seconds while the vehicle is
stopped with the engine running. After five seconds, a
chime will sound, the ESP/TCS Indicator Light will
illuminate, and the ESP OFF message will display in the
vehicle odometer. Press and release the TRIP ODOM-
ETER button located on the instrument cluster to clear
ESP OFF Switch
242 STARTING AND OPERATING
