DODGE CHALLENGER 2009 3.G User Guide

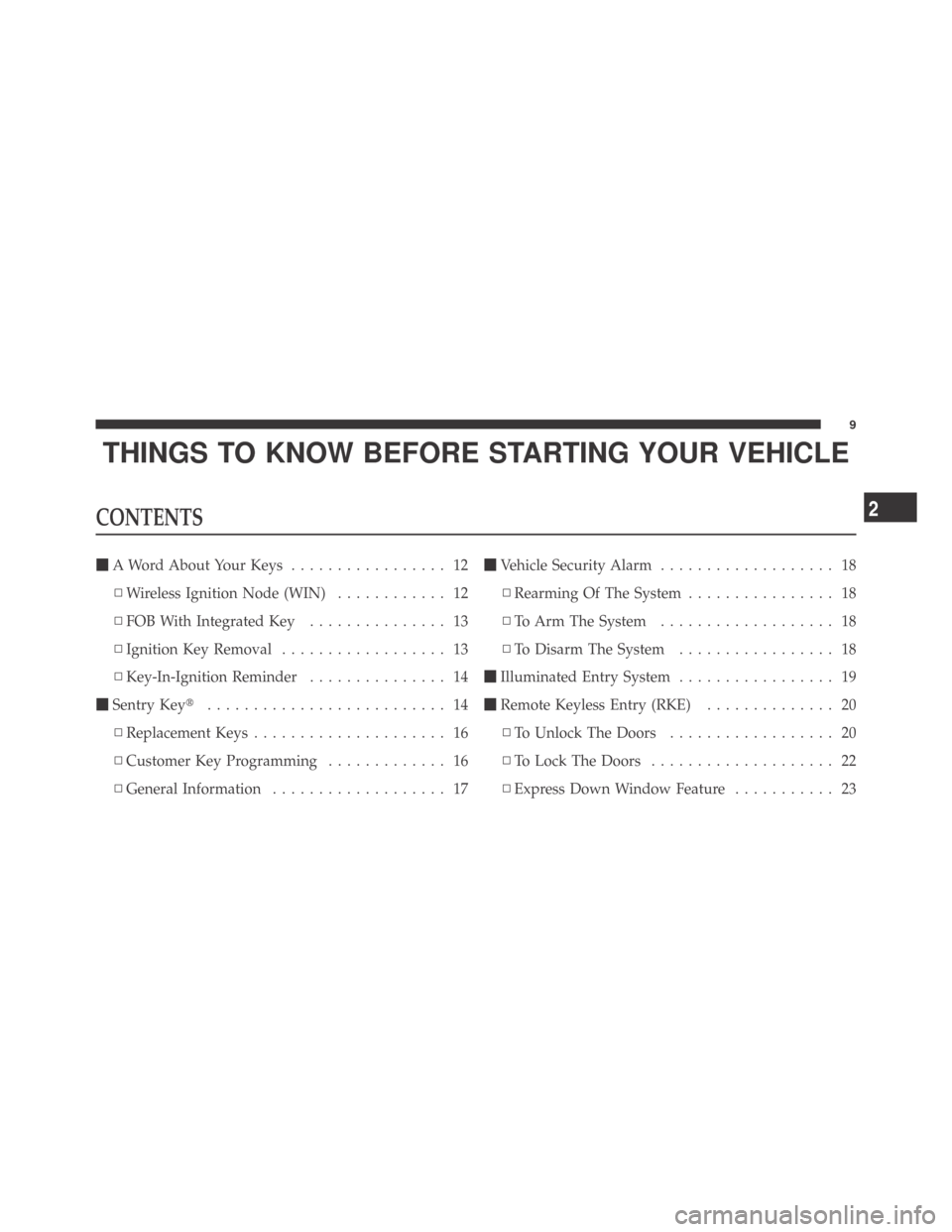

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys................. 12
▫Wireless Ignition Node (WIN)............ 12
▫FOB With Integrated Key............... 13
▫Ignition Key Removal.................. 13
▫Key-In-Ignition Reminder............... 14
Sentry Key.......................... 14
▫Replacement Keys..................... 16
▫Customer Key Programming............. 16
▫General Information................... 17Vehicle Security Alarm................... 18
▫Rearming Of The System................ 18
▫To Arm The System................... 18
▫To Disarm The System................. 18
Illuminated Entry System................. 19
Remote Keyless Entry (RKE).............. 20
▫To Unlock The Doors.................. 20
▫To Lock The Doors.................... 22
▫Express Down Window Feature........... 23
2
9

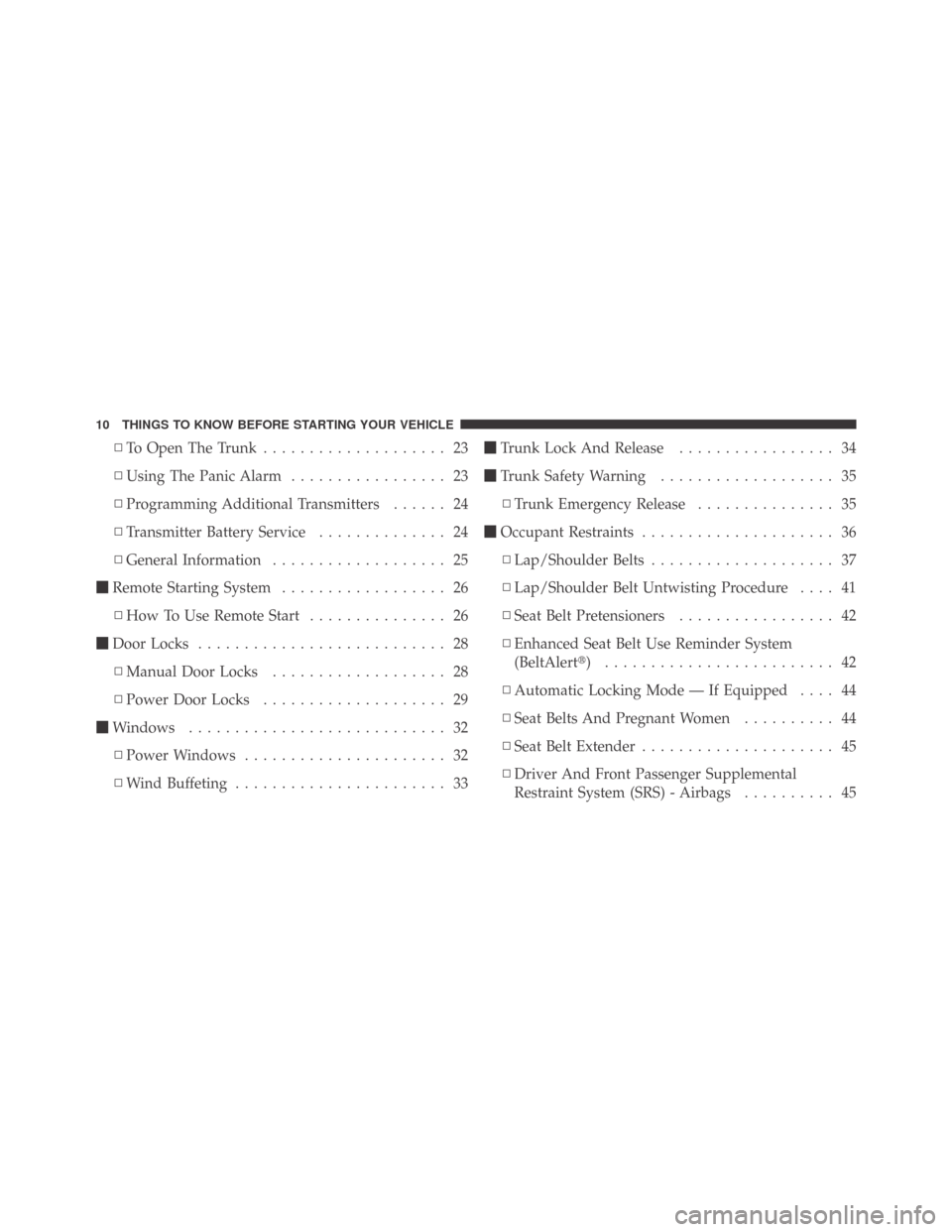

▫To Open The Trunk.................... 23
▫Using The Panic Alarm................. 23
▫Programming Additional Transmitters...... 24
▫Transmitter Battery Service.............. 24
▫General Information................... 25
Remote Starting System.................. 26
▫How To Use Remote Start............... 26
Door Locks........................... 28
▫Manual Door Locks................... 28
▫Power Door Locks.................... 29
Windows............................ 32
▫Power Windows...................... 32
▫Wind Buffeting....................... 33Trunk Lock And Release................. 34
Trunk Safety Warning................... 35
▫Trunk Emergency Release............... 35
Occupant Restraints..................... 36
▫Lap/Shoulder Belts.................... 37
▫Lap/Shoulder Belt Untwisting Procedure.... 41
▫Seat Belt Pretensioners................. 42
▫Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 42
▫Automatic Locking Mode — If Equipped.... 44
▫Seat Belts And Pregnant Women.......... 44
▫Seat Belt Extender..................... 45
▫Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbags.......... 45
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

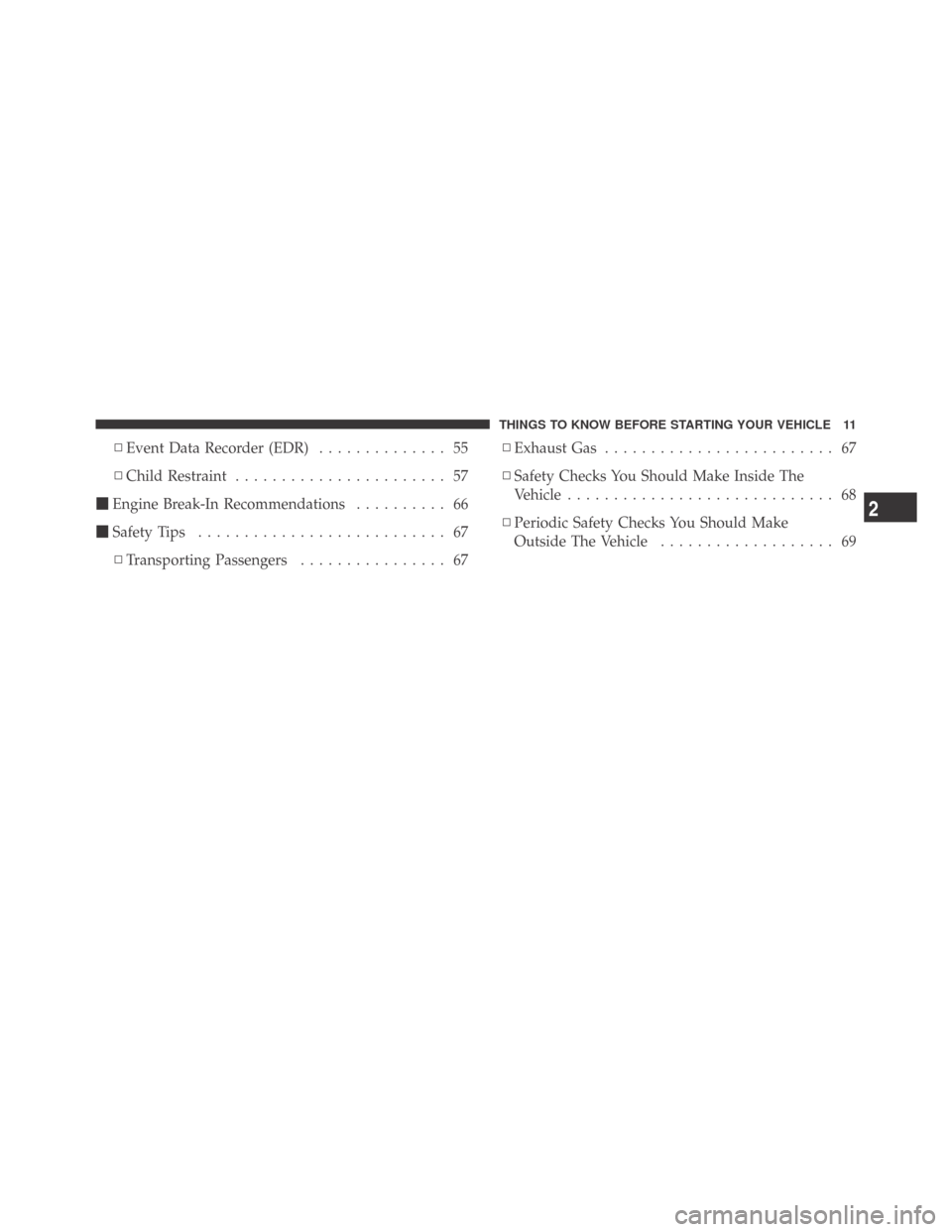

▫Event Data Recorder (EDR).............. 55
▫Child Restraint....................... 57
Engine Break-In Recommendations.......... 66
Safety Tips........................... 67
▫Transporting Passengers................ 67▫Exhaust Gas......................... 67
▫Safety Checks You Should Make Inside The
Vehicle ............................. 68
▫Periodic Safety Checks You Should Make
OutsideTheVehicle ................... 69
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Fob and a Wireless Ignition Node (WIN)
with an integral ignition switch. You can insert the
double-sided integrated key into the ignition switch with
either side up.
Keyless Go Feature
This vehicle may be equipped with the Keyless Go
feature, for more information, refer to “Keyless Go — If
Equipped” under “Starting Procedure” in Section 5 of
this manual.

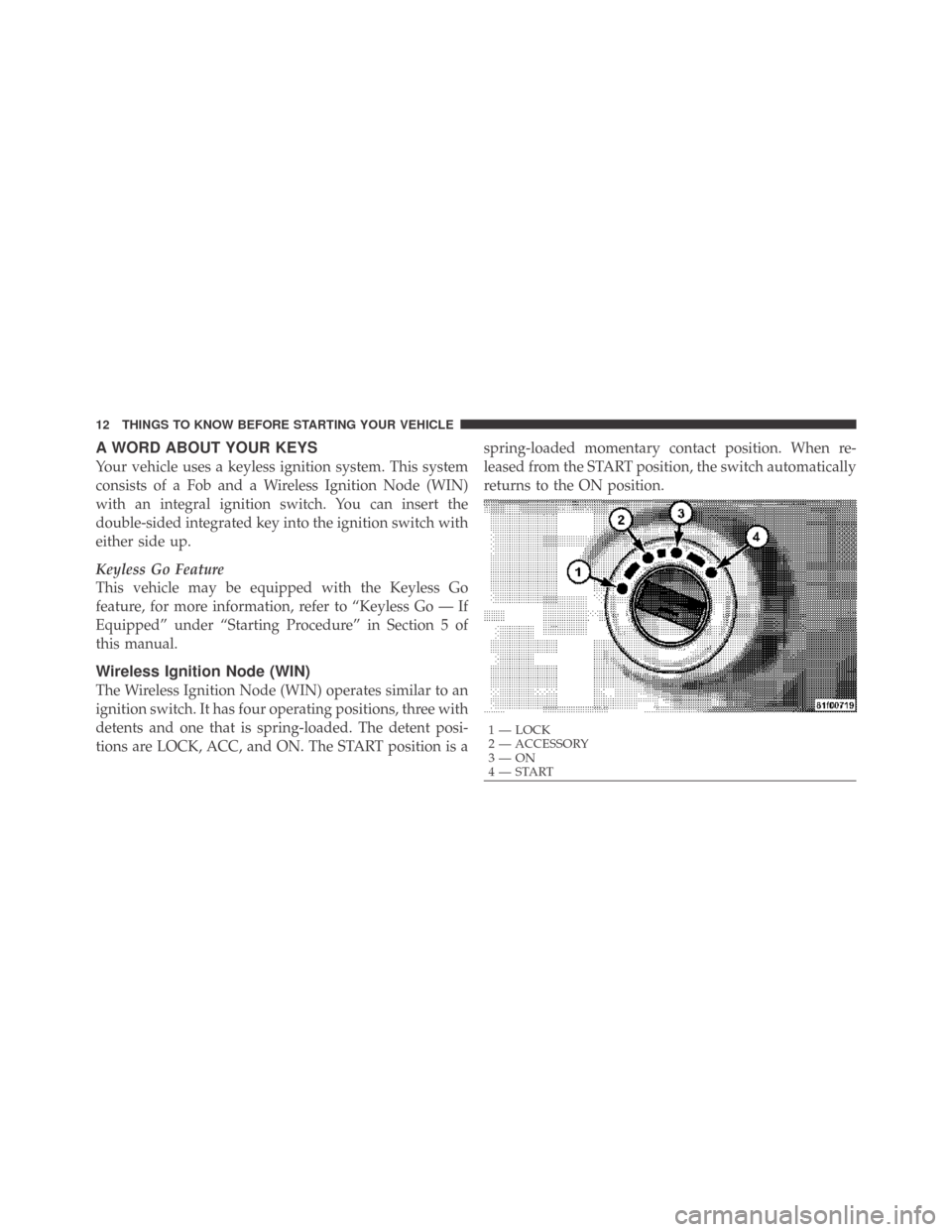

Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are LOCK, ACC, and ON. The START position is aspring-loaded momentary contact position. When re-
leased from the START position, the switch automatically
returns to the ON position.
1 — LOCK
2 — ACCESSORY
3—ON
4 — START 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

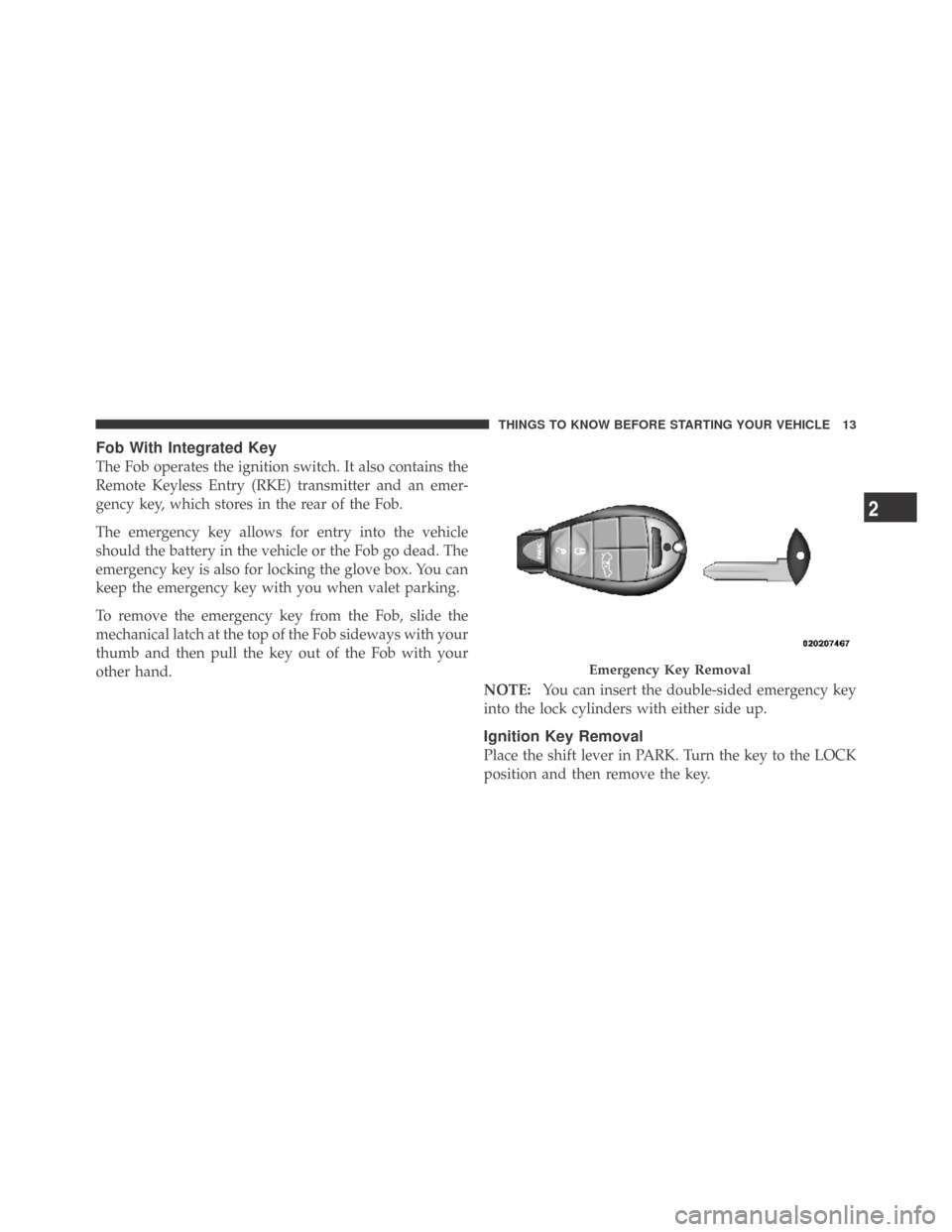

Fob With Integrated Key
The Fob operates the ignition switch. It also contains the
Remote Keyless Entry (RKE) transmitter and an emer-
gency key, which stores in the rear of the Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Fob go dead. The
emergency key is also for locking the glove box. You can
keep the emergency key with you when valet parking.
To remove the emergency key from the Fob, slide the
mechanical latch at the top of the Fob sideways with your
thumb and then pull the key out of the Fob with your
other hand.
NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.
Ignition Key Removal
Place the shift lever in PARK. Turn the key to the LOCK
position and then remove the key.
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

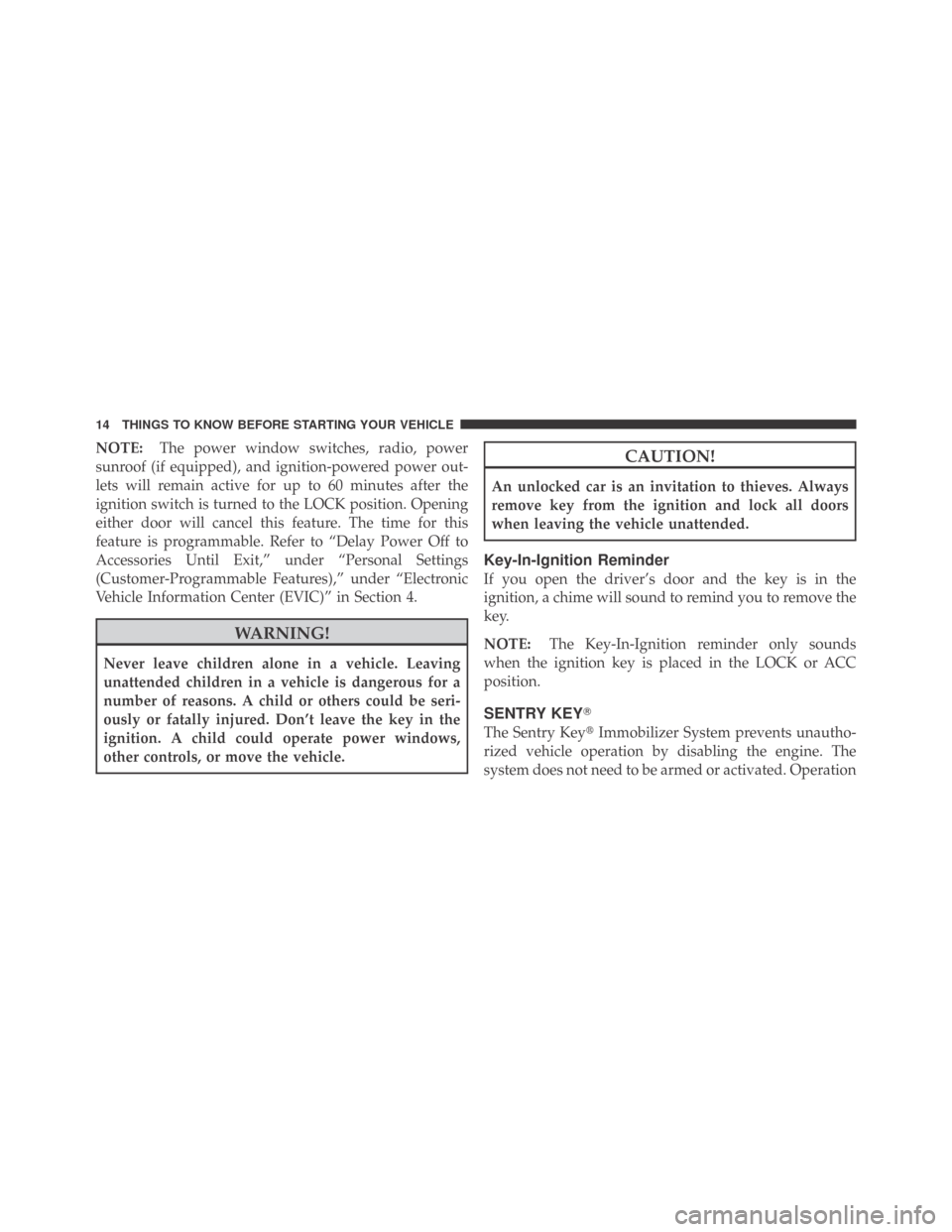

NOTE:The power window switches, radio, power
sunroof (if equipped), and ignition-powered power out-
lets will remain active for up to 60 minutes after the
ignition switch is turned to the LOCK position. Opening
either door will cancel this feature. The time for this
feature is programmable. Refer to “Delay Power Off to
Accessories Until Exit,” under “Personal Settings
(Customer-Programmable Features),” under “Electronic
Vehicle Information Center (EVIC)” in Section 4.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
If you open the driver’s door and the key is in the
ignition, a chime will sound to remind you to remove the
key.
NOTE:The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
SENTRY KEY
The Sentry KeyImmobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

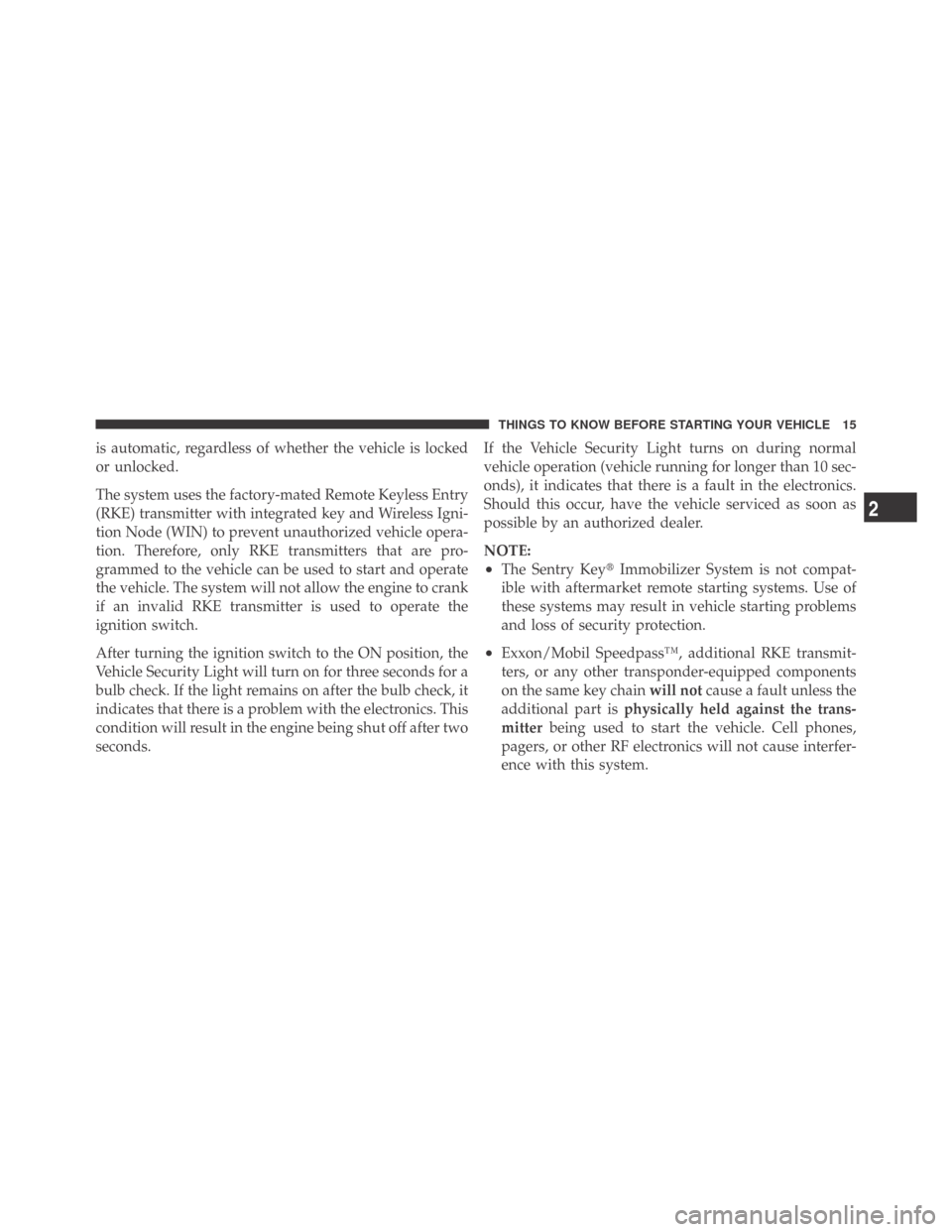

is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will not allow the engine to crank
if an invalid RKE transmitter is used to operate the
ignition switch.
After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. This
condition will result in the engine being shut off after two
seconds.If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
NOTE:
•The Sentry KeyImmobilizer System is not compat-
ible with aftermarket remote starting systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.
•Exxon/Mobil Speedpass™, additional RKE transmit-
ters, or any other transponder-equipped components
on the same key chainwill notcause a fault unless the
additional part isphysically held against the trans-
mitterbeing used to start the vehicle. Cell phones,
pagers, or other RF electronics will not cause interfer-
ence with this system.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

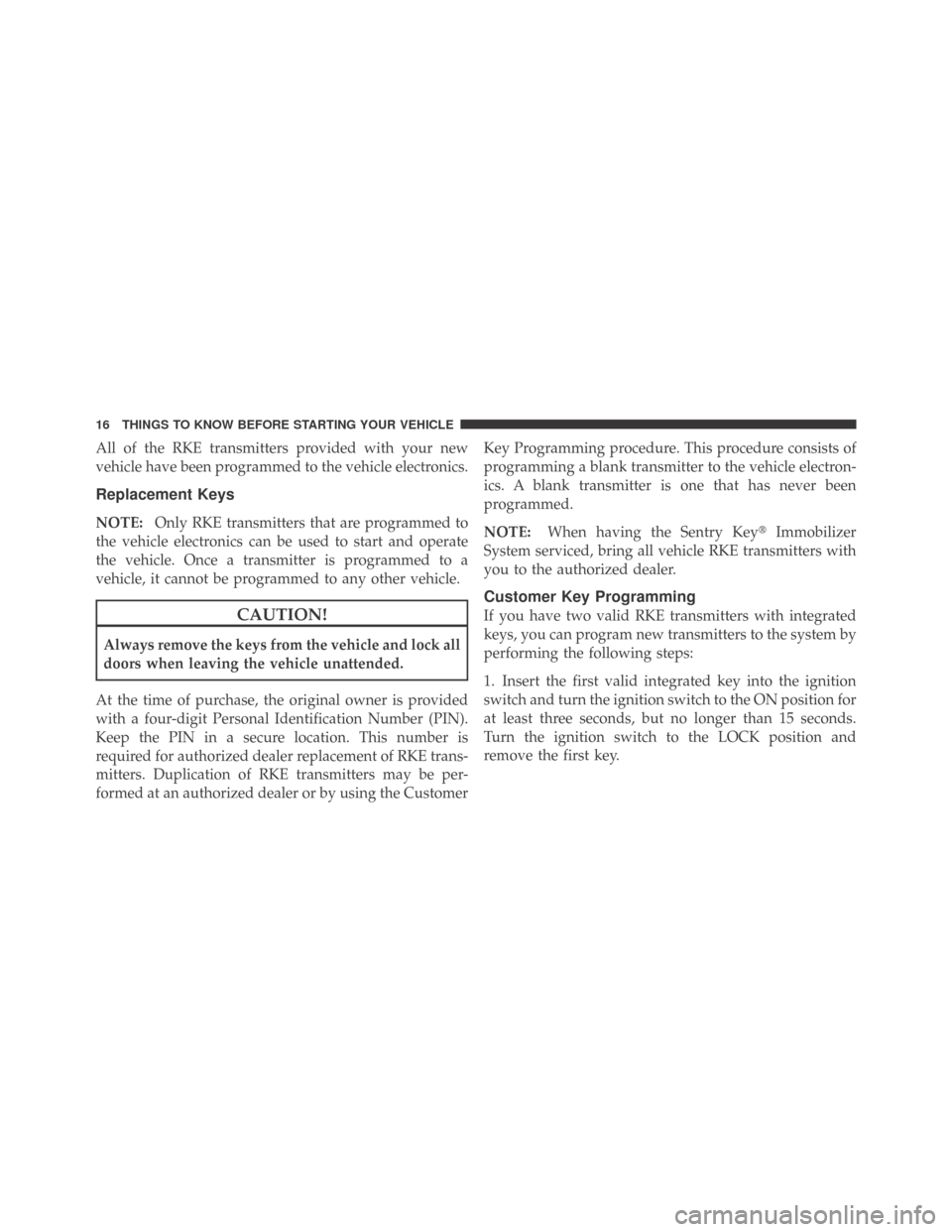

All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only RKE transmitters that are programmed to
the vehicle electronics can be used to start and operate
the vehicle. Once a transmitter is programmed to a
vehicle, it cannot be programmed to any other vehicle.
CAUTION!
Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer or by using the CustomerKey Programming procedure. This procedure consists of
programming a blank transmitter to the vehicle electron-
ics. A blank transmitter is one that has never been
programmed.
NOTE:When having the Sentry KeyImmobilizer
System serviced, bring all vehicle RKE transmitters with
you to the authorized dealer.
Customer Key Programming
If you have two valid RKE transmitters with integrated
keys, you can program new transmitters to the system by
performing the following steps:
1. Insert the first valid integrated key into the ignition
switch and turn the ignition switch to the ON position for
at least three seconds, but no longer than 15 seconds.
Turn the ignition switch to the LOCK position and
remove the first key.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

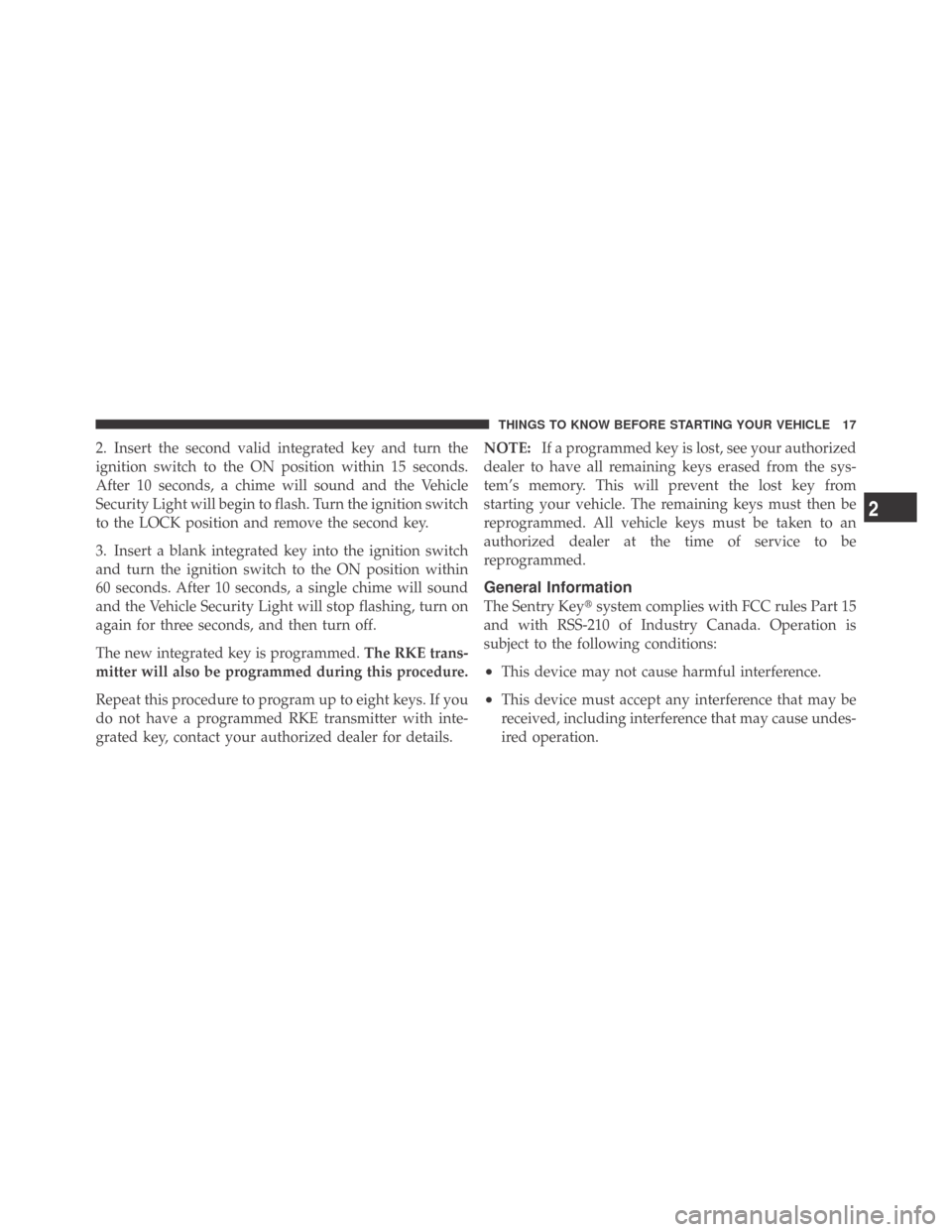

2. Insert the second valid integrated key and turn the
ignition switch to the ON position within 15 seconds.
After 10 seconds, a chime will sound and the Vehicle
Security Light will begin to flash. Turn the ignition switch
to the LOCK position and remove the second key.
3. Insert a blank integrated key into the ignition switch
and turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound
and the Vehicle Security Light will stop flashing, turn on
again for three seconds, and then turn off.
The new integrated key is programmed.The RKE trans-
mitter will also be programmed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed RKE transmitter with inte-
grated key, contact your authorized dealer for details.NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

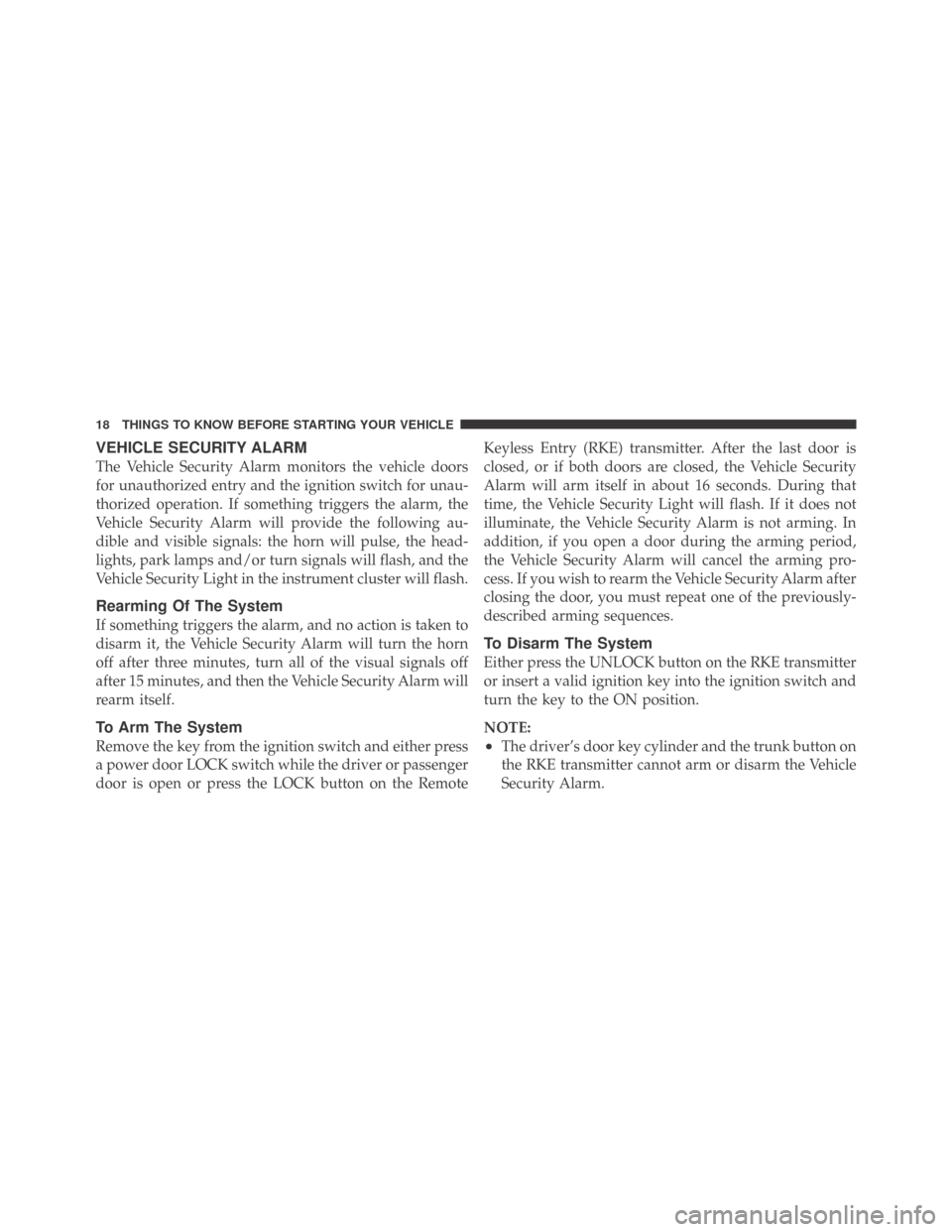

VEHICLE SECURITY ALARM
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch for unau-
thorized operation. If something triggers the alarm, the
Vehicle Security Alarm will provide the following au-
dible and visible signals: the horn will pulse, the head-
lights, park lamps and/or turn signals will flash, and the
Vehicle Security Light in the instrument cluster will flash.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after three minutes, turn all of the visual signals off
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm The System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open or press the LOCK button on the RemoteKeyless Entry (RKE) transmitter. After the last door is
closed, or if both doors are closed, the Vehicle Security
Alarm will arm itself in about 16 seconds. During that
time, the Vehicle Security Light will flash. If it does not
illuminate, the Vehicle Security Alarm is not arming. In
addition, if you open a door during the arming period,
the Vehicle Security Alarm will cancel the arming pro-
cess. If you wish to rearm the Vehicle Security Alarm after
closing the door, you must repeat one of the previously-
described arming sequences.
To Disarm The System
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition switch and
turn the key to the ON position.
NOTE:
•The driver’s door key cylinder and the trunk button on
the RKE transmitter cannot arm or disarm the Vehicle
Security Alarm.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
