DODGE CHALLENGER 2009 3.G Manual PDF

Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
Periodic Safety Checks You Should Make Outside
the Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect the tread and sidewall for
cuts and cracks. Check the wheel nuts for tightness.
Check the tires (including spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69

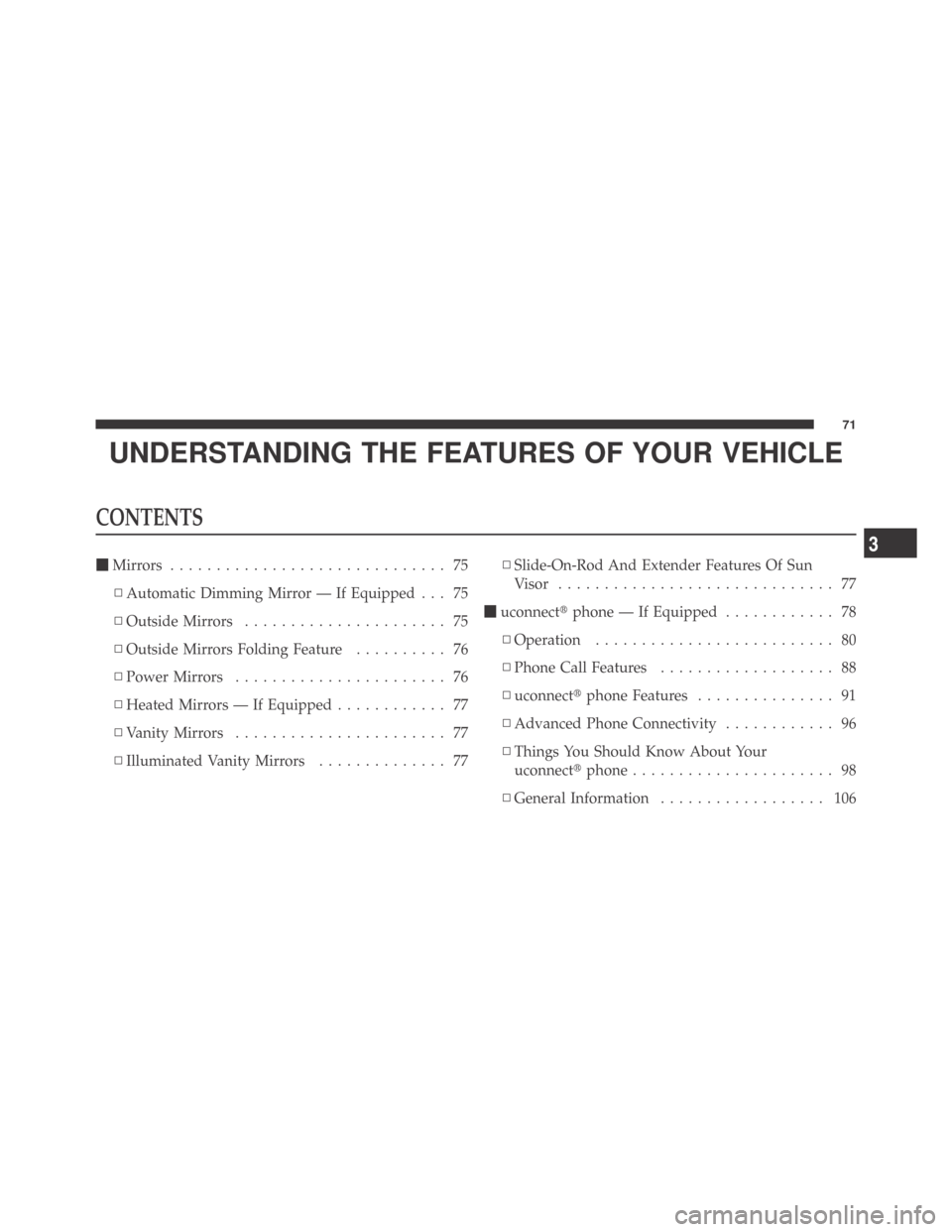

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 75
▫Automatic Dimming Mirror — If Equipped . . . 75
▫Outside Mirrors...................... 75
▫Outside Mirrors Folding Feature.......... 76
▫Power Mirrors....................... 76
▫Heated Mirrors — If Equipped............ 77
▫VanityMirrors ....................... 77
▫Illuminated Vanity Mirrors.............. 77▫Slide-On-Rod And Extender Features Of Sun
Visor .............................. 77
uconnectphone — If Equipped............ 78
▫Operation.......................... 80
▫Phone Call Features................... 88
▫uconnectphone Features............... 91
▫Advanced Phone Connectivity............ 96
▫Things You Should Know About Your
uconnectphone...................... 98
▫General Information.................. 106
3
71

Voice Recognition (VR) System —
If Equipped.......................... 106
▫Voice Recognition (VR) System Operation . . . 106
▫Commands........................ 108
▫VoiceTraining .......................111
Seats...............................111
▫Easy Entry Seats......................111
▫Power Seats........................ 112
▫Manual Front Seatback Recline........... 113
▫Lumbar Support..................... 114
▫Head Restraints..................... 114
▫Heated Seats....................... 115
▫Folding Rear Seat.................... 116To Open And Close The Hood............ 117
Lights ............................. 119
▫Headlight Switch.................... 119
▫Automatic Headlights — If Equipped...... 120
▫Headlights On With Wipers (Available With
Auto Headlights Only)................ 120
▫Headlight Time Delay................. 120
▫Daytime Running Lights — If Equipped.... 121
▫Lights-On Reminder.................. 121
▫Fog Lights — If Equipped.............. 121
▫Multifunction Lever.................. 122
▫Overhead Console Map/Reading Lights.... 123
▫InteriorLights ...................... 123
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

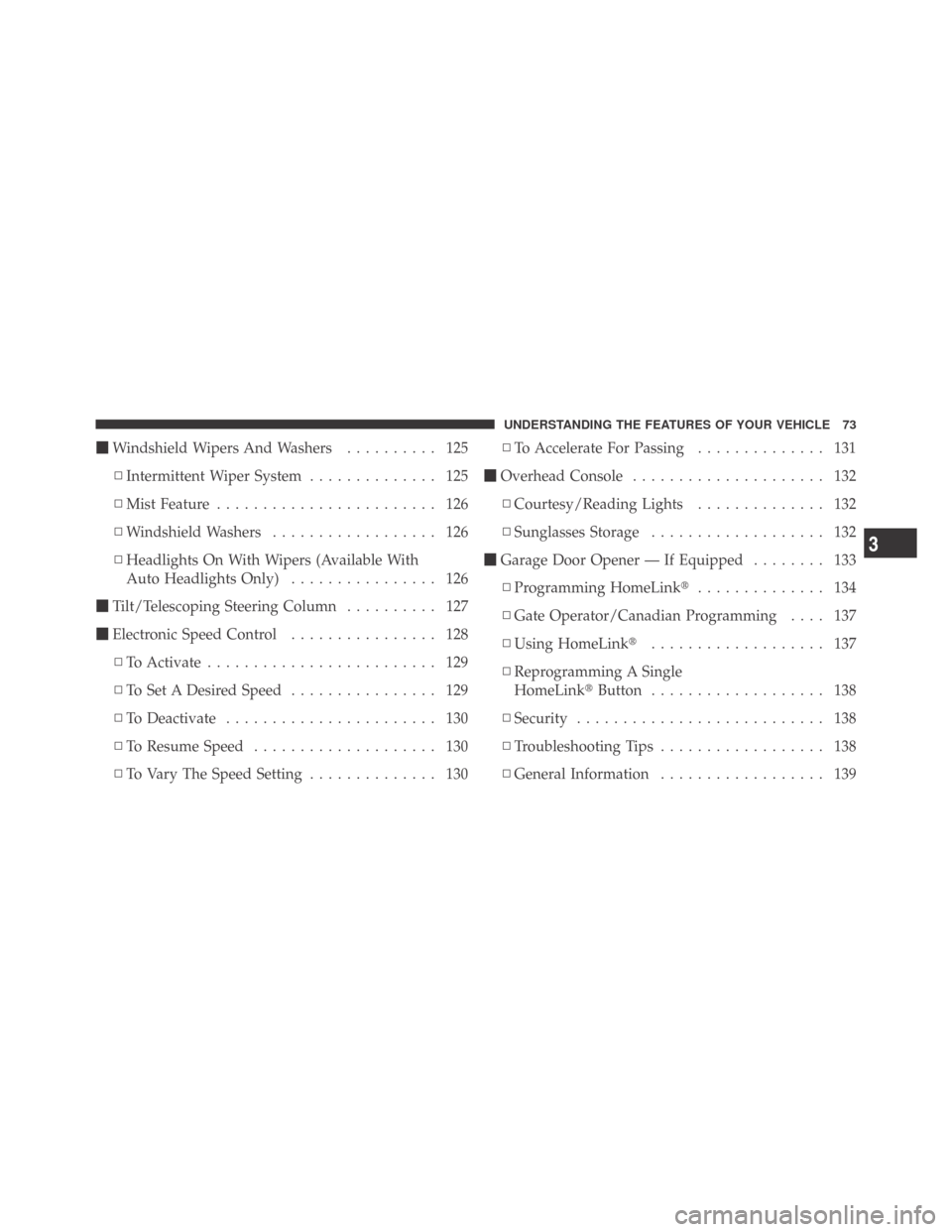

Windshield Wipers And Washers.......... 125
▫Intermittent Wiper System.............. 125
▫Mist Feature........................ 126
▫Windshield Washers.................. 126
▫Headlights On With Wipers (Available With
Auto Headlights Only)................ 126
Tilt/Telescoping Steering Column.......... 127
Electronic Speed Control................ 128
▫To Activate......................... 129
▫To Set A Desired Speed................ 129
▫To Deactivate....................... 130
▫To Resume Speed.................... 130
▫To Vary The Speed Setting.............. 130▫To Accelerate For Passing.............. 131
Overhead Console..................... 132
▫Courtesy/Reading Lights.............. 132
▫Sunglasses Storage................... 132
Garage Door Opener — If Equipped........ 133
▫Programming HomeLink.............. 134
▫Gate Operator/Canadian Programming.... 137
▫Using HomeLink................... 137
▫Reprogramming A Single
HomeLinkButton................... 138
▫Security........................... 138
▫Troubleshooting Tips.................. 138
▫General Information.................. 139
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73

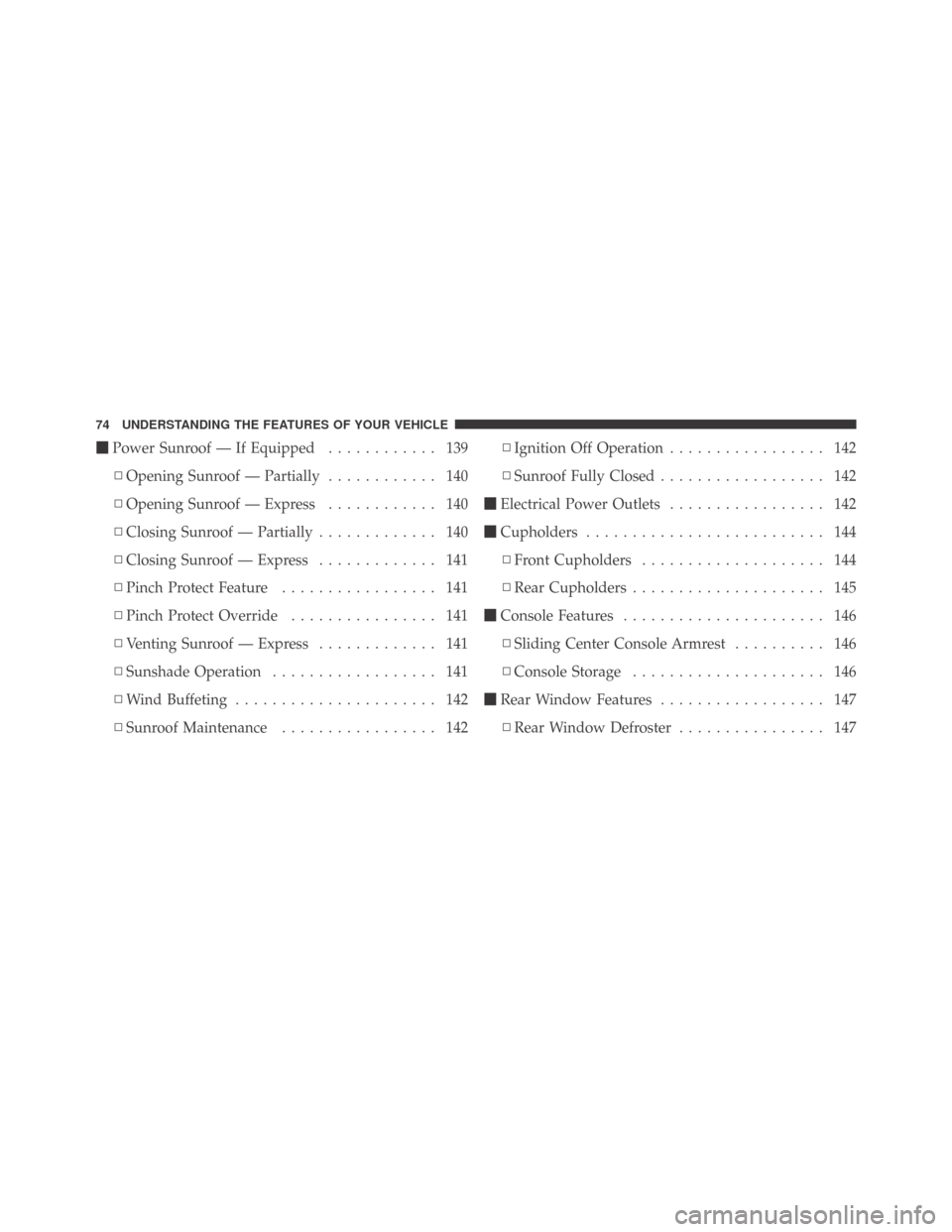

Power Sunroof — If Equipped............ 139
▫Opening Sunroof — Partially............ 140
▫Opening Sunroof — Express............ 140
▫Closing Sunroof — Partially............. 140
▫Closing Sunroof — Express............. 141
▫Pinch Protect Feature................. 141
▫Pinch Protect Override................ 141
▫Venting Sunroof — Express............. 141
▫Sunshade Operation.................. 141
▫Wind Buffeting...................... 142
▫Sunroof Maintenance................. 142▫Ignition Off Operation................. 142
▫Sunroof Fully Closed.................. 142
Electrical Power Outlets................. 142
Cupholders.......................... 144
▫Front Cupholders.................... 144
▫Rear Cupholders..................... 145
Console Features...................... 146
▫Sliding Center Console Armrest.......... 146
▫Console Storage..................... 146
Rear Window Features.................. 147
▫Rear Window Defroster................ 147
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger-side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75

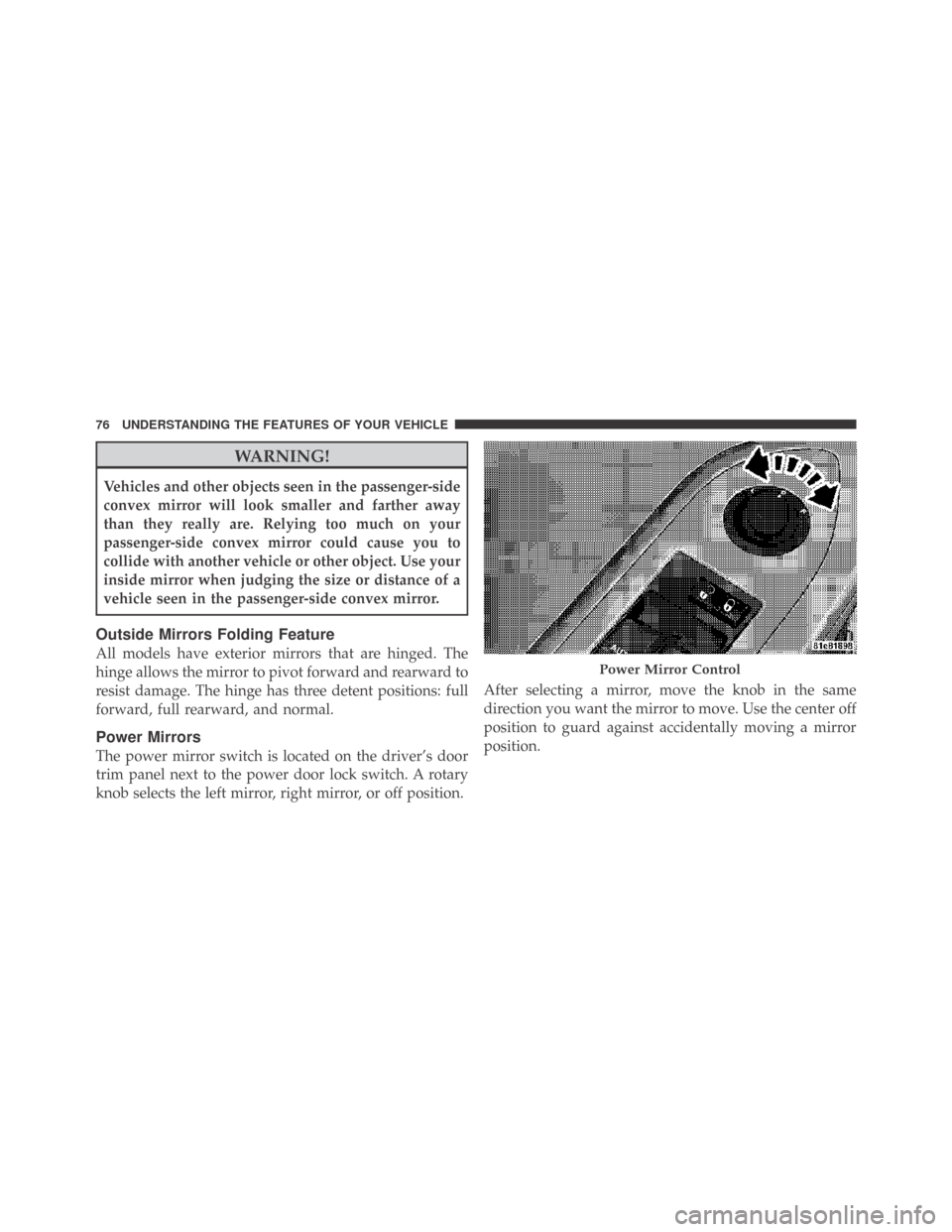

WARNING!
Vehicles and other objects seen in the passenger-side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger-side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger-side convex mirror.
Outside Mirrors Folding Feature
All models have exterior mirrors that are hinged. The
hinge allows the mirror to pivot forward and rearward to
resist damage. The hinge has three detent positions: full
forward, full rearward, and normal.
Power Mirrors
The power mirror switch is located on the driver’s door
trim panel next to the power door lock switch. A rotary
knob selects the left mirror, right mirror, or off position.After selecting a mirror, move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.
Power Mirror Control
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

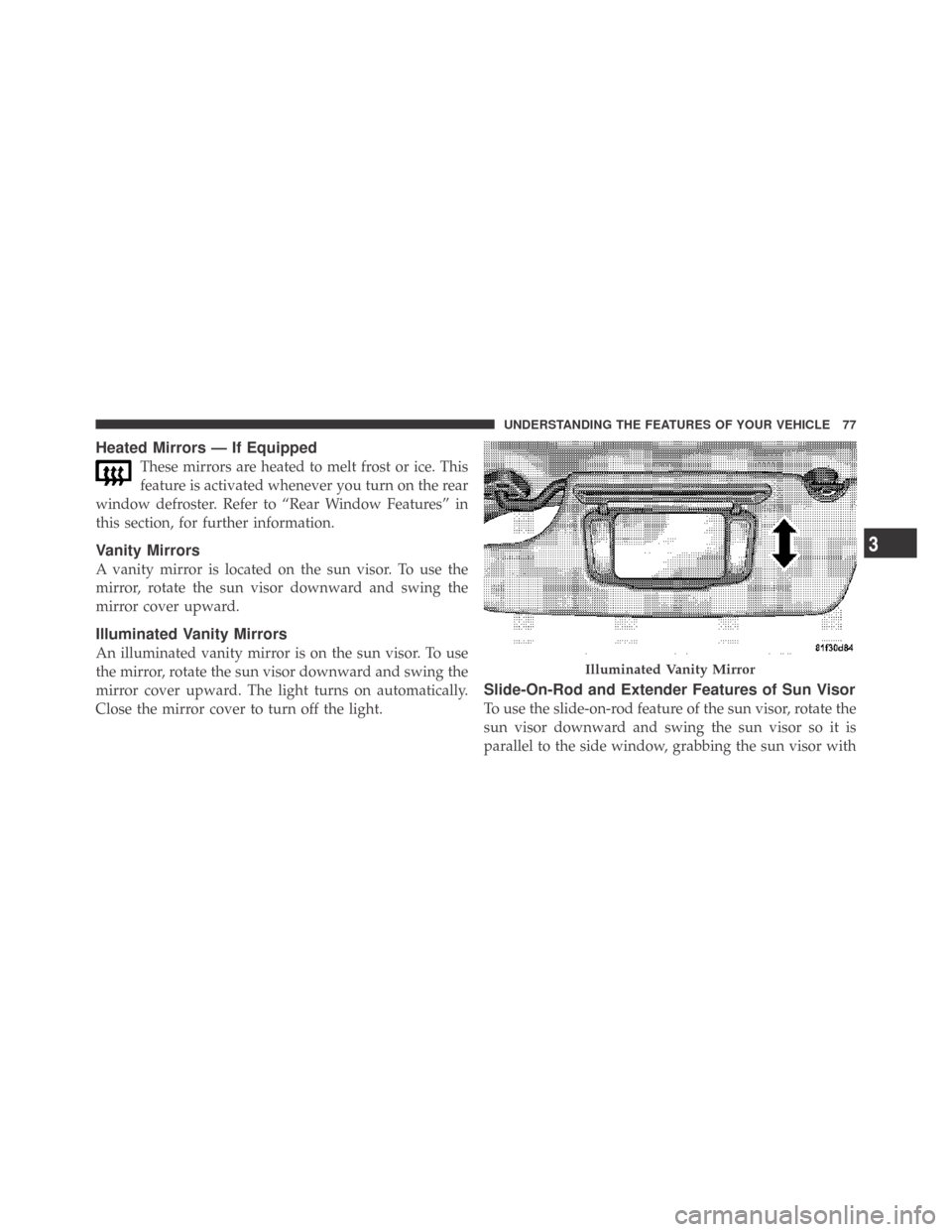

Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
this section, for further information.
Vanity Mirrors
A vanity mirror is located on the sun visor. To use the
mirror, rotate the sun visor downward and swing the
mirror cover upward.
Illuminated Vanity Mirrors
An illuminated vanity mirror is on the sun visor. To use
the mirror, rotate the sun visor downward and swing the
mirror cover upward. The light turns on automatically.
Close the mirror cover to turn off the light.
Slide-On-Rod and Extender Features of Sun Visor
To use the slide-on-rod feature of the sun visor, rotate the
sun visor downward and swing the sun visor so it is
parallel to the side window, grabbing the sun visor with
Illuminated Vanity Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77

your left hand pull rearwards until the sun visor is in the
desired position. To use the extender feature of the sun
visor, grab the extender which is located at the rear of the
visor and pull rearward.uconnectphone — IF EQUIPPED
NOTE: The sales code RER and REU radios contain an
integrated uconnectphone. Refer to your “Navigation
User’s Manual” for uconnectphone operating instruc-
tions for these radios. Radio sales code can be located
on the lower right corner of the Radio faceplate.
uconnectphone is a voice-activated, hands-free, in-
vehicle communications system. uconnectallows you to
dial a phone number with your cellular phone using
simple voice commands (e.g.,Call”“Mike””Workor
Dial”“248-555-1212). Your cellular phone’s audio is
transmitted through your vehicle’s audio system; the
system will automatically mute your radio when using
the uconnectphone.
NOTE:The uconnectphone requires a cellular phone
equipped with the BluetoothHands-Free Profile,Ve r -
sion 0.96 or higher. See the uconnectwebsite for sup-
ported phones.
Slide-On-Rod Extender
