▫To Open The Trunk .................... 24
▫ Using The Panic Alarm ................. 24
▫ Programming Additional Transmitters ...... 25
▫ Transmitter Battery Replacement .......... 25
▫ General Information ................... 25
 Remote Starting System .................. 26
▫ How To Use Remote Start ............... 26
 Door Locks ........................... 29
▫ Manual Door Locks ................... 29
▫ Power Door Locks .................... 30
 Windows ............................ 32
▫ Power Windows ...................... 32
▫ Wind Buffeting ....................... 33
Trunk Lock And Release ................. 34
 Trunk Safety Warning ................... 35
▫ Trunk Emergency Release ............... 35
 Occupant Restraints ..................... 36
▫ Lap/Shoulder Belts .................... 37
▫ Lap/Shoulder Belt Untwisting Procedure .... 42
▫ Automatic Locking Retractors (ALR) Mode
— If Equipped ....................... 42
▫ Energy Management Feature ............. 43
▫ Seat Belt Pretensioners — If Equipped ...... 44
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 44
▫ Seat Belts And Pregnant Women .......... 46
▫ Seat Belt Extender ..................... 46
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
VEHICLE SECURITY ALARM
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch for unau-
thorized operation. While the Vehicle Security Alarm is
armed, interior switches for door locks and decklid
release are disabled. If something triggers the alarm, the
Vehicle Security Alarm will provide the following au-
dible and visible signals: the horn will pulse, the head-
lights, park lamps and/or turn signals will flash, and the
Vehicle Security Light in the instrument cluster will flash.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the hornoff after three minutes, turn all of the visual signals off
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm The System
Vehicles Not Equipped with Keyless Enter-N-Go
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if both doors and the trunk are closed, the
Vehicle Security Alarm will arm itself in about 16 sec-
onds. During that time, the Vehicle Security Light will
flash. If it does not illuminate, the Vehicle Security Alarm
is not arming. In addition, if you open a door during the
arming period, the Vehicle Security Alarm will cancel the
arming process. If you wish to rearm the Vehicle Security
Alarm after closing the door, you must repeat one of the
previously-described arming sequences.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
Remote Open Window Feature
This feature allows you to remotely lower both door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.
To Open The Trunk
Press the TRUNK button on the RKE transmitter two
times within five seconds to open the trunk.
Using The Panic Alarm
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the RKE transmitter for at least one second and release. When the Panic Alarm is on,
the headlights and park lights will flash, the horn will
pulse on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time or drive the vehicle at a speed of 5 mph
(24 km/h) or greater.
NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON/RUN position while the
Panic Alarm is activated. However, the exterior lights
and horn will remain on.
•You may need to be less than 35 ft (11 m) from the
vehicle when using the RKE transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
one window open, then open the other window to
minimize the buffeting. If the buffeting occurs with the
sunroof open, then adjust the sunroof opening to mini-
mize the buffeting.
TRUNK LOCK AND RELEASE
The trunk lid can be released from inside the vehicle by
pressing the Trunk Release button. The button is located
on the instrument panel to the left of the steering wheel.
NOTE:The transmission must be in PARK before the
button will operate. If equipped with a manual transmis-
sion, the vehicle speed must be under 5 mph (8 km/h)
before the button will operate. The trunk lid can be released from
outside the vehicle by pressing the
Trunk Release button on the Re-
mote Keyless Entry (RKE) trans-
mitter twice within five seconds.
With the ignition switch in the ON/RUN position, the
Trunk Open symbol will display in the instrument cluster
indicating that the trunk is open. The odometer display
will reappear once the trunk is closed.
With the ignition switch in the OFF position or the key
removed from the ignition switch, the Trunk Open sym-
bol will display until the trunk is closed.Trunk Release Button
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

TRUNK SAFETY WARNING
WARNING!
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside, or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. Once in
the trunk, young children may not be able to escape,
even if they entered through the rear seat. If trapped
in the trunk, children can die from suffocation or
heat stroke.
Trunk Emergency Release
The trunk of your vehicle is equipped with an emergency
release handle. It is located on the inside of the trunk lid,
near the latch, and is coated so that it glows in a darkened
trunk. Pull on the handle to open the trunk.
Emergency Release
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35

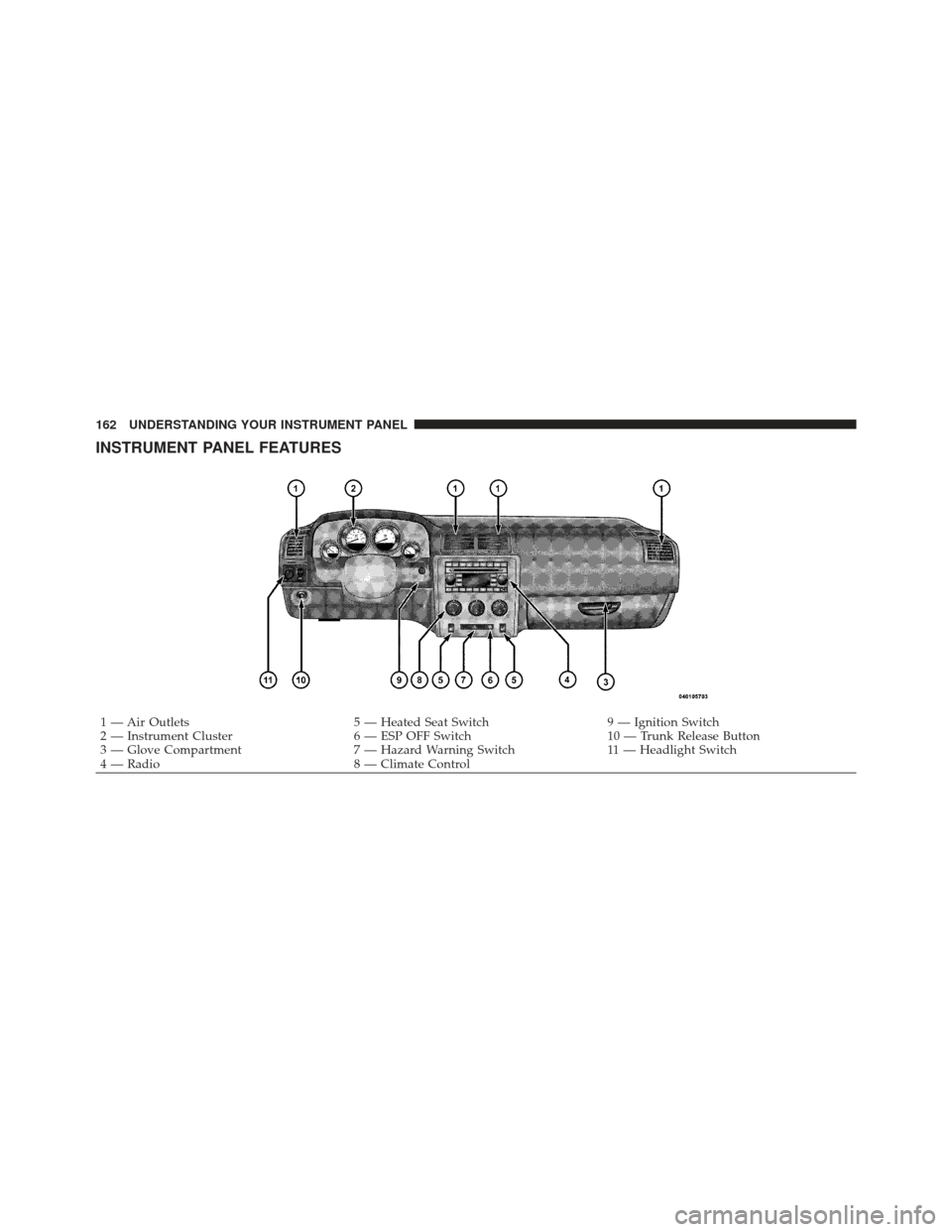

INSTRUMENT PANEL FEATURES
1 — Air Outlets5 — Heated Seat Switch9 — Ignition Switch
2 — Instrument Cluster 6 — ESP OFF Switch10 — Trunk Release Button
3 — Glove Compartment 7 — Hazard Warning Switch11 — Headlight Switch
4 — Radio 8 — Climate Control
162 UNDERSTANDING YOUR INSTRUMENT PANEL

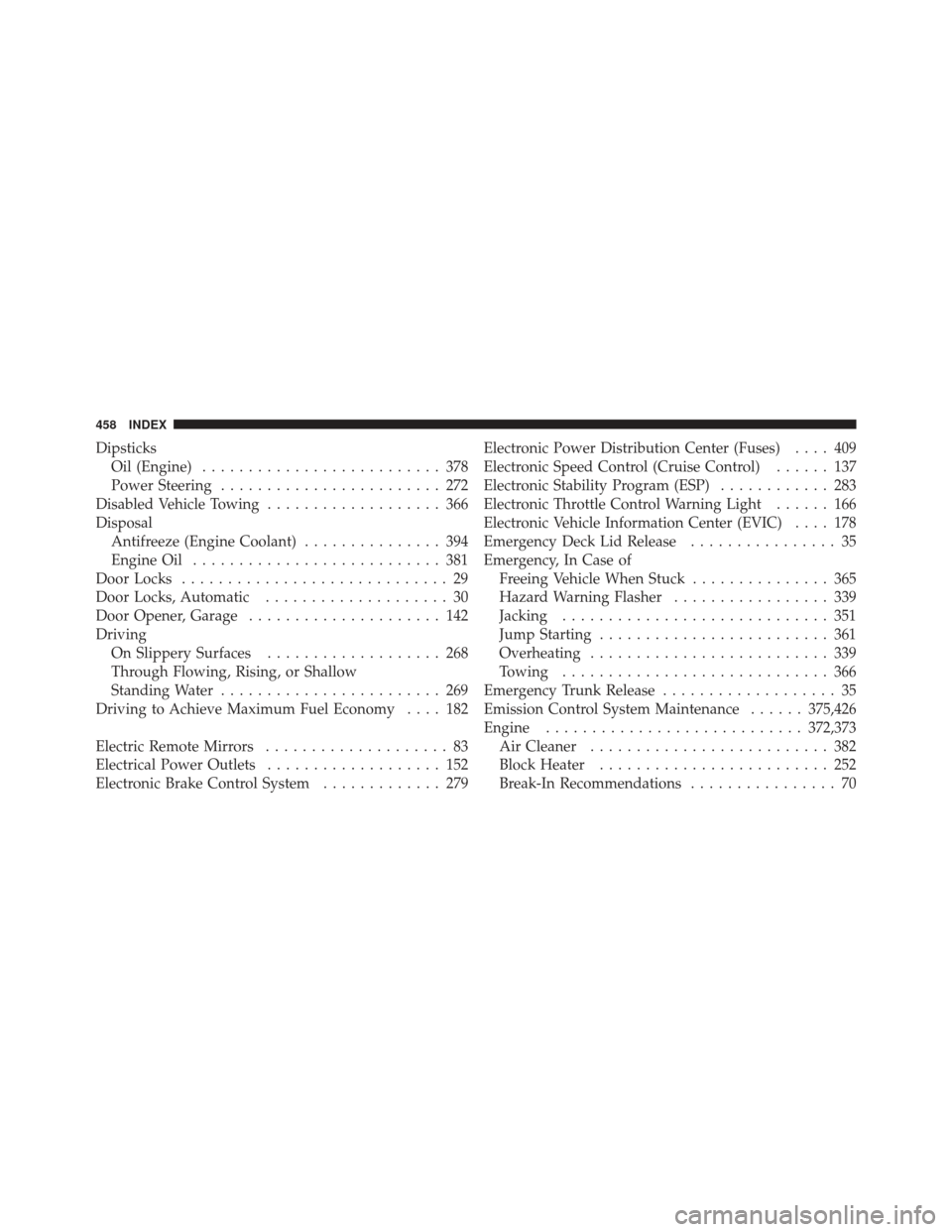

DipsticksOil (Engine) .......................... 378
Power Steering ........................ 272
Disabled Vehicle Towing ................... 366
Disposal Antifreeze (Engine Coolant) ............... 394
Engine Oil ........................... 381
Door Locks ............................. 29
Door Locks, Automatic .................... 30
Door Opener, Garage ..................... 142
Driving On Slippery Surfaces ................... 268
Through Flowing, Rising, or Shallow
Standing Water ........................ 269
Driving to Achieve Maximum Fuel Economy .... 182
Electric Remote Mirrors .................... 83
Electrical Power Outlets ................... 152
Electronic Brake Control System ............. 279Electronic Power Distribution Center (Fuses)
.... 409
Electronic Speed Control (Cruise Control) ...... 137
Electronic Stability Program (ESP) ............ 283
Electronic Throttle Control Warning Light ...... 166
Electronic Vehicle Information Center (EVIC) .... 178
Emergency Deck Lid Release ................ 35
Emergency, In Case of Freeing Vehicle When Stuck ............... 365
Hazard Warning Flasher ................. 339
Jacking ............................. 351
Jump Starting ......................... 361
Overheating .......................... 339
Towing ............................. 366
Emergency Trunk Release ................... 35
Emission Control System Maintenance ......375,426
Engine ............................ 372,373
Air Cleaner .......................... 382
Block Heater ......................... 252
Break-In Recommendations ................ 70
458 INDEX

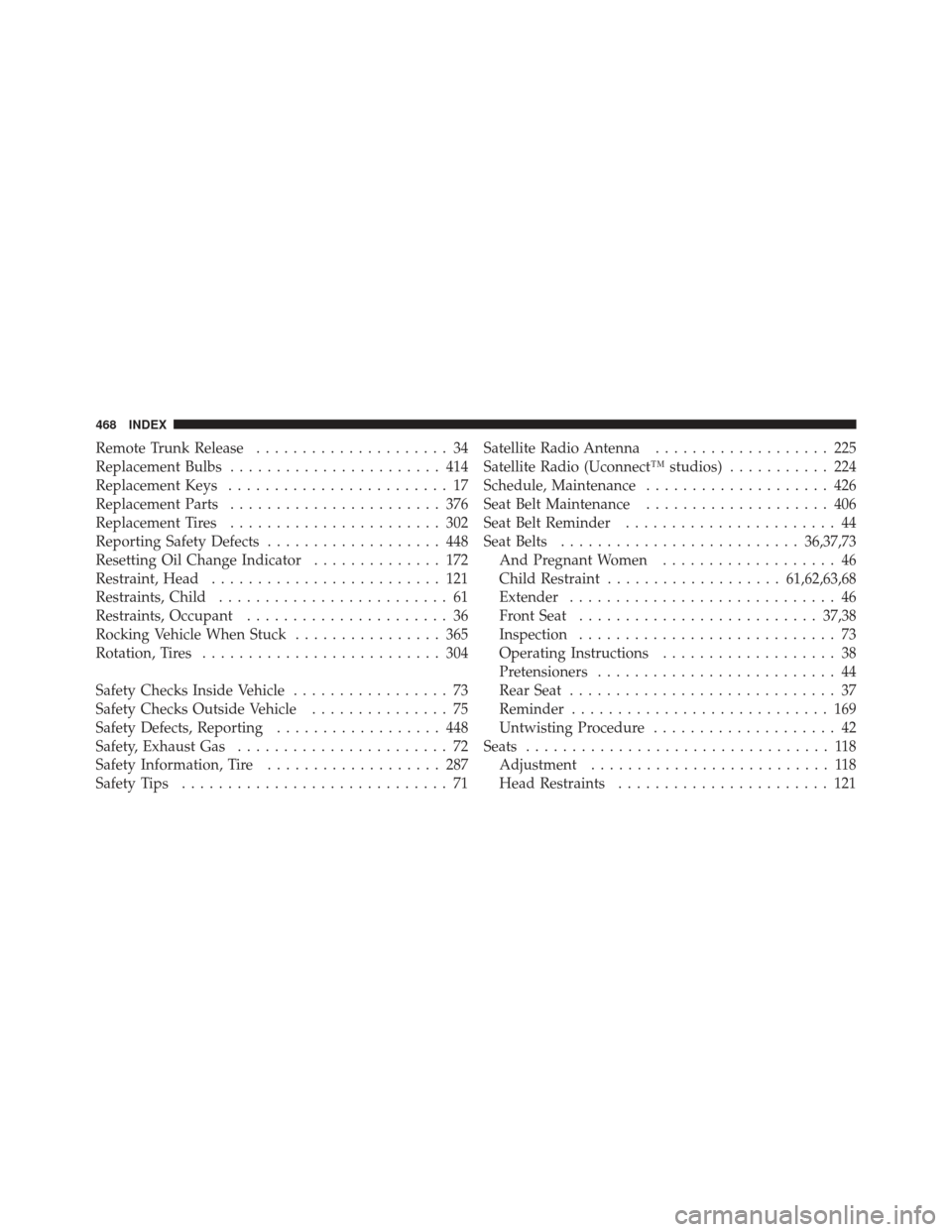

Remote Trunk Release..................... 34
Replacement Bulbs ....................... 414
Replacement Keys ........................ 17
Replacement Parts ....................... 376
Replacement Tires ....................... 302
Reporting Safety Defects ................... 448
Resetting Oil Change Indicator .............. 172
Restraint, Head ......................... 121
Restraints, Child ......................... 61
Restraints, Occupant ...................... 36
Rocking Vehicle When Stuck ................ 365
Rotation, Tires .......................... 304
Safety Checks Inside Vehicle ................. 73
Safety Checks Outside Vehicle ............... 75
Safety Defects, Reporting .................. 448
Safety, Exhaust Gas ....................... 72
Safety Information, Tire ................... 287
Safety Tips ............................. 71 Satellite Radio Antenna
................... 225
Satellite Radio (Uconnect™ studios) ........... 224
Schedule, Maintenance .................... 426
Seat Belt Maintenance .................... 406
Seat Belt Reminder ....................... 44
Seat Belts .......................... 36,37,73
And Pregnant Women ................... 46
Child Restraint ................... 61,62,63,68
Extender ............................. 46
Front Seat .......................... 37,38
Inspection ............................ 73
Operating Instructions ................... 38
Pretensioners .......................... 44
Rear Seat ............................. 37
Reminder ............................ 169
Untwisting Procedure .................... 42
Seats ................................. 118
Adjustment .......................... 118
Head Restraints ....................... 121
468 INDEX

Trailer Towing.......................... 324
Cooling System Tips .................... 335
Hitches ............................. 326
Minimum Requirements ................. 329
Tips ................................ 334
Trailer and Tongue Weight ............... 328
Wiring .............................. 333
Trailer Towing Guide ..................... 328
Trailer Weight .......................... 328
Transfer Case Fluid ............................... 423
Transmission ........................... 399
Automatic ...................... 257,262,399
Fluid ............................... 423
Manual ............................. 253
Shifting ............................. 257
Transmitter Battery Service
(Remote Keyless Entry) .................... 25
Transmitter, Garage Door Opener (HomeLink) . . 142 Transmitter Programming
(Remote Keyless Entry)
.................... 20
Transmitter, Remote Keyless Entry (RKE) ........ 20
Transporting Pets ........................ 70
Tread Wear Indicators .................... 301
Trip Odometer ....................... 165,170
Trunk Lid (Deck Lid) .................... 34,35
Trunk Release, Emergency .................. 35
Trunk Release Remote Control ............... 34
Turn Signals ......................... 130,167
UCI Connector ......................... 218
Uconnect™ (Hands-Free Phone) .............. 85
Uniform Tire Quality Grades ................ 451
Universal Consumer Interface (UCI) Connector . . . 218
Universal Transmitter ..................... 142
Unleaded Gasoline ....................... 314
Untwisting Procedure, Seat Belt .............. 42
472 INDEX
