FUSES
Integrated Power Module (IPM)
• The Integrated Power Module (IPM) is located in the engine compartment on the righthand side near the Washer Fluid Reservoir. This module contains fuses and relays.
Cavity Cartridge Fuse Mini-Fuse Description
1 15 Amp Blue Washer Motor
2 25 Amp Natural Powertrain Control Module (PCM) 3 25 Amp Natural Ignition Run/Start
4 25 Amp Natural EGR Solenoid/Alternator 5— — —
6 25 Amp Natural Ignition Coils/Injectors 7— — —
8 30 Amp Green Starter
10 30 Amp Pink Windshield Wiper 11 30 Amp Pink Anti-Lock Brake System (ABS) Valves
12 40 Amp Green Radiator Fan Lo/High 13 50 Amp Red Anti-Lock Brake System (ABS) Pump Motor
14 — — — 15 50 Amp Red Radiator Fan
MAINTAINING YOUR VEHICLE
66

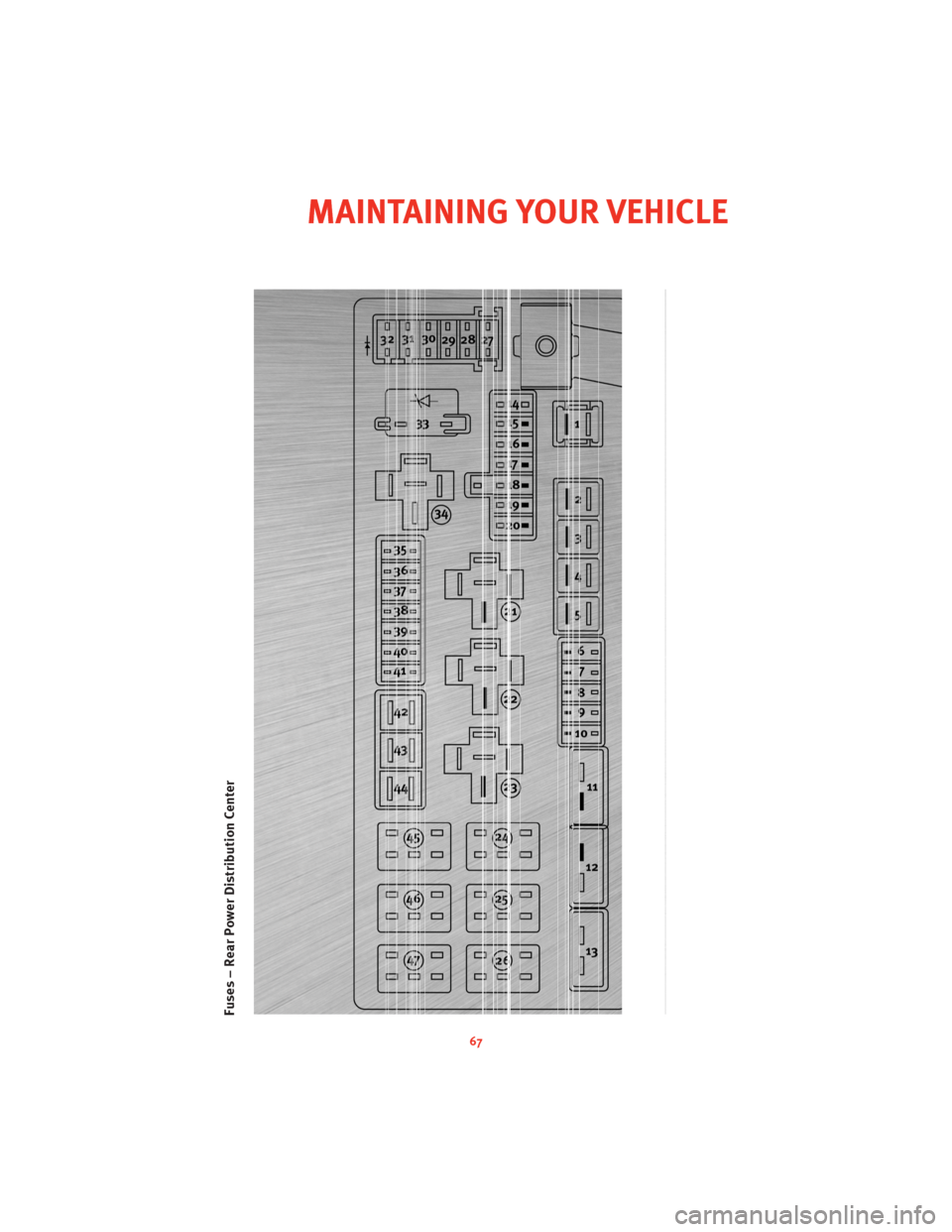

Fuses – Rear Power Distribution Center
67
MAINTAINING YOUR VEHICLE

• There is also a power distribution center located in the trunk under the spare tireaccess panel. This center contains fuses and relays.
Cavity Cartridge Fuse Mini-Fuse Description
1 60 Amp Yellow Ignition Off Draw (IOD)
2 40 Amp Green Integrated Power Module (IPM) 3— — —
4 40 Amp Green Integrated Power Module (IPM) 5 30 Amp Pink Heated Seats - if equipped
6 20 Amp Yellow Fuel Pump 7 15 Amp Blue Sub Amp - if equipped
8 15 Amp Blue Diagnostic Link Connector (DLC)/Wireless Control Module
(WCM)/Wireless Ignition Node (WIN)
9 20 Amp Yellow Power Outlet
10 — — —
11 — — —
12 — — —
13 — — —
14 10 Amp Red AC Heater Control/Cluster/Security
Module - if equipped
15 — — —
16 — — —
17 20 Amp Yellow Cluster
18 20 Amp Yellow Selectable Power Outlet
19 10 Amp Red Stop Lights
20 — — —
21 — — —
22 — — —
23 — — —
24 — — —
25 — — —
26 — — —
27 10 Amp Red Occupant Restraint Controller (ORC)
28 10 Amp Red Ignition Run
29 5 Amp Orange Cluster/El ectronic Stability Program
(ESP)/Powertrain Control Module
(PCM)/STOP LIGHT Switch
30 10 Amp Red Door Modules/Power Mirrors/Steering
Control Module (SCM)
31 — — —
32 — — —
33 — — —
34 — — —
MAINTAINING YOUR VEHICLE
68
