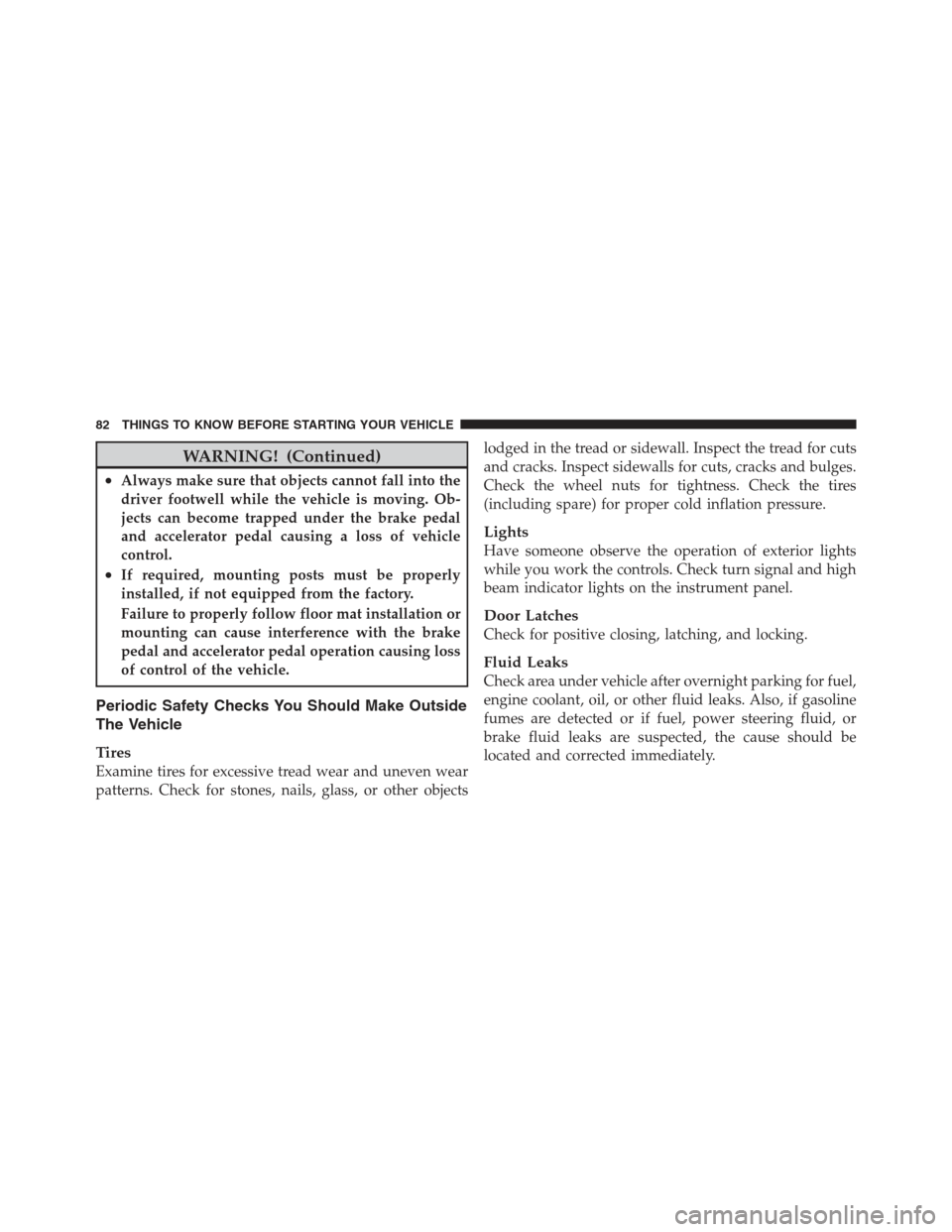

WARNING! (Continued)
•Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
•If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objectslodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

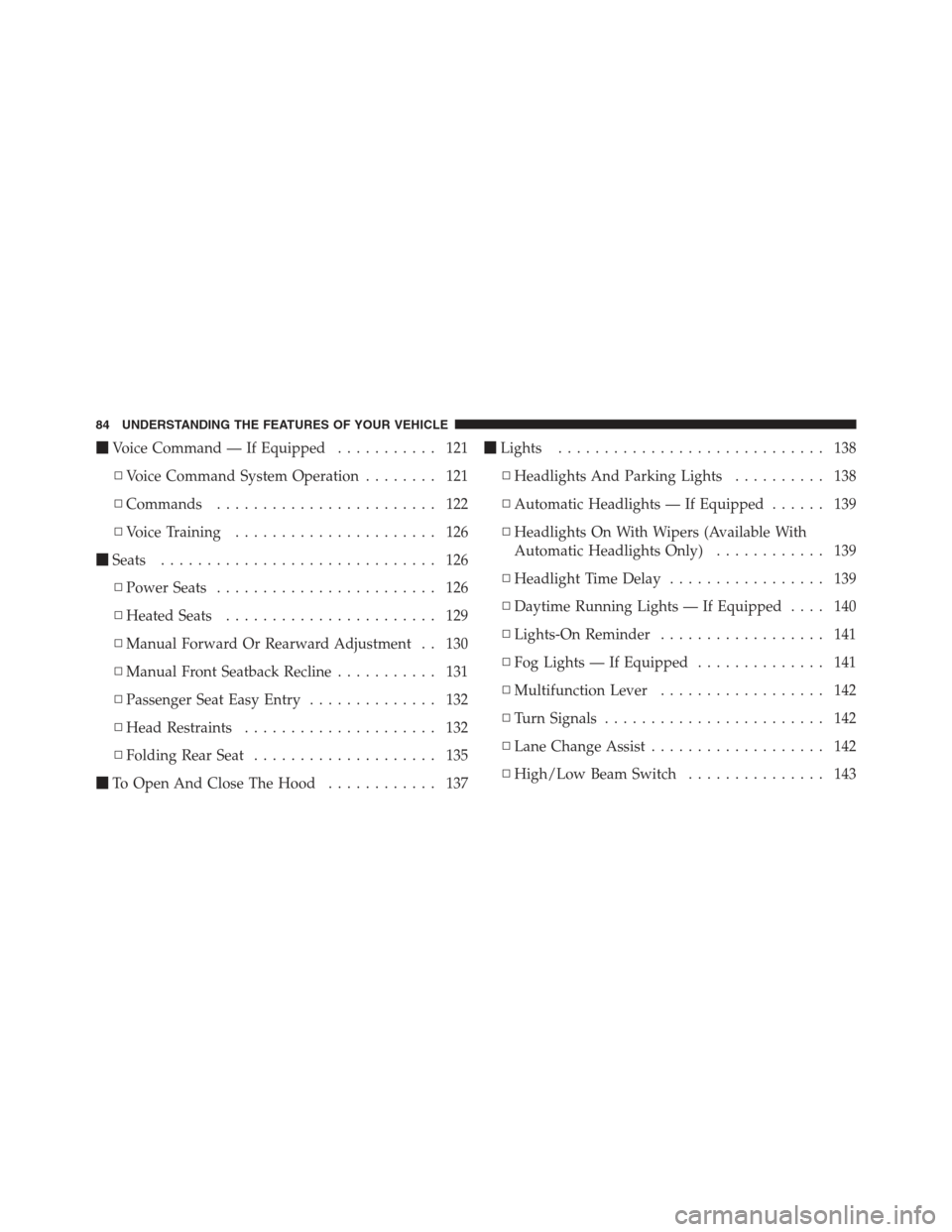

Voice Command — If Equipped ........... 121
▫ Voice Command System Operation ........ 121
▫ Commands ........................ 122
▫ Voice Training ...................... 126
 Seats .............................. 126
▫ Power Seats ........................ 126
▫ Heated Seats ....................... 129
▫ Manual Forward Or Rearward Adjustment . . 130
▫ Manual Front Seatback Recline ........... 131
▫ Passenger Seat Easy Entry .............. 132
▫ Head Restraints ..................... 132
▫ Folding Rear Seat .................... 135
 To Open And Close The Hood ............ 137
Lights ............................. 138
▫ Headlights And Parking Lights .......... 138
▫ Automatic Headlights — If Equipped ...... 139
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ............ 139
▫ Headlight Time Delay ................. 139
▫ Daytime Running Lights — If Equipped .... 140
▫ Lights-On Reminder .................. 141
▫ Fog Lights — If Equipped .............. 141
▫ Multifunction Lever .................. 142
▫ Turn Signals ........................ 142
▫ Lane Change Assist ................... 142
▫ High/Low Beam Switch ............... 143
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

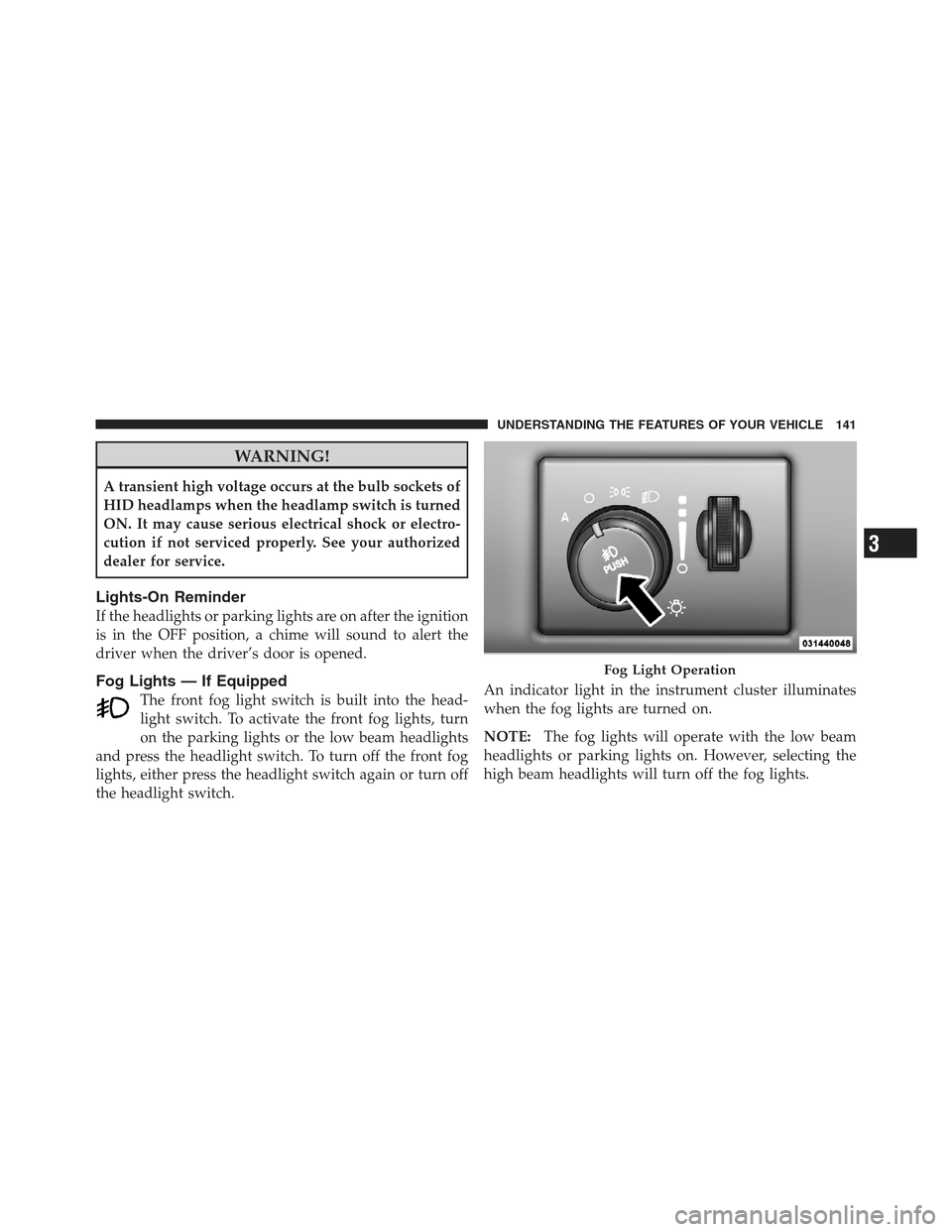

WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is in the OFF position, a chime will sound to alert the
driver when the driver’s door is opened.
Fog Lights — If Equipped
The front fog light switch is built into the head-
light switch. To activate the front fog lights, turn
on the parking lights or the low beam headlights
and press the headlight switch. To turn off the front fog
lights, either press the headlight switch again or turn off
the headlight switch. An indicator light in the instrument cluster illuminates
when the fog lights are turned on.
NOTE:
The fog lights will operate with the low beam
headlights or parking lights on. However, selecting the
high beam headlights will turn off the fog lights.
Fog Light Operation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141

High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the multifunction lever
toward you to switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beam headlights until the lever is
released.
NOTE:If the multifunction lever is held in the flash-to-
pass position for more than 15 seconds, the high beams
will shut off.
Map/Reading Lights
These lights are mounted between the sun visors on the
overhead console. Each light is turned on by pressing the
lens. Press the lens a second time to turn off the light.
These lights also turn on when a door is opened, or when
the UNLOCK button on the Remote Keyless Entry (RKE) transmitter is pressed, or when the dimmer control is
turned fully upward, past the second detent.Interior Lights
The interior lights come on when a door is opened.
To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition is placed in
Overhead Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143

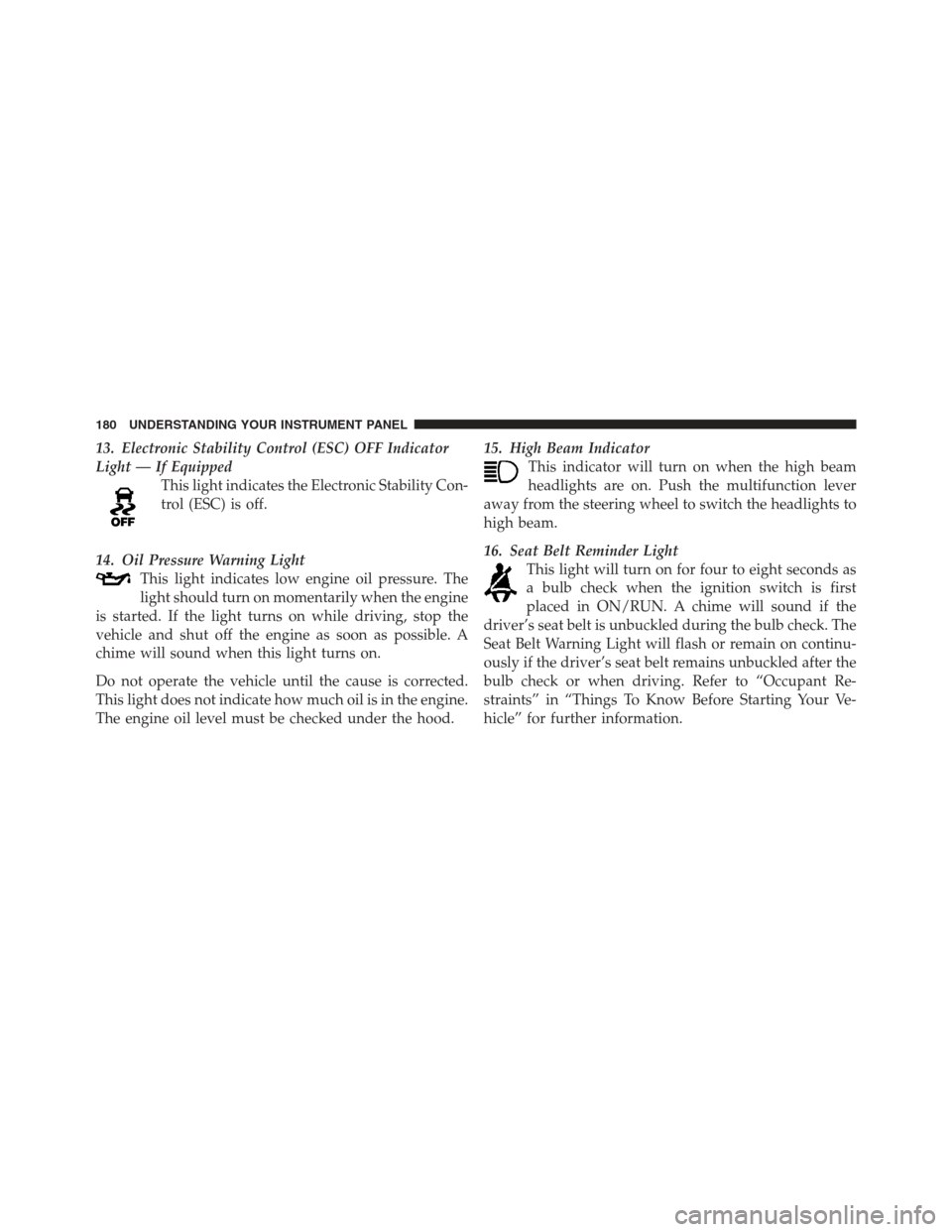

13. Electronic Stability Control (ESC) OFF Indicator
Light — If EquippedThis light indicates the Electronic Stability Con-
trol (ESC) is off.
14. Oil Pressure Warning Light This light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible. A
chime will sound when this light turns on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood. 15. High Beam Indicator
This indicator will turn on when the high beam
headlights are on. Push the multifunction lever
away from the steering wheel to switch the headlights to
high beam.
16. Seat Belt Reminder Light This light will turn on for four to eight seconds as
a bulb check when the ignition switch is first
placed in ON/RUN. A chime will sound if the
driver’s seat belt is unbuckled during the bulb check. The
Seat Belt Warning Light will flash or remain on continu-
ously if the driver’s seat belt remains unbuckled after the
bulb check or when driving. Refer to “Occupant Re-
straints” in “Things To Know Before Starting Your Ve-
hicle” for further information.
180 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Adding Washer Fluid ................. 404
▫ Exhaust System ..................... 405
▫ Cooling System ..................... 408
▫ Brake System ....................... 413
▫ Clutch Hydraulic System – Manual
Transmission (If Equipped) ............. 415
▫ Manual Transmission – If Equipped ....... 415
▫ Automatic Transmission – If Equipped ..... 416
▫ Rear Axle .......................... 418
▫ Appearance Care And Protection From
Corrosion .......................... 418
 Fuses .............................. 424
▫ Integrated Power Module .............. 424
▫ Rear Power Distribution Center .......... 427
Vehicle Storage ....................... 431
 Replacement Bulbs .................... 432
 Bulb Replacement ..................... 433
▫ Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp — Models With
Halogen Headlamps — If Equipped ....... 433
▫ Low Beam Headlamp, High Beam
Headlamp, And Park/Turn Lamp — Models
With High Intensity Discharge (HID)
Headlamps — If Equipped ............. 433
▫ Front/Rear Side Marker Lamp ........... 434
▫ Tail/Turn And Stop Lamp .............. 434
▫ Center Tail/Backup Lamp .............. 436
386 MAINTAINING YOUR VEHICLE

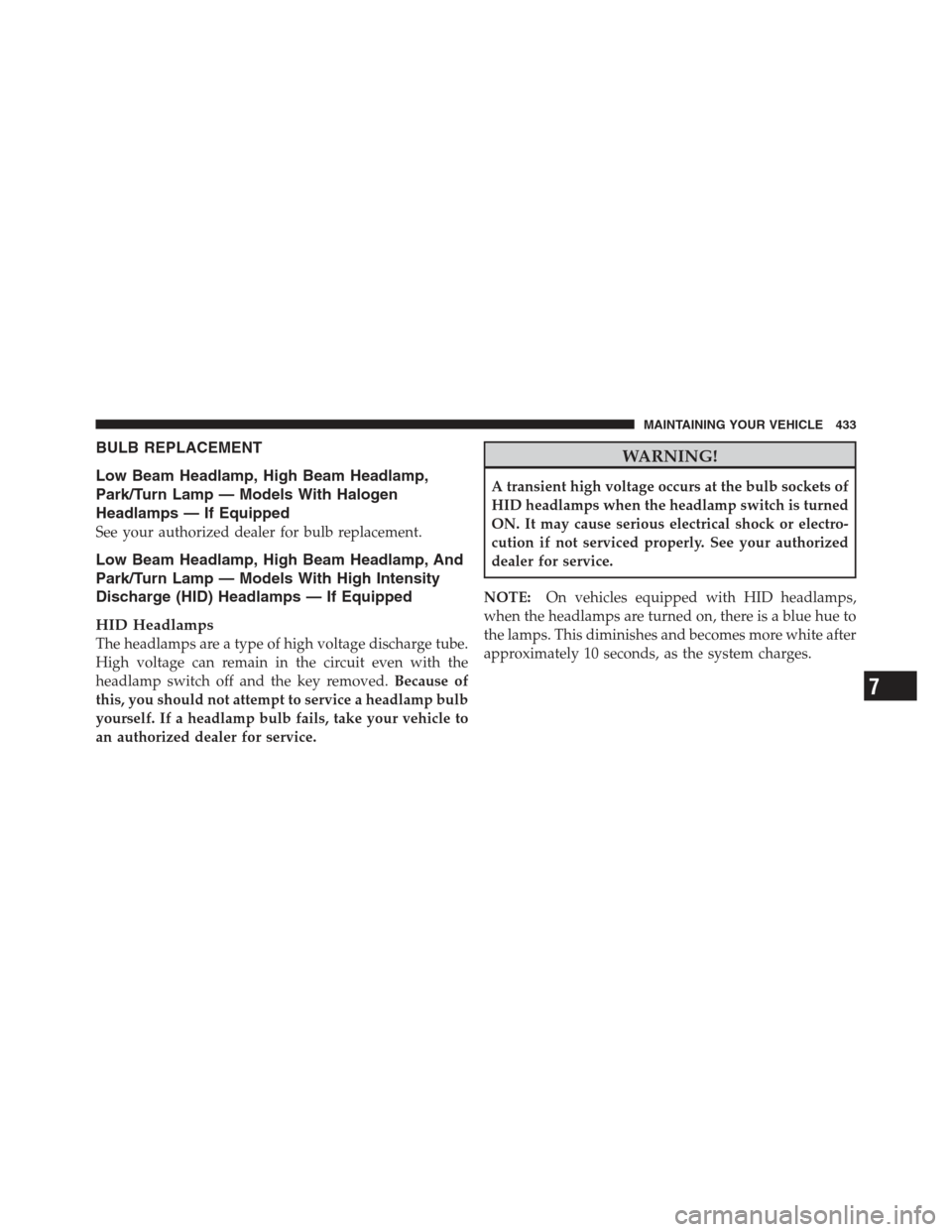

BULB REPLACEMENT
Low Beam Headlamp, High Beam Headlamp,
Park/Turn Lamp — Models With Halogen
Headlamps — If Equipped
See your authorized dealer for bulb replacement.
Low Beam Headlamp, High Beam Headlamp, And
Park/Turn Lamp — Models With High Intensity
Discharge (HID) Headlamps — If Equipped
HID Headlamps
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
NOTE: On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lamps. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
7
MAINTAINING YOUR VEHICLE 433

Fueling............................... 332
Fuses ................................ 424
Garage Door Opener (HomeLink®) ........... 152
Gas Cap (Fuel Filler Cap) ...............332,390
Gasoline (Fuel) ......................... 327
Conserving ......................... 191
Gasoline, Clean Air ...................... 328
Gasoline, Reformulated ................... 328
Gauges Coolant Temperature .................. 177
Fuel .............................. 176
Odometer .......................... 181
Speedometer ........................ 176
Tachometer ......................... 176
Gear Ranges ........................... 267
Gear Select Lever Override ................. 379
General Information ...............18,27,121,326
General Maintenance ..................... 393 Glass Cleaning
.......................... 423
Gross Axle Weight Rating ...............335,337
Gross Vehicle Weight Rating .............335,337
GVWR ............................... 335
Hands-Free Phone (Uconnect™) .............. 92
Hazard Driving Through Flowing, Rising, or Shallow
Standing Water ...................... 278
Hazard Warning Flasher ................... 353
Head Restraints ......................... 132
Headlights ............................ 433
Automatic ......................... 139
Bulb Replacement .................... 433
Cleaning ........................... 422
Delay ............................. 139
High Beam/Low Beam Select Switch ...... 143
Lights On Reminder .................. 141
On With Wipers ................... 139,147
10
INDEX 477

Passing............................ 143
Switch ............................ 138
Time Delay ......................... 139
Heated Mirrors .......................... 90
Heated Seats ........................... 129
Heater ............................... 238
Heater, Engine Block ..................... 260
High Beam/Low Beam Select (Dimmer) Switch . . 143
Hill Start Assist ......................... 289
Hitches Trailer Towing ....................... 339
Holder, Cup ........................... 167
HomeLink® (Garage Door Opener) Transmitter . . 152
Hood Release .......................... 137
Ignition ............................... 14
Key ............................. 12,14
Ignition Key Removal ..................... 14
Illuminated Entry ........................ 21 Immobilizer (Sentry Key)
................... 16
Infant Restraint ........................ 68,69
Information Center, Vehicle ................. 186
Instrument Cluster ....................... 176
Instrument Panel and Controls .............. 174
Instrument Panel Lens Cleaning ............. 423
Integrated Power Module (Fuses) ............ 424
Interior Appearance Care .................. 422
Interior Lights .......................... 143
Intermittent Wipers (Delay Wipers) ........... 145
Introduction ............................. 4
Jack Location ........................... 365
Jack Operation .......................... 368
Jacking Instructions ...................... 368
Jump Starting .......................... 374
Key-In Reminder ......................... 16
Key, Programming ........................ 18
478 INDEX

Headlight Switch..................... 138
Headlights ...................... 138,433
Headlights On Reminder ............... 141
Headlights On With Wipers ..........139,147
High Beam ...................... 143,180
High Beam Indicator .................. 180
High Beam/Low Beam Select ............ 143
Illuminated Entry ..................... 21
Instrument Cluster ................. 138,176
Intensity Control ..................... 144
Interior ......................... 143,151
License ............................ 437
Lights On Reminder .................. 141
Low Fuel .......................... 185
Malfunction Indicator (Check Engine) ...... 185
Map Reading ..................... 143,151
Oil Pressure ........................ 180
Parade Mode (Daytime Brightness) ........ 144
Passing ............................ 143 Reading
........................ 143,151
Seat Belt Reminder ................... 180
Security Alarm (Theft Alarm) ............ 183
Service ......................... 432,433
Service Engine Soon
(Malfunction Indicator) ................ 185
Theft Alarm (Security Alarm) ............ 183
Tire Pressure Monitoring (TPMS) .......183,317
Traction Control ..................... 294
Turn Signal .................... 82,142,178
Vanity Mirror ........................ 90
Voltage ............................ 176
Warning (Instrument Cluster Description) . . . 176
Loading Vehicle ...................... 334,336
Capacities .......................... 336
Tires .............................. 301
Locks ................................. 31
Auto Unlock ......................... 33
Automatic Door ...................... 33
480 INDEX
