Page 411 of 543

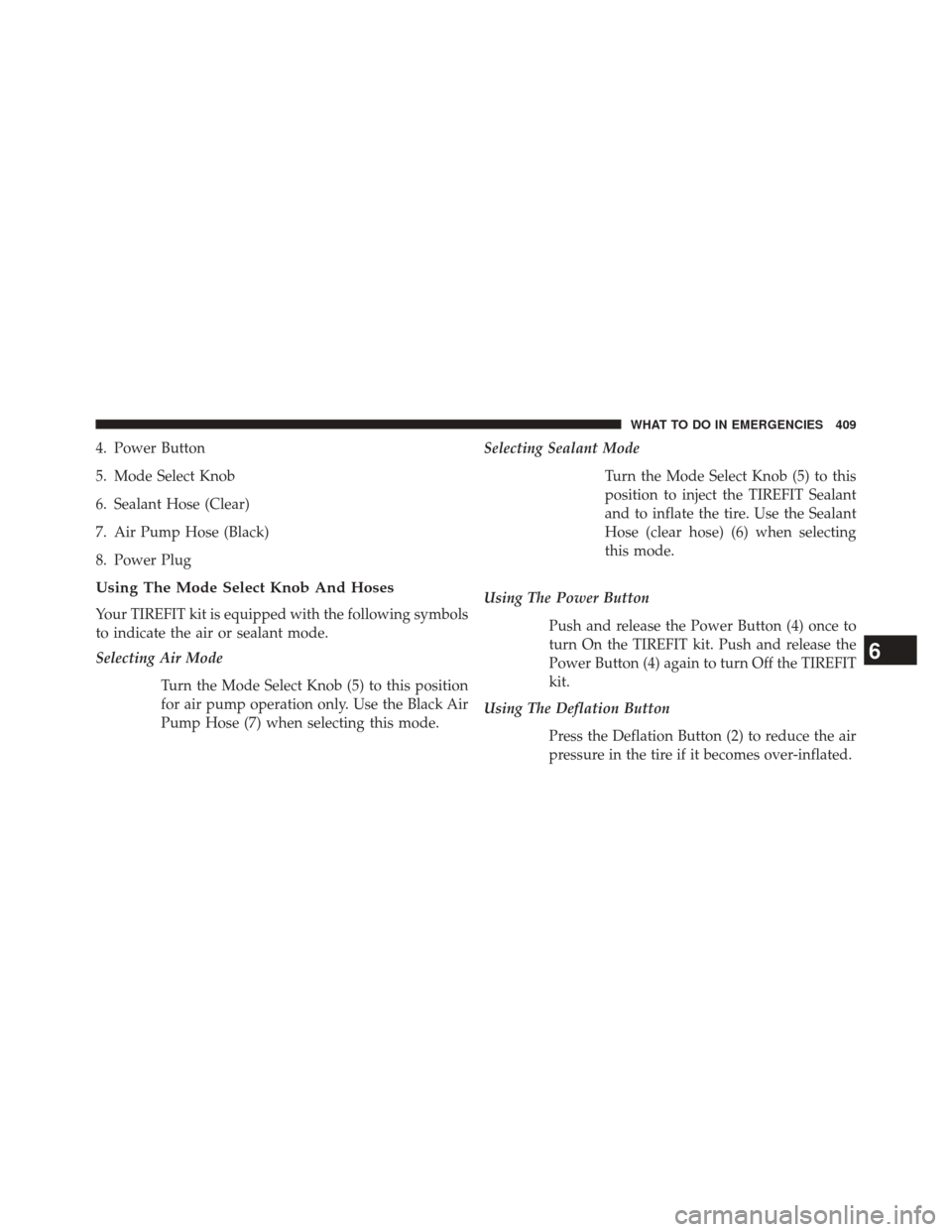

DODGE CHALLENGER 2013 3.G Owners Manual 4. Power Button
5. Mode Select Knob
6. Sealant Hose (Clear)
7. Air Pump Hose (Black)
8. Power Plug
Using The Mode Select Knob And Hoses
Your TIREFIT kit is equipped with the following symbols
to indic

Page 412 of 543

DODGE CHALLENGER 2013 3.G Owners Manual TIREFIT Usage Precautions
•Replace the TIREFIT Sealant Bottle (1) and Sealant
Hose (6) prior to the expiration date (printed on the
bottle label) to assure optimum operation of the sys-
tem. Refer t

Page 413 of 543

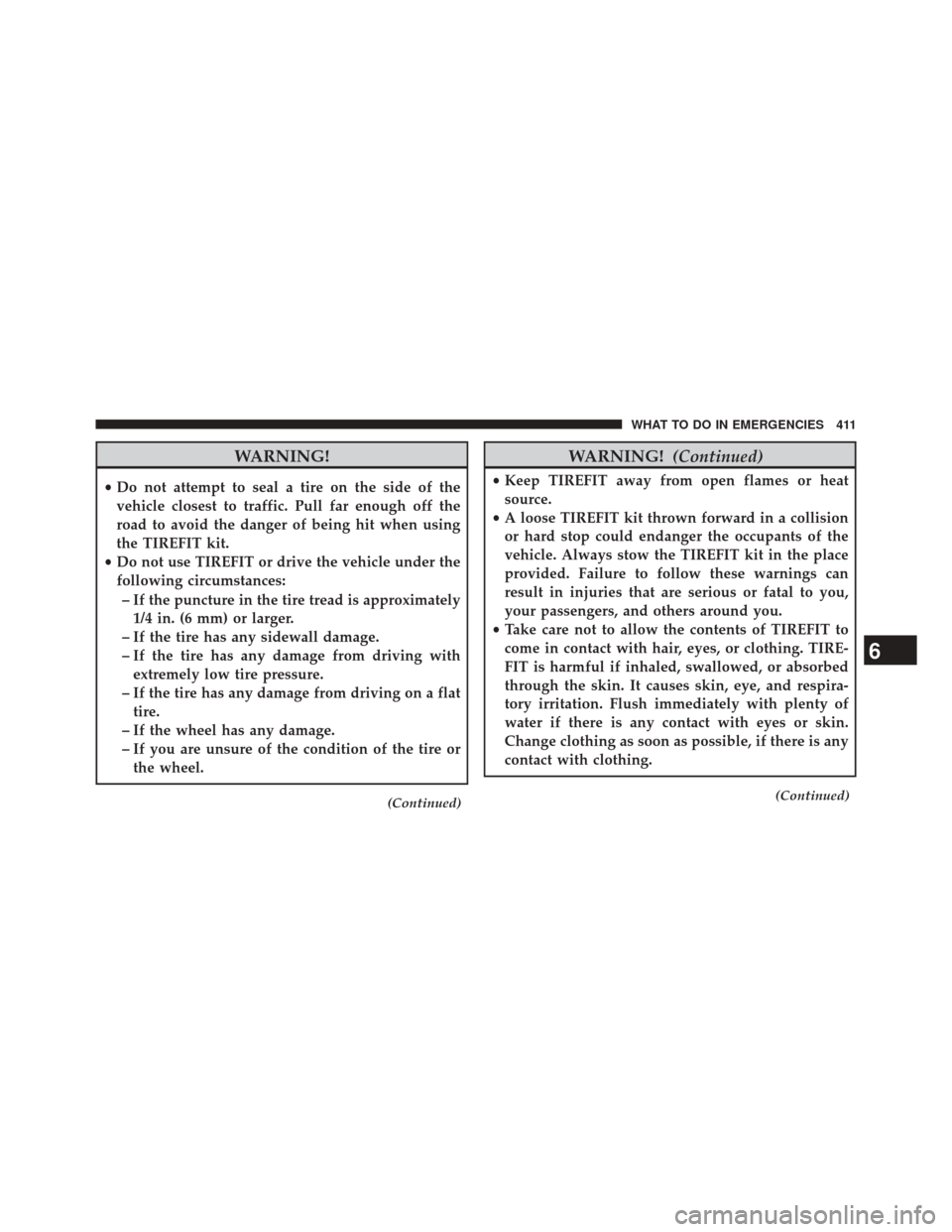

DODGE CHALLENGER 2013 3.G Owners Manual WARNING!
•Do not attempt to seal a tire on the side of the
vehicle closest to traffic. Pull far enough off the
road to avoid the danger of being hit when using
the TIREFIT kit.
• Do not use TIREFI

Page 414 of 543

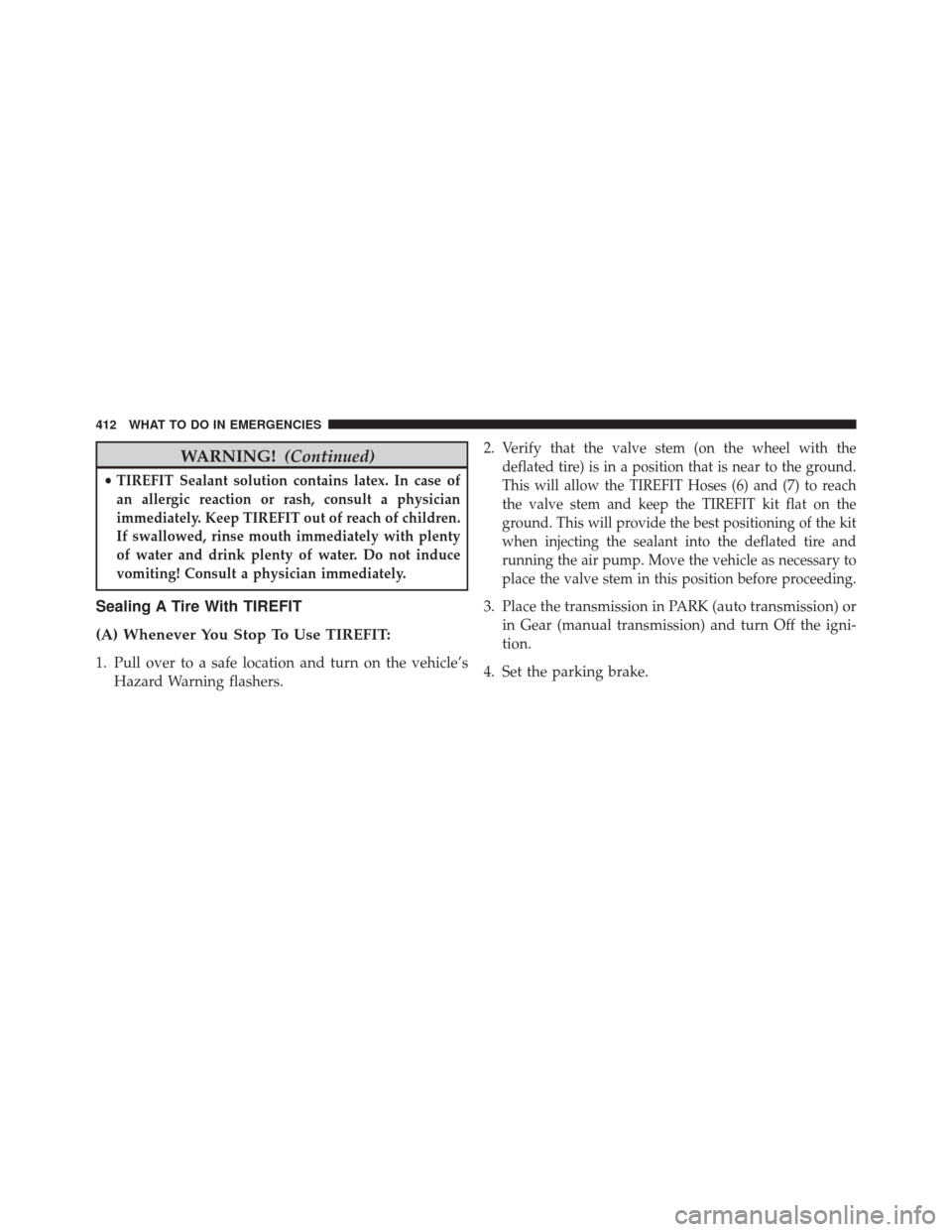

DODGE CHALLENGER 2013 3.G Owners Manual WARNING!(Continued)
•TIREFIT Sealant solution contains latex. In case of
an allergic reaction or rash, consult a physician
immediately. Keep TIREFIT out of reach of children.
If swallowed, rinse mou

Page 415 of 543

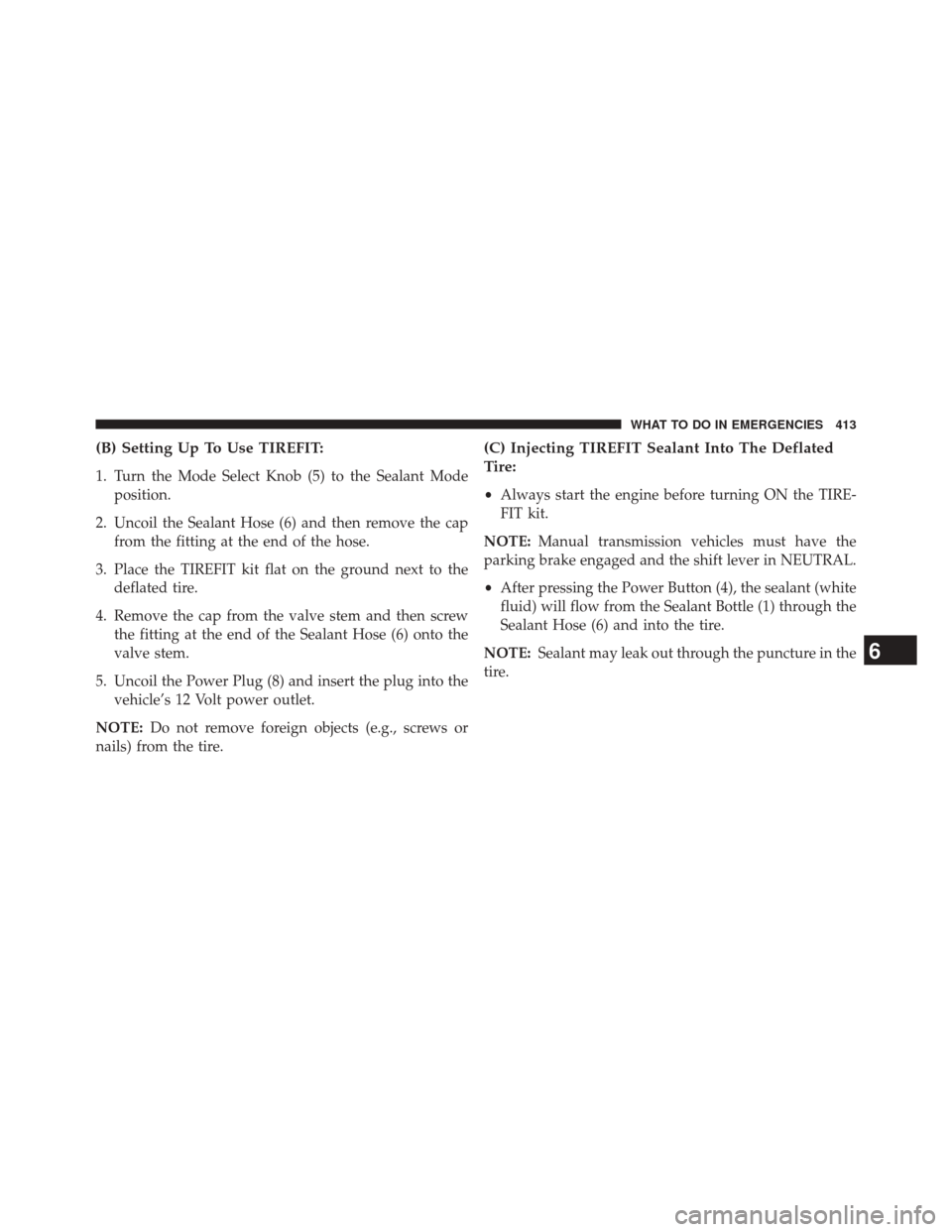

DODGE CHALLENGER 2013 3.G Owners Manual (B) Setting Up To Use TIREFIT:
1. Turn the Mode Select Knob (5) to the Sealant Modeposition.
2. Uncoil the Sealant Hose (6) and then remove the cap from the fitting at the end of the hose.
3. Place th

Page 416 of 543

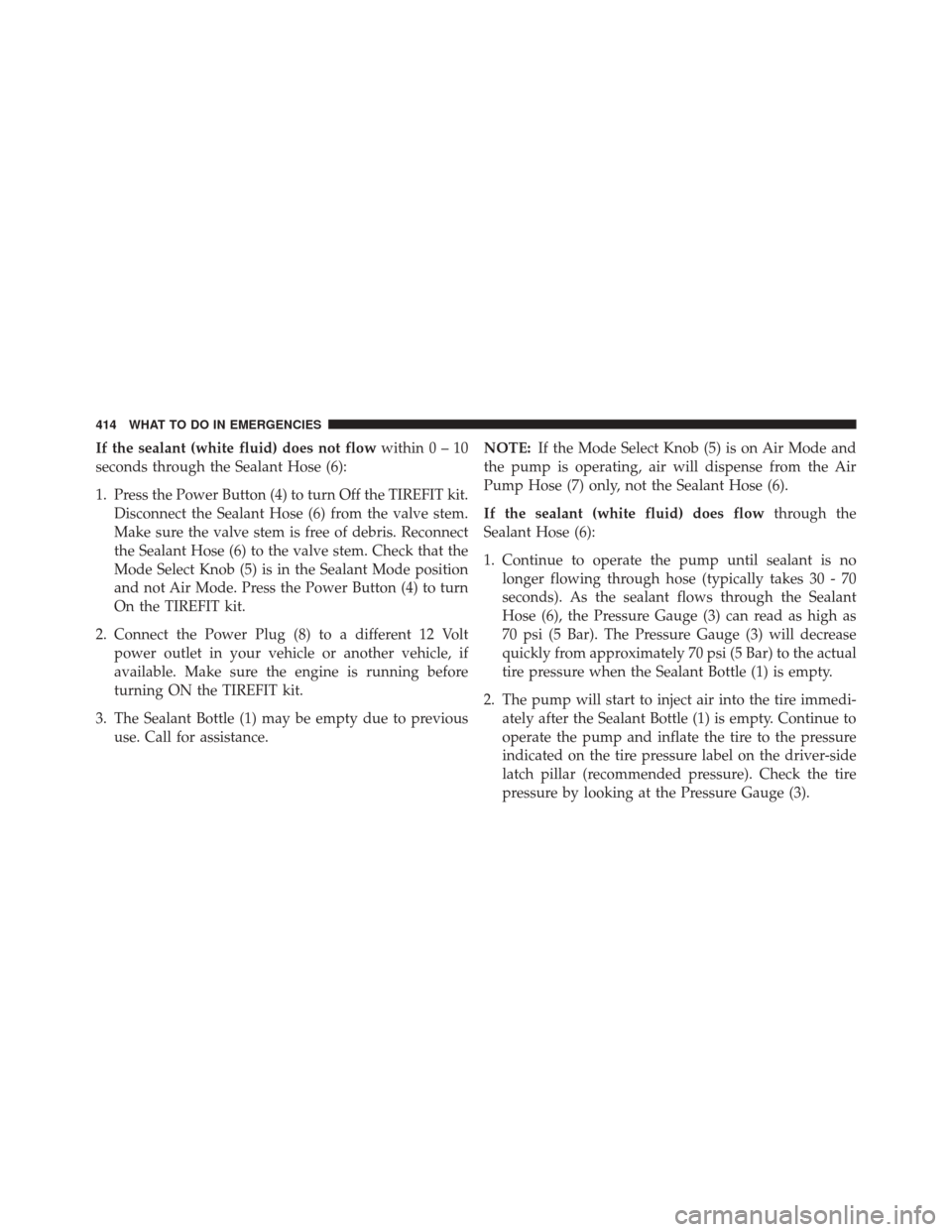

DODGE CHALLENGER 2013 3.G Owners Manual If the sealant (white fluid) does not flowwithin0–10
seconds through the Sealant Hose (6):
1. Press the Power Button (4) to turn Off the TIREFIT kit. Disconnect the Sealant Hose (6) from the valve s

Page 417 of 543

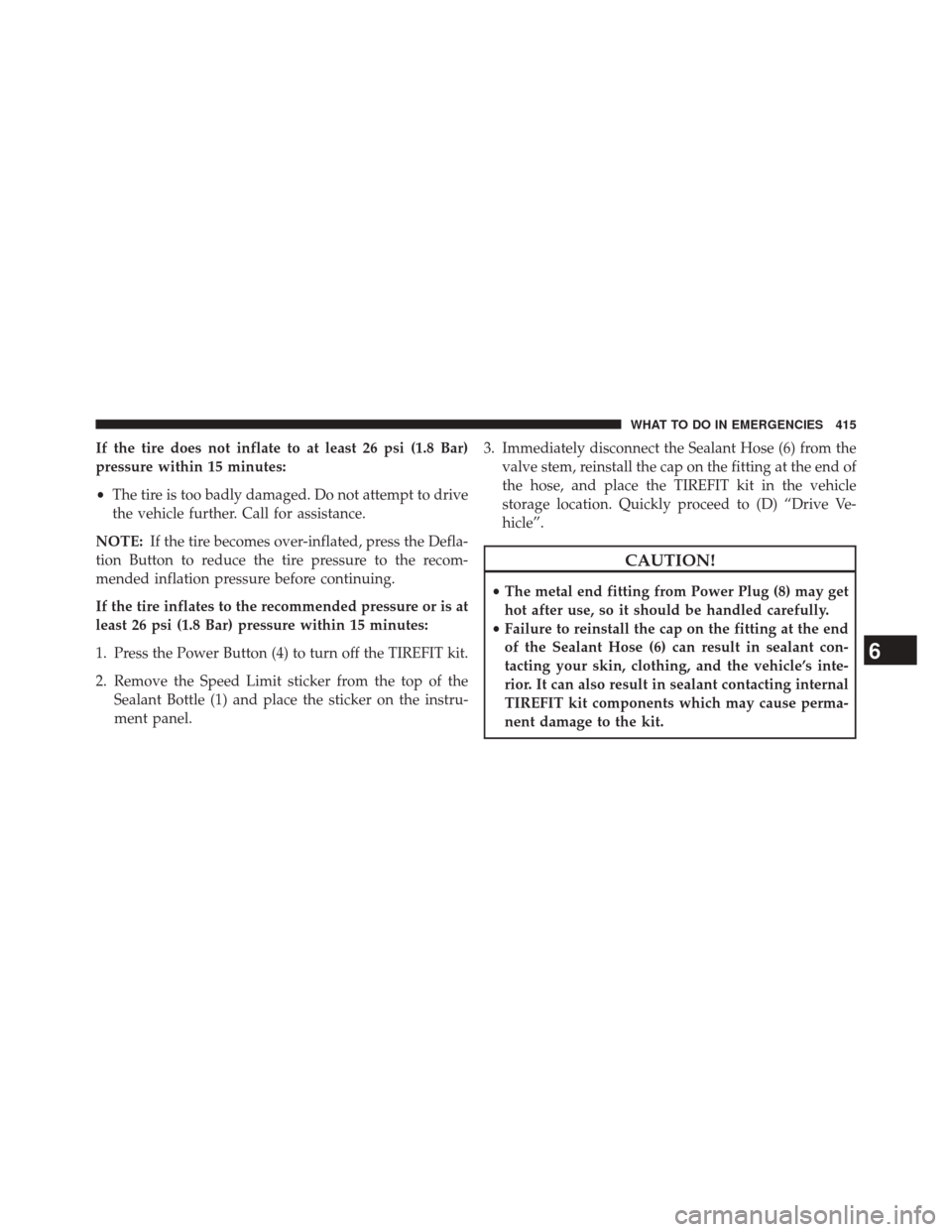

DODGE CHALLENGER 2013 3.G Owners Manual If the tire does not inflate to at least 26 psi (1.8 Bar)
pressure within 15 minutes:
•The tire is too badly damaged. Do not attempt to drive
the vehicle further. Call for assistance.
NOTE: If the t

Page 418 of 543

DODGE CHALLENGER 2013 3.G Owners Manual (D) Drive Vehicle:
Immediately after injecting sealant and inflating the tire,
drive the vehicle 5 miles (8 km) or 10 minutes to ensure
distribution of the TIREFIT Sealant within the tire. Do not
exce

Page 419 of 543

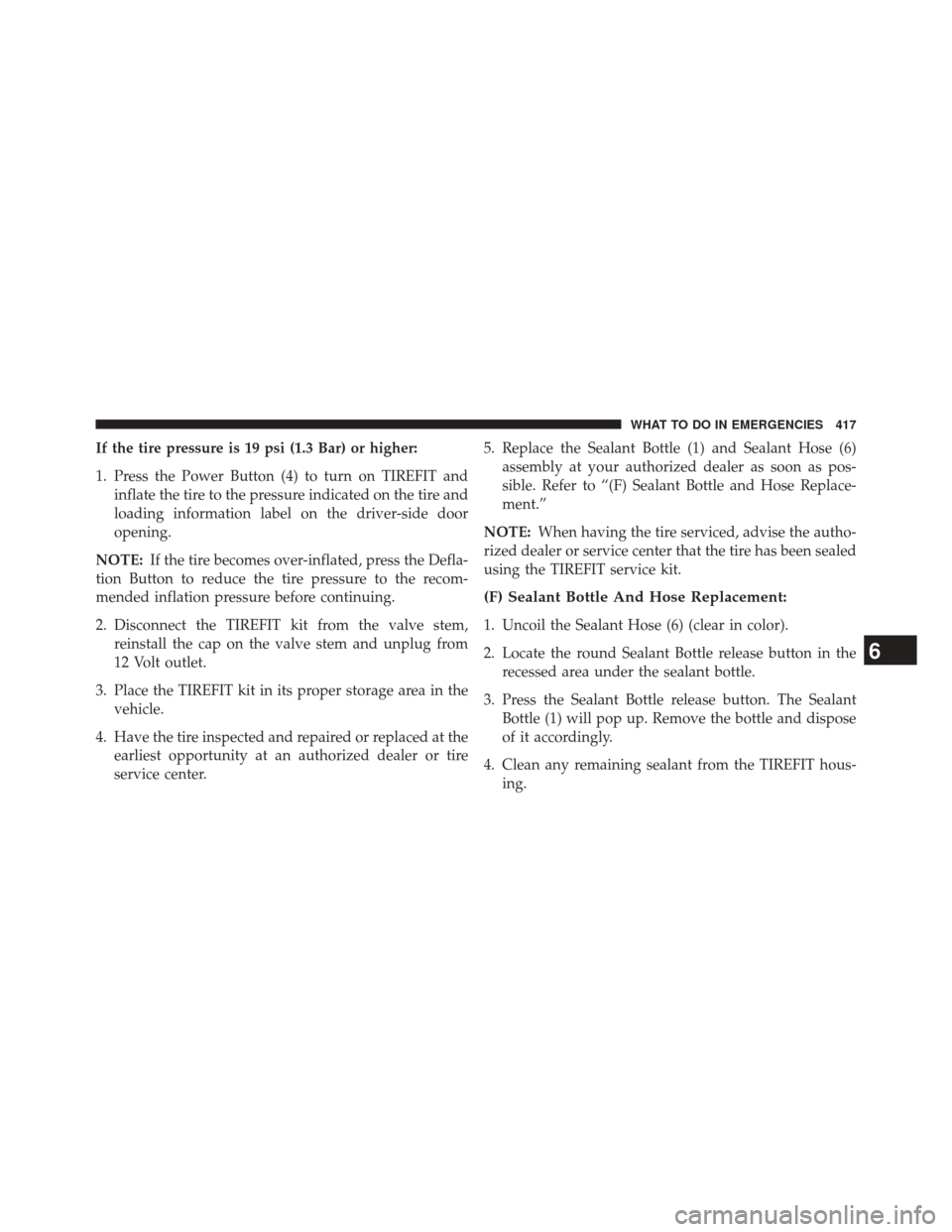

DODGE CHALLENGER 2013 3.G Owners Manual If the tire pressure is 19 psi (1.3 Bar) or higher:
1. Press the Power Button (4) to turn on TIREFIT andinflate the tire to the pressure indicated on the tire and
loading information label on the driv

Page 420 of 543

DODGE CHALLENGER 2013 3.G Owners Manual 5. Position the new Sealant Bottle (1) in the housing sothat the Sealant Hose (6) aligns with the hose slot in
the front of the housing. Press the bottle into the
housing. An audible click will be hea
