DODGE CHALLENGER 2014 3.G User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............12
▫ Wireless Ignition Node (WIN) .............12
▫ KeyFob.............................13
▫ Removing Key Fob From Ignition ..........14
▫ Key-In-Ignition Reminder ................16
 SENTRY KEY® .........................17
▫ Replacement Keys .....................18
▫ Customer Key Programming ..............19
▫ General Information ....................19
 VEHICLE SECURITY ALARM ..............19▫
Rearming Of The System .................20
▫ To Arm The System ....................20
▫ To Disarm The System ...................21
▫ Security System Manual Override ...........22
 ILLUMINATED ENTRY ...................22
 REMOTE KEYLESS ENTRY (RKE) ...........23
▫ To Unlock The Doors ....................23
▫ To Lock The Doors .....................26
▫ To Open The Trunk .....................27
▫ Using The Panic Alarm ..................27
2

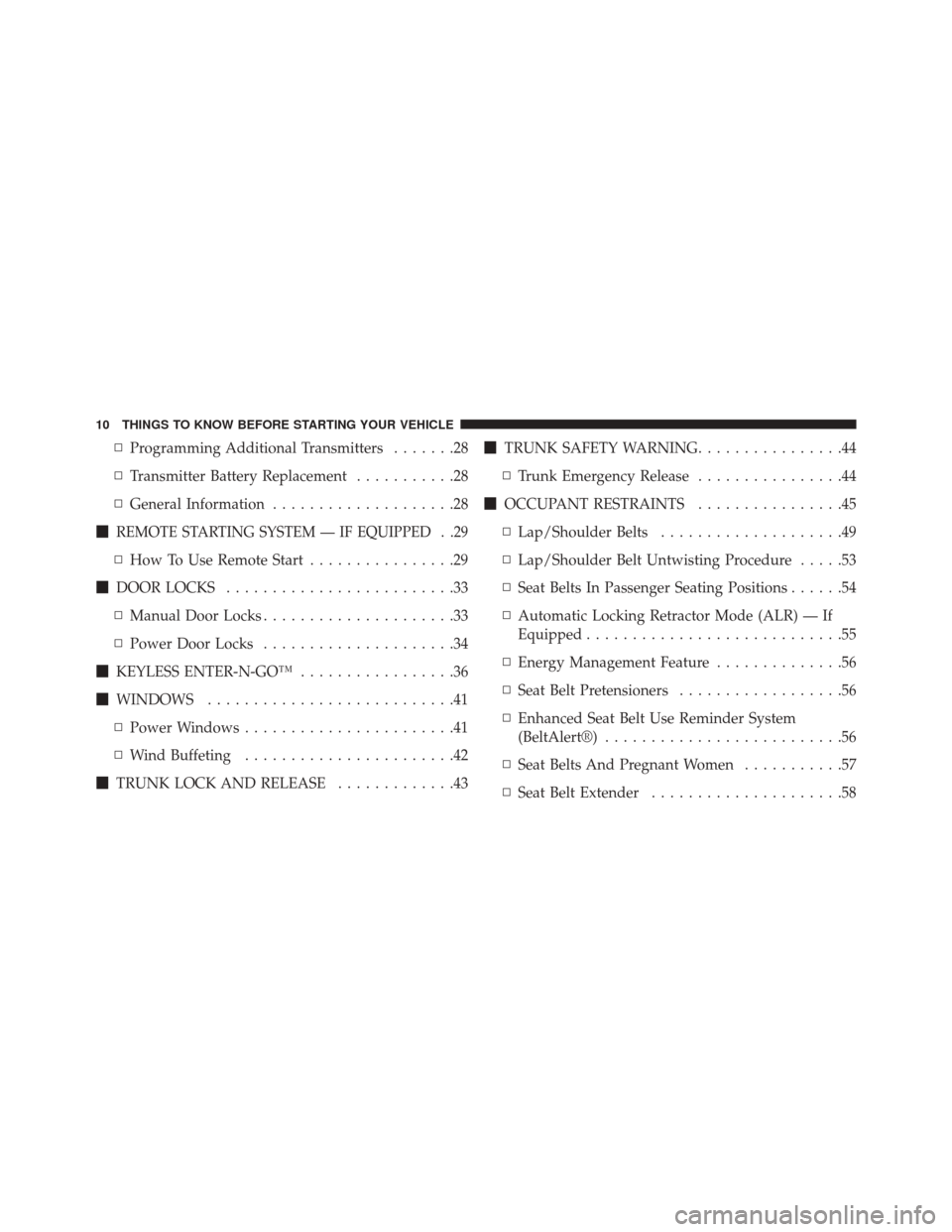

▫Programming Additional Transmitters .......28
▫ Transmitter Battery Replacement ...........28
▫ General Information ....................28

REMOTE STARTING SYSTEM — IF EQUIPPED . .29
▫ How To Use Remote Start ................29
 DOOR LOCKS .........................33
▫ Manual Door Locks .....................33
▫ Power Door Locks .....................34
 KEYLESS ENTER-N-GO™ .................36
 WINDOWS ...........................41
▫ Power Windows .......................41
▫ Wind Buffeting .......................42
 TRUNK LOCK AND RELEASE .............43
TRUNK SAFETY WARNING ................44
▫ Trunk Emergency Release ................44
 OCCUPANT RESTRAINTS ................45
▫ Lap/Shoulder Belts ....................49
▫ Lap/Shoulder Belt Untwisting Procedure .....53
▫ Seat Belts In Passenger Seating Positions ......54
▫ Automatic Locking Retractor Mode (ALR) — If
Equipped ............................55
▫ Energy Management Feature ..............56
▫ Seat Belt Pretensioners ..................56
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert®) ..........................56
▫ Seat Belts And Pregnant Women ...........57
▫ Seat Belt Extender .....................58
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Supplemental Restraint System (SRS) —
Air Bags ............................58
▫ Air Bag Deployment Sensors And Controls ....65
▫ Event Data Recorder (EDR) ...............72
▫ Child Restraints .......................73
▫ Transporting Pets ......................96
 ENGINE BREAK-IN RECOMMENDATIONS ....96
SAFETY TIPS ..........................97
▫ Transporting Passengers ..................97
▫ Exhaust Gas .........................98
▫ Safety Checks You Should Make Inside The
Vehicle .............................99
▫ Periodic Safety Checks You Should Make Outside
The Vehicle ........................ .101
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

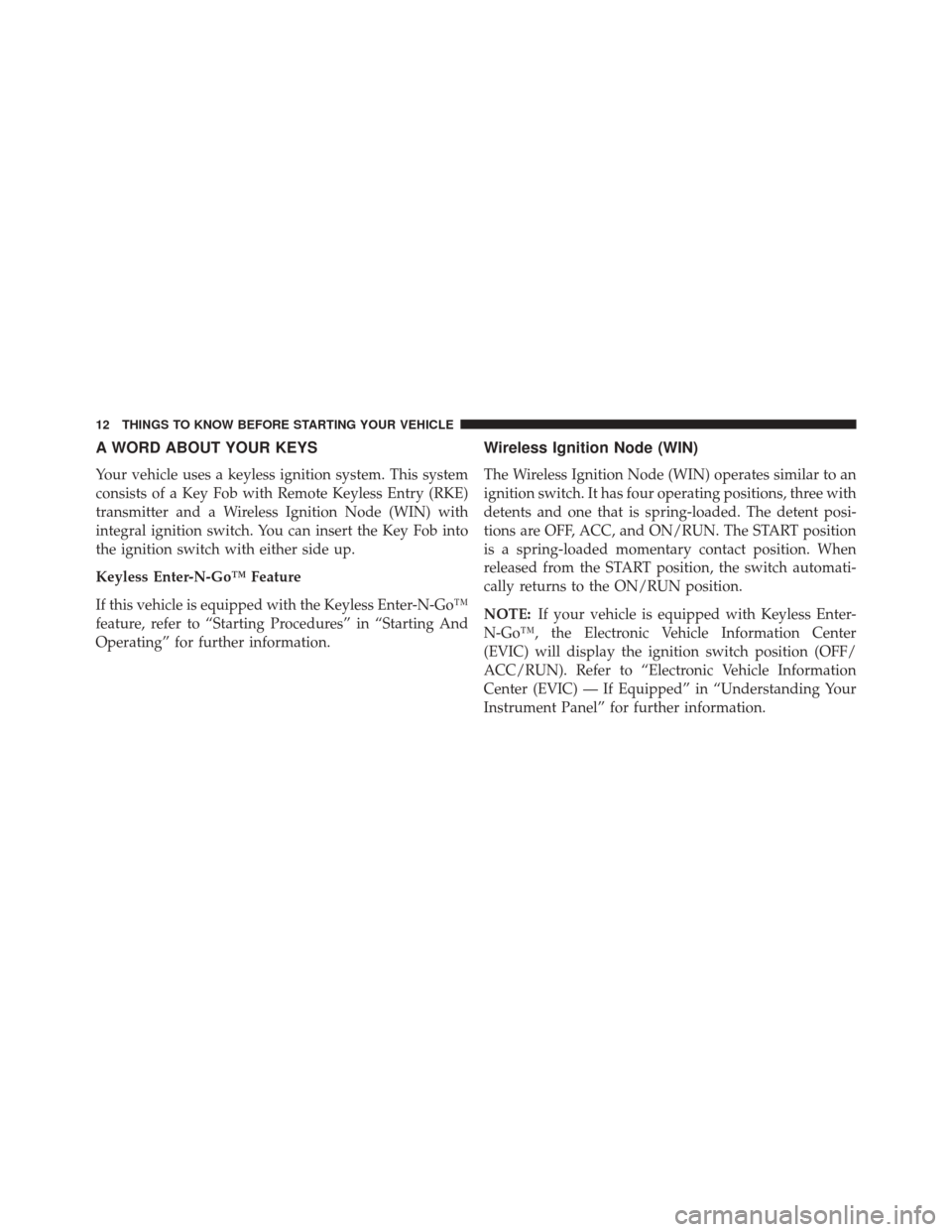

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Wireless Ignition Node (WIN) with
integral ignition switch. You can insert the Key Fob into
the ignition switch with either side up.
Keyless Enter-N-Go™ Feature
If this vehicle is equipped with the Keyless Enter-N-Go™
feature, refer to “Starting Procedures” in “Starting And
Operating” for further information.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are OFF, ACC, and ON/RUN. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the ON/RUN position.
NOTE:If your vehicle is equipped with Keyless Enter-
N-Go™, the Electronic Vehicle Information Center
(EVIC) will display the ignition switch position (OFF/
ACC/RUN). Refer to “Electronic Vehicle Information
Center (EVIC) — If Equipped” in “Understanding Your
Instrument Panel” for further information.
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Key Fob
The Key Fob operates the ignition switch. Insert the
square end of the key fob into the ignition switch located
on the instrument panel and rotate to the desired posi-
tion. It also contains the Remote Keyless Entry (RKE)
transmitter and an emergency key, which stores in the
rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
The emergency key is also for locking the glove box. You
can keep the emergency key with you when valet park-
ing.
NOTE:Entering a vehicle using the emergency key with
the Vehicle Security Alarm armed, will result in the alarm
sounding. Insert the Key Fob (even if the Key Fob battery
is dead) into the ignition switch to disarm the Vehicle
Security Alarm or press the Start/Stop button to disarm
the security alarm.
Wireless Ignition Node (WIN)
1 — OFF
2 — ACCESSORY (ACCESSORY)
3 — ON/RUN
4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

To remove the emergency key, slide the mechanical latch
on the Key Fob sideways with your thumb and then pull
the key out with your other hand.
NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.Removing Key Fob From Ignition
Remove the Start/Stop button (if equipped), place the
shift lever in PARK or place the manual transmission in
REVERSE and apply the parking brake. Turn the Key Fob
to the OFF position and then remove the Key Fob. Refer
to “Starting And Operating/Starting Procedures” for
further information on removing the Start/Stop button.
With the Keyless Enter-N-Go™ system, the EVIC will
display the ignition switch position “OFF/ACC/RUN”.
Refer to “Electronic Vehicle Information Center (EVIC) —
If Equipped” in “Understanding Your Instrument Panel”
for further information.
Emergency Key Removal
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:The power window switches, radio, power sun-
roof — if equipped, and ignition-powered power outlets
will remain active for up to 60 minutes after the ignition
switch is turned to the LOCK position. Opening either
door will cancel this feature. The time for this feature is
programmable. Refer to “Electronic Vehicle Information
Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
CAUTION!
• If your vehicle battery becomes low or dead, your
Key Fob will become locked in the ignition.
• Do not attempt to remove the Key Fob while in this
condition, damage could occur to the Key Fob or
ignition module. Only remove the emergency key
for locking and unlocking the doors.
(Continued)
CAUTION! (Continued)
•Leave the Key Fob in the ignition and either:
• Jump Start the vehicle.
• Charge the battery.
WARNING!
•Before exiting a vehicle, always apply the parking
brake, shift the transmission into PARK or the
manual transmission in REVERSE, and remove the
Key Fob from the ignition. When leaving the
vehicle, always lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

WARNING!(Continued)
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key Fob from vehicle, cycle the ignition
OFF with Keyless Enter-N-Go™, and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
sounds a signal to remind you to remove the Key Fob.
NOTE: The Key-In-Ignition reminder only sounds when
the Key Fob is placed in the OFF or ACC ignition
position.
If your vehicle is equipped with Keyless Enter-N-Go™,
opening the driver’s door when the vehicle’s ignition
switch is placed in ACC or ON/RUN (engine stopped)
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

will cause the reminder chime to sound. Refer to “Start-
ing Procedures” in “Starting And Operating” for further
information.

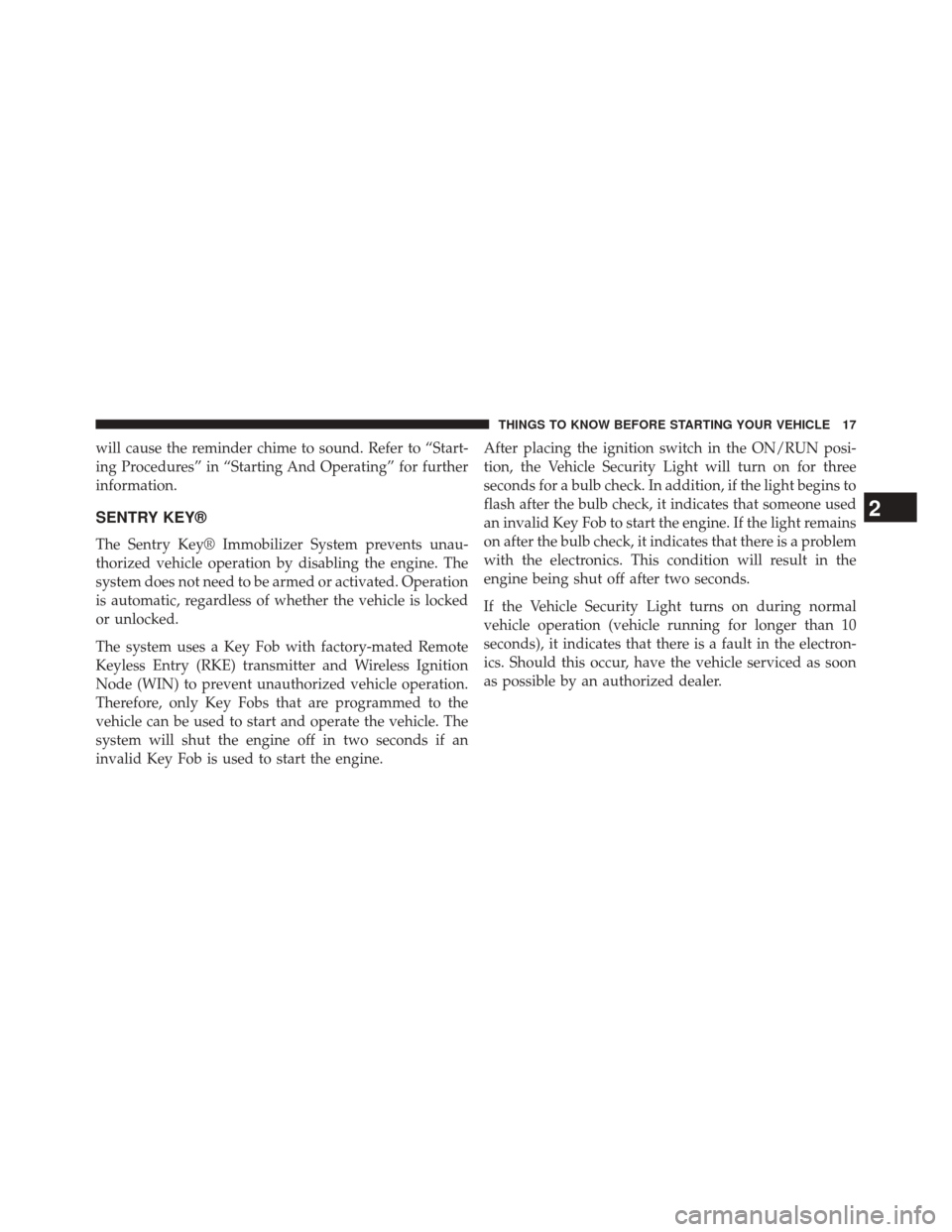

SENTRY KEY®
The Sentry Key® Immobilizer System prevents unau-
thorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key Fob with factory-mated Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation.
Therefore, only Key Fobs that are programmed to the
vehicle can be used to start and operate the vehicle. The
system will shut the engine off in two seconds if an
invalid Key Fob is used to start the engine.After placing the ignition switch in the ON/RUN posi-
tion, the Vehicle Security Light will turn on for three
seconds for a bulb check. In addition, if the light begins to
flash after the bulb check, it indicates that someone used
an invalid Key Fob to start the engine. If the light remains
on after the bulb check, it indicates that there is a problem
with the electronics. This condition will result in the
engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the electron-
ics. Should this occur, have the vehicle serviced as soon
as possible by an authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

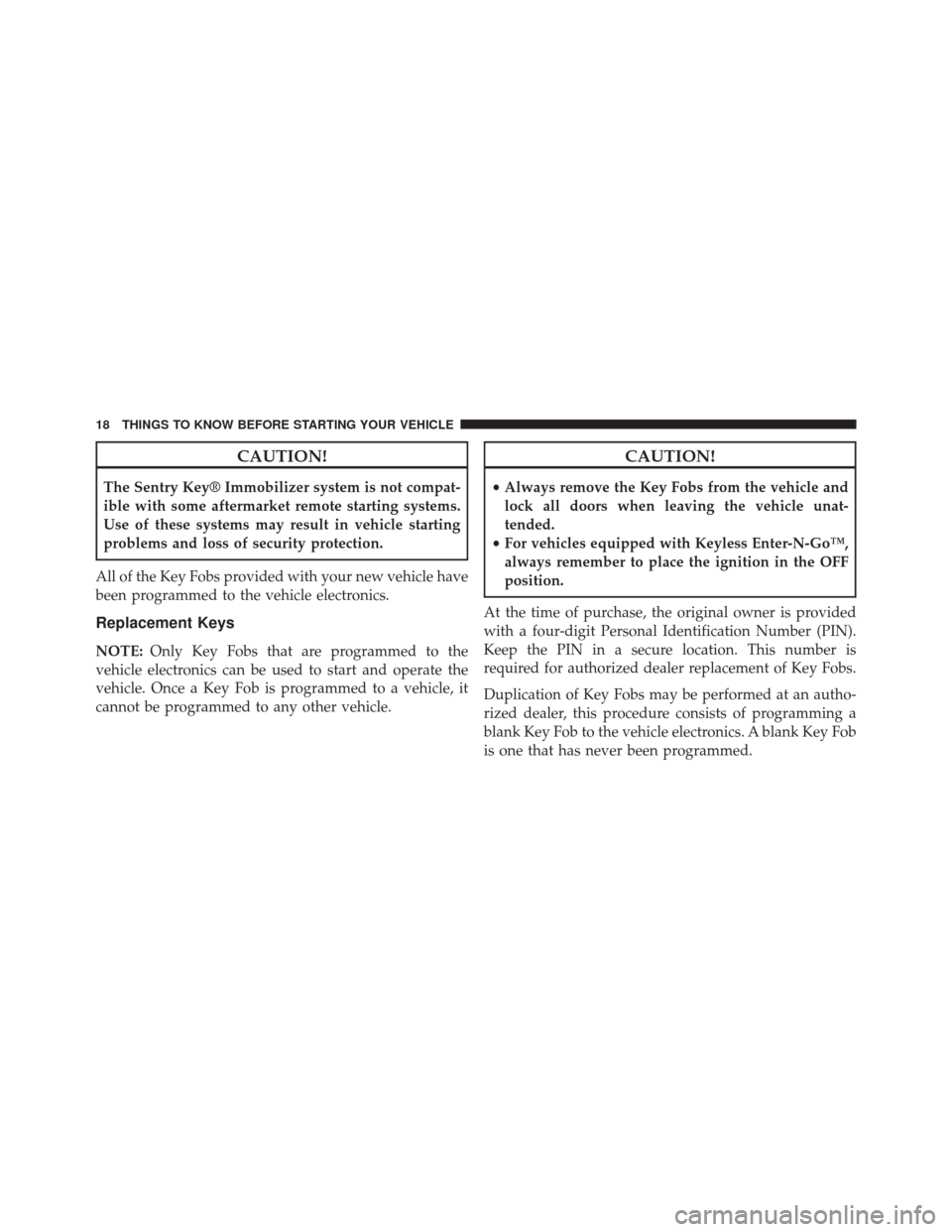

CAUTION!
The Sentry Key® Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
• Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
• For vehicles equipped with Keyless Enter-N-Go™,
always remember to place the ignition in the OFF
position.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
Duplication of Key Fobs may be performed at an autho-
rized dealer, this procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
