TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled vehicle using a commercial wrecker service.
Towing Condition Wheels OFF TheGroundAUTOMATIC TRANS-
MISSION MANUAL TRANSMIS-
SION
Flat Tow NONEIf transmission is oper-
able:
• Transmission in NEU-
TRAL
• 30 mph (48 km/h) max
speed
• 15 miles (24 km) max
distance If transmission is oper-
able:
• Transmission in NEU-
TRAL
• 65 mph (105 km/h)
max speed
Wheel Lift or Dolly Tow FrontNOT ALLOWED NOT RECOMMENDED
Rear NOT RECOMMENDED NOT RECOMMENDED
Flatbed ALLBEST METHOD BEST METHOD
6
WHAT TO DO IN EMERGENCIES 429

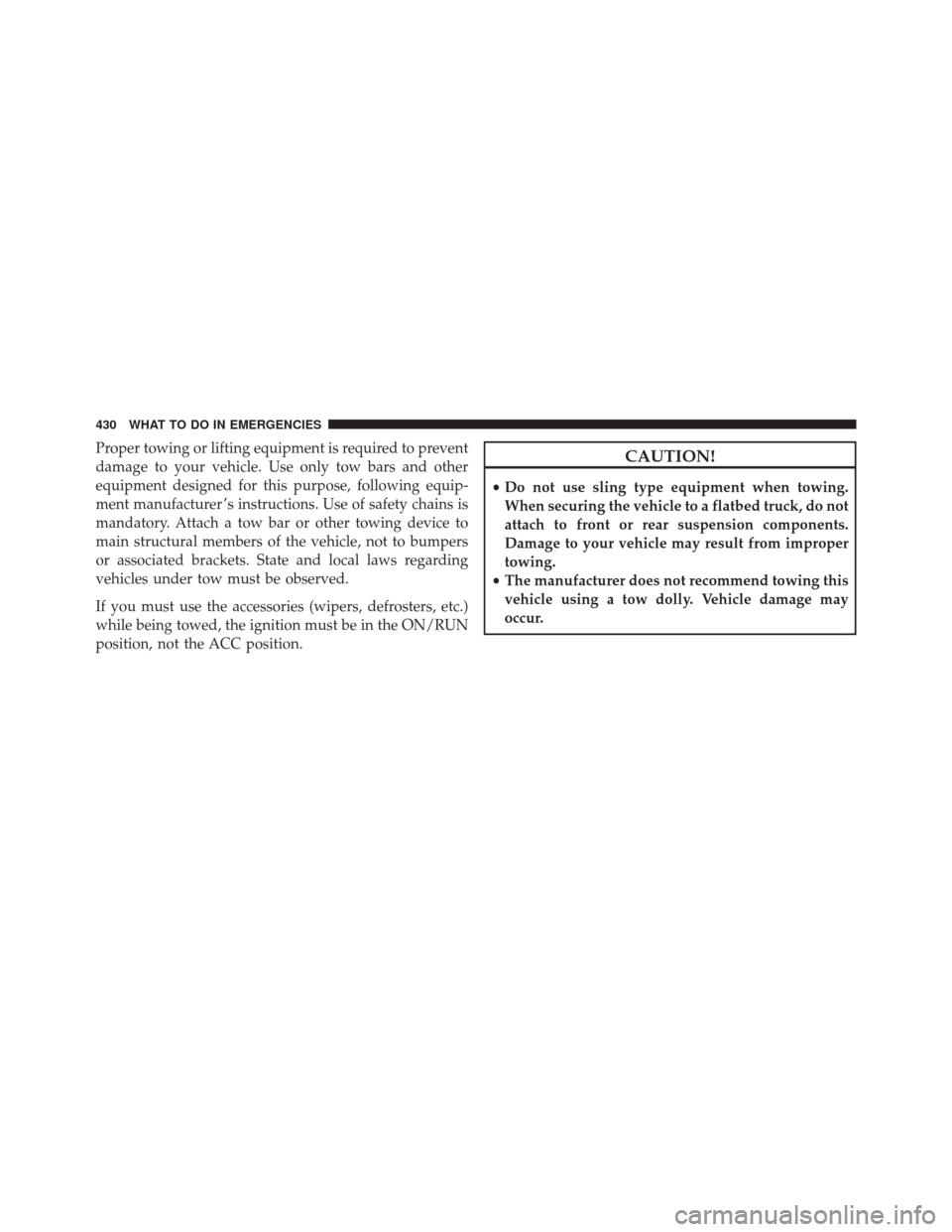

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.CAUTION!
•Do not use sling type equipment when towing.
When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
• The manufacturer does not recommend towing this
vehicle using a tow dolly. Vehicle damage may
occur.
430 WHAT TO DO IN EMERGENCIES

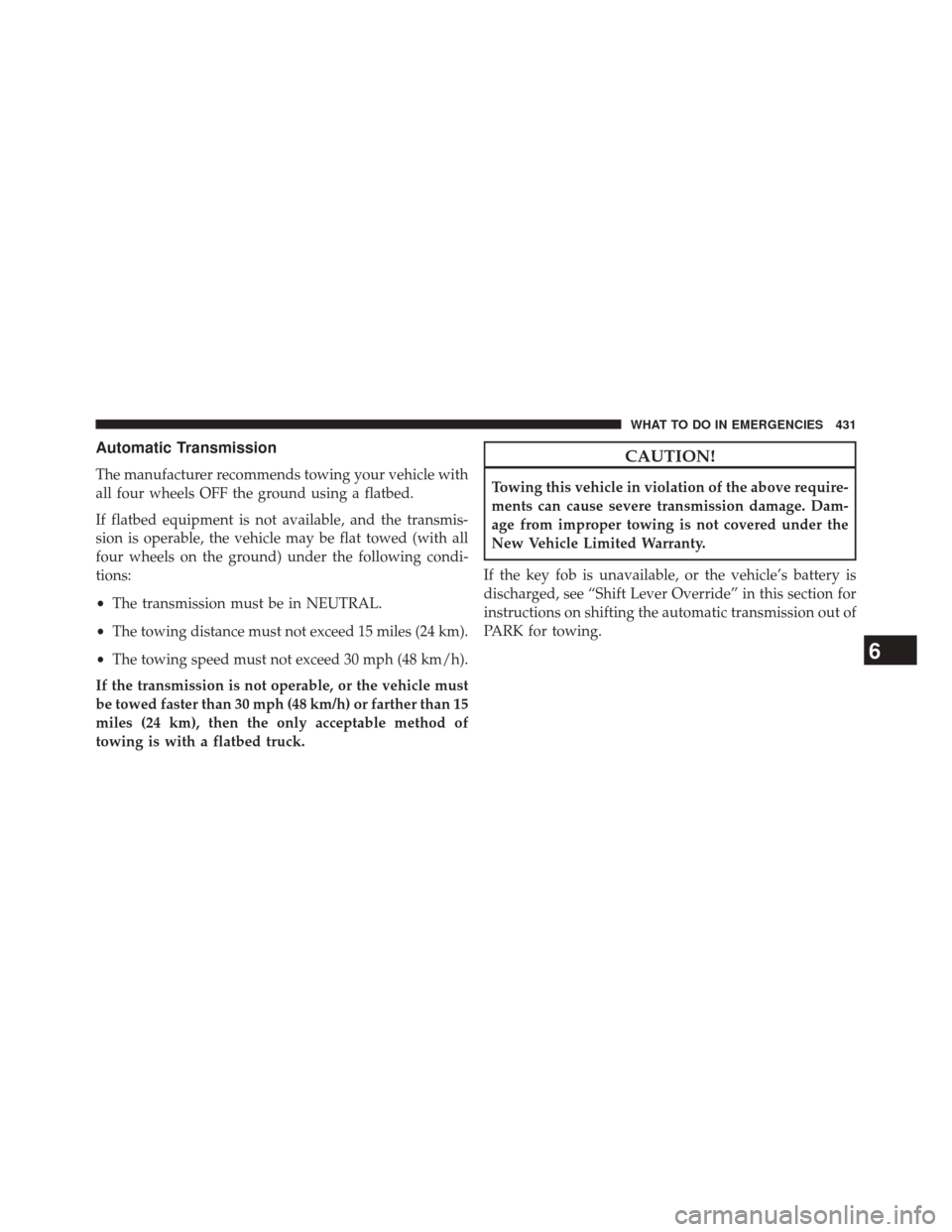

Automatic Transmission
The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed.
If flatbed equipment is not available, and the transmis-
sion is operable, the vehicle may be flat towed (with all
four wheels on the ground) under the following condi-
tions:
•The transmission must be in NEUTRAL.
• The towing distance must not exceed 15 miles (24 km).
• The towing speed must not exceed 30 mph (48 km/h).
If the transmission is not operable, or the vehicle must
be towed faster than 30 mph (48 km/h) or farther than 15
miles (24 km), then the only acceptable method of
towing is with a flatbed truck.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.
If the key fob is unavailable, or the vehicle’s battery is
discharged, see “Shift Lever Override” in this section for
instructions on shifting the automatic transmission out of
PARK for towing.
6
WHAT TO DO IN EMERGENCIES 431

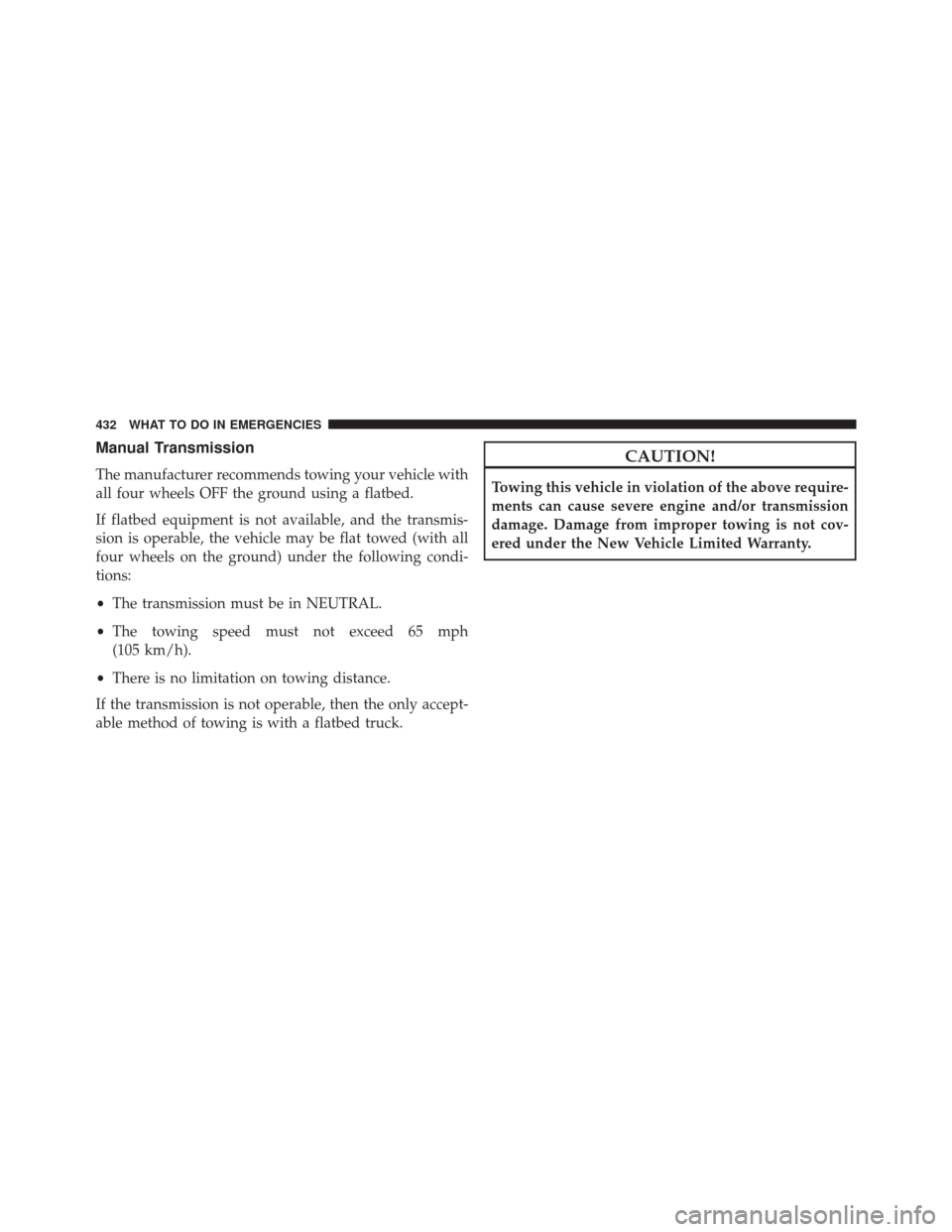

Manual Transmission
The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed.
If flatbed equipment is not available, and the transmis-
sion is operable, the vehicle may be flat towed (with all
four wheels on the ground) under the following condi-
tions:
•The transmission must be in NEUTRAL.
• The towing speed must not exceed 65 mph
(105 km/h).
• There is no limitation on towing distance.
If the transmission is not operable, then the only accept-
able method of towing is with a flatbed truck.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe engine and/or transmission
damage. Damage from improper towing is not cov-
ered under the New Vehicle Limited Warranty.
432 WHAT TO DO IN EMERGENCIES

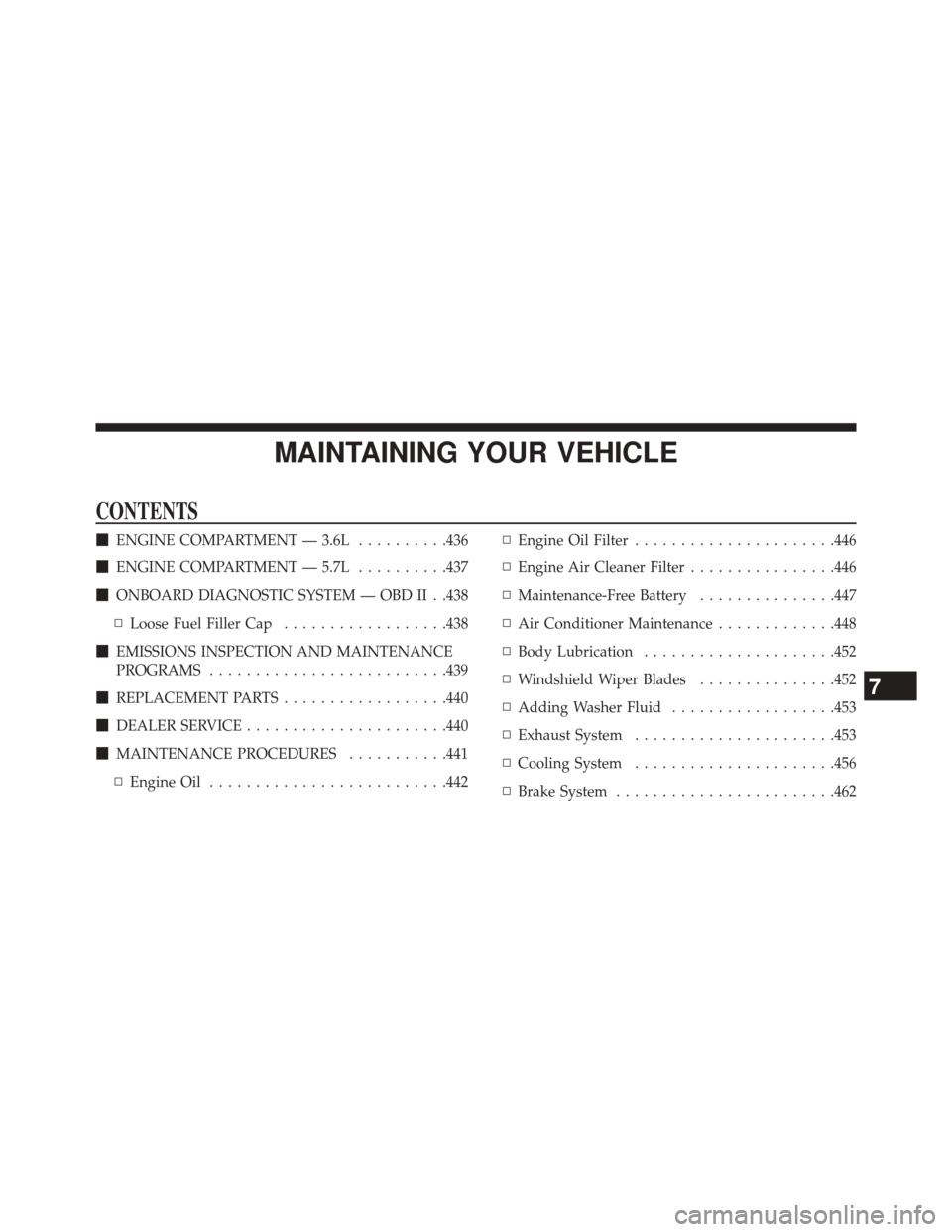

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 3.6L ..........436
 ENGINE COMPARTMENT — 5.7L ..........437
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .438
▫ Loose Fuel Filler Cap ..................438
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .439
 REPLACEMENT PARTS ..................440
 DEALER SERVICE ..................... .440
 MAINTENANCE PROCEDURES ...........441
▫ Engine Oil ......................... .442▫
Engine Oil Filter ..................... .446
▫ Engine Air Cleaner Filter ................446
▫ Maintenance-Free Battery ...............447
▫ Air Conditioner Maintenance .............448
▫ Body Lubrication .....................452
▫ Windshield Wiper Blades ...............452
▫ Adding Washer Fluid ..................453
▫ Exhaust System ..................... .453
▫ Cooling System ..................... .456
▫ Brake System ....................... .462
7

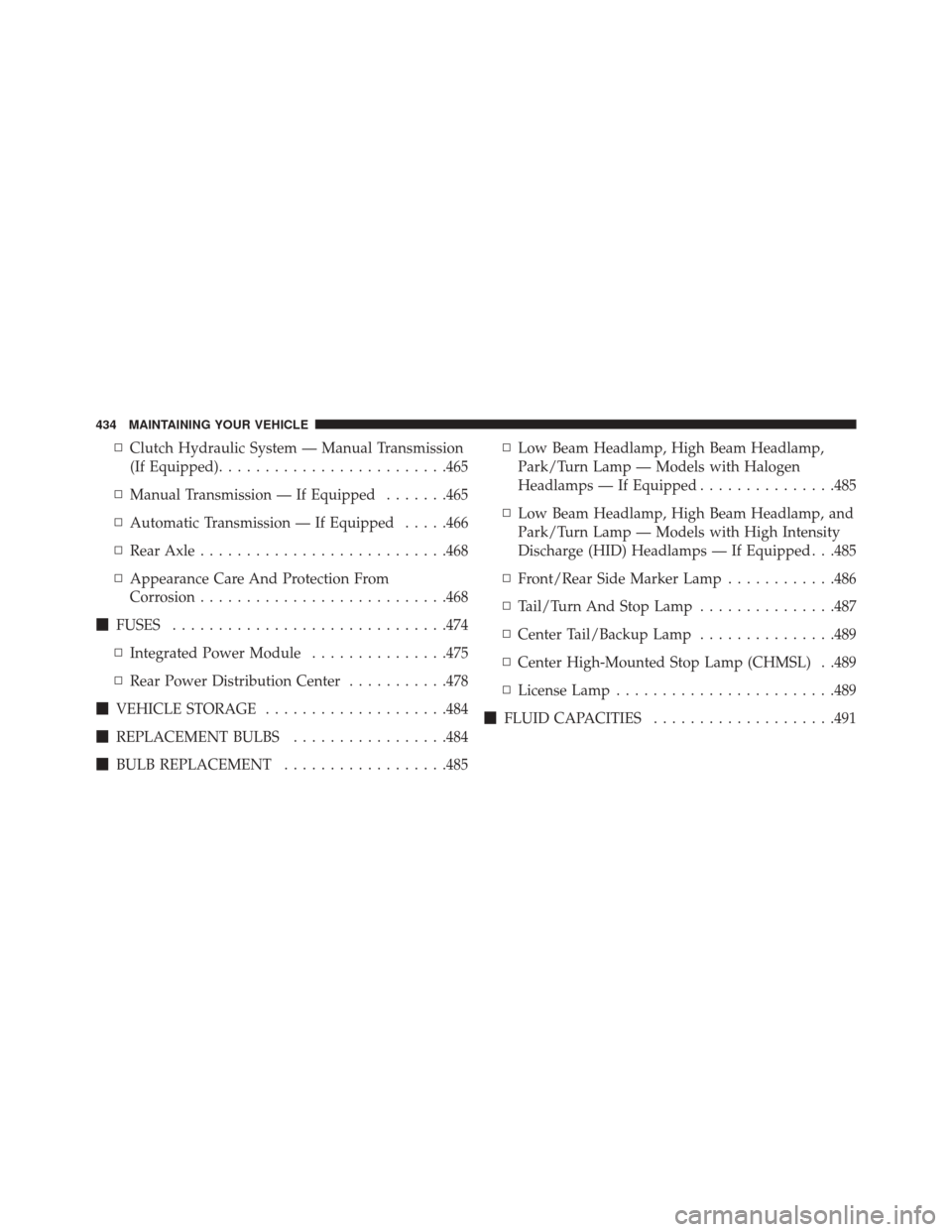

▫Clutch Hydraulic System — Manual Transmission
(If Equipped) ........................ .465
▫ Manual Transmission — If Equipped .......465
▫ Automatic Transmission — If Equipped .....466
▫ Rear Axle .......................... .468
▫ Appearance Care And Protection From
Corrosion .......................... .468
 FUSES ............................. .474
▫ Integrated Power Module ...............475
▫ Rear Power Distribution Center ...........478
 VEHICLE STORAGE ....................484
 REPLACEMENT BULBS .................484
 BULB REPLACEMENT ..................485 ▫
Low Beam Headlamp, High Beam Headlamp,
Park/Turn Lamp — Models with Halogen
Headlamps — If Equipped ...............485
▫ Low Beam Headlamp, High Beam Headlamp, and
Park/Turn Lamp — Models with High Intensity
Discharge (HID) Headlamps — If Equipped . . .485
▫ Front/Rear Side Marker Lamp ............486
▫ Tail/Turn And Stop Lamp ...............487
▫ Center Tail/Backup Lamp ...............489
▫ Center High-Mounted Stop Lamp (CHMSL) . .489
▫ License Lamp ....................... .489
 FLUID CAPACITIES ....................491
434 MAINTAINING YOUR VEHICLE

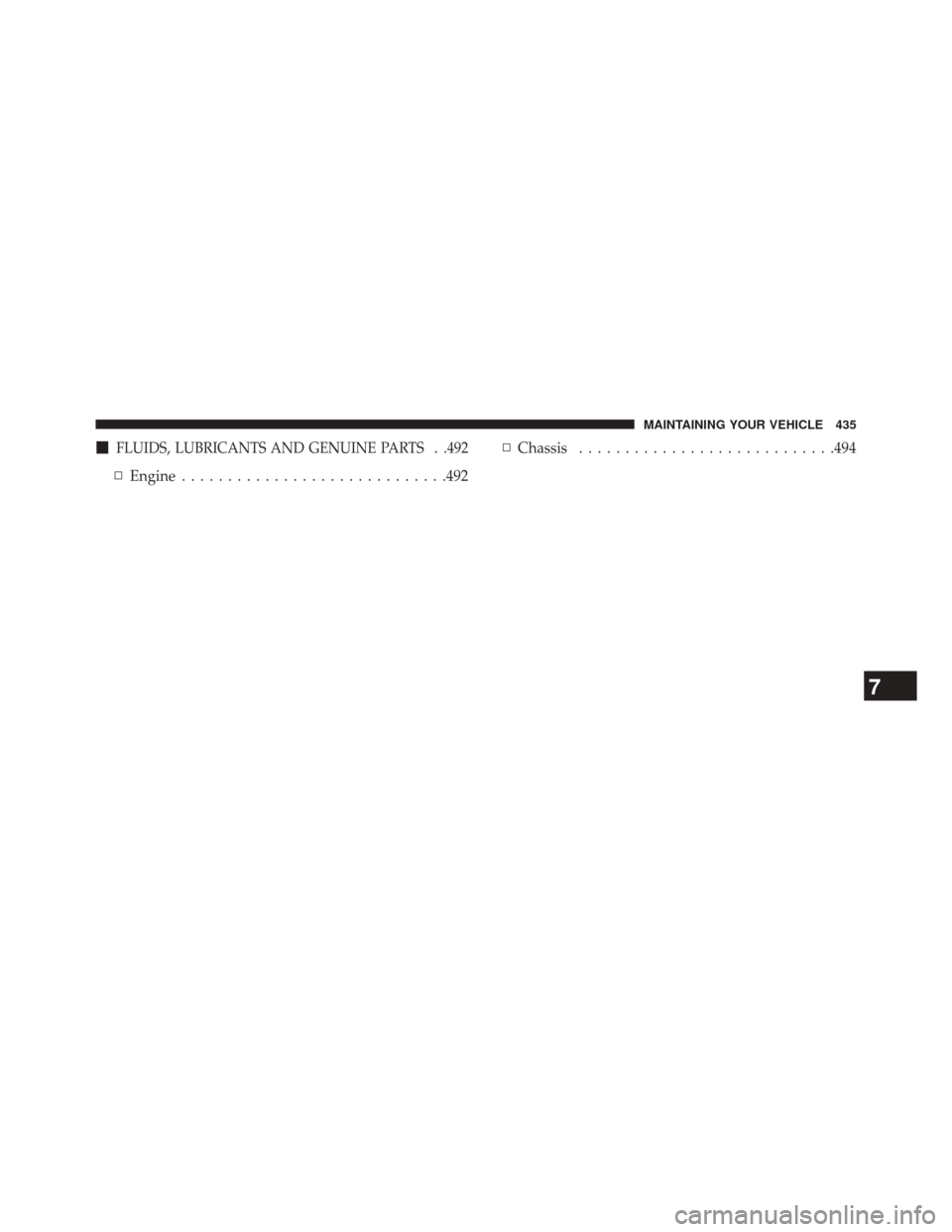

FLUIDS, LUBRICANTS AND GENUINE PARTS . .492
▫Engine ............................ .492▫
Chassis ........................... .494
7
MAINTAINING YOUR VEHICLE 435

ENGINE COMPARTMENT — 3.6L
1 — Remote Jump Start (Positive Battery
Post)4 — Engine Oil Dipstick
7 — Air Cleaner Filter
2 — Power Distribution Center (Fuses) 5 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Fill
3 — Remote Jump Start (Negative Battery
Post) 6 — Engine Coolant Reservoir
9 — Washer Fluid Reservoir
436 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 5.7L
1 — Remote Jump Start (Positive Battery
Post)4 — Brake Fluid Reservoir Access Cover 7 — Engine Oil Fill
2 — Power Distribution Center (Fuses) 5 — Engine Coolant Reservoir 8 — Engine Oil Dipstick
3 — Remote Jump Start (Negative Battery
Post) 6 — Air Cleaner Filter
9 — Washer Fluid Reservoir7
MAINTAINING YOUR VEHICLE 437

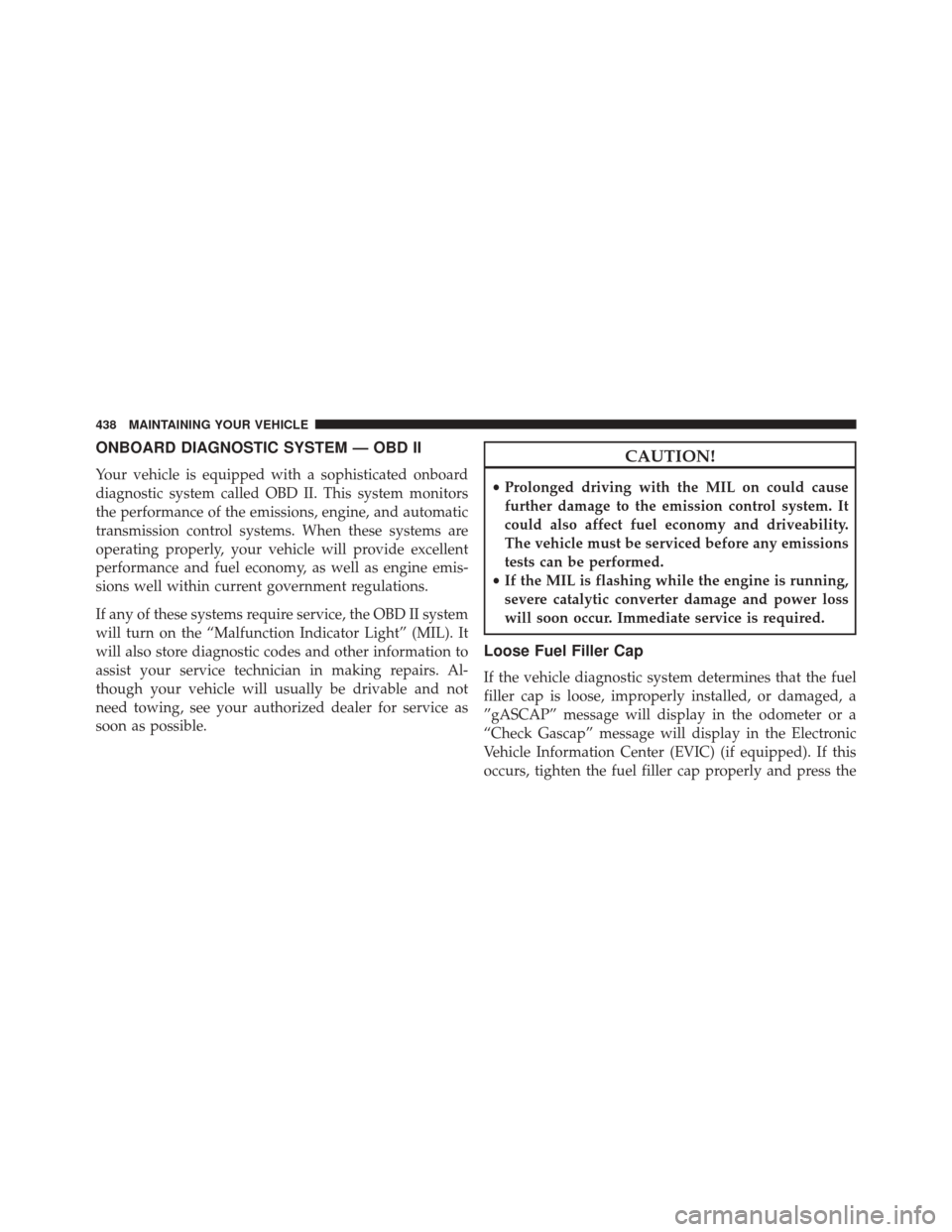

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.
CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emissions
tests can be performed.
• If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
”gASCAP” message will display in the odometer or a
“Check Gascap” message will display in the Electronic
Vehicle Information Center (EVIC) (if equipped). If this
occurs, tighten the fuel filler cap properly and press the
438 MAINTAINING YOUR VEHICLE
