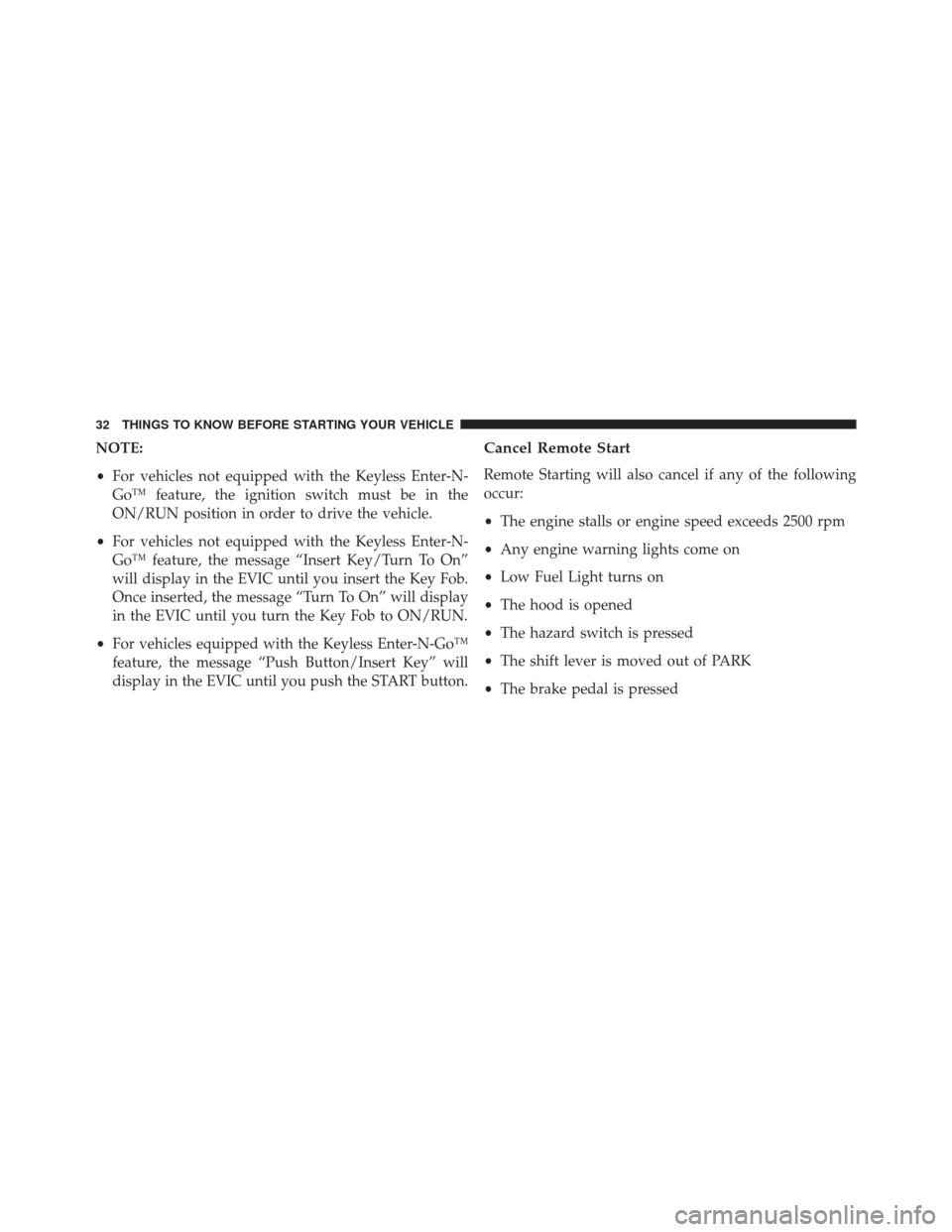

NOTE:
•For vehicles not equipped with the Keyless Enter-N-
Go™ feature, the ignition switch must be in the
ON/RUN position in order to drive the vehicle.
• For vehicles not equipped with the Keyless Enter-N-
Go™ feature, the message “Insert Key/Turn To On”
will display in the EVIC until you insert the Key Fob.
Once inserted, the message “Turn To On” will display
in the EVIC until you turn the Key Fob to ON/RUN.
• For vehicles equipped with the Keyless Enter-N-Go™
feature, the message “Push Button/Insert Key” will
display in the EVIC until you push the START button.Cancel Remote Start
Remote Starting will also cancel if any of the following
occur:
• The engine stalls or engine speed exceeds 2500 rpm
• Any engine warning lights come on
• Low Fuel Light turns on
• The hood is opened
• The hazard switch is pressed
• The shift lever is moved out of PARK
• The brake pedal is pressed
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

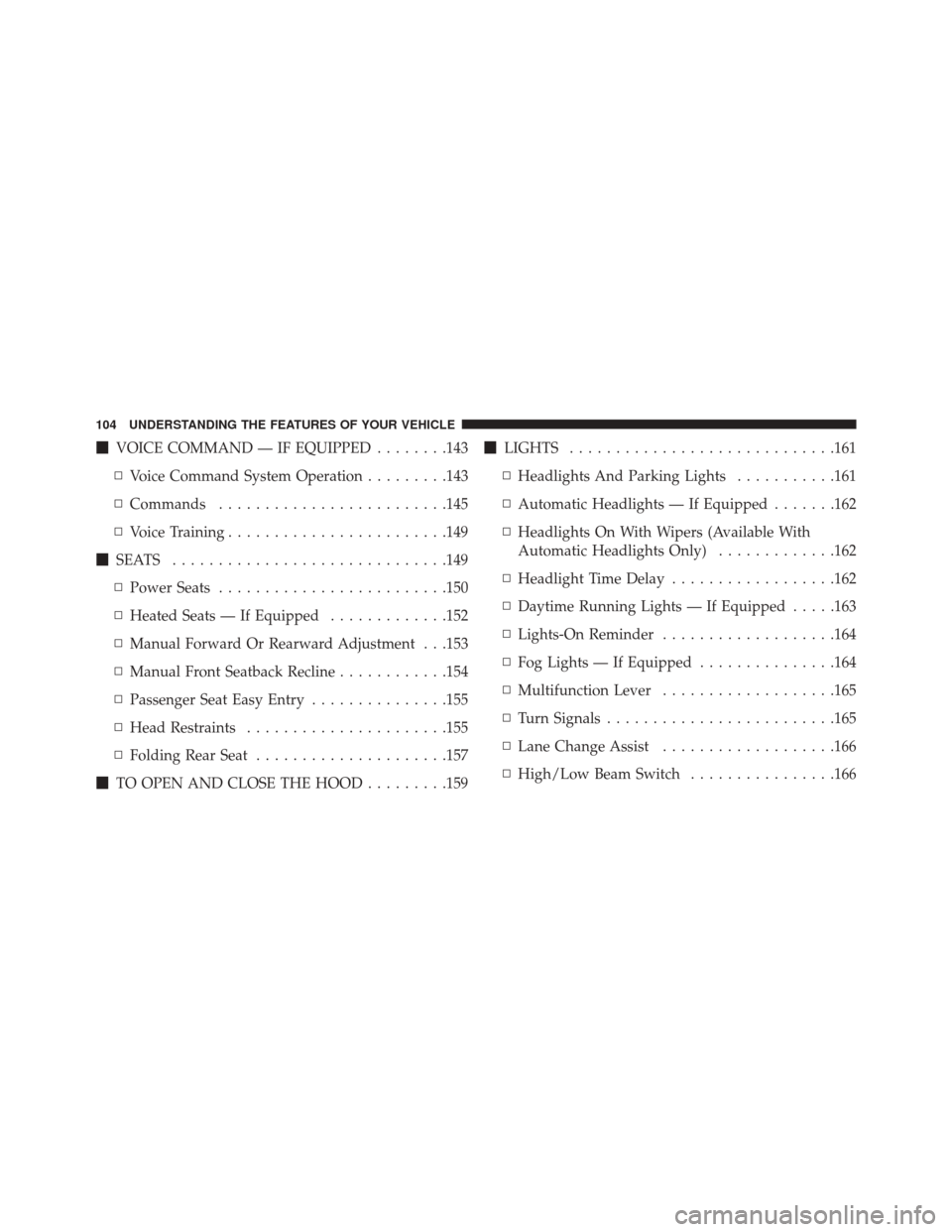

VOICE COMMAND — IF EQUIPPED ........143
▫ Voice Command System Operation .........143
▫ Commands ........................ .145
▫ Voice Training ....................... .149
 SEATS ............................. .149
▫ Power Seats ........................ .150
▫ Heated Seats — If Equipped .............152
▫ Manual Forward Or Rearward Adjustment . . .153
▫ Manual Front Seatback Recline ............154
▫ Passenger Seat Easy Entry ...............155
▫ Head Restraints ..................... .155
▫ Folding Rear Seat .....................157
 TO OPEN AND CLOSE THE HOOD .........159
LIGHTS ............................ .161
▫ Headlights And Parking Lights ...........161
▫ Automatic Headlights — If Equipped .......162
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) .............162
▫ Headlight Time Delay ..................162
▫ Daytime Running Lights — If Equipped .....163
▫ Lights-On Reminder ...................164
▫ Fog Lights — If Equipped ...............164
▫ Multifunction Lever ...................165
▫ Turn Signals ........................ .165
▫ Lane Change Assist ...................166
▫ High/Low Beam Switch ................166
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

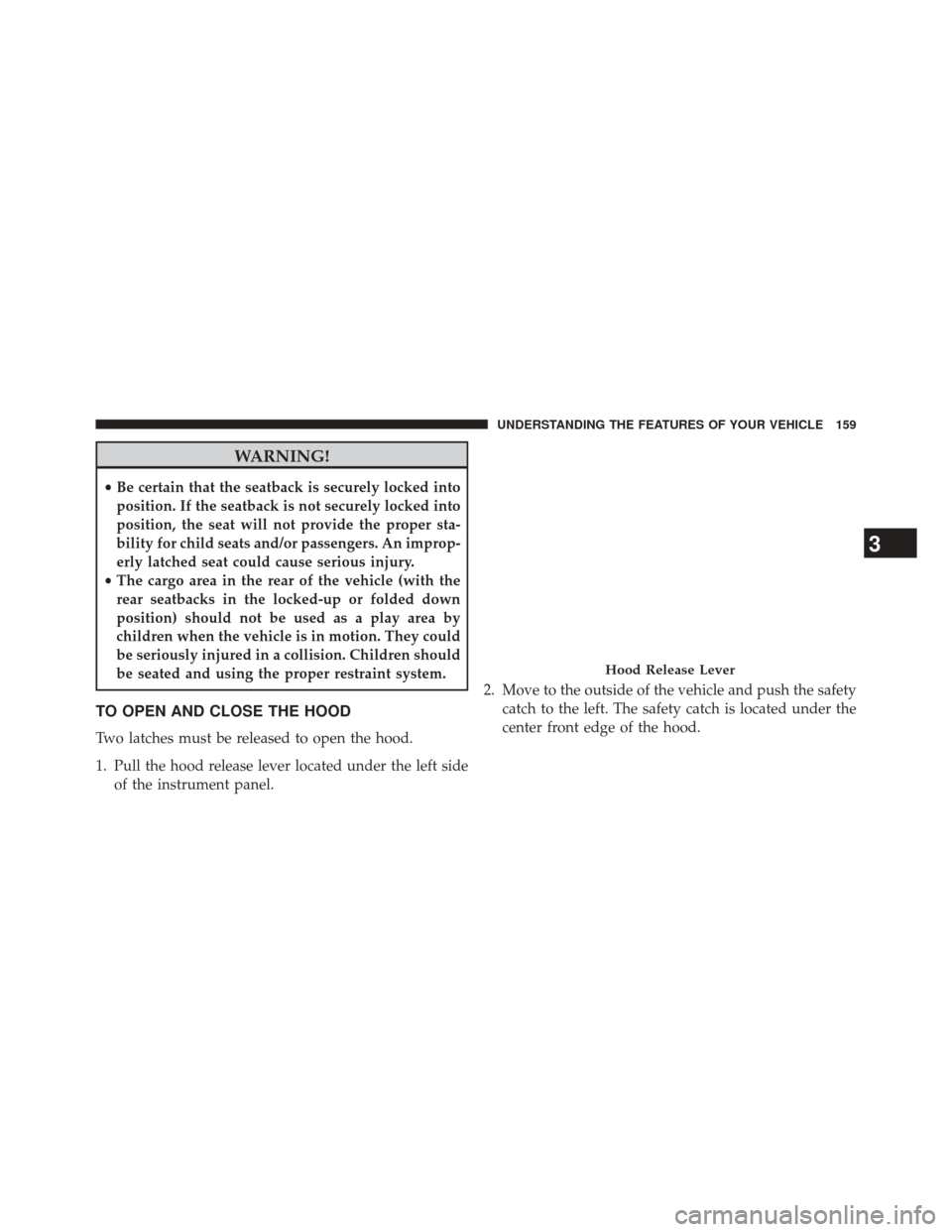

WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position, the seat will not provide the proper sta-
bility for child seats and/or passengers. An improp-
erly latched seat could cause serious injury.
• The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in a collision. Children should
be seated and using the proper restraint system.
TO OPEN AND CLOSE THE HOOD
Two latches must be released to open the hood.
1. Pull the hood release lever located under the left side of the instrument panel. 2. Move to the outside of the vehicle and push the safety
catch to the left. The safety catch is located under the
center front edge of the hood.
Hood Release Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159

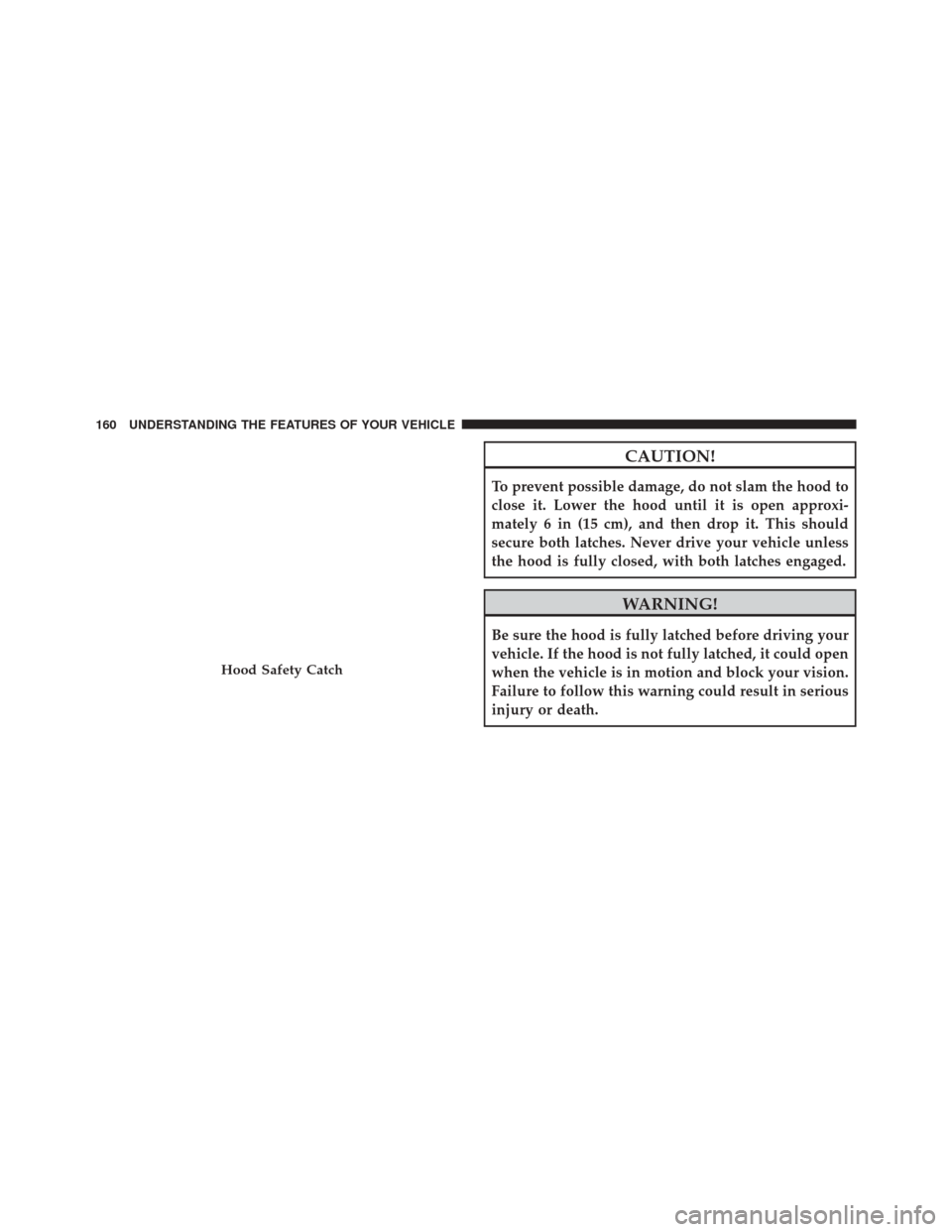

CAUTION!
To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approxi-
mately 6 in (15 cm), and then drop it. This should
secure both latches. Never drive your vehicle unless
the hood is fully closed, with both latches engaged.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
Hood Safety Catch
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

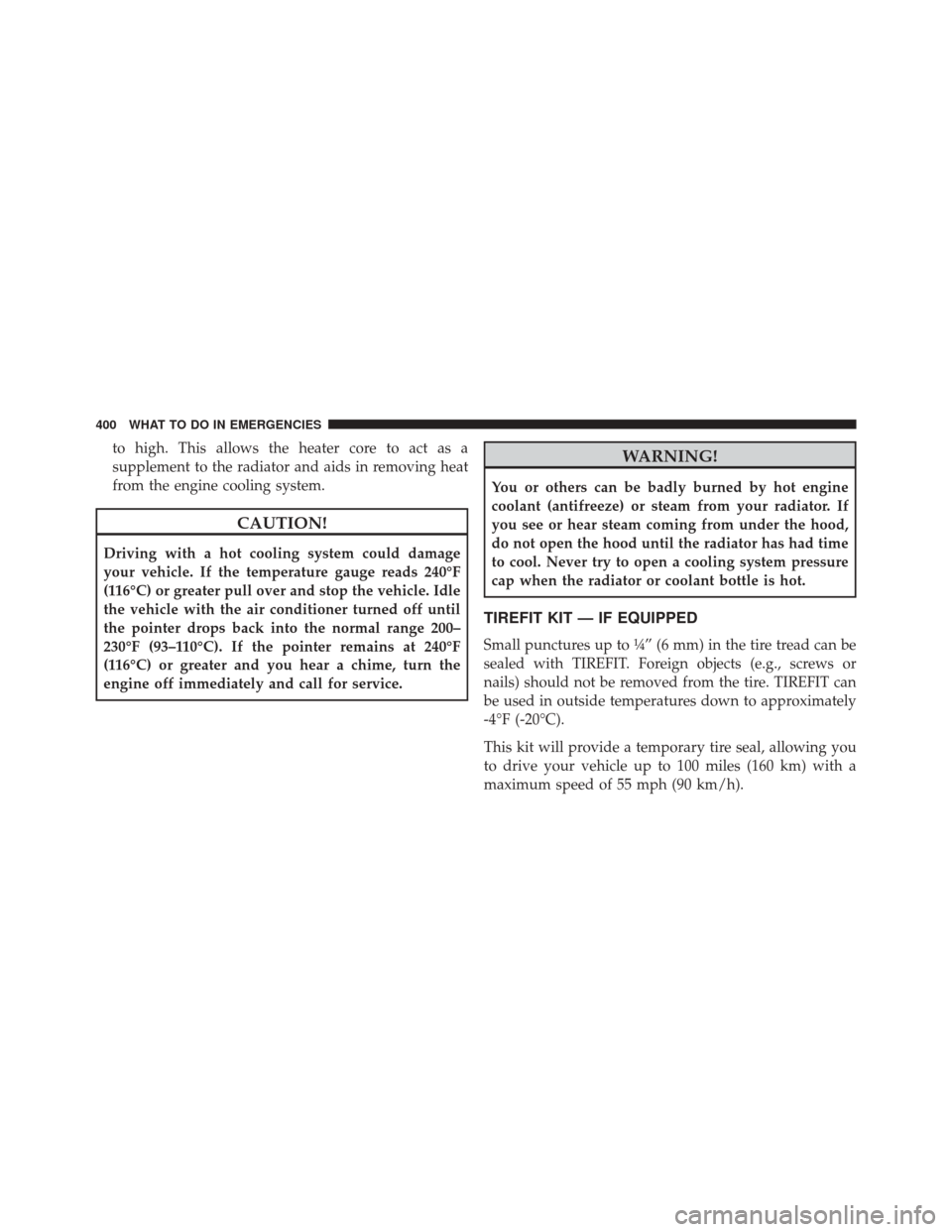

to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads 240°F
(116°C) or greater pull over and stop the vehicle. Idle
the vehicle with the air conditioner turned off until
the pointer drops back into the normal range 200–
230°F (93–110°C). If the pointer remains at 240°F
(116°C) or greater and you hear a chime, turn the
engine off immediately and call for service.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
TIREFIT KIT — IF EQUIPPED
Small punctures up to ¼” (6 mm) in the tire tread can be
sealed with TIREFIT. Foreign objects (e.g., screws or
nails) should not be removed from the tire. TIREFIT can
be used in outside temperatures down to approximately
-4°F (-20°C).
This kit will provide a temporary tire seal, allowing you
to drive your vehicle up to 100 miles (160 km) with a
maximum speed of 55 mph (90 km/h).
400 WHAT TO DO IN EMERGENCIES

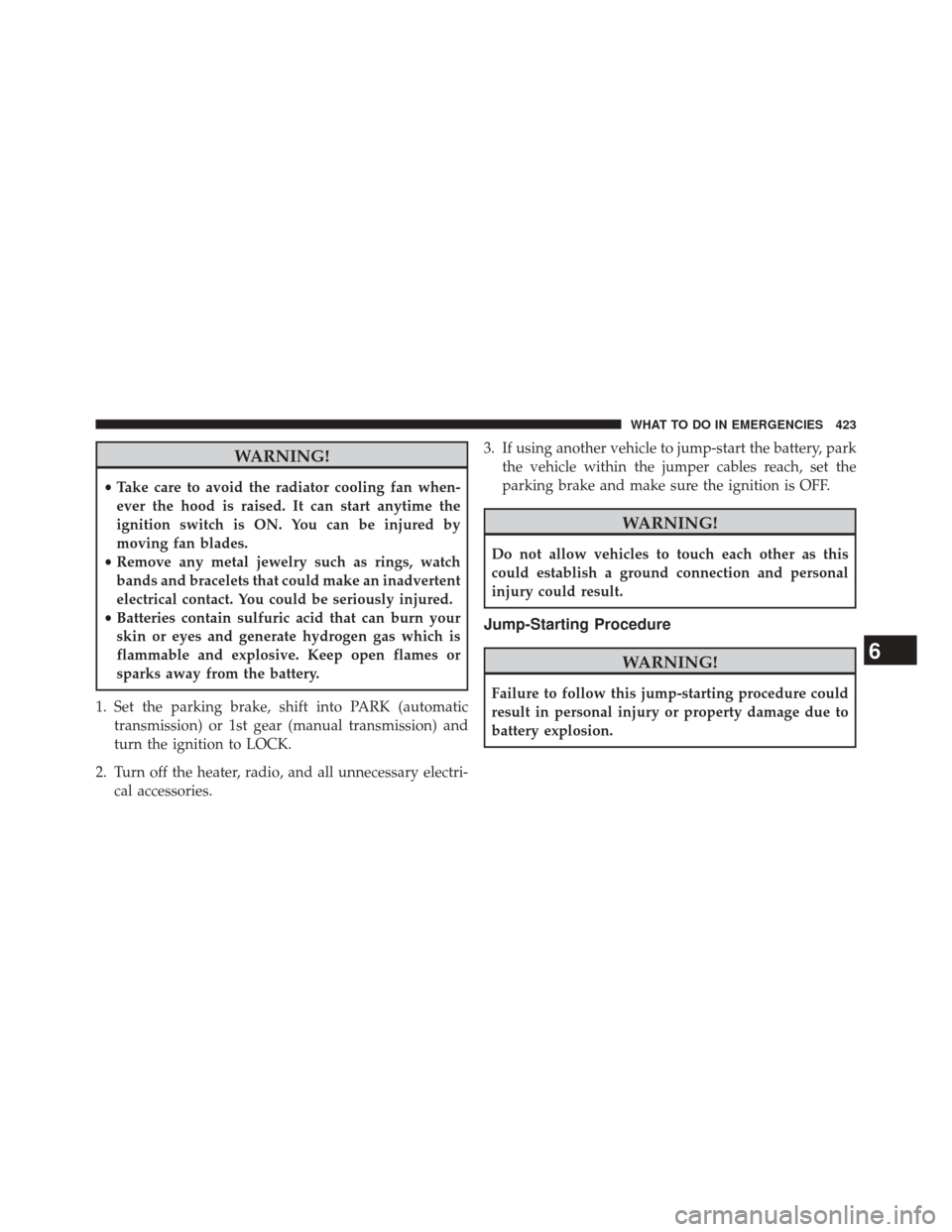

WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is ON. You can be injured by
moving fan blades.
• Remove any metal jewelry such as rings, watch
bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.
• Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift into PARK (automatic transmission) or 1st gear (manual transmission) and
turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electri- cal accessories. 3. If using another vehicle to jump-start the battery, park
the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this jump-starting procedure could
result in personal injury or property damage due to
battery explosion.
6
WHAT TO DO IN EMERGENCIES 423

•Do not idle the engine with any spark plug wires
disconnected or removed, such as when diagnostic
testing, or for prolonged periods during very rough
idle or malfunctioning operating conditions.
Cooling System
WARNING!
• When working near the radiator cooling fan,
disconnect the fan motor lead or turn the ignition
switch to the LOCK position (OFF position for
Keyless Enter-N-Go™). The fan is temperature
controlled and can start at any time the ignition
switch is in the ON position (RUN position for
Keyless Enter-N-Go™).
(Continued)
WARNING! (Continued)
•You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had
time to cool. Never try to open a cooling system
pressure cap when the radiator is hot.
Coolant Checks
Check engine coolant (antifreeze) protection every 12
months (before the onset of freezing weather, where
applicable). If coolant is dirty or rusty in appearance, the
system should be drained, flushed, and refilled with
fresh coolant. Check the front of the radiator for any
accumulation of bugs, leaves, etc. If dirty, clean by gently
spraying water from a garden hose vertically down the
face of the condenser.
456 MAINTAINING YOUR VEHICLE

Hill Start Assist.......................... .329
Hitches Trailer Towing ........................ .384
HomeLink® (Garage Door Opener) ............185
Hood Release ........................... .159
Ignition .................................14
Key..................................12
Ignition Key Removal .......................14
Illuminated Entry ..........................22
Immobilizer (Sentry Key) ....................17
Infant Restraint ...........................73
Information Center, Vehicle ..................221
Inside Rearview Mirror .....................108
Instrument Cluster ....................... .209
Instrument Panel and Controls ................208
Instrument Panel Lens Cleaning ...............473
Integrated Power Module (Fuses) ..............475
Interior Appearance Care ....................472 Interior Lights
.......................... .167
Intermittent Wipers (Delay Wipers) .............169
Introduction ..............................4
iPod®/USB/MP3 Control Bluetooth® Streaming Audio ...............147
Jacking Instructions ....................... .416
Jack Location ........................... .413
Jack Operation .......................... .412
Jump Starting ........................... .421
Key Fob Arm The Alarm .........................20
Programming Additional Key Fobs ...........19
Programming Additional Transmitters .........19
Key-In Reminder ..........................16
Keyless Enter-N-Go ........................36
Keyless Entry System .......................23
Keyless Go ...............................12
524 INDEX

General Information.....................348
High Speed .......................... .351
Inflation Pressures ...................... .349
Jacking .............................. .412
Life of Tires .......................... .357
Load Capacity ........................ .343
Pressure Monitor System (TPMS) ............362
Pressure Warning Light ...................218
Quality Grading ....................... .513
Radial .............................. .351
Replacement .......................... .358
Rotation ............................. .361
Safety .............................. .336
Sizes ............................... .337
Snow Tires ........................... .352
Spare Tire ............................ .413
Spinning ............................ .356
Trailer Towing ........................ .388
Tread Wear Indicators ....................356 Tire Safety Information
.....................336
Tongue Weight/Trailer Weight ................385
To Open Hood .......................... .159
Towing ............................... .381
24-Hour Towing Assistance ................127
Disabled Vehicle ....................... .429
Guide .............................. .385
Recreational .......................... .393
Weight .............................. .385
Towing Assistance ........................ .127
Towing Vehicle Behind a Motorhome ...........393
Traction ............................... .316
Traction Control ......................... .328
Trailer Towing .......................... .381
Cooling System Tips .................... .392
Hitches ............................. .384
Minimum

Requirements ..................386
Tips................................ .391
Trailer and Tongue Weight .................385
