sensor DODGE CHALLENGER 2017 3.G Owner's Guide

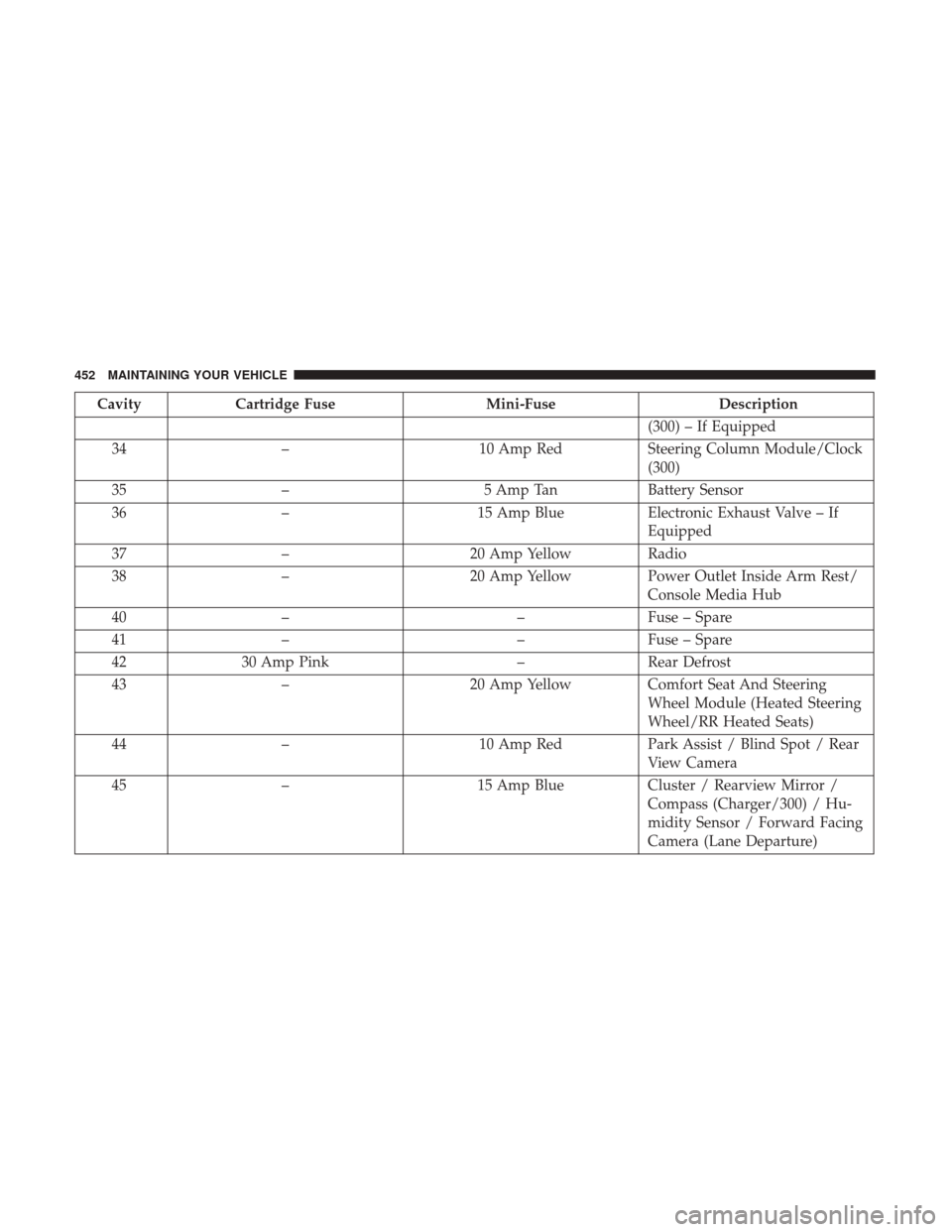

CavityCartridge Fuse Mini-FuseDescription
(300) – If Equipped
34 – 10 Amp RedSteering Column Module/Clock
(300)
35 – 5 Amp TanBattery Sensor
36 – 15 Amp BlueElectronic Exhaust Valve – If
Equipped
37 – 20 Amp YellowRadio
38 – 20 Amp YellowPower Outlet Inside Arm Rest/
Console Media Hub
40 – –Fuse – Spare
41 – –Fuse – Spare
42 30 Amp Pink –Rear Defrost
43 – 20 Amp YellowComfort Seat And Steering
Wheel Module (Heated Steering
Wheel/RR Heated Seats)
44 – 10 Amp RedPark Assist / Blind Spot / Rear
View Camera
45 – 15 Amp BlueCluster / Rearview Mirror /
Compass (Charger/300) / Hu-
midity Sensor / Forward Facing
Camera (Lane Departure)
452 MAINTAINING YOUR VEHICLE

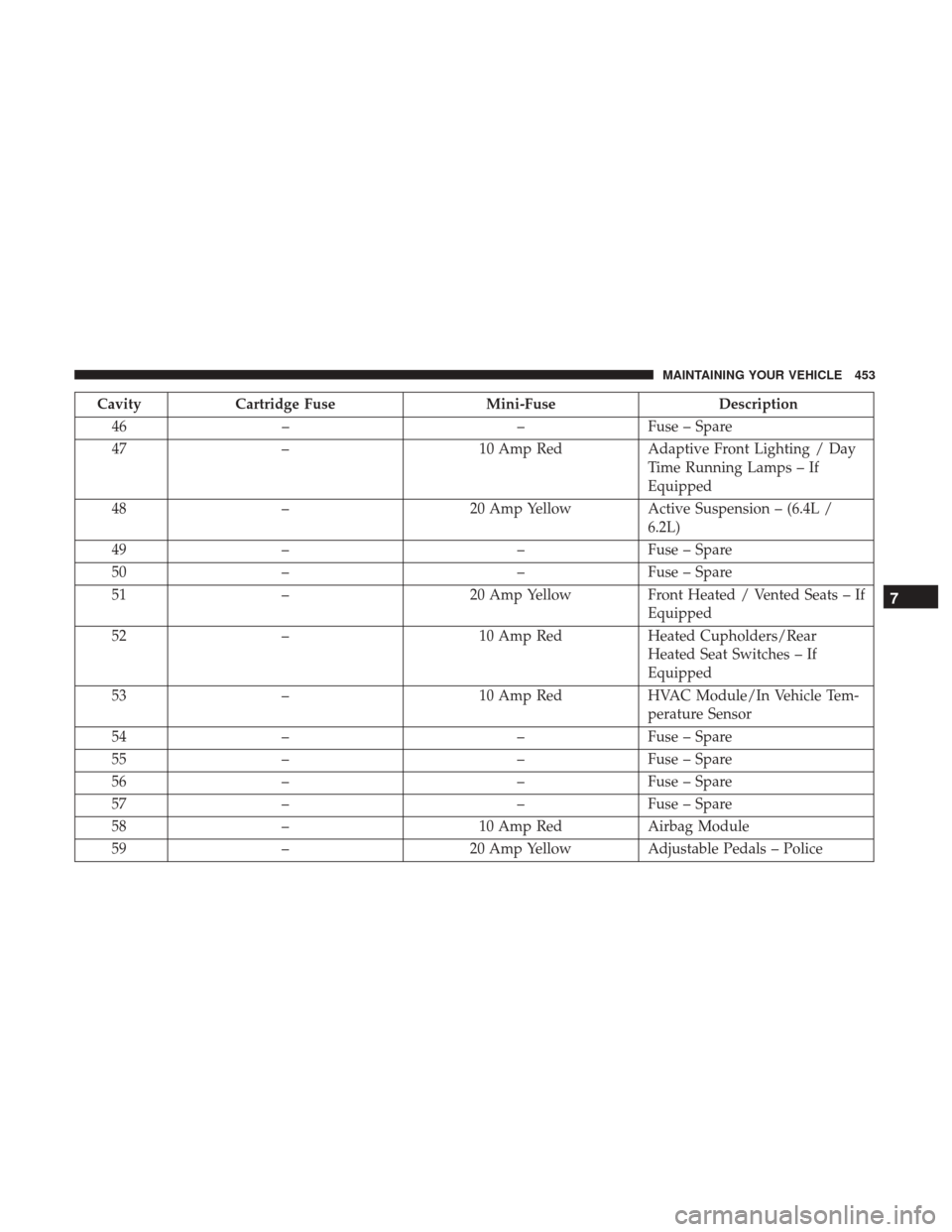

CavityCartridge Fuse Mini-FuseDescription
46 – –Fuse – Spare
47 – 10 Amp RedAdaptive Front Lighting / Day
Time Running Lamps – If
Equipped
48 – 20 Amp YellowActive Suspension – (6.4L /
6.2L)
49 – –Fuse – Spare
50 – –Fuse – Spare
51 – 20 Amp YellowFront Heated / Vented Seats – If
Equipped
52 – 10 Amp RedHeated Cupholders/Rear
Heated Seat Switches – If
Equipped
53 – 10 Amp RedHVAC Module/In Vehicle Tem-
perature Sensor
54 – –Fuse – Spare
55 – –Fuse – Spare
56 – –Fuse – Spare
57 – –Fuse – Spare
58 – 10 Amp RedAirbag Module
59 – 20 Amp YellowAdjustable Pedals – Police
7
MAINTAINING YOUR VEHICLE 453

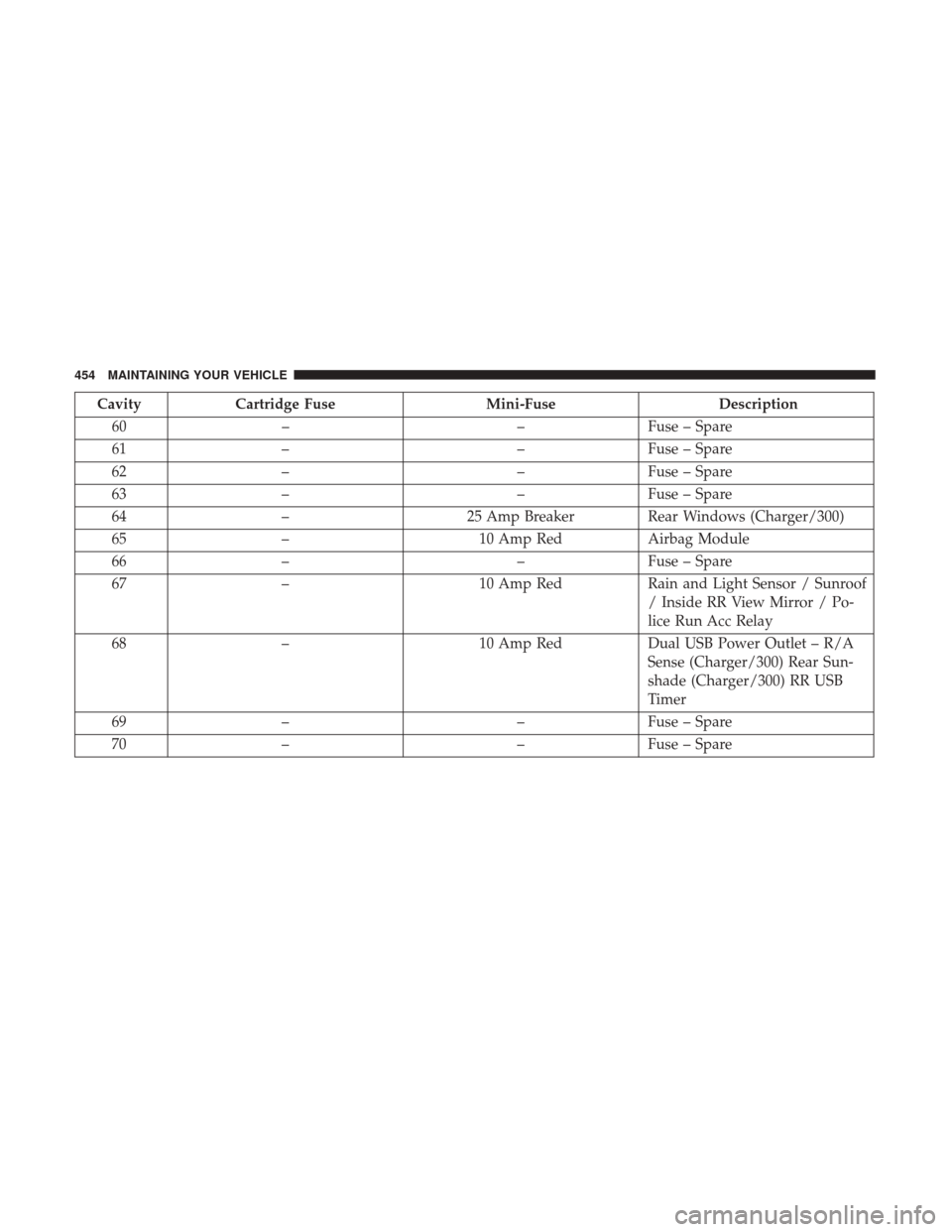

CavityCartridge Fuse Mini-FuseDescription
60 – –Fuse – Spare
61 – –Fuse – Spare
62 – –Fuse – Spare
63 – –Fuse – Spare
64 – 25 Amp Breaker Rear Windows (Charger/300)
65 – 10 Amp RedAirbag Module
66 – –Fuse – Spare
67 – 10 Amp RedRain and Light Sensor / Sunroof
/ Inside RR View Mirror / Po-
lice Run Acc Relay
68 – 10 Amp RedDual USB Power Outlet – R/A
Sense (Charger/300) Rear Sun-
shade (Charger/300) RR USB
Timer
69 – –Fuse – Spare
70 – –Fuse – Spare
454 MAINTAINING YOUR VEHICLE

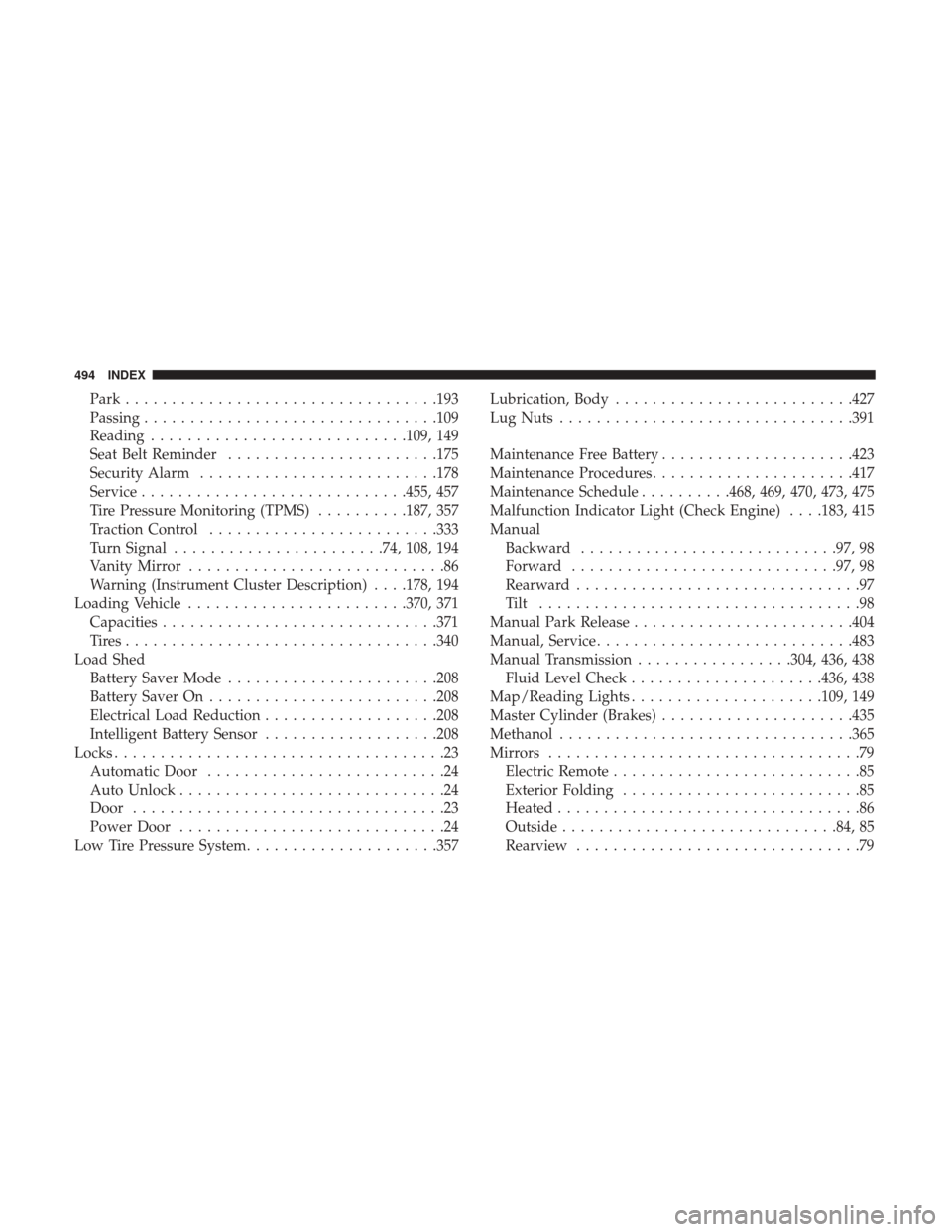

Park................................. .193
Passing ............................... .109
Reading ........................... .109, 149
Seat Belt Reminder ...................... .175
Security Alarm ......................... .178
Service ............................ .455, 457
Tire Pressure Monitoring (TPMS) ..........187, 357
Traction Control ........................ .333
Turn Signal ...................... .74, 108, 194
Vanity Mirror ............................86
Warning (Instrument Cluster Description) . . . .178, 194
Loading Vehicle ....................... .370, 371
Capacities ............................. .371
Tires................................. .340
Load Shed Battery Saver Mode ...................... .208
Battery Saver On ........................ .208
Electrical Load Reduction ...................208
Intelligent Battery Sensor ...................208
Locks ....................................23
Automatic Door ..........................24
Auto Unlock .............................24
Door ..................................23
Power Door .............................24
Low Tire Pressure System .....................357 Lubrication, Body
......................... .427
Lug Nuts ............................... .391
Maintenance Free Battery .....................423
Maintenance Procedures ..................... .417
Maintenance Schedule ..........468, 469, 470, 473, 475
Malfunction Indicator Light (Check Engine) . . . .183, 415
Manual Backward ........................... .97, 98
Forward ............................ .97, 98
Rearward ...............................97
Tilt ...................................98
Manual Park Release ....................... .404
Manual, Service ........................... .483
Manual Transmission .................304, 436, 438
Fluid Level Check .....................436,
438
Map/Reading Lights .....................109, 149
Master Cylinder (Brakes) .....................435
Methanol ............................... .365
Mirrors ..................................79
Electric Remote ...........................85
Exterior Folding ..........................85
Heated .................................86
Outside ............................. .84, 85
Rearview ...............................79
494 INDEX
