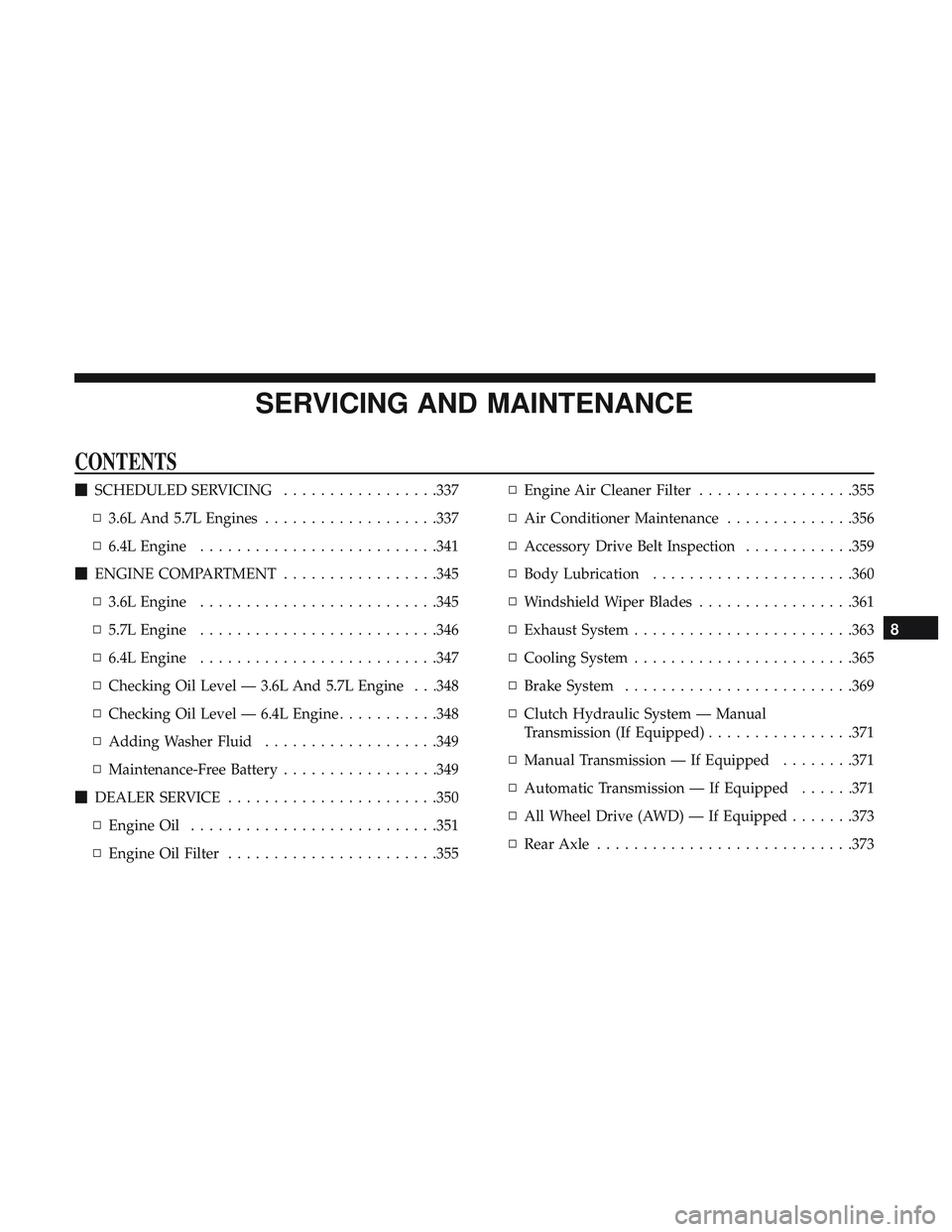

SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................337
▫ 3.6L And 5.7L Engines ...................337
▫ 6.4L Engine ......................... .341
 ENGINE COMPARTMENT .................345
▫ 3.6L Engine ......................... .345
▫ 5.7L Engine ......................... .346
▫ 6.4L Engine ......................... .347
▫ Checking Oil Level — 3.6L And 5.7L Engine . . .348
▫ Checking Oil Level — 6.4L Engine ...........348
▫ Adding Washer Fluid ...................349
▫ Maintenance-Free Battery .................349
 DEALER SERVICE ...................... .350
▫ Engine Oil .......................... .351
▫ Engine Oil Filter ...................... .355▫
Engine Air Cleaner Filter .................355
▫ Air Conditioner Maintenance ..............356
▫ Accessory Drive Belt Inspection ............359
▫ Body Lubrication ..................... .360
▫ Windshield Wiper Blades .................361
▫ Exhaust System ....................... .363
▫ Cooling System ....................... .365
▫ Brake System ........................ .369
▫ Clutch Hydraulic System — Manual
Transmission (If Equipped) ................371
▫ Manual Transmission — If Equipped ........371
▫ Automatic Transmission — If Equipped ......371
▫ All Wheel Drive (AWD) — If Equipped .......373
▫ Rear

Axle ........................... .373
8

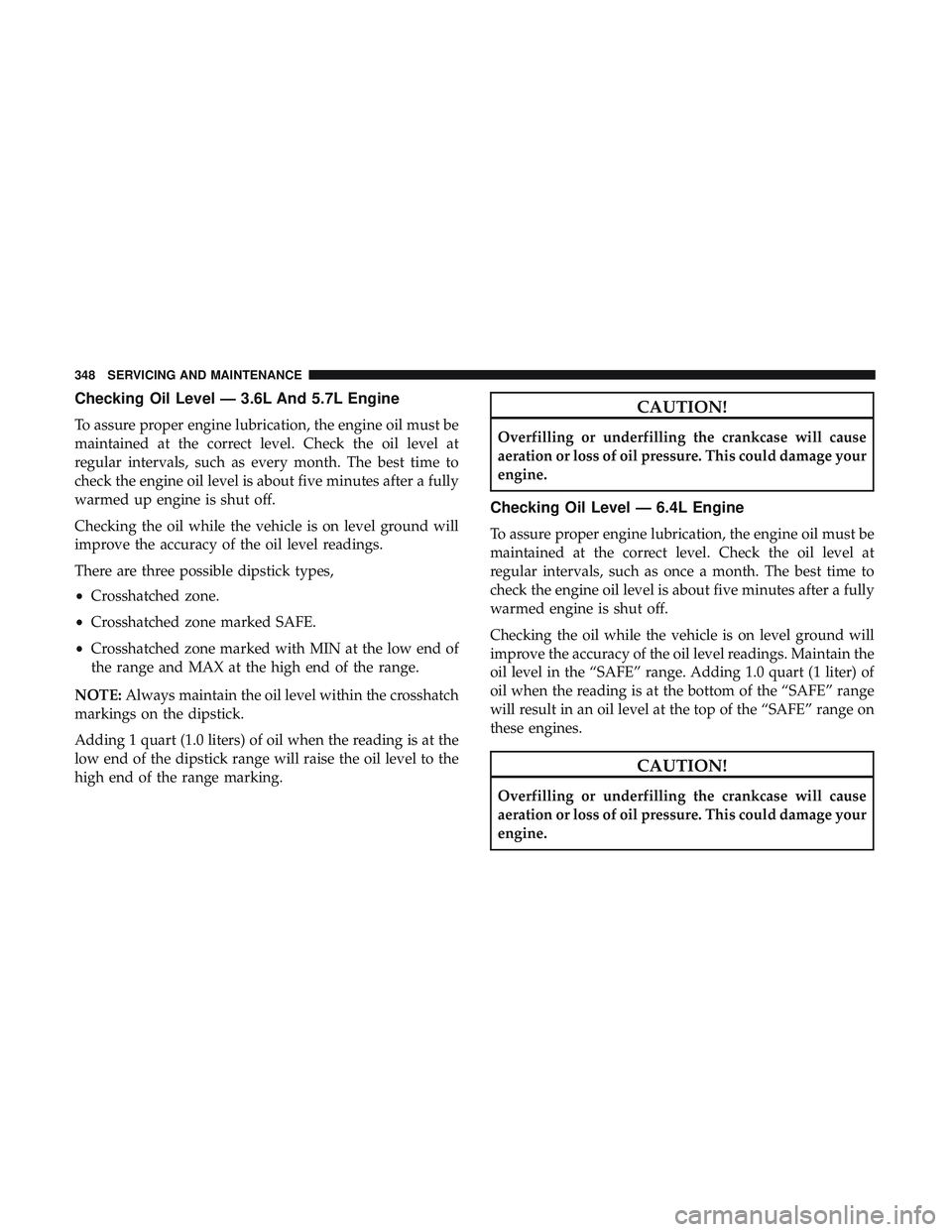

Checking Oil Level — 3.6L And 5.7L Engine
To assure proper engine lubrication, the engine oil must be
maintained at the correct level. Check the oil level at
regular intervals, such as every month. The best time to
check the engine oil level is about five minutes after a fully
warmed up engine is shut off.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings.
There are three possible dipstick types,
•Crosshatched zone.
• Crosshatched zone marked SAFE.
• Crosshatched zone marked with MIN at the low end of
the range and MAX at the high end of the range.
NOTE: Always maintain the oil level within the crosshatch
markings on the dipstick.
Adding 1 quart (1.0 liters) of oil when the reading is at the
low end of the dipstick range will raise the oil level to the
high end of the range marking.
CAUTION!
Overfilling or underfilling the crankcase will cause
aeration or loss of oil pressure. This could damage your
engine.
Checking Oil Level — 6.4L Engine
To assure proper engine lubrication, the engine oil must be
maintained at the correct level. Check the oil level at
regular intervals, such as once a month. The best time to
check the engine oil level is about five minutes after a fully
warmed engine is shut off.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Maintain the
oil level in the “SAFE” range. Adding 1.0 quart (1 liter) of
oil when the reading is at the bottom of the “SAFE” range
will result in an oil level at the top of the “SAFE” range on
these engines.
CAUTION!
Overfilling or underfilling the crankcase will cause
aeration or loss of oil pressure. This could damage your
engine.
348 SERVICING AND MAINTENANCE

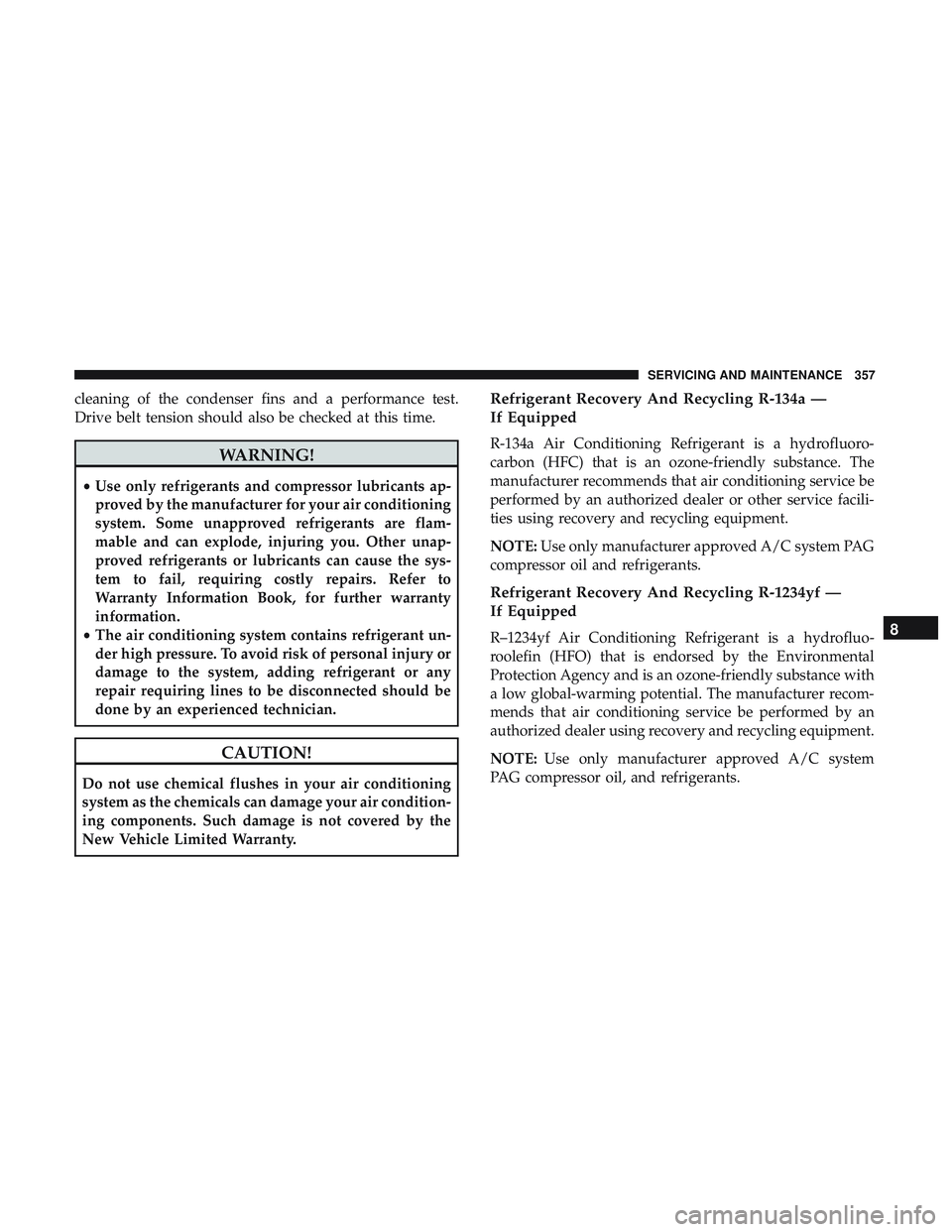

cleaning of the condenser fins and a performance test.
Drive belt tension should also be checked at this time.
WARNING!
•Use only refrigerants and compressor lubricants ap-
proved by the manufacturer for your air conditioning
system. Some unapproved refrigerants are flam-
mable and can explode, injuring you. Other unap-
proved refrigerants or lubricants can cause the sys-
tem to fail, requiring costly repairs. Refer to
Warranty Information Book, for further warranty
information.
• The air conditioning system contains refrigerant un-
der high pressure. To avoid risk of personal injury or
damage to the system, adding refrigerant or any
repair requiring lines to be disconnected should be
done by an experienced technician.
CAUTION!
Do not use chemical flushes in your air conditioning
system as the chemicals can damage your air condition-
ing components. Such damage is not covered by the
New Vehicle Limited Warranty.
Refrigerant Recovery And Recycling R-134a —
If Equipped
R-134a Air Conditioning Refrigerant is a hydrofluoro-
carbon (HFC) that is an ozone-friendly substance. The
manufacturer recommends that air conditioning service be
performed by an authorized dealer or other service facili-
ties using recovery and recycling equipment.
NOTE: Use only manufacturer approved A/C system PAG
compressor oil and refrigerants.
Refrigerant Recovery And Recycling R-1234yf —
If Equipped
R–1234yf Air Conditioning Refrigerant is a hydrofluo-
roolefin (HFO) that is endorsed by the Environmental
Protection Agency and is an ozone-friendly substance with
a low global-warming potential. The manufacturer recom-
mends that air conditioning service be performed by an
authorized dealer using recovery and recycling equipment.
NOTE: Use only manufacturer approved A/C system
PAG compressor oil, and refrigerants.8
SERVICING AND MAINTENANCE 357

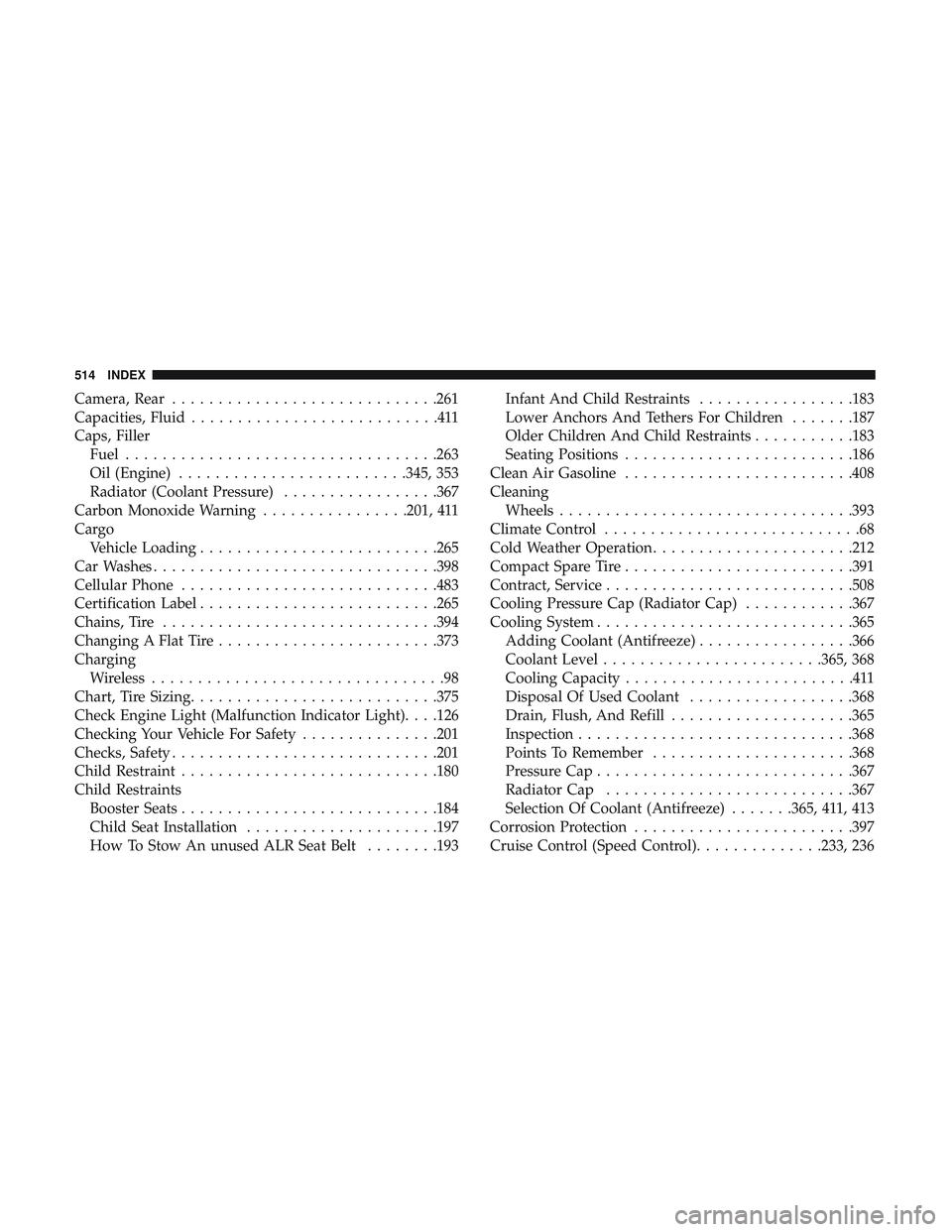

Camera, Rear............................ .261
Capacities, Fluid ...........................411
Caps, Filler Fuel ................................. .263
Oil (Engine) ........................ .345, 353
Radiator (Coolant Pressure) .................367
Carbon Monoxide Warning ................201, 411
Cargo Vehicle Loading ......................... .265
Car Washes .............................. .398
Cellular Phone ........................... .483
Certification Label ......................... .265
Chains, Tire ............................. .394
Changing A Flat Tire ....................... .373
Charging Wireless ................................98
Chart, Tire Sizing .......................... .375
Check Engine Light (Malfunction Indicator Light). . . .126
Checking Your Vehicle For Safety ...............201
Checks, Safety ............................ .201
Child Restraint ........................... .180
Child Restraints Booster Seats ........................... .184
Child Seat Installation .....................197
How To Stow An unused ALR Seat Belt ........193Infant And Child Restraints
.................183
Lower Anchors And Tethers For Children .......187
Older Children And Child Restraints ...........183
Seating Positions ........................ .186
Clean Air Gasoline ........................ .408
Cleaning Wheels ............................... .393
Climate Control ............................68
Cold Weather Operation ..................... .212
Compact Spare Tire ........................ .391
Contract, Service .......................... .508
Cooling Pressure Cap (Radiator Cap) ............367
Cooling System ........................... .365
Adding Coolant (Antifreeze) .................366
Coolant

Level ....................... .365, 368
Cooling Capacity .........................411
Disposal Of Used Coolant ..................368
Drain, Flush, And Refill ....................365
Inspection ............................. .368
Points To Remember ..................... .368
Pressure Cap ........................... .367
Radiator Cap .......................... .367
Selection Of Coolant (Antifreeze) .......365, 411, 413
Corrosion Protection ....................... .397
Cruise Control (Speed Control) ..............233, 236
514 INDEX

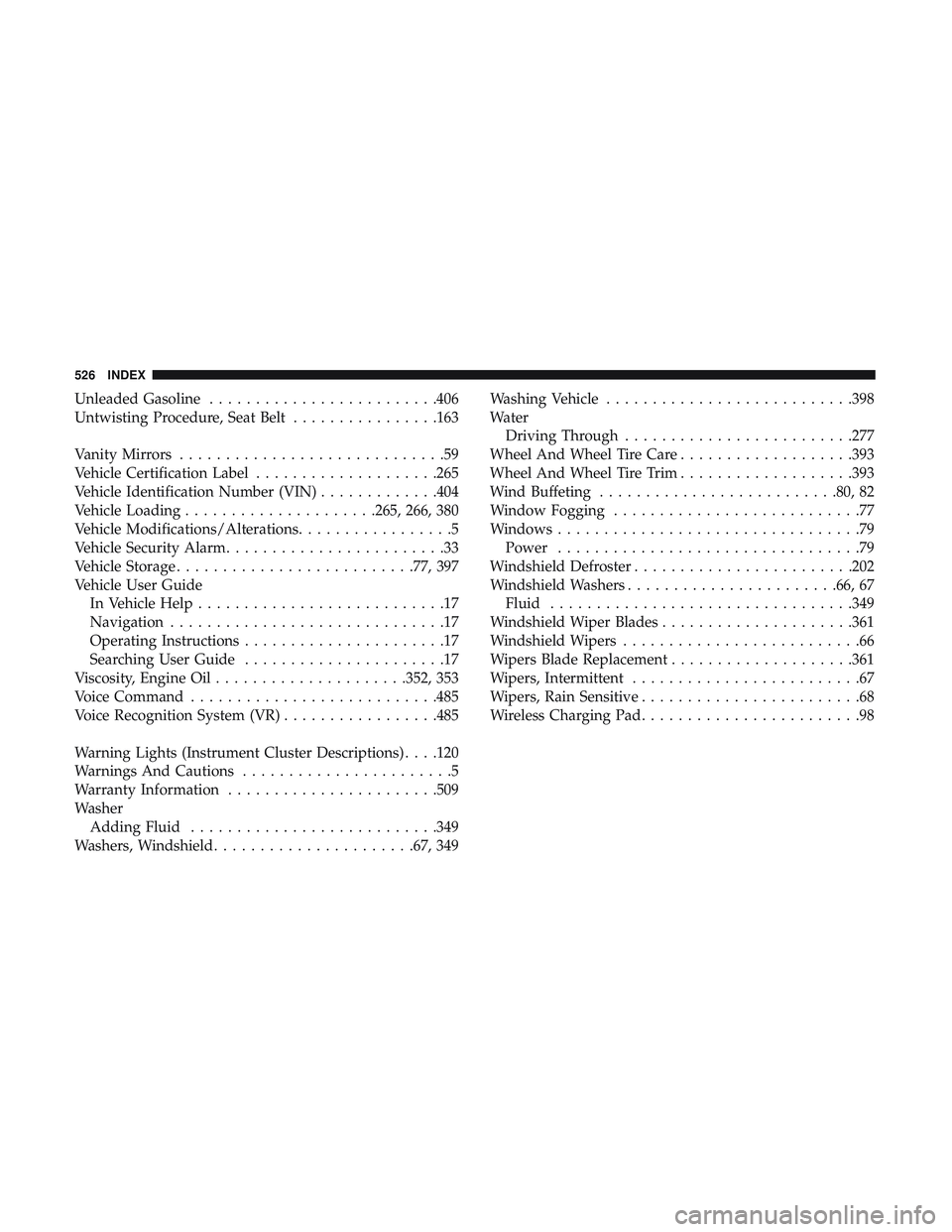

Unleaded Gasoline........................ .406
Untwisting Procedure, Seat Belt ................163
Vanity Mirrors .............................59
Vehicle Certification Label ....................265
Vehicle Identification Number (VIN) .............404
Vehicle Loading .....................265, 266, 380
Vehicle Modifications/Alterations .................5
Vehicle Security Alarm ........................33
Vehicle Storage ......................... .77, 397
Vehicle User Guide In Vehicle Help ...........................17
Navigation ..............................17
Operating Instructions ......................17
Searching User Guide ......................17
Viscosity, Engine Oil .....................352, 353
Voice Command .......................... .485
Voice Recognition System (VR) .................485
Warning Lights (Instrument Cluster Descriptions) . . . .120
Warnings And Cautions .......................5
Warranty Information ...................... .509
Washer Adding Fluid .......................... .349
Washers, Windshield ..................... .67, 349Washing Vehicle
.......................... .398
Water Driving Through ........................ .277
Wheel And Wheel Tire Care ...................393
Wheel And Wheel Tire Trim ...................393
Wind Buffeting ......................... .80, 82
Window Fogging ...........................77
Windows .................................79
Power .................................79
Windshield Defroster ....................... .202
Windshield Washers ...................... .66, 67
Fluid ................................ .349
Windshield Wiper Blades .....................361
Windshield Wipers ..........................66
Wipers Blade Replacement ....................361
Wipers, Intermittent .........................67
Wipers, Rain Sensitive ........................68
Wireless Charging Pad ........................98
526 INDEX
