service indicator DODGE CHALLENGER SRT 2010 3.G User Guide

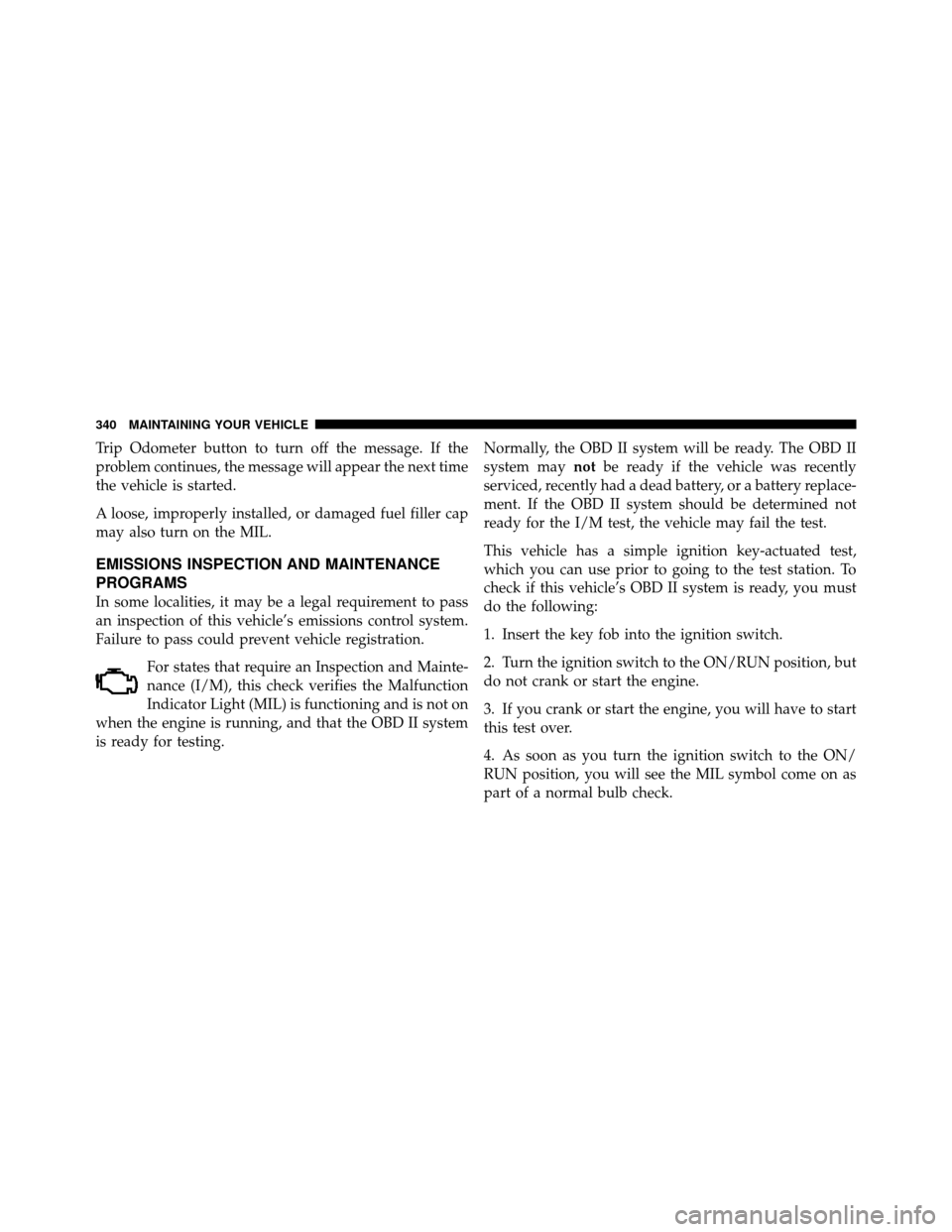

Trip Odometer button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of this vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the Malfunction
Indicator Light (MIL) is functioning and is not on
when the engine is running, and that the OBD II system
is ready for testing. Normally, the OBD II system will be ready. The OBD II
system may
notbe ready if the vehicle was recently
serviced, recently had a dead battery, or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, the vehicle may fail the test.
This vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if this vehicle’s OBD II system is ready, you must
do the following:
1. Insert the key fob into the ignition switch.
2. Turn the ignition switch to the ON/RUN position, but
do not crank or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn the ignition switch to the ON/
RUN position, you will see the MIL symbol come on as
part of a normal bulb check.
340 MAINTAINING YOUR VEHICLE

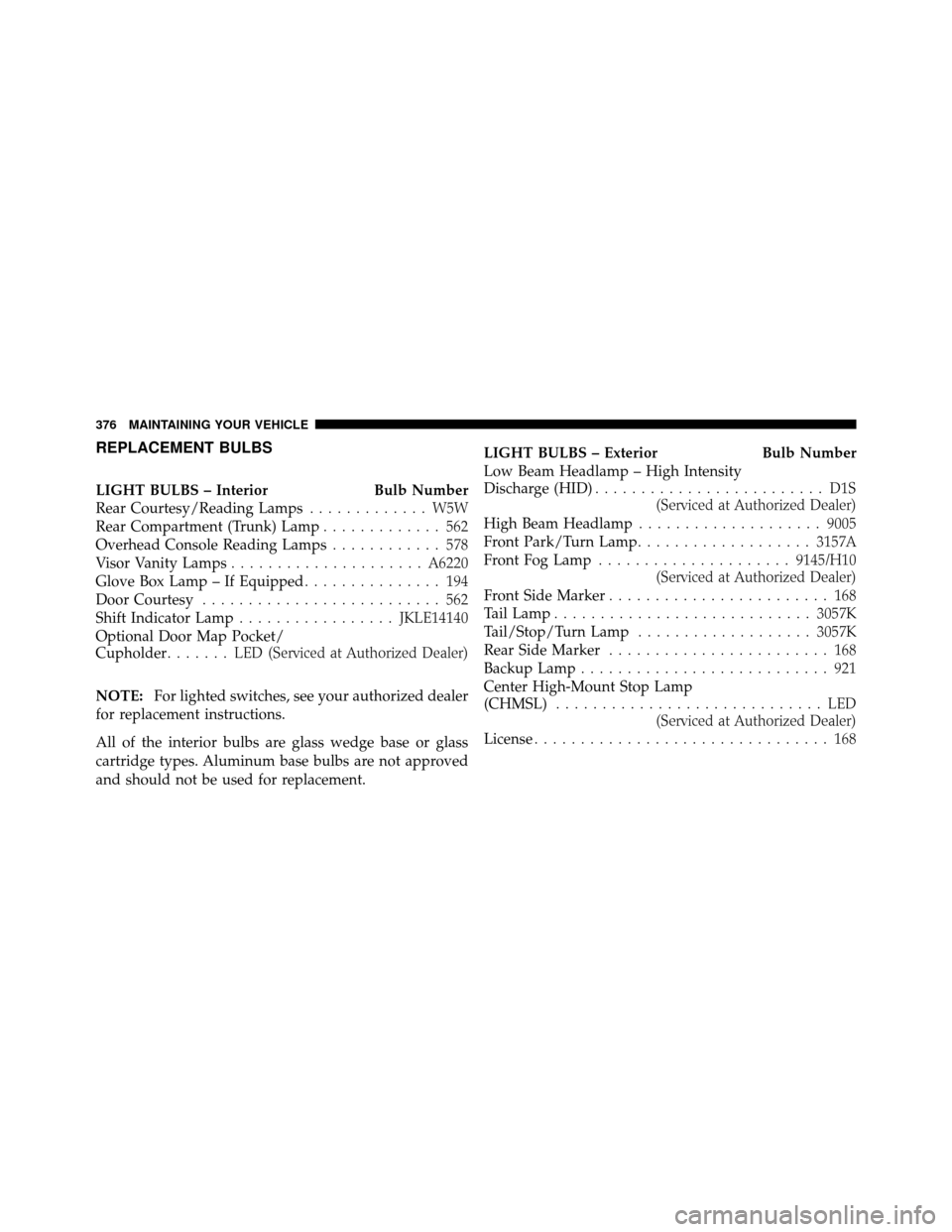

REPLACEMENT BULBS
LIGHT BULBS – InteriorBulb Number
Rear Courtesy/Reading Lamps ............. W5W
Rear Compartment (Trunk) Lamp ............. 562
Overhead Console Reading Lamps ............ 578
Visor Vanity Lamps ..................... A6220
Glove Box Lamp – If Equipped ............... 194
Door Courtesy .......................... 562
Shift Indicator Lamp ................. JKLE14140
Optional Door Map Pocket/
Cupholder ....... LED (Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement. LIGHT BULBS – Exterior
Bulb Number
Low Beam Headlamp – High Intensity
Discharge (HID) ......................... D1S
(Serviced at Authorized Dealer)
High Beam Headlamp .................... 9005
Front Park/Turn Lamp ................... 3157A
Front Fog Lamp ..................... 9145/H10
(Serviced at Authorized Dealer)
Front Side Marker ........................ 168
Tail Lamp ............................ 3057K
Tail/Stop/Turn Lamp ................... 3057K
Rear Side Marker ........................ 168
Backup Lamp ........................... 921
Center High-Mount Stop Lamp
(CHMSL) ............................. LED
(Serviced at Authorized Dealer)
License ................................ 168
376 MAINTAINING YOUR VEHICLE

EMISSION CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type,
must be done at the times or mileages specified to ensure
the continued proper functioning of the Emission Control
System. These, and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE: Maintenance, replacement, or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Have your vehicle
serviced as soon as possible, within the next 500 miles
(805 km).
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S386 MAINTENANCE SCHEDULES

Brake Warning..................... 164,267
Bulb Replacement ................... 376,377
Center Mounted Stop ................... 381
Courtesy/Reading ................... 128,137
Cruise .............................. 158
Daytime Running ...................... 125
Dimmer Switch, Headlight .............126,127
Electronic Stability Program (ESP) Indicator . . . 279
Electronic Throttle Control Warning ......... 159
Engine Temperature Warning .............. 161
Exterior .............................. 72
Fog ............................. 125,163
Hazard Warning Flasher ................. 316
Headlight Switch ...................... 123
Headlights ........................ 123,377
Headlights On Reminder ................. 125
Headlights On With Wipers ............124,131
High Beam ........................ 127,162
High Beam Indicator .................... 162 High Beam/Low Beam Select
............. 127
Illuminated Entry ....................... 20
Instrument Cluster .................. 123,158
Intensity Control ...................... 129
Interior .......................... 129,137
License ............................. 381
Lights On Reminder .................... 125
Low Fuel ............................ 167
Malfunction Indicator (Check Engine) ........ 168
Map Reading ...................... 128,137
Oil Pressure .......................... 162
Parade Mode (Daytime Brightness) ......... 129
Passing ............................. 127
Reading .......................... 128,137
Seat Belt Reminder ..................... 162
Security Alarm (Theft Alarm) .............. 165
Service ........................... 376,377
Service Engine Soon (Malfunction Indicator) . . . 168
Theft Alarm (Security Alarm) .............. 165
10
INDEX 425

Tire Pressure Monitoring (TPMS)........165,298
Traction Control ....................... 279
Turn Signal ...................... 72,126,160
Vanity Mirror .......................... 80
Voltage ............................. 158
Warning (Instrument Cluster Description) ..... 158
Loading Vehicle ...................... 310,312
Capacities ........................... 312
Tires ............................... 285
Locks ................................. 28
Auto Unlock .......................... 30
Automatic Door ........................ 30
Door ................................ 28
Power Door ........................... 29
Low Tire Pressure System .................. 298
Lower Anchors and Tether for CHildren
(LATCH) ............................ 63,64
Lubrication, Body ....................... 349
Lumbar Support ........................ 116 Maintenance Free Battery
.................. 346
Maintenance, General ..................... 342
Maintenance Procedures ................... 342
Maintenance Schedule .................... 386
Maintenance, Sunroof ..................... 146
Malfunction Indicator Light (Check Engine) . . 168,340
Manual, Service ......................... 412
Manual Transmission ...............245,361,363
Fluid Level Check ................... 361,363
Shift Speeds .......................... 247
Map/Reading Lights .................. 128,137
Master Cylinder (Brakes) .................. 359
Methanol ............................. 305
Mini-Trip Computer ...................... 173
Mirrors ................................ 77
Automatic Dimming ..................... 77
Electric Powered ....................... 79
Electric Remote ........................ 79
Exterior Folding ........................ 78
426 INDEX

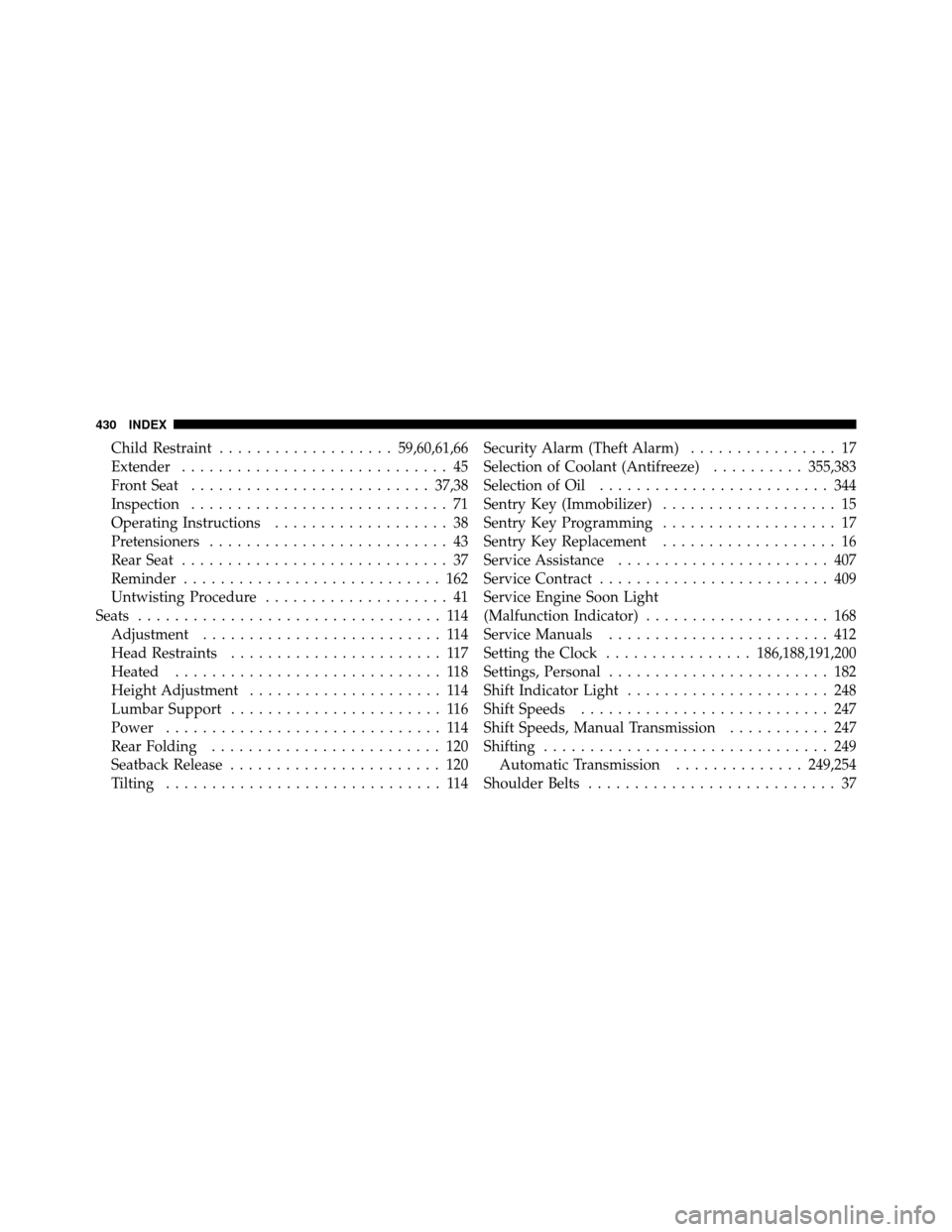

Child Restraint................... 59,60,61,66
Extender ............................. 45
Front Seat .......................... 37,38
Inspection ............................ 71
Operating Instructions ................... 38
Pretensioners .......................... 43
Rear Seat ............................. 37
Reminder ............................ 162
Untwisting Procedure .................... 41
Seats ................................. 114
Adjustment .......................... 114
Head Restraints ....................... 117
Heated ............................. 118
Height Adjustment ..................... 114
Lumbar Support ....................... 116
Power .............................. 114
Rear Folding ......................... 120
Seatback Release ....................... 120
Tilting .............................. 114 Security Alarm (Theft Alarm)
................ 17
Selection of Coolant (Antifreeze) ..........355,383
Selection of Oil ......................... 344
Sentry Key (Immobilizer) ................... 15
Sentry Key Programming ................... 17
Sentry Key Replacement ................... 16
Service Assistance ....................... 407
Service Contract ......................... 409
Service Engine Soon Light
(Malfunction Indicator) .................... 168
Service Manuals ........................ 412
Setting the Clock ................ 186,188,191,200
Settings, Personal ........................ 182
Shift Indicator Light ...................... 248
Shift Speeds ........................... 247
Shift Speeds, Manual Transmission ........... 247
Shifting ............................... 249
Automatic Transmission ..............249,254
Shoulder Belts ........................... 37
430 INDEX

Recreational.......................... 313
Towing Assistance ........................ 96
Towing Vehicle Behind a Motor Home ......... 313
Traction Control ......................... 271
Trailer Towing .......................... 312
Transmission ........................... 361
Automatic ...................... 249,254,361
Fluid ............................... 384
Manual ............................. 245
Shifting .......................... 247,249
Transmitter Battery Service
(Remote Keyless Entry) .................... 24
Transmitter, Garage Door Opener (HomeLink) . . 137
Transmitter Programming
(Remote Keyless Entry) .................... 20
Transmitter, Remote Keyless Entry (RKE) ........ 20
Transporting Pets ........................ 68
Tread Wear Indicators .................... 293
Trip Odometer .......................... 158 Trunk Lid (Deck Lid)
.................... 33,35
Trunk Release, Emergency .................. 35
Trunk Release Remote Control ............... 33
Turn Signals ......................... 126,160
UCI Connector .......................... 211
Uconnect™ (Hands-Free Phone) .............. 81
Uniform Tire Quality Grades ................ 413
Universal Consumer Interface (UCI) Connector . . . 211
Universal Transmitter ..................... 137
Unleaded Gasoline ....................... 304
Untwisting Procedure, Seat Belt .............. 41
Vanity Mirrors ........................... 80
Variance, Compass ....................... 181
Vehicle Certification Label ................. 310
Vehicle Identification Number (VIN) ............ 6
Vehicle Loading ................... 286,310,312
Vehicle Modifications/Alterations .............. 7
10
INDEX 433
