CAUTION! (Continued)
•Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlet as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your warranty.
CUPHOLDERS
Front Cupholders
The front cupholders are located in the center console.
Illuminated Front Cupholders — If Equipped
The front cupholders are illuminated with LEDs. They
are turned on with the headlights or parking lights. Refer
to “Lights” in “Understanding The Features Of Your
Vehicle” for further information.
Front Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169

Rear Cupholders
The rear seat cupholders are located in the center armrest
between the rear seats. The cupholders are positioned
forward in the armrest and side-by-side to provide con-
venient access to beverage cans or bottles while maintain-
ing a resting place for the rear occupant’s elbows.
CONSOLE FEATURES
Sliding Center Console Armrest
The center console armrest slides forward with three
detents to provide flexibility for comfort, cupholder use
and shifting ease.
Rear CupholdersSliding Console Armrest
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Console Storage
The center console has a storage compartment located
underneath the armrest, and also contains a 12 Volt
power outlet, a molded-in coin holder (designed to hold
various size coins). The center console may also be
equipped with a Universal Consumer Interface (UCI).
UCI supports Mini, 4G, Photo, Nano, 5G iPodand
iPhone devices. Refer to “Universal Consumer Interface
(UCI) — If Equipped” in “Understanding Your Instru-
ment Panel” for further information.
Center Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171

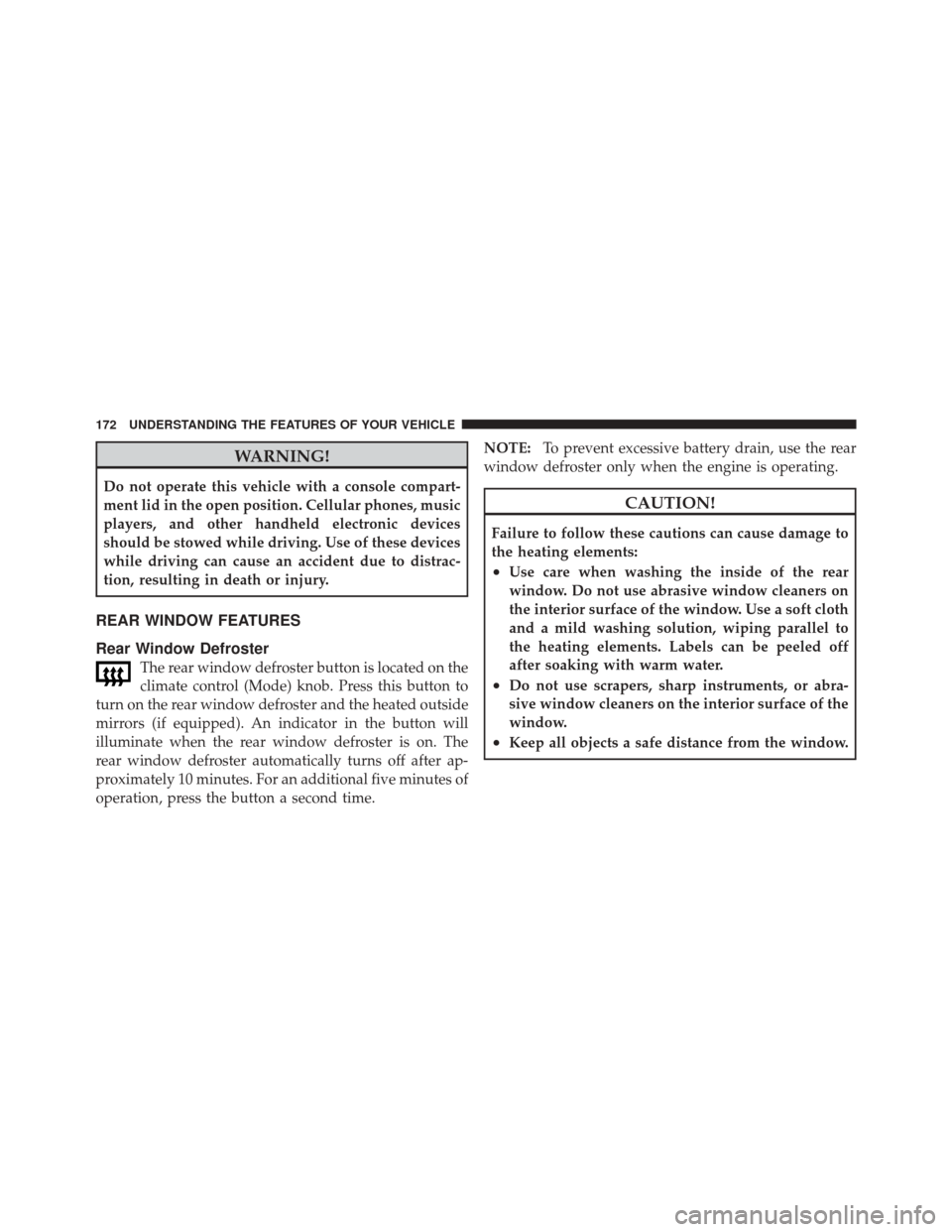

WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Cellular phones, music
players, and other handheld electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on the
climate control (Mode) knob. Press this button to
turn on the rear window defroster and the heated outside
mirrors (if equipped). An indicator in the button will
illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, press the button a second time. NOTE:
To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

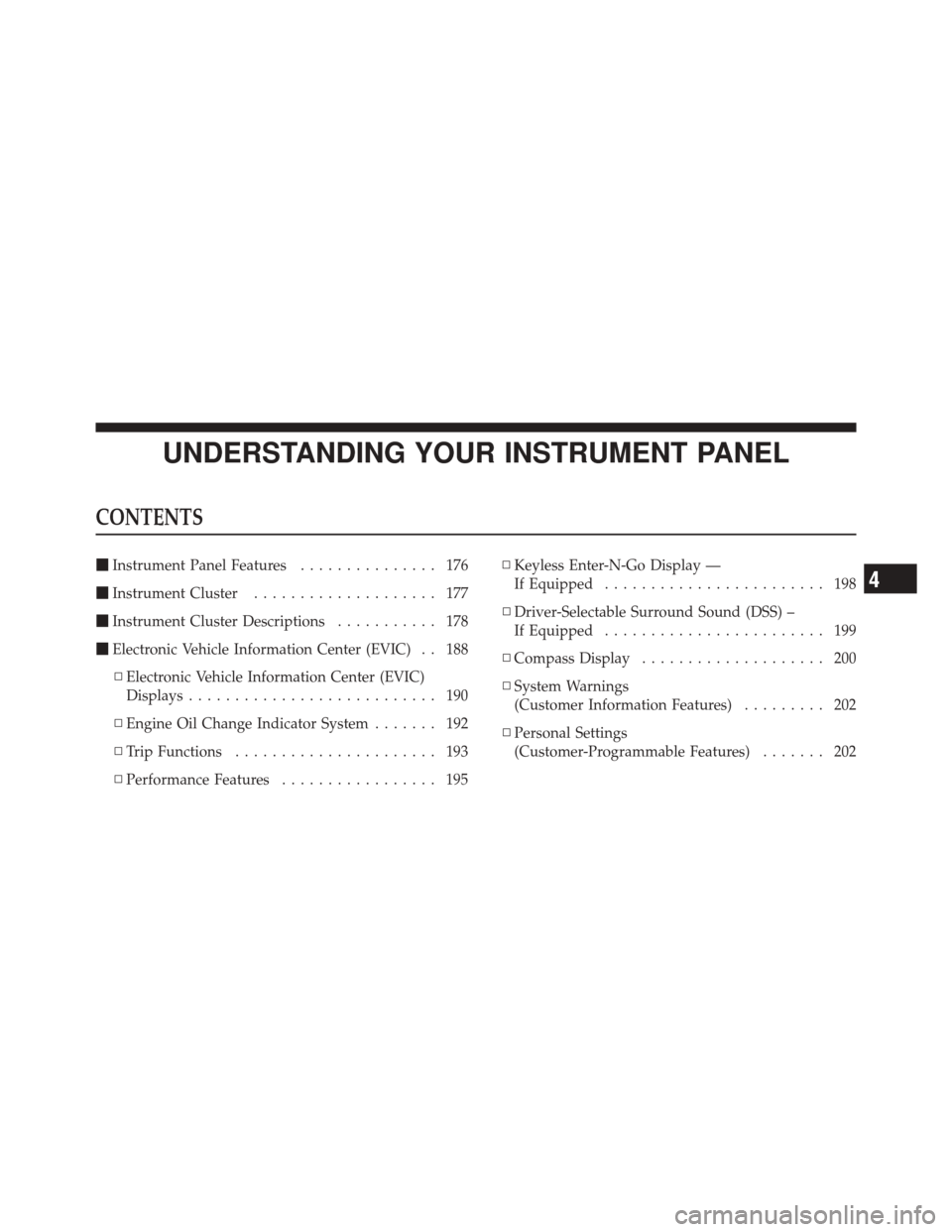

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 176
 Instrument Cluster .................... 177
 Instrument Cluster Descriptions ........... 178
 Electronic Vehicle Information Center (EVIC) . . 188
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 190
▫ Engine Oil Change Indicator System ....... 192
▫ Trip Functions ...................... 193
▫ Performance Features ................. 195 ▫
Keyless Enter-N-Go Display —
If Equipped ........................ 198
▫ Driver-Selectable Surround Sound (DSS) –
If Equipped ........................ 199
▫ Compass Display .................... 200
▫ System Warnings
(Customer Information Features) ......... 202
▫ Personal Settings
(Customer-Programmable Features) ....... 202
4

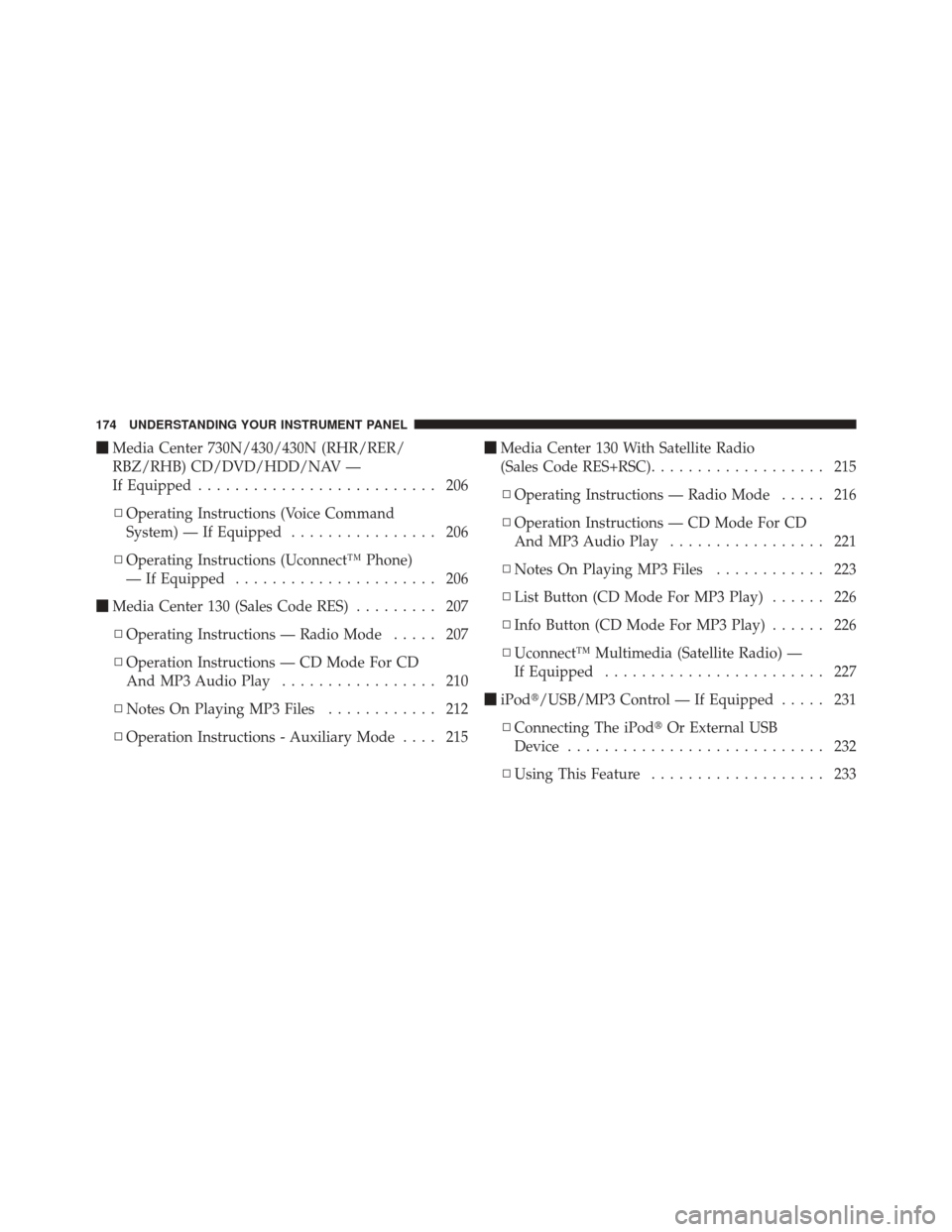

Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV —
If Equipped .......................... 206
▫ Operating Instructions (Voice Command
System) — If Equipped ................ 206
▫ Operating Instructions (Uconnect™ Phone)
— If Equipped ...................... 206
 Media Center 130 (Sales Code RES) ......... 207
▫ Operating Instructions — Radio Mode ..... 207
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 210
▫ Notes On Playing MP3 Files ............ 212
▫ Operation Instructions - Auxiliary Mode .... 215
Media Center 130 With Satellite Radio
(Sales Code RES+RSC) ................... 215
▫ Operating Instructions — Radio Mode ..... 216
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 221
▫ Notes On Playing MP3 Files ............ 223
▫ List Button (CD Mode For MP3 Play) ...... 226
▫ Info Button (CD Mode For MP3 Play) ...... 226
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 227
 iPod/USB/MP3 Control — If Equipped ..... 231
▫ Connecting The iPod Or External USB
Device ............................ 232
▫ Using This Feature ................... 233
174 UNDERSTANDING YOUR INSTRUMENT PANEL

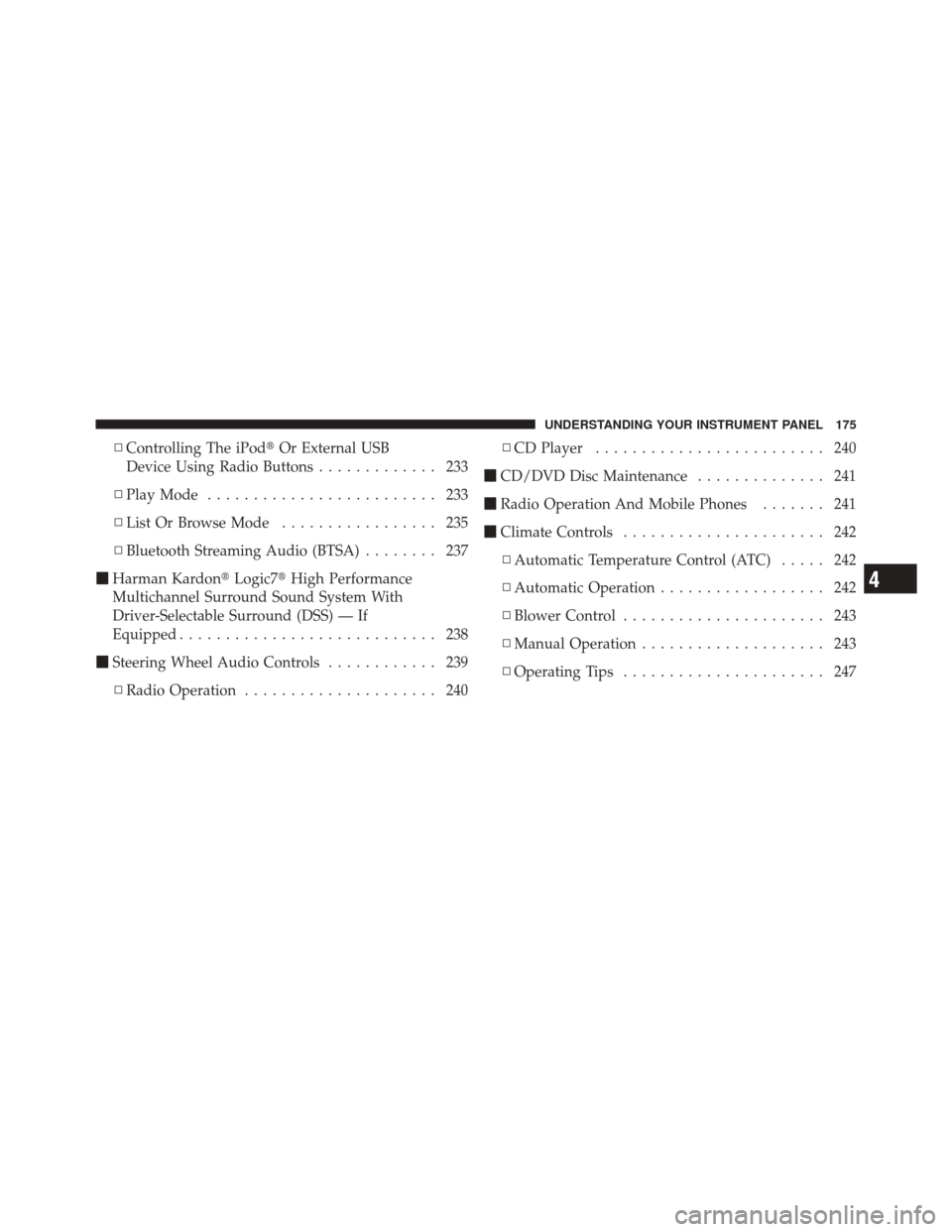

▫Controlling The iPod Or External USB
Device Using Radio Buttons ............. 233
▫ Play Mode ......................... 233
▫ List Or Browse Mode ................. 235
▫ Bluetooth Streaming Audio (BTSA) ........ 237
 Harman Kardon Logic7High Performance
Multichannel Surround Sound System With
Driver-Selectable Surround (DSS) — If
Equipped ............................ 238
 Steering Wheel Audio Controls ............ 239
▫ Radio Operation ..................... 240 ▫
CD Player ......................... 240
 CD/DVD Disc Maintenance .............. 241
 Radio Operation And Mobile Phones ....... 241
 Climate Controls ...................... 242
▫ Automatic Temperature Control (ATC) ..... 242
▫ Automatic Operation .................. 242
▫ Blower Control ...................... 243
▫ Manual Operation .................... 243
▫ Operating Tips ...................... 247
4
UNDERSTANDING YOUR INSTRUMENT PANEL 175

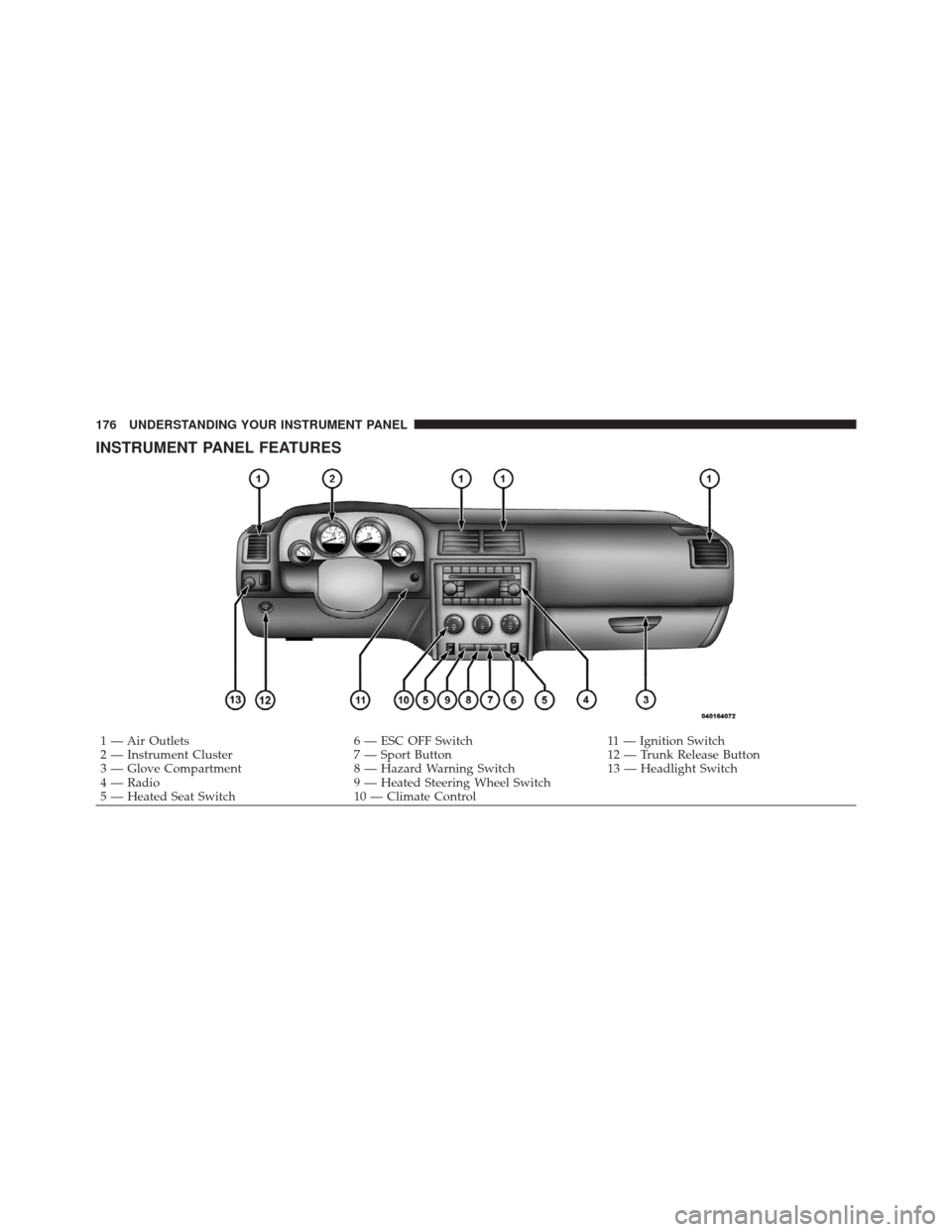

INSTRUMENT PANEL FEATURES
1 — Air Outlets6 — ESC OFF Switch11 — Ignition Switch
2 — Instrument Cluster 7 — Sport Button12 — Trunk Release Button
3 — Glove Compartment 8 — Hazard Warning Switch13 — Headlight Switch
4 — Radio 9 — Heated Steering Wheel Switch
5 — Heated Seat Switch 10 — Climate Control
176 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 177

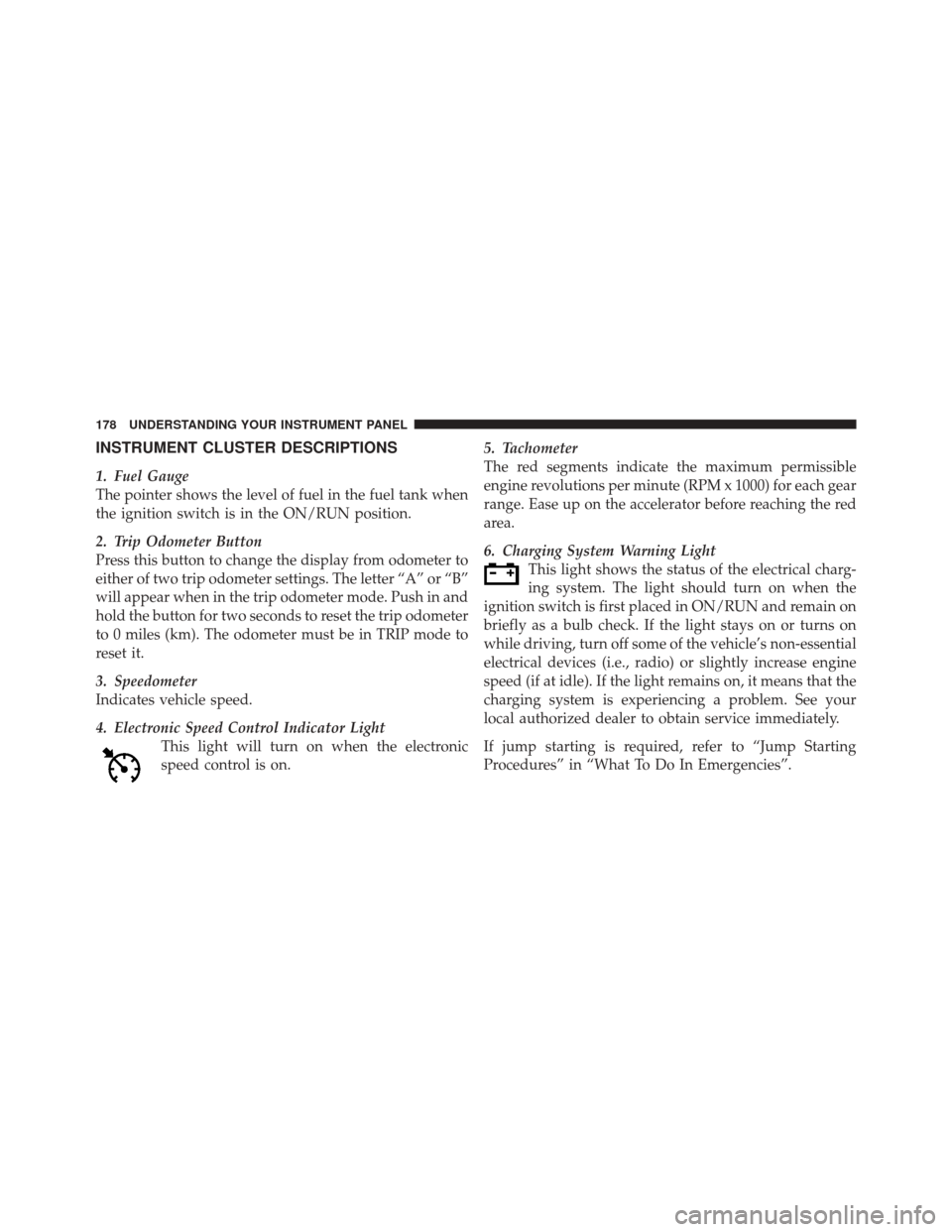

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition switch is in the ON/RUN position.
2. Trip Odometer Button
Press this button to change the display from odometer to
either of two trip odometer settings. The letter “A” or “B”
will appear when in the trip odometer mode. Push in and
hold the button for two seconds to reset the trip odometer
to 0 miles (km). The odometer must be in TRIP mode to
reset it.
3. Speedometer
Indicates vehicle speed.
4. Electronic Speed Control Indicator LightThis light will turn on when the electronic
speed control is on. 5. Tachometer
The red segments indicate the maximum permissible
engine revolutions per minute (RPM x 1000) for each gear
range. Ease up on the accelerator before reaching the red
area.
6. Charging System Warning Light
This light shows the status of the electrical charg-
ing system. The light should turn on when the
ignition switch is first placed in ON/RUN and remain on
briefly as a bulb check. If the light stays on or turns on
while driving, turn off some of the vehicle’s non-essential
electrical devices (i.e., radio) or slightly increase engine
speed (if at idle). If the light remains on, it means that the
charging system is experiencing a problem. See your
local authorized dealer to obtain service immediately.
If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”.
