DODGE CHALLENGER SRT 2012 3.G User Guide
Manufacturer: DODGE, Model Year: 2012, Model line: CHALLENGER SRT, Model: DODGE CHALLENGER SRT 2012 3.GPages: 471, PDF Size: 3.21 MB
Page 11 of 471

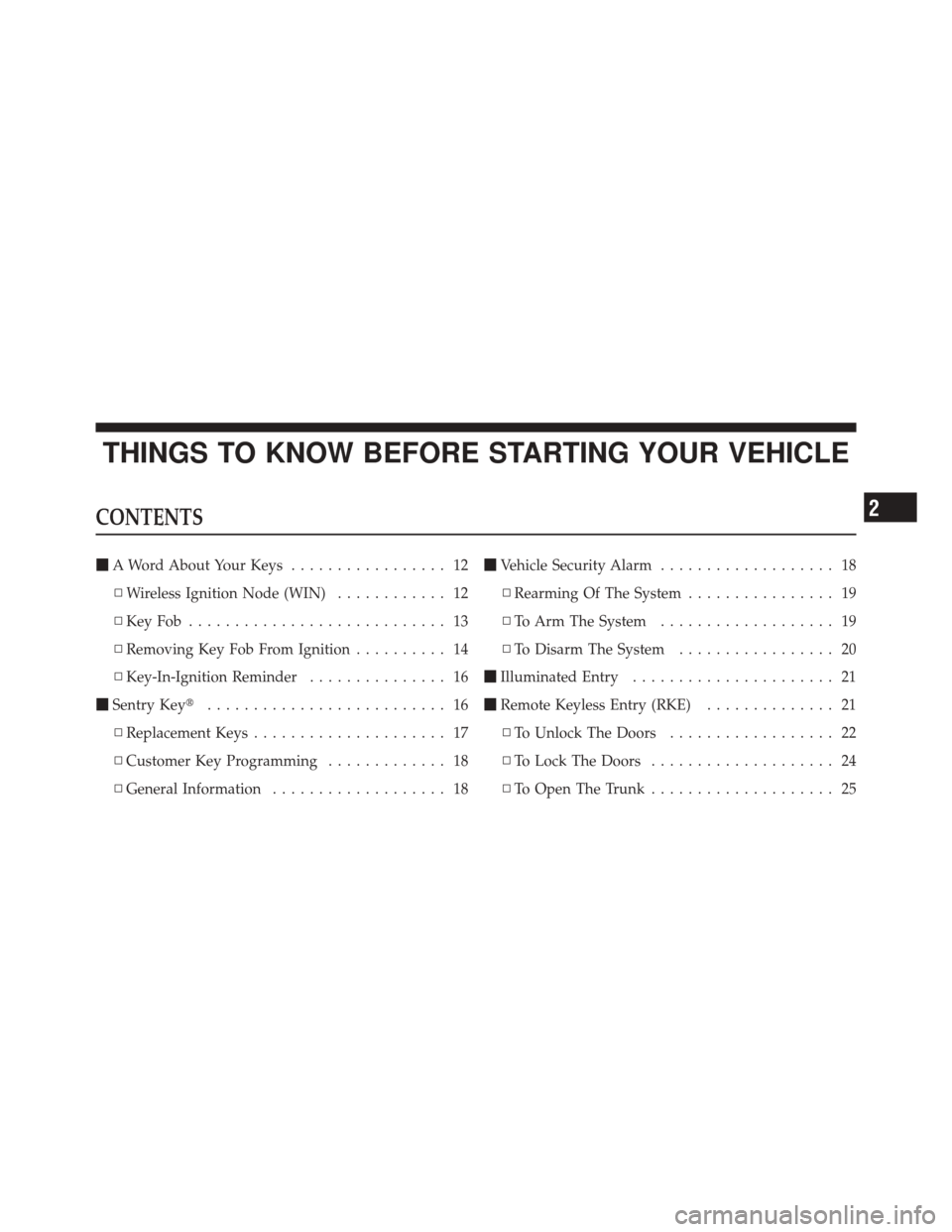

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ................. 12
▫ Wireless Ignition Node (WIN) ............ 12
▫ KeyFob ............................ 13
▫ Removing Key Fob From Ignition .......... 14
▫ Key-In-Ignition Reminder ............... 16
Sentry Key .......................... 16
▫ Replacement Keys ..................... 17
▫ Customer Key Programming ............. 18
▫ General Information ................... 18
Vehicle Security Alarm ................... 18
▫ Rearming Of The System ................ 19
▫ To Arm The System ................... 19
▫ To Disarm The System ................. 20
Illuminated Entry ...................... 21
Remote Keyless Entry (RKE) .............. 21
▫ To Unlock The Doors .................. 22
▫ To Lock The Doors .................... 24
▫ To Open The Trunk .................... 25
2

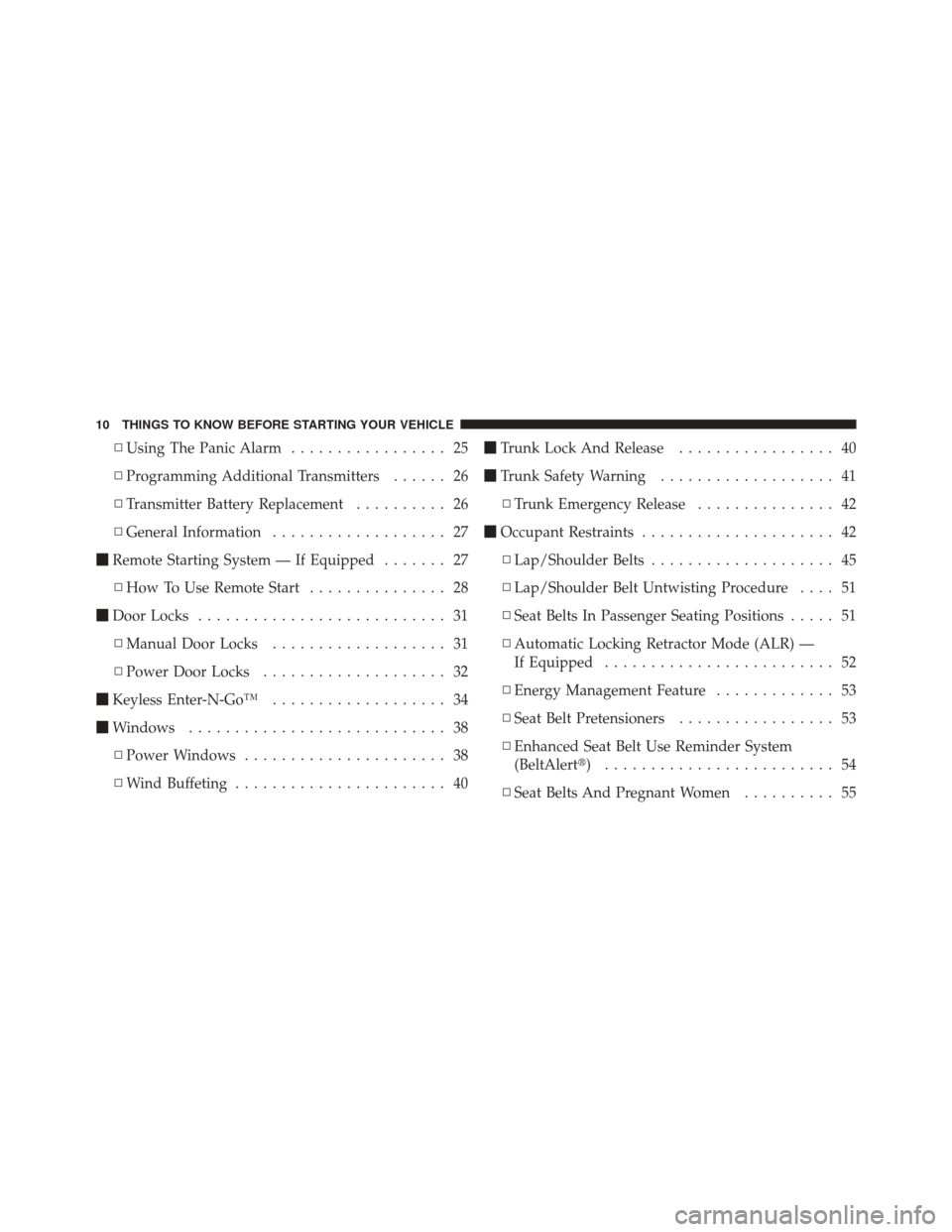

Page 12 of 471
▫Using The Panic Alarm ................. 25
▫ Programming Additional Transmitters ...... 26
▫ Transmitter Battery Replacement .......... 26
▫ General Information ................... 27
Remote Starting System — If Equipped ....... 27
▫ How To Use Remote Start ............... 28
Door Locks ........................... 31
▫ Manual Door Locks ................... 31
▫ Power Door Locks .................... 32
Keyless Enter-N-Go™ ................... 34
Windows ............................ 38
▫ Power Windows ...................... 38
▫ Wind Buffeting ....................... 40
Trunk Lock And Release ................. 40
Trunk Safety Warning ................... 41
▫ Trunk Emergency Release ............... 42
Occupant Restraints ..................... 42
▫ Lap/Shoulder Belts .................... 45
▫ Lap/Shoulder Belt Untwisting Procedure .... 51
▫ Seat Belts In Passenger Seating Positions ..... 51
▫ Automatic Locking Retractor Mode (ALR) —
If Equipped ......................... 52
▫ Energy Management Feature ............. 53
▫ Seat Belt Pretensioners ................. 53
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 54
▫ Seat Belts And Pregnant Women .......... 55
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 13 of 471
▫Seat Belt Extender ..................... 55
▫ Supplemental Restraint System (SRS) — Air
Bags .............................. 56
▫ Air Bag Deployment Sensors And Controls . . . 62
▫ Event Data Recorder (EDR) .............. 69
▫ Child Restraints ...................... 70
Engine Break-In Recommendations .......... 79
Safety Tips ........................... 80
▫ Transporting Passengers ................ 80
▫ Exhaust Gas ......................... 81
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 82
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 84
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

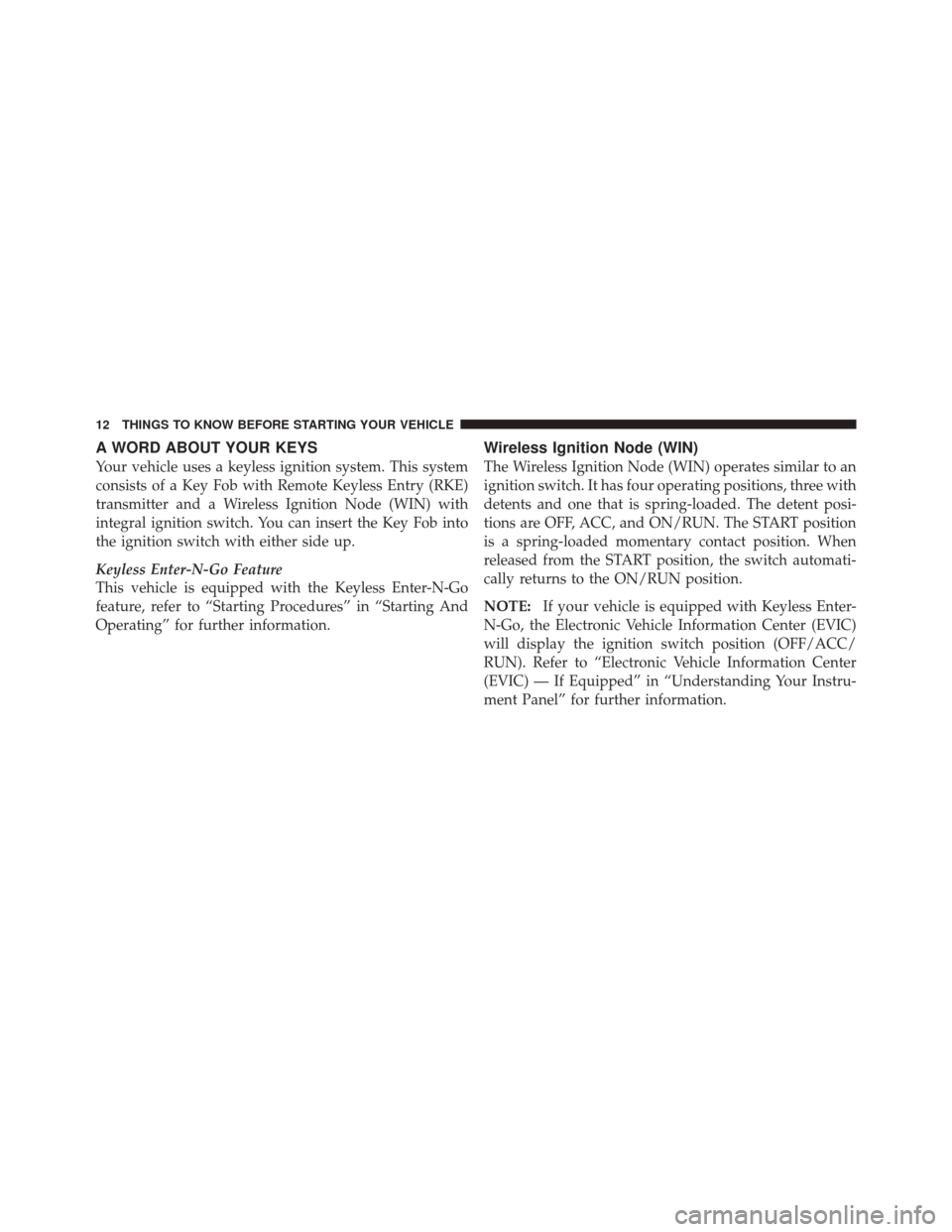

Page 14 of 471
A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Wireless Ignition Node (WIN) with
integral ignition switch. You can insert the Key Fob into
the ignition switch with either side up.
Keyless Enter-N-Go Feature
This vehicle is equipped with the Keyless Enter-N-Go
feature, refer to “Starting Procedures” in “Starting And
Operating” for further information.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are OFF, ACC, and ON/RUN. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the ON/RUN position.
NOTE:If your vehicle is equipped with Keyless Enter-
N-Go, the Electronic Vehicle Information Center (EVIC)
will display the ignition switch position (OFF/ACC/
RUN). Refer to “Electronic Vehicle Information Center
(EVIC) — If Equipped” in “Understanding Your Instru-
ment Panel” for further information.
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 15 of 471
Key Fob
The Key Fob operates the ignition switch. Insert the
square end of the key fob into the ignition switch located
on the instrument panel and rotate to the desired posi-
tion. It also contains the Remote Keyless Entry (RKE)
transmitter and an emergency key, which stores in the
rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
The emergency key is also for locking the glove box. You
can keep the emergency key with you when valet park-
ing.
NOTE:Entering a vehicle using the emergency key with
the theft alarm armed, will result in the alarm sounding.
Insert the Key Fob (even if the Key Fob battery is dead)
into the ignition switch to disarm theft alarm.
1 — OFF
2 — ACCESSORY (ACCESSORY)
3 — ON/RUN
4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
Page 16 of 471
To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.
NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.Removing Key Fob From Ignition
Place the shift lever in PARK. Turn the Key Fob to the
OFF position and then remove the Key Fob.
With the Keyless Enter-N-Go system, the EVIC will
display the ignition switch position “OFF/ACC/RUN”.
Refer to “Electronic Vehicle Information Center (EVIC) —
If Equipped” in “Understanding Your Instrument Panel”
for further information.
NOTE: The power window switches, radio, power
sunroof (if equipped), and ignition-powered power out-
lets will remain active for up to 60 minutes after the
ignition switch is turned to the LOCK position. Opening
either door will cancel this feature. The time for this
feature is programmable. Refer to “Electronic Vehicle
Information Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
Emergency Key Removal
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

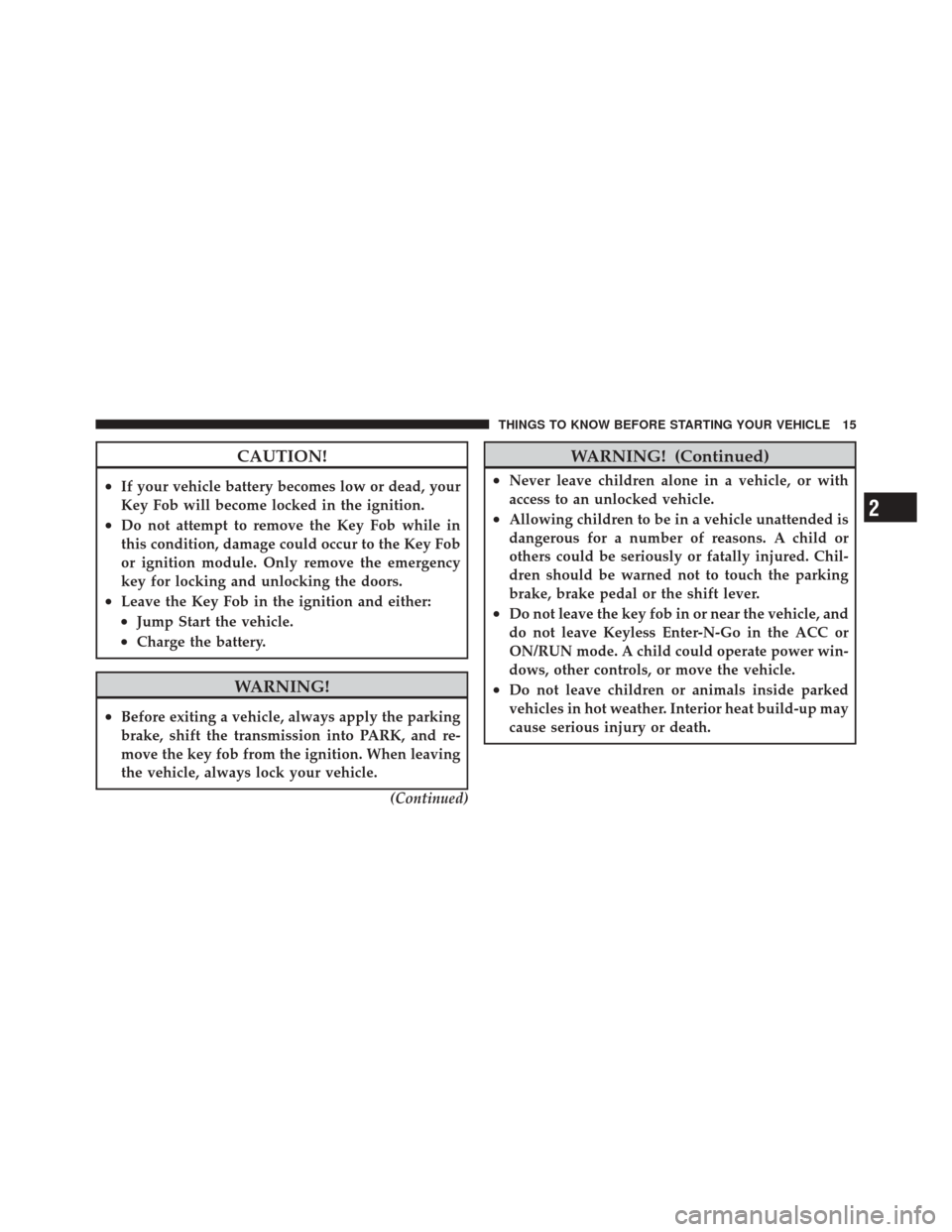

Page 17 of 471
CAUTION!
•If your vehicle battery becomes low or dead, your
Key Fob will become locked in the ignition.
•Do not attempt to remove the Key Fob while in
this condition, damage could occur to the Key Fob
or ignition module. Only remove the emergency
key for locking and unlocking the doors.
•Leave the Key Fob in the ignition and either:
•Jump Start the vehicle.
•Charge the battery.
WARNING!
•Before exiting a vehicle, always apply the parking
brake, shift the transmission into PARK, and re-
move the key fob from the ignition. When leaving
the vehicle, always lock your vehicle.(Continued)
WARNING! (Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•Do not leave the key fob in or near the vehicle, and
do not leave Keyless Enter-N-Go in the ACC or
ON/RUN mode. A child could operate power win-
dows, other controls, or move the vehicle.
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

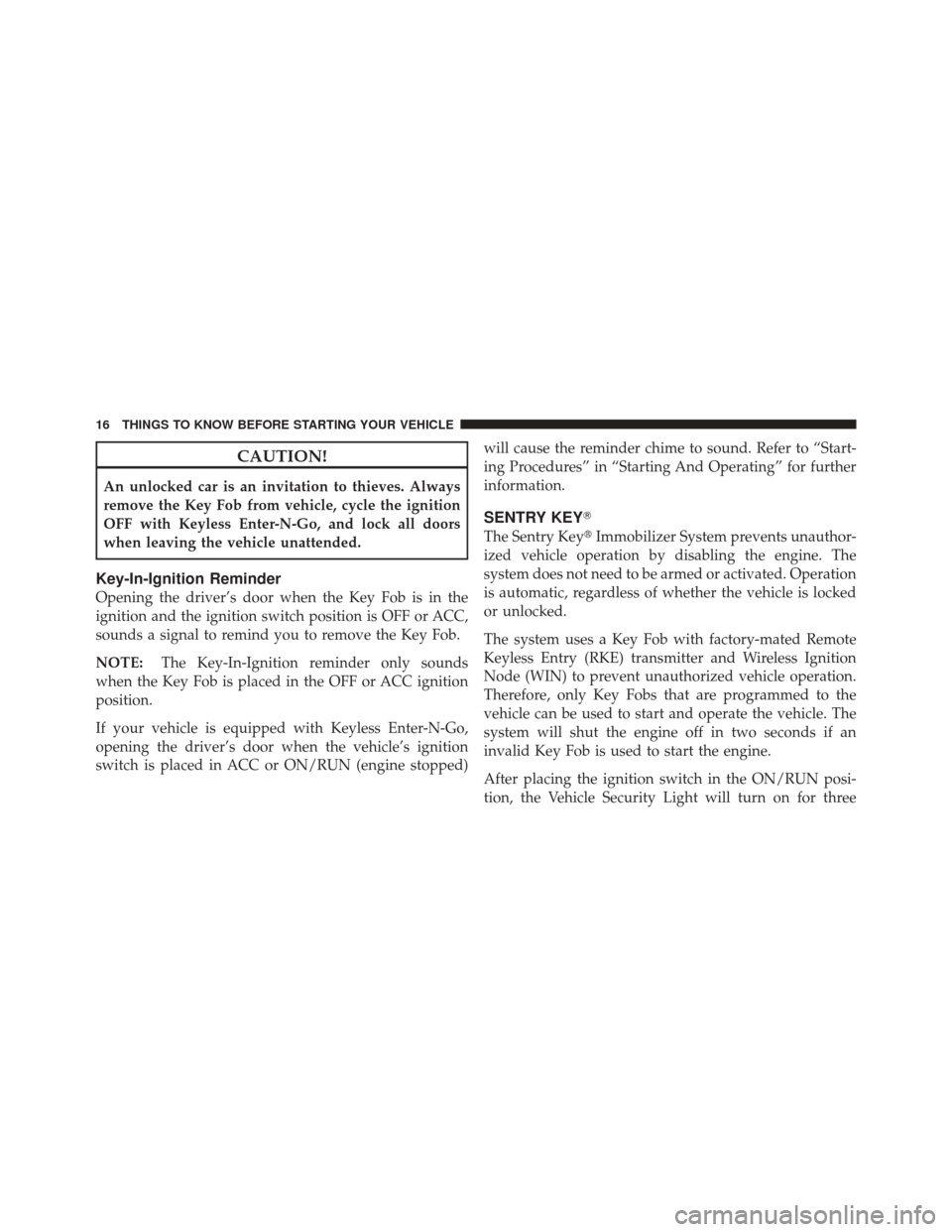

Page 18 of 471
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key Fob from vehicle, cycle the ignition
OFF with Keyless Enter-N-Go, and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
sounds a signal to remind you to remove the Key Fob.
NOTE:The Key-In-Ignition reminder only sounds
when the Key Fob is placed in the OFF or ACC ignition
position.
If your vehicle is equipped with Keyless Enter-N-Go,
opening the driver’s door when the vehicle’s ignition
switch is placed in ACC or ON/RUN (engine stopped) will cause the reminder chime to sound. Refer to “Start-
ing Procedures” in “Starting And Operating” for further
information.
SENTRY KEY
The Sentry Key
Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key Fob with factory-mated Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation.
Therefore, only Key Fobs that are programmed to the
vehicle can be used to start and operate the vehicle. The
system will shut the engine off in two seconds if an
invalid Key Fob is used to start the engine.
After placing the ignition switch in the ON/RUN posi-
tion, the Vehicle Security Light will turn on for three
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

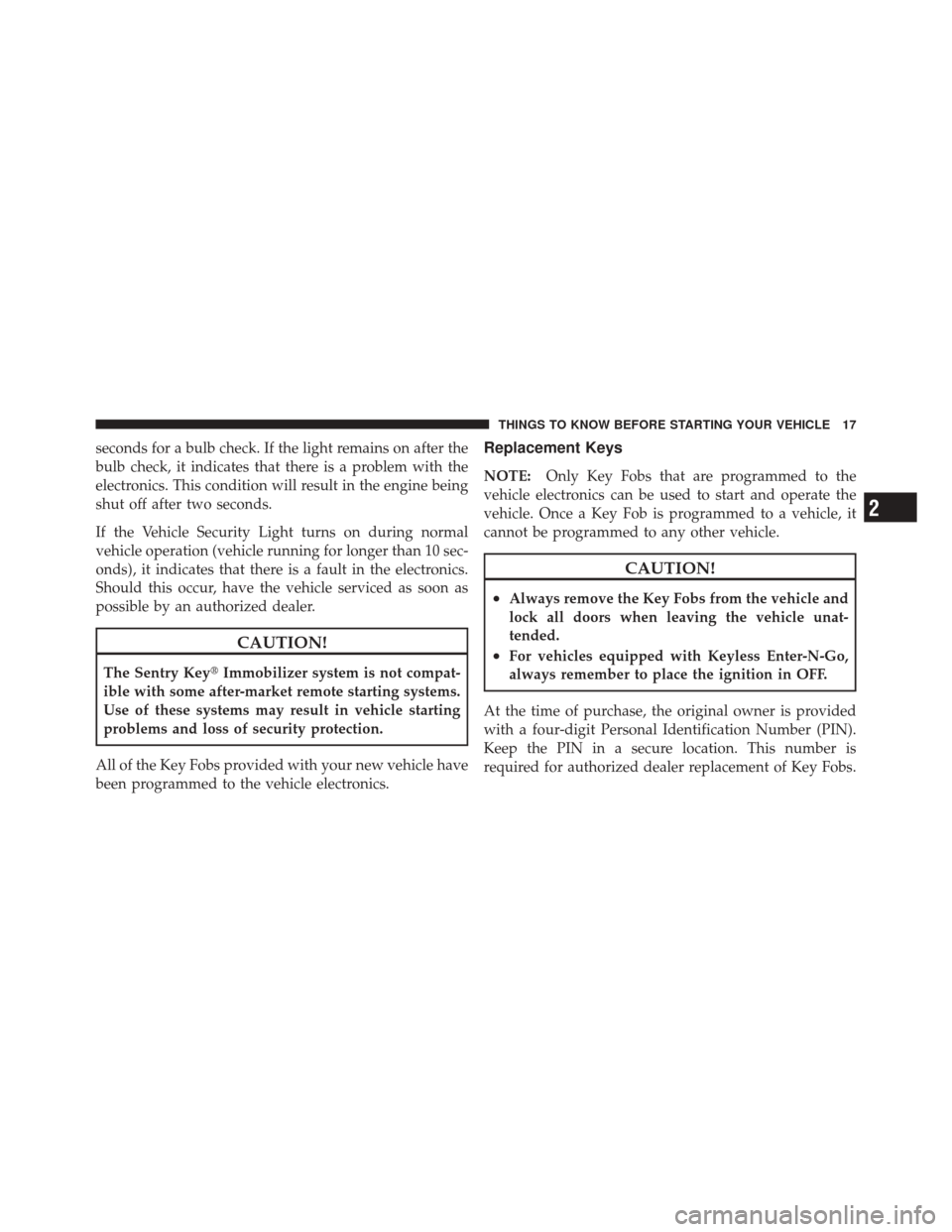

Page 19 of 471
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. This condition will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!
The Sentry KeyImmobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
•Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
•For vehicles equipped with Keyless Enter-N-Go,
always remember to place the ignition in OFF.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

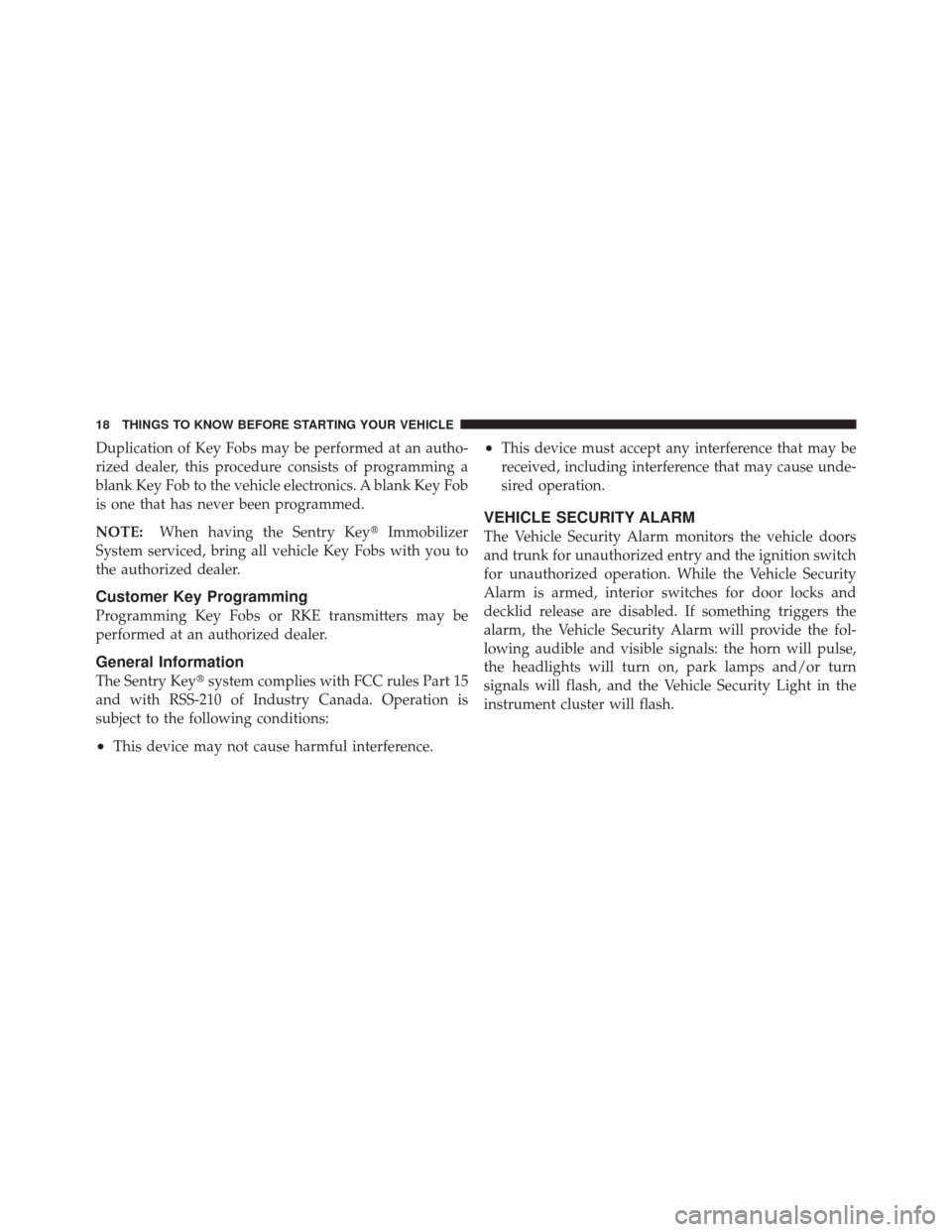

Page 20 of 471
Duplication of Key Fobs may be performed at an autho-
rized dealer, this procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
NOTE:When having the Sentry Key Immobilizer
System serviced, bring all vehicle Key Fobs with you to
the authorized dealer.
Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The Sentry Key system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
VEHICLE SECURITY ALARM
The Vehicle Security Alarm monitors the vehicle doors
and trunk for unauthorized entry and the ignition switch
for unauthorized operation. While the Vehicle Security
Alarm is armed, interior switches for door locks and
decklid release are disabled. If something triggers the
alarm, the Vehicle Security Alarm will provide the fol-
lowing audible and visible signals: the horn will pulse,
the headlights will turn on, park lamps and/or turn
signals will flash, and the Vehicle Security Light in the
instrument cluster will flash.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
