DODGE CHALLENGER SRT 2012 3.G Owners Manual Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning

Page 402 of 471

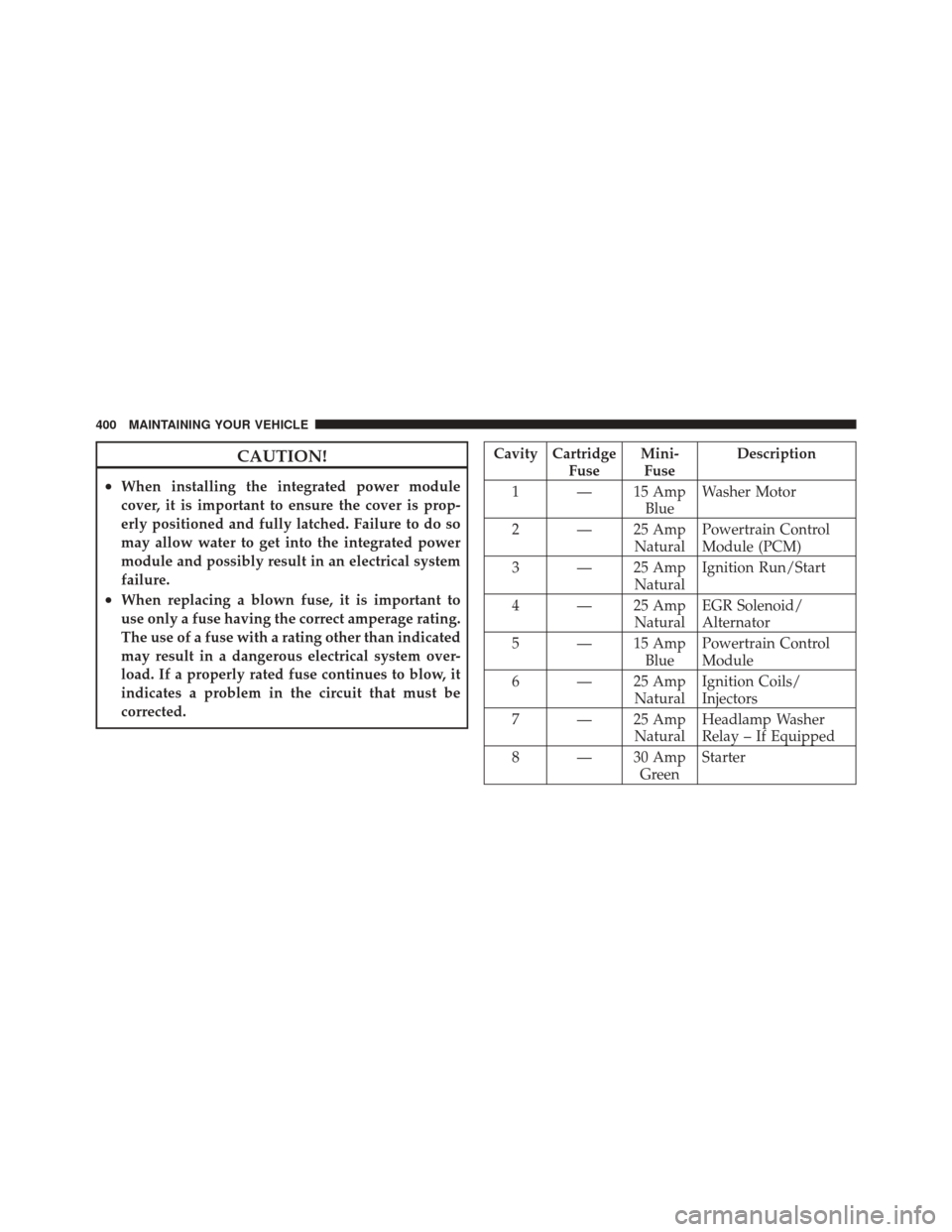

DODGE CHALLENGER SRT 2012 3.G Owners Manual CAUTION!
•When installing the integrated power module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the integrat

Page 403 of 471

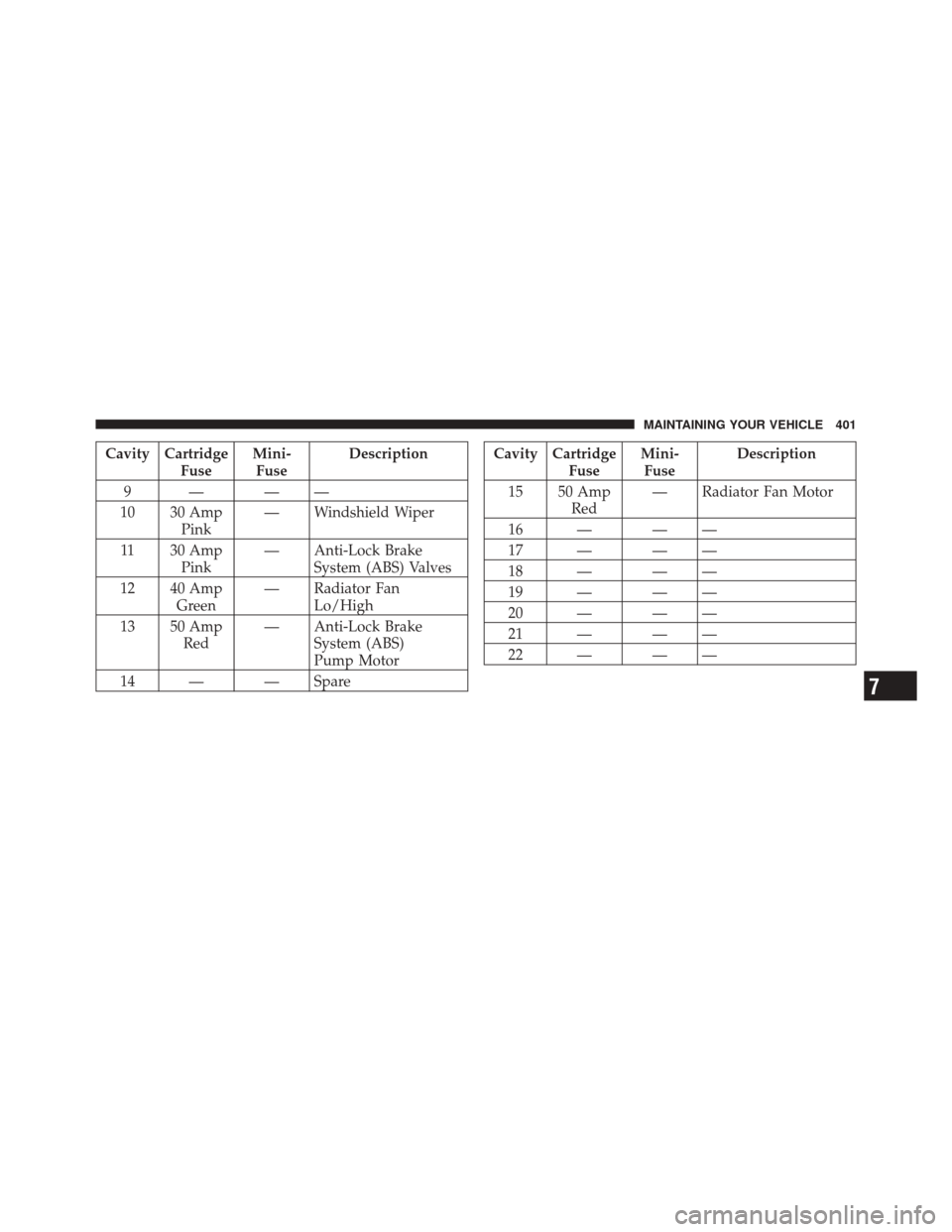

DODGE CHALLENGER SRT 2012 3.G Owners Manual Cavity CartridgeFuseMini-
Fuse Description
9— ——
10 30 Amp Pink — Windshield Wiper
11 30 Amp Pink — Anti-Lock Brake
System (ABS) Valves
12 40 Amp Green — Radiator Fan
Lo/High
13 50 Amp Red

Page 404 of 471

DODGE CHALLENGER SRT 2012 3.G Owners Manual Rear Power Distribution Center
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.CAUTION!
•When installing the p

Page 405 of 471

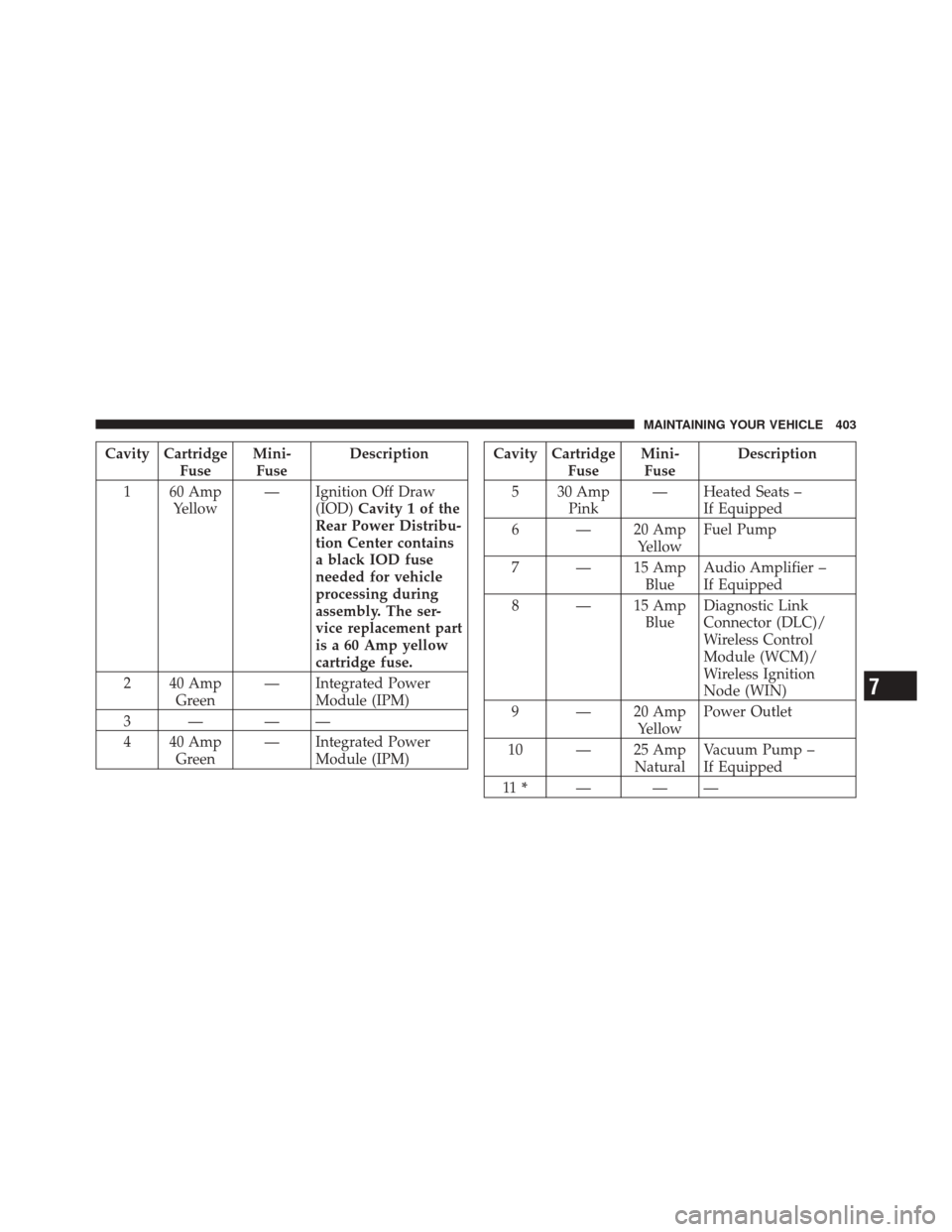

DODGE CHALLENGER SRT 2012 3.G Owners Manual Cavity CartridgeFuseMini-
Fuse Description
1 60 Amp Yellow — Ignition Off Draw
(IOD)Cavity 1 of the
Rear Power Distribu-
tion Center contains
a black IOD fuse
needed for vehicle
processing during
as

Page 406 of 471

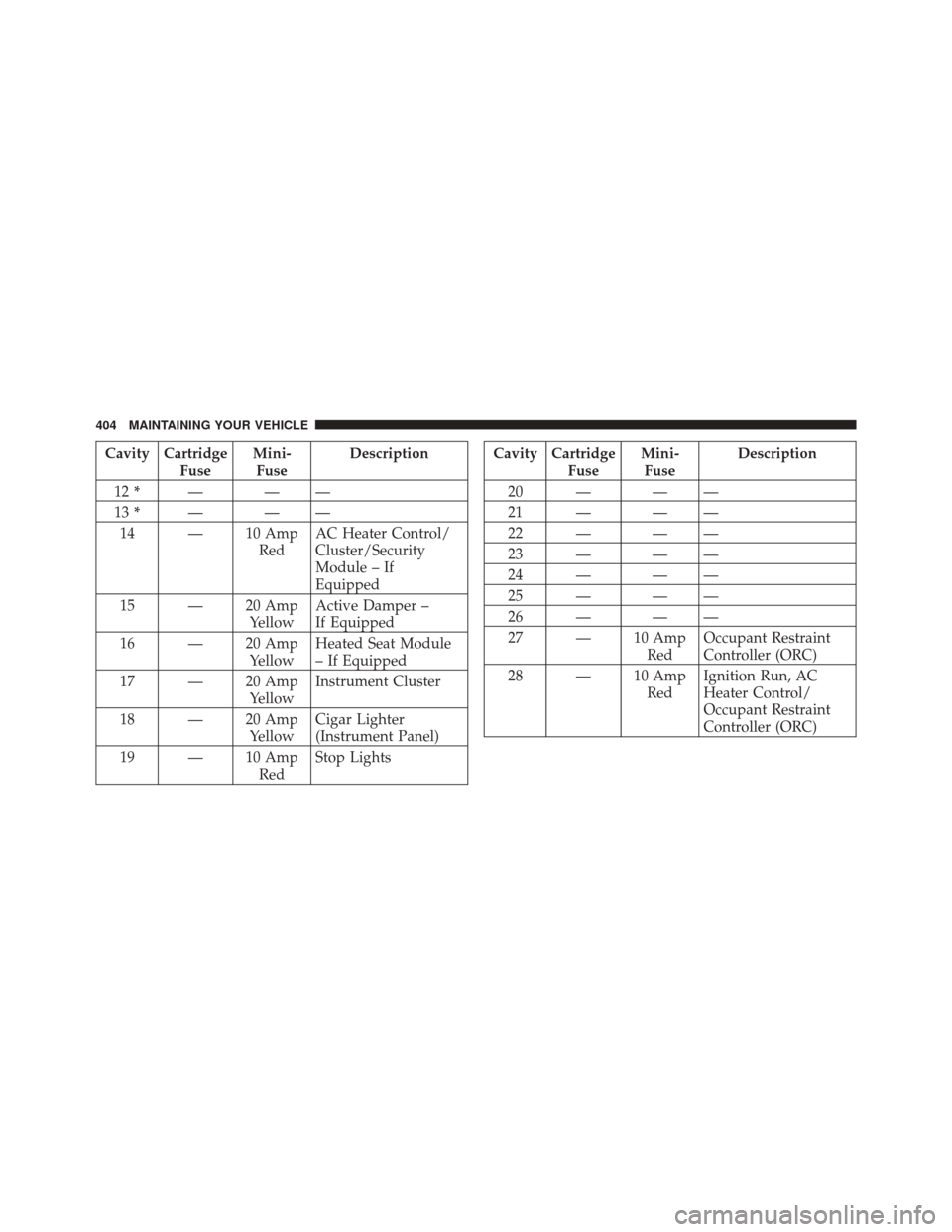

DODGE CHALLENGER SRT 2012 3.G Owners Manual Cavity CartridgeFuseMini-
Fuse Description
12 * ———
13 * ———
14 — 10 Amp RedAC Heater Control/
Cluster/Security
Module – If
Equipped
15 — 20 Amp YellowActive Damper –
If Equipped
1

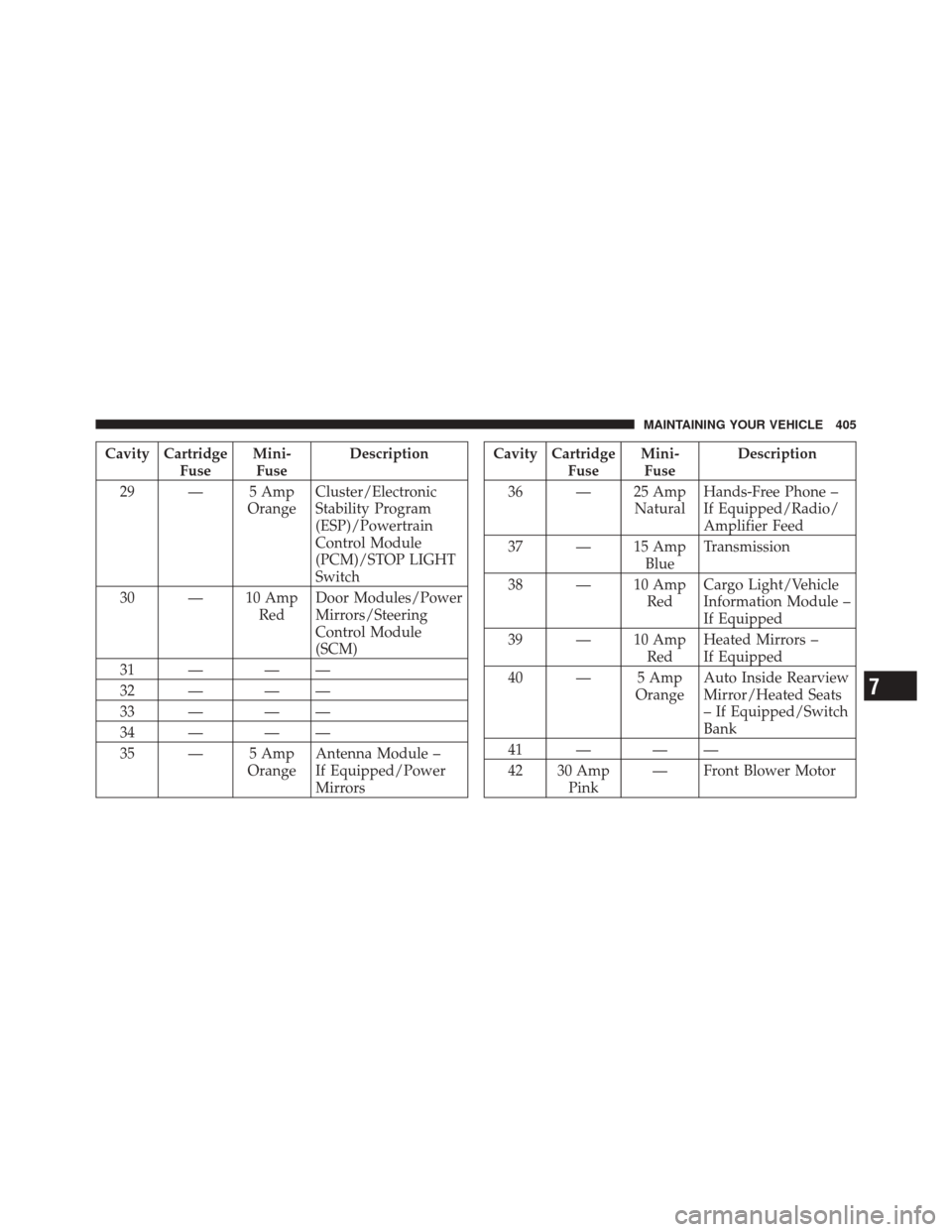

Page 407 of 471

DODGE CHALLENGER SRT 2012 3.G Owners Manual Cavity CartridgeFuseMini-
Fuse Description
29 — 5 Amp OrangeCluster/Electronic
Stability Program
(ESP)/Powertrain
Control Module
(PCM)/STOP LIGHT
Switch
30 — 10 Amp RedDoor Modules/Power
Mirrors/S

Page 408 of 471

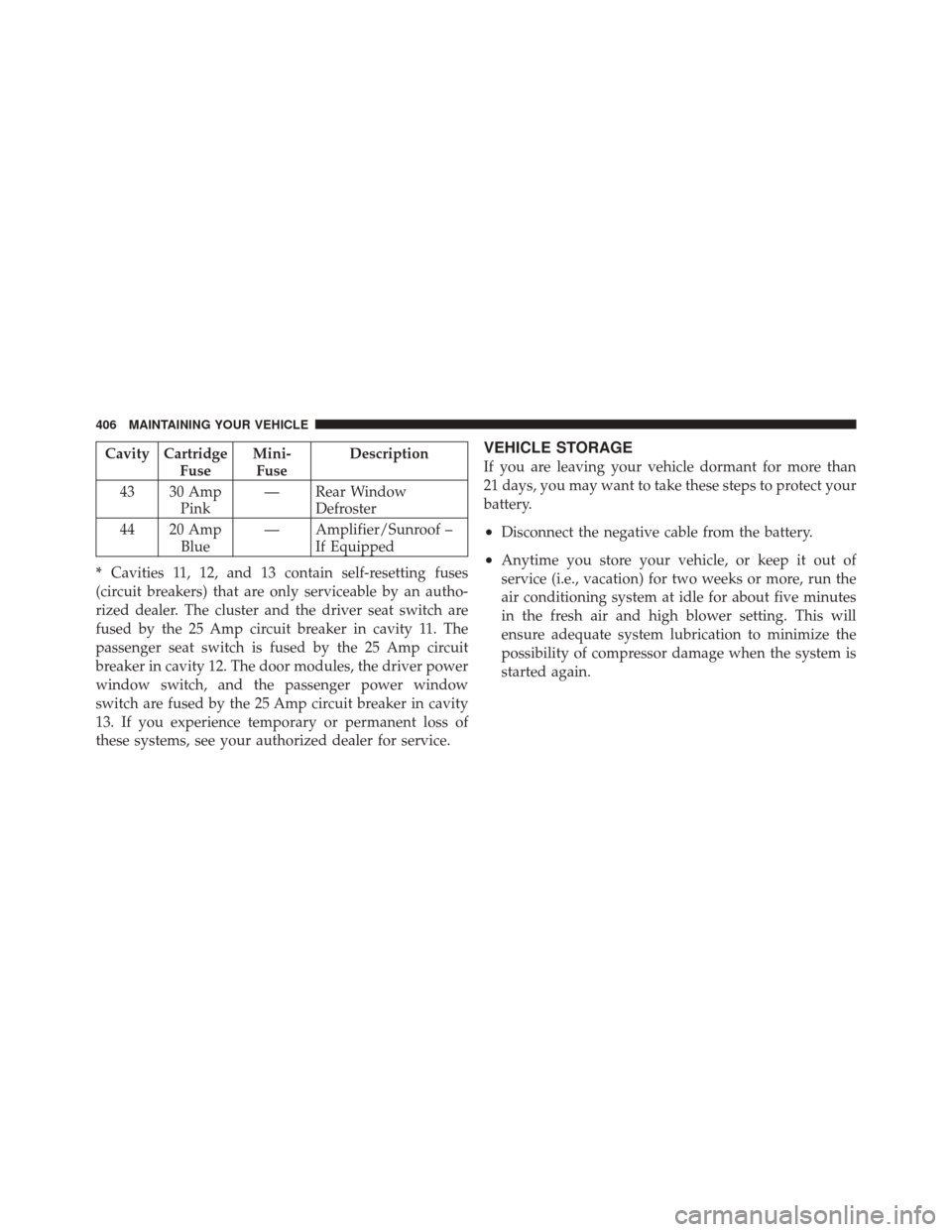

DODGE CHALLENGER SRT 2012 3.G Owners Manual Cavity CartridgeFuseMini-
Fuse Description
43 30 Amp Pink — Rear Window
Defroster
44 20 Amp Blue — Amplifier/Sunroof –
If Equipped
* Cavities 11, 12, and 13 contain self-resetting fuses
(circuit

Page 409 of 471

DODGE CHALLENGER SRT 2012 3.G Owners Manual REPLACEMENT BULBS
LIGHT BULBS – InteriorBulb Number
Rear Courtesy/Reading Lamps ............. W5W
Rear Compartment (Trunk) Lamp ............. 562
Overhead Console Reading Lamps ............ 578
Viso

Page 410 of 471

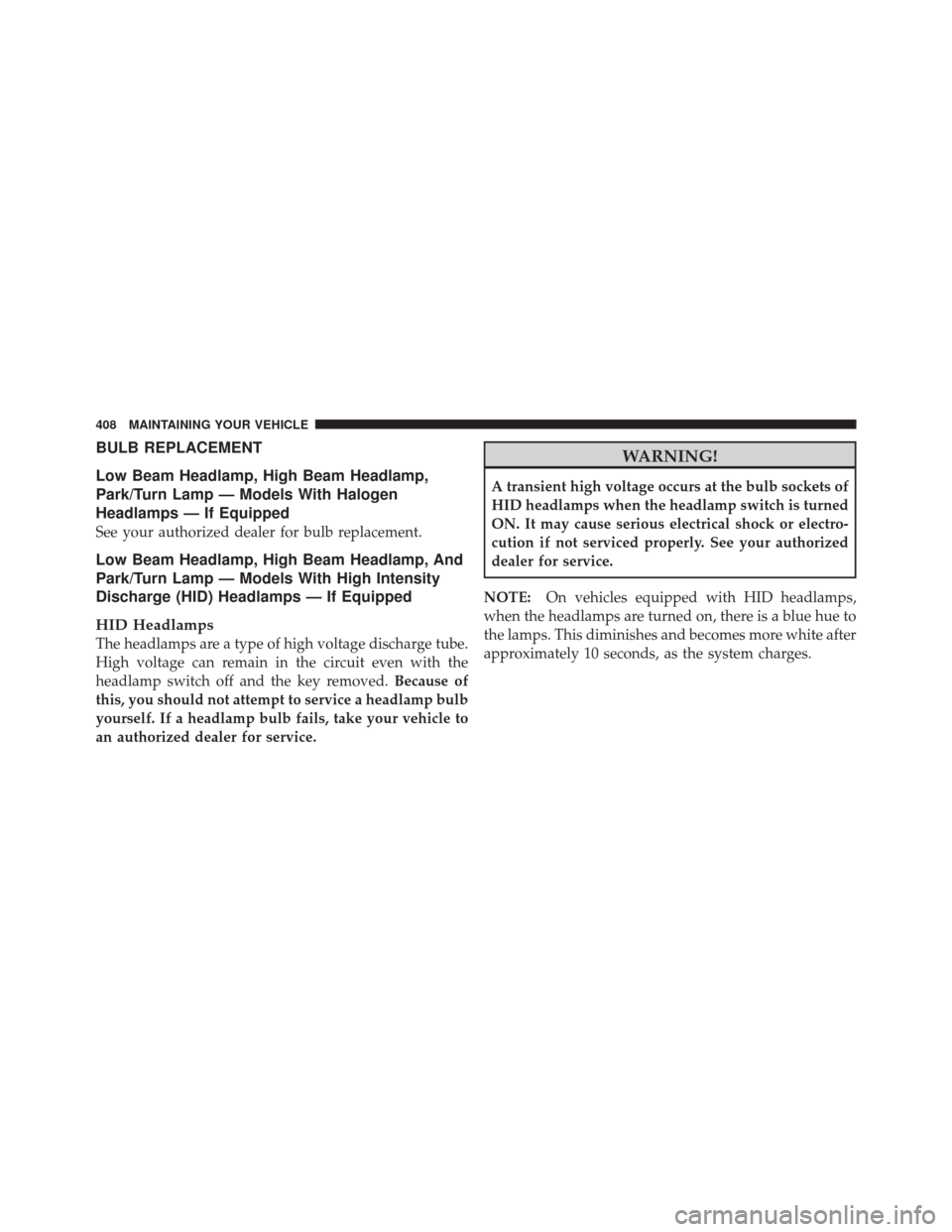

DODGE CHALLENGER SRT 2012 3.G Owners Manual BULB REPLACEMENT
Low Beam Headlamp, High Beam Headlamp,
Park/Turn Lamp — Models With Halogen
Headlamps — If Equipped
See your authorized dealer for bulb replacement.
Low Beam Headlamp, High Beam H
