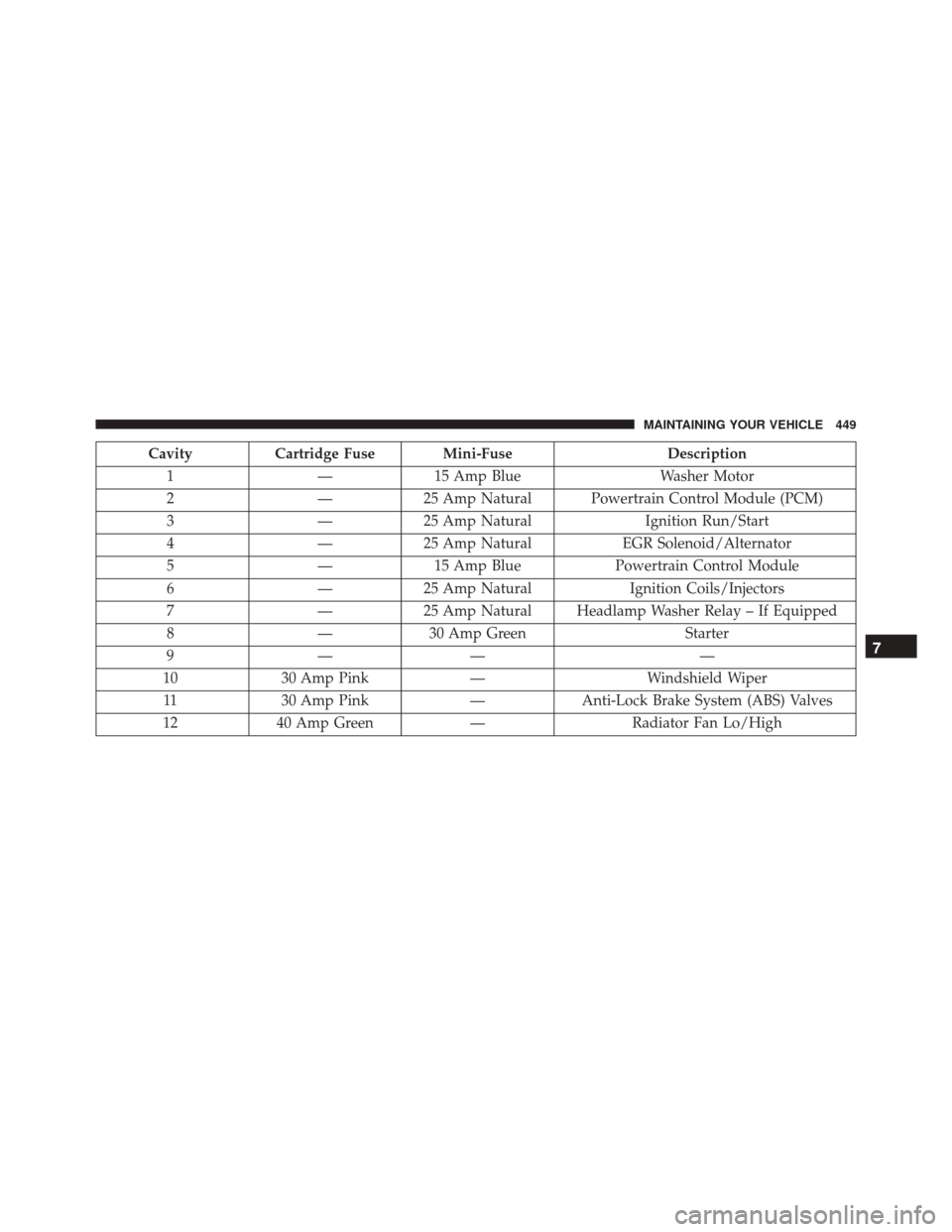

DODGE CHALLENGER SRT 2013 3.G Owners Manual CavityCartridge Fuse Mini-Fuse Description
1 —15 Amp Blue Washer Motor
2 —25 Amp Natural Powertrain Control Module (PCM)
3 —25 Amp Natural Ignition Run/Start
4 —25 Amp Natural EGR Solenoid/Alt

Page 452 of 520

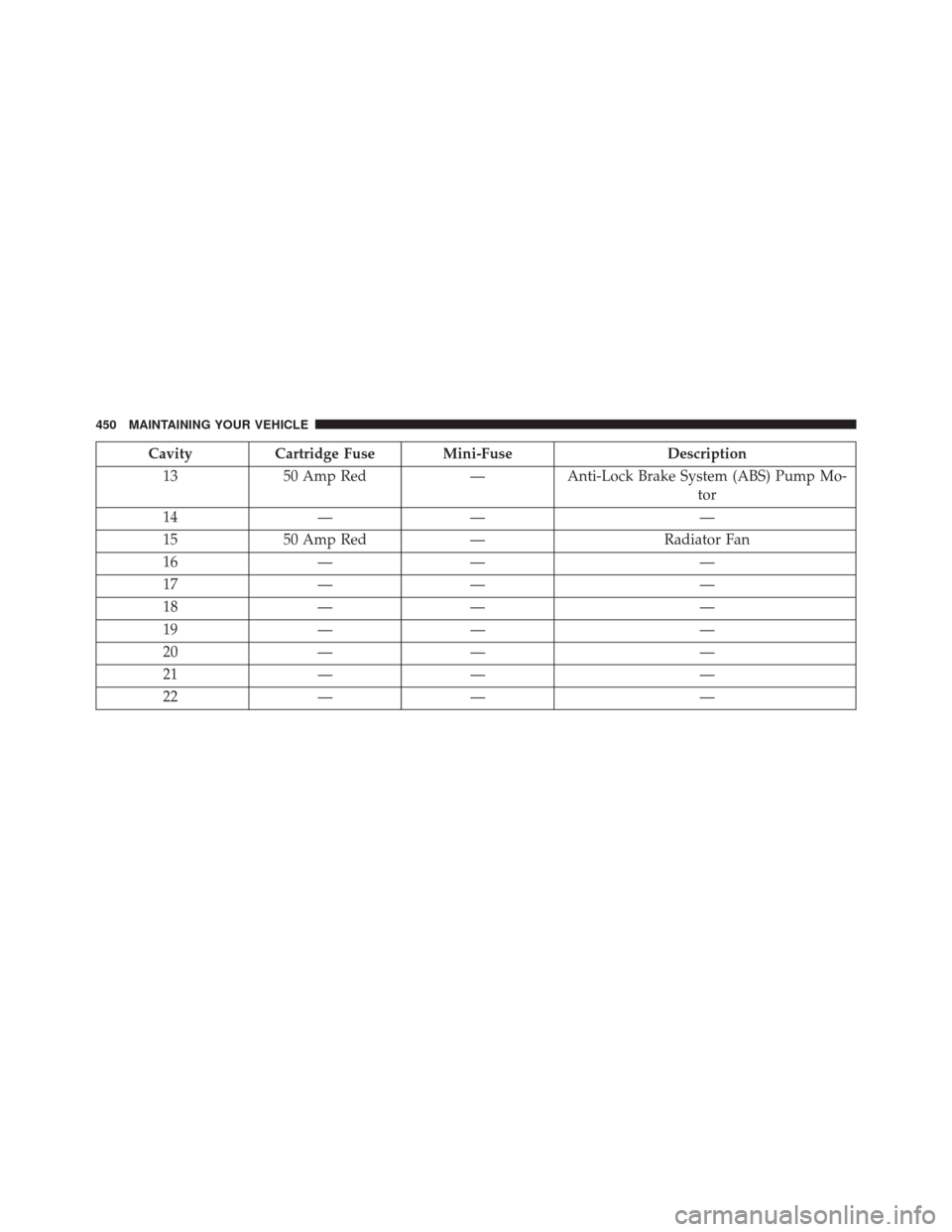

DODGE CHALLENGER SRT 2013 3.G Owners Manual CavityCartridge Fuse Mini-Fuse Description
13 50 Amp Red —Anti-Lock Brake System (ABS) Pump Mo-
tor
14 —— —
15 50 Amp Red — Radiator Fan
16 —— —
17 —— —
18 —— —
19 —— â

Page 453 of 520

DODGE CHALLENGER SRT 2013 3.G Owners Manual Rear Power Distribution Center
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
CAUTION!
•When installing the

Page 454 of 520

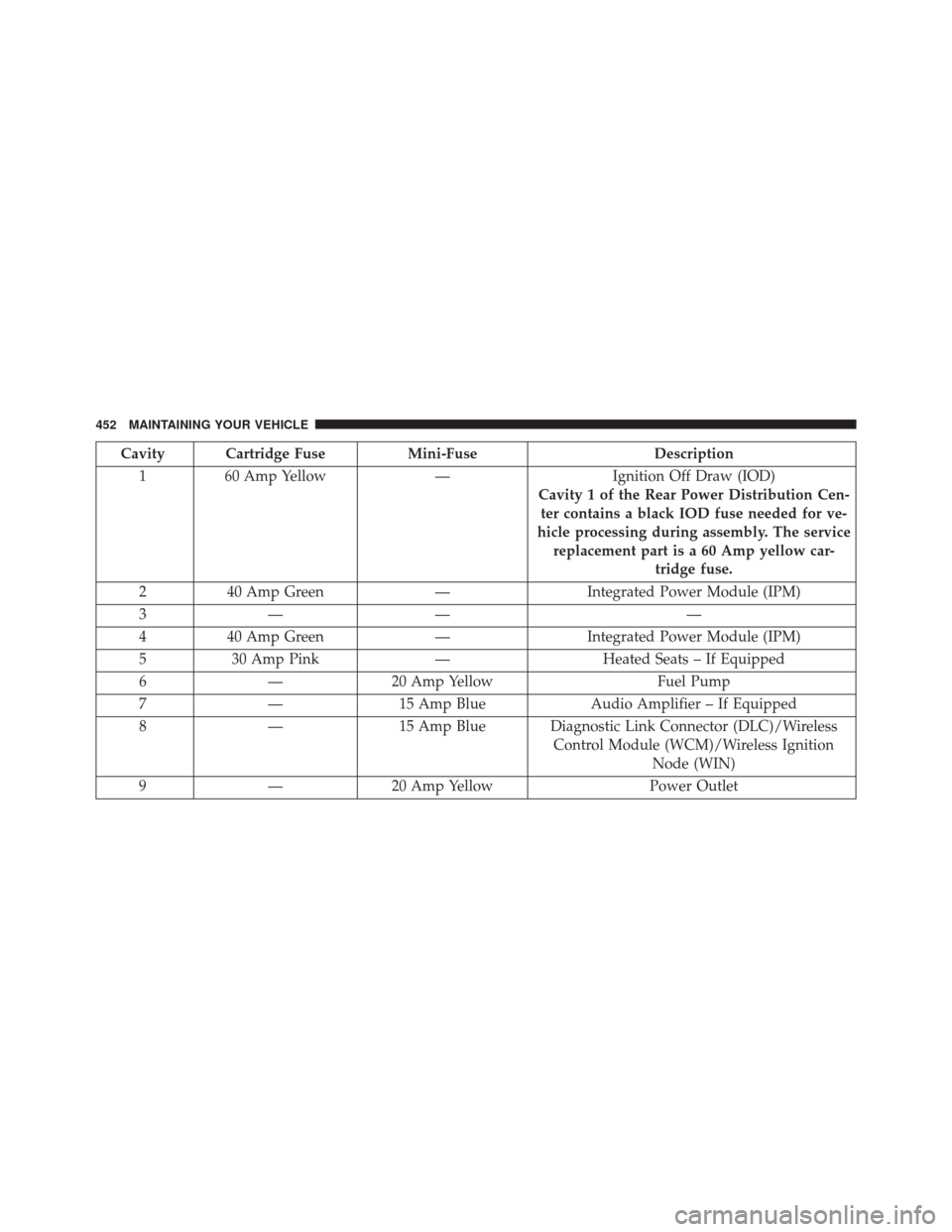

DODGE CHALLENGER SRT 2013 3.G Owners Manual Cavity Cartridge FuseMini-FuseDescription
1 60 Amp Yellow —Ignition Off Draw (IOD)
Cavity 1 of the Rear Power Distribution Cen- ter contains a black IOD fuse needed for ve-
hicle processing during a

Page 455 of 520

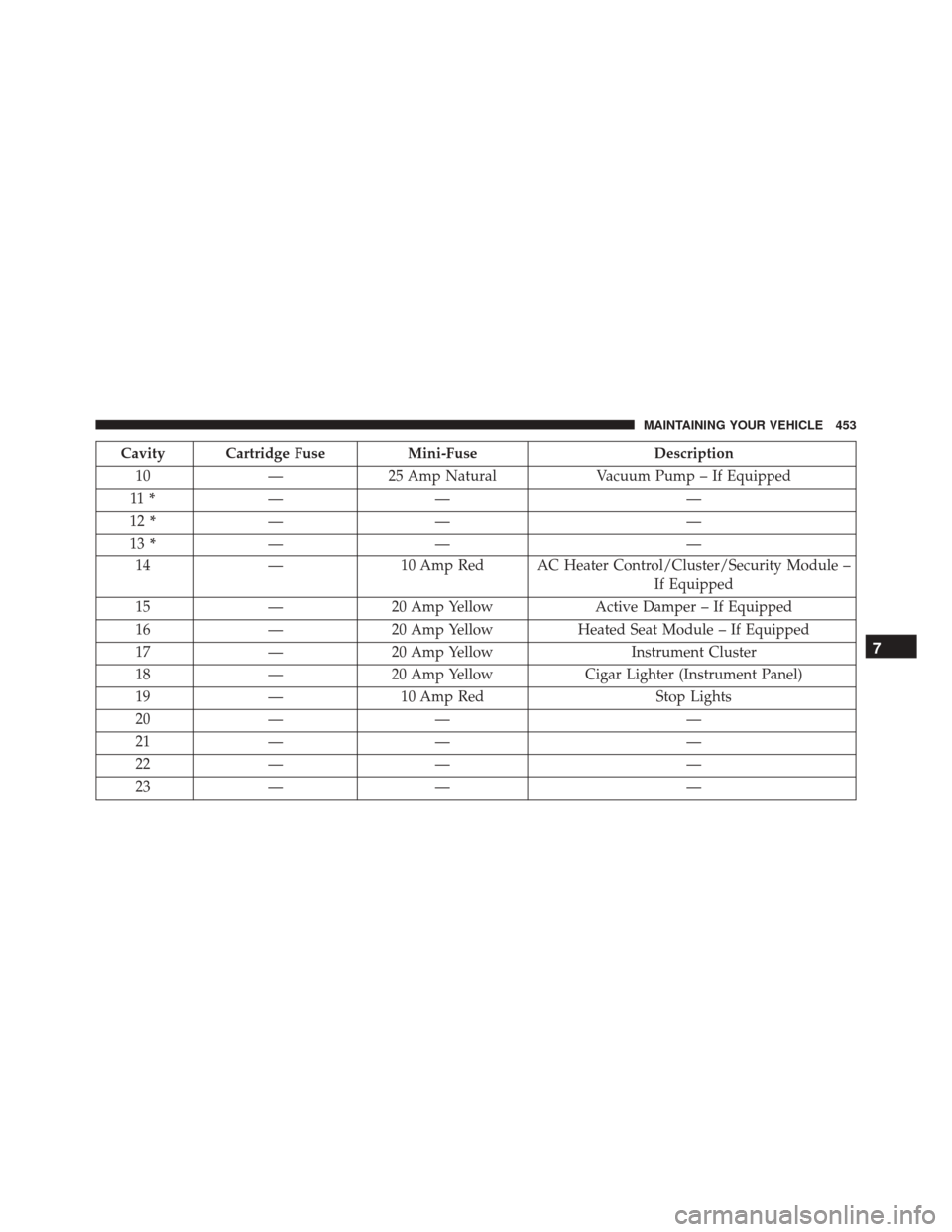

DODGE CHALLENGER SRT 2013 3.G Owners Manual Cavity Cartridge FuseMini-FuseDescription
10 —25 Amp Natural Vacuum Pump – If Equipped
11 * —— —
12 * —— —
13 * —— —
14 — 10 Amp Red AC Heater Control/Cluster/Security Module â

Page 456 of 520

DODGE CHALLENGER SRT 2013 3.G Owners Manual Cavity Cartridge FuseMini-FuseDescription
24 — — —
25 — — —
26 — — —
27 — 10 Amp Red Occupant Restraint Controller (ORC)
28 — 10 Amp Red Ignition Run, AC Heater Control/Occupant

Page 457 of 520

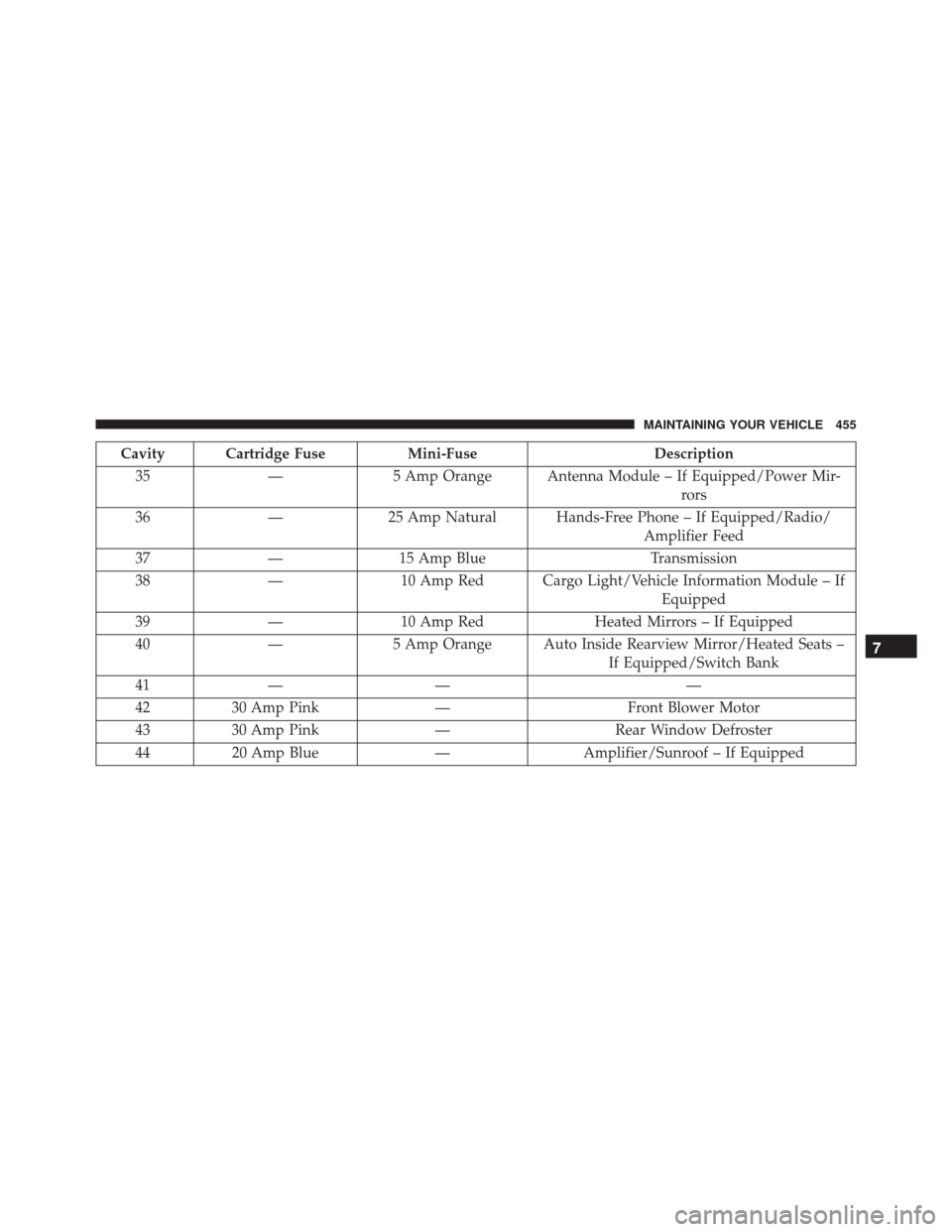

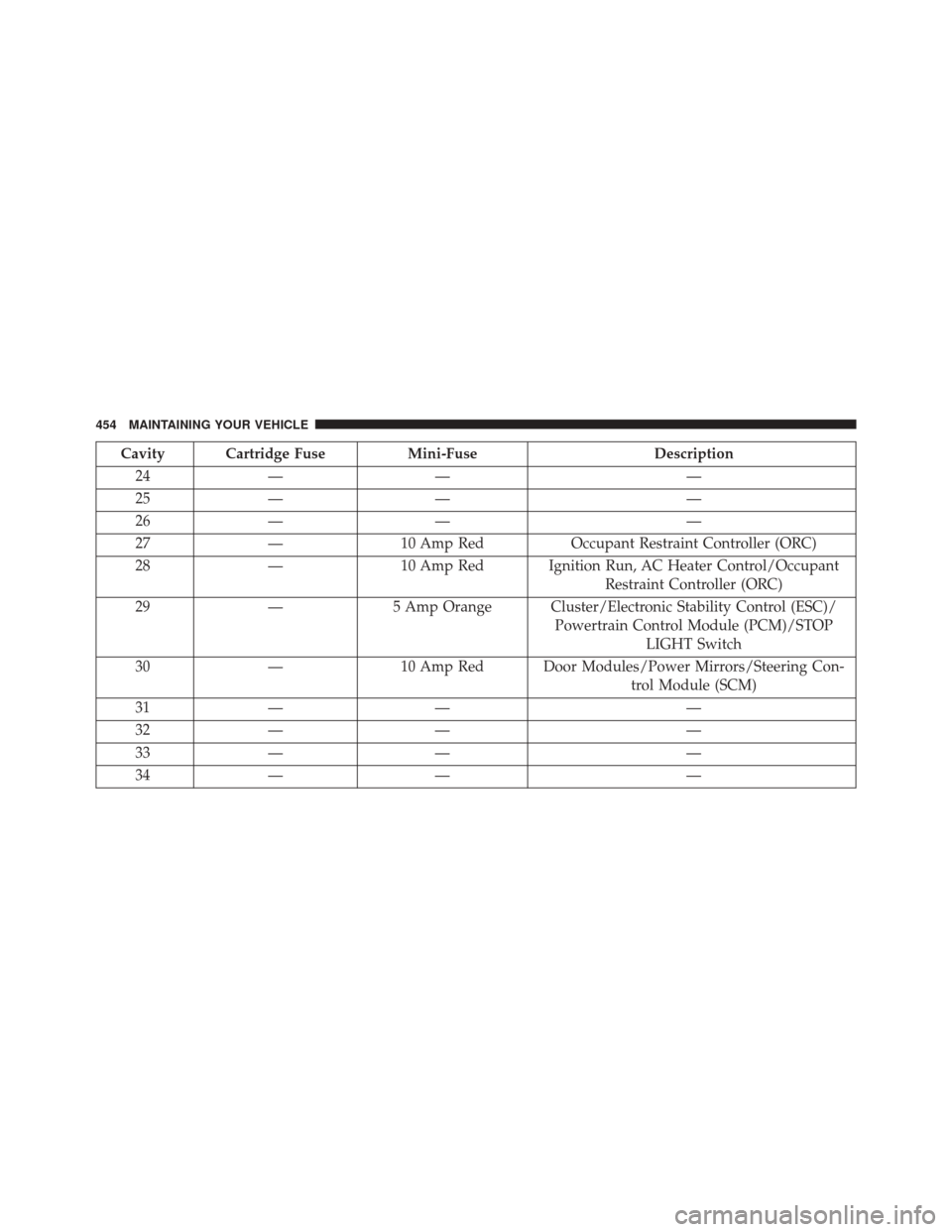

DODGE CHALLENGER SRT 2013 3.G Owners Manual Cavity Cartridge FuseMini-FuseDescription
35 —5 Amp Orange Antenna Module – If Equipped/Power Mir-
rors
36 —25 Amp Natural Hands-Free Phone – If Equipped/Radio/
Amplifier Feed
37 —15 Amp Blu

Page 458 of 520

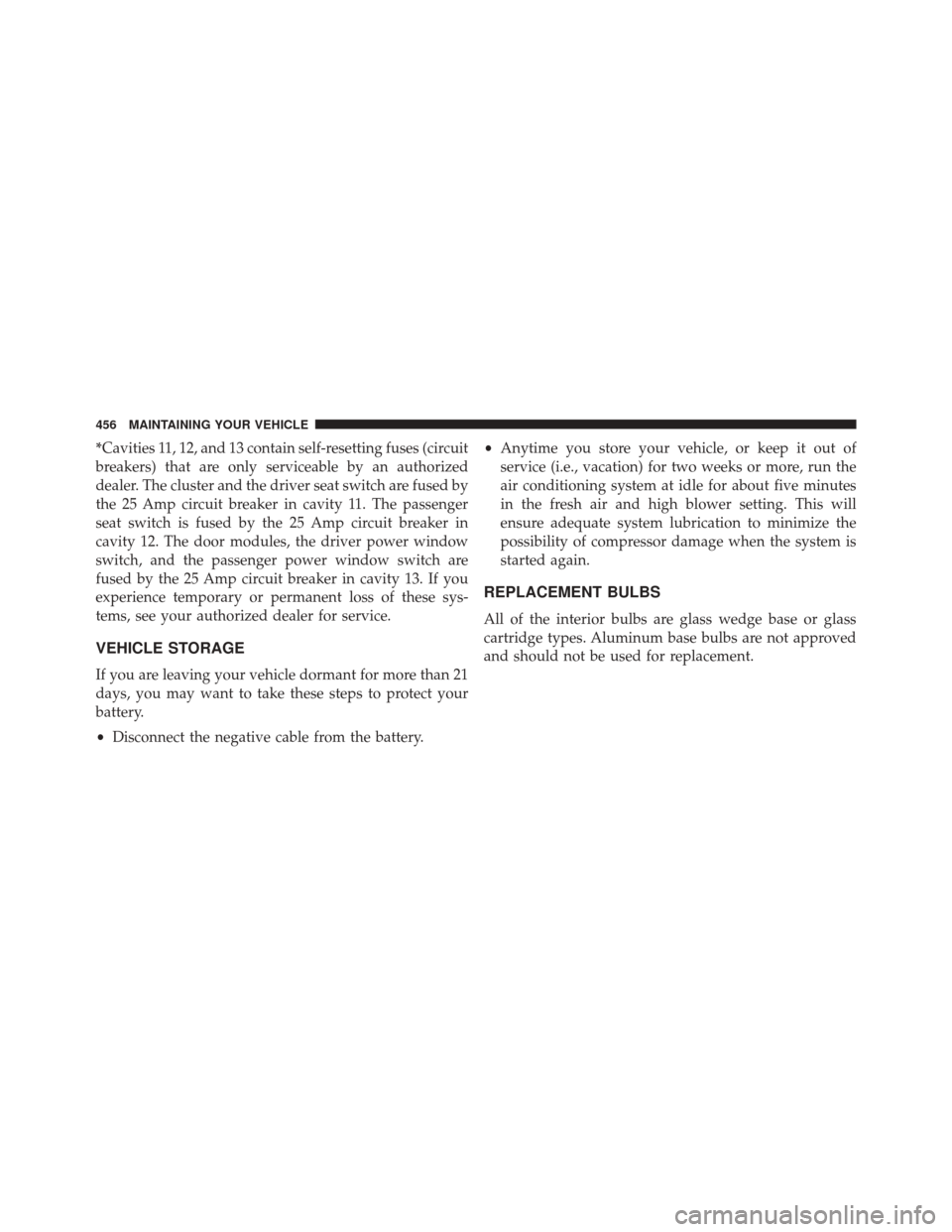

DODGE CHALLENGER SRT 2013 3.G Owners Manual *Cavities 11, 12, and 13 contain self-resetting fuses (circuit
breakers) that are only serviceable by an authorized
dealer. The cluster and the driver seat switch are fused by
the 25 Amp circuit break

Page 459 of 520

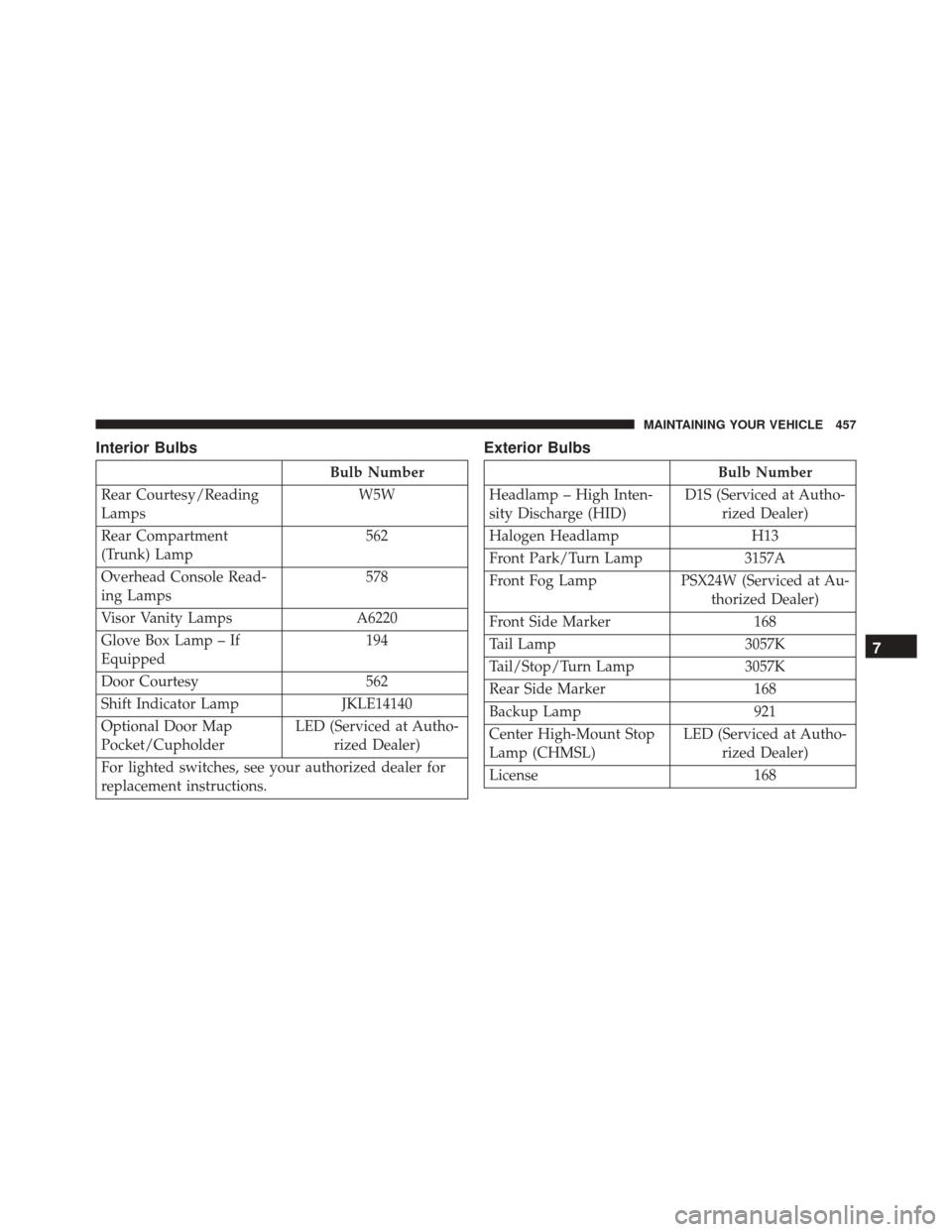

DODGE CHALLENGER SRT 2013 3.G Owners Manual Interior Bulbs
Bulb Number
Rear Courtesy/Reading
Lamps W5W
Rear Compartment
(Trunk) Lamp 562
Overhead Console Read-
ing Lamps 578
Visor Vanity Lamps A6220
Glove Box Lamp – If
Equipped 194
Door Court

Page 460 of 520

DODGE CHALLENGER SRT 2013 3.G Owners Manual BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Tur
