DODGE CHALLENGER SRT 2015 3.G Owners Manual

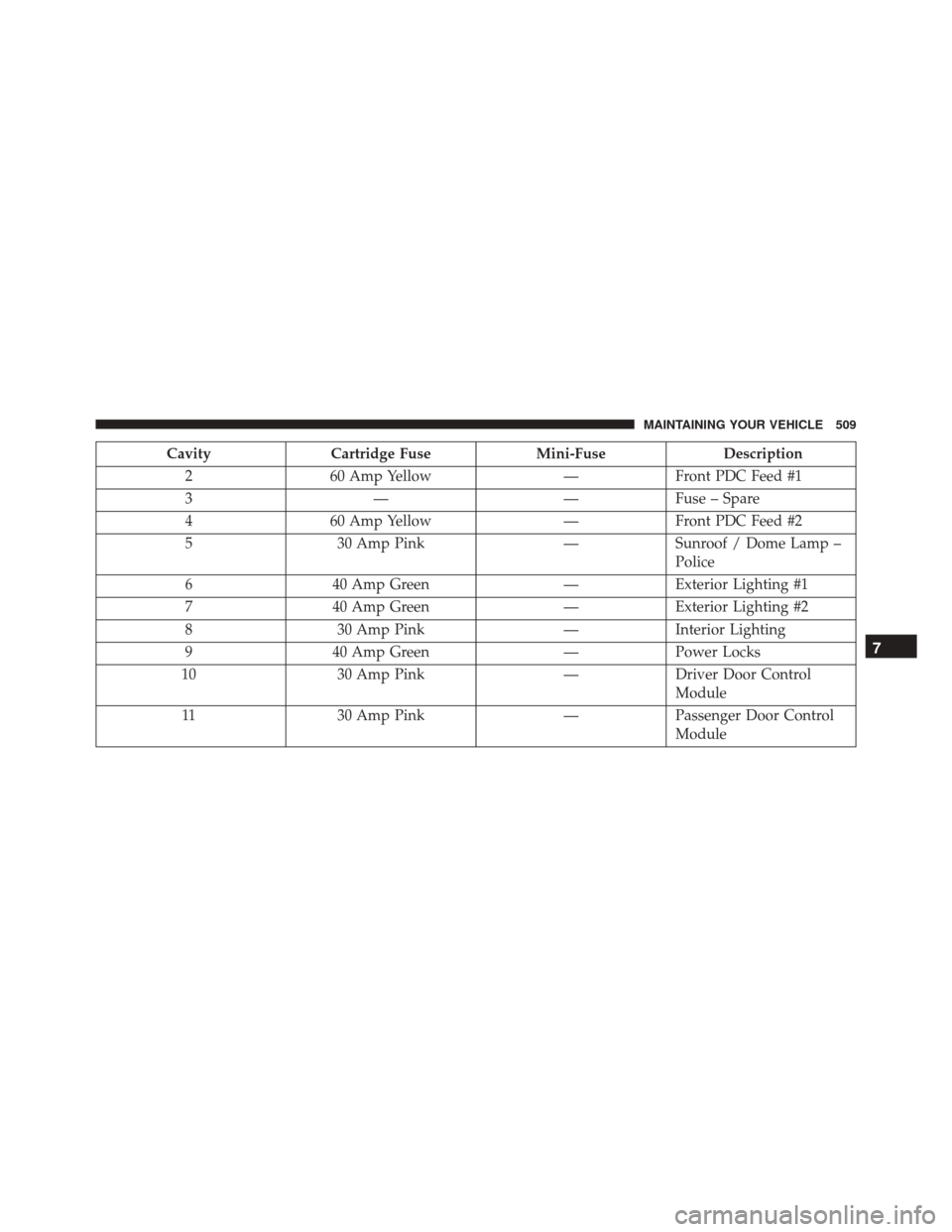

CavityCartridge Fuse Mini-FuseDescription
2 60 Amp Yellow —Front PDC Feed #1
3 — —Fuse – Spare
4 60 Amp Yellow —Front PDC Feed #2
5 30 Amp Pink —Sunroof / Dome Lamp –
Police
6 40 Amp Green —Exterior Lighting #1
7 40 Amp Green —Exterior Lighting #2
8 30 Amp Pink —Interior Lighting
9 40 Amp Green —Power Locks
10 30 Amp Pink —Driver Door Control
Module
11 30 Amp Pink —Passenger Door Control
Module
7
MAINTAINING YOUR VEHICLE 509

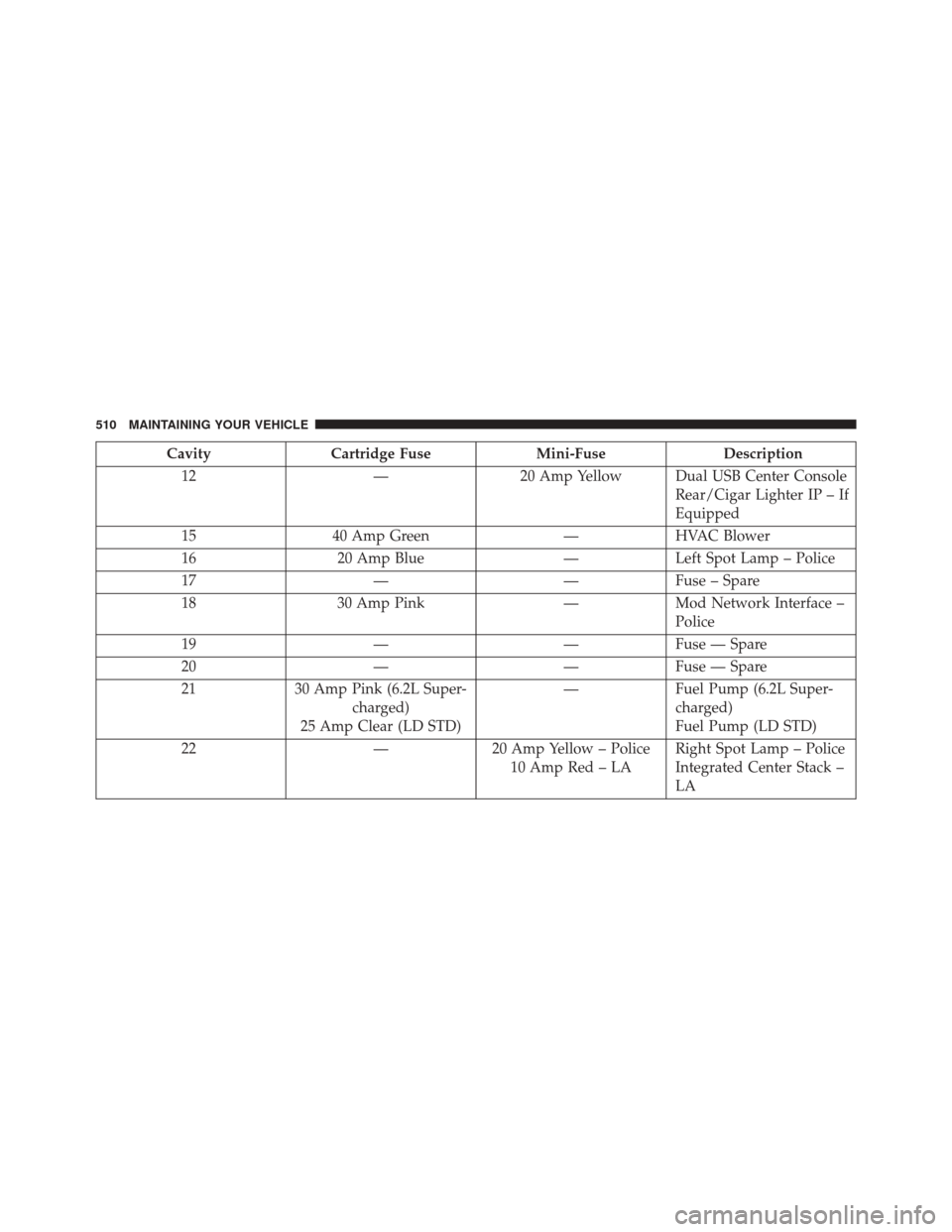

CavityCartridge Fuse Mini-FuseDescription
12 —20 Amp Yellow Dual USB Center Console
Rear/Cigar Lighter IP – If
Equipped
15 40 Amp Green —HVAC Blower
16 20 Amp Blue —Left Spot Lamp – Police
17 ——Fuse – Spare
18 30 Amp Pink —Mod Network Interface –
Police
19 ——Fuse — Spare
20 ——Fuse — Spare
21 30 Amp Pink (6.2L Super-
charged)
25 Amp Clear (LD STD) —
Fuel Pump (6.2L Super-
charged)
Fuel Pump (LD STD)
22 —20 Amp Yellow – Police
10 Amp Red – LA Right Spot Lamp – Police
Integrated Center Stack –
LA
510 MAINTAINING YOUR VEHICLE

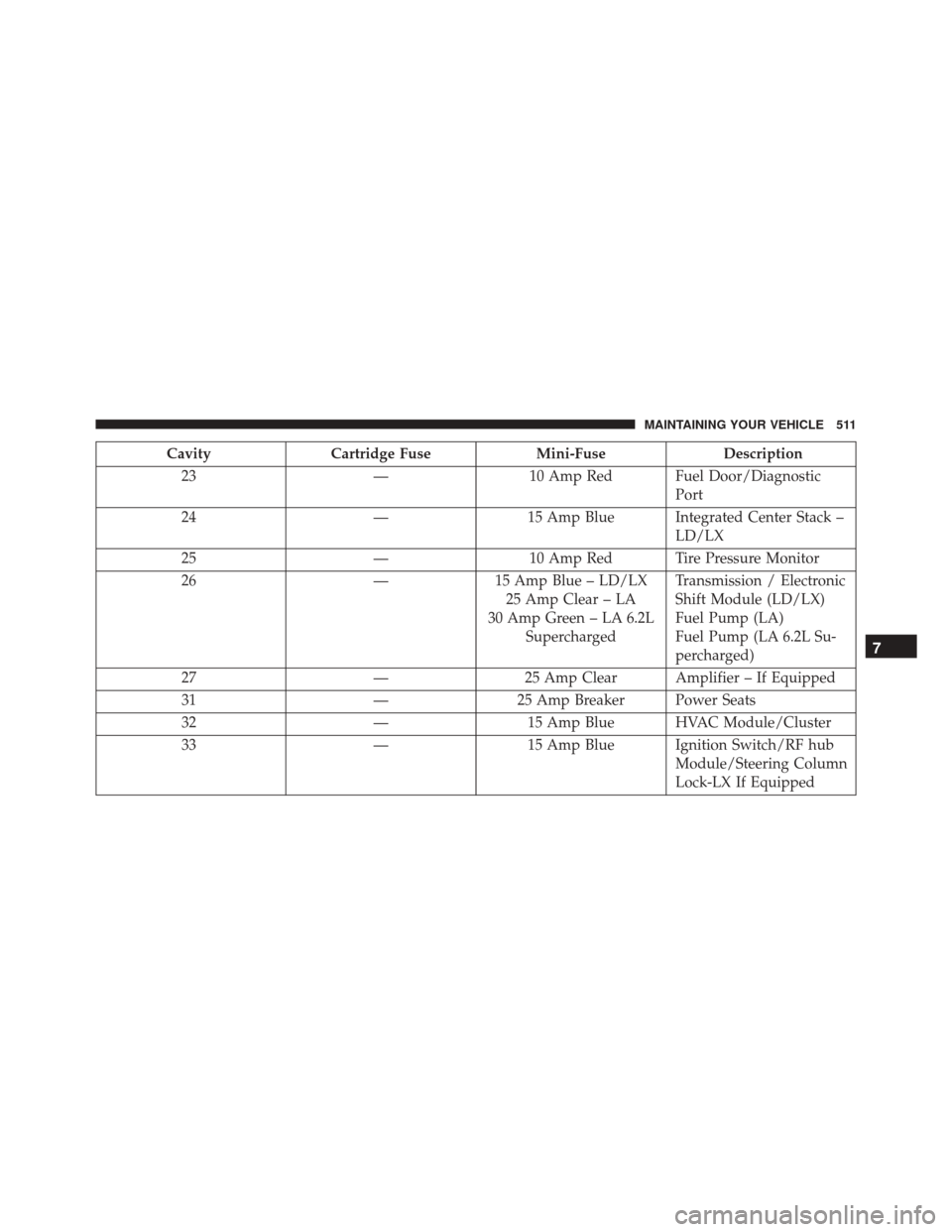

CavityCartridge Fuse Mini-FuseDescription
23 —10 Amp Red Fuel Door/Diagnostic
Port
24 —15 Amp Blue Integrated Center Stack –
LD/LX
25 —10 Amp Red Tire Pressure Monitor
26 —15 Amp Blue – LD/LX
25 Amp Clear – LA
30 Amp Green – LA 6.2L Supercharged Transmission / Electronic
Shift Module (LD/LX)
Fuel Pump (LA)
Fuel Pump (LA 6.2L Su-
percharged)
27 —25 Amp Clear Amplifier – If Equipped
31 —25 Amp Breaker Power Seats
32 —15 Amp Blue HVAC Module/Cluster
33 —15 Amp Blue Ignition Switch/RF hub
Module/Steering Column
Lock-LX If Equipped
7
MAINTAINING YOUR VEHICLE 511

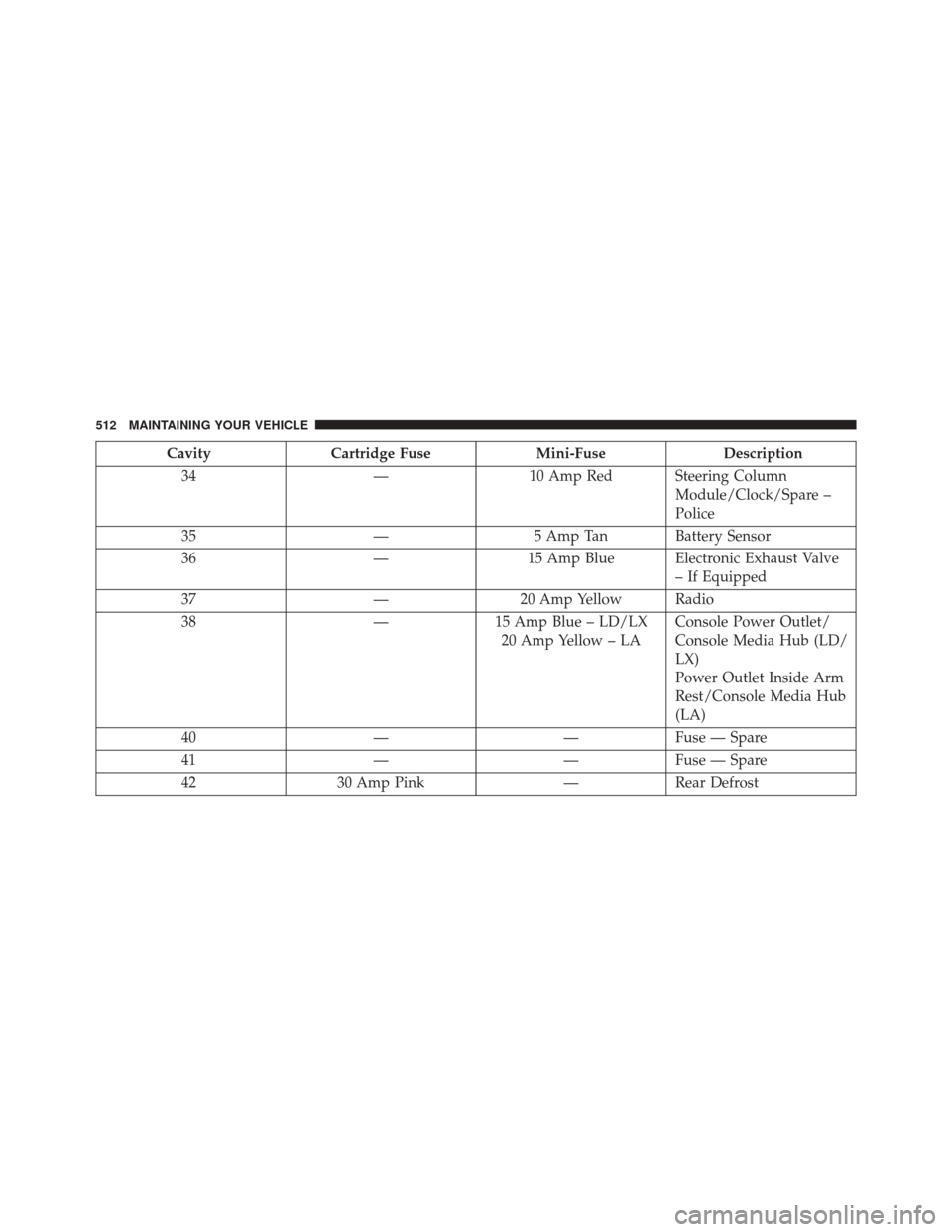

CavityCartridge Fuse Mini-FuseDescription
34 —10 Amp Red Steering Column
Module/Clock/Spare –
Police
35 —5 Amp Tan Battery Sensor
36 —15 Amp Blue Electronic Exhaust Valve
– If Equipped
37 —20 Amp Yellow Radio
38 —15 Amp Blue – LD/LX
20 Amp Yellow – LA Console Power Outlet/
Console Media Hub (LD/
LX)
Power Outlet Inside Arm
Rest/Console Media Hub
(LA)
40 ——Fuse — Spare
41 ——Fuse — Spare
42 30 Amp Pink —Rear Defrost
512 MAINTAINING YOUR VEHICLE

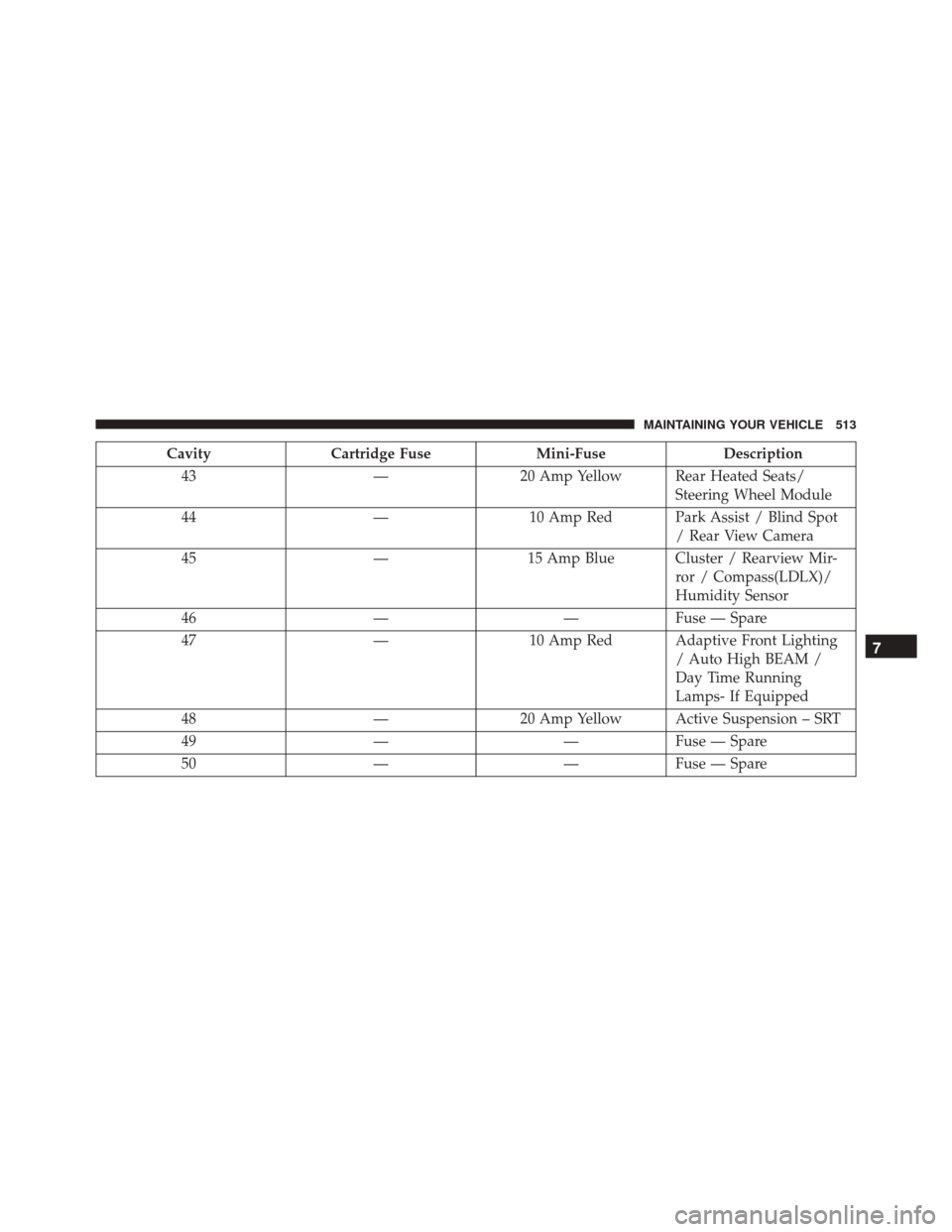

CavityCartridge Fuse Mini-FuseDescription
43 —20 Amp Yellow Rear Heated Seats/
Steering Wheel Module
44 —10 Amp Red Park Assist / Blind Spot
/ Rear View Camera
45 —15 Amp Blue Cluster / Rearview Mir-
ror / Compass(LDLX)/
Humidity Sensor
46 ——Fuse — Spare
47 —10 Amp Red Adaptive Front Lighting
/ Auto High BEAM /
Day Time Running
Lamps- If Equipped
48 —20 Amp Yellow Active Suspension – SRT
49 ——Fuse — Spare
50 ——Fuse — Spare
7
MAINTAINING YOUR VEHICLE 513

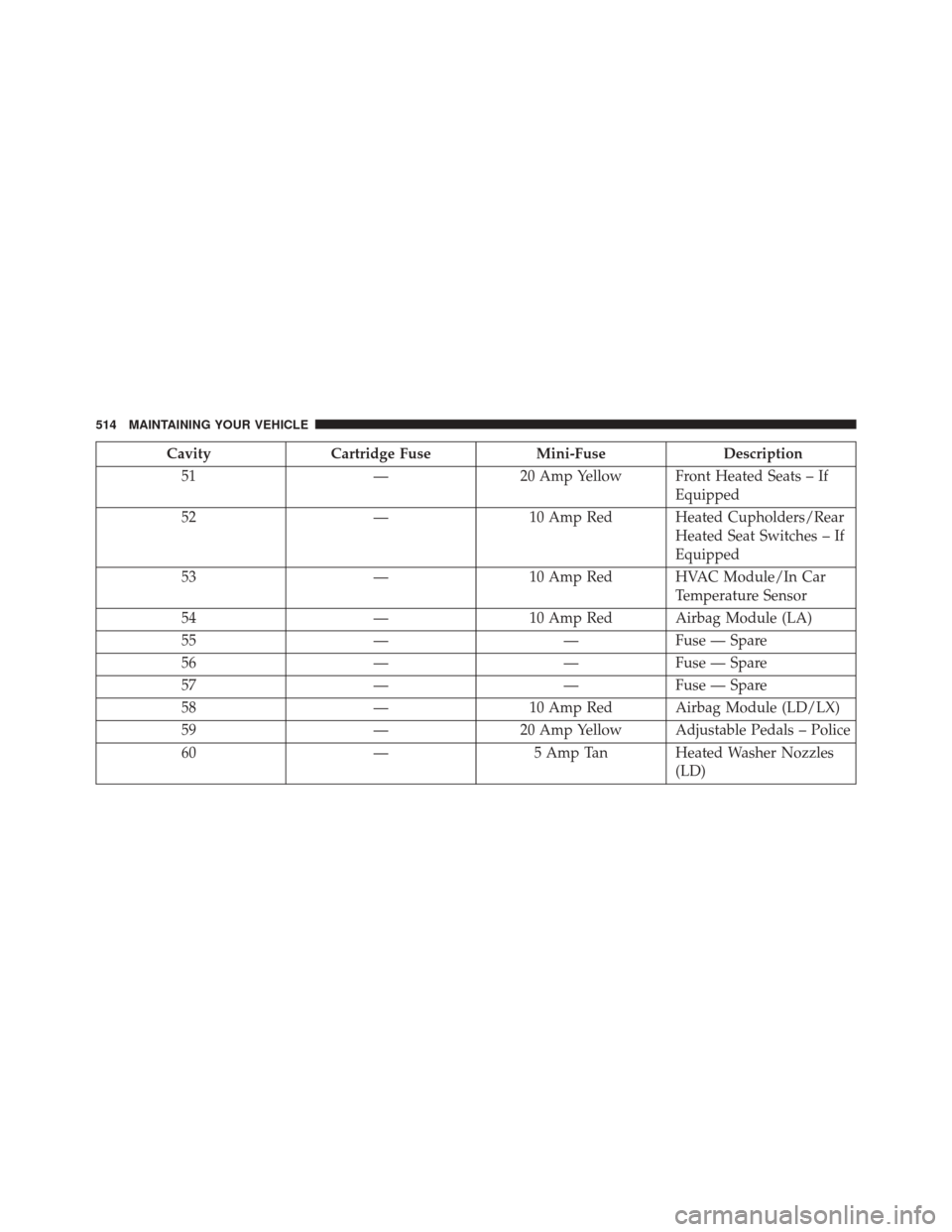

CavityCartridge Fuse Mini-FuseDescription
51 —20 Amp Yellow Front Heated Seats – If
Equipped
52 —10 Amp Red Heated Cupholders/Rear
Heated Seat Switches – If
Equipped
53 —10 Amp Red HVAC Module/In Car
Temperature Sensor
54 —10 Amp Red Airbag Module (LA)
55 ——Fuse — Spare
56 ——Fuse — Spare
57 ——Fuse — Spare
58 —10 Amp Red Airbag Module (LD/LX)
59 —20 Amp Yellow Adjustable Pedals – Police
60 —5 Amp Tan Heated Washer Nozzles
(LD)
514 MAINTAINING YOUR VEHICLE

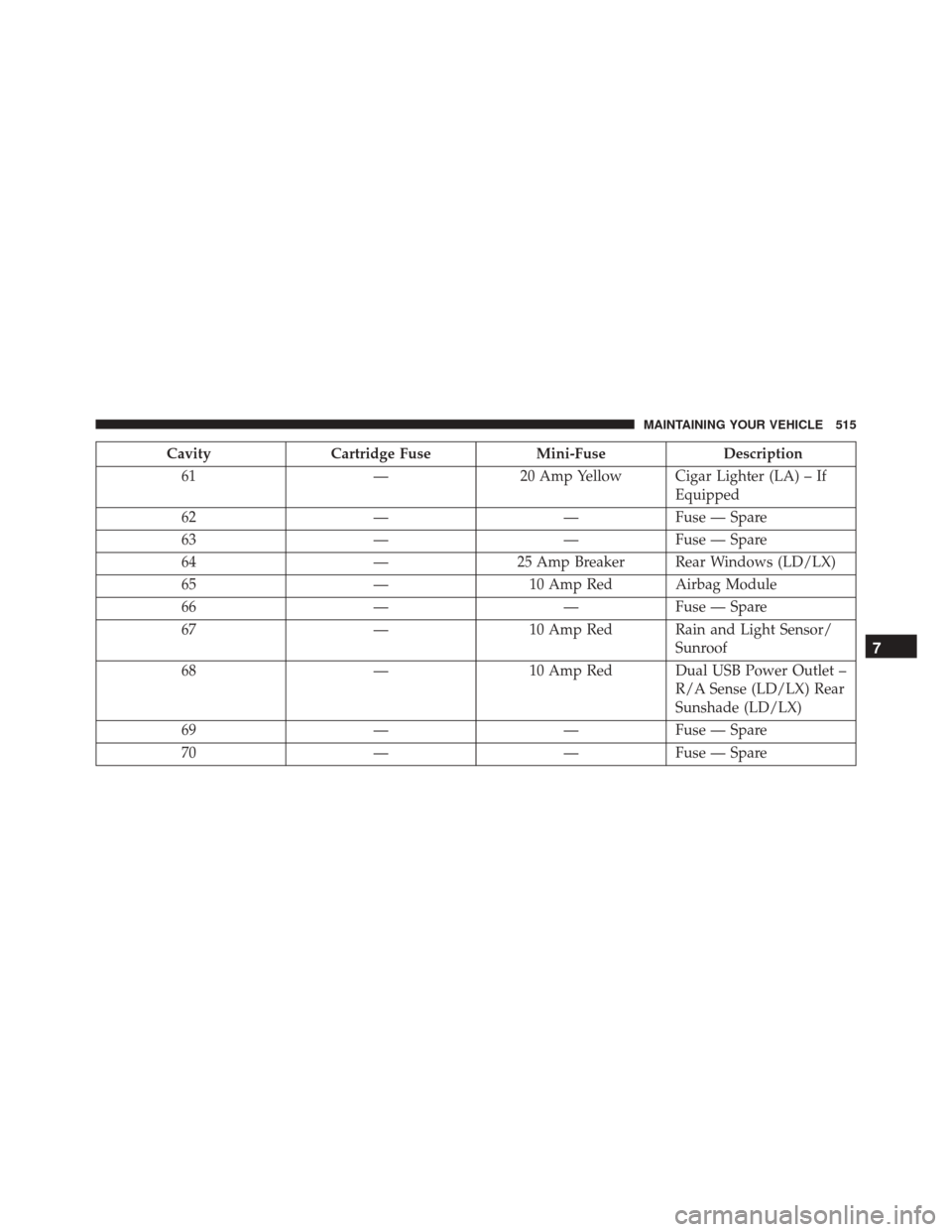

CavityCartridge Fuse Mini-FuseDescription
61 —20 Amp Yellow Cigar Lighter (LA) – If
Equipped
62 ——Fuse — Spare
63 ——Fuse — Spare
64 —25 Amp Breaker Rear Windows (LD/LX)
65 —10 Amp Red Airbag Module
66 ——Fuse — Spare
67 —10 Amp Red Rain and Light Sensor/
Sunroof
68 —10 Amp Red Dual USB Power Outlet –
R/A Sense (LD/LX) Rear
Sunshade (LD/LX)
69 ——Fuse — Spare
70 ——Fuse — Spare
7
MAINTAINING YOUR VEHICLE 515

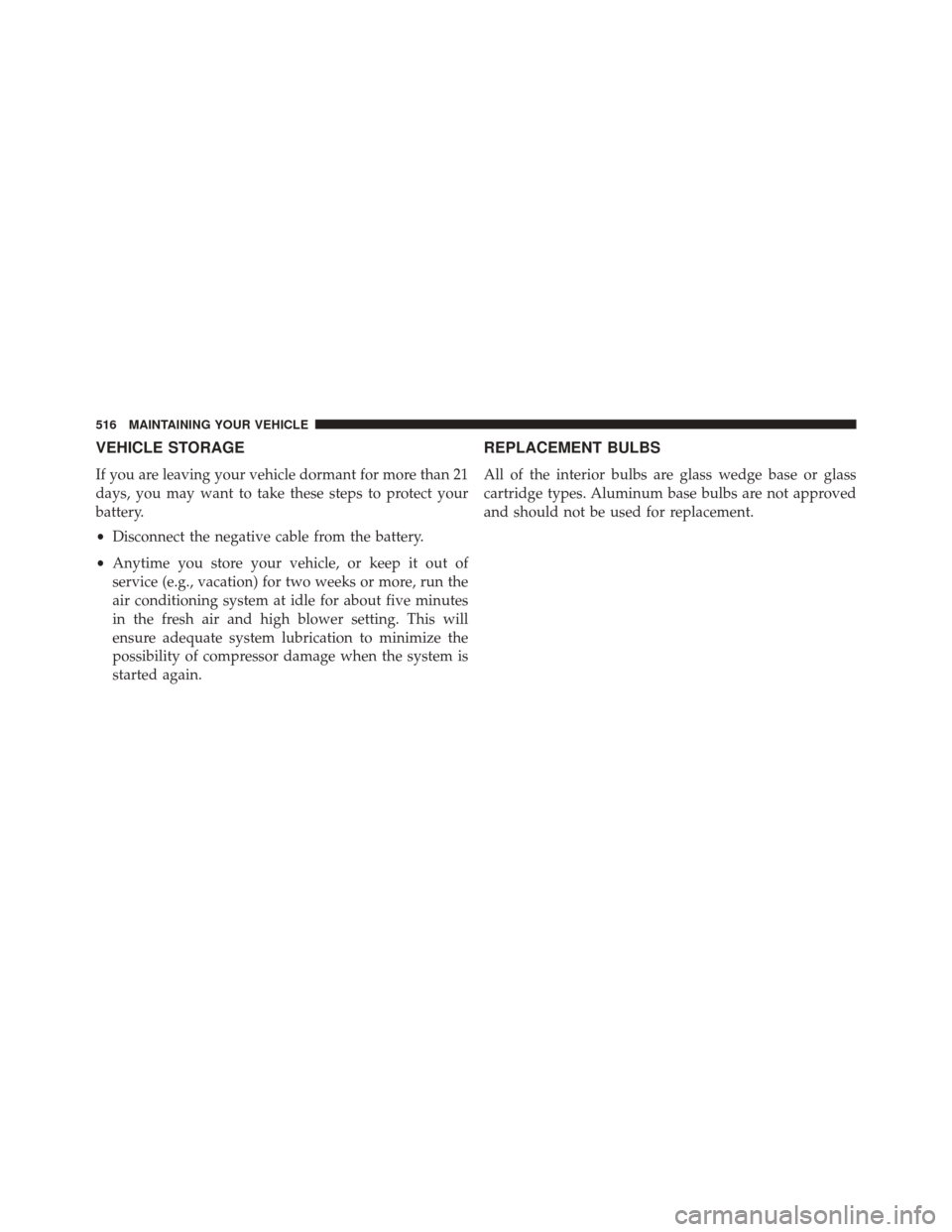

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
516 MAINTAINING YOUR VEHICLE

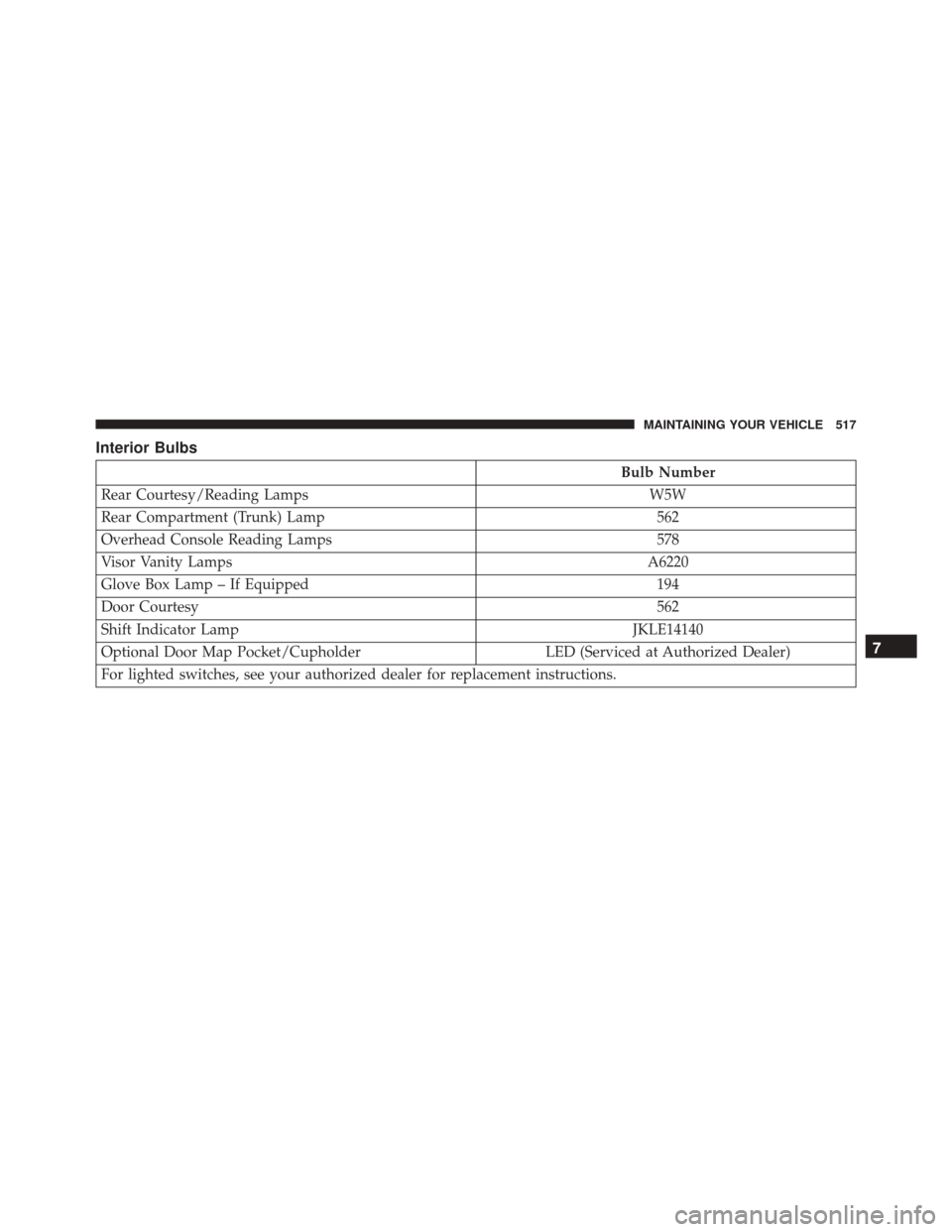

Interior Bulbs
Bulb Number
Rear Courtesy/Reading Lamps W5W
Rear Compartment (Trunk) Lamp 562
Overhead Console Reading Lamps 578
Visor Vanity Lamps A6220
Glove Box Lamp – If Equipped 194
Door Courtesy 562
Shift Indicator Lamp JKLE14140
Optional Door Map Pocket/Cupholder LED (Serviced at Authorized Dealer)
For lighted switches, see your authorized dealer for replacement instructions.
7
MAINTAINING YOUR VEHICLE 517

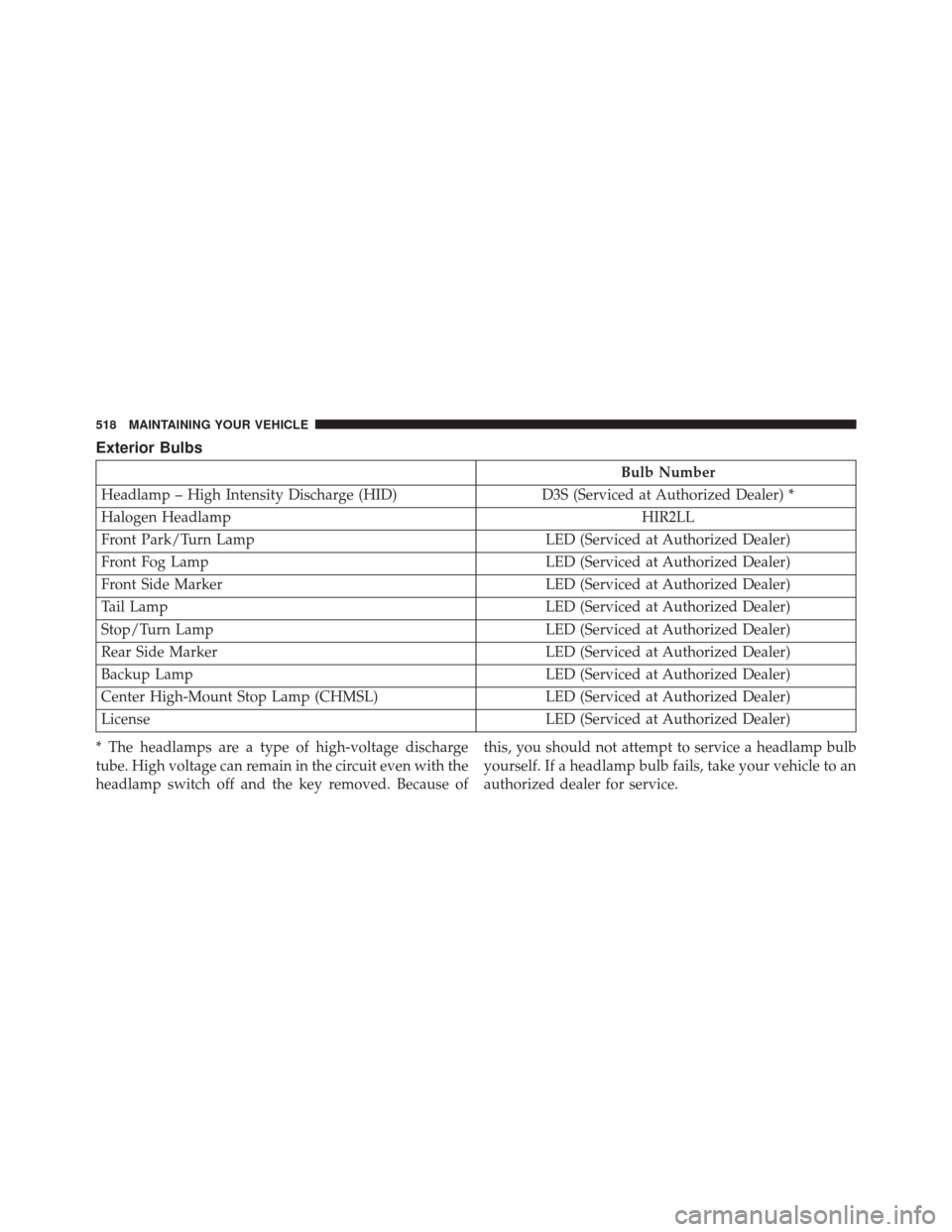

Exterior Bulbs
Bulb Number
Headlamp – High Intensity Discharge (HID) D3S (Serviced at Authorized Dealer) *
Halogen Headlamp HIR2LL
Front Park/Turn Lamp LED (Serviced at Authorized Dealer)
Front Fog Lamp LED (Serviced at Authorized Dealer)
Front Side Marker LED (Serviced at Authorized Dealer)
Tail Lamp LED (Serviced at Authorized Dealer)
Stop/Turn Lamp LED (Serviced at Authorized Dealer)
Rear Side Marker LED (Serviced at Authorized Dealer)
Backup Lamp LED (Serviced at Authorized Dealer)
Center High-Mount Stop Lamp (CHMSL) LED (Serviced at Authorized Dealer)
License LED (Serviced at Authorized Dealer)
* The headlamps are a type of high-voltage discharge
tube. High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to an
authorized dealer for service.
