Page 401 of 616

•In temporary AutoStick mode (gear selector in
DRIVE), the transmission will automatically shift up
when maximum engine speed is reached. Lack of
accelerator pedal activity will cause the transmission
to revert to automatic operation.
• If normal AutoStick mode is engaged (gear selector in
MANUAL position), manual gear selection will be
maintained until the gear selector is returned to
DRIVE, or as described below. The transmission will
not upshift automatically at redline in this mode, nor
will downshifts be obtained if the accelerator pedal is
pressed to the floor.
• The transmission will automatically downshift as the
vehicle slows (to prevent engine lugging) and will
display the current gear. •
The transmission will automatically downshift to first
gear when coming to a stop. After a stop, the driver
should manually upshift (+) the transmission as the
vehicle is accelerated.
• You can start out, from a stop, in first or second gear.
Tapping (+) (at a stop) will allow starting in second
gear. Starting out in second gear can be helpful in
snowy or icy conditions.
• If a requested downshift would cause the engine to
over-speed, that shift will not occur.
• The system will ignore attempts to upshift at too low
of a vehicle speed.
• Holding the (-) paddle depressed, or holding the gear
selector in the (-) position, will downshift the trans-
mission to the lowest gear possible at the current
speed.
5
STARTING AND OPERATING 399

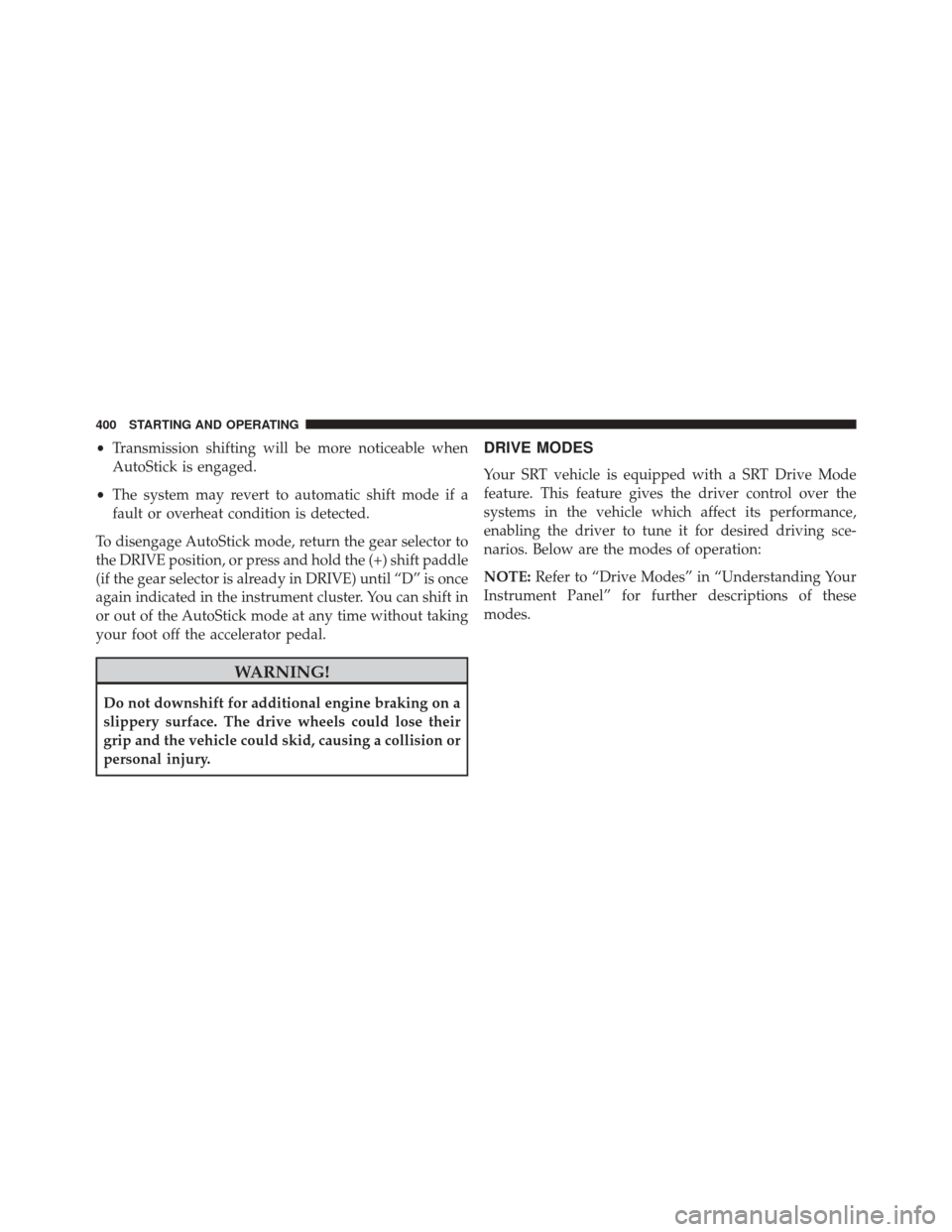

Page 402 of 616

•Transmission shifting will be more noticeable when
AutoStick is engaged.
• The system may revert to automatic shift mode if a
fault or overheat condition is detected.
To disengage AutoStick mode, return the gear selector to
the DRIVE position, or press and hold the (+) shift paddle
(if the gear selector is already in DRIVE) until “D” is once
again indicated in the instrument cluster. You can shift in
or out of the AutoStick mode at any time without taking
your foot off the accelerator pedal.
WARNING!
Do not downshift for additional engine braking on a
slippery surface. The drive wheels could lose their
grip and the vehicle could skid, causing a collision or
personal injury.
DRIVE MODES
Your SRT vehicle is equipped with a SRT Drive Mode
feature. This feature gives the driver control over the
systems in the vehicle which affect its performance,
enabling the driver to tune it for desired driving sce-
narios. Below are the modes of operation:
NOTE: Refer to “Drive Modes” in “Understanding Your
Instrument Panel” for further descriptions of these
modes.
400 STARTING AND OPERATING
Page 403 of 616

•TRACK MODE — This mode is a predefined configu-
ration optimized for typical track driving. The ABS,
Transmission, Steering, and Suspension systems are all
set to their TRACK settings. Steering wheel mounted
paddle shifters are enabled. •
SPORT MODE — This mode is a predefined configu-
ration optimized for typical enthusiast driving. The
ABS, Transmission, Steering, and Suspension systems
are all set to their SPORT settings. Steering wheel
mounted paddle shifters are enabled.
• CUSTOM MODE — This mode allows the driver to
create a custom vehicle configuration that is saved for
quick selection of favorite settings. The system will
return to Default mode when the ignition switch is
cycled from RUN to OFF to RUN, if this mode is
selected. While in Custom Mode the Traction, Trans-
mission, Steering, Suspension and Paddle shifter set-
tings may be configured through the custom mode
set-up in any combination.
Drive Modes
5
STARTING AND OPERATING 401
Page 404 of 616

Listed below is a description of each of these settings:
Transmission (Trans)
•Track — provides the fastest shift speeds and has the
highest comfort trade-off. •
Sport — provides a faster shift speed and has a
moderate comfort trade-off.
• Street — provides a balance of shift speed and comfort
for typical daily driving.
Paddles
• On — enables steering wheel mounted paddle shifters.
• Off — disables steering wheel mounted paddle shift-
ers.
Traction
• Track — modifies traction control to optimize track
performance with the least stability control.
• Sport — turns off traction control and reduces stability
control.
• Street — provides full traction control and full stability
control.
Custom Mode Set-Up
402 STARTING AND OPERATING

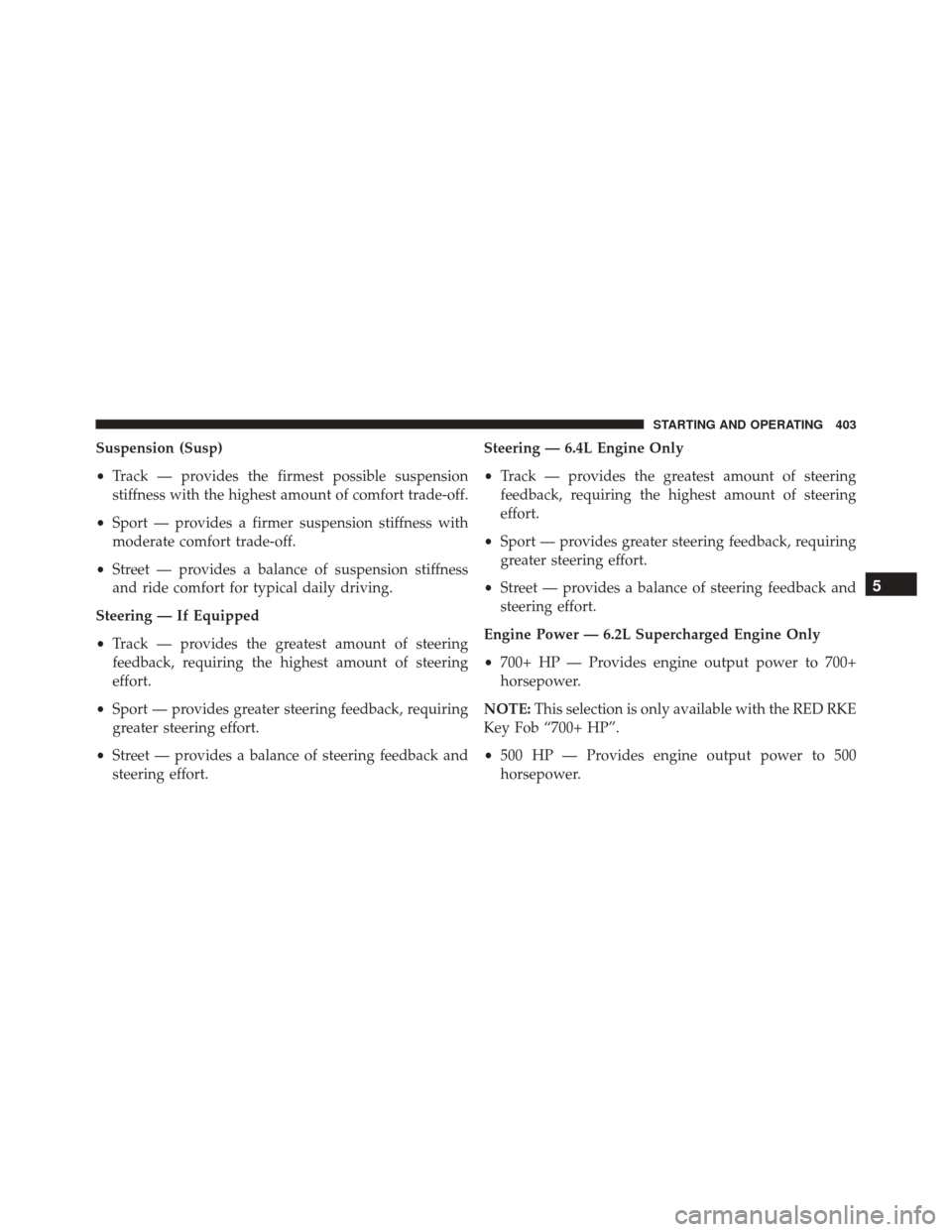

Page 405 of 616

Suspension (Susp)
•Track — provides the firmest possible suspension
stiffness with the highest amount of comfort trade-off.
• Sport — provides a firmer suspension stiffness with
moderate comfort trade-off.
• Street — provides a balance of suspension stiffness
and ride comfort for typical daily driving.
Steering — If Equipped
• Track — provides the greatest amount of steering
feedback, requiring the highest amount of steering
effort.
• Sport — provides greater steering feedback, requiring
greater steering effort.
• Street — provides a balance of steering feedback and
steering effort. Steering — 6.4L Engine Only
•
Track — provides the greatest amount of steering
feedback, requiring the highest amount of steering
effort.
• Sport — provides greater steering feedback, requiring
greater steering effort.
• Street — provides a balance of steering feedback and
steering effort.
Engine Power — 6.2L Supercharged Engine Only
• 700+ HP — Provides engine output power to 700+
horsepower.
NOTE: This selection is only available with the RED RKE
Key Fob “700+ HP”.
• 500 HP — Provides engine output power to 500
horsepower.
5
STARTING AND OPERATING 403

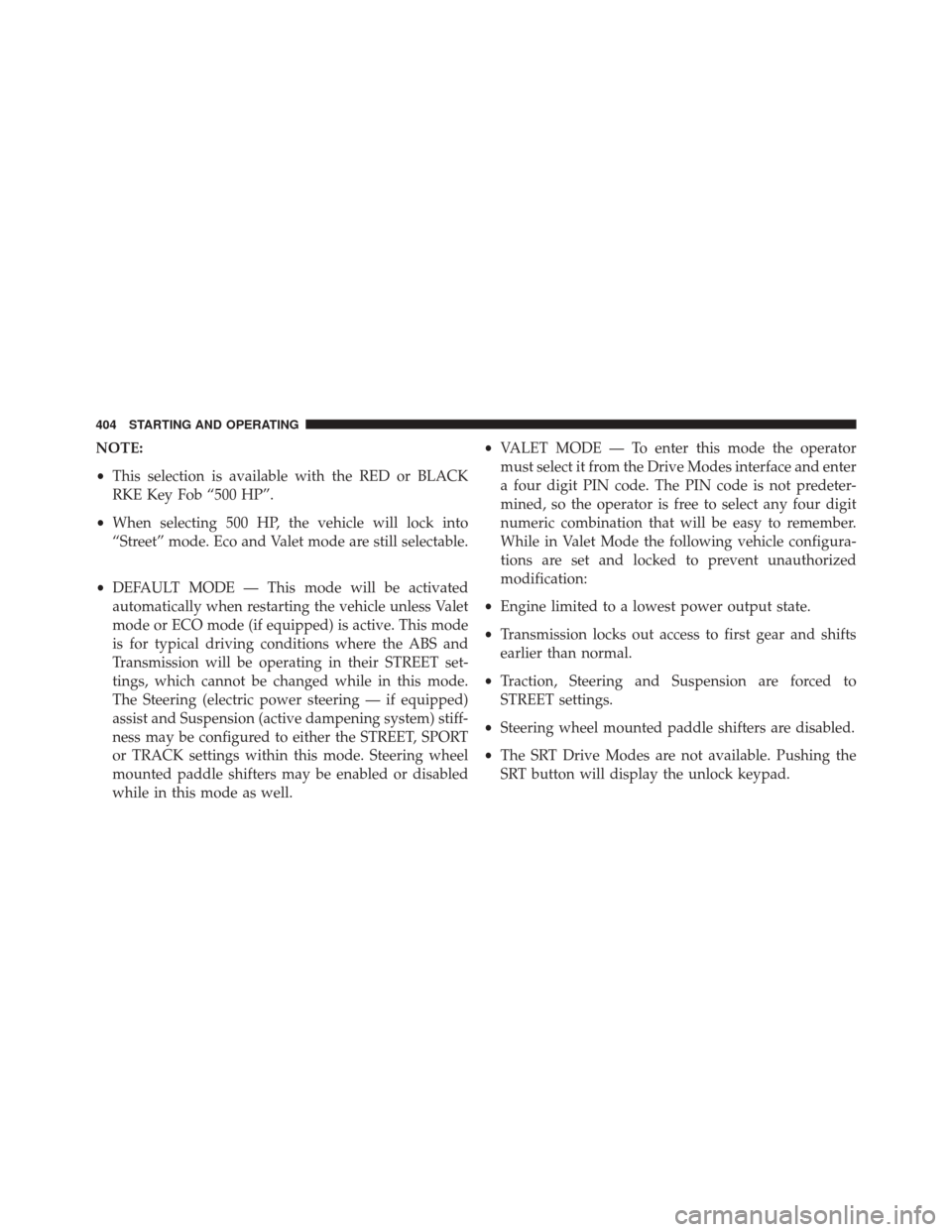

Page 406 of 616

NOTE:
•This selection is available with the RED or BLACK
RKE Key Fob “500 HP”.
• When selecting 500 HP, the vehicle will lock into
“Street” mode. Eco and Valet mode are still selectable.
• DEFAULT MODE — This mode will be activated
automatically when restarting the vehicle unless Valet
mode or ECO mode (if equipped) is active. This mode
is for typical driving conditions where the ABS and
Transmission will be operating in their STREET set-
tings, which cannot be changed while in this mode.
The Steering (electric power steering — if equipped)
assist and Suspension (active dampening system) stiff-
ness may be configured to either the STREET, SPORT
or TRACK settings within this mode. Steering wheel
mounted paddle shifters may be enabled or disabled
while in this mode as well. •
VALET MODE — To enter this mode the operator
must select it from the Drive Modes interface and enter
a four digit PIN code. The PIN code is not predeter-
mined, so the operator is free to select any four digit
numeric combination that will be easy to remember.
While in Valet Mode the following vehicle configura-
tions are set and locked to prevent unauthorized
modification:
• Engine limited to a lowest power output state.
• Transmission locks out access to first gear and shifts
earlier than normal.
• Traction, Steering and Suspension are forced to
STREET settings.
• Steering wheel mounted paddle shifters are disabled.
• The SRT Drive Modes are not available. Pushing the
SRT button will display the unlock keypad.
404 STARTING AND OPERATING

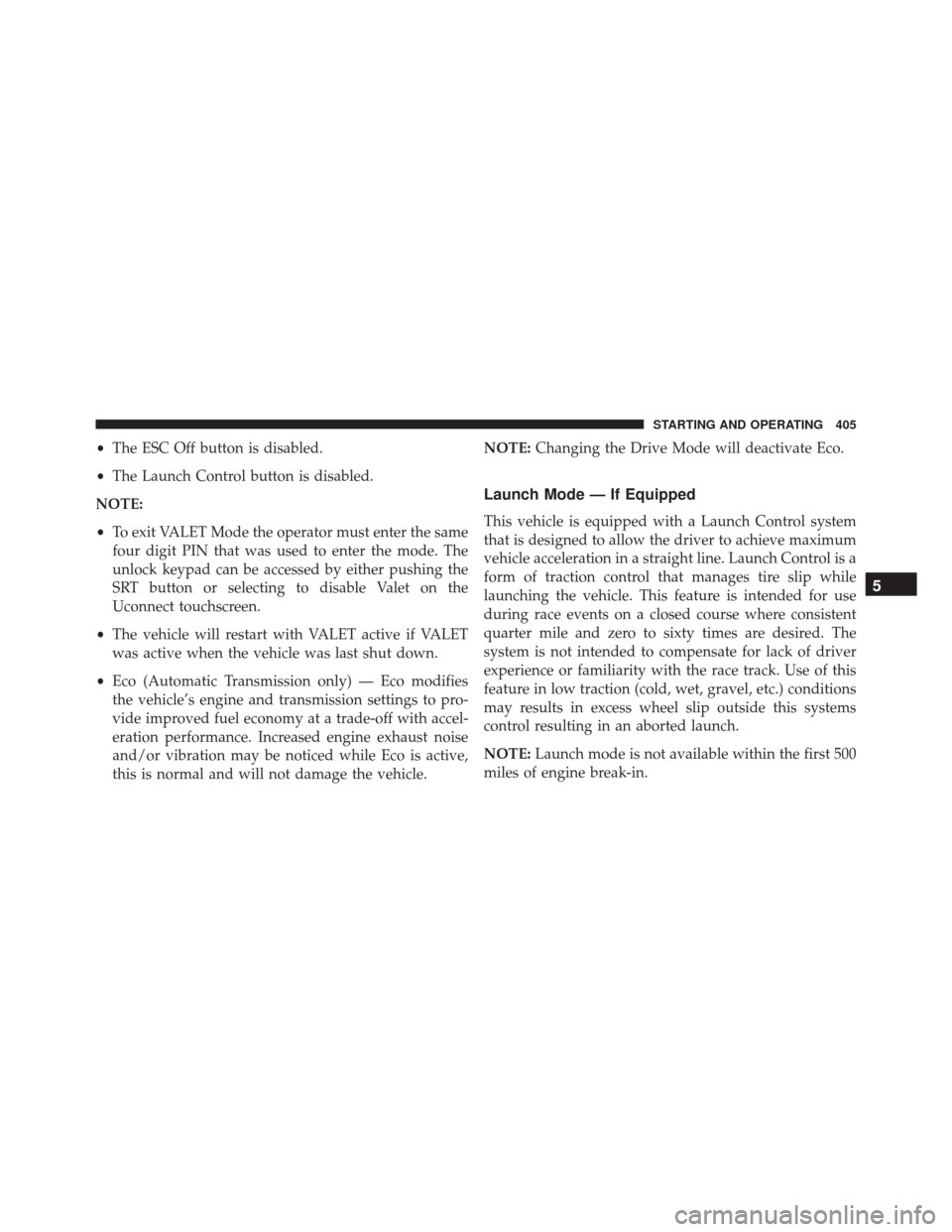

Page 407 of 616

•The ESC Off button is disabled.
• The Launch Control button is disabled.
NOTE:
• To exit VALET Mode the operator must enter the same
four digit PIN that was used to enter the mode. The
unlock keypad can be accessed by either pushing the
SRT button or selecting to disable Valet on the
Uconnect touchscreen.
• The vehicle will restart with VALET active if VALET
was active when the vehicle was last shut down.
• Eco (Automatic Transmission only) — Eco modifies
the vehicle’s engine and transmission settings to pro-
vide improved fuel economy at a trade-off with accel-
eration performance. Increased engine exhaust noise
and/or vibration may be noticed while Eco is active,
this is normal and will not damage the vehicle. NOTE:
Changing the Drive Mode will deactivate Eco.
Launch Mode — If Equipped
This vehicle is equipped with a Launch Control system
that is designed to allow the driver to achieve maximum
vehicle acceleration in a straight line. Launch Control is a
form of traction control that manages tire slip while
launching the vehicle. This feature is intended for use
during race events on a closed course where consistent
quarter mile and zero to sixty times are desired. The
system is not intended to compensate for lack of driver
experience or familiarity with the race track. Use of this
feature in low traction (cold, wet, gravel, etc.) conditions
may results in excess wheel slip outside this systems
control resulting in an aborted launch.
NOTE:Launch mode is not available within the first 500
miles of engine break-in.
5
STARTING AND OPERATING 405

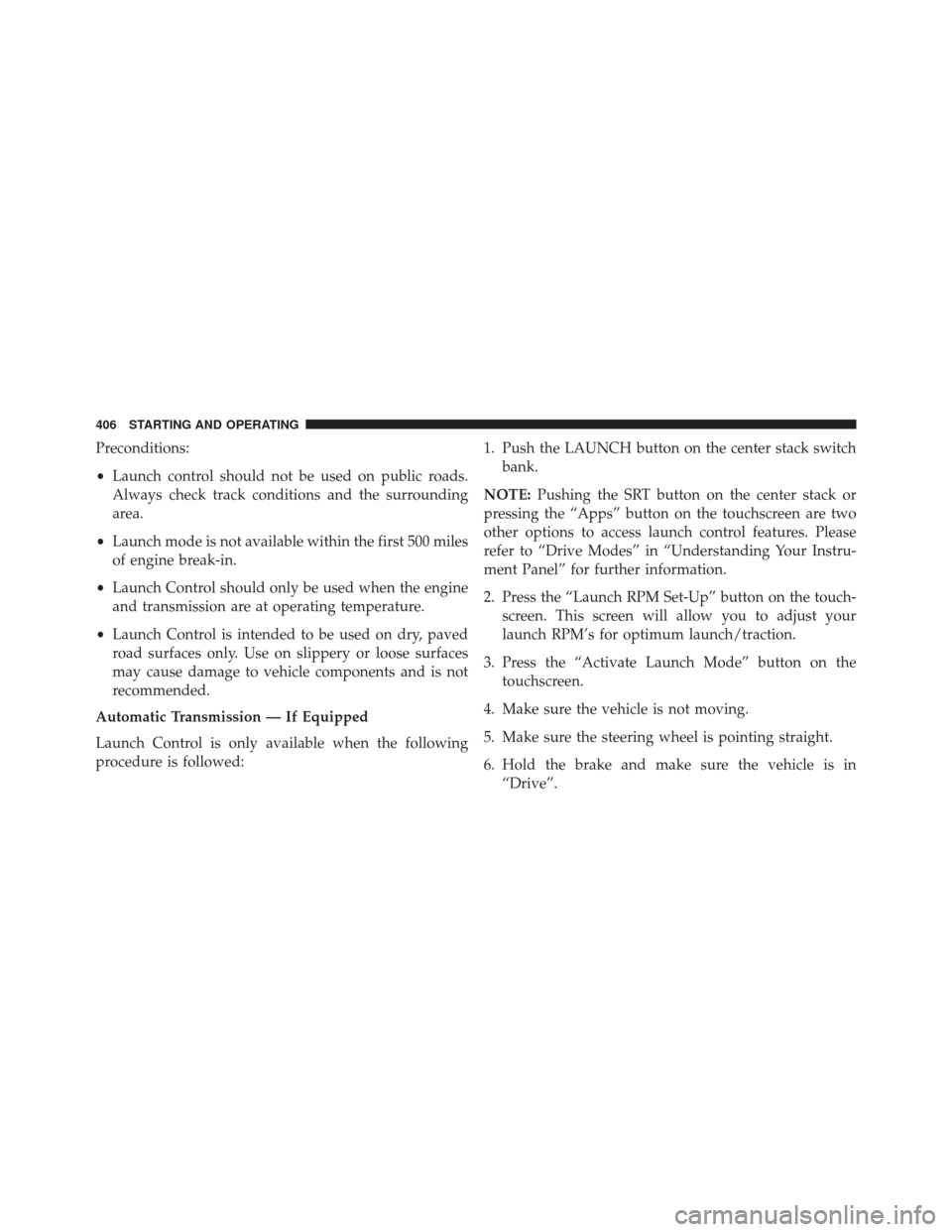

Page 408 of 616

Preconditions:
•Launch control should not be used on public roads.
Always check track conditions and the surrounding
area.
• Launch mode is not available within the first 500 miles
of engine break-in.
• Launch Control should only be used when the engine
and transmission are at operating temperature.
• Launch Control is intended to be used on dry, paved
road surfaces only. Use on slippery or loose surfaces
may cause damage to vehicle components and is not
recommended.
Automatic Transmission — If Equipped
Launch Control is only available when the following
procedure is followed: 1. Push the LAUNCH button on the center stack switch
bank.
NOTE: Pushing the SRT button on the center stack or
pressing the “Apps” button on the touchscreen are two
other options to access launch control features. Please
refer to “Drive Modes” in “Understanding Your Instru-
ment Panel” for further information.
2. Press the “Launch RPM Set-Up” button on the touch- screen. This screen will allow you to adjust your
launch RPM’s for optimum launch/traction.
3. Press the “Activate Launch Mode” button on the touchscreen.
4. Make sure the vehicle is not moving.
5. Make sure the steering wheel is pointing straight.
6. Hold the brake and make sure the vehicle is in “Drive”.
406 STARTING AND OPERATING
Page 409 of 616

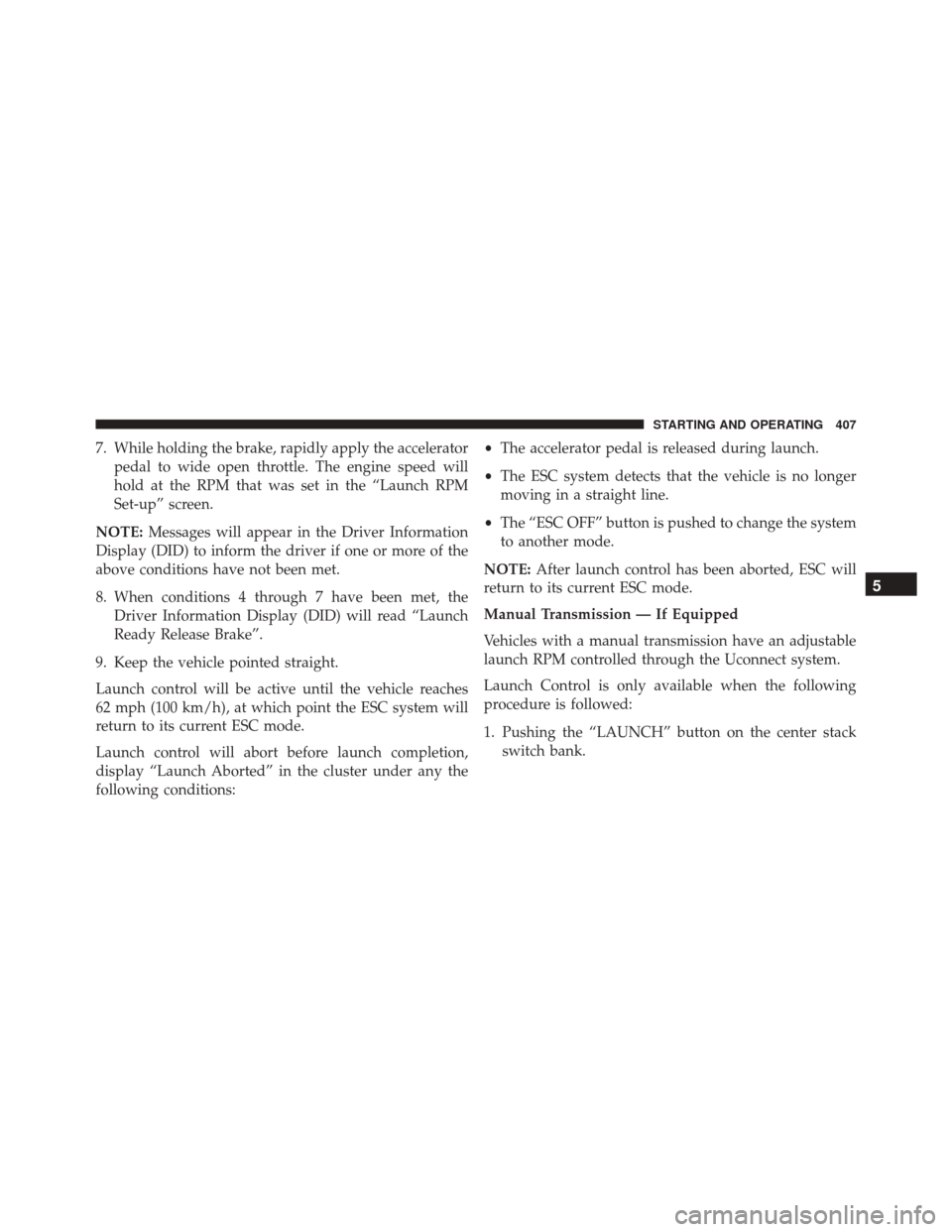

7. While holding the brake, rapidly apply the acceleratorpedal to wide open throttle. The engine speed will
hold at the RPM that was set in the “Launch RPM
Set-up” screen.
NOTE: Messages will appear in the Driver Information
Display (DID) to inform the driver if one or more of the
above conditions have not been met.
8. When conditions 4 through 7 have been met, the Driver Information Display (DID) will read “Launch
Ready Release Brake”.
9. Keep the vehicle pointed straight.
Launch control will be active until the vehicle reaches
62 mph (100 km/h), at which point the ESC system will
return to its current ESC mode.
Launch control will abort before launch completion,
display “Launch Aborted” in the cluster under any the
following conditions: •
The accelerator pedal is released during launch.
• The ESC system detects that the vehicle is no longer
moving in a straight line.
• The “ESC OFF” button is pushed to change the system
to another mode.
NOTE: After launch control has been aborted, ESC will
return to its current ESC mode.
Manual Transmission — If Equipped
Vehicles with a manual transmission have an adjustable
launch RPM controlled through the Uconnect system.
Launch Control is only available when the following
procedure is followed:
1. Pushing the “LAUNCH” button on the center stack switch bank.
5
STARTING AND OPERATING 407
Page 410 of 616

NOTE:Pushing the SRT button on the center stack or
pressing the “Apps” button on the touchscreen are two
other options to access launch control features. Please
refer to “Uconnect Settings” within your Owner ’s
Manual on the DVD for further information.
2. Press the “Launch RPM Set-Up” button on the touch- screen. This screen will allow you to adjust your
launch RPM’s for optimum launch/traction.
3. Press the “Activate Launch Mode” button on the touchscreen.
4. Make sure the vehicle is not moving.
5. Make sure the steering wheel is pointing straight.
6. Fully depress the clutch pedal and make sure the vehicle is in first gear.
7. While holding the clutch depressed, rapidly apply the accelerator pedal to wide open throttle. The engine speed will hold at the pre-selected launch RPM. The
engine speed will hold at the RPM that was set in the
“Launch RPM Set-up” screen.
NOTE: Messages will appear in the Driver Information
Display (DID) to inform the driver if one or more of the
above conditions have not been met.
8. When conditions 4 through 7 have been met, the Driver Information Display (DID) will read “Launch
Ready Release Clutch”. Release the clutch quickly and
continue to hold wide open throttle to launch execute
shifts. Refer to “Manual Transmission – Shifting” in
this section for further information.
Release the clutch and continue to hold wide open
throttle to launch.
9. Keep the vehicle pointed straight.
408 STARTING AND OPERATING
