3. Using a small screwdriver or similar tool, fish thetether strap up through the opening in the console
base.
4. Insert the screwdriver into the slot in the center of the lever, and disengage the lever locking tab by pushing
it to the right. 5. While holding the locking tab in the disengaged
position, pull the tether strap to rotate the lever up and
rearward until it locks in place in the vertical position.
The vehicle is now out of PARK and can be moved.
Release the parking brake only when the vehicle is
securely connected to a tow vehicle.
Console Storage BinLocking Tab
6
WHAT TO DO IN EMERGENCIES 499

To Reset The Manual Park Release:
1. Push the latch (at the base of the lever, on the rear side)rearward (away from the lever) to unlatch the lever.
2. Rotate the Manual Park Release lever forward and down, to its original position, until the locking tab
snaps into place to secure the lever.
3. Pull up gently on the tether strap to confirm that the lever is locked in its stowed position.
4. Tuck the tether strap into the base of the console. Reinstall the console storage bin.
Tether Strap
500 WHAT TO DO IN EMERGENCIES

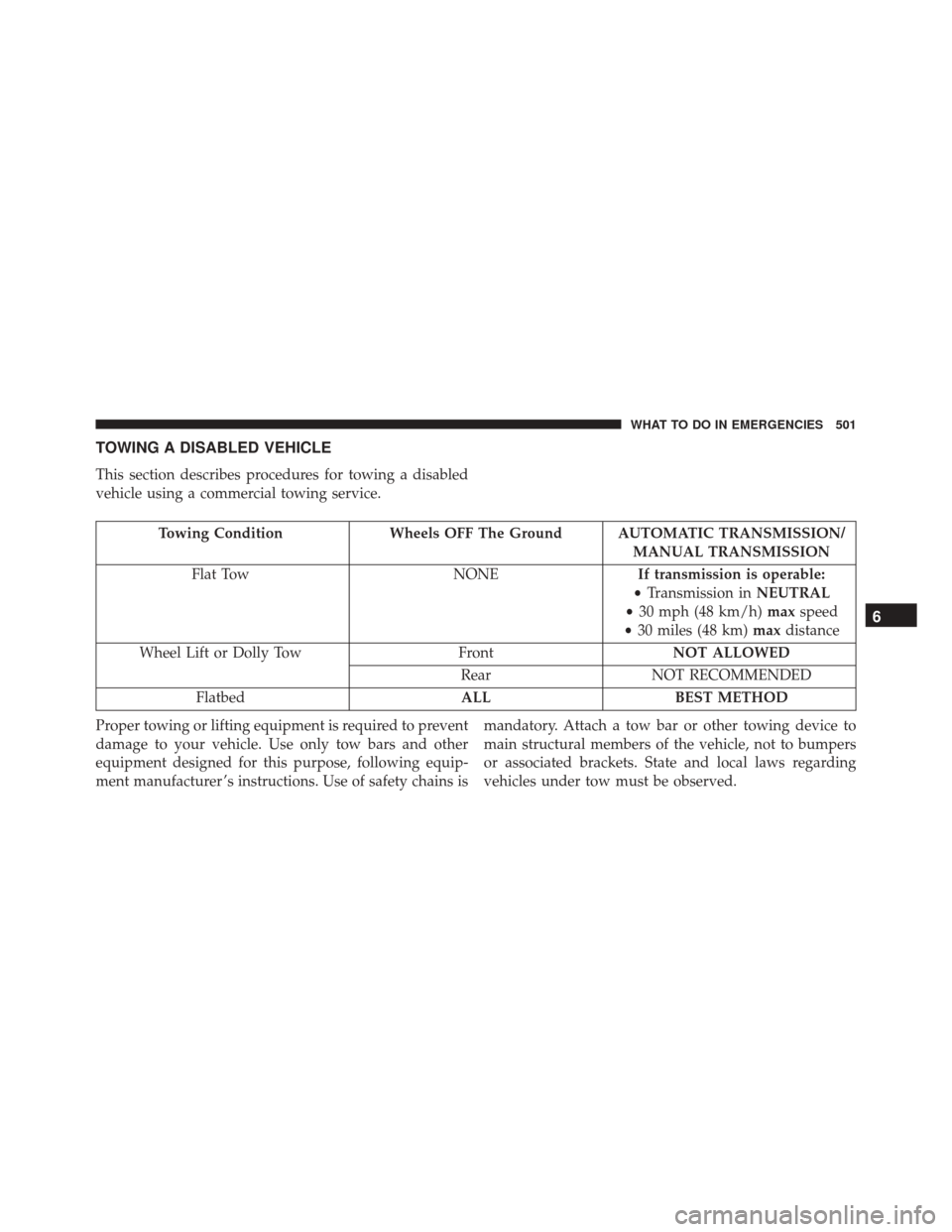

TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service.
Towing ConditionWheels OFF The Ground AUTOMATIC TRANSMISSION/
MANUAL TRANSMISSION
Flat Tow NONEIf transmission is operable:
• Transmission in NEUTRAL
• 30 mph (48 km/h) maxspeed
• 30 miles (48 km) maxdistance
Wheel Lift or Dolly Tow FrontNOT ALLOWED
Rear NOT RECOMMENDED
Flatbed ALLBEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.
6
WHAT TO DO IN EMERGENCIES 501

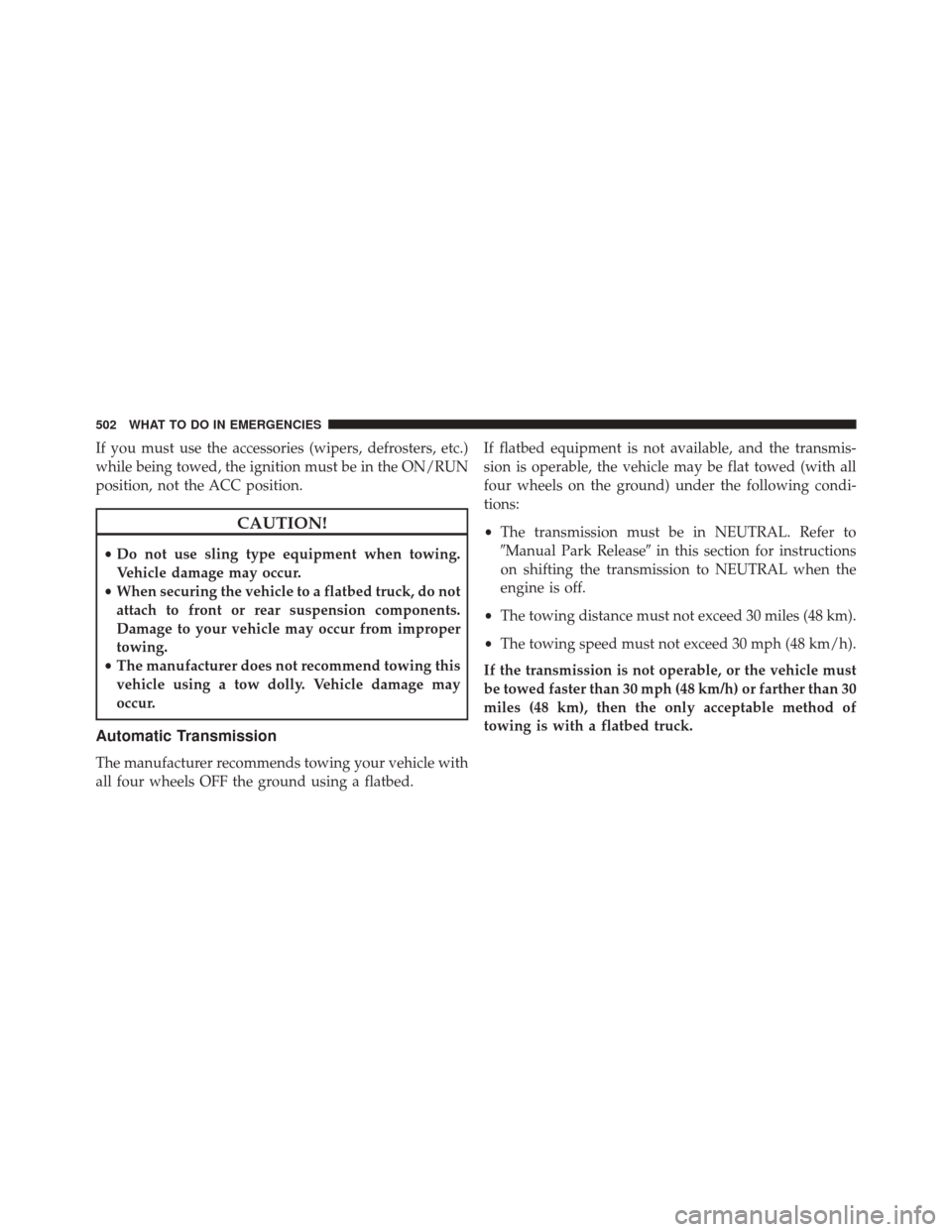

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
CAUTION!
•Do not use sling type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components.
Damage to your vehicle may occur from improper
towing.
• The manufacturer does not recommend towing this
vehicle using a tow dolly. Vehicle damage may
occur.
Automatic Transmission
The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed. If flatbed equipment is not available, and the transmis-
sion is operable, the vehicle may be flat towed (with all
four wheels on the ground) under the following condi-
tions:
•
The transmission must be in NEUTRAL. Refer to
Manual Park Release in this section for instructions
on shifting the transmission to NEUTRAL when the
engine is off.
• The towing distance must not exceed 30 miles (48 km).
• The towing speed must not exceed 30 mph (48 km/h).
If the transmission is not operable, or the vehicle must
be towed faster than 30 mph (48 km/h) or farther than 30
miles (48 km), then the only acceptable method of
towing is with a flatbed truck.
502 WHAT TO DO IN EMERGENCIES

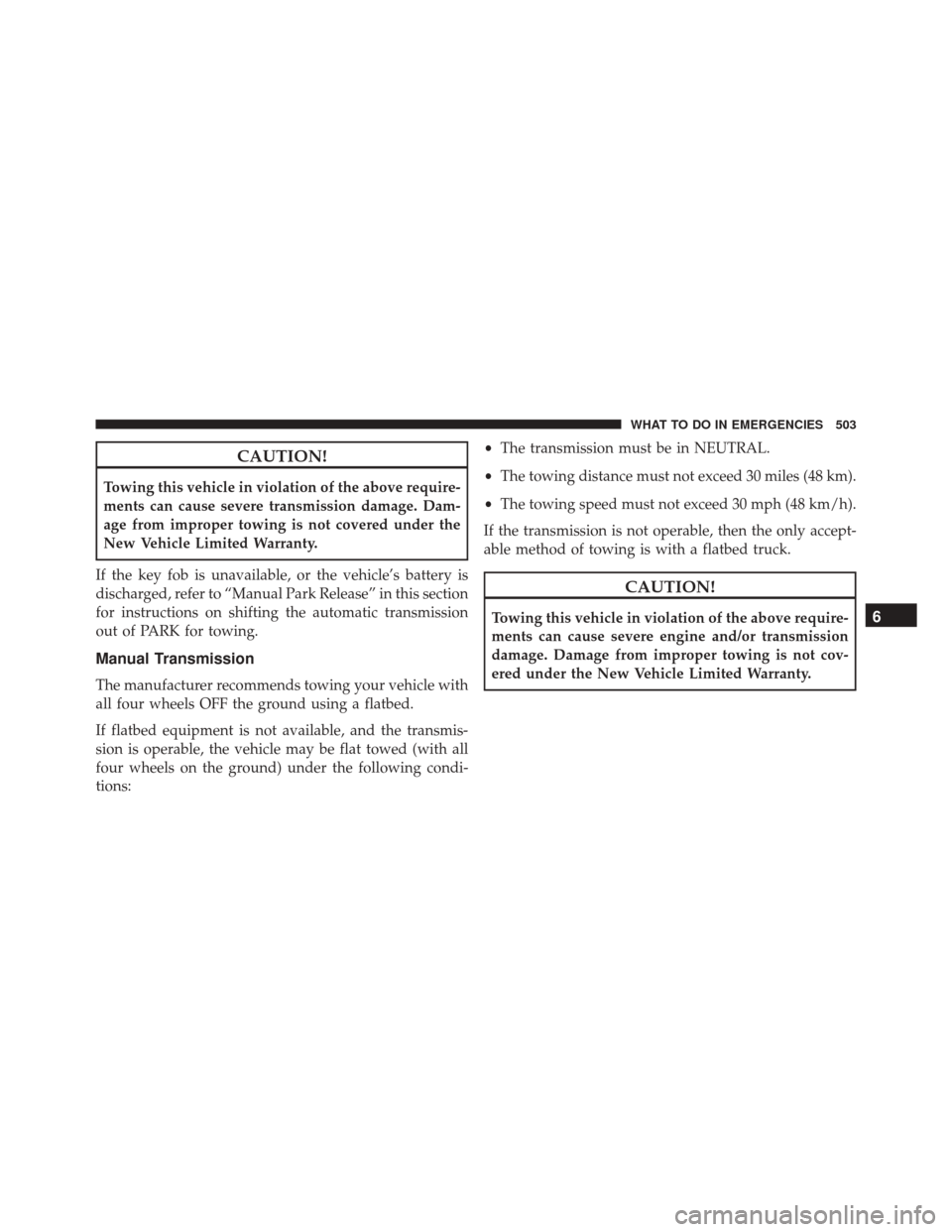

CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.
If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to “Manual Park Release” in this section
for instructions on shifting the automatic transmission
out of PARK for towing.
Manual Transmission
The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed.
If flatbed equipment is not available, and the transmis-
sion is operable, the vehicle may be flat towed (with all
four wheels on the ground) under the following condi-
tions: •
The transmission must be in NEUTRAL.
• The towing distance must not exceed 30 miles (48 km).
• The towing speed must not exceed 30 mph (48 km/h).
If the transmission is not operable, then the only accept-
able method of towing is with a flatbed truck.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe engine and/or transmission
damage. Damage from improper towing is not cov-
ered under the New Vehicle Limited Warranty.6
WHAT TO DO IN EMERGENCIES 503

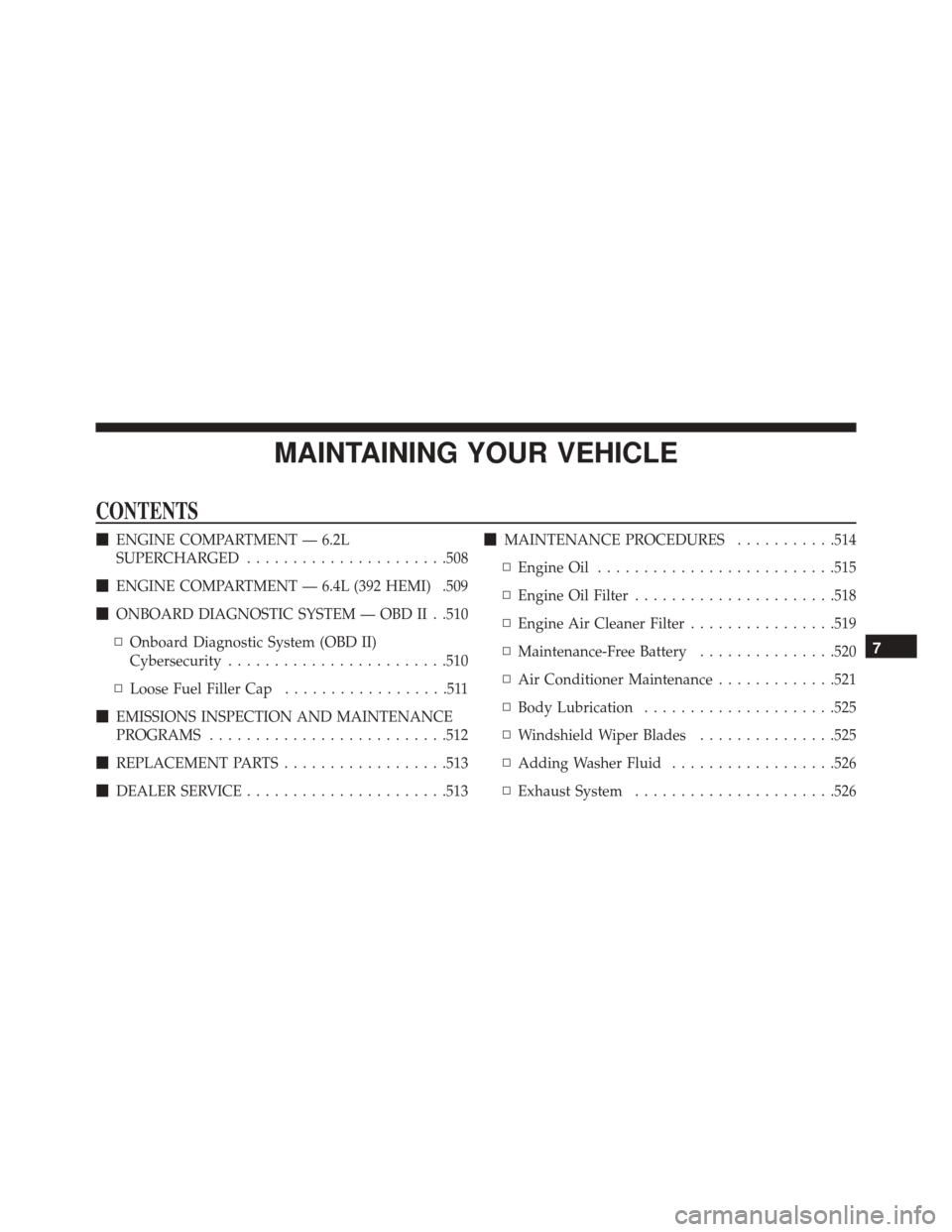

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 6.2L
SUPERCHARGED ..................... .508
 ENGINE COMPARTMENT — 6.4L (392 HEMI) .509
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .510
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ....................... .510
▫ Loose Fuel Filler Cap ..................511
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .512
 REPLACEMENT PARTS ..................513
 DEALER SERVICE ..................... .513
MAINTENANCE PROCEDURES ...........514
▫ Engine Oil ......................... .515
▫ Engine Oil Filter ..................... .518
▫ Engine Air Cleaner Filter ................519
▫ Maintenance-Free Battery ...............520
▫ Air Conditioner Maintenance .............521
▫ Body Lubrication .....................525
▫ Windshield Wiper Blades ...............525
▫ Adding Washer Fluid ..................526
▫ Exhaust System ..................... .526
7

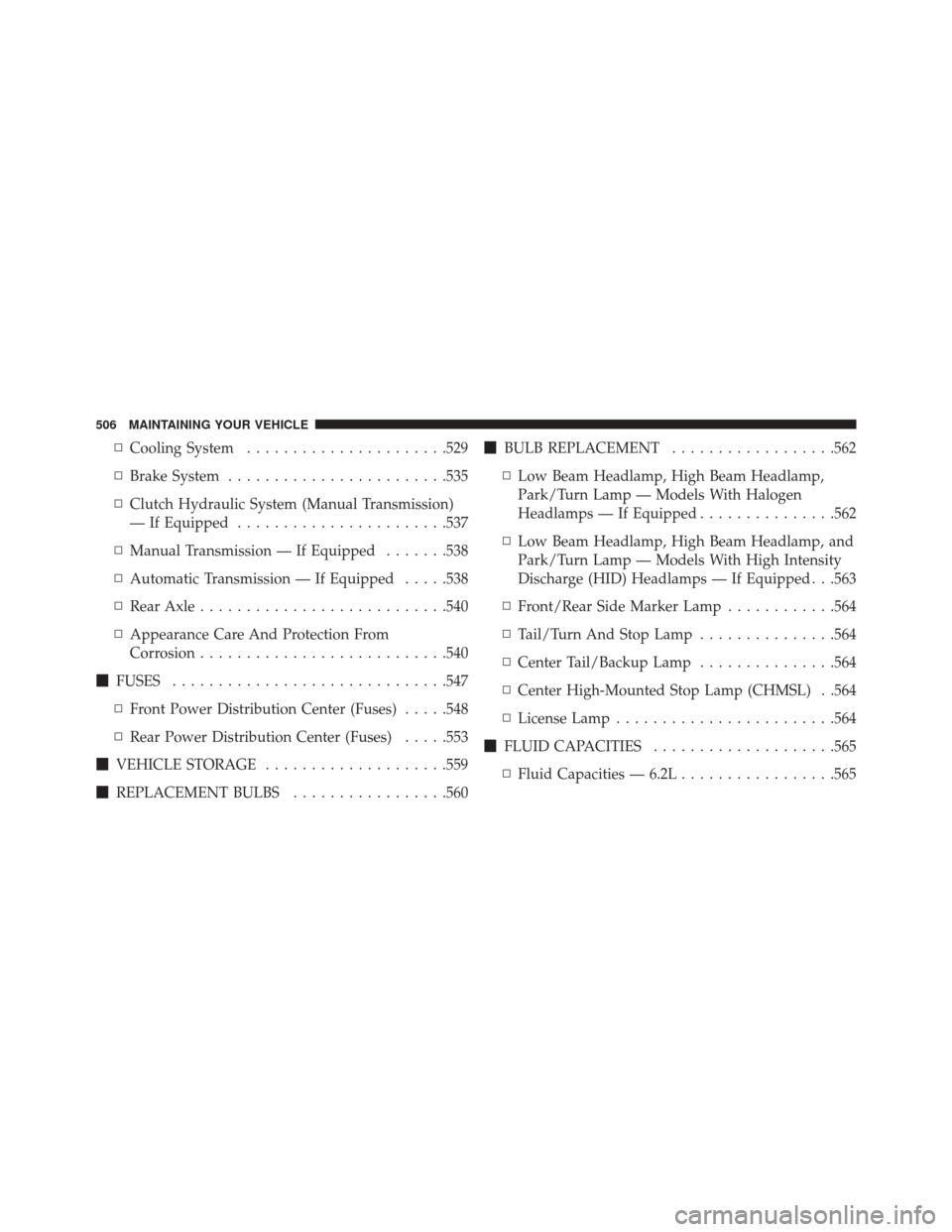

▫Cooling System ..................... .529
▫ Brake System ....................... .535
▫ Clutch Hydraulic System (Manual Transmission)
— If Equipped ...................... .537
▫ Manual Transmission — If Equipped .......538
▫ Automatic Transmission — If Equipped .....538
▫ Rear Axle .......................... .540
▫ Appearance Care And Protection From
Corrosion .......................... .540
 FUSES ............................. .547
▫ Front Power Distribution Center (Fuses) .....548
▫ Rear Power Distribution Center (Fuses) .....553
 VEHICLE STORAGE ....................559
 REPLACEMENT BULBS .................560
BULB REPLACEMENT ..................562
▫ Low Beam Headlamp, High Beam Headlamp,
Park/Turn Lamp — Models With Halogen
Headlamps — If Equipped ...............562
▫ Low Beam Headlamp, High Beam Headlamp, and
Park/Turn Lamp — Models With High Intensity
Discharge (HID) Headlamps — If Equipped . . .563
▫ Front/Rear Side Marker Lamp ............564
▫ Tail/Turn And Stop Lamp ...............564
▫ Center Tail/Backup Lamp ...............564
▫ Center High-Mounted Stop Lamp (CHMSL) . .564
▫ License Lamp ....................... .564
 FLUID CAPACITIES ....................565
▫ Fluid Capacities — 6.2L .................565
506 MAINTAINING YOUR VEHICLE

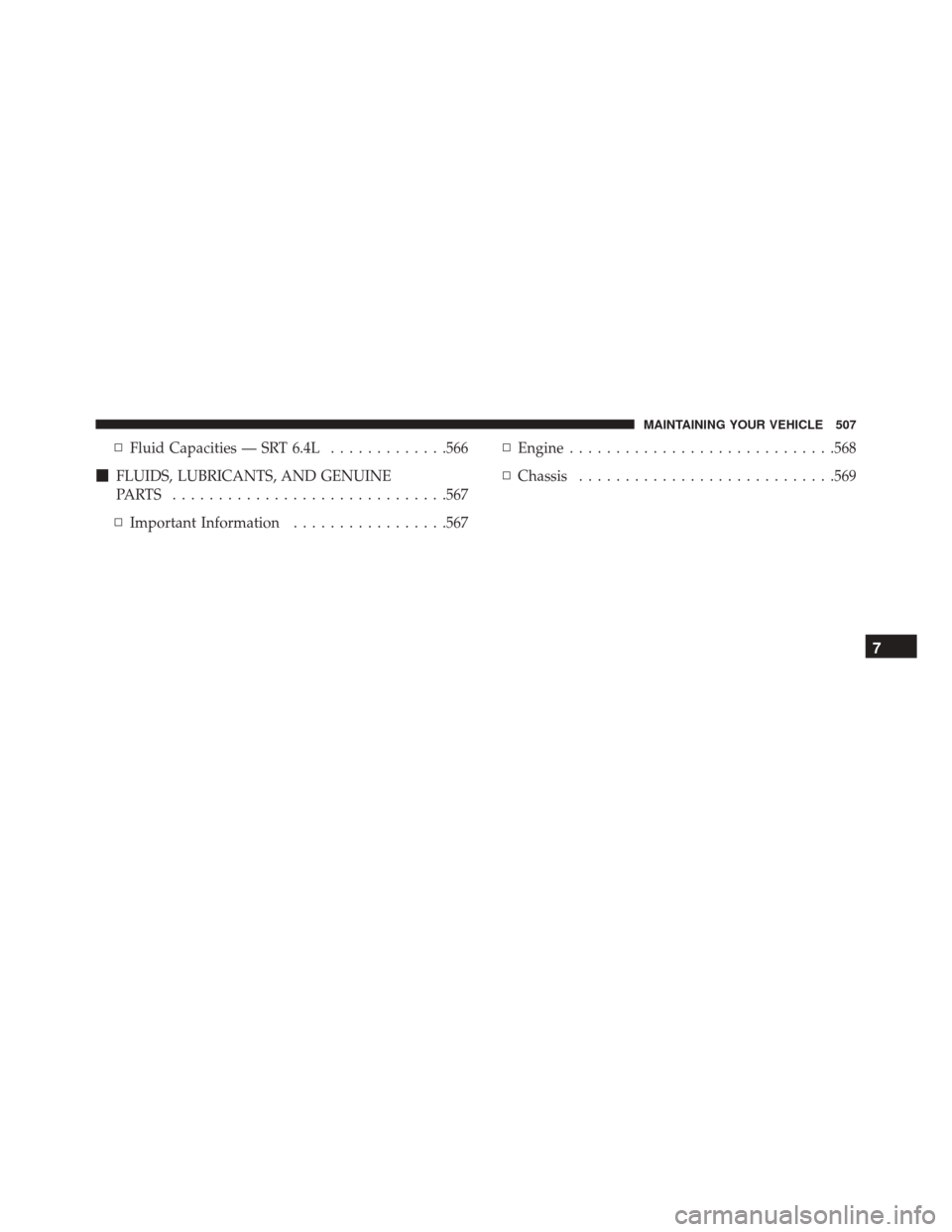

▫Fluid Capacities — SRT 6.4L .............566
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................. .567
▫ Important Information .................567 ▫
Engine ............................ .568
▫ Chassis ........................... .569
7
MAINTAINING YOUR VEHICLE 507

ENGINE COMPARTMENT — 6.2L SUPERCHARGED
1 — Remote Jump Start (Positive Battery Post)7 — Engine Coolant Reservoir
2 — Remote Jump Start (Negative Battery Post) 8 — Air Cleaner Filter
3 — Intercooler Fluid Reservoir 9 — Power Steering Reservoir
4 — Engine Oil Fill 10 — Engine Oil Dipstick
5 — Engine Coolant Pressure Cap 11 — Power Distribution Center (Fuses)
6 — Brake Fluid Reservoir Access Cover 12— Washer Fluid Reservoir
