battery location DODGE CHALLENGER SRT 2016 3.G Owners Manual

Ignition Off Operation
The power sunroof switch will remain active for up to
approximately ten minutes after the ignition switch is
turned to the LOCK position. Opening either front door
will cancel this feature.
NOTE:Ignition Off time is programmable through the
Uconnect System. Refer to “Uconnect Settings/Customer
Programmable Features” in “Understanding Your Instru-
ment Panel” for further information.
ELECTRICAL POWER OUTLETS
Your vehicle is equipped with 12 Volt (13 Amp) power
outlets that can be used to power cellular phones, small
electronics and other low powered electrical accessories.
The power outlets are labeled with either a “key” or a
“battery” symbol to indicate how the outlet is powered.
Power outlets labeled with a “key” can be powered when the ignition is in the ON or ACC position, while the
outlets labeled with a “battery” are connected directly to
the battery and powered at all times.
These power outlets can also operate a conventional cigar
lighter unit.
NOTE:
•
The front integrated center stack power outlet can be
changed from switched “ignition” to constant “bat-
tery” powered all the time by moving the integrated
center stack fuse #12 in the Rear Power Distribution
Center from fuse location “IGN” to “B+.” Refer to
“Rear Power Distribution Center (Fuses)” in “Main-
taining Your Vehicle.”
• To ensure proper operation, a MOPAR cigar knob and
element must be used.
The front power outlet is located next to the storage area
on the integrated center stack of the instrument panel.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

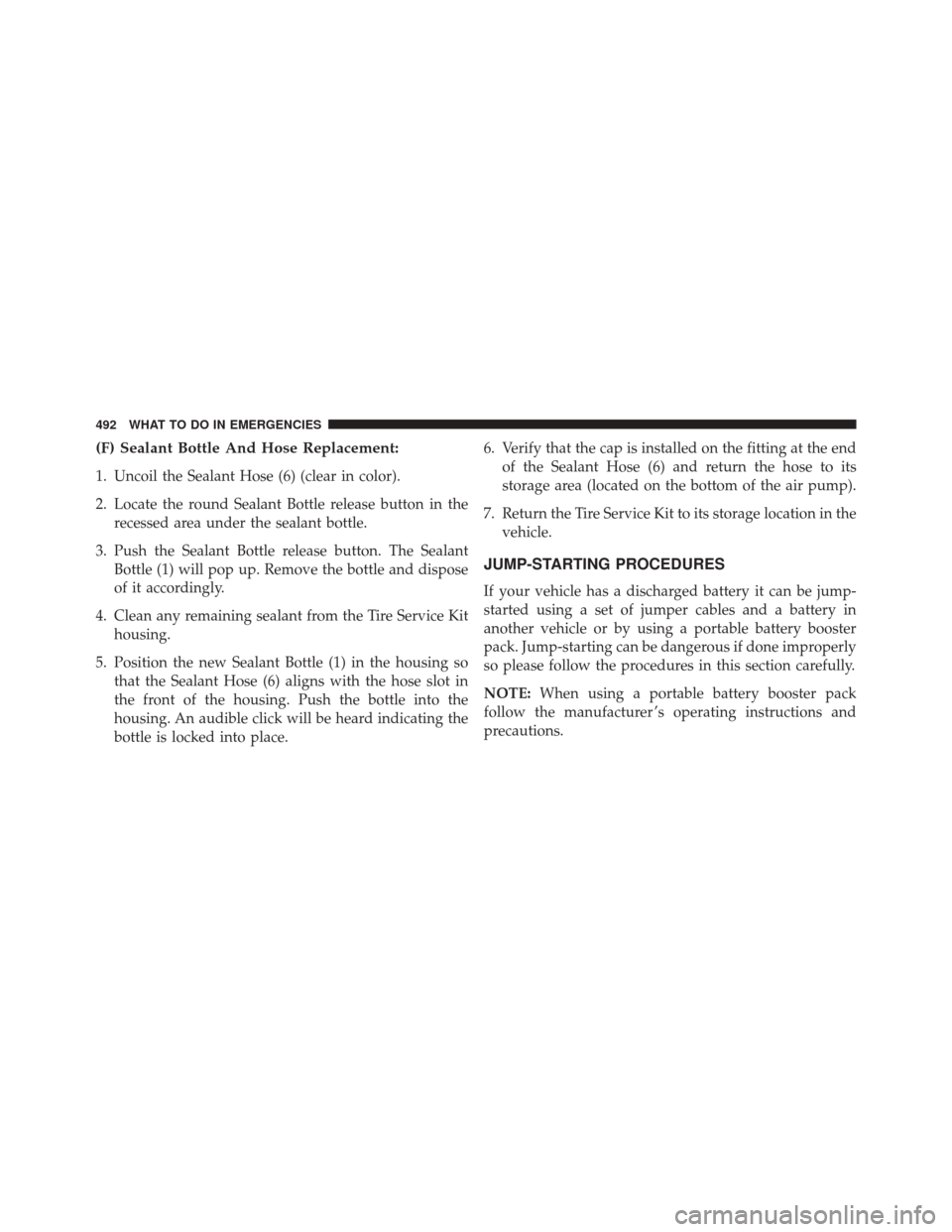

(F) Sealant Bottle And Hose Replacement:
1. Uncoil the Sealant Hose (6) (clear in color).
2. Locate the round Sealant Bottle release button in therecessed area under the sealant bottle.
3. Push the Sealant Bottle release button. The Sealant Bottle (1) will pop up. Remove the bottle and dispose
of it accordingly.
4. Clean any remaining sealant from the Tire Service Kit housing.
5. Position the new Sealant Bottle (1) in the housing so that the Sealant Hose (6) aligns with the hose slot in
the front of the housing. Push the bottle into the
housing. An audible click will be heard indicating the
bottle is locked into place. 6. Verify that the cap is installed on the fitting at the end
of the Sealant Hose (6) and return the hose to its
storage area (located on the bottom of the air pump).
7. Return the Tire Service Kit to its storage location in the vehicle.
JUMP-STARTING PROCEDURES
If your vehicle has a discharged battery it can be jump-
started using a set of jumper cables and a battery in
another vehicle or by using a portable battery booster
pack. Jump-starting can be dangerous if done improperly
so please follow the procedures in this section carefully.
NOTE: When using a portable battery booster pack
follow the manufacturer ’s operating instructions and
precautions.
492 WHAT TO DO IN EMERGENCIES

CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
WARNING!
Do not attempt jump-starting if the battery is frozen.
It could rupture or explode and cause personal injury.
Preparations For Jump-Start
The battery is stored under an access cover in the trunk.
Remote battery posts are located on the right side of the
engine compartment for jump-starting.
Remote Battery Posts Locations
1 — Remote Positive(+)Post
2 — Remote Negative (-)Post
6
WHAT TO DO IN EMERGENCIES 493

Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
NOTE:The battery is stored under an access cover in the
trunk. Remote battery terminals are located in the engine
compartment for jump-starting. Refer to “Jump-Starting
Procedures” in “What To Do In Emergencies” for further
information.
WARNING!
• Battery fluid is a corrosive acid solution and can
burn or even blind you. Do not allow battery fluid
to contact your eyes, skin, or clothing. Do not lean
(Continued)
Battery Location
520 MAINTAINING YOUR VEHICLE

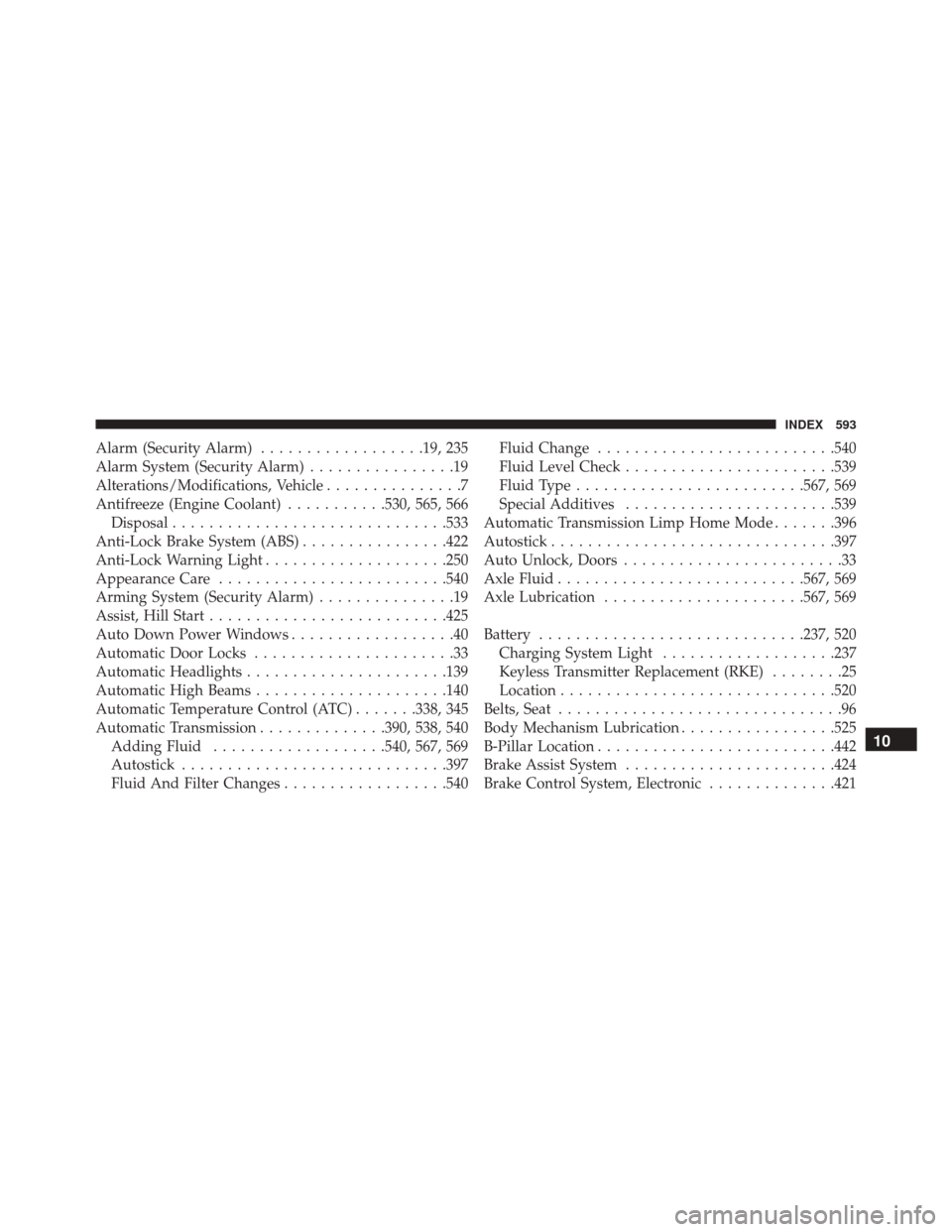

Alarm (Security Alarm)..................19, 235
Alarm System (Security Alarm) ................19
Alterations/Modifications, Vehicle ...............7
Antifreeze (Engine Coolant) ...........530, 565, 566
Disposal ............................. .533
Anti-Lock Brake System (ABS) ................422
Anti-Lock Warning Light ....................250
Appearance Care ........................ .540
Arming System (Security Alarm) ...............19
Assist, Hill Start ......................... .425
Auto Down Power Windows ..................40
Automatic Door Locks ......................33
Automatic Headlights ..................... .139
Automatic High Beams .....................140
Automatic Temperature Control (ATC) .......338, 345
Automatic Transmission ..............390, 538, 540
Adding Fluid ...................540, 567, 569
Autostick ............................ .397
Fluid And Filter Changes ..................540 Fluid Change
......................... .540
Fluid Level Check ...................... .539
Fluid Type ........................ .567, 569
Special Additives ...................... .539
Automatic Transmission Limp Home Mode .......396
Autostick .............................. .397
Auto Unlock, Doors ........................33
Axle Fluid .......................... .567, 569
Axle Lubrication ..................... .567, 569
Battery ............................ .237, 520
Charging System Light ...................237
Keyless Transmitter Replacement (RKE) ........25
Location ............................. .520
Belts, Seat ...............................96
Body Mechanism Lubrication .................525
B-Pillar Location ......................... .442
Brake Assist System ...................... .424
Brake Control System, Electronic ..............421
10
INDEX 593
