NOTE:
•The interior lights will turn off if you place the ignition
in the ACC or ON/RUN position while the Panic Alarm
is activated. However, the exterior lights and horn will
remain on.
• You may need to be less than 35 ft (11 m) from the
vehicle when using the key fob to turn off the Panic
Alarm due to the radio frequency noises emitted by the
system.
Key Fob Battery Replacement
The recommended replacement battery is one CR2032
battery.
NOTE:
• Perchlorate Material — special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate for fur-
ther information.
• Do not touch the battery terminals that are on the back
housing or the printed circuit board. 1. Remove the emergency key by sliding the mechanical
latch on the back of the key fob sideways with your
thumb and then pull the emergency key out with your
other hand.
Emergency Key Removal
1 — Emergency Key Release Button
2 — Emergency Key
3
GETTING TO KNOW YOUR VEHICLE 21
Page 25 of 486
3. Remove the battery by turning the back cover over(battery facing downward) and tapping it lightly on a
solid surface such as a table or similar surface, and then
replace the battery. When replacing the battery, match
the + sign on the battery to the + sign on the inside of the
battery clip, located on the back cover. Avoid touching
the new battery with your fingers because skin oils may
cause battery deterioration. If you touch a battery, clean
it with rubbing alcohol.
4. To assemble the key fob case, snap the two halves together.
Programming Additional Key Fobs
Programming the key fob may be performed by an autho-
rized dealer.
Request For Additional Remote Controls
NOTE: Only key fobs that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a key fob is programmed to a vehicle, it cannot be
programmed to any other vehicle.
WARNING!
• Always remove the key fobs from the vehicle and
lock all doors when leaving the vehicle unattended.
• For vehicles equipped with Keyless Enter-N-Go —
Ignition, always remember to place the ignition in
the OFF mode.
Duplication of key fobs may be performed at an authorized
dealer. This procedure consists of programming a blank
key fob to the vehicle electronics. A blank key fob is one
that has never been programmed.
NOTE: When having the Sentry Key Immobilizer System
serviced, bring all vehicle keys with you to an authorized
dealer.Key Fob Battery Replacement
3
GETTING TO KNOW YOUR VEHICLE 23
Page 127 of 486

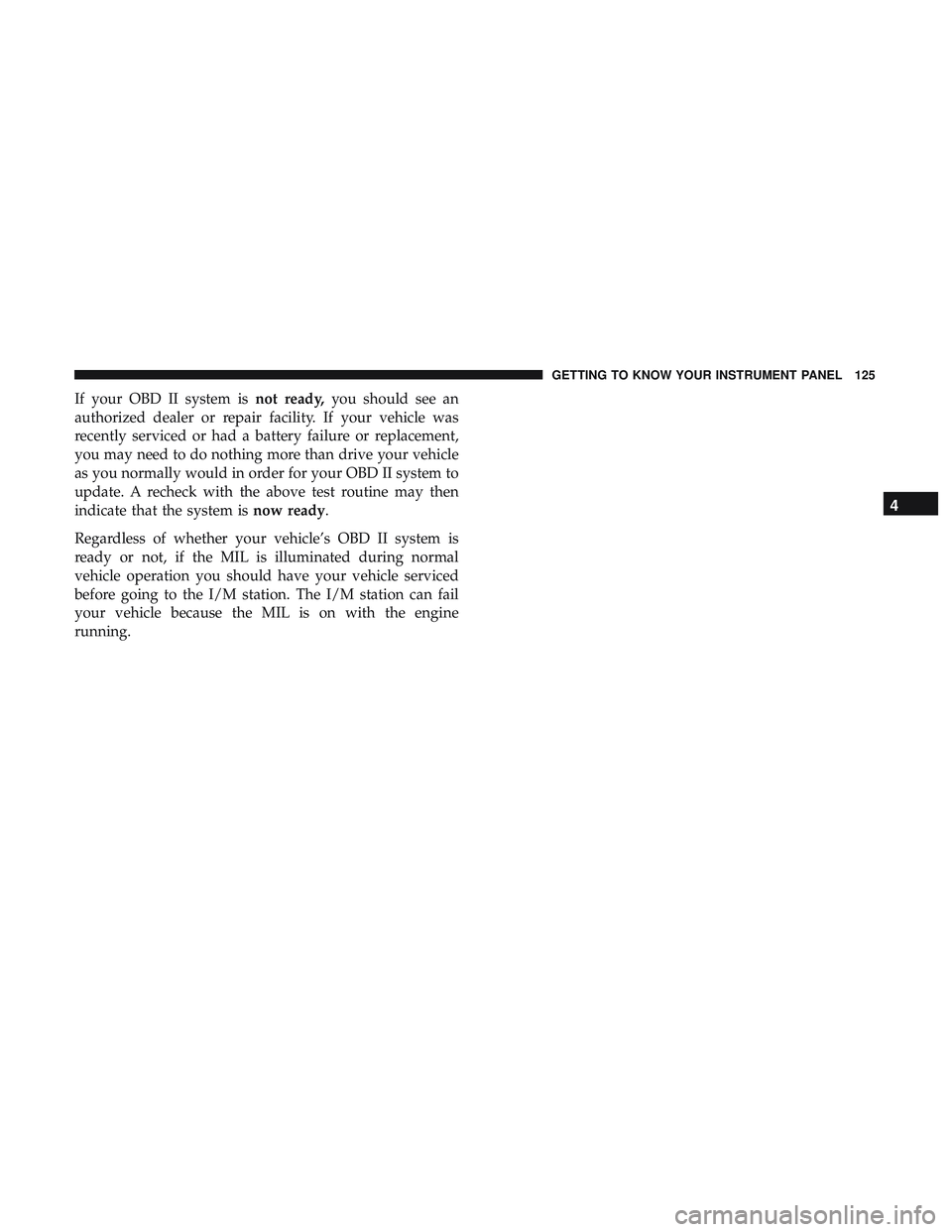

If your OBD II system isnot ready,you should see an
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your vehicle
as you normally would in order for your OBD II system to
update. A recheck with the above test routine may then
indicate that the system is now ready.
Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 125
Page 471 of 486

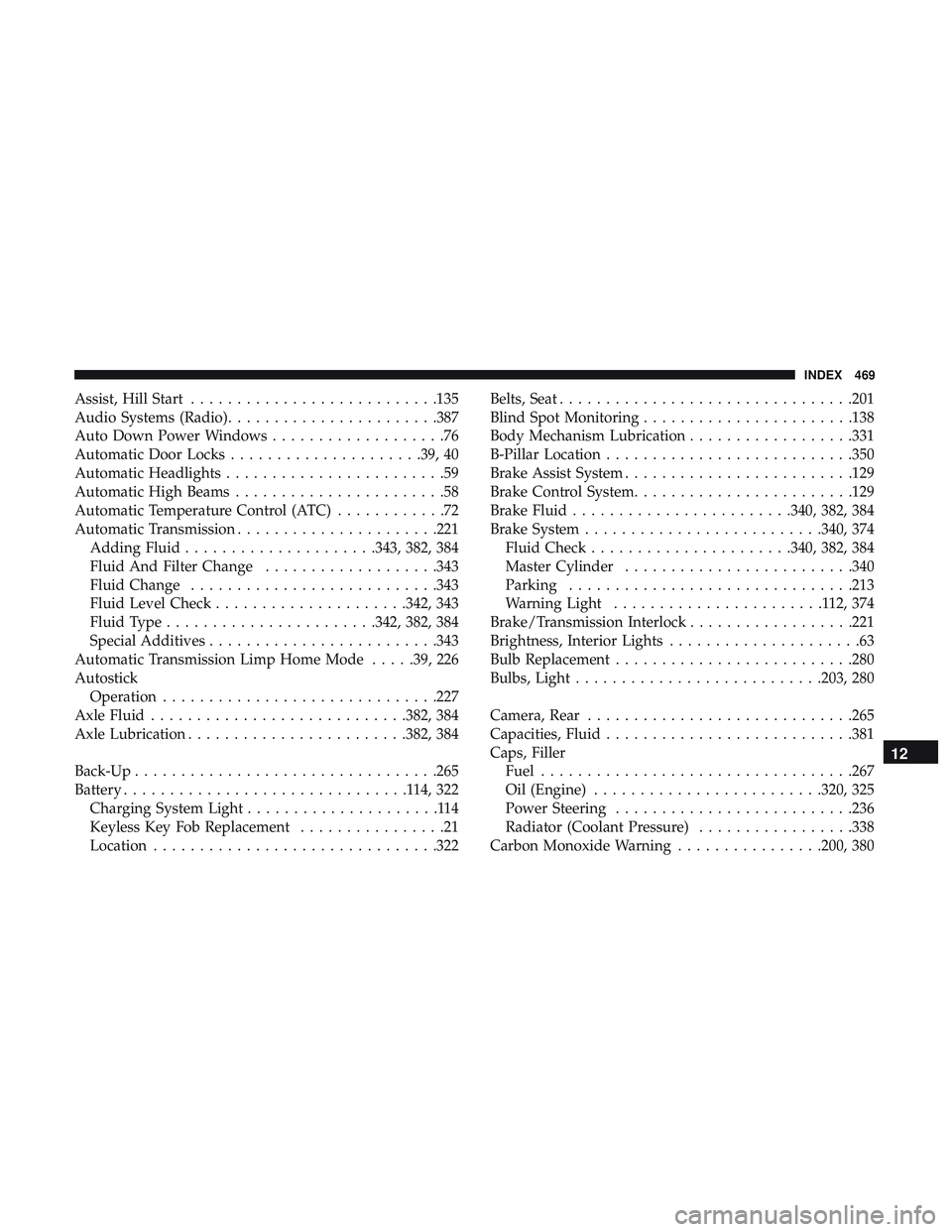

Assist, Hill Start.......................... .135
Audio Systems (Radio) ...................... .387
Auto Down Power Windows ...................76
Automatic Door Locks .....................39, 40
Automatic Headlights ........................59
Automatic High Beams .......................58
Automatic Temperature Control (ATC) ............72
Automatic Transmission ..................... .221
Adding Fluid .....................343, 382, 384
Fluid And Filter Change ...................343
Fluid Change .......................... .343
Fluid Level Check .....................342, 343
Fluid Type ...................... .342, 382, 384
Special Additives ........................ .343
Automatic Transmission Limp Home Mode .....39, 226
Autostick Operation ............................. .227
Axle Fluid ........................... .382, 384
Axle Lubrication ....................... .382, 384
Back-Up ................................ .265
Battery ...............................114,322
Charging System Light .....................114
Keyless Key Fob Replacement ................21
Location .............................. .322Belts, Seat
............................... .201
Blind Spot Monitoring ...................... .138
Body Mechanism Lubrication ..................331
B-Pillar Location .......................... .350
Brake Assist System ........................ .129
Brake Control System ....................... .129
Brake Fluid ....................... .340, 382, 384
Brake System ......................... .340, 374
Fluid Check ..................... .340, 382, 384
Master Cylinder ........................ .340
Parking .............................. .213
Warning Light .......................112,374
Brake/Transmission Interlock ..................221
Brightness, Interior Lights .....................
63
Bulb Replacement ......................... .280
Bulbs, Light .......................... .203, 280
Camera, Rear ............................ .265
Capacities, Fluid .......................... .381
Caps, Filler Fuel ................................. .267
Oil (Engine) ........................ .320, 325
Power Steering ......................... .236
Radiator (Coolant Pressure) .................338
Carbon Monoxide Warning ................200, 380
12
INDEX 469
Page 476 of 486

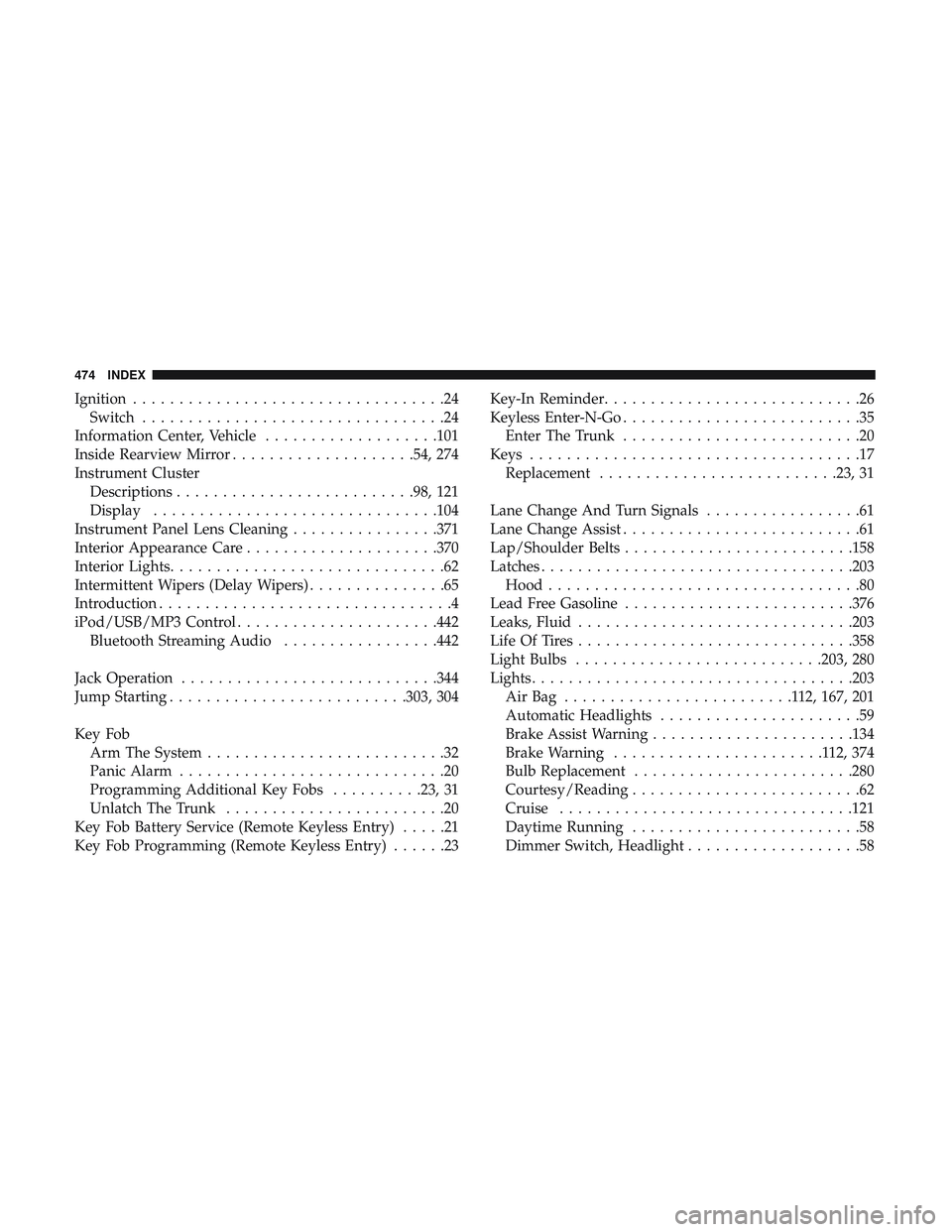

Ignition..................................24
Switch .................................24
Information Center, Vehicle ...................101
Inside Rearview Mirror ....................54, 274
Instrument Cluster Descriptions ......................... .98, 121
Display .............................. .104
Instrument Panel Lens Cleaning ................371
Interior Appearance Care .....................370
Interior Lights ..............................62
Intermittent Wipers (Delay Wipers) ...............65
Introduction ................................4
iPod/USB/MP3 Control ..................... .442
Bluetooth Streaming Audio .................442
Jack Operation ........................... .344
Jump Starting ......................... .303, 304
Key Fob Arm The System ..........................32
Panic Alarm .............................20
Programming Additional Key Fobs ..........23, 31
Unlatch The Trunk ........................20
Key Fob Battery Service (Remote Keyless Entry) .....21
Key Fob Programming (Remote Keyless Entry) ......23Key-In Reminder
............................26
Keyless Enter-N-Go ..........................35
Enter The Trunk ..........................20
Keys ....................................17
Replacement ......................... .23, 31
Lane Change And Turn Signals .................61
Lane Change Assist ..........................61
Lap/Shoulder Belts ........................ .158
Latches ................................. .203
Hood ..................................80
Lead Free Gasoline ........................ .376
Leaks, Fluid ............................. .203
Life Of Tires ............................. .358
Light Bulbs .......................... .203, 280
Lights .................................. .203
AirBag .........................112, 167, 201
Automatic Headlights ......................59
Brake Assist Warning ..................... .134
Brake Warning .......................112,374
Bulb
Replacement ....................... .280
Courtesy/Reading .........................62
Cruise ............................... .121
Daytime Running .........................58
Dimmer Switch, Headlight ...................58
474 INDEX
