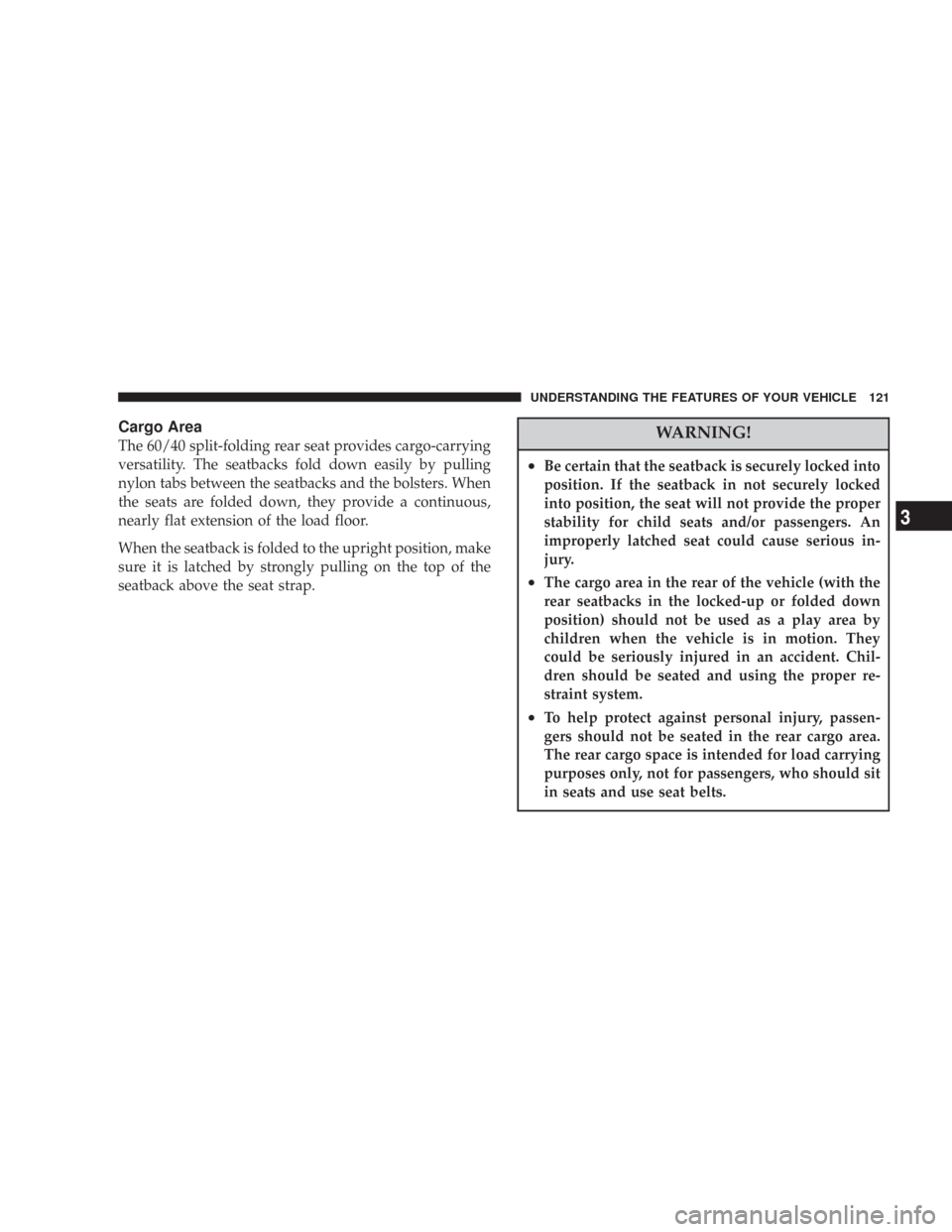

Cargo Area
The 60/40 split-folding rear seat provides cargo-carrying
versatility. The seatbacks fold down easily by pulling
nylon tabs between the seatbacks and the bolsters. When
the seats are folded down, they provide a continuous,
nearly flat extension of the load floor.
When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback in not securely locked
into position, the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious in-
jury.
•The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They
could be seriously injured in an accident. Chil-
dren should be seated and using the proper re-
straint system.
•To help protect against personal injury, passen-
gers should not be seated in the rear cargo area.
The rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3

WARNING!

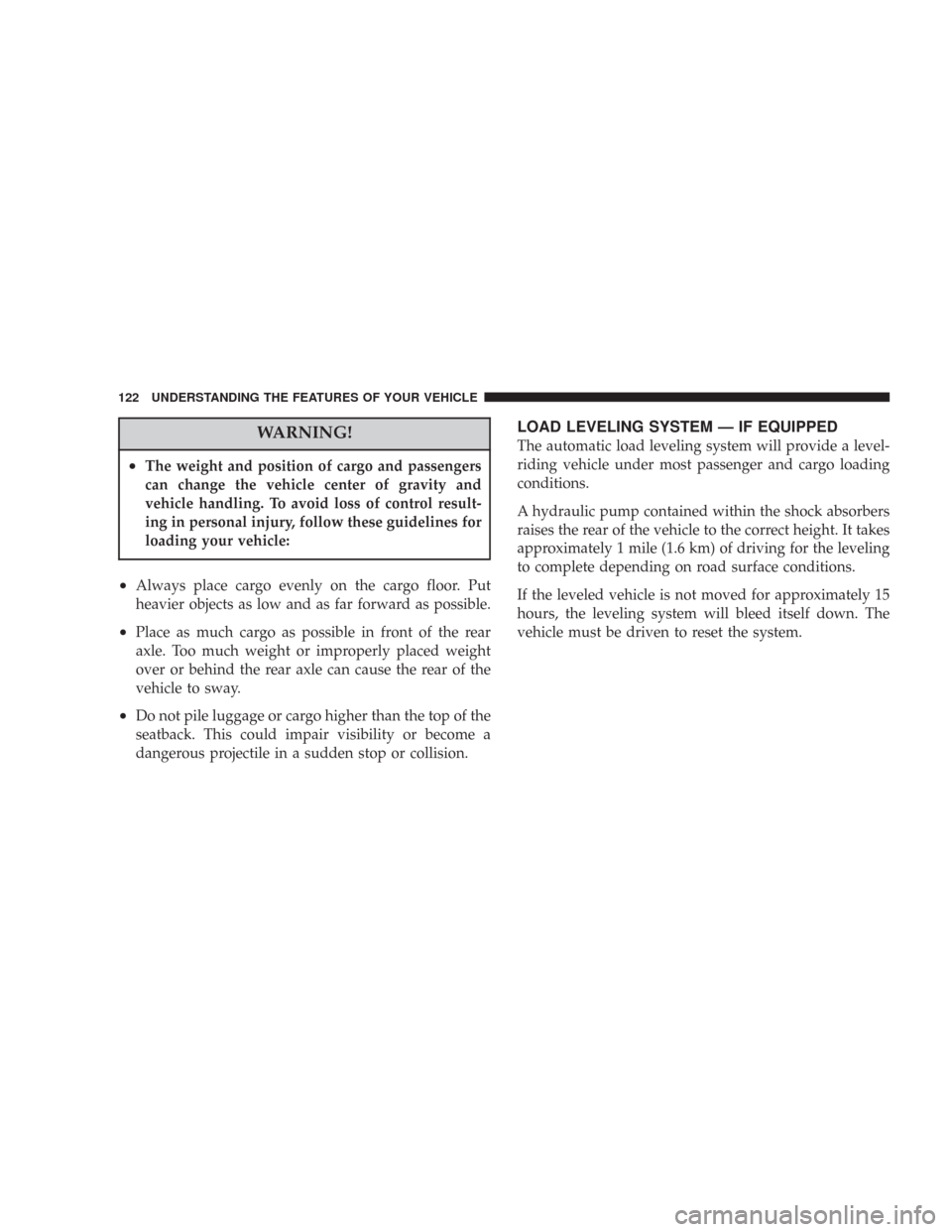

•The weight and position of cargo and passengers
can change the vehicle center of gravity and
vehicle handling. To avoid loss of control result-
ing in personal injury, follow these guidelines for
loading your vehicle:
•Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as possible.
•Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of the
vehicle to sway.
•Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or collision.
LOAD LEVELING SYSTEM — IF EQUIPPED
The automatic load leveling system will provide a level-
riding vehicle under most passenger and cargo loading
conditions.
A hydraulic pump contained within the shock absorbers
raises the rear of the vehicle to the correct height. It takes
approximately 1 mile (1.6 km) of driving for the leveling
to complete depending on road surface conditions.
If the leveled vehicle is not moved for approximately 15
hours, the leveling system will bleed itself down. The
vehicle must be driven to reset the system.
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

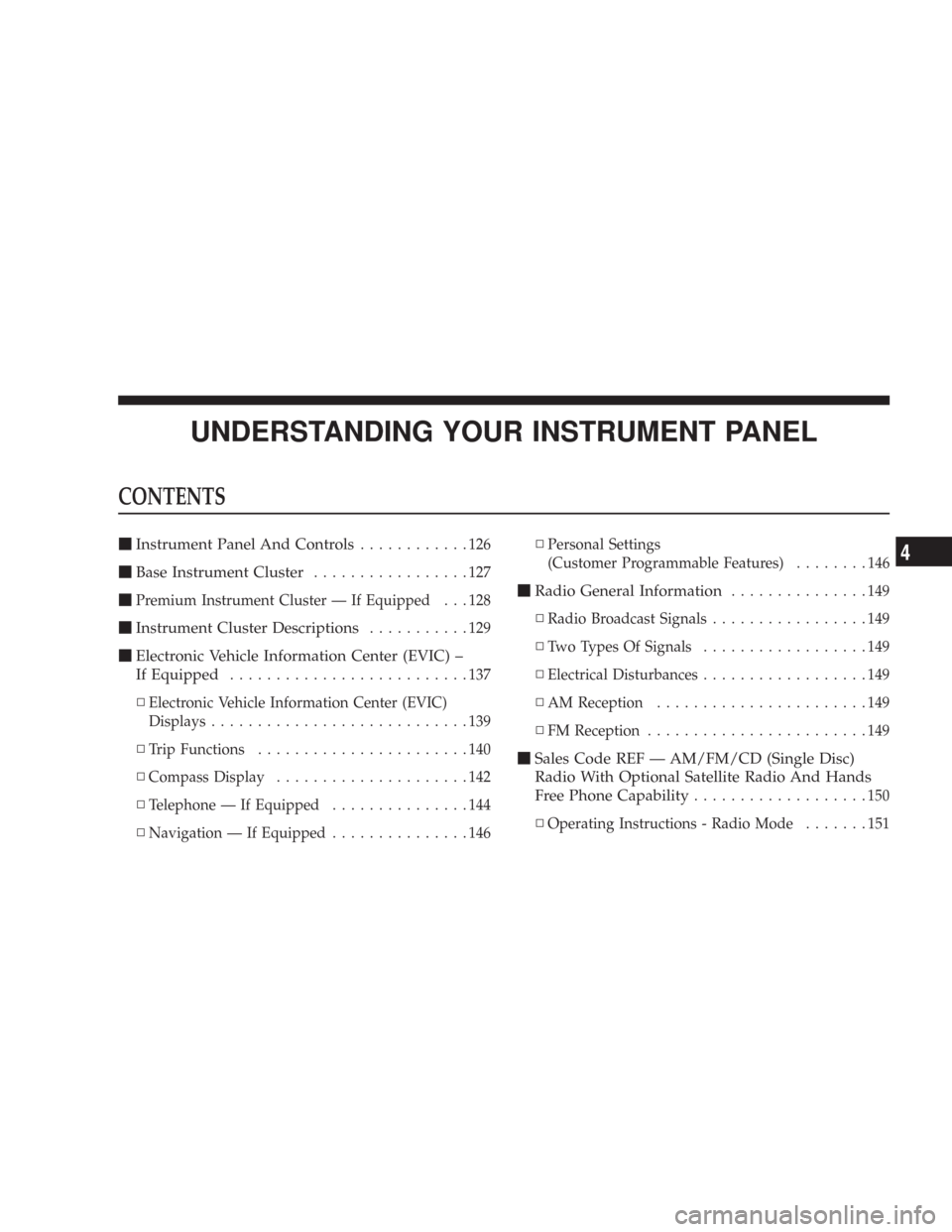

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel And Controls............126
Base Instrument Cluster.................127
Premium Instrument Cluster — If Equipped . . . 128
Instrument Cluster Descriptions...........129
Electronic Vehicle Information Center (EVIC) –
If Equipped
..........................137
▫Electronic Vehicle Information Center (EVIC)
Displays............................139
▫Trip Functions.......................140
▫Compass Display.....................142
▫Telephone — If Equipped...............144
▫Navigation — If Equipped...............146▫Personal Settings
(Customer Programmable Features)........146
Radio General Information...............149
▫Radio Broadcast Signals.................149
▫Two Types Of Signals..................149
▫Electrical Disturbances..................149
▫AM Reception.......................149
▫FM Reception........................149
Sales Code REF — AM/FM/CD (Single Disc)
Radio With Optional Satellite Radio And Hands
Free Phone Capability
...................150
▫Operating Instructions - Radio Mode.......151
4

▫Operation Instructions - CD Mode.........154
▫Operation Instructions - Auxiliary Mode.....155
▫Operating Instructions - Hands Free Phone —
If Equipped.........................156
▫Operating Instructions - Satellite Radio —
If Equipped.........................156
Sales Code RAK – AM/FM/Cassette/CD (6-Disc)
Radio With Optional Satellite Radio, Hands Free
Phone, Video, MP3, And WMA Capabilities....157
▫Operating Instructions - Radio Mode.......157
▫Operating Instructions — Tape Player.......160
▫Seek Button.........................161
▫Fast Forward (FF).....................161
▫Rewind (RW)........................161
▫Tape Eject...........................161
▫Scan Button.........................161
▫Changing Tape Direction................161▫Metal Tape Selection...................161
▫Pinch Roller Release...................161
▫Noise Reduction......................162
▫Operation Instructions -
(CD Mode For CD Audio Play)...........162
▫Load/Eject Button
(CD Mode For CD Audio Play)...........163
▫Notes On Playing MP3 Files.............164
▫Operation Instructions -
(CD Mode For MP3 And WMA Audio Play) . . 166
▫Load/Eject Button
(CD Mode For MP3 And WMA Play).......166
Sales Code REC — AM/FM/CD (6–Disc) Radio
With Navigation System
.................168
▫Operating Instructions — Satellite Radio
(If Equipped)........................169
▫REC Setting The Clock.................169
▫Audio Clock Display...................171
124 UNDERSTANDING YOUR INSTRUMENT PANEL

Video Entertainment System (Sales Code XRV) —
If Equipped
..........................172
Satellite Radio — If Equipped.............173
▫System Activation.....................173
▫Electronic Serial Number/Sirius Identification
Number (ESN/SID)....................173
▫Selecting Satellite Mode In REF, RAQ,
And RAK Radios.....................174
▫Selecting a Channel....................175
▫Storing And Selecting Pre-Set Channels......175
▫Using The PTY (Program Type) Button
(If Equipped)........................175
▫PTY ButtonScan.....................175
▫PTY ButtonSeek.....................176
▫Satellite Antenna......................176
▫Reception Quality.....................176
Remote Sound System Controls...........176▫Radio Operation......................177
▫Tape Player Operation..................178
▫CD Player Operation...................178
▫Satellite Radio Operation................178
Cassette Tape And Player Maintenance......178
CD/DVD Disc Maintenance..............179
Radio Operation And Cellular Phones.......180
Climate Controls......................180
▫Manual Air Conditioning And
Heating System......................180
▫Automatic Temperature Control —
If Equipped.........................182
▫Operating Tips.......................187
Rear Window Features..................190
▫Electric Rear Window Defroster...........190
UNDERSTANDING YOUR INSTRUMENT PANEL 125
4

INSTRUMENT PANEL AND CONTROLS
1 — Air Outlet 6 — Radio 11 — Ignition Switch
2 — Instrument Cluster 7 — Climate Control 12 — Hood Release
3 — Hazard Switch 8 — Heated Seat Switch* 13 — Trunk Release Switch
4 — Electronic Stability Program Off Button* /
Traction Control System Off Button*9 — Power Outlet 14 — Headlight Switch
5 — Glove Box 10 — Ash Tray* * If Equipped 126 UNDERSTANDING YOUR INSTRUMENT PANEL

BASE INSTRUMENT CLUSTER
UNDERSTANDING YOUR INSTRUMENT PANEL 127
4

PREMIUM INSTRUMENT CLUSTER — IF EQUIPPED
128 UNDERSTANDING YOUR INSTRUMENT PANEL

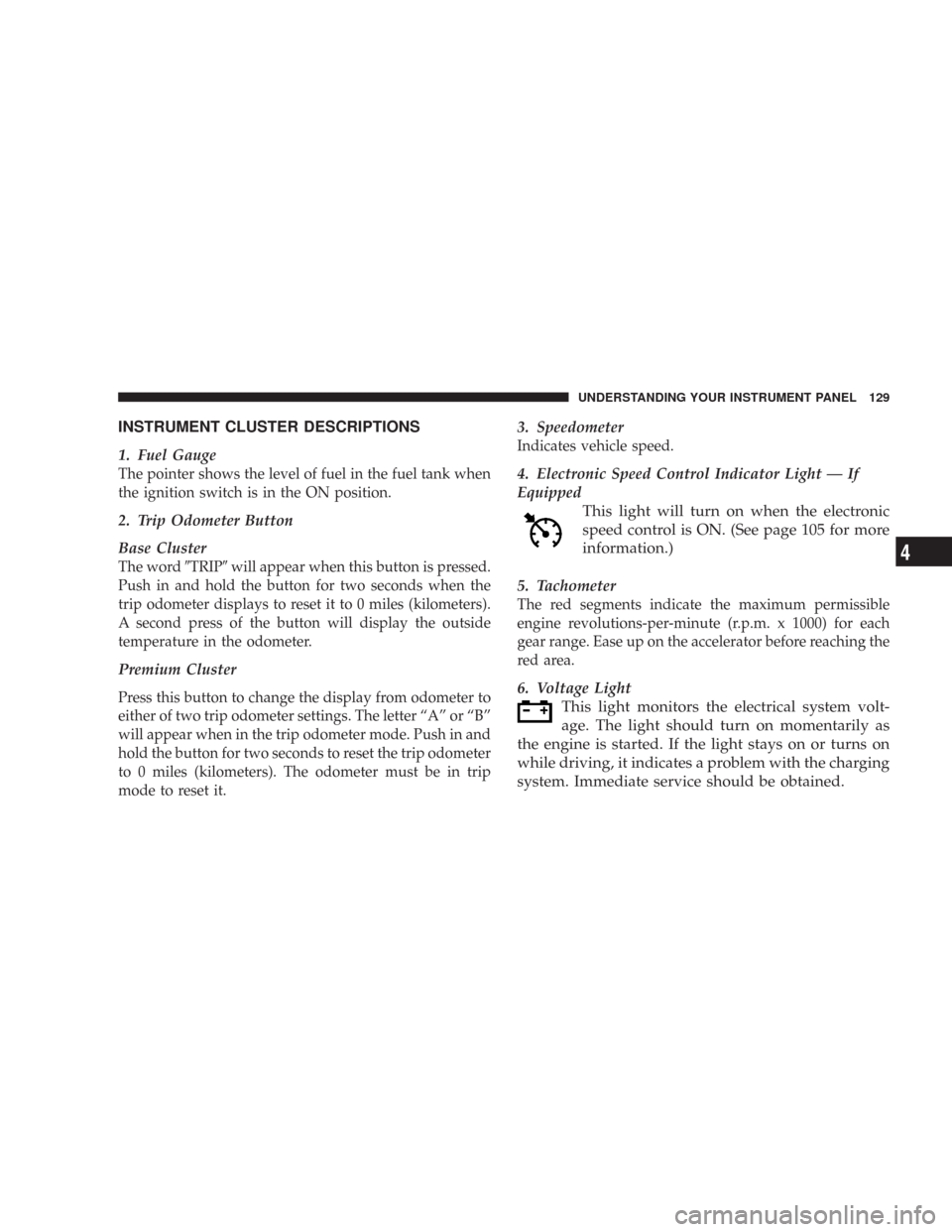

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition switch is in the ON position.
2. Trip Odometer Button
Base Cluster
The wordTRIPwill appear when this button is pressed.
Push in and hold the button for two seconds when the
trip odometer displays to reset it to 0 miles (kilometers).
A second press of the button will display the outside
temperature in the odometer.
Premium Cluster
Press this button to change the display from odometer to
either of two trip odometer settings. The letter “A” or “B”
will appear when in the trip odometer mode. Push in and
hold the button for two seconds to reset the trip odometer
to 0 miles (kilometers). The odometer must be in trip
mode to reset it.
3. Speedometer
Indicates vehicle speed.
4. Electronic Speed Control Indicator Light — If
Equipped
This light will turn on when the electronic
speed control is ON. (See page 105 for more
information.)
5. Tachometer
The red segments indicate the maximum permissible
engine revolutions-per-minute (r.p.m. x 1000) for each
gear range. Ease up on the accelerator before reaching the
red area.
6. Voltage Light
This light monitors the electrical system volt-
age. The light should turn on momentarily as
the engine is started. If the light stays on or turns on
while driving, it indicates a problem with the charging
system. Immediate service should be obtained.
UNDERSTANDING YOUR INSTRUMENT PANEL 129
4

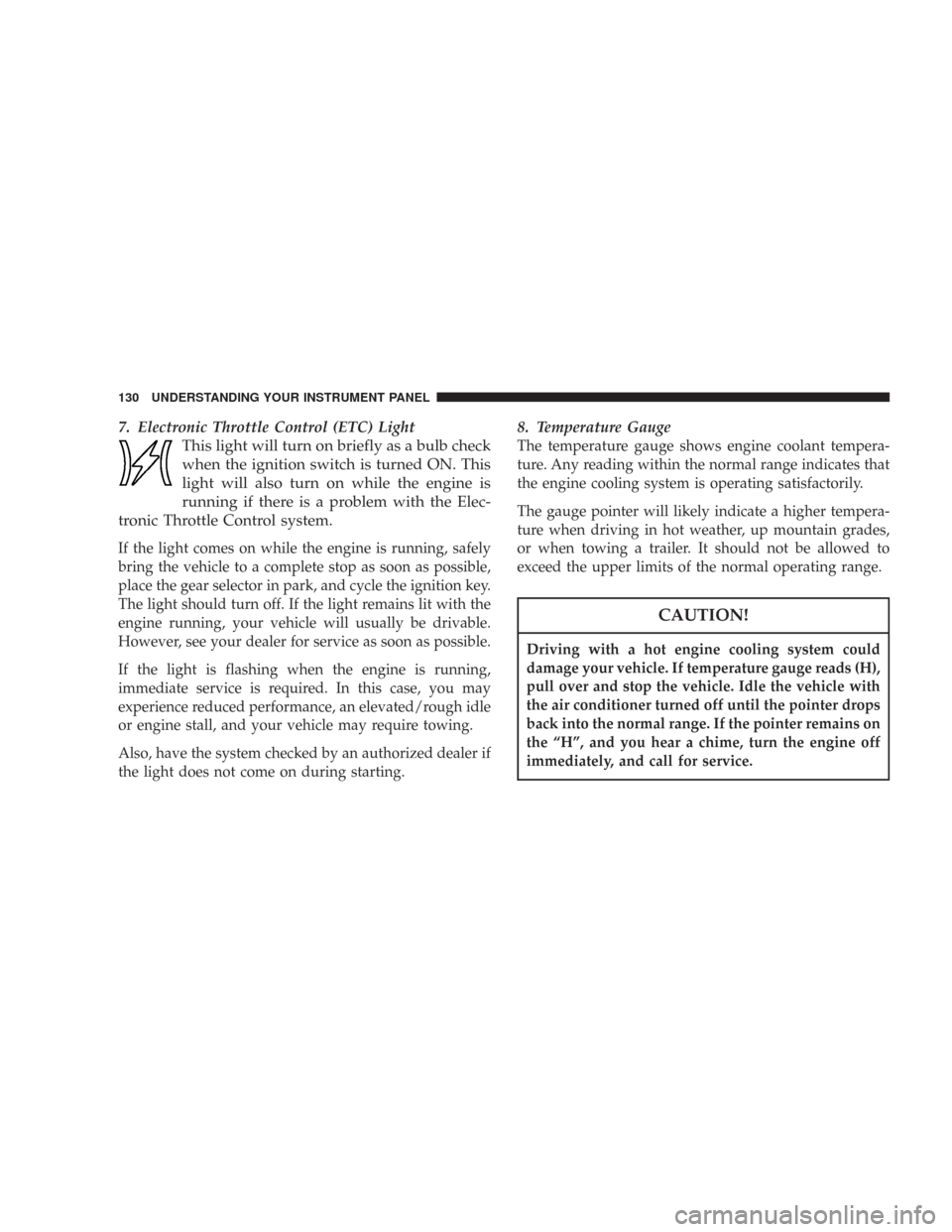

7. Electronic Throttle Control (ETC) Light
This light will turn on briefly as a bulb check
when the ignition switch is turned ON. This
light will also turn on while the engine is
running if there is a problem with the Elec-
tronic Throttle Control system.
If the light comes on while the engine is running, safely
bring the vehicle to a complete stop as soon as possible,
place the gear selector in park, and cycle the ignition key.
The light should turn off. If the light remains lit with the
engine running, your vehicle will usually be drivable.
However, see your dealer for service as soon as possible.
If the light is flashing when the engine is running,
immediate service is required. In this case, you may
experience reduced performance, an elevated/rough idle
or engine stall, and your vehicle may require towing.
Also, have the system checked by an authorized dealer if
the light does not come on during starting.
8. Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily.
The gauge pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain grades,
or when towing a trailer. It should not be allowed to
exceed the upper limits of the normal operating range.
CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If temperature gauge reads (H),
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H”, and you hear a chime, turn the engine off
immediately, and call for service.
130 UNDERSTANDING YOUR INSTRUMENT PANEL
