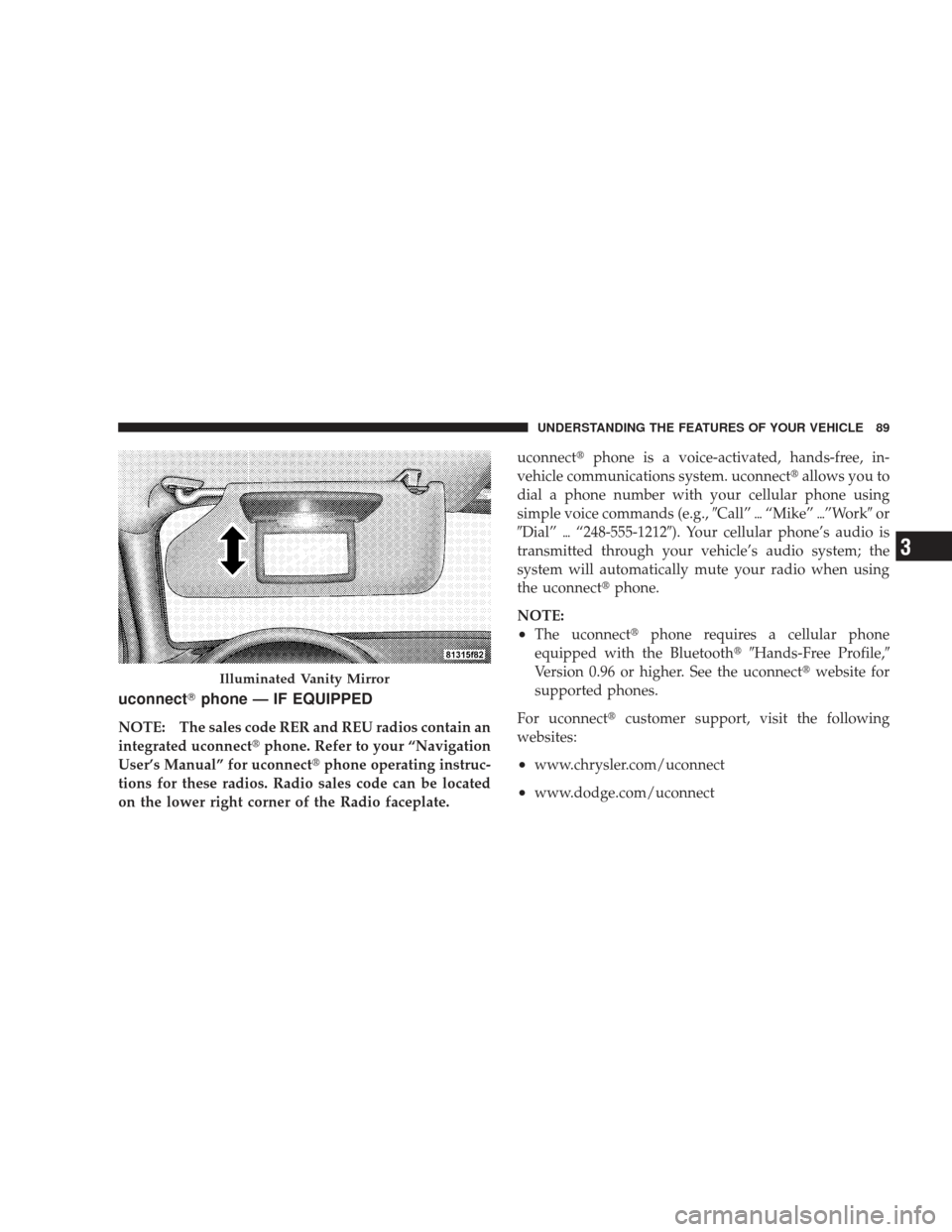

DODGE CHARGER 2009 6.G Owners Manual

uconnectphone — IF EQUIPPED
NOTE: The sales code RER and REU radios contain an
integrated uconnect phone. Refer to your “Navigation
User’s Manual” for uconnect phone operating instruc-
tions for these radios. Radio sales code can be located
on the lower right corner of the Radio faceplate. uconnect
phone is a voice-activated, hands-free, in-
vehicle communications system. uconnect allows you to
dial a phone number with your cellular phone using
simple voice commands (e.g., Call”“Mike” ”Work or
Dial” “248-555-1212). Your cellular phone’s audio is
transmitted through your vehicle’s audio system; the
system will automatically mute your radio when using
the uconnect phone.
NOTE:
•The uconnect phone requires a cellular phone
equipped with the Bluetooth Hands-Free Profile,
Version 0.96 or higher. See the uconnect website for
supported phones.
For uconnect customer support, visit the following
websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
Illuminated Vanity Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

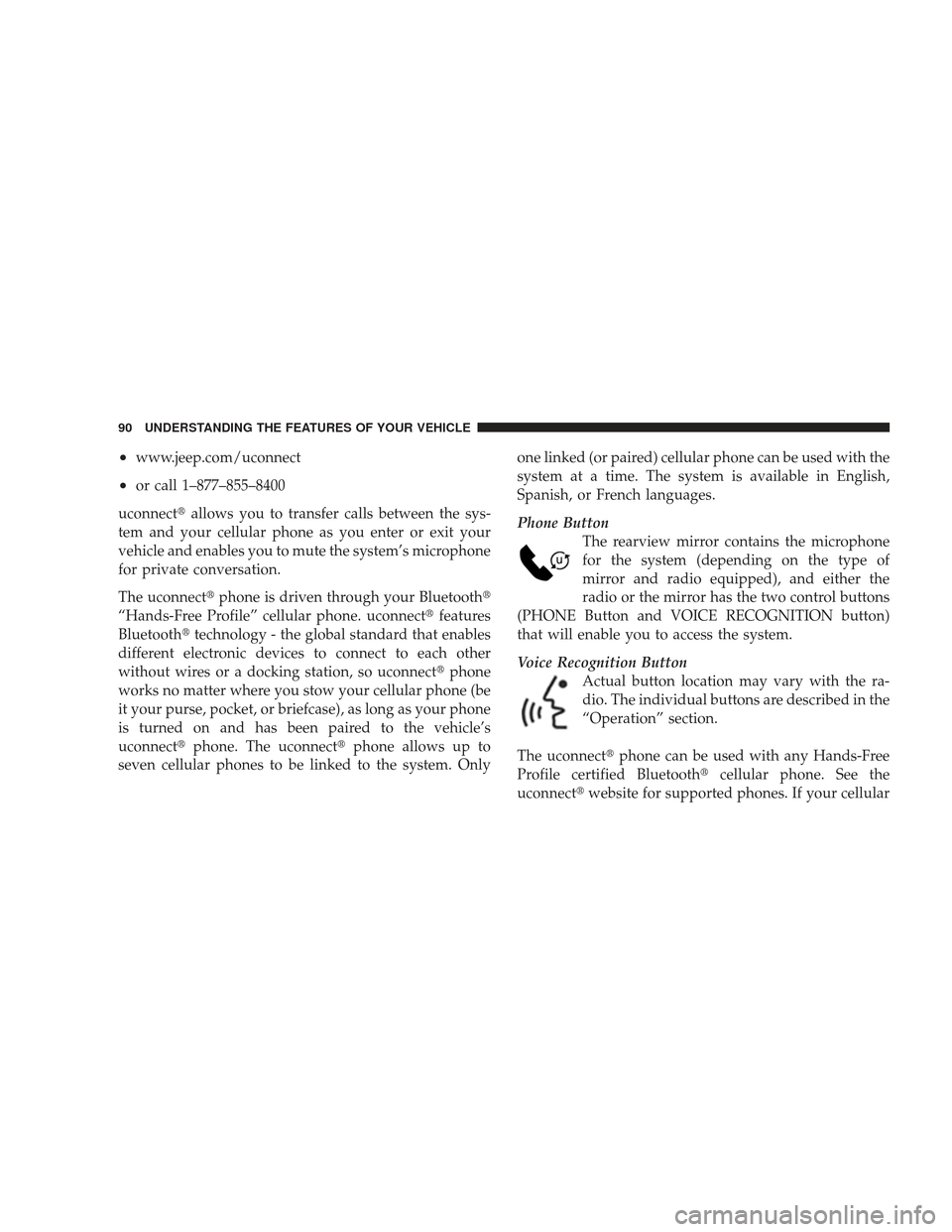

•www.jeep.com/uconnect
•or call 1–877–855–8400
uconnect allows you to transfer calls between the sys-
tem and your cellular phone as you enter or exit your
vehicle and enables you to mute the system’s microphone
for private conversation.
The uconnect phone is driven through your Bluetooth
“Hands-Free Profile” cellular phone. uconnect features
Bluetooth technology - the global standard that enables
different electronic devices to connect to each other
without wires or a docking station, so uconnect phone
works no matter where you stow your cellular phone (be
it your purse, pocket, or briefcase), as long as your phone
is turned on and has been paired to the vehicle’s
uconnect phone. The uconnect phone allows up to
seven cellular phones to be linked to the system. Only one linked (or paired) cellular phone can be used with the
system at a time. The system is available in English,
Spanish, or French languages.
Phone Button
The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.
Voice Recognition Button Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.
The uconnect phone can be used with any Hands-Free
Profile certified Bluetooth cellular phone. See the
uconnect website for supported phones. If your cellular
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

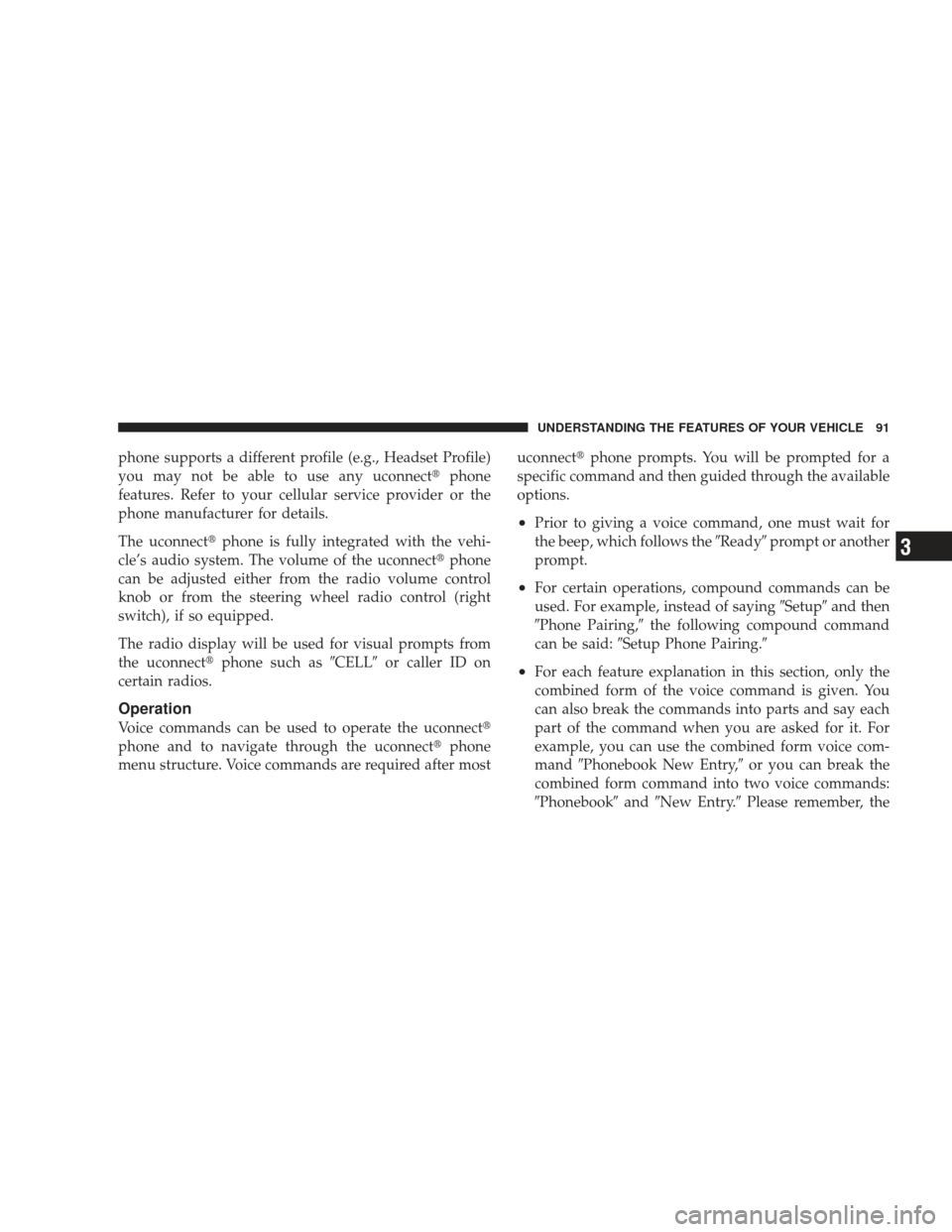

phone supports a different profile (e.g., Headset Profile)
you may not be able to use any uconnectphone
features. Refer to your cellular service provider or the
phone manufacturer for details.
The uconnect phone is fully integrated with the vehi-
cle’s audio system. The volume of the uconnect phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the uconnect phone such as CELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the uconnect
phone and to navigate through the uconnect phone
menu structure. Voice commands are required after most uconnect
phone prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows the Readyprompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of saying Setupand then
Phone Pairing, the following compound command
can be said: Setup Phone Pairing.
•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For
example, you can use the combined form voice com-
mandPhonebook New Entry, or you can break the
combined form command into two voice commands:
Phonebook andNew Entry. Please remember, the
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

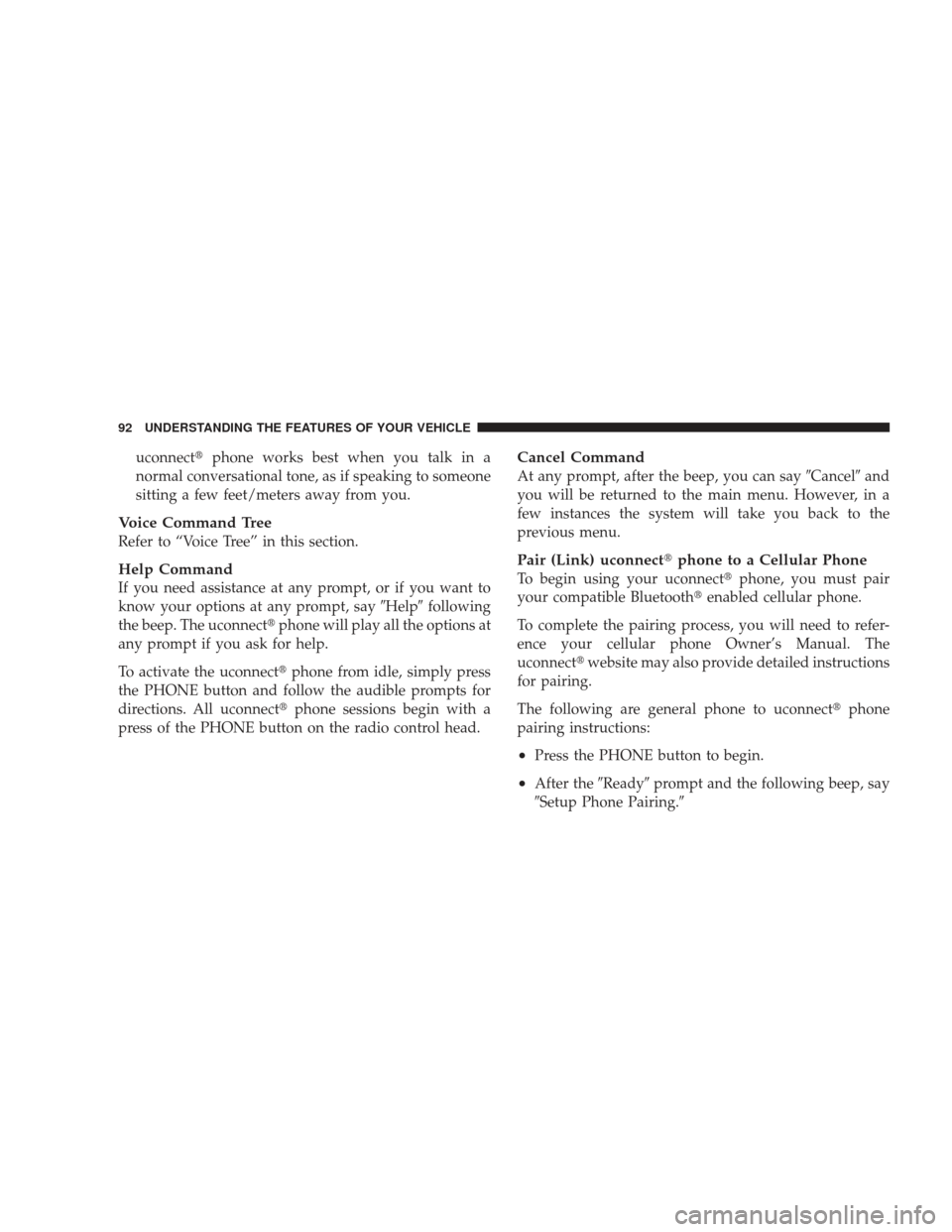

uconnectphone works best when you talk in a
normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say Helpfollowing
the beep. The uconnect phone will play all the options at
any prompt if you ask for help.
To activate the uconnect phone from idle, simply press
the PHONE button and follow the audible prompts for
directions. All uconnect phone sessions begin with a
press of the PHONE button on the radio control head.
Cancel Command
At any prompt, after the beep, you can say Canceland
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) uconnect phone to a Cellular Phone
To begin using your uconnect phone, you must pair
your compatible Bluetooth enabled cellular phone.
To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
uconnect website may also provide detailed instructions
for pairing.
The following are general phone to uconnect phone
pairing instructions:
•Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Setup Phone Pairing.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

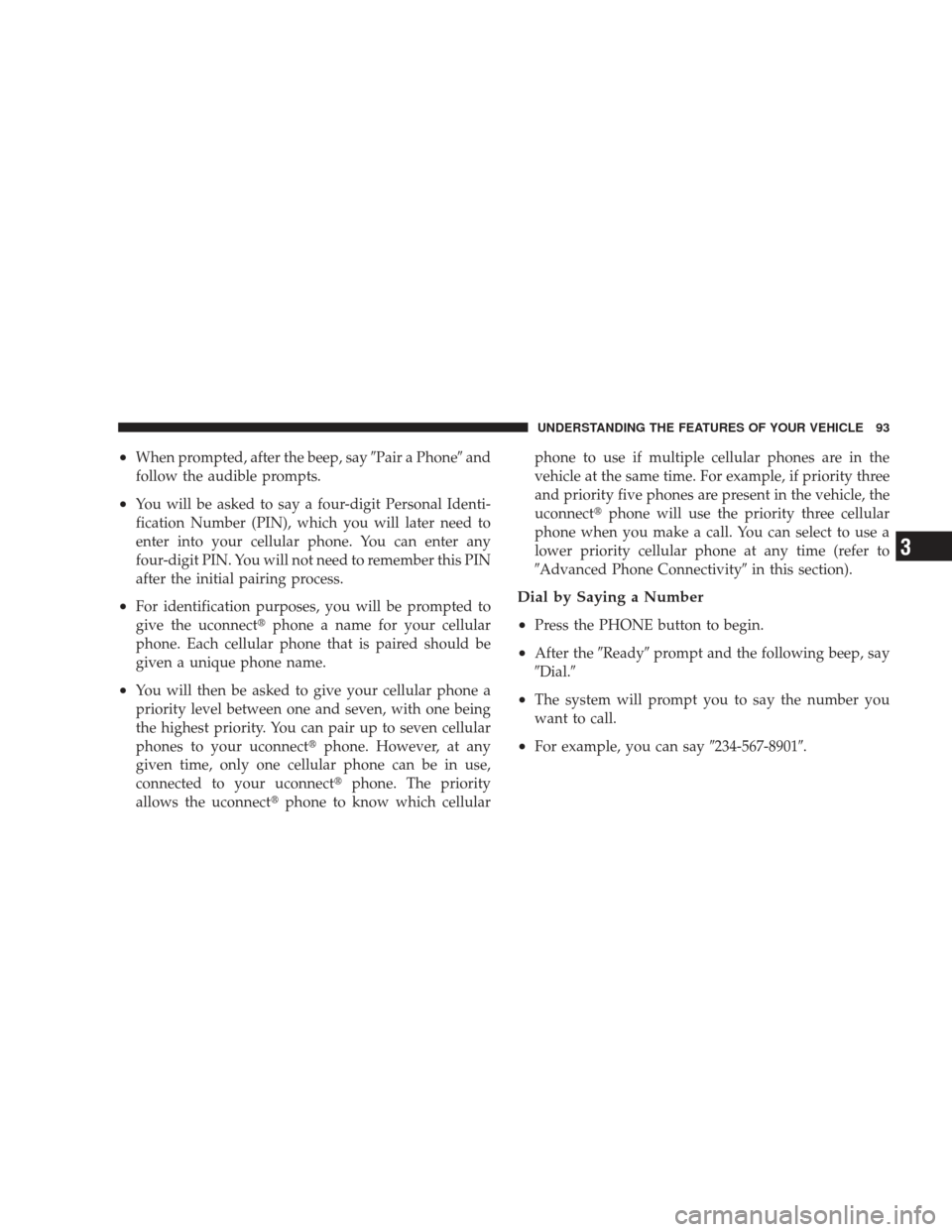

•When prompted, after the beep, sayPair a Phoneand
follow the audible prompts.
•You will be asked to say a four-digit Personal Identi-
fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.
•For identification purposes, you will be prompted to
give the uconnect phone a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•You will then be asked to give your cellular phone a
priority level between one and seven, with one being
the highest priority. You can pair up to seven cellular
phones to your uconnect phone. However, at any
given time, only one cellular phone can be in use,
connected to your uconnect phone. The priority
allows the uconnect phone to know which cellular phone to use if multiple cellular phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
uconnect
phone will use the priority three cellular
phone when you make a call. You can select to use a
lower priority cellular phone at any time (refer to
Advanced Phone Connectivity in this section).
Dial by Saying a Number
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Dial.
•The system will prompt you to say the number you
want to call.
•For example, you can say 234-567-8901.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

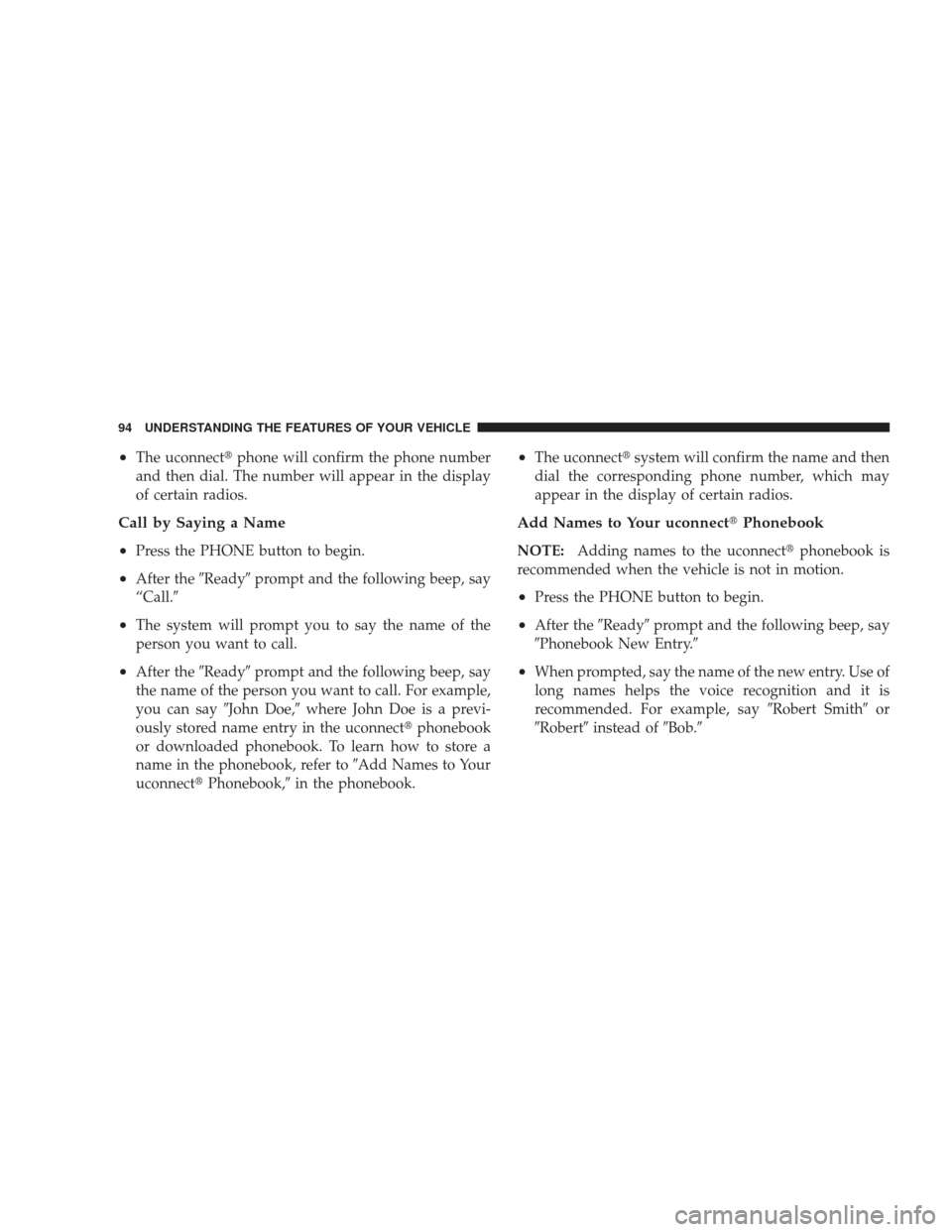

•The uconnectphone will confirm the phone number
and then dial. The number will appear in the display
of certain radios.
Call by Saying a Name
•
Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
“Call.
•The system will prompt you to say the name of the
person you want to call.
•After the Readyprompt and the following beep, say
the name of the person you want to call. For example,
you can say John Doe,where John Doe is a previ-
ously stored name entry in the uconnect phonebook
or downloaded phonebook. To learn how to store a
name in the phonebook, refer to Add Names to Your
uconnect Phonebook, in the phonebook.
•The uconnect system will confirm the name and then
dial the corresponding phone number, which may
appear in the display of certain radios.
Add Names to Your uconnect Phonebook
NOTE:Adding names to the uconnect phonebook is
recommended when the vehicle is not in motion.
•Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Phonebook New Entry.
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, say Robert Smithor
Robert instead of Bob.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

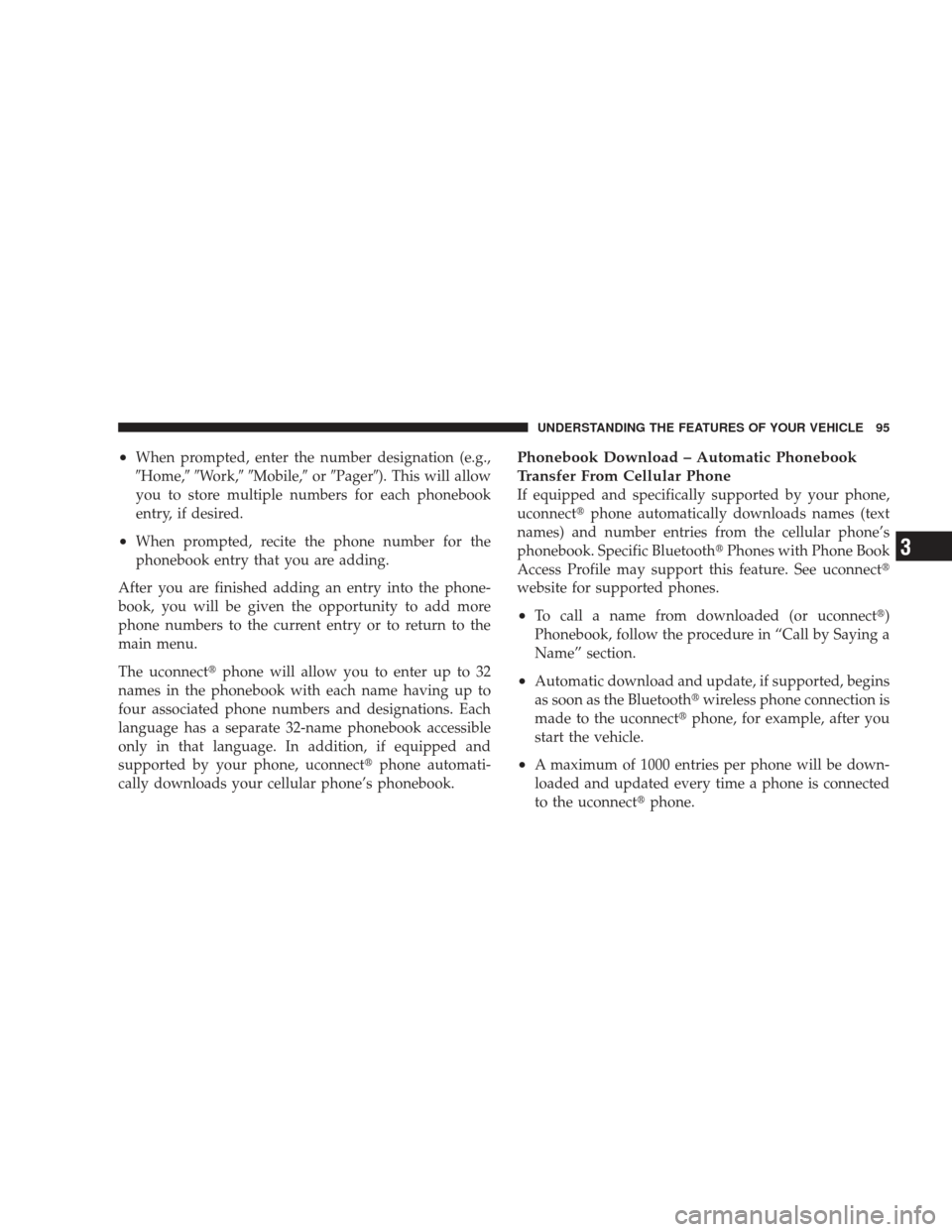

•When prompted, enter the number designation (e.g.,
Home,Work,Mobile, orPager). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding.
After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
The uconnect phone will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language. In addition, if equipped and
supported by your phone, uconnect phone automati-
cally downloads your cellular phone’s phonebook.
Phonebook Download – Automatic Phonebook
Transfer From Cellular Phone
If equipped and specifically supported by your phone,
uconnect phone automatically downloads names (text
names) and number entries from the cellular phone’s
phonebook. Specific Bluetooth Phones with Phone Book
Access Profile may support this feature. See uconnect
website for supported phones.
•To call a name from downloaded (or uconnect)
Phonebook, follow the procedure in “Call by Saying a
Name” section.
•Automatic download and update, if supported, begins
as soon as the Bluetooth wireless phone connection is
made to the uconnect phone, for example, after you
start the vehicle.
•A maximum of 1000 entries per phone will be down-
loaded and updated every time a phone is connected
to the uconnect phone.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
3

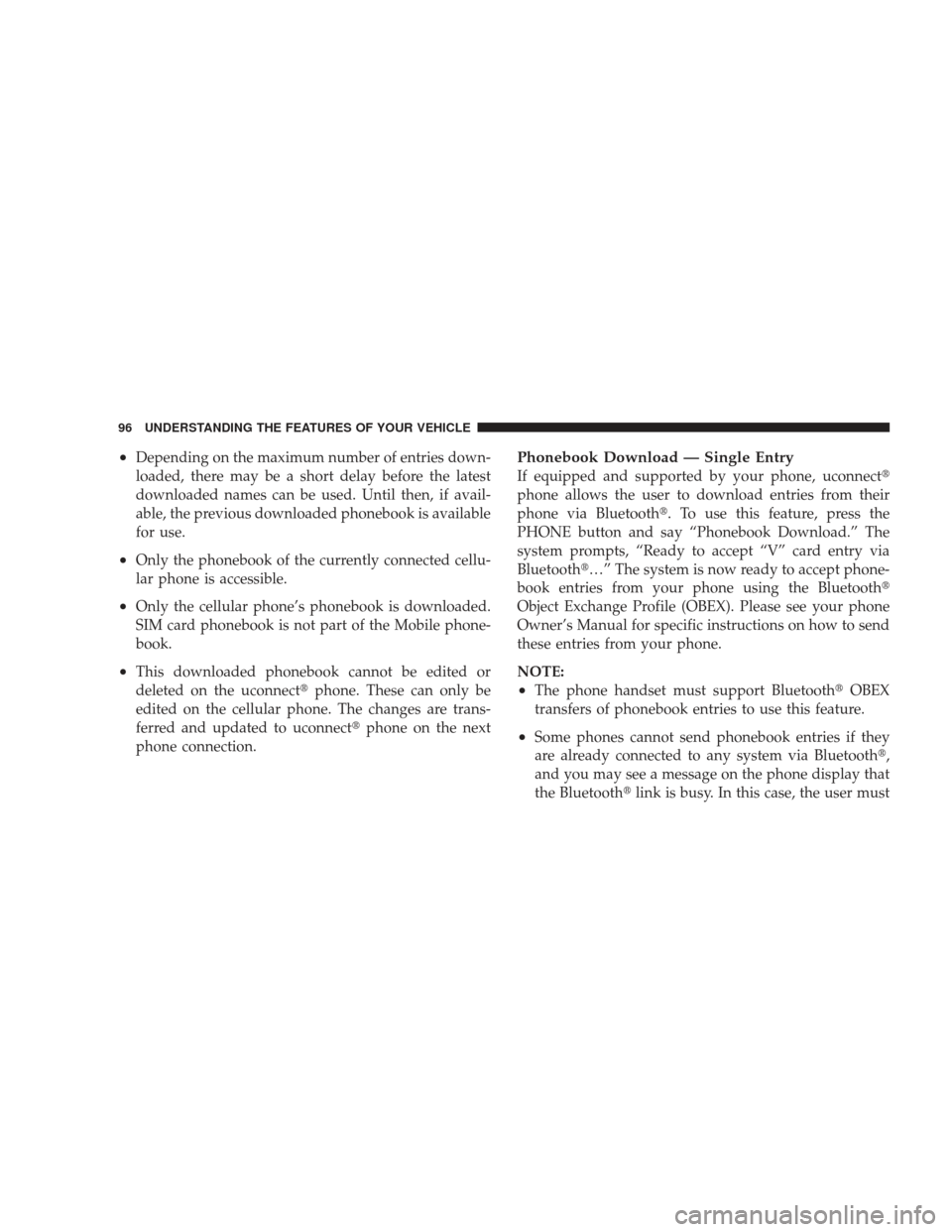

•Depending on the maximum number of entries down-
loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if avail-
able, the previous downloaded phonebook is available
for use.
•Only the phonebook of the currently connected cellu-
lar phone is accessible.
•Only the cellular phone’s phonebook is downloaded.
SIM card phonebook is not part of the Mobile phone-
book.
•This downloaded phonebook cannot be edited or
deleted on the uconnectphone. These can only be
edited on the cellular phone. The changes are trans-
ferred and updated to uconnect phone on the next
phone connection.
Phonebook Download — Single Entry
If equipped and supported by your phone, uconnect
phone allows the user to download entries from their
phone via Bluetooth. To use this feature, press the
PHONE button and say “Phonebook Download.” The
system prompts, “Ready to accept “V” card entry via
Bluetooth…” The system is now ready to accept phone-
book entries from your phone using the Bluetooth
Object Exchange Profile (OBEX). Please see your phone
Owner’s Manual for specific instructions on how to send
these entries from your phone.
NOTE:
•The phone handset must support Bluetooth OBEX
transfers of phonebook entries to use this feature.
•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth ,
and you may see a message on the phone display that
the Bluetooth link is busy. In this case, the user must
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

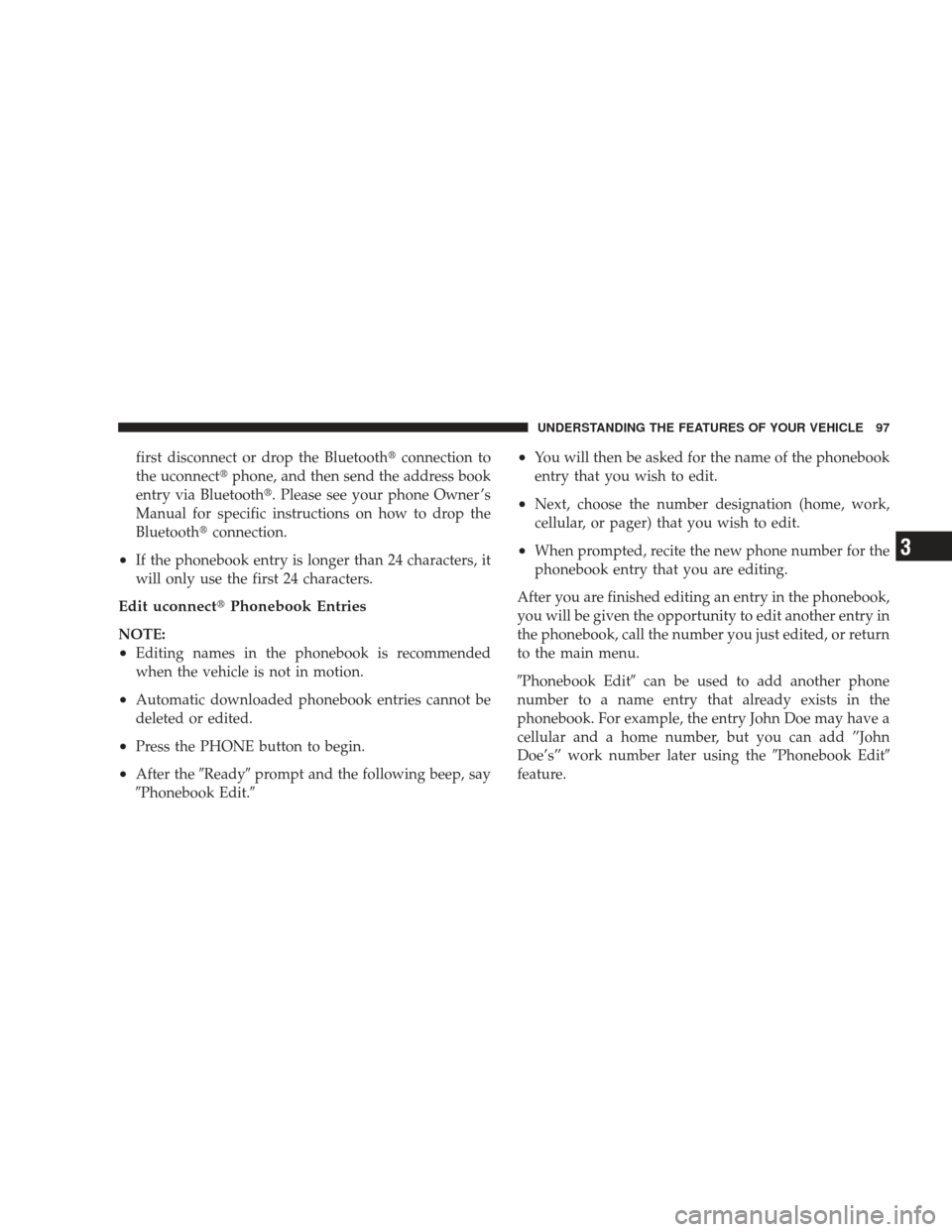

first disconnect or drop the Bluetoothconnection to
the uconnect phone, and then send the address book
entry via Bluetooth. Please see your phone Owner ’s
Manual for specific instructions on how to drop the
Bluetooth connection.
•If the phonebook entry is longer than 24 characters, it
will only use the first 24 characters.
Edit uconnect Phonebook Entries
NOTE:
•Editing names in the phonebook is recommended
when the vehicle is not in motion.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Edit.
•You will then be asked for the name of the phonebook
entry that you wish to edit.
•Next, choose the number designation (home, work,
cellular, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phonebook entry that you are editing.
After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.
Phonebook Edit can be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
cellular and a home number, but you can add ”John
Doe’s” work number later using the Phonebook Edit
feature.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3

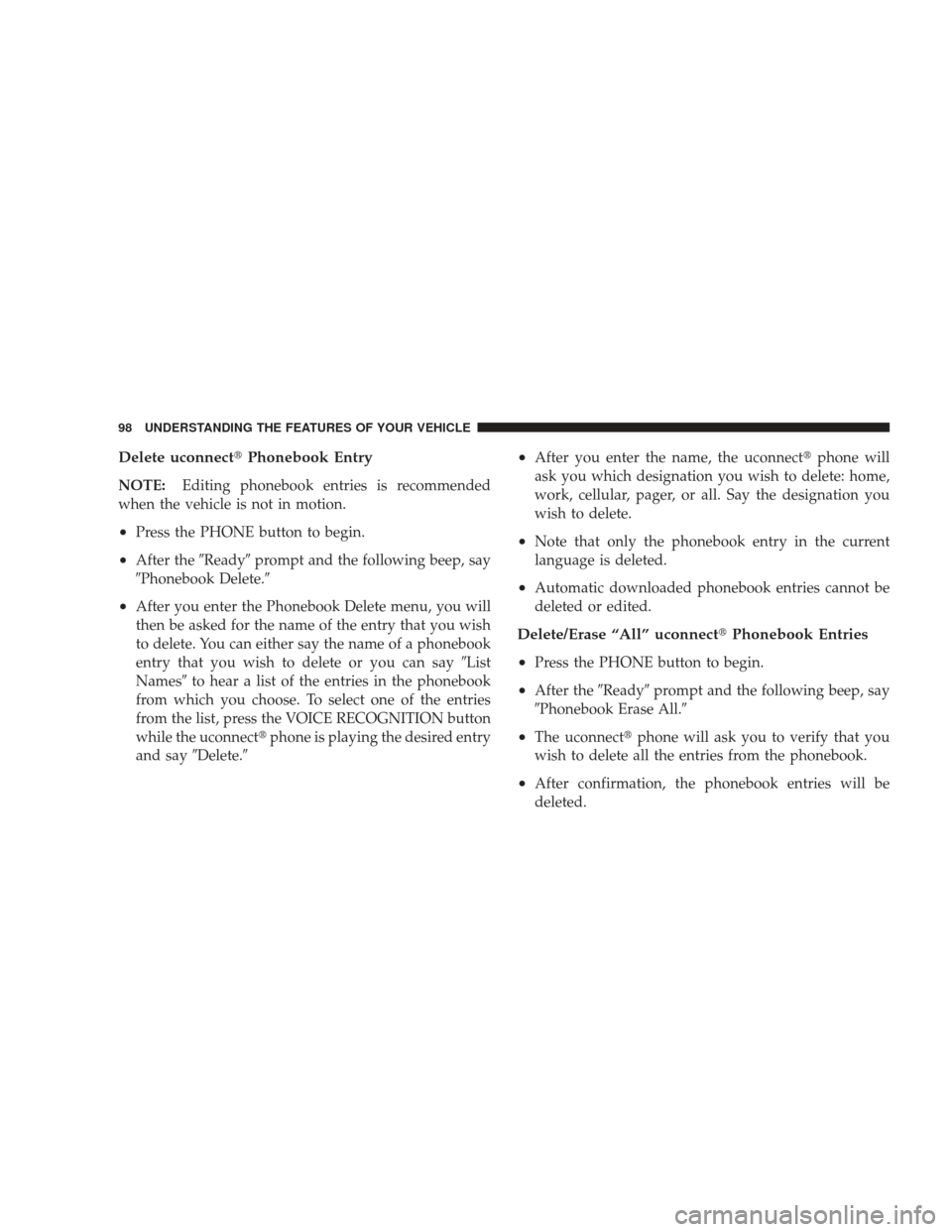

Delete uconnectPhonebook Entry
NOTE:Editing phonebook entries is recommended
when the vehicle is not in motion.
•Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Phonebook Delete.
•After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can say List
Names to hear a list of the entries in the phonebook
from which you choose. To select one of the entries
from the list, press the VOICE RECOGNITION button
while the uconnect phone is playing the desired entry
and say Delete.
•After you enter the name, the uconnect phone will
ask you which designation you wish to delete: home,
work, cellular, pager, or all. Say the designation you
wish to delete.
•Note that only the phonebook entry in the current
language is deleted.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
Delete/Erase “All” uconnect Phonebook Entries
•
Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Phonebook Erase All.
•The uconnect phone will ask you to verify that you
wish to delete all the entries from the phonebook.
•After confirmation, the phonebook entries will be
deleted.
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
