NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Exterior Bulb Number
Low Beam Headlight (Standard Halogen) ......9006
Low Beam Headlight – High Intensity
Discharge (HID) ......................... D1S
(Serviced at Authorized Dealer)
High Beam Headlight ..................... 9005
Front Park/Turn Light ................... 3157A
Front Fog Light — If Equipped ..........9145/H10
(Serviced at Authorized Dealer)
Front Side Marker ........................ 194
(Serviced at Authorized Dealer)
Tail/Stop Light ......................... 3057
Tail/Turn Light ......................... 3057Rear Side Marker
........................ 168
Backup Light ........................... 921
Center High-Mount Stop Light (CHMSL) ....... LED
(Serviced at Authorized Dealer)
License ................................ 168
BULB REPLACEMENT
Low Beam Headlight, High Beam Headlight,
Park/Turn Light, and Front Side Marker Light —
Models with Halogen Headlights
1. Open the hood.
NOTE: Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlight assem-
bly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun-
terclockwise, and then pull it out of the headlight assem-
bly.
MAINTAINING YOUR VEHICLE 419
7

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly into the head-
light assembly, and then turn it clockwise.

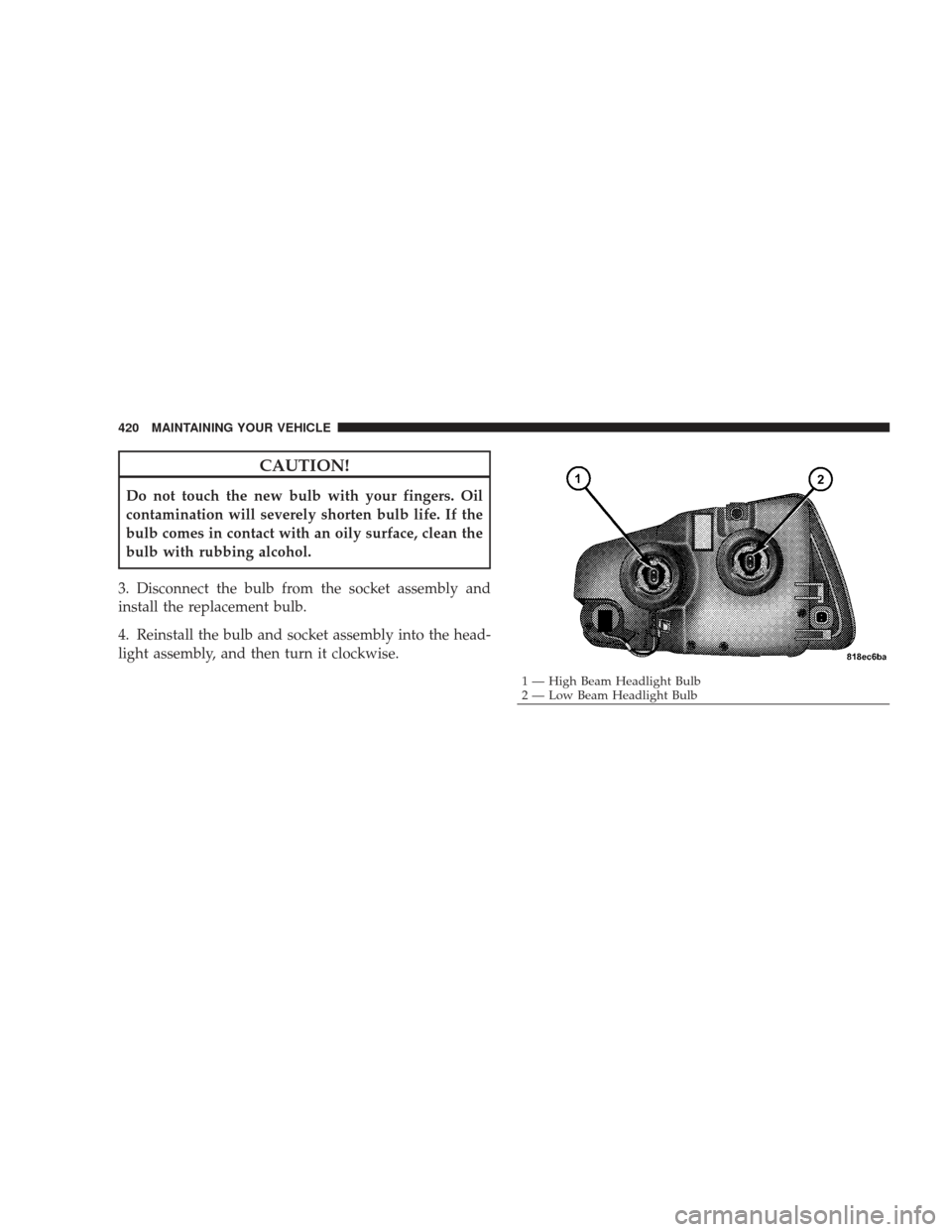

1 — High Beam Headlight Bulb
2 — Low Beam Headlight Bulb
420 MAINTAINING YOUR VEHICLE

3 — Park/Turn Light Bulb4 — Side Marker Light BulbMAINTAINING YOUR VEHICLE 4217

Low Beam Headlight, High Beam Headlight, and
Park/Turn Light — Models with High Intensity
Discharge Headlights (HID)

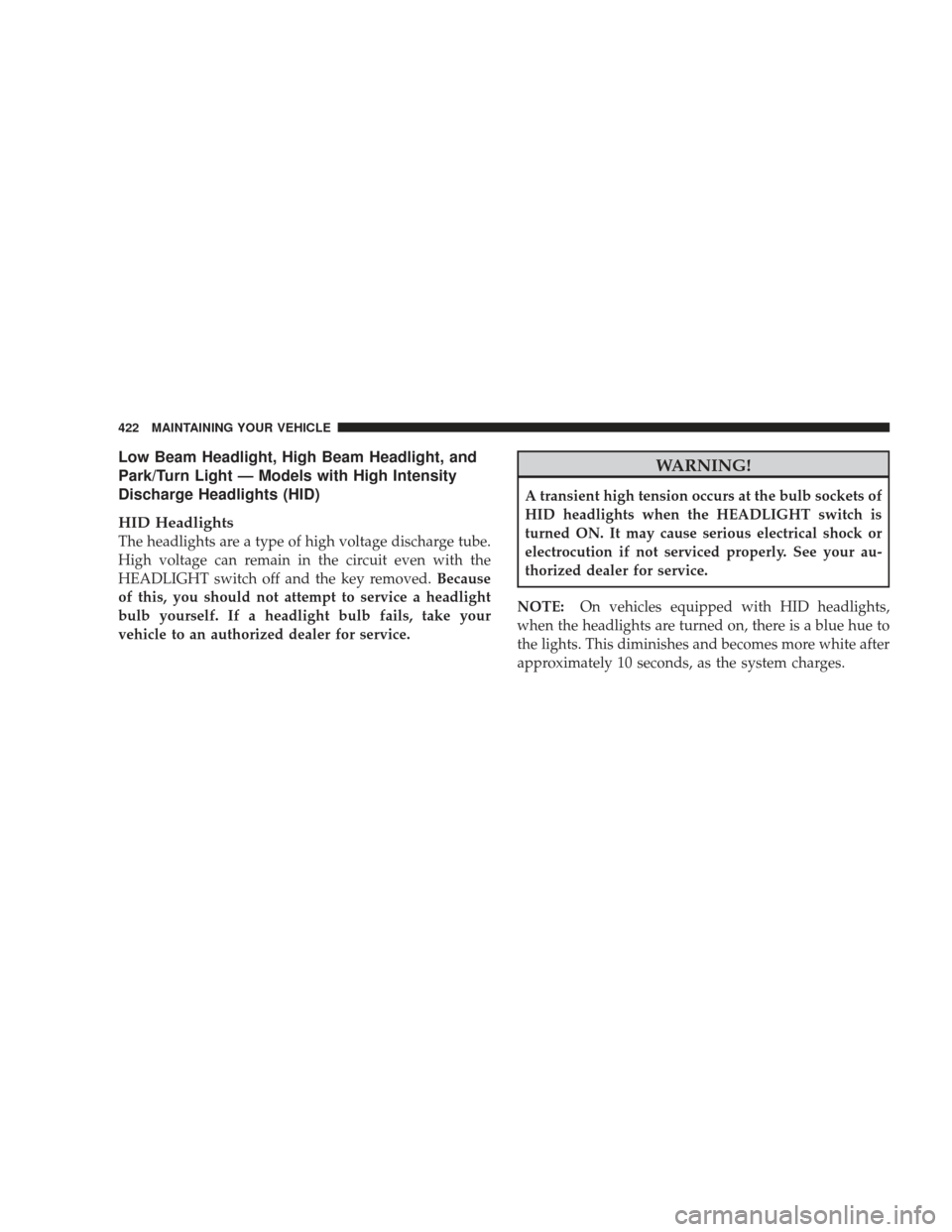

HID Headlights
The headlights are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
HEADLIGHT switch off and the key removed.Because
of this, you should not attempt to service a headlight
bulb yourself. If a headlight bulb fails, take your
vehicle to an authorized dealer for service.
WARNING!
A transient high tension occurs at the bulb sockets of
HID headlights when the HEADLIGHT switch is
turned ON. It may cause serious electrical shock or
electrocution if not serviced properly. See your au-
thorized dealer for service.
NOTE: On vehicles equipped with HID headlights,
when the headlights are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
422 MAINTAINING YOUR VEHICLE

Backup Light, Side Marker Light, Tail/Turn Light,
and Tail/Stop Light
1. Open the Trunk.
2. Remove two fasteners from the back of the tail light
assembly.

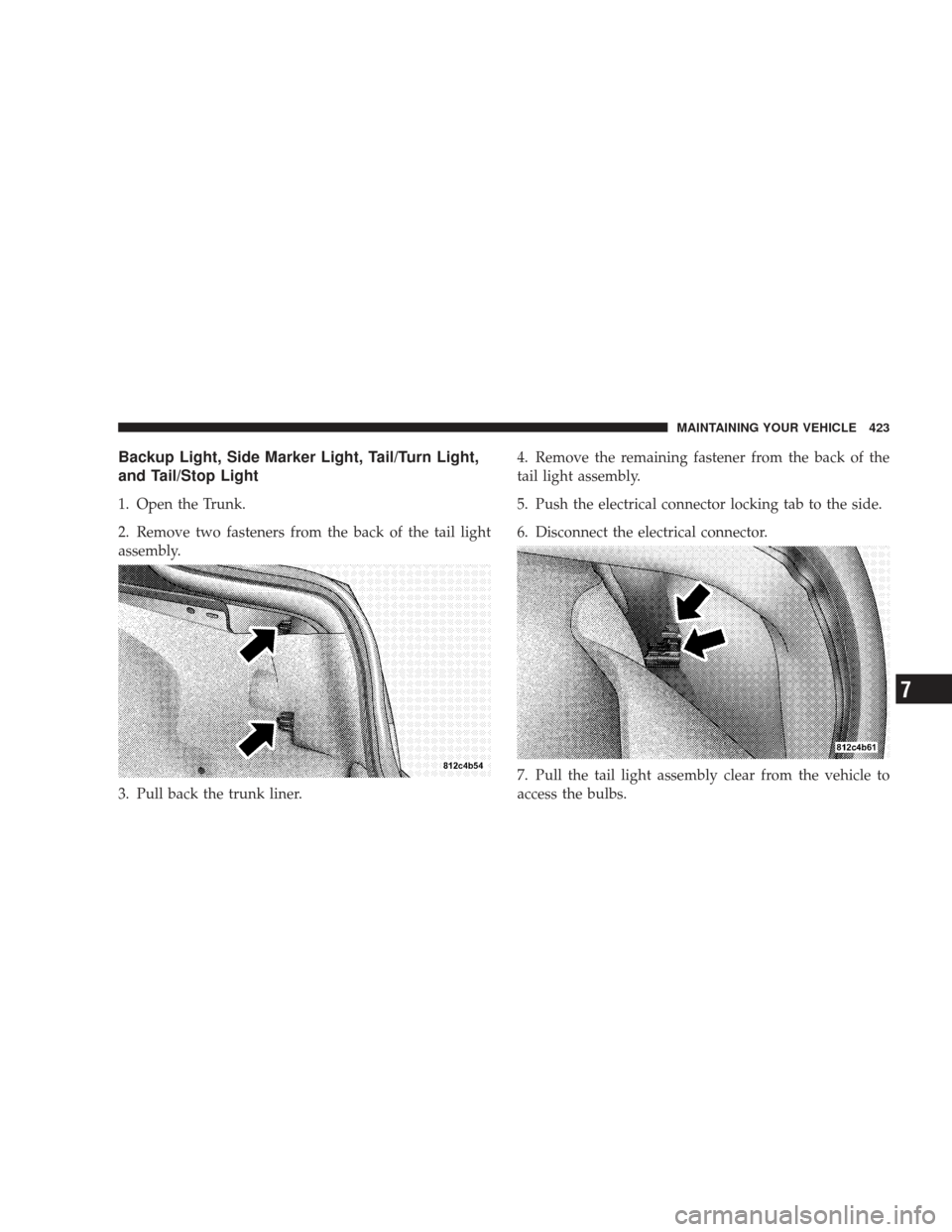

3. Pull back the trunk liner.4. Remove the remaining fastener from the back of the
tail light assembly.
5. Push the electrical connector locking tab to the side.
6. Disconnect the electrical connector.
7. Pull the tail light assembly clear from the vehicle to
access the bulbs.
MAINTAINING YOUR VEHICLE 423
7

8. Turn the appropriate bulb and socket assembly coun-
terclockwise to remove it from the tail light assembly.

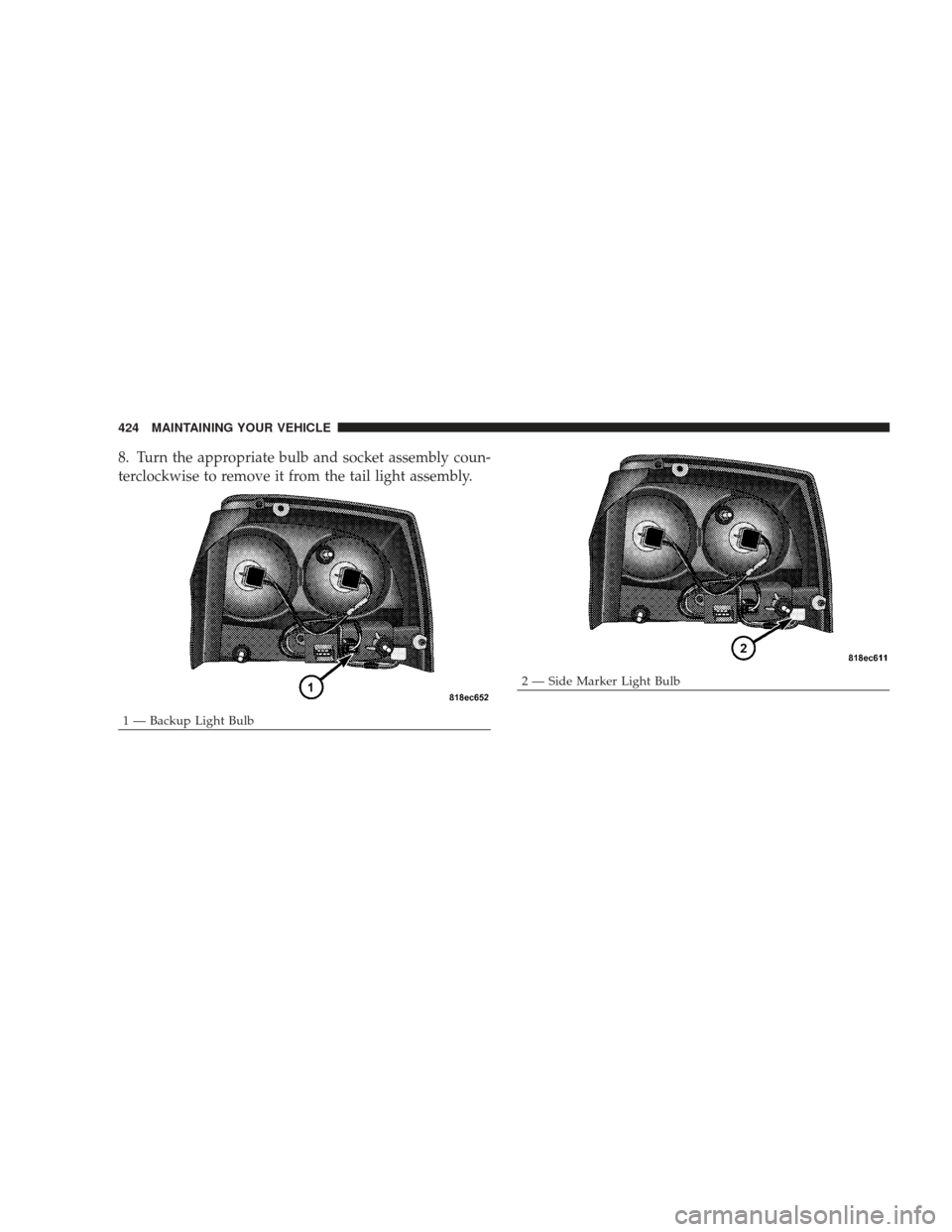

1 — Backup Light Bulb
2 — Side Marker Light Bulb
424 MAINTAINING YOUR VEHICLE

9. Disconnect the bulb from the socket assembly and
install the replacement bulb.
10. Reinstall the bulb and socket assembly into the tail
light assembly, and then turn it clockwise.
3 — Tail/Turn Light Bulb4 — Tail/Stop Light BulbMAINTAINING YOUR VEHICLE 4257

11. Reinstall the tail light assembly, fasteners, electrical
connector, and trunk liner.
12. Close the trunk.
License Light
1. Remove the screws securing the light to the rear fascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.4. Reinstall the bulb and socket assembly.
5. Reattach the light to the rear fascia, and then install the
screws.

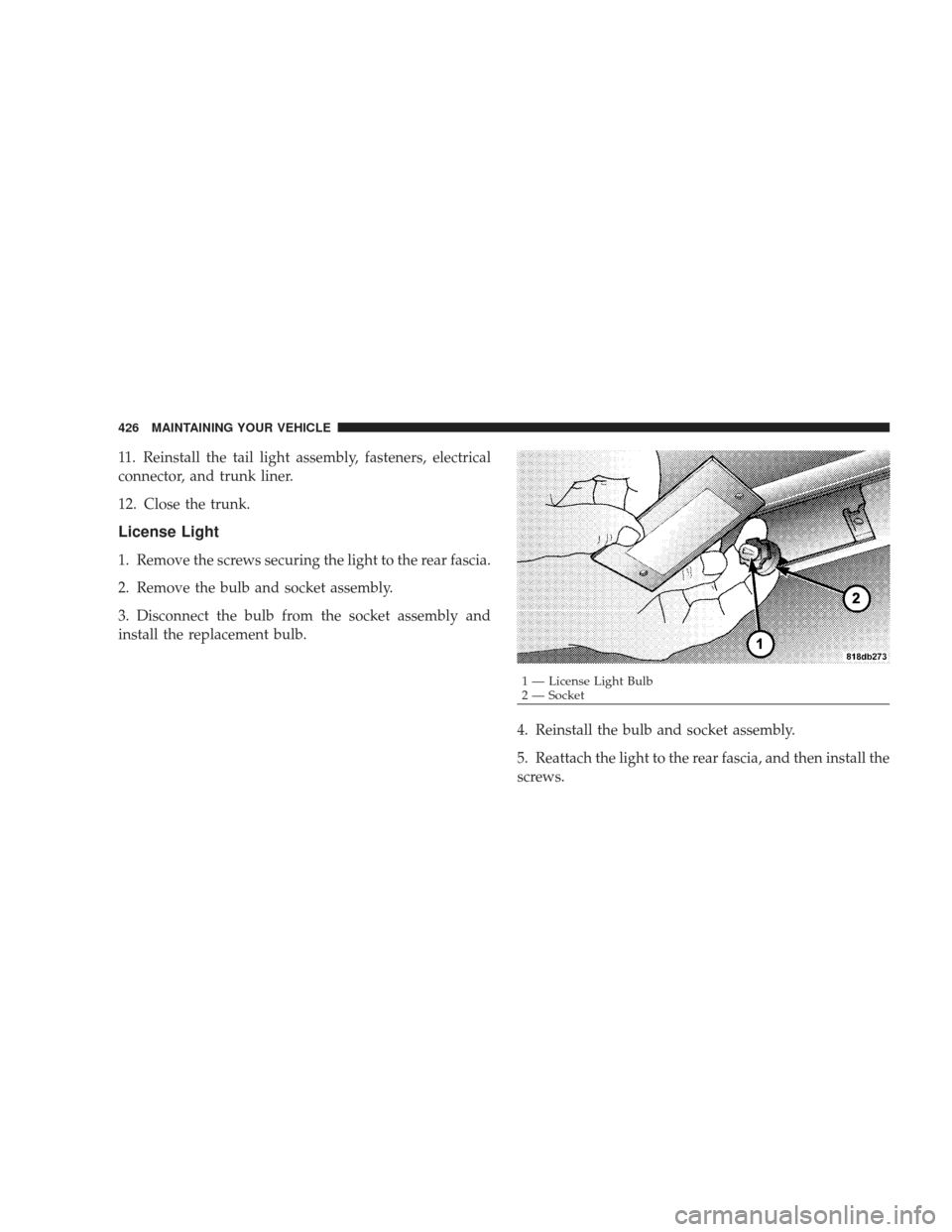

1 — License Light Bulb
2 — Socket
426 MAINTAINING YOUR VEHICLE

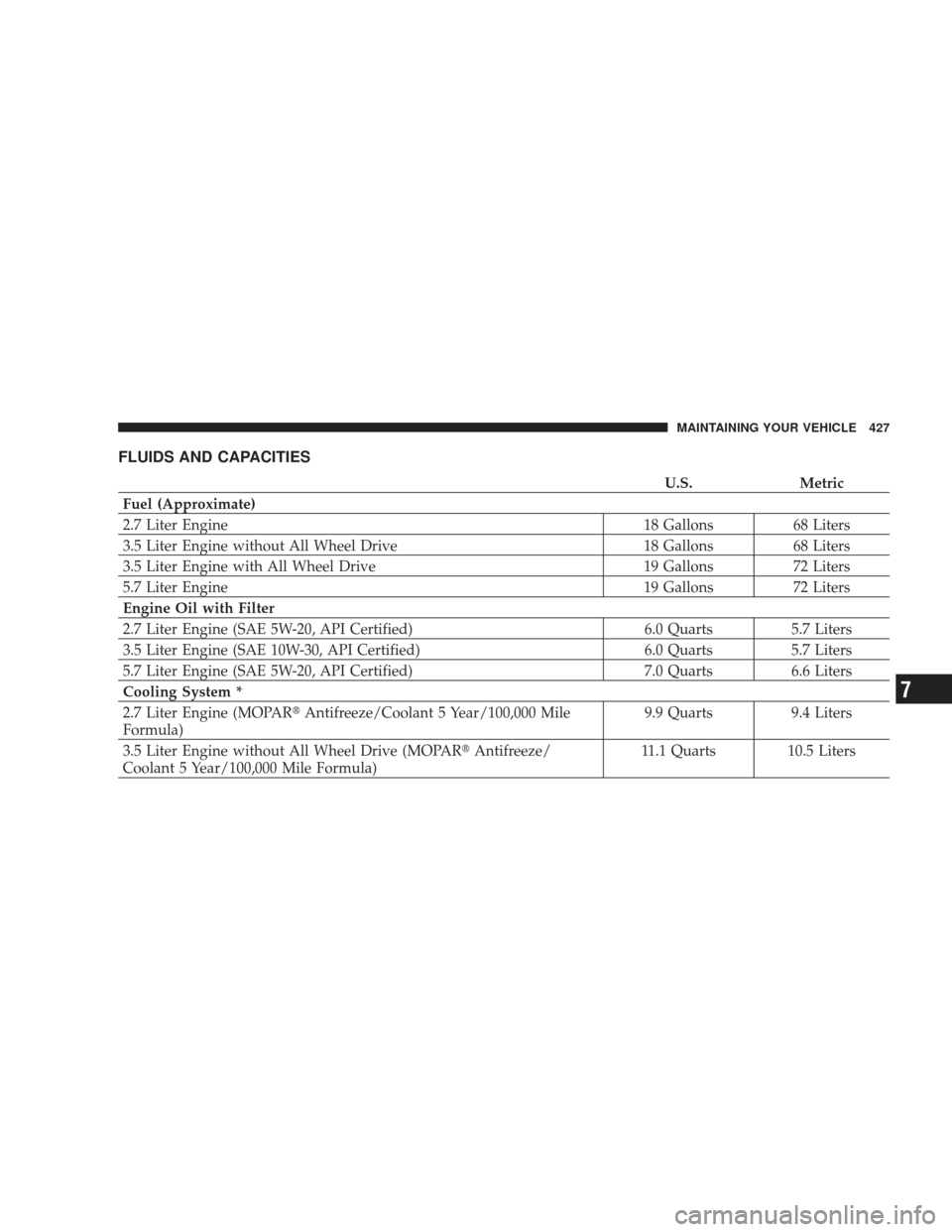

FLUIDS AND CAPACITIES
U.S.Metric
Fuel (Approximate)
2.7 Liter Engine 18 Gallons 68 Liters
3.5 Liter Engine without All Wheel Drive 18 Gallons 68 Liters
3.5 Liter Engine with All Wheel Drive 19 Gallons 72 Liters
5.7 Liter Engine 19 Gallons 72 Liters
Engine Oil with Filter
2.7 Liter Engine (SAE 5W-20, API Certified) 6.0 Quarts 5.7 Liters
3.5 Liter Engine (SAE 10W-30, API Certified) 6.0 Quarts 5.7 Liters
5.7 Liter Engine (SAE 5W-20, API Certified) 7.0 Quarts 6.6 Liters
Cooling System *
2.7 Liter Engine (MOPAR Antifreeze/Coolant 5 Year/100,000 Mile
Formula) 9.9 Quarts
9.4 Liters
3.5 Liter Engine without All Wheel Drive (MOPAR Antifreeze/
Coolant 5 Year/100,000 Mile Formula) 11.1 Quarts 10.5 Liters
MAINTAINING YOUR VEHICLE 427
7

3.5 Liter Engine with All Wheel Drive (MOPARAntifreeze/Coolant 5
Year/100,000 Mile Formula) 11.4 Quarts 10.8 Liters
5.7 Liter Engine without Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula) 14.7 Quarts 13.9 Liters
5.7 Liter Engine with Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula) 15.1 Quarts 14.3 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
