DODGE CHARGER 2013 7.G Owners Manual

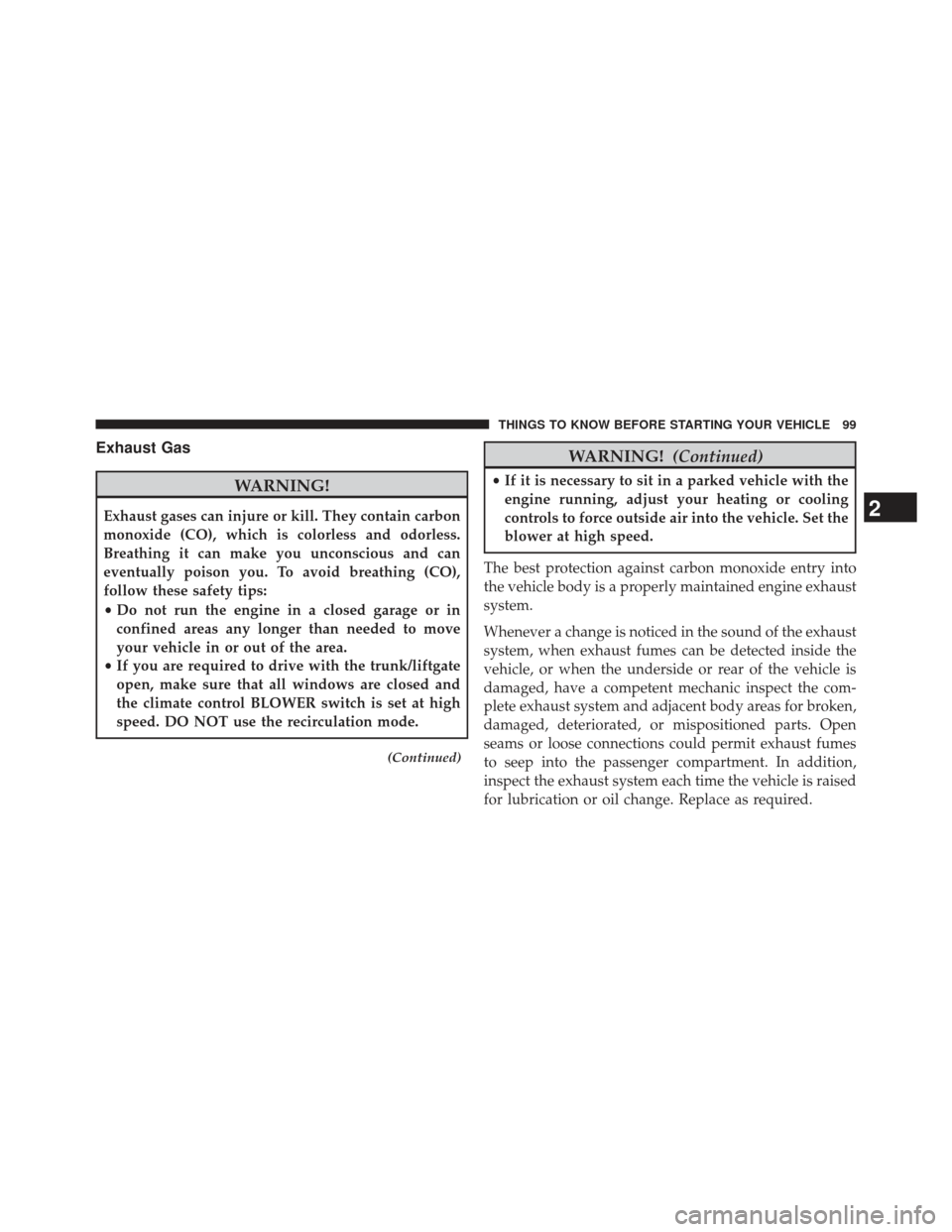

Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO),
follow these safety tips:
•Do not run the engine in a closed garage or in
confined areas any longer than needed to move
your vehicle in or out of the area.
• If you are required to drive with the trunk/liftgate
open, make sure that all windows are closed and
the climate control BLOWER switch is set at high
speed. DO NOT use the recirculation mode.
(Continued)
WARNING! (Continued)
•If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling
controls to force outside air into the vehicle. Set the
blower at high speed.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 99

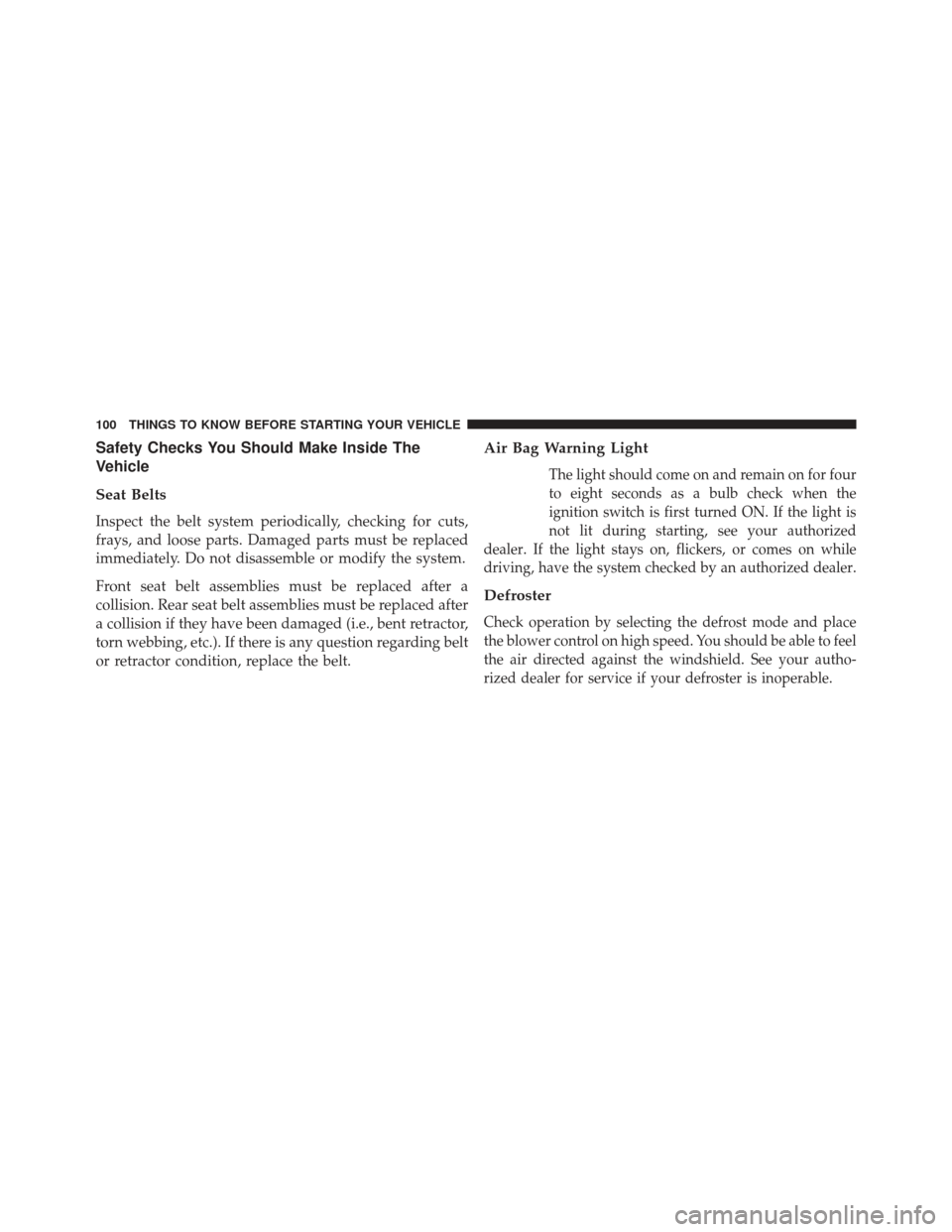

Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the belt.
Air Bag Warning Light
The light should come on and remain on for four
to eight seconds as a bulb check when the
ignition switch is first turned ON. If the light is
not lit during starting, see your authorized
dealer. If the light stays on, flickers, or comes on while
driving, have the system checked by an authorized dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to feel
the air directed against the windshield. See your autho-
rized dealer for service if your defroster is inoperable.
100 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

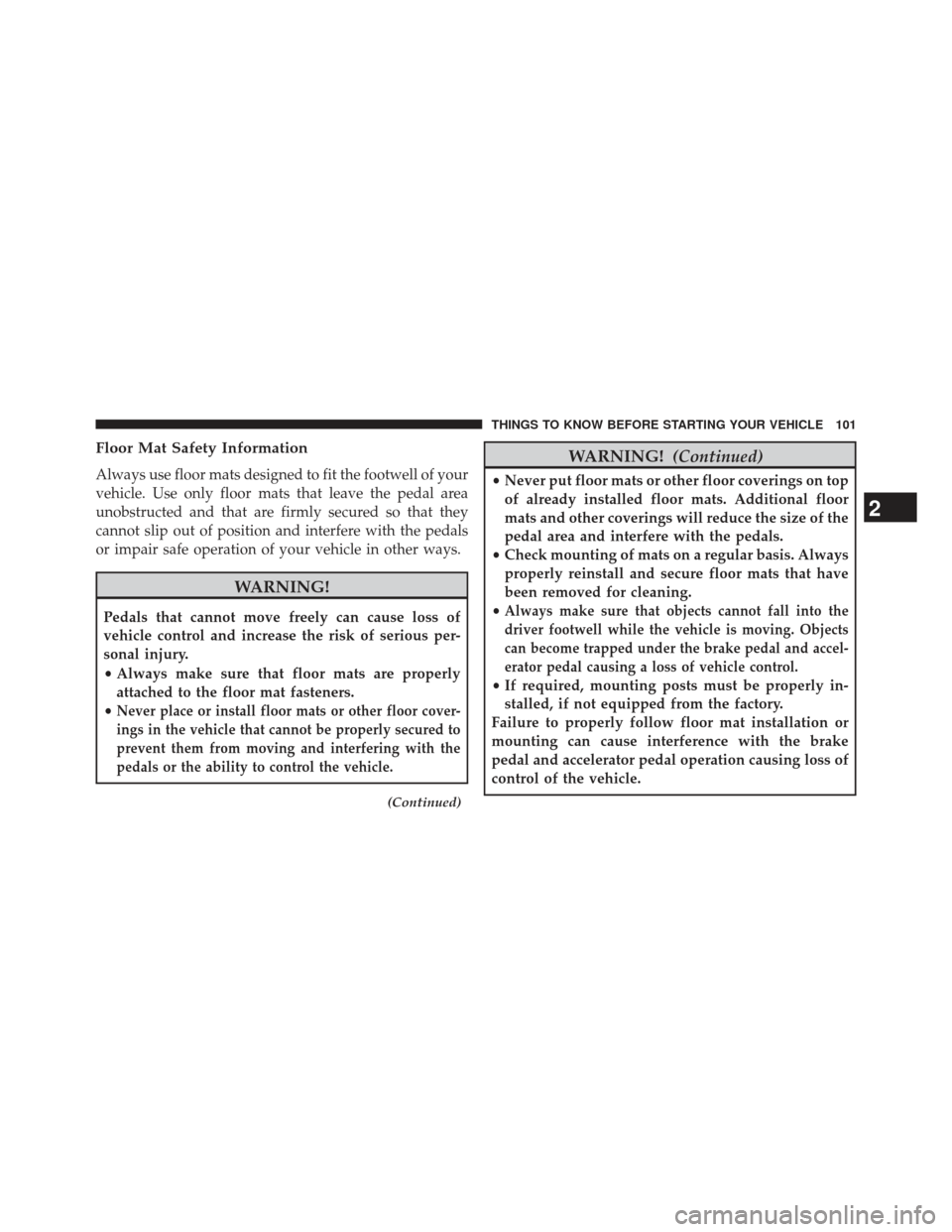

Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.
•Always make sure that floor mats are properly
attached to the floor mat fasteners.
•
Never place or install floor mats or other floor cover-
ings in the vehicle that cannot be properly secured to
prevent them from moving and interfering with the
pedals or the ability to control the vehicle.
(Continued)
WARNING! (Continued)
•Never put floor mats or other floor coverings on top
of already installed floor mats. Additional floor
mats and other coverings will reduce the size of the
pedal area and interfere with the pedals.
• Check mounting of mats on a regular basis. Always
properly reinstall and secure floor mats that have
been removed for cleaning.
•
Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Objects
can become trapped under the brake pedal and accel-
erator pedal causing a loss of vehicle control.
• If required, mounting posts must be properly in-
stalled, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss of
control of the vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 101

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
102 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

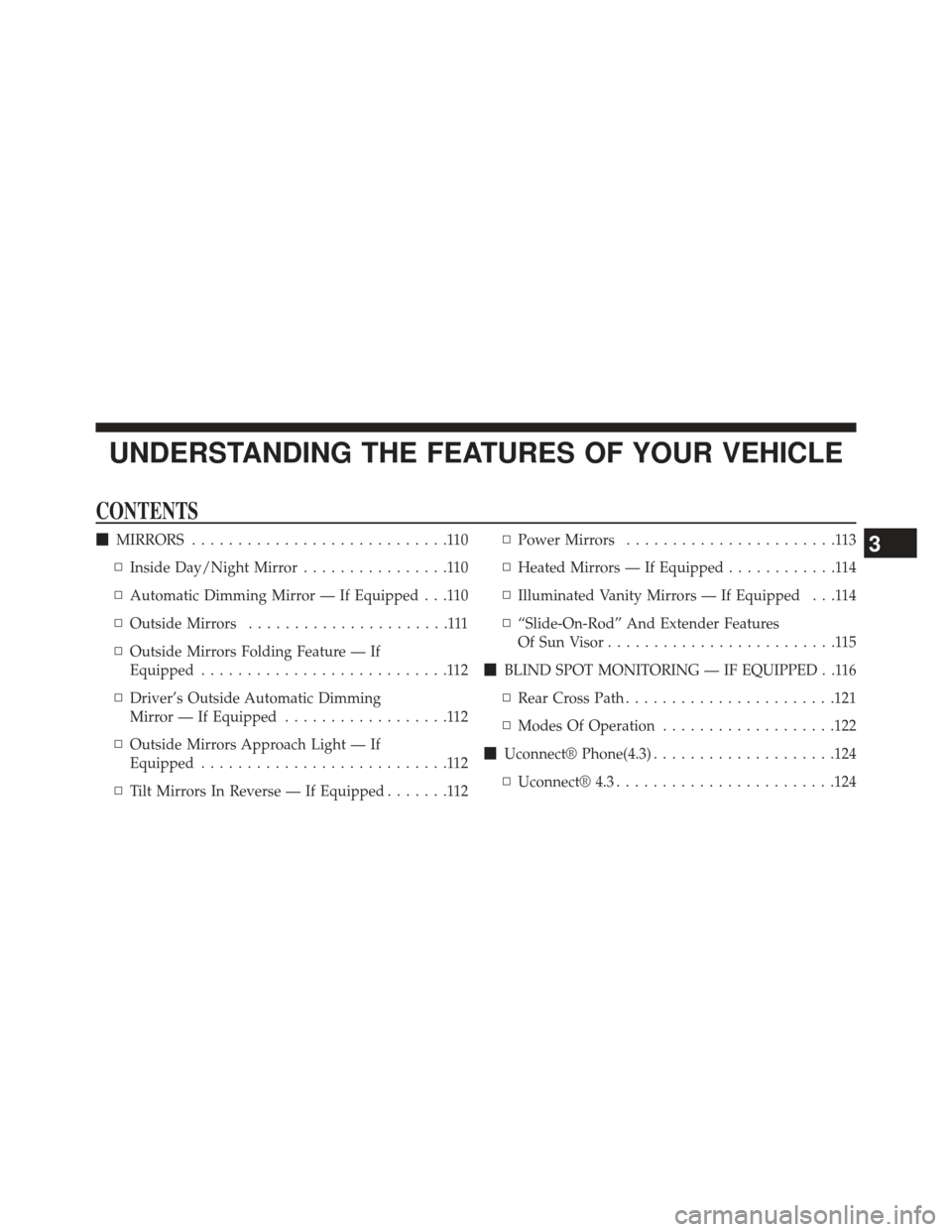

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ............................110
▫ Inside Day/Night Mirror ................110
▫ Automatic Dimming Mirror — If Equipped . . .110
▫ Outside Mirrors ......................111
▫ Outside Mirrors Folding Feature — If
Equipped ...........................112
▫ Driver’s Outside Automatic Dimming
Mirror — If Equipped ..................112
▫ Outside Mirrors Approach Light — If
Equipped ...........................112
▫ Tilt Mirrors In Reverse — If Equipped .......112▫
Power Mirrors .......................113
▫ Heated Mirrors — If Equipped ............114
▫ Illuminated Vanity Mirrors — If Equipped . . .114
▫ “Slide-On-Rod” And Extender Features
Of Sun Visor .........................115
 BLIND SPOT MONITORING — IF EQUIPPED . .116
▫ Rear Cross Path ...................... .121
▫ Modes Of Operation ...................122
 Uconnect® Phone(4.3) ....................124
▫ Uconnect® 4.3 ....................... .1243

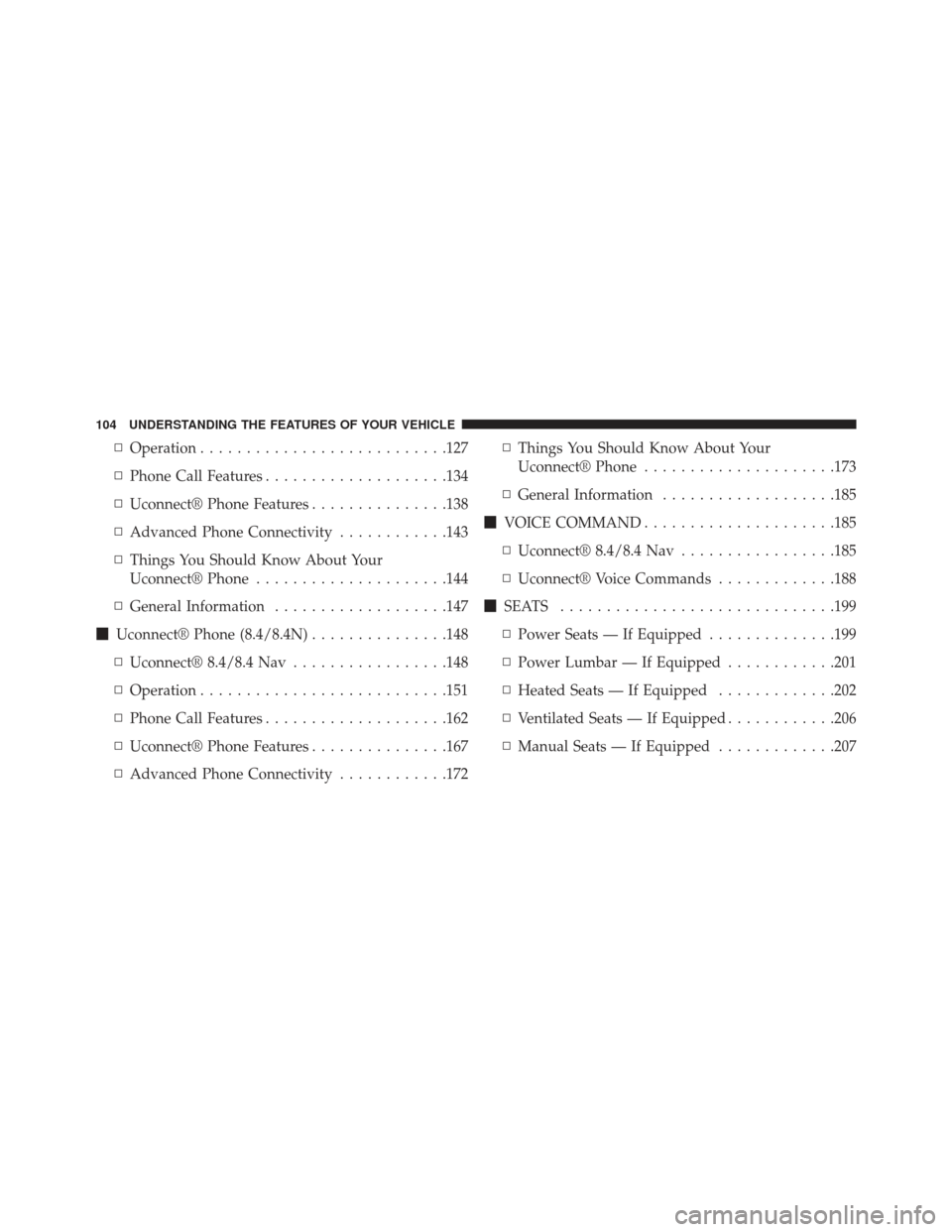

▫Operation .......................... .127
▫ Phone Call Features ....................134
▫ Uconnect® Phone Features ...............138
▫ Advanced Phone Connectivity ............143
▫ Things You Should Know About Your
Uconnect® Phone .....................144
▫ General Information ...................147
 Uconnect® Phone (8.4/8.4N) ...............148
▫ Uconnect® 8.4/8.4 Nav .................148
▫ Operation .......................... .151
▫ Phone Call Features ....................162
▫ Uconnect® Phone Features ...............167
▫ Advanced Phone Connectivity ............172▫
Things You Should Know About Your
Uconnect® Phone .....................173
▫ General Information ...................185
 VOICE COMMAND .....................185
▫ Uconnect® 8.4/8.4 Nav .................185
▫ Uconnect® Voice Commands .............188
 SEATS ............................. .199
▫ Power Seats — If Equipped ..............199
▫ Power Lumbar — If Equipped ............201
▫ Heated Seats — If Equipped .............202
▫ Ventilated Seats — If Equipped ............206
▫ Manual Seats — If Equipped .............207
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Head Restraints ..................... .209
▫ Folding Rear Seat .....................212
 DRIVER MEMORY SEAT — IF EQUIPPED . . . .213
▫ Programming The Memory Feature .........214
▫ Linking And Unlinking The Remote Keyless
Entry Transmitter To Memory .............215
▫ Memory Position Recall .................216
▫ Easy Entry/Exit Seat (Available With
Memory Seat Only) ....................216
 TO OPEN AND CLOSE THE HOOD .........217
 LIGHTS ............................ .219
▫ Headlight Switch .....................219
▫ Automatic Headlights — If Equipped .......220▫
Headlights On With Wipers (Available with
Automatic Headlights Only) .............232
▫ SmartBeam™ — If Equipped .............221
▫ Headlight Time Delay ..................222
▫ Daytime Running Lights (DRL) — If
Equipped .......................... .222
▫ Lights-On Reminder ...................223
▫ Fog Lights — If Equipped ...............223
▫ Multifunction Lever ....................224
▫ Turn Signals ........................ .225
▫ Lane Change Assist ...................225
▫ High/Low Beam Switch ................225
▫ Flash-To-Pass ....................... .225
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

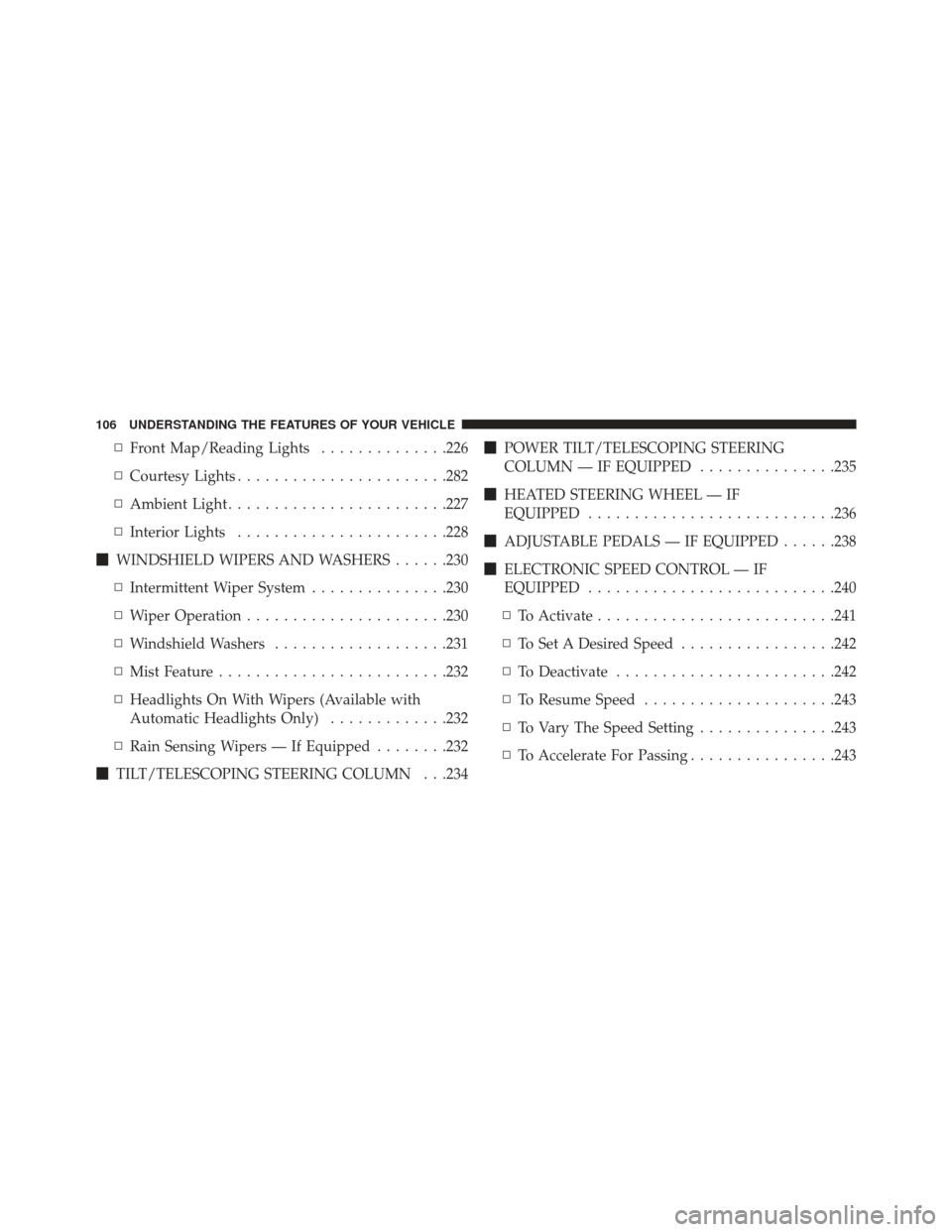

▫Front Map/Reading Lights ..............226
▫ Courtesy Lights ...................... .282
▫ Ambient Light ....................... .227
▫ Interior Lights ...................... .228
 WINDSHIELD WIPERS AND WASHERS ......230
▫ Intermittent Wiper System ...............230
▫ Wiper Operation ..................... .230
▫ Windshield Washers ...................231
▫ Mist Feature ........................ .232
▫ Headlights On With Wipers (Available with
Automatic Headlights Only) .............232
▫ Rain Sensing Wipers — If Equipped ........232
 TILT/TELESCOPING STEERING COLUMN . . .234
POWER TILT/TELESCOPING STEERING
COLUMN — IF EQUIPPED ...............235
 HEATED STEERING WHEEL — IF
EQUIPPED .......................... .236
 ADJUSTABLE PEDALS — IF EQUIPPED ......238
 ELECTRONIC SPEED CONTROL — IF
EQUIPPED .......................... .240
▫ To Activate ......................... .241
▫ To Set A Desired Speed .................242
▫ To Deactivate ....................... .242
▫ To Resume Speed .....................243
▫ To Vary The Speed Setting ...............243
▫ To Accelerate For Passing ................243
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED .......................... .244
▫ Adaptive Cruise Control (ACC) Operation . . . .246
▫ Activating Adaptive Cruise Control (ACC) . . . .247
▫ To Activate ......................... .248
▫ To Set A Desired ACC Speed .............250
▫ To Cancel .......................... .251
▫ ToTurnOff......................... .252
▫ To Resume Speed .....................252
▫ To Vary The Speed Setting ...............253
▫ Setting The Following Distance In ACC ......254
▫ Adaptive Cruise Control (ACC) Menu .......258
▫ Display Warnings And Maintenance ........259▫
Precautions While Driving With ACC .......261
▫ General Information ...................266
▫ Normal (Fixed Speed) Cruise Control Mode . . .266
▫ Forward Collision Warning — If Equipped. . . .268
 PARKSENSE® REAR PARK ASSIST — IF
EQUIPPED .......................... .271
▫ ParkSense® Sensors ....................271
▫ ParkSense® Warning Display .............271
▫ ParkSense® Display ....................272
▫ Enabling And Disabling ParkSense® ........275
▫ Service The ParkSense® Rear Park Assist
System ............................ .276
▫ Cleaning The ParkSense® System ..........276
▫ ParkSense® System Usage Precautions .......277
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

PARKVIEW® REAR BACK UP CAMERA — IF
EQUIPPED .......................... .279
▫ Turning ParkView® On Or Off — With
Touch—Screen Radio ...................281
 OVERHEAD CONSOLE ..................281
▫ Front Map/Reading Lights ..............282
▫ Courtesy Lights ...................... .282
▫ Sunglasses Bin Door ...................283
 GARAGE DOOR OPENER — IF EQUIPPED . . . .283
▫ Before You Begin Programming HomeLink® . .285
▫ Programming A Rolling Code .............285
▫ Programming A Non-Rolling Code .........288
▫ Canadian/Gate Operator Programming ......289
▫ Using HomeLink® .....................291 ▫
Security ........................... .291
▫ Troubleshooting Tips ...................291
▫ General Information ....................292
 POWER SUNROOF — IF EQUIPPED ........293
▫ Opening Sunroof — Express ..............294
▫ Opening Sunroof — Manual Mode .........294
▫ Closing Sunroof — Express ...............294
▫ Closing Sunroof — Manual Mode ..........294
▫ Pinch Protect Feature ...................295
▫ Venting Sunroof — Express ..............295
▫ Sunshade Operation ....................295
▫ Wind Buffeting ...................... .295
▫ Sunroof Maintenance ...................296
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
