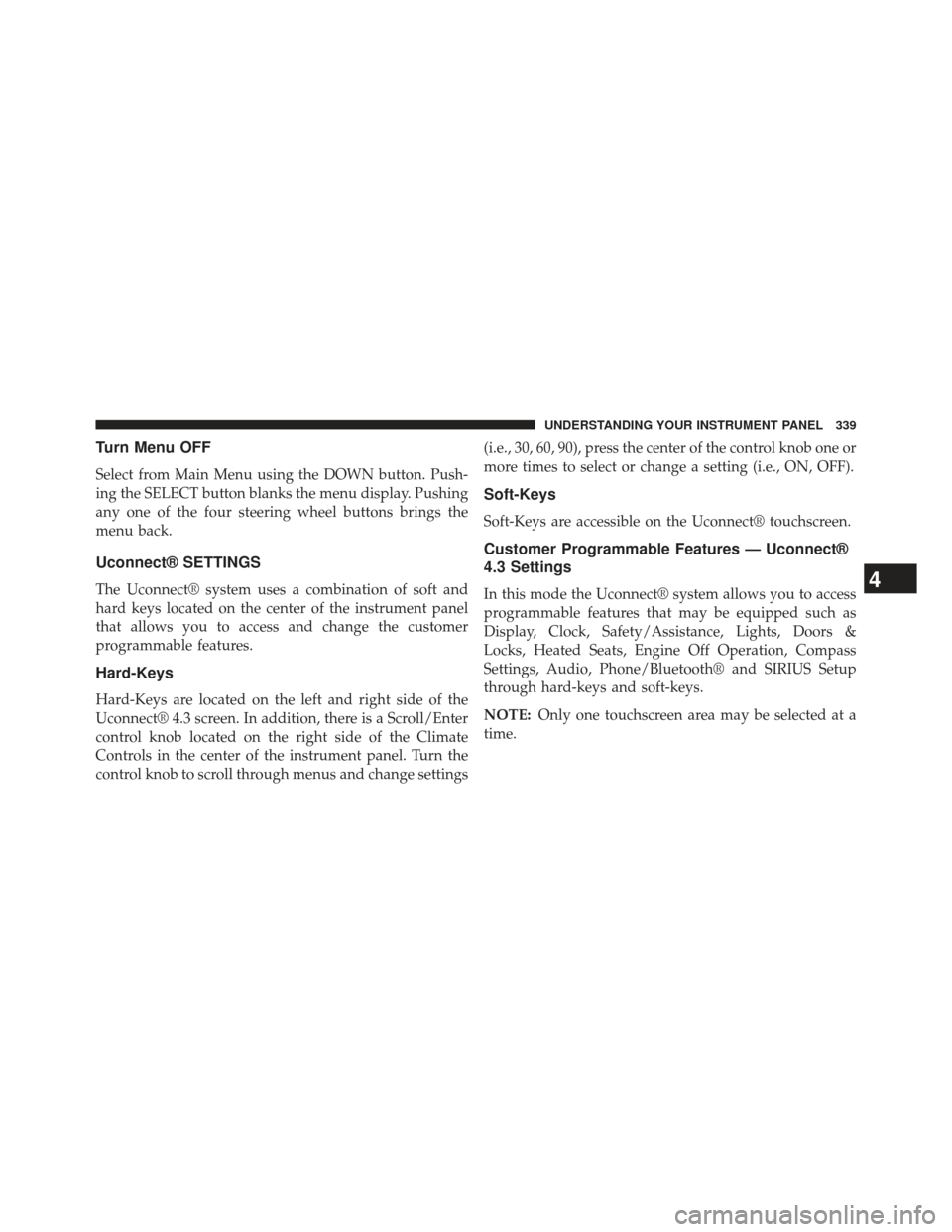

Turn Menu OFF
Select from Main Menu using the DOWN button. Push-
ing the SELECT button blanks the menu display. Pushing
any one of the four steering wheel buttons brings the
menu back.
Uconnect® SETTINGS
The Uconnect® system uses a combination of soft and
hard keys located on the center of the instrument panel
that allows you to access and change the customer
programmable features.
Hard-Keys
Hard-Keys are located on the left and right side of the
Uconnect® 4.3 screen. In addition, there is a Scroll/Enter
control knob located on the right side of the Climate
Controls in the center of the instrument panel. Turn the
control knob to scroll through menus and change settings(i.e., 30, 60, 90), press the center of the control knob one or
more times to select or change a setting (i.e., ON, OFF).
Soft-Keys
Soft-Keys are accessible on the Uconnect® touchscreen.
Customer Programmable Features — Uconnect®
4.3 Settings
In this mode the Uconnect® system allows you to access
programmable features that may be equipped such as
Display, Clock, Safety/Assistance, Lights, Doors &
Locks, Heated Seats, Engine Off Operation, Compass
Settings, Audio, Phone/Bluetooth® and SIRIUS Setup
through hard-keys and soft-keys.
NOTE:
Only one touchscreen area may be selected at a
time.4
UNDERSTANDING YOUR INSTRUMENT PANEL 339

Press theSettings hard-key to access the Settings screen,
use the Page Up/Down soft-keys to scroll through the
following settings. Touch the desired setting soft-key to
change the setting using the description shown on the
following pages for each setting.
Display
• Brightness
Touch the “Brightness” soft-key to change this display.
When in this display, you may select display brightness
with the headlights on and the headlights off. Adjust the
brightness with the + and – setting soft-keys or by
1 — Uconnect® 4.3 Settings Hard-Key
Uconnect® 4.3 Soft-Keys
340 UNDERSTANDING YOUR INSTRUMENT PANEL

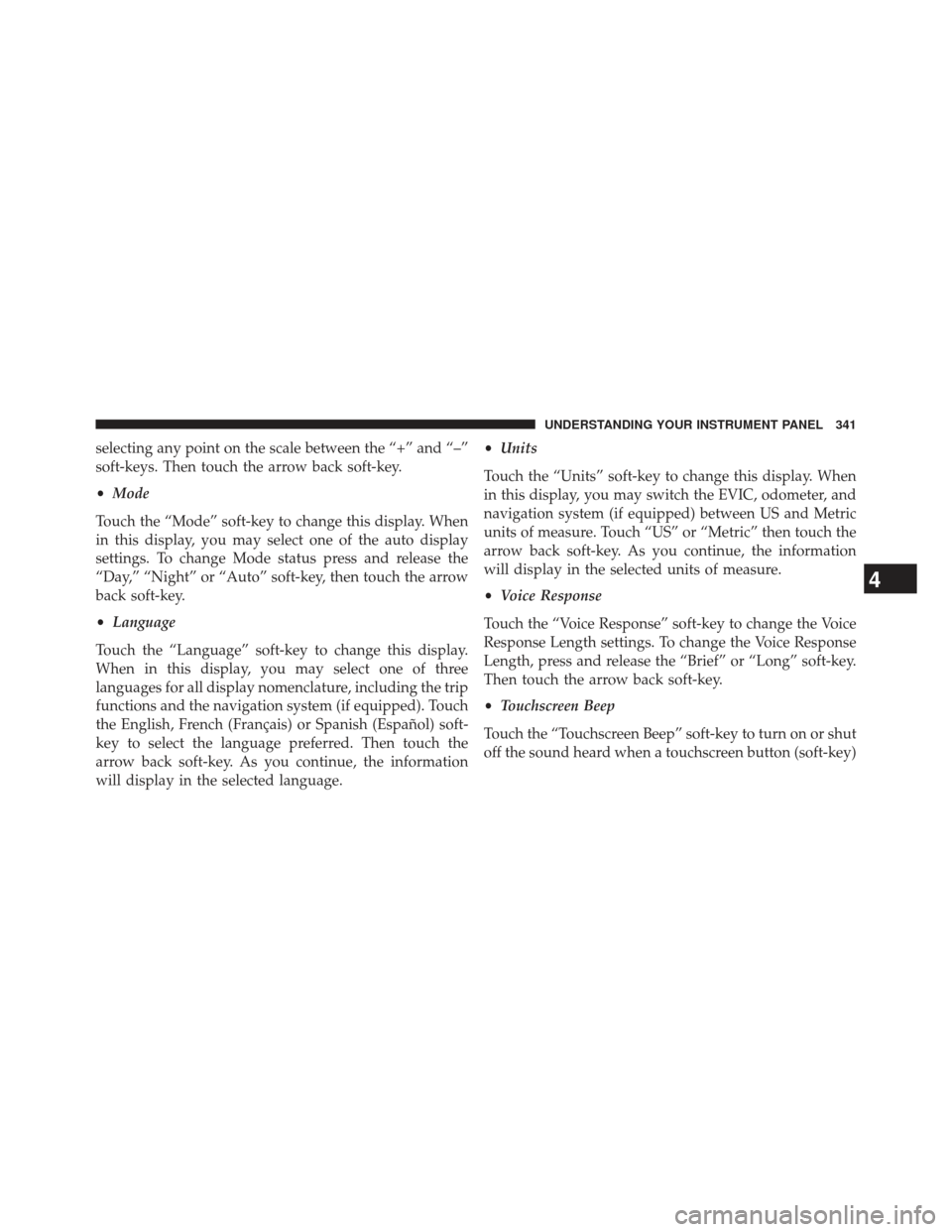

selecting any point on the scale between the “+” and “–”
soft-keys. Then touch the arrow back soft-key.
•Mode
Touch the “Mode” soft-key to change this display. When
in this display, you may select one of the auto display
settings. To change Mode status press and release the
“Day,” “Night” or “Auto” soft-key, then touch the arrow
back soft-key.
• Language
Touch the “Language” soft-key to change this display.
When in this display, you may select one of three
languages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Touch
the English, French (Français) or Spanish (Español) soft-
key to select the language preferred. Then touch the
arrow back soft-key. As you continue, the information
will display in the selected language. •
Units
Touch the “Units” soft-key to change this display. When
in this display, you may switch the EVIC, odometer, and
navigation system (if equipped) between US and Metric
units of measure. Touch “US” or “Metric” then touch the
arrow back soft-key. As you continue, the information
will display in the selected units of measure.
• Voice Response
Touch the “Voice Response” soft-key to change the Voice
Response Length settings. To change the Voice Response
Length, press and release the “Brief” or “Long” soft-key.
Then touch the arrow back soft-key.
• Touchscreen Beep
Touch the “Touchscreen Beep” soft-key to turn on or shut
off the sound heard when a touchscreen button (soft-key)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 341

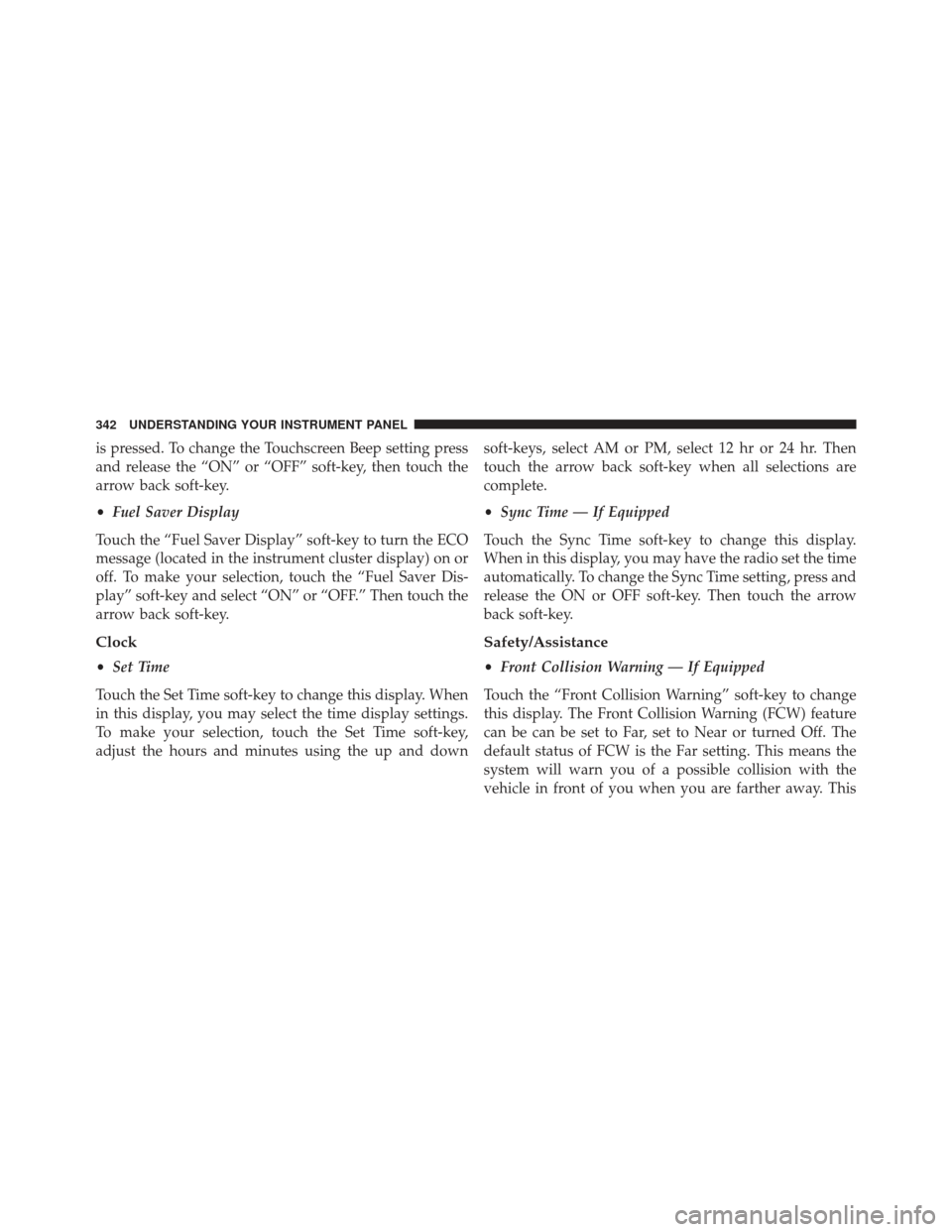

is pressed. To change the Touchscreen Beep setting press
and release the “ON” or “OFF” soft-key, then touch the
arrow back soft-key.
•Fuel Saver Display
Touch the “Fuel Saver Display” soft-key to turn the ECO
message (located in the instrument cluster display) on or
off. To make your selection, touch the “Fuel Saver Dis-
play” soft-key and select “ON” or “OFF.” Then touch the
arrow back soft-key.
Clock
• Set Time
Touch the Set Time soft-key to change this display. When
in this display, you may select the time display settings.
To make your selection, touch the Set Time soft-key,
adjust the hours and minutes using the up and down soft-keys, select AM or PM, select 12 hr or 24 hr. Then
touch the arrow back soft-key when all selections are
complete.
•
Sync Time — If Equipped
Touch the Sync Time soft-key to change this display.
When in this display, you may have the radio set the time
automatically. To change the Sync Time setting, press and
release the ON or OFF soft-key. Then touch the arrow
back soft-key.
Safety/Assistance
• Front Collision Warning — If Equipped
Touch the “Front Collision Warning” soft-key to change
this display. The Front Collision Warning (FCW) feature
can be can be set to Far, set to Near or turned Off. The
default status of FCW is the Far setting. This means the
system will warn you of a possible collision with the
vehicle in front of you when you are farther away. This
342 UNDERSTANDING YOUR INSTRUMENT PANEL

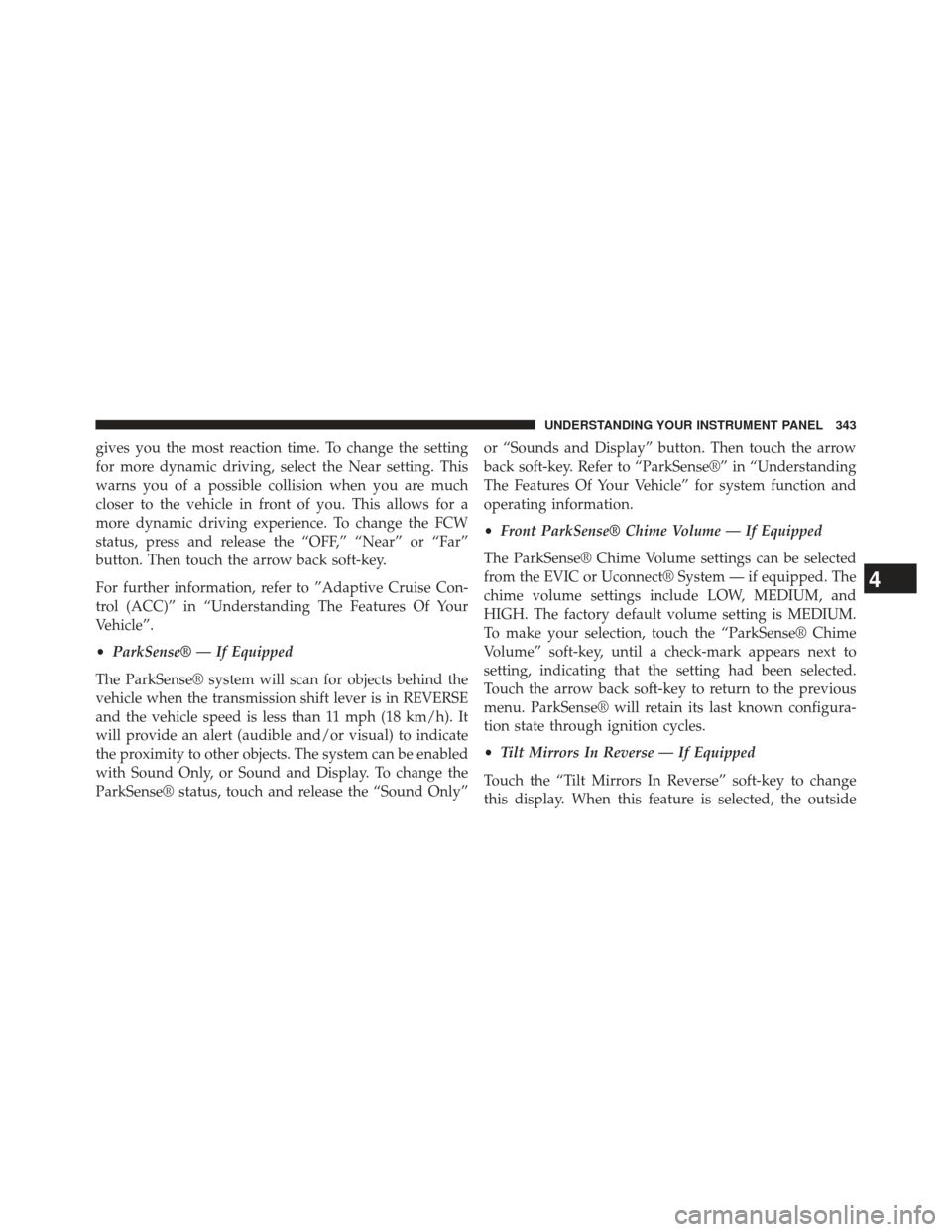

gives you the most reaction time. To change the setting
for more dynamic driving, select the Near setting. This
warns you of a possible collision when you are much
closer to the vehicle in front of you. This allows for a
more dynamic driving experience. To change the FCW
status, press and release the “OFF,” “Near” or “Far”
button. Then touch the arrow back soft-key.
For further information, refer to ”Adaptive Cruise Con-
trol (ACC)” in “Understanding The Features Of Your
Vehicle”.
•ParkSense® — If Equipped
The ParkSense® system will scan for objects behind the
vehicle when the transmission shift lever is in REVERSE
and the vehicle speed is less than 11 mph (18 km/h). It
will provide an alert (audible and/or visual) to indicate
the proximity to other objects. The system can be enabled
with Sound Only, or Sound and Display. To change the
ParkSense® status, touch and release the “Sound Only” or “Sounds and Display” button. Then touch the arrow
back soft-key. Refer to “ParkSense®” in “Understanding
The Features Of Your Vehicle” for system function and
operating information.
•
Front ParkSense® Chime Volume — If Equipped
The ParkSense® Chime Volume settings can be selected
from the EVIC or Uconnect® System — if equipped. The
chime volume settings include LOW, MEDIUM, and
HIGH. The factory default volume setting is MEDIUM.
To make your selection, touch the “ParkSense® Chime
Volume” soft-key, until a check-mark appears next to
setting, indicating that the setting had been selected.
Touch the arrow back soft-key to return to the previous
menu. ParkSense® will retain its last known configura-
tion state through ignition cycles.
• Tilt Mirrors In Reverse — If Equipped
Touch the “Tilt Mirrors In Reverse” soft-key to change
this display. When this feature is selected, the outside
4
UNDERSTANDING YOUR INSTRUMENT PANEL 343

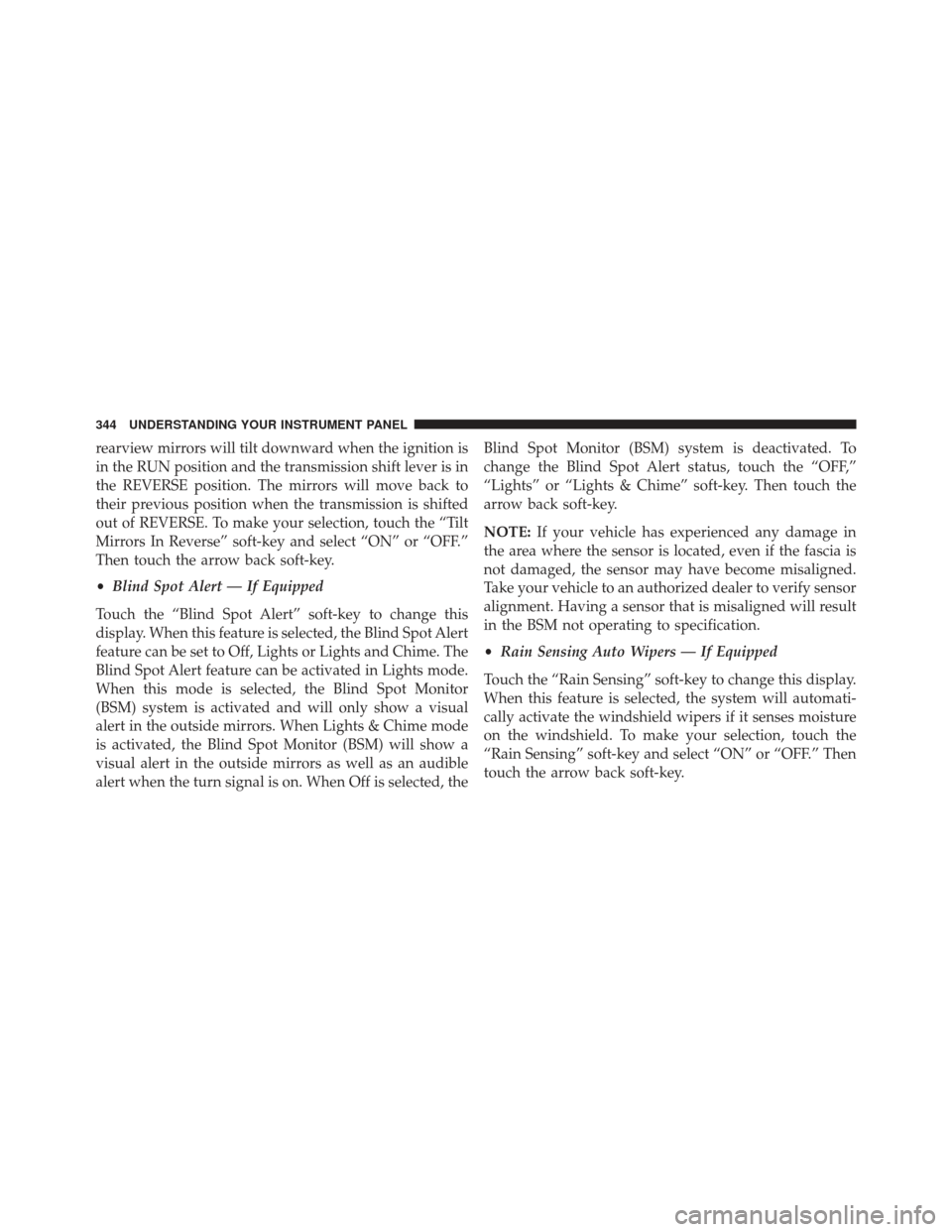

rearview mirrors will tilt downward when the ignition is
in the RUN position and the transmission shift lever is in
the REVERSE position. The mirrors will move back to
their previous position when the transmission is shifted
out of REVERSE. To make your selection, touch the “Tilt
Mirrors In Reverse” soft-key and select “ON” or “OFF.”
Then touch the arrow back soft-key.
•Blind Spot Alert — If Equipped
Touch the “Blind Spot Alert” soft-key to change this
display. When this feature is selected, the Blind Spot Alert
feature can be set to Off, Lights or Lights and Chime. The
Blind Spot Alert feature can be activated in Lights mode.
When this mode is selected, the Blind Spot Monitor
(BSM) system is activated and will only show a visual
alert in the outside mirrors. When Lights & Chime mode
is activated, the Blind Spot Monitor (BSM) will show a
visual alert in the outside mirrors as well as an audible
alert when the turn signal is on. When Off is selected, the Blind Spot Monitor (BSM) system is deactivated. To
change the Blind Spot Alert status, touch the “OFF,”
“Lights” or “Lights & Chime” soft-key. Then touch the
arrow back soft-key.
NOTE:
If your vehicle has experienced any damage in
the area where the sensor is located, even if the fascia is
not damaged, the sensor may have become misaligned.
Take your vehicle to an authorized dealer to verify sensor
alignment. Having a sensor that is misaligned will result
in the BSM not operating to specification.
• Rain Sensing Auto Wipers — If Equipped
Touch the “Rain Sensing” soft-key to change this display.
When this feature is selected, the system will automati-
cally activate the windshield wipers if it senses moisture
on the windshield. To make your selection, touch the
“Rain Sensing” soft-key and select “ON” or “OFF.” Then
touch the arrow back soft-key.
344 UNDERSTANDING YOUR INSTRUMENT PANEL

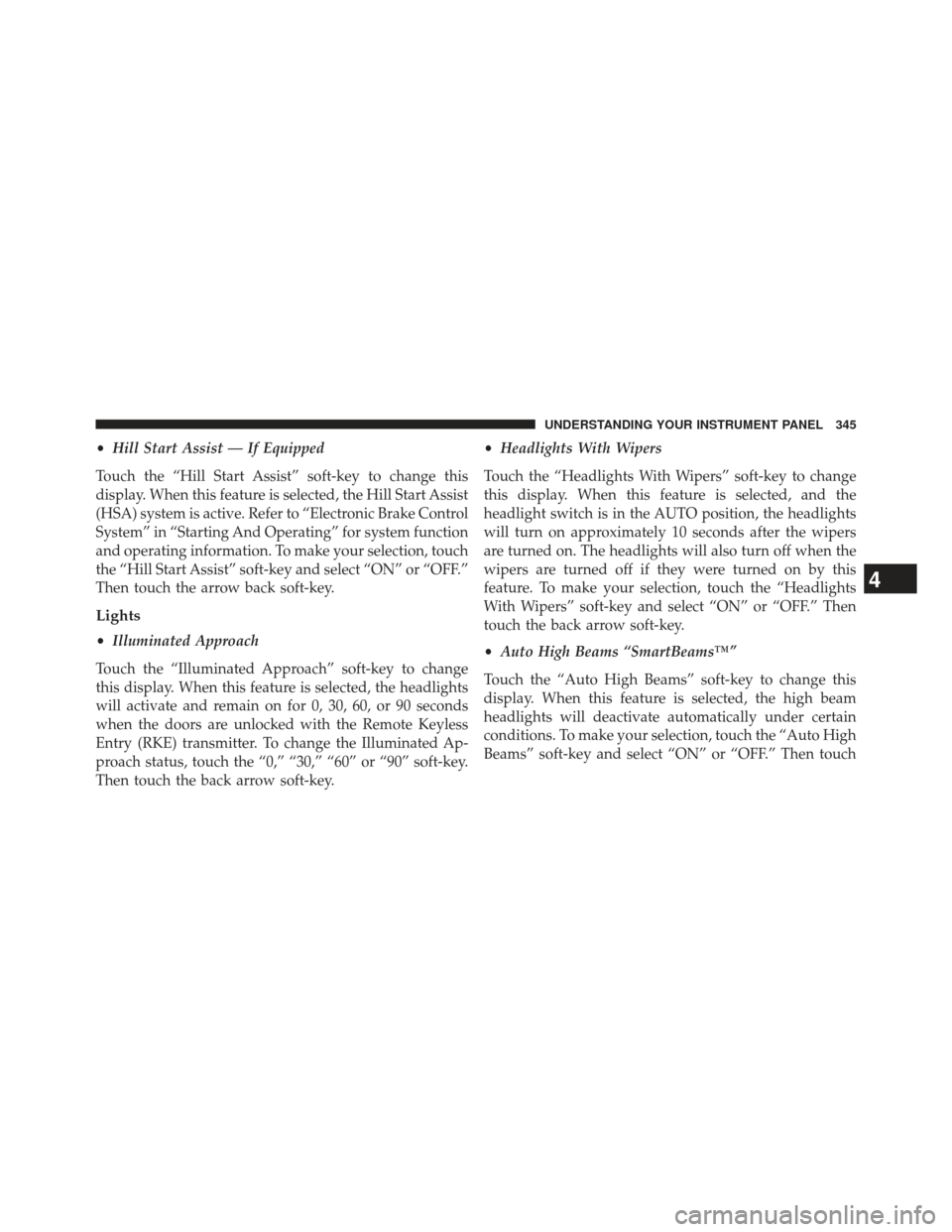

•Hill Start Assist — If Equipped
Touch the “Hill Start Assist” soft-key to change this
display. When this feature is selected, the Hill Start Assist
(HSA) system is active. Refer to “Electronic Brake Control
System” in “Starting And Operating” for system function
and operating information. To make your selection, touch
the “Hill Start Assist” soft-key and select “ON” or “OFF.”
Then touch the arrow back soft-key.
Lights
• Illuminated Approach
Touch the “Illuminated Approach” soft-key to change
this display. When this feature is selected, the headlights
will activate and remain on for 0, 30, 60, or 90 seconds
when the doors are unlocked with the Remote Keyless
Entry (RKE) transmitter. To change the Illuminated Ap-
proach status, touch the “0,” “30,” “60” or “90” soft-key.
Then touch the back arrow soft-key. •
Headlights With Wipers
Touch the “Headlights With Wipers” soft-key to change
this display. When this feature is selected, and the
headlight switch is in the AUTO position, the headlights
will turn on approximately 10 seconds after the wipers
are turned on. The headlights will also turn off when the
wipers are turned off if they were turned on by this
feature. To make your selection, touch the “Headlights
With Wipers” soft-key and select “ON” or “OFF.” Then
touch the back arrow soft-key.
• Auto High Beams “SmartBeams™”
Touch the “Auto High Beams” soft-key to change this
display. When this feature is selected, the high beam
headlights will deactivate automatically under certain
conditions. To make your selection, touch the “Auto High
Beams” soft-key and select “ON” or “OFF.” Then touch
4
UNDERSTANDING YOUR INSTRUMENT PANEL 345

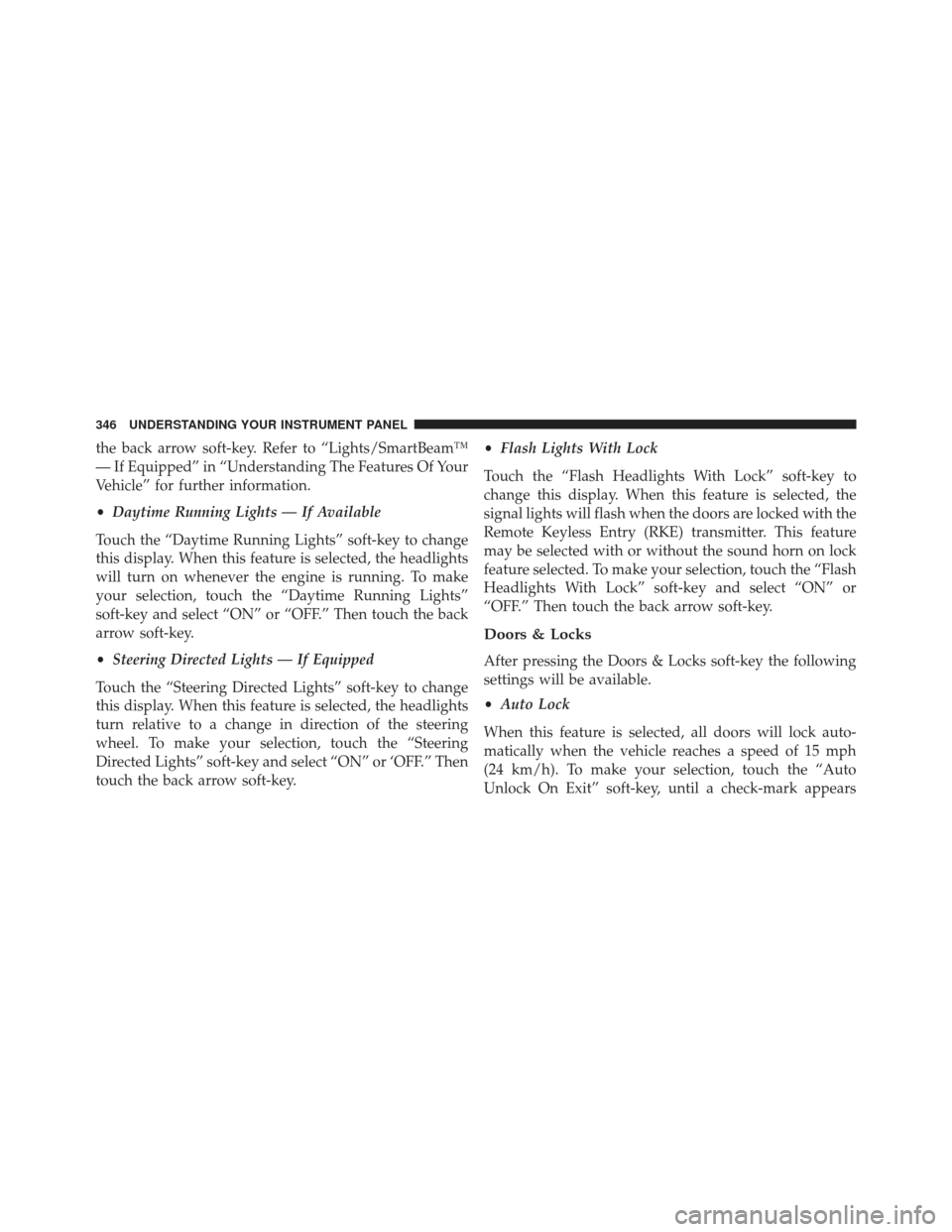

the back arrow soft-key. Refer to “Lights/SmartBeam™
— If Equipped” in “Understanding The Features Of Your
Vehicle” for further information.
•Daytime Running Lights — If Available
Touch the “Daytime Running Lights” soft-key to change
this display. When this feature is selected, the headlights
will turn on whenever the engine is running. To make
your selection, touch the “Daytime Running Lights”
soft-key and select “ON” or “OFF.” Then touch the back
arrow soft-key.
• Steering Directed Lights — If Equipped
Touch the “Steering Directed Lights” soft-key to change
this display. When this feature is selected, the headlights
turn relative to a change in direction of the steering
wheel. To make your selection, touch the “Steering
Directed Lights” soft-key and select “ON” or ‘OFF.” Then
touch the back arrow soft-key. •
Flash Lights With Lock
Touch the “Flash Headlights With Lock” soft-key to
change this display. When this feature is selected, the
signal lights will flash when the doors are locked with the
Remote Keyless Entry (RKE) transmitter. This feature
may be selected with or without the sound horn on lock
feature selected. To make your selection, touch the “Flash
Headlights With Lock” soft-key and select “ON” or
“OFF.” Then touch the back arrow soft-key.
Doors & Locks
After pressing the Doors & Locks soft-key the following
settings will be available.
• Auto Lock
When this feature is selected, all doors will lock auto-
matically when the vehicle reaches a speed of 15 mph
(24 km/h). To make your selection, touch the “Auto
Unlock On Exit” soft-key, until a check-mark appears
346 UNDERSTANDING YOUR INSTRUMENT PANEL

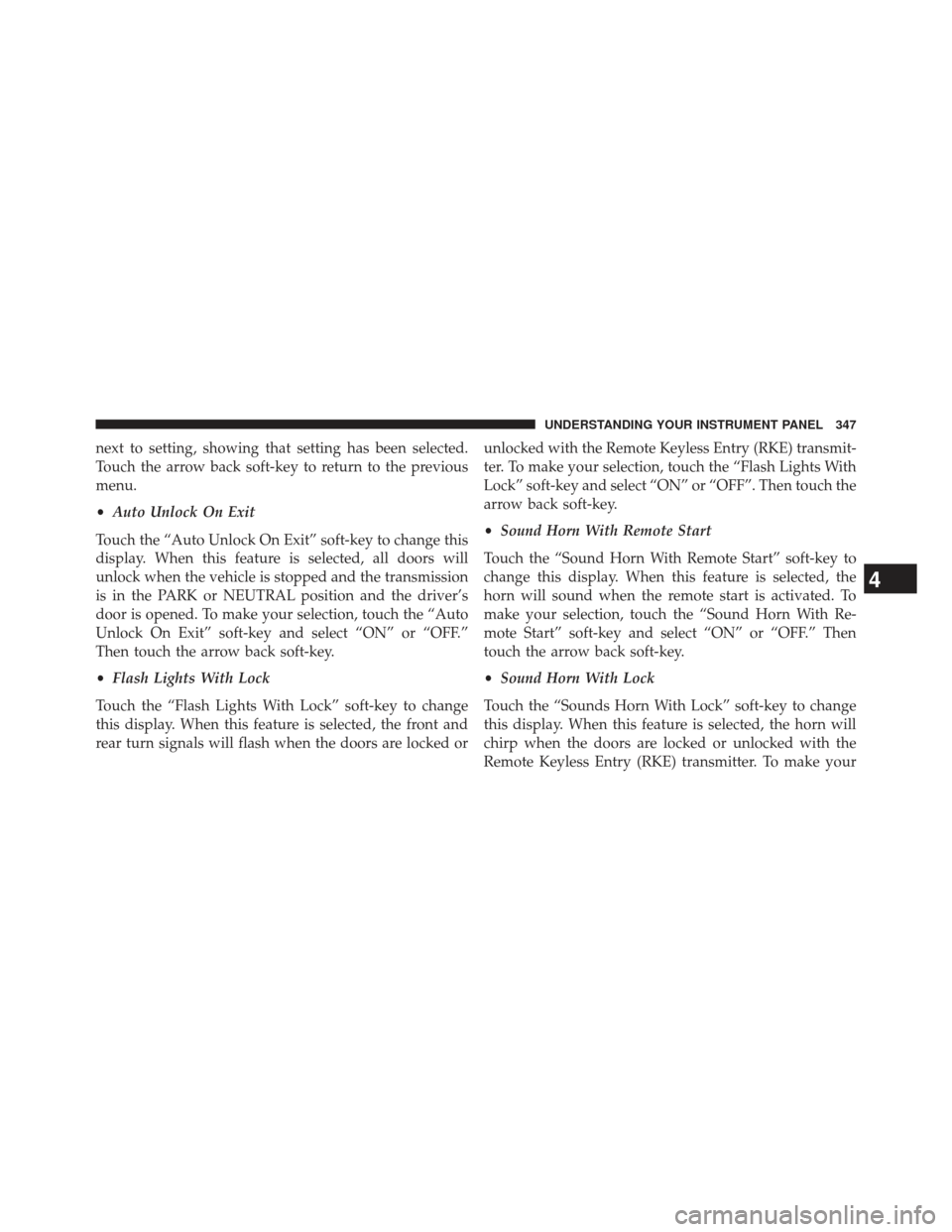

next to setting, showing that setting has been selected.
Touch the arrow back soft-key to return to the previous
menu.
•Auto Unlock On Exit
Touch the “Auto Unlock On Exit” soft-key to change this
display. When this feature is selected, all doors will
unlock when the vehicle is stopped and the transmission
is in the PARK or NEUTRAL position and the driver’s
door is opened. To make your selection, touch the “Auto
Unlock On Exit” soft-key and select “ON” or “OFF.”
Then touch the arrow back soft-key.
• Flash Lights With Lock
Touch the “Flash Lights With Lock” soft-key to change
this display. When this feature is selected, the front and
rear turn signals will flash when the doors are locked or unlocked with the Remote Keyless Entry (RKE) transmit-
ter. To make your selection, touch the “Flash Lights With
Lock” soft-key and select “ON” or “OFF”. Then touch the
arrow back soft-key.
•
Sound Horn With Remote Start
Touch the “Sound Horn With Remote Start” soft-key to
change this display. When this feature is selected, the
horn will sound when the remote start is activated. To
make your selection, touch the “Sound Horn With Re-
mote Start” soft-key and select “ON” or “OFF.” Then
touch the arrow back soft-key.
• Sound Horn With Lock
Touch the “Sounds Horn With Lock” soft-key to change
this display. When this feature is selected, the horn will
chirp when the doors are locked or unlocked with the
Remote Keyless Entry (RKE) transmitter. To make your
4
UNDERSTANDING YOUR INSTRUMENT PANEL 347

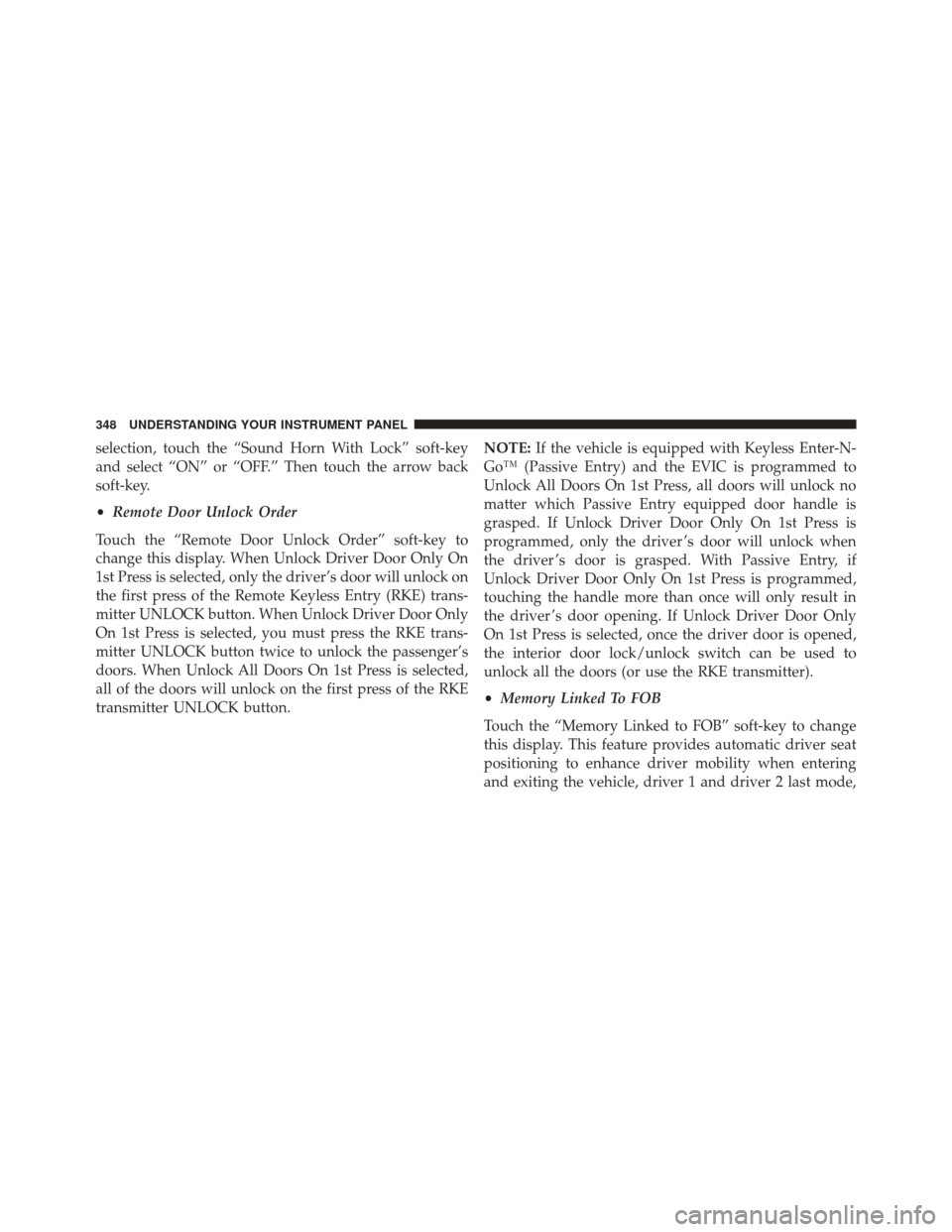

selection, touch the “Sound Horn With Lock” soft-key
and select “ON” or “OFF.” Then touch the arrow back
soft-key.
•Remote Door Unlock Order
Touch the “Remote Door Unlock Order” soft-key to
change this display. When Unlock Driver Door Only On
1st Press is selected, only the driver’s door will unlock on
the first press of the Remote Keyless Entry (RKE) trans-
mitter UNLOCK button. When Unlock Driver Door Only
On 1st Press is selected, you must press the RKE trans-
mitter UNLOCK button twice to unlock the passenger’s
doors. When Unlock All Doors On 1st Press is selected,
all of the doors will unlock on the first press of the RKE
transmitter UNLOCK button. NOTE:
If the vehicle is equipped with Keyless Enter-N-
Go™ (Passive Entry) and the EVIC is programmed to
Unlock All Doors On 1st Press, all doors will unlock no
matter which Passive Entry equipped door handle is
grasped. If Unlock Driver Door Only On 1st Press is
programmed, only the driver ’s door will unlock when
the driver ’s door is grasped. With Passive Entry, if
Unlock Driver Door Only On 1st Press is programmed,
touching the handle more than once will only result in
the driver ’s door opening. If Unlock Driver Door Only
On 1st Press is selected, once the driver door is opened,
the interior door lock/unlock switch can be used to
unlock all the doors (or use the RKE transmitter).
• Memory Linked To FOB
Touch the “Memory Linked to FOB” soft-key to change
this display. This feature provides automatic driver seat
positioning to enhance driver mobility when entering
and exiting the vehicle, driver 1 and driver 2 last mode,
348 UNDERSTANDING YOUR INSTRUMENT PANEL
