DODGE CHARGER 2016 7.G Owners Manual

▫Basic Voice Commands ..................385
▫ Radio ............................. .386
▫ Media ............................. .388
▫ Phone ............................. .389
▫ Voice Text Reply ..................... .391
▫ Climate (8.4A/8.4AN) ..................393
▫ Navigation (8.4A/8.4AN) ................394
▫ Uconnect Access (8.4A/8.4AN) ............395
▫ Vehicle Health Alert ...................396 ▫
Register (8.4A/8.4AN) ..................396
▫ Mobile App (8.4A/8.4AN) ...............397
▫ Voice Texting (8.4A/8.4AN) ..............398
▫ Yelp (8.4A/8.4AN) .....................400
▫ SiriusXM Travel Link (8.4A/8.4AN) .........401
▫ Siri Eyes Free — If Equipped .............401
▫ Do Not Disturb ..................... .402
▫ General Information ....................402
▫ Additional Information .................403
4
UNDERSTANDING YOUR INSTRUMENT PANEL 259

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Glove Box
2 — Instrument Cluster 7 — Power Outlet
3 — Radio Controls 8 — Ignition Start/Stop Button
4 — Uconnect System 9 — Trunk Release Button
5 — Climate Control Hard Controls 10 — Headlight Switch
260 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER — BASE
Instrument Cluster For 3.6L and 5.7L
4
UNDERSTANDING YOUR INSTRUMENT PANEL 261

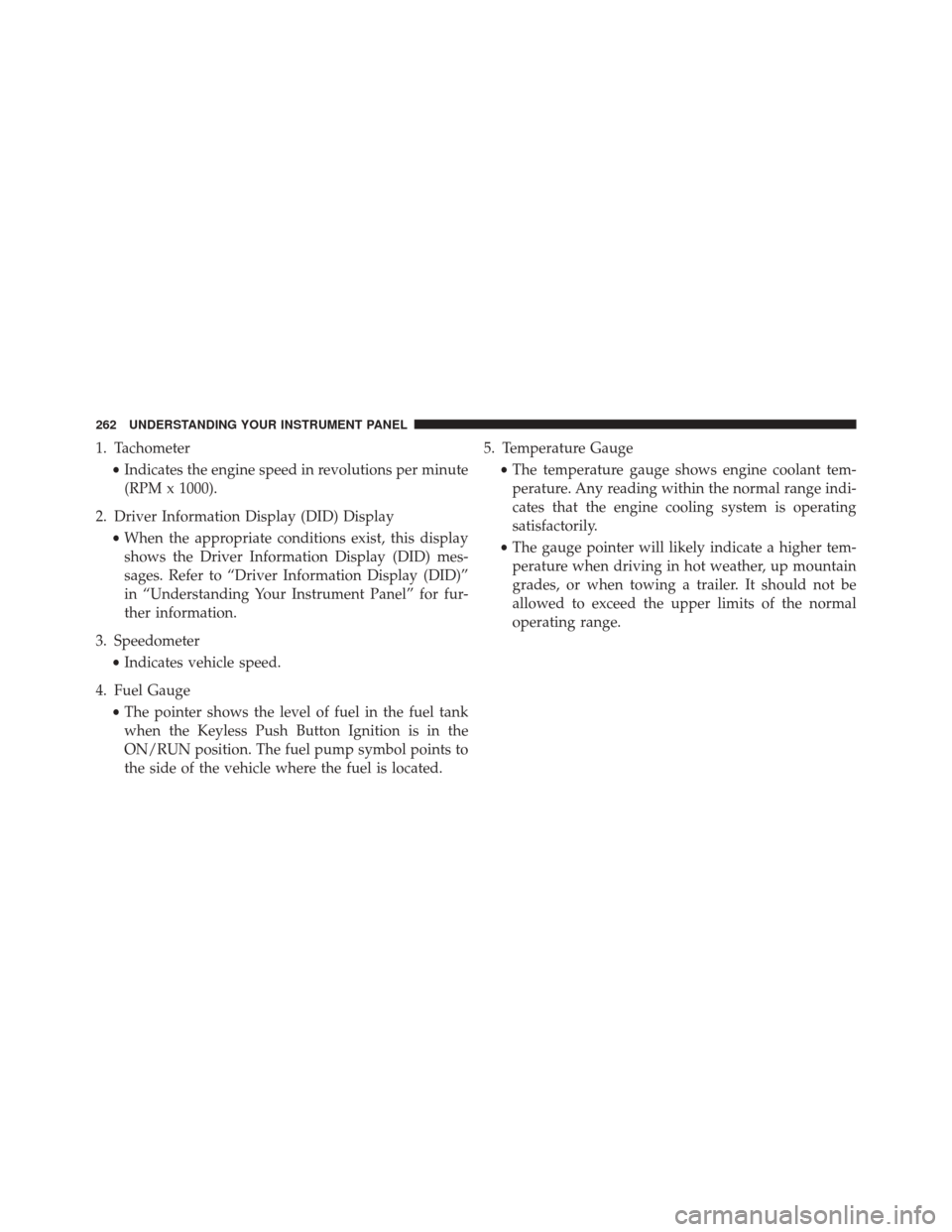

1. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Driver Information Display (DID) Display •When the appropriate conditions exist, this display
shows the Driver Information Display (DID) mes-
sages. Refer to “Driver Information Display (DID)”
in “Understanding Your Instrument Panel” for fur-
ther information.
3. Speedometer •Indicates vehicle speed.
4. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the Keyless Push Button Ignition is in the
ON/RUN position. The fuel pump symbol points to
the side of the vehicle where the fuel is located. 5. Temperature Gauge
•The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.
• The gauge pointer will likely indicate a higher tem-
perature when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.
262 UNDERSTANDING YOUR INSTRUMENT PANEL

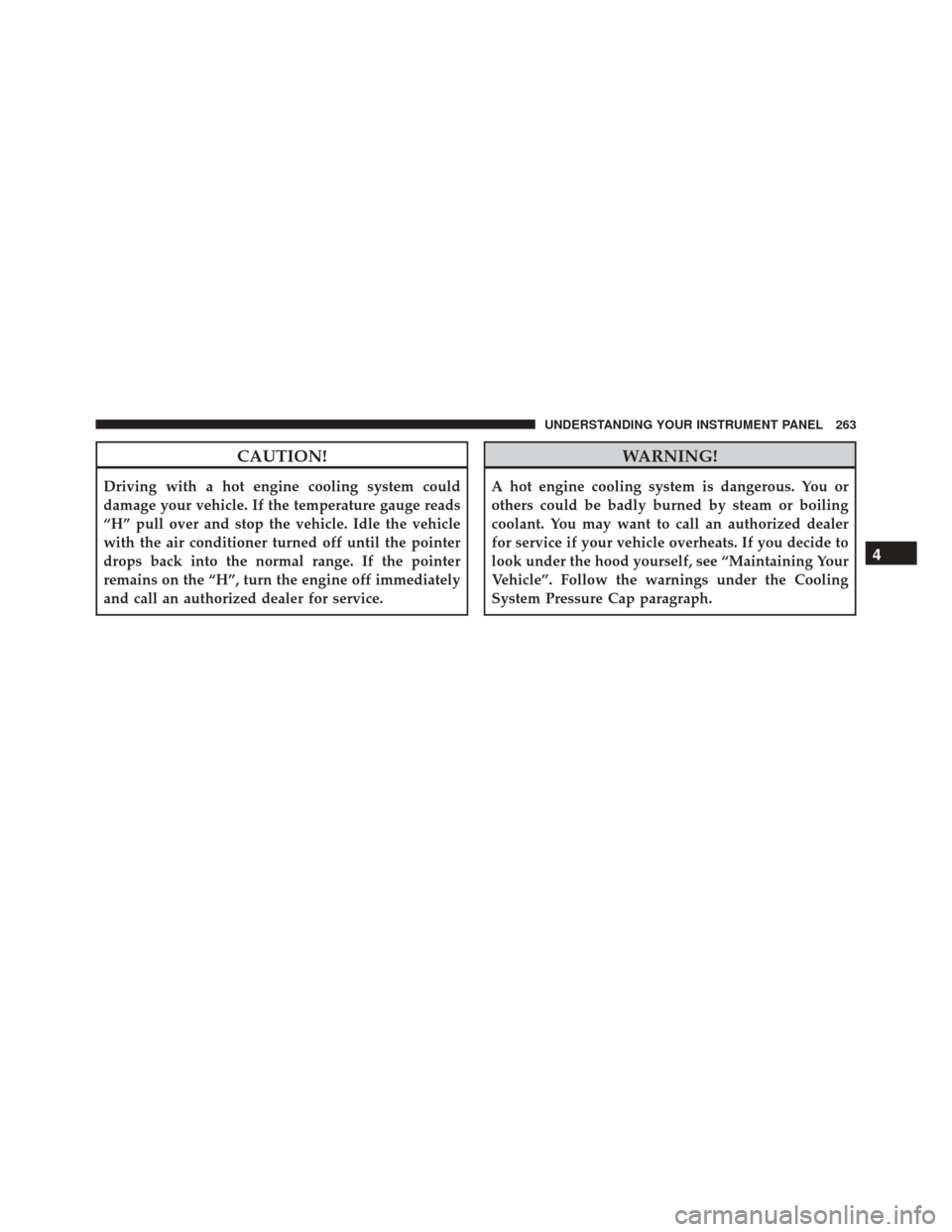

CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge reads
“H” pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
remains on the “H”, turn the engine off immediately
and call an authorized dealer for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
for service if your vehicle overheats. If you decide to
look under the hood yourself, see “Maintaining Your
Vehicle”. Follow the warnings under the Cooling
System Pressure Cap paragraph.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 263

INSTRUMENT CLUSTER — PREMIUM
Instrument Cluster For 6.4L
264 UNDERSTANDING YOUR INSTRUMENT PANEL

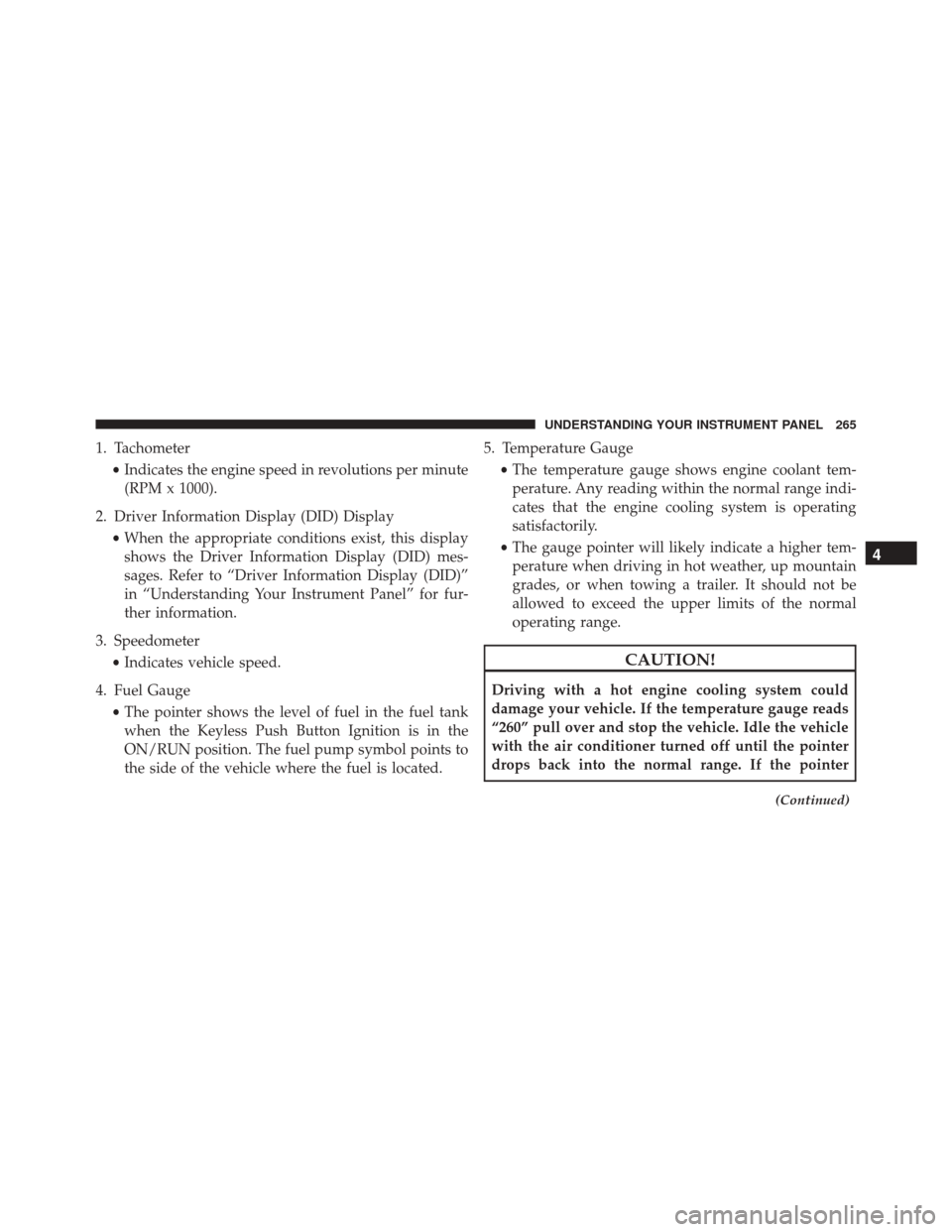

1. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Driver Information Display (DID) Display •When the appropriate conditions exist, this display
shows the Driver Information Display (DID) mes-
sages. Refer to “Driver Information Display (DID)”
in “Understanding Your Instrument Panel” for fur-
ther information.
3. Speedometer •Indicates vehicle speed.
4. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the Keyless Push Button Ignition is in the
ON/RUN position. The fuel pump symbol points to
the side of the vehicle where the fuel is located. 5. Temperature Gauge
•The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.
• The gauge pointer will likely indicate a higher tem-
perature when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.
CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge reads
“260” pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
(Continued)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 265

CAUTION!(Continued)
remains on the “260” and you hear continuous
chimes, turn the engine off immediately and call an
authorized dealer for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
for service if your vehicle overheats. If you decide to
look under the hood yourself, see “Maintaining Your
Vehicle”. Follow the warnings under the Cooling
System Pressure Cap paragraph.
WARNING AND INDICATOR LIGHTS
IMPORTANT: The warning / indicator lights switch on
in the instrument panel together with a dedicated mes-
sage and/or acoustic signal when applicable. These
indications are indicative and precautionary and as such
must not be considered as exhaustive and/or alternative
to the information contained in the Owner Manual,
which you are advised to read carefully in all cases.
Always refer to the information in this chapter in the
event of a failure indication.
All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some
telltales are optional and may not appear.
266 UNDERSTANDING YOUR INSTRUMENT PANEL

Red Telltale Indicator Lights
Seat Belt Reminder Warning Light
Red TelltaleLight What It Means
Seat Belt Reminder Warning Light
When the ignition switch is first turned to ON/RUN, this light will turn on for four to eight
seconds as a bulb check. During the bulb check, if the driver’s seat belt is unbuckled, a
chime will sound. After the bulb check or when driving, if the driver ’s seat belt remains un-
buckled, the Seat Belt Reminder Light will flash or remain on continuously and a chime will
sound. Refer to “Occupant Restraints” in “Things To Know Before Starting Your Vehicle” for
further information.4
UNDERSTANDING YOUR INSTRUMENT PANEL 267

Air Bag Warning Light
Red TelltaleLight What It Means
Air Bag Warning Light
This light will illuminate with a single chime when a fault with the Air Bag Warning Light
has been detected, it will stay on until the fault is cleared. If the light comes on intermit-
tently or remains on while driving have an authorized dealer service the vehicle immedi-
ately. Refer to “Occupant Restraints” in “Things To Know Before Starting Your Vehicle” for
further information.
