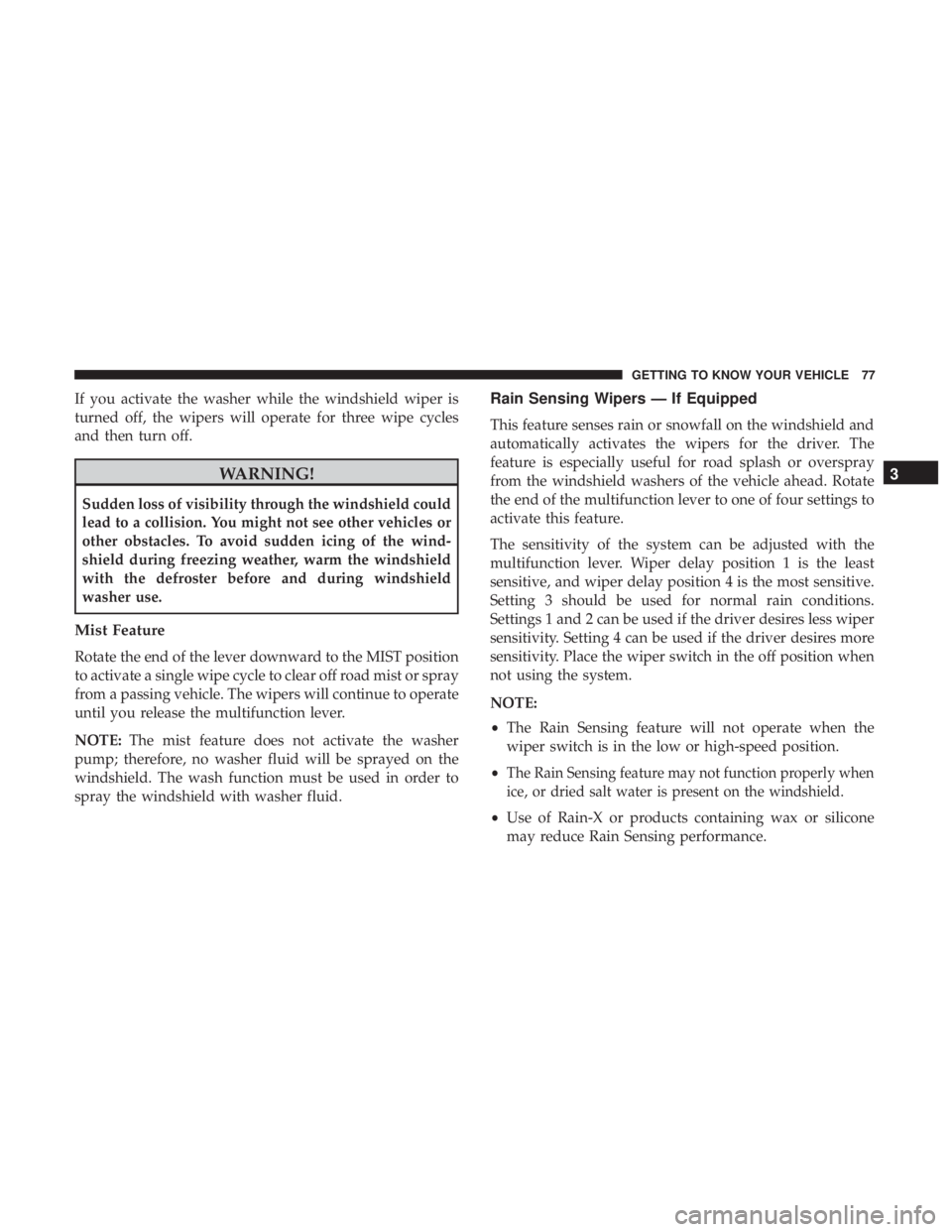

If you activate the washer while the windshield wiper is
turned off, the wipers will operate for three wipe cycles
and then turn off.
WARNING!
Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the wind-
shield during freezing weather, warm the windshield
with the defroster before and during windshield
washer use.
Mist Feature
Rotate the end of the lever downward to the MIST position
to activate a single wipe cycle to clear off road mist or spray
from a passing vehicle. The wipers will continue to operate
until you release the multifunction lever.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Rain Sensing Wipers — If Equipped
This feature senses rain or snowfall on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful for road splash or overspray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of four settings to
activate this feature.
The sensitivity of the system can be adjusted with the
multifunction lever. Wiper delay position 1 is the least
sensitive, and wiper delay position 4 is the most sensitive.
Setting 3 should be used for normal rain conditions.
Settings 1 and 2 can be used if the driver desires less wiper
sensitivity. Setting 4 can be used if the driver desires more
sensitivity. Place the wiper switch in the off position when
not using the system.
NOTE:
• The Rain Sensing feature will not operate when the
wiper switch is in the low or high-speed position.
•
The Rain Sensing feature may not function properly when
ice, or dried salt water is present on the windshield.
• Use of Rain-X or products containing wax or silicone
may reduce Rain Sensing performance.
3
GETTING TO KNOW YOUR VEHICLE 77

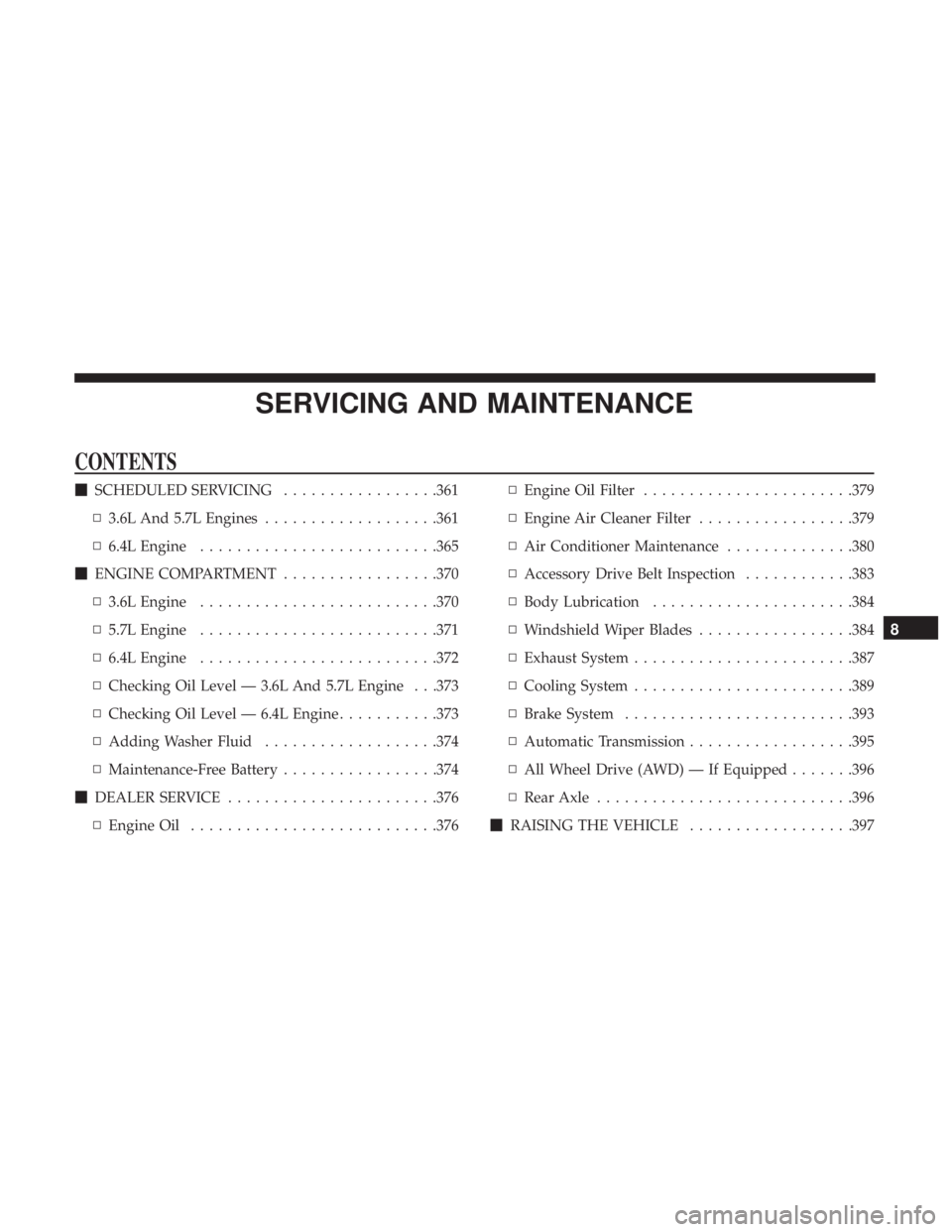

SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................361
▫ 3.6L And 5.7L Engines ...................361
▫ 6.4L Engine ......................... .365
 ENGINE COMPARTMENT .................370
▫ 3.6L Engine ......................... .370
▫ 5.7L Engine ......................... .371
▫ 6.4L Engine ......................... .372
▫ Checking Oil Level — 3.6L And 5.7L Engine . . .373
▫ Checking Oil Level — 6.4L Engine ...........373
▫ Adding Washer Fluid ...................374
▫ Maintenance-Free Battery .................374
 DEALER SERVICE ...................... .376
▫ Engine Oil .......................... .376▫
Engine Oil Filter ...................... .379
▫ Engine Air Cleaner Filter .................379
▫ Air Conditioner Maintenance ..............380
▫ Accessory Drive Belt Inspection ............383
▫ Body Lubrication ..................... .384
▫ Windshield Wiper Blades .................384
▫ Exhaust System ....................... .387
▫ Cooling System ....................... .389
▫ Brake System ........................ .393
▫ Automatic Transmission ..................395
▫ All Wheel Drive (AWD) — If Equipped .......396
▫ Rear Axle ........................... .396
 RAISING THE VEHICLE ..................397
8

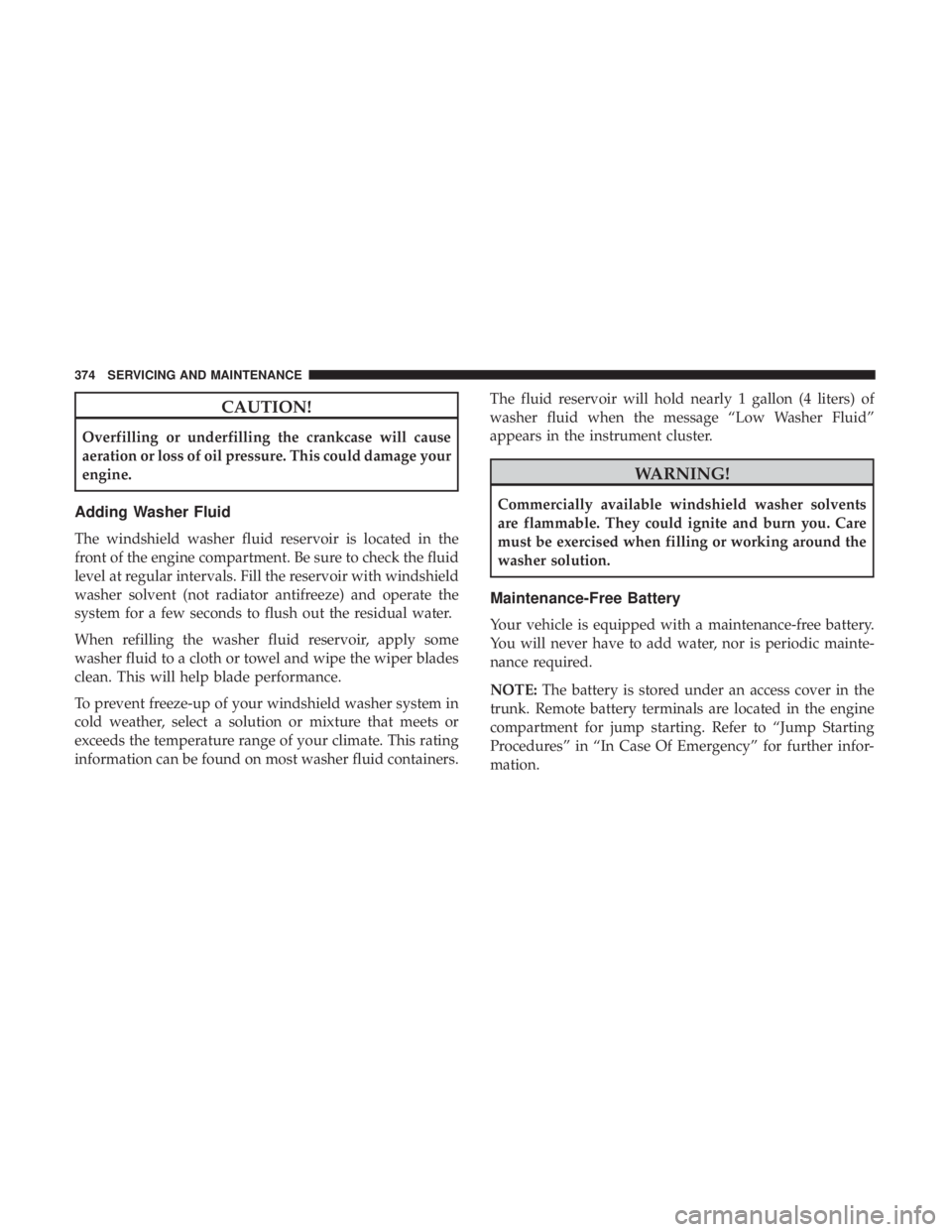

CAUTION!
Overfilling or underfilling the crankcase will cause
aeration or loss of oil pressure. This could damage your
engine.
Adding Washer Fluid
The windshield washer fluid reservoir is located in the
front of the engine compartment. Be sure to check the fluid
level at regular intervals. Fill the reservoir with windshield
washer solvent (not radiator antifreeze) and operate the
system for a few seconds to flush out the residual water.
When refilling the washer fluid reservoir, apply some
washer fluid to a cloth or towel and wipe the wiper blades
clean. This will help blade performance.
To prevent freeze-up of your windshield washer system in
cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This rating
information can be found on most washer fluid containers.The fluid reservoir will hold nearly 1 gallon (4 liters) of
washer fluid when the message “Low Washer Fluid”
appears in the instrument cluster.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around the
washer solution.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic mainte-
nance required.
NOTE:
The battery is stored under an access cover in the
trunk. Remote battery terminals are located in the engine
compartment for jump starting. Refer to “Jump Starting
Procedures” in “In Case Of Emergency” for further infor-
mation.
374 SERVICING AND MAINTENANCE

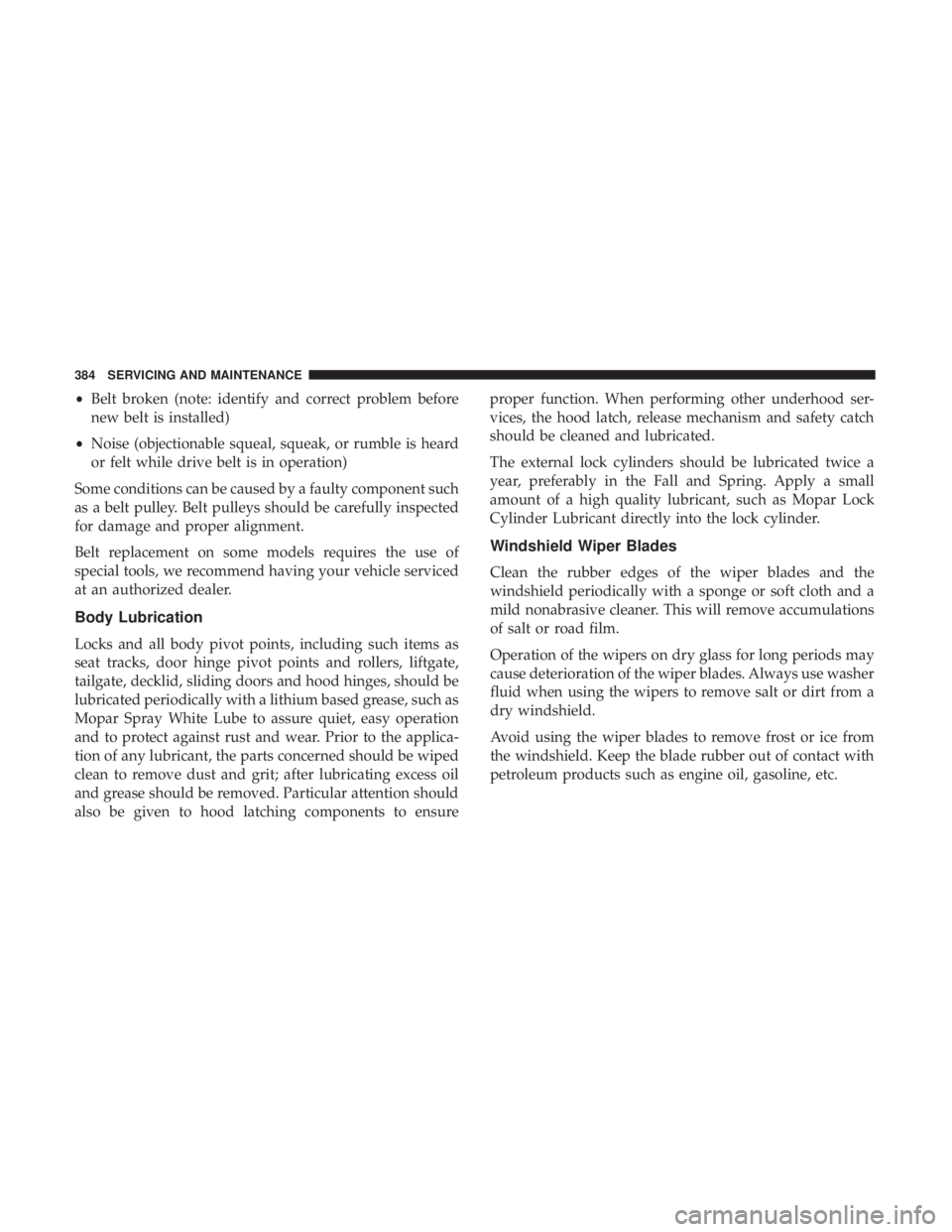

•Belt broken (note: identify and correct problem before
new belt is installed)
• Noise (objectionable squeal, squeak, or rumble is heard
or felt while drive belt is in operation)
Some conditions can be caused by a faulty component such
as a belt pulley. Belt pulleys should be carefully inspected
for damage and proper alignment.
Belt replacement on some models requires the use of
special tools, we recommend having your vehicle serviced
at an authorized dealer.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should be
lubricated periodically with a lithium based grease, such as
Mopar Spray White Lube to assure quiet, easy operation
and to protect against rust and wear. Prior to the applica-
tion of any lubricant, the parts concerned should be wiped
clean to remove dust and grit; after lubricating excess oil
and grease should be removed. Particular attention should
also be given to hood latching components to ensure proper function. When performing other underhood ser-
vices, the hood latch, release mechanism and safety catch
should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as Mopar Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumulations
of salt or road film.
Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
384 SERVICING AND MAINTENANCE

Programming Additional Key Fobs..........26, 34
Unlatch The Trunk ........................21
Key Fob Battery Service (Remote Keyless Entry) .....22
Key Fob Programming (Remote Keyless Entry) ......26
Key-In Reminder ............................29
Keyless Enter-N-Go ..................... .38, 232
Enter The Trunk ..........................21
Passive Entry ............................38
Passive Entry Programming ..................38
Keys ....................................18
Replacement ......................... .26, 34
Lane Change And Turn Signals .................71
Lane Change Assist ..........................71
LaneSense ............................... .281
Lap/Shoulder Belts ........................ .181
Latches ................................. .223
Hood ................................ .100
Lead Free Gasoline ........................ .429
Leaks, Fluid ............................. .223
Life Of Tires ............................. .410
Light Bulbs .......................... .223, 312
Lights .................................. .223
AirBag .........................136, 190, 220
Automatic Headlights ......................69 Brake Assist Warning
..................... .158
Brake Warning ...................... .136, 428
Bulb Replacement ....................... .312
Cruise ............................ .145, 146
Daytime Running .........................67
Dimmer Switch, Headlight ...................67
Electronic Stability Program(ESP) Indicator ......138
Exterior ............................ .66, 223
Fog ...................................70
Hazard Warning Flasher ...................307
Headlights .......................... .66, 70
Headlights On With Wipers ..................69
Headlight Switch .........................66
High Beam ..............................67
High Beam/Low Beam Select .................67
Instrument Cluster ........................66
Intensity Control ..........................74
Interior ................................71
License ............................... .315
Lights

On Reminder .......................70
Malfunction Indicator (Check Engine) ..........140
Park .............................. .69, 145
Passing ................................68
Reading ................................72
Seat Belt Reminder ...................... .139
12
INDEX 547

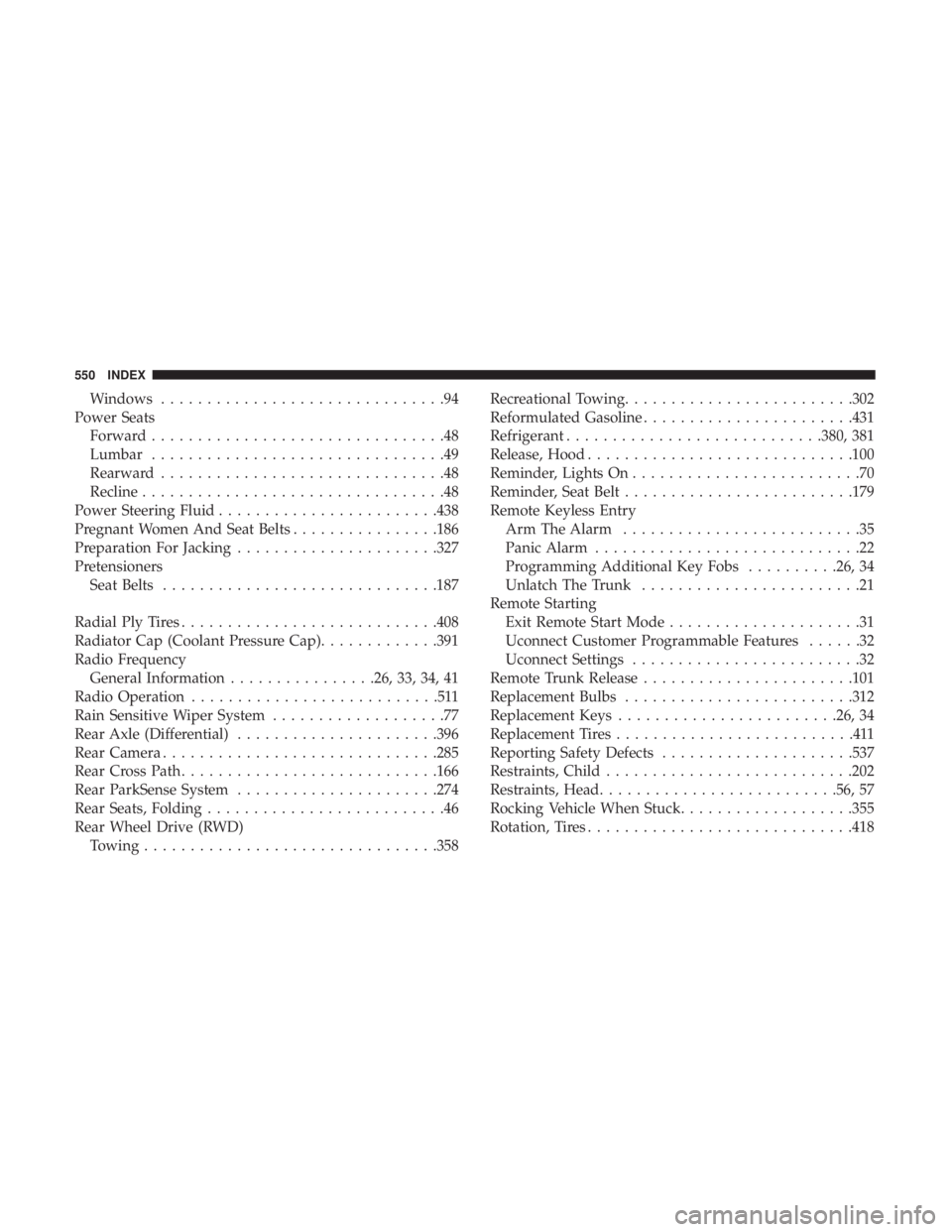

Windows...............................94
Power Seats Forward ................................48
Lumbar ................................49
Rearward ...............................48
Recline .................................48
Power Steering Fluid ....................... .438
Pregnant Women And Seat Belts ................186
Preparation For Jacking ..................... .327
Pretensioners Seat Belts ............................. .187
Radial Ply Tires ........................... .408
Radiator Cap (Coolant Pressure Cap) .............391
Radio Frequency General Information ................26, 33, 34, 41
Radio Operation ...........................511
Rain Sensitive Wiper System ...................77
Rear Axle (Differential) ..................... .396
Rear Camera ............................. .285
Rear Cross Path ........................... .166
Rear ParkSense System ..................... .274
Rear Seats, Folding ..........................46
Rear Wheel Drive (RWD) Towing ............................... .358Recreational Towing
........................ .302
Reformulated Gasoline ...................... .431
Refrigerant ........................... .380, 381
Release, Hood ............................ .100
Reminder, Lights On .........................70
Reminder, Seat Belt ........................ .179
Remote Keyless Entry Arm The Alarm ..........................35
Panic Alarm .............................22
Programming Additional Key Fobs ..........26, 34
Unlatch The Trunk ........................21
Remote Starting Exit Remote Start Mode .....................31
Uconnect Customer Programmable Features ......32
Uconnect Settings .........................32
Remote Trunk Release ...................... .101
Replacement Bulbs ........................ .312
Replacement Keys ....................... .26, 34
Replacement Tires ..........................411
Reporting Safety Defects .....................537
Restraints,
Child.......................... .202
Restraints, Head ......................... .56, 57
Rocking Vehicle When Stuck ...................355
Rotation, Tires ............................ .418
550 INDEX

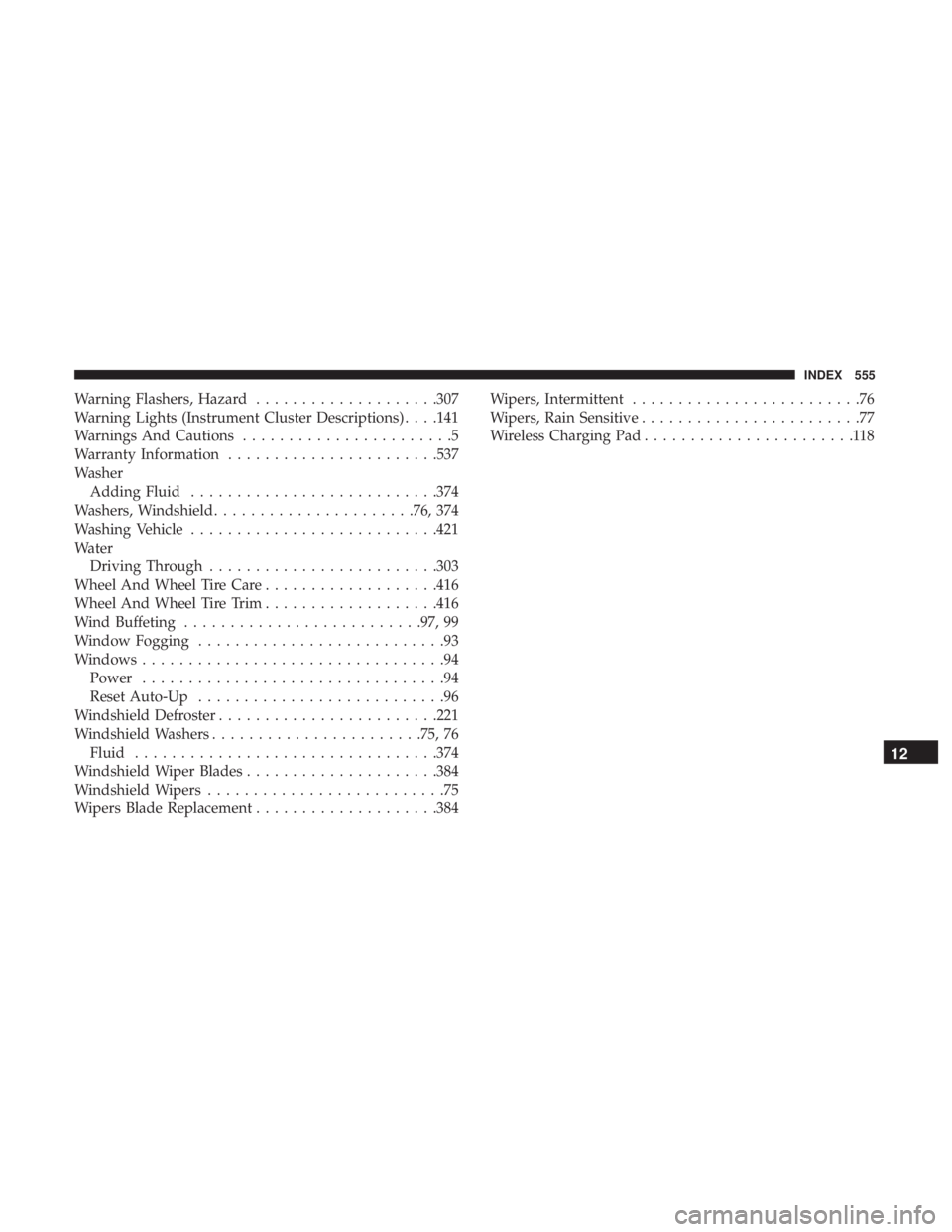

Warning Flashers, Hazard....................307
Warning Lights (Instrument Cluster Descriptions) . . . .141
Warnings And Cautions .......................5
Warranty Information ...................... .537
Washer Adding Fluid .......................... .374
Washers, Windshield ..................... .76, 374
Washing Vehicle .......................... .421
Water Driving Through ........................ .303
Wheel And Wheel Tire Care ...................416
Wheel And Wheel Tire Trim ...................416
Wind Buffeting ......................... .97, 99
Window Fogging ...........................93
Windows .................................94
Power .................................94
Reset Auto-Up ...........................96
Windshield Defroster ....................... .221
Windshield Washers ...................... .75, 76
Fluid ................................ .374
Windshield Wiper Blades .....................384
Windshield Wipers ..........................75
Wipers Blade Replacement ....................384 Wipers, Intermittent
.........................76
Wipers, Rain Sensitive ........................77
Wireless Charging Pad .......................118
12
INDEX 555
