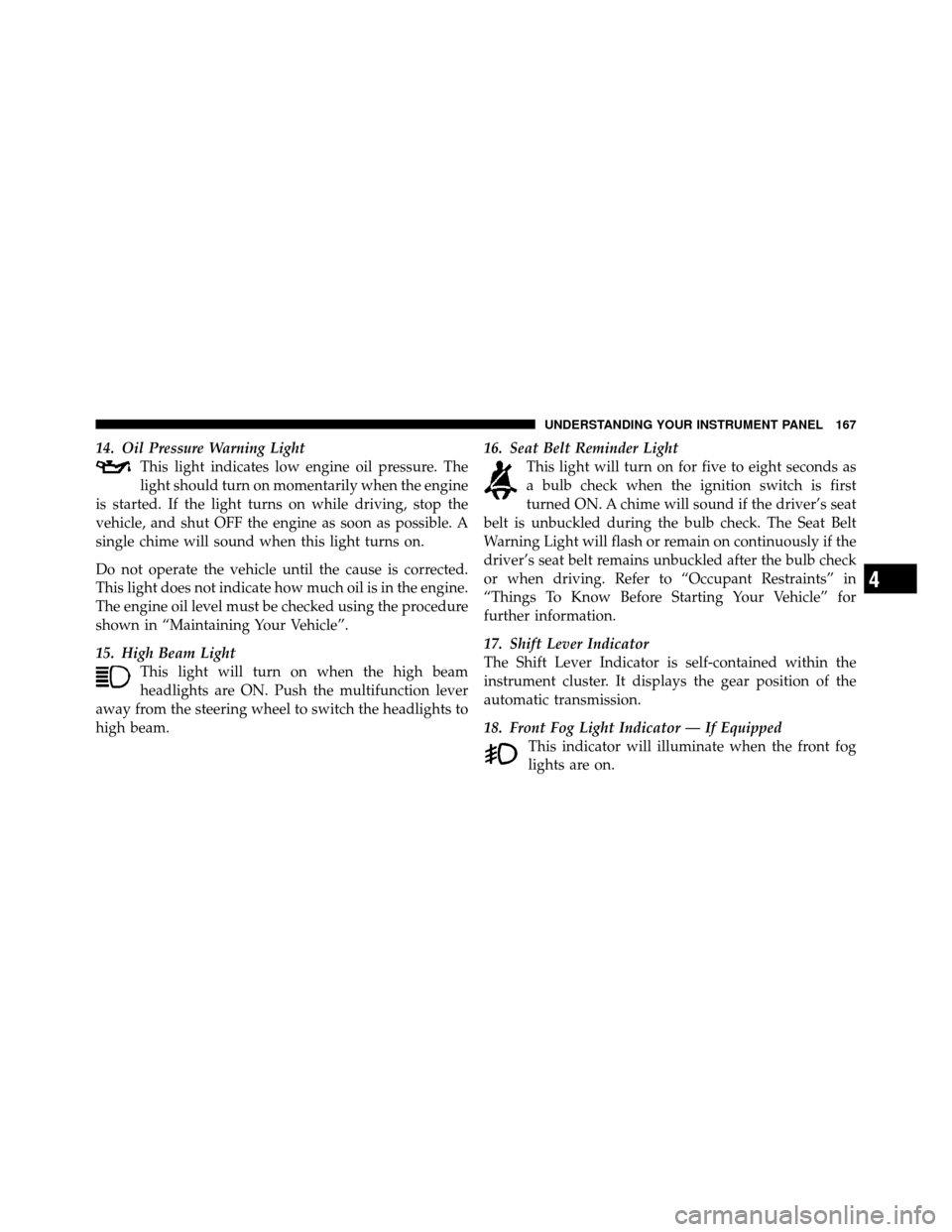

14. Oil Pressure Warning LightThis light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started. If the light turns on while driving, stop the
vehicle, and shut OFF the engine as soon as possible. A
single chime will sound when this light turns on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked using the procedure
shown in “Maintaining Your Vehicle”.
15. High Beam Light This light will turn on when the high beam
headlights are ON. Push the multifunction lever
away from the steering wheel to switch the headlights to
high beam. 16. Seat Belt Reminder Light
This light will turn on for five to eight seconds as
a bulb check when the ignition switch is first
turned ON. A chime will sound if the driver’s seat
belt is unbuckled during the bulb check. The Seat Belt
Warning Light will flash or remain on continuously if the
driver’s seat belt remains unbuckled after the bulb check
or when driving. Refer to “Occupant Restraints” in
“Things To Know Before Starting Your Vehicle” for
further information.
17. Shift Lever Indicator
The Shift Lever Indicator is self-contained within the
instrument cluster. It displays the gear position of the
automatic transmission.
18. Front Fog Light Indicator — If Equipped This indicator will illuminate when the front fog
lights are on.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 167

REPLACEMENT BULBS
InteriorBulb Number
Rear Courtesy/Reading Lamps ............. W5W
Rear Compartment (Trunk) Lamp ............. 562
Overhead Console Reading Lamp ............. 578
Visor Vanity Lamps ..................... A6220
Glove Box Lamp – If Equipped ............... 194
Door Courtesy .......................... 562
Shift Indicator Lamp ................. JKLE14140
Optional Door Map Pocket/
Cupholder ....... LED (Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement. Exterior
Bulb Number
Low Beam Headlamp (Standard Halogen) ......9006
Low Beam Headlamp –
High Intensity Discharge
(HID) .......... D1S (Serviced at Authorized Dealer)
High Beam Headlamp .................... 9005
Front Park/Turn Lamp ................... 3157A
Front Fog Lamp – If Equipped ............PSX24W
Front Side Marker ........................ 194
(Serviced at Authorized Dealer)
Tail/Stop Lamp ......................... 3057
Tail/Turn Lamp ......................... 3057
Rear Side Marker ........................ 168
Backup Lamp ........................... 921
Center High-Mount Stop Lamp
(CHMSL) ....... LED (Serviced at Authorized Dealer)
License ................................ 168
372 MAINTAINING YOUR VEHICLE

Lights.............................. 75,127
Airbag ...................... 49,55,60,74,165
Anti-Lock ......................... 172,265
Automatic Headlights ................... 127
Brake Assist Warning ................... 271
Brake Warning ..................... 169,262
Bulb Replacement ................... 372,373
Courtesy/Reading ................... 130,139
Cruise .............................. 163
Daytime Running ...................... 128
Dimmer Switch, Headlight .............129,130
Electronic Stability Program (ESP) Indicator . . . 271
Electronic Throttle Control Warning ......... 164
Engine Temperature Warning .............. 166
Exterior .............................. 75
Fog ............................. 129,167
Hazard Warning Flasher ................. 310
Headlight Switch ...................... 127
Headlights ........................ 127,375Headlights On Reminder
................. 129
Headlights On With Wipers ............128,134
High Beam ........................ 130,167
High Beam Indicator .................... 167
High Beam/Low Beam Select ............. 130
Illuminated Entry ....................... 18
Instrument Cluster .................. 127,163
Intensity Control ...................... 131
Interior .......................... 131,139
License ............................. 379
Lights On Reminder .................... 129
Low Fuel ............................ 172
Malfunction Indicator (Check Engine) ........ 173
Map Reading ...................... 130,139
Oil Pressure .......................... 167
Parade Mode (Daytime Brightness) ......... 132
Passing ............................. 130
Reading .......................... 130,139
Seat Belt Reminder ..................... 167
10
INDEX 421
