DODGE CHARGER SRT 2012 7.G Owners Manual

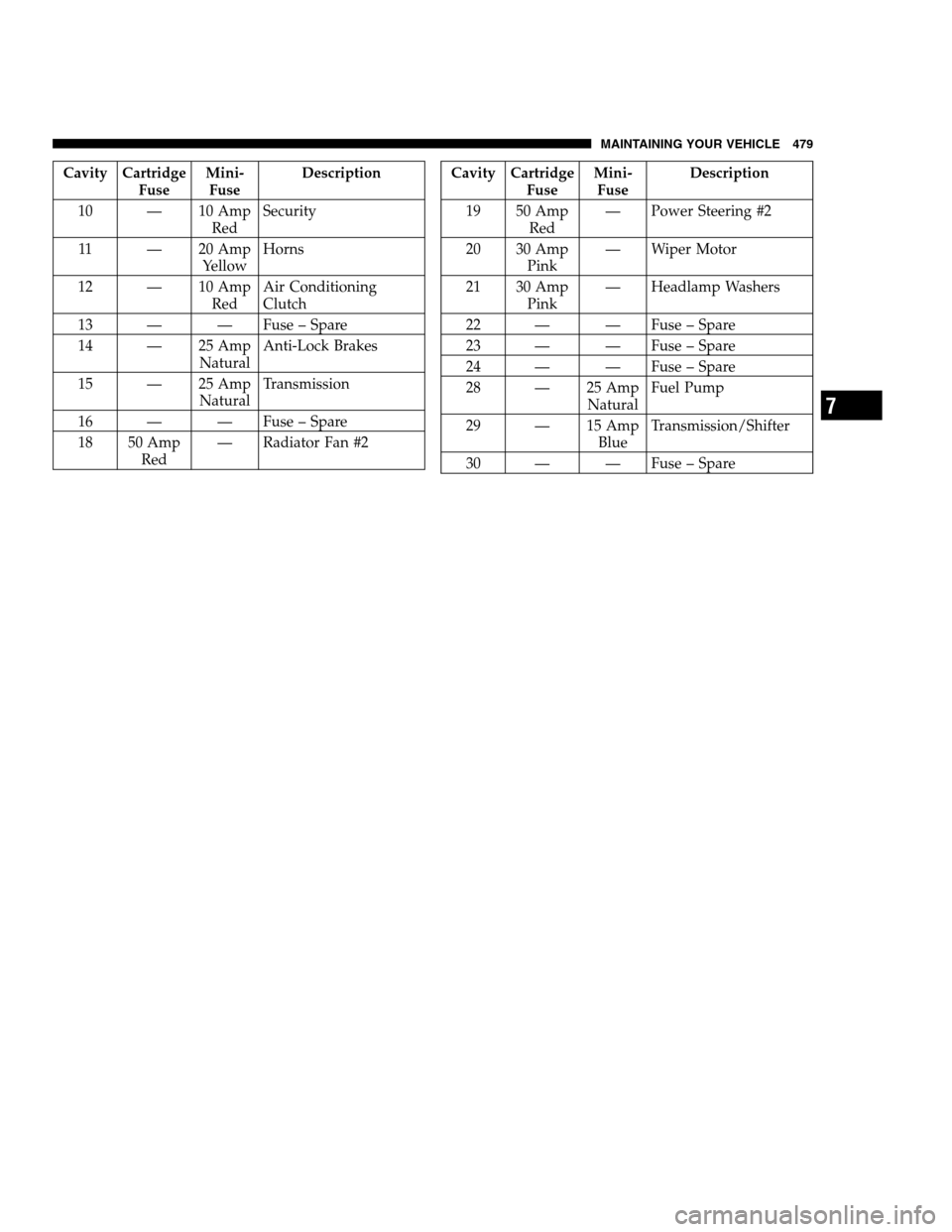

Cavity Cartridge
FuseMini-
FuseDescription
10 — 10 Amp
RedSecurity
11 — 20 Amp
YellowHorns
12 — 10 Amp
RedAir Conditioning
Clutch
13 — — Fuse – Spare
14 — 25 Amp
NaturalAnti-Lock Brakes
15 — 25 Amp
NaturalTransmission
16 — — Fuse – Spare
18 50 Amp
Red— Radiator Fan #2Cavity Cartridge
FuseMini-
FuseDescription
19 50 Amp
Red— Power Steering #2
20 30 Amp
Pink— Wiper Motor
21 30 Amp
Pink— Headlamp Washers
22 — — Fuse – Spare
23 — — Fuse – Spare
24 — — Fuse – Spare
28 — 25 Amp
NaturalFuel Pump
29 — 15 Amp
BlueTransmission/Shifter
30 — — Fuse – Spare
7
MAINTAINING YOUR VEHICLE 479
PAGE POSITION:479JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Cavity Cartridge
FuseMini-
FuseDescription
10 — 10 Amp
RedSecurity
11 — 20 Amp
YellowHorns
12 — 10 Amp
RedAir Conditioning
Clutch
13 — — Fuse – Spare
14 — 25 Amp
NaturalAnti-Lock Brakes
15 — 25 Amp
NaturalTransmission
16 — — Fuse – Spare
18 50 Amp
Red— Radiator Fan #2Cavity Cartridge
FuseMini-
FuseDescription
19 50 Amp
Red— Power Steering #2
20 30 Amp
Pink— Wiper Motor
21 30 Amp
Pink— Headlamp Washers
22 — — Fuse – Spare
23 — — Fuse – Spare
24 — — Fuse – Spare
28 — 25 Amp
NaturalFuel Pump
29 — 15 Amp
BlueTransmission/Shifter
30 — — Fuse – Spare
7
MAINTAINING YOUR VEHICLE 479
PAGE POSITION:479JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

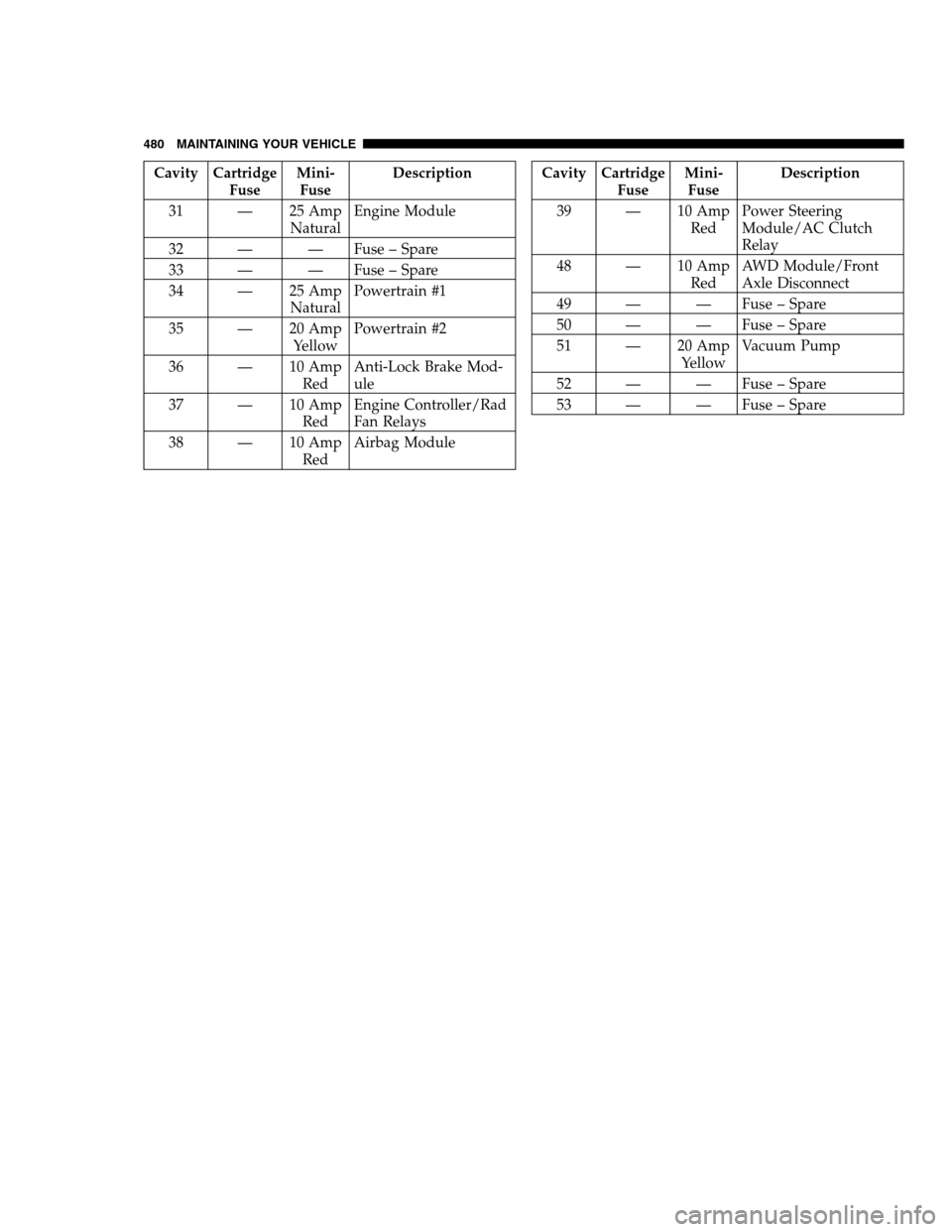

Cavity Cartridge
FuseMini-
FuseDescription
31 — 25 Amp
NaturalEngine Module
32 — — Fuse – Spare
33 — — Fuse – Spare
34 — 25 Amp
NaturalPowertrain #1
35 — 20 Amp
YellowPowertrain #2
36 — 10 Amp
RedAnti-Lock Brake Mod-
ule
37 — 10 Amp
RedEngine Controller/Rad
Fan Relays
38 — 10 Amp
RedAirbag ModuleCavity Cartridge
FuseMini-
FuseDescription
39 — 10 Amp
RedPower Steering
Module/AC Clutch
Relay
48 — 10 Amp
RedAWD Module/Front
Axle Disconnect
49 — — Fuse – Spare
50 — — Fuse – Spare
51 — 20 Amp
YellowVacuum Pump
52 — — Fuse – Spare
53 — — Fuse – Spare
480 MAINTAINING YOUR VEHICLE
PAGE POSITION:480JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Cavity Cartridge
FuseMini-
FuseDescription
31 — 25 Amp
NaturalEngine Module
32 — — Fuse – Spare
33 — — Fuse – Spare
34 — 25 Amp
NaturalPowertrain #1
35 — 20 Amp
YellowPowertrain #2
36 — 10 Amp
RedAnti-Lock Brake Mod-
ule
37 — 10 Amp
RedEngine Controller/Rad
Fan Relays
38 — 10 Amp
RedAirbag ModuleCavity Cartridge
FuseMini-
FuseDescription
39 — 10 Amp
RedPower Steering
Module/AC Clutch
Relay
48 — 10 Amp
RedAWD Module/Front
Axle Disconnect
49 — — Fuse – Spare
50 — — Fuse – Spare
51 — 20 Amp
YellowVacuum Pump
52 — — Fuse – Spare
53 — — Fuse – Spare
480 MAINTAINING YOUR VEHICLE
PAGE POSITION:480JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

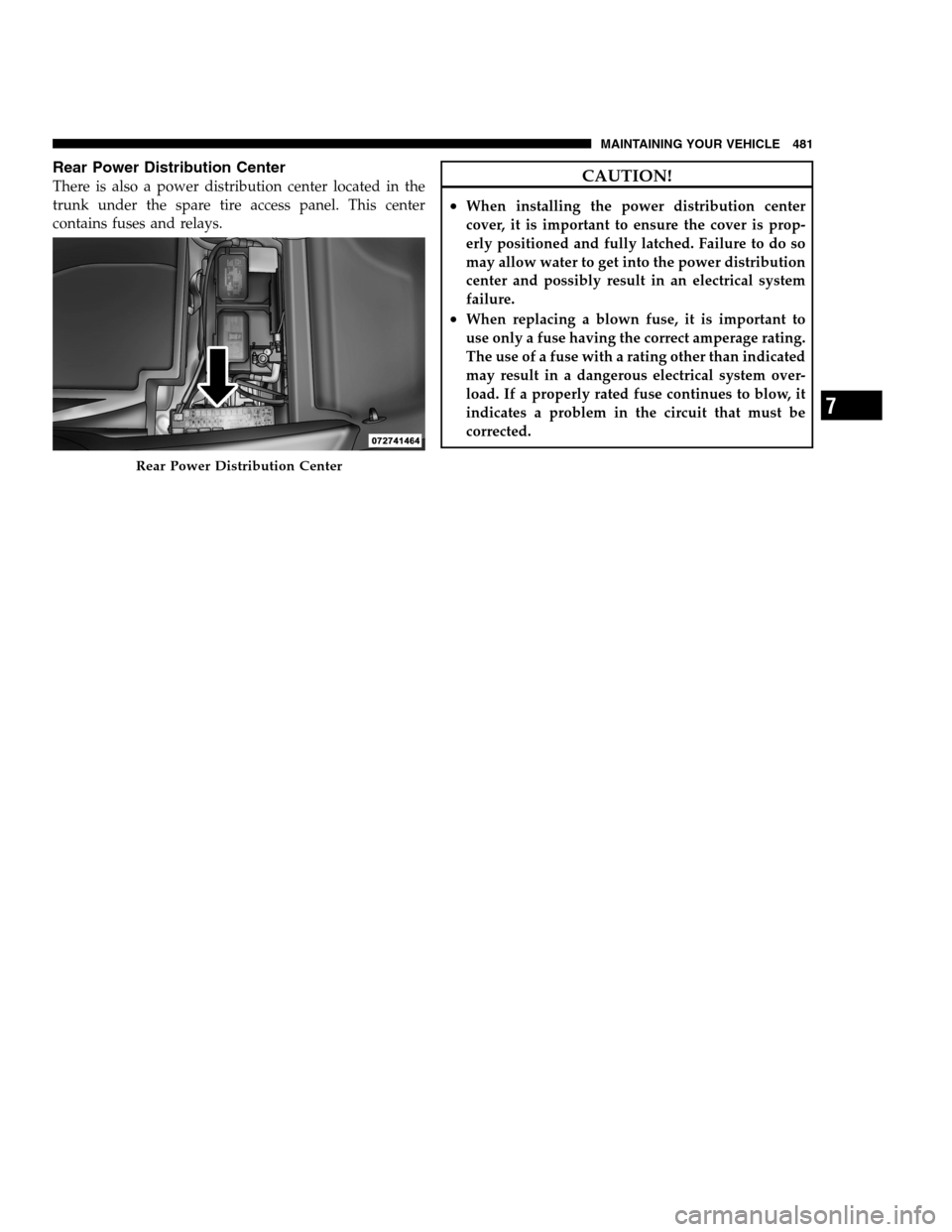

Rear Power Distribution Center
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Rear Power Distribution Center
7
MAINTAINING YOUR VEHICLE 481
PAGE POSITION:481JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Rear Power Distribution Center
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Rear Power Distribution Center
7
MAINTAINING YOUR VEHICLE 481
PAGE POSITION:481JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

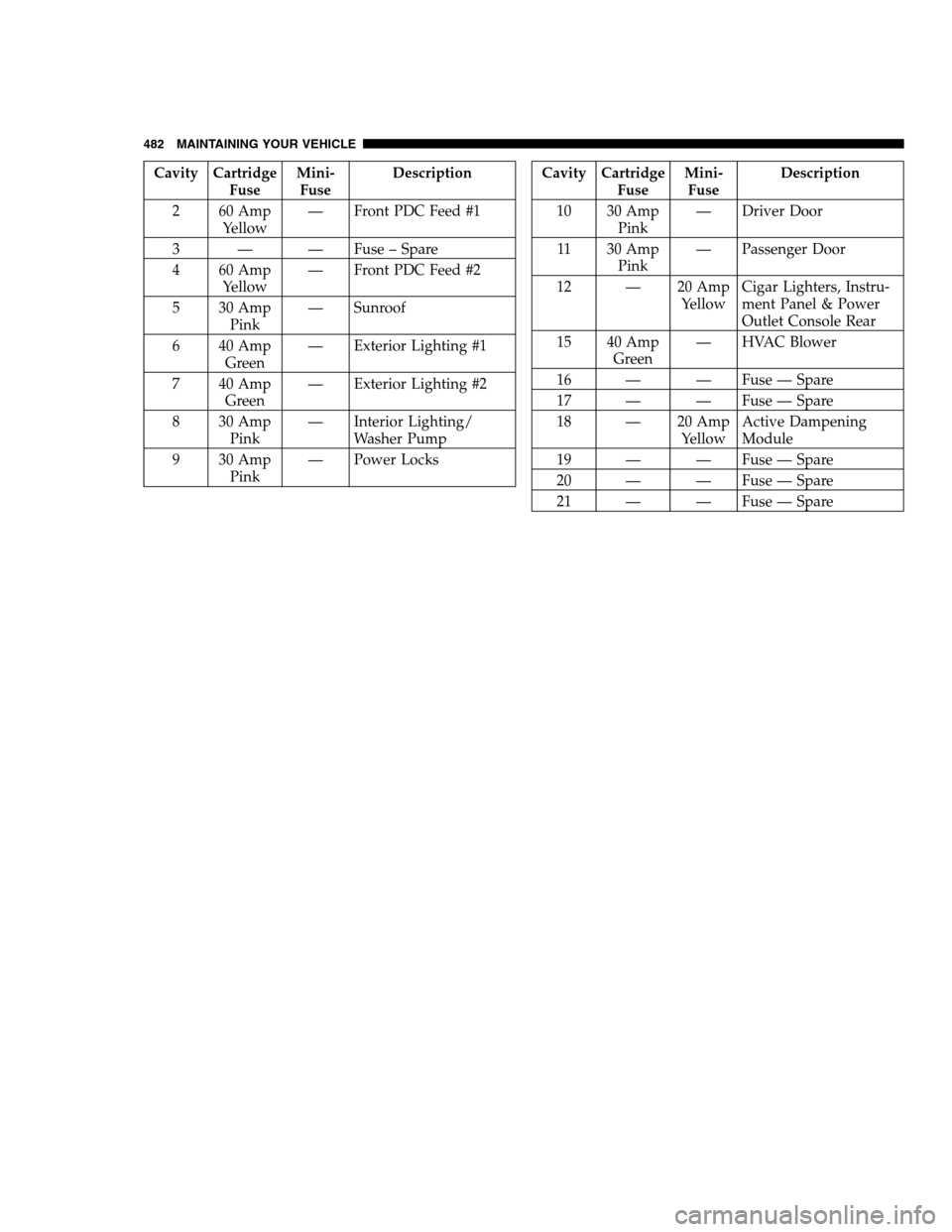

Cavity Cartridge
FuseMini-
FuseDescription
2 60 Amp
Yellow— Front PDC Feed #1
3 — — Fuse – Spare
4 60 Amp
Yellow— Front PDC Feed #2
5 30 Amp
Pink— Sunroof
6 40 Amp
Green— Exterior Lighting #1
7 40 Amp
Green— Exterior Lighting #2
8 30 Amp
Pink— Interior Lighting/
Washer Pump
9 30 Amp
Pink— Power LocksCavity Cartridge
FuseMini-
FuseDescription
10 30 Amp
Pink— Driver Door
11 30 Amp
Pink— Passenger Door
12 — 20 Amp
YellowCigar Lighters, Instru-
ment Panel & Power
Outlet Console Rear
15 40 Amp
Green— HVAC Blower
16 — — Fuse — Spare
17 — — Fuse — Spare
18 — 20 Amp
YellowActive Dampening
Module
19 — — Fuse — Spare
20 — — Fuse — Spare
21 — — Fuse — Spare
482 MAINTAINING YOUR VEHICLE
PAGE POSITION:482JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Cavity Cartridge
FuseMini-
FuseDescription
2 60 Amp
Yellow— Front PDC Feed #1
3 — — Fuse – Spare
4 60 Amp
Yellow— Front PDC Feed #2
5 30 Amp
Pink— Sunroof
6 40 Amp
Green— Exterior Lighting #1
7 40 Amp
Green— Exterior Lighting #2
8 30 Amp
Pink— Interior Lighting/
Washer Pump
9 30 Amp
Pink— Power LocksCavity Cartridge
FuseMini-
FuseDescription
10 30 Amp
Pink— Driver Door
11 30 Amp
Pink— Passenger Door
12 — 20 Amp
YellowCigar Lighters, Instru-
ment Panel & Power
Outlet Console Rear
15 40 Amp
Green— HVAC Blower
16 — — Fuse — Spare
17 — — Fuse — Spare
18 — 20 Amp
YellowActive Dampening
Module
19 — — Fuse — Spare
20 — — Fuse — Spare
21 — — Fuse — Spare
482 MAINTAINING YOUR VEHICLE
PAGE POSITION:482JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

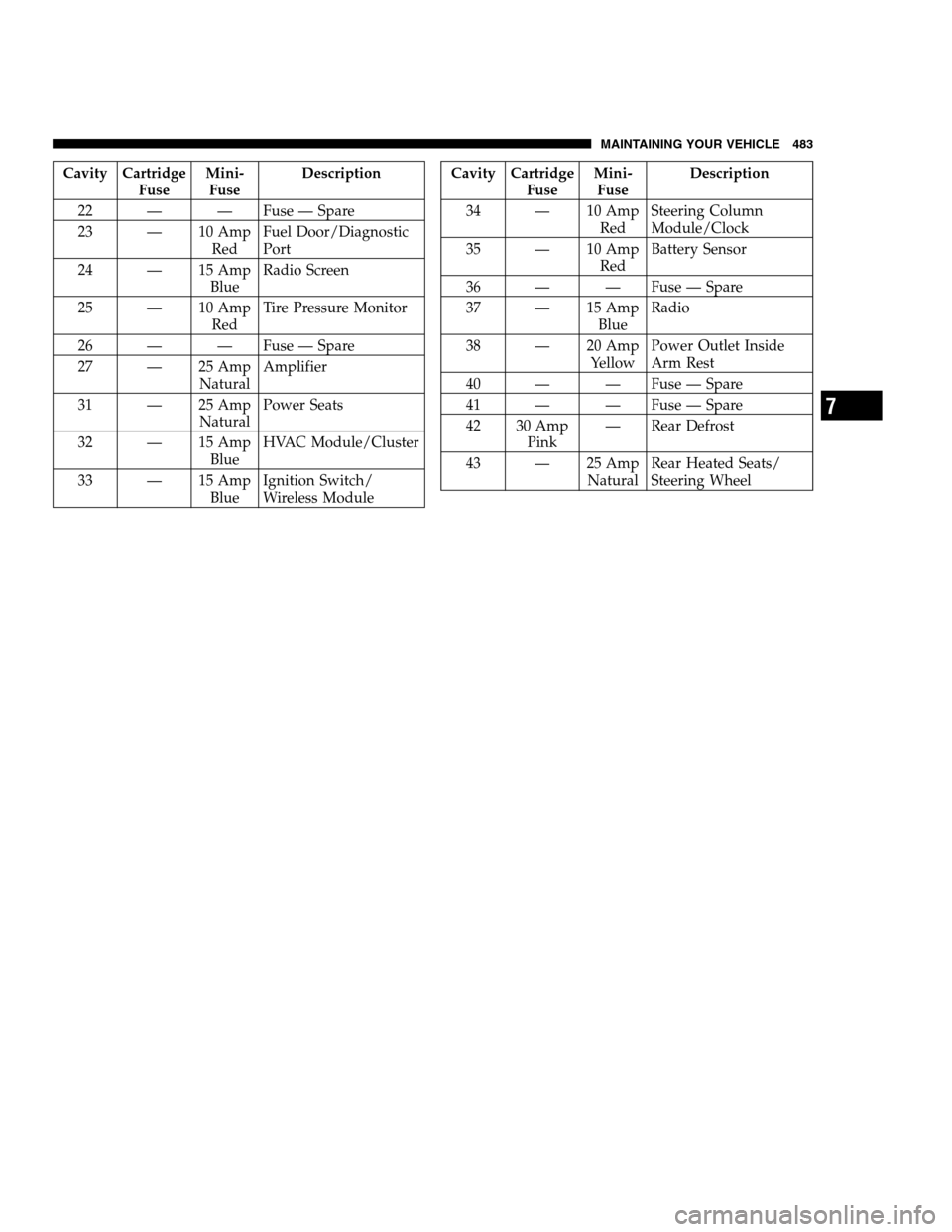

Cavity Cartridge
FuseMini-
FuseDescription
22 — — Fuse — Spare
23 — 10 Amp
RedFuel Door/Diagnostic
Port
24 — 15 Amp
BlueRadio Screen
25 — 10 Amp
RedTire Pressure Monitor
26 — — Fuse — Spare
27 — 25 Amp
NaturalAmplifier
31 — 25 Amp
NaturalPower Seats
32 — 15 Amp
BlueHVAC Module/Cluster
33 — 15 Amp
BlueIgnition Switch/
Wireless ModuleCavity Cartridge
FuseMini-
FuseDescription
34 — 10 Amp
RedSteering Column
Module/Clock
35 — 10 Amp
RedBattery Sensor
36 — — Fuse — Spare
37 — 15 Amp
BlueRadio
38 — 20 Amp
YellowPower Outlet Inside
Arm Rest
40 — — Fuse — Spare
41 — — Fuse — Spare
42 30 Amp
Pink— Rear Defrost
43 — 25 Amp
NaturalRear Heated Seats/
Steering Wheel
7
MAINTAINING YOUR VEHICLE 483
PAGE POSITION:483JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Cavity Cartridge
FuseMini-
FuseDescription
22 — — Fuse — Spare
23 — 10 Amp
RedFuel Door/Diagnostic
Port
24 — 15 Amp
BlueRadio Screen
25 — 10 Amp
RedTire Pressure Monitor
26 — — Fuse — Spare
27 — 25 Amp
NaturalAmplifier
31 — 25 Amp
NaturalPower Seats
32 — 15 Amp
BlueHVAC Module/Cluster
33 — 15 Amp
BlueIgnition Switch/
Wireless ModuleCavity Cartridge
FuseMini-
FuseDescription
34 — 10 Amp
RedSteering Column
Module/Clock
35 — 10 Amp
RedBattery Sensor
36 — — Fuse — Spare
37 — 15 Amp
BlueRadio
38 — 20 Amp
YellowPower Outlet Inside
Arm Rest
40 — — Fuse — Spare
41 — — Fuse — Spare
42 30 Amp
Pink— Rear Defrost
43 — 25 Amp
NaturalRear Heated Seats/
Steering Wheel
7
MAINTAINING YOUR VEHICLE 483
PAGE POSITION:483JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

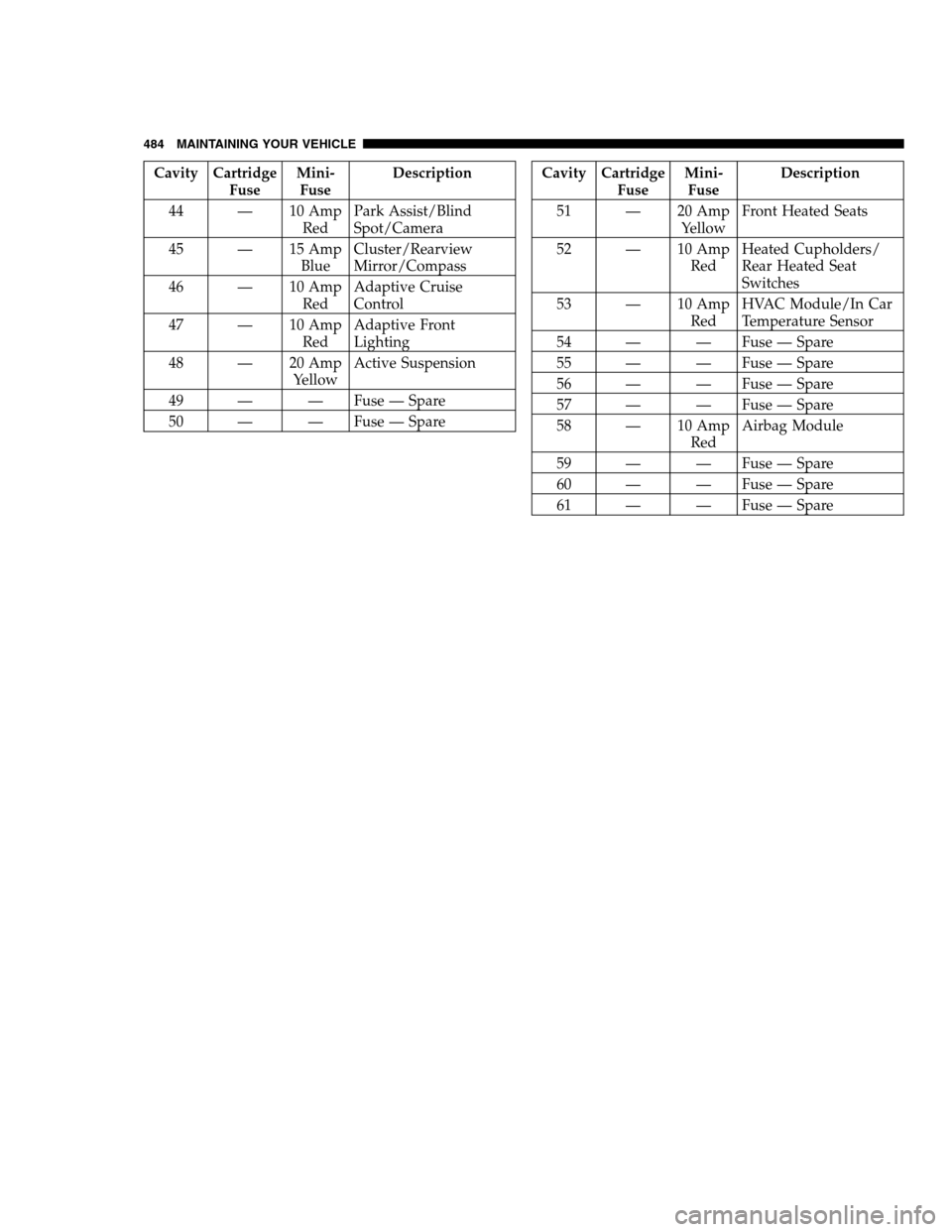

Cavity Cartridge
FuseMini-
FuseDescription
44 — 10 Amp
RedPark Assist/Blind
Spot/Camera
45 — 15 Amp
BlueCluster/Rearview
Mirror/Compass
46 — 10 Amp
RedAdaptive Cruise
Control
47 — 10 Amp
RedAdaptive Front
Lighting
48 — 20 Amp
YellowActive Suspension
49 — — Fuse — Spare
50 — — Fuse — SpareCavity Cartridge
FuseMini-
FuseDescription
51 — 20 Amp
YellowFront Heated Seats
52 — 10 Amp
RedHeated Cupholders/
Rear Heated Seat
Switches
53 — 10 Amp
RedHVAC Module/In Car
Temperature Sensor
54 — — Fuse — Spare
55 — — Fuse — Spare
56 — — Fuse — Spare
57 — — Fuse — Spare
58 — 10 Amp
RedAirbag Module
59 — — Fuse — Spare
60 — — Fuse — Spare
61 — — Fuse — Spare
484 MAINTAINING YOUR VEHICLE
PAGE POSITION:484JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Cavity Cartridge
FuseMini-
FuseDescription
44 — 10 Amp
RedPark Assist/Blind
Spot/Camera
45 — 15 Amp
BlueCluster/Rearview
Mirror/Compass
46 — 10 Amp
RedAdaptive Cruise
Control
47 — 10 Amp
RedAdaptive Front
Lighting
48 — 20 Amp
YellowActive Suspension
49 — — Fuse — Spare
50 — — Fuse — SpareCavity Cartridge
FuseMini-
FuseDescription
51 — 20 Amp
YellowFront Heated Seats
52 — 10 Amp
RedHeated Cupholders/
Rear Heated Seat
Switches
53 — 10 Amp
RedHVAC Module/In Car
Temperature Sensor
54 — — Fuse — Spare
55 — — Fuse — Spare
56 — — Fuse — Spare
57 — — Fuse — Spare
58 — 10 Amp
RedAirbag Module
59 — — Fuse — Spare
60 — — Fuse — Spare
61 — — Fuse — Spare
484 MAINTAINING YOUR VEHICLE
PAGE POSITION:484JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

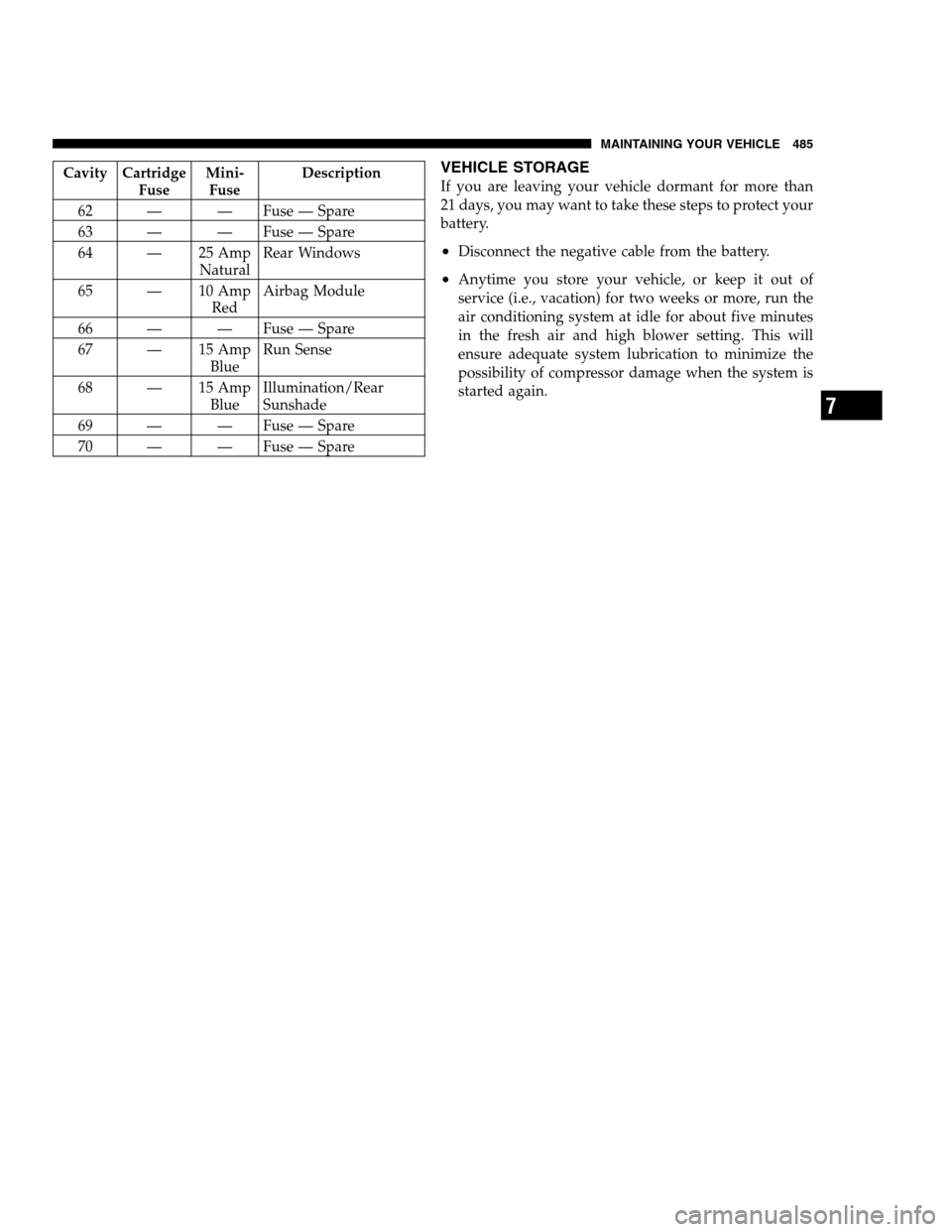

Cavity Cartridge
FuseMini-
FuseDescription
62 — — Fuse — Spare
63 — — Fuse — Spare
64 — 25 Amp
NaturalRear Windows
65 — 10 Amp
RedAirbag Module
66 — — Fuse — Spare
67 — 15 Amp
BlueRun Sense
68 — 15 Amp
BlueIllumination/Rear
Sunshade
69 — — Fuse — Spare
70 — — Fuse — SpareVEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
7
MAINTAINING YOUR VEHICLE 485
PAGE POSITION:485JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Cavity Cartridge
FuseMini-
FuseDescription
62 — — Fuse — Spare
63 — — Fuse — Spare
64 — 25 Amp
NaturalRear Windows
65 — 10 Amp
RedAirbag Module
66 — — Fuse — Spare
67 — 15 Amp
BlueRun Sense
68 — 15 Amp
BlueIllumination/Rear
Sunshade
69 — — Fuse — Spare
70 — — Fuse — SpareVEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
7
MAINTAINING YOUR VEHICLE 485
PAGE POSITION:485JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

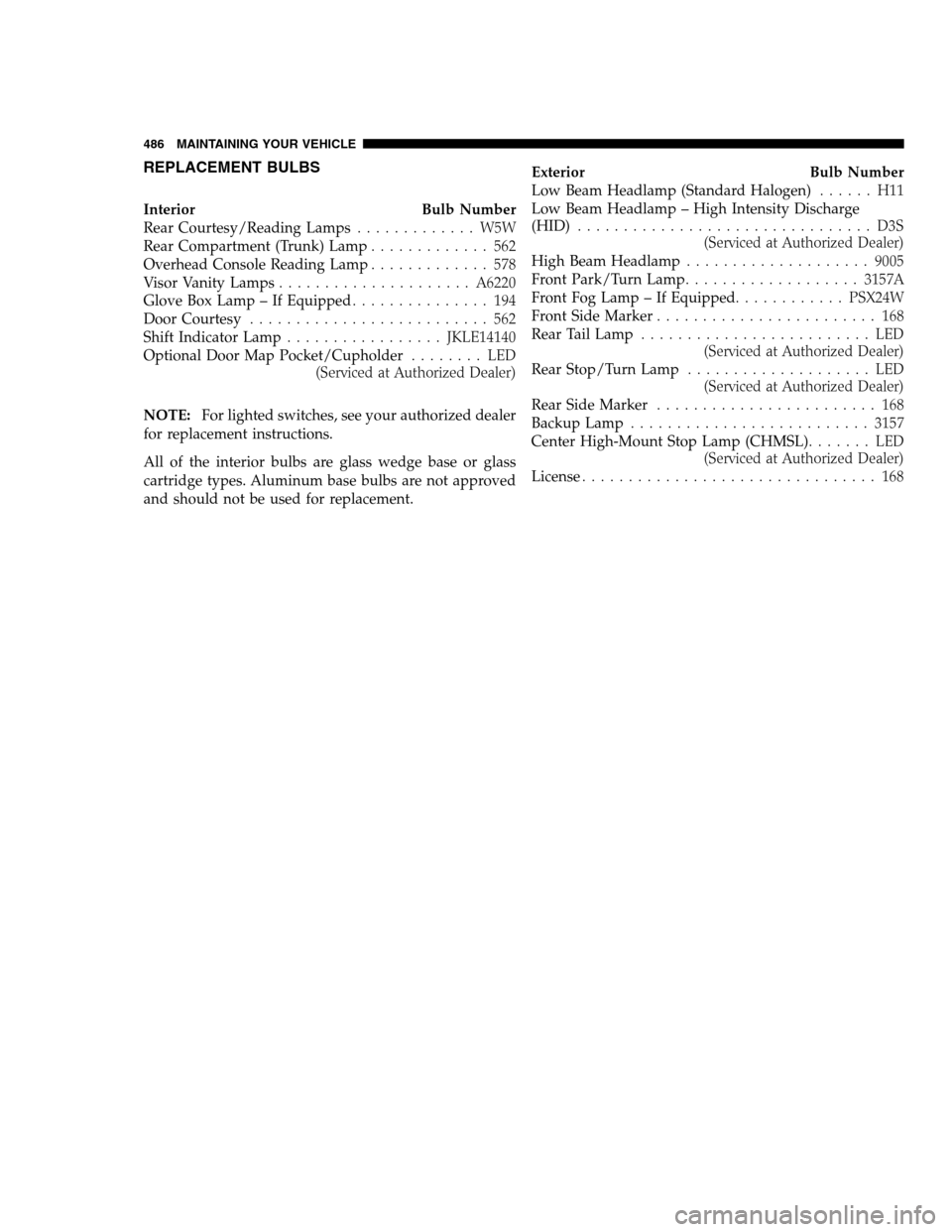

REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading Lamps............. W5W
Rear Compartment (Trunk) Lamp............. 562
Overhead Console Reading Lamp............. 578
Visor Vanity Lamps.....................A6220
Glove Box Lamp – If Equipped............... 194
Door Courtesy.......................... 562
Shift Indicator Lamp.................JKLE14140
Optional Door Map Pocket/Cupholder........ LED
(Serviced at Authorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.Exterior Bulb Number
Low Beam Headlamp (Standard Halogen)...... H11
Low Beam Headlamp – High Intensity Discharge
(HID)................................ D3S
(Serviced at Authorized Dealer)
High Beam Headlamp....................9005
Front Park/Turn Lamp...................3157A
Front Fog Lamp – If Equipped............PSX24W
Front Side Marker........................ 168
Rear Tail Lamp......................... LED
(Serviced at Authorized Dealer)
Rear Stop/Turn Lamp.................... LED
(Serviced at Authorized Dealer)
Rear Side Marker........................ 168
Backup Lamp..........................3157
Center High-Mount Stop Lamp (CHMSL)....... LED
(Serviced at Authorized Dealer)
License................................ 168
486 MAINTAINING YOUR VEHICLE
PAGE POSITION:486JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading Lamps............. W5W
Rear Compartment (Trunk) Lamp............. 562
Overhead Console Reading Lamp............. 578
Visor Vanity Lamps.....................A6220
Glove Box Lamp – If Equipped............... 194
Door Courtesy.......................... 562
Shift Indicator Lamp.................JKLE14140
Optional Door Map Pocket/Cupholder........ LED
(Serviced at Authorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.Exterior Bulb Number
Low Beam Headlamp (Standard Halogen)...... H11
Low Beam Headlamp – High Intensity Discharge
(HID)................................ D3S
(Serviced at Authorized Dealer)
High Beam Headlamp....................9005
Front Park/Turn Lamp...................3157A
Front Fog Lamp – If Equipped............PSX24W
Front Side Marker........................ 168
Rear Tail Lamp......................... LED
(Serviced at Authorized Dealer)
Rear Stop/Turn Lamp.................... LED
(Serviced at Authorized Dealer)
Rear Side Marker........................ 168
Backup Lamp..........................3157
Center High-Mount Stop Lamp (CHMSL)....... LED
(Serviced at Authorized Dealer)
License................................ 168
486 MAINTAINING YOUR VEHICLE
PAGE POSITION:486JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

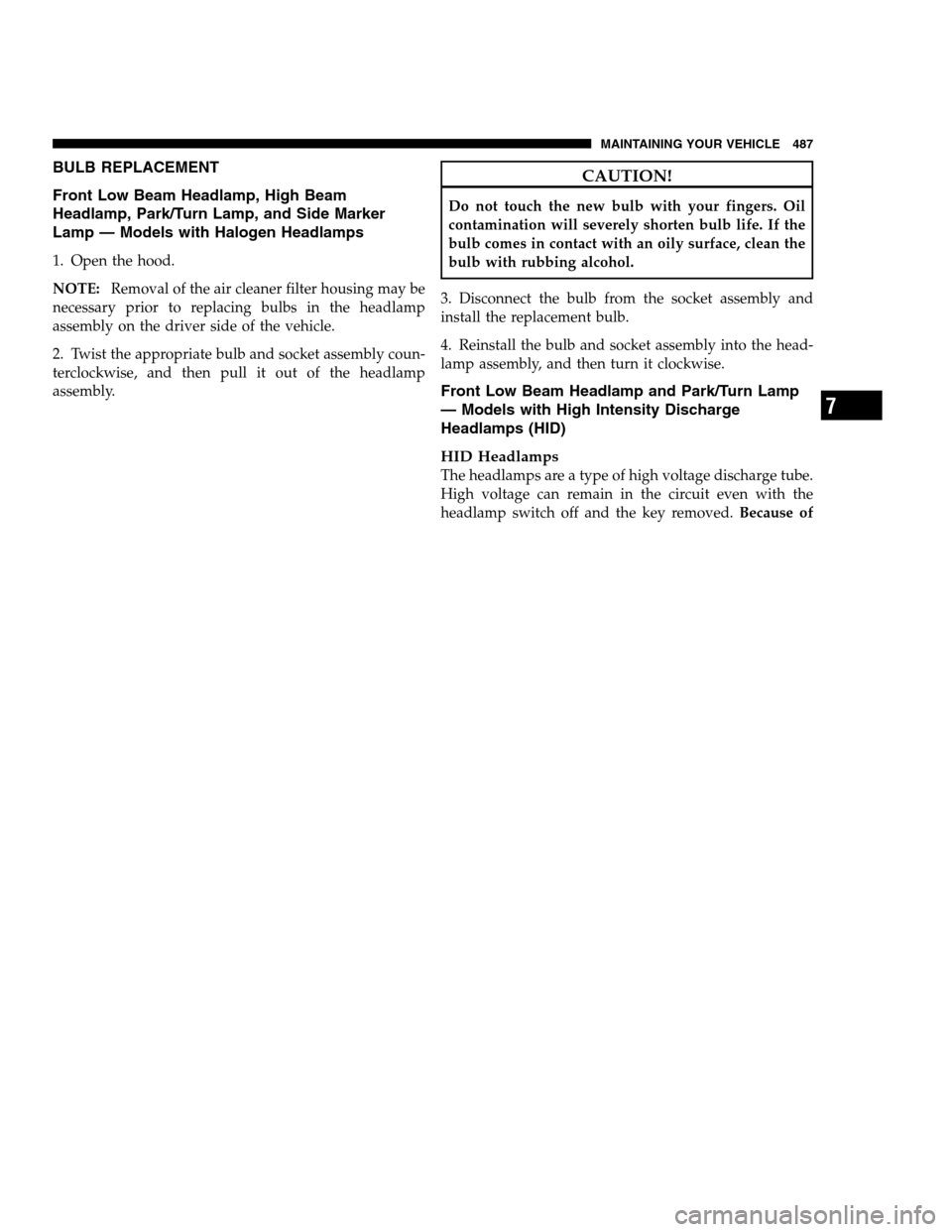

BULB REPLACEMENT
Front Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp, and Side Marker
Lamp — Models with Halogen Headlamps
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun-
terclockwise, and then pull it out of the headlamp
assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly into the head-
lamp assembly, and then turn it clockwise.
Front Low Beam Headlamp and Park/Turn Lamp
— Models with High Intensity Discharge
Headlamps (HID)
HID Headlamps
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
7
MAINTAINING YOUR VEHICLE 487
PAGE POSITION:487JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR BULB REPLACEMENT
Front Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp, and Side Marker
Lamp — Models with Halogen Headlamps
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun-
terclockwise, and then pull it out of the headlamp
assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly into the head-
lamp assembly, and then turn it clockwise.
Front Low Beam Headlamp and Park/Turn Lamp
— Models with High Intensity Discharge
Headlamps (HID)
HID Headlamps
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
7
MAINTAINING YOUR VEHICLE 487
PAGE POSITION:487JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

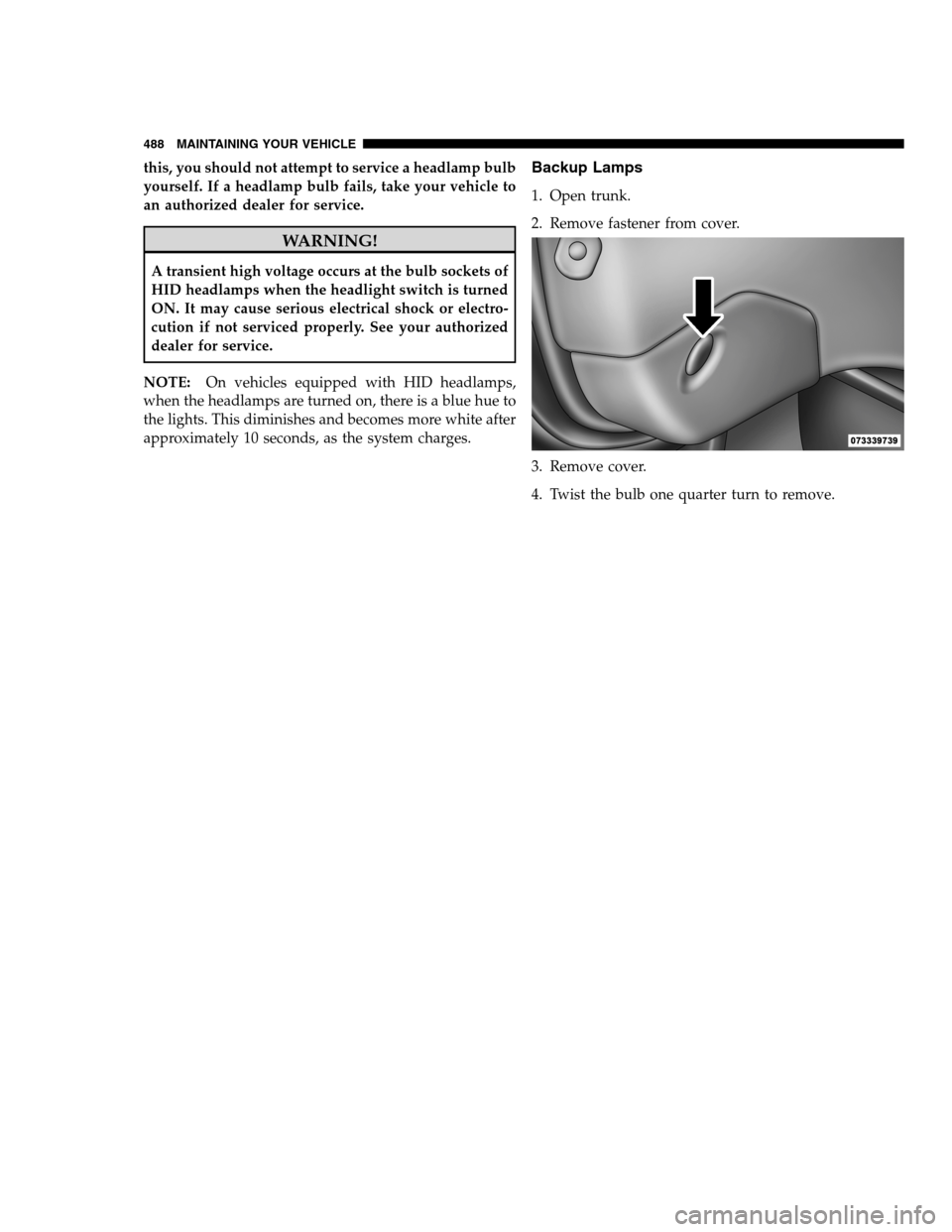

this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlight switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
NOTE:On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
Backup Lamps
1. Open trunk.
2. Remove fastener from cover.
3. Remove cover.
4. Twist the bulb one quarter turn to remove.
488 MAINTAINING YOUR VEHICLE
PAGE POSITION:488JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlight switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
NOTE:On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
Backup Lamps
1. Open trunk.
2. Remove fastener from cover.
3. Remove cover.
4. Twist the bulb one quarter turn to remove.
488 MAINTAINING YOUR VEHICLE
PAGE POSITION:488JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR
