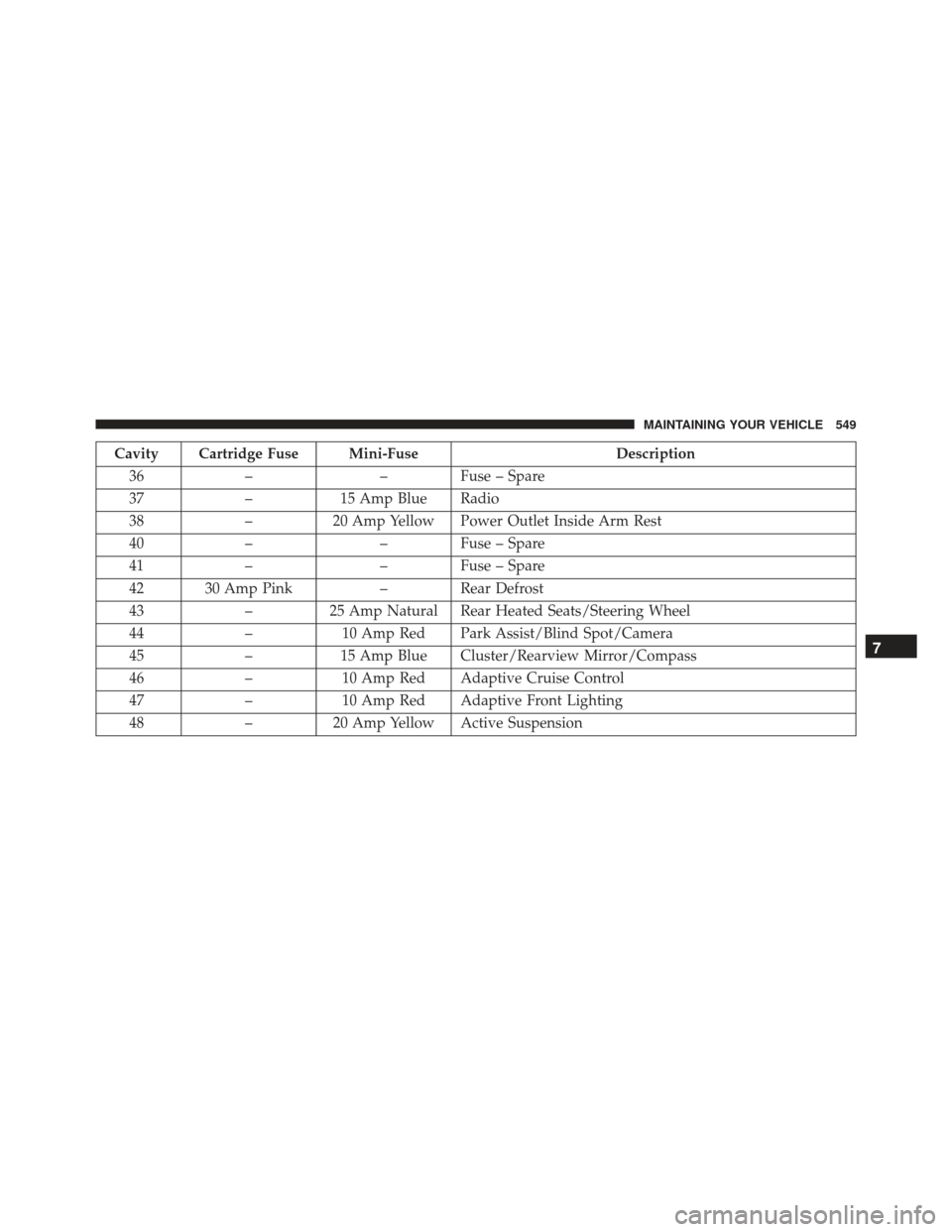

Cavity Cartridge Fuse Mini-FuseDescription
36 – – Fuse – Spare
37 –15 Amp Blue Radio
38 –20 Amp Yellow Power Outlet Inside Arm Rest
40 – – Fuse – Spare
41 – – Fuse – Spare
42 30 Amp Pink – Rear Defrost
43 –25 Amp Natural Rear Heated Seats/Steering Wheel
44 –10 Amp Red Park Assist/Blind Spot/Camera
45 –15 Amp Blue Cluster/Rearview Mirror/Compass
46 –10 Amp Red Adaptive Cruise Control
47 –10 Amp Red Adaptive Front Lighting
48 –20 Amp Yellow Active Suspension
7
MAINTAINING YOUR VEHICLE 549

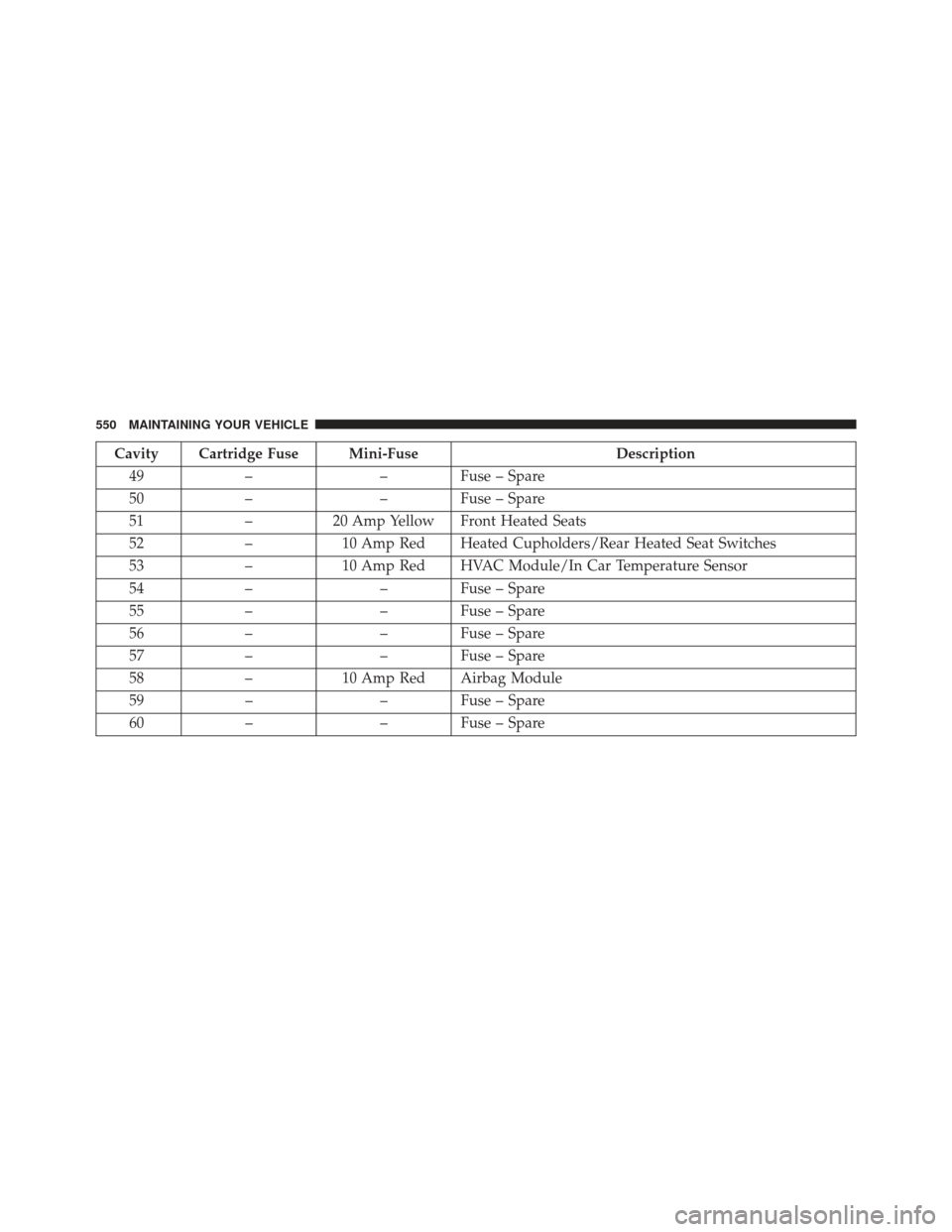

Cavity Cartridge Fuse Mini-FuseDescription
49 – – Fuse – Spare
50 – – Fuse – Spare
51 –20 Amp Yellow Front Heated Seats
52 –10 Amp Red Heated Cupholders/Rear Heated Seat Switches
53 –10 Amp Red HVAC Module/In Car Temperature Sensor
54 – – Fuse – Spare
55 – – Fuse – Spare
56 – – Fuse – Spare
57 – – Fuse – Spare
58 –10 Amp Red Airbag Module
59 – – Fuse – Spare
60 – – Fuse – Spare
550 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Mini-FuseDescription
61 – – Fuse – Spare
62 – – Fuse – Spare
63 – – Fuse – Spare
64 –25 Amp Natural Rear Windows
65 –10 Amp Red Airbag Module
66 – – Fuse – Spare
67 –15 Amp Blue Run Sense
68 –15 Amp Blue Illumination/Rear Sunshade
69 – – Fuse – Spare
70 – – Fuse – Spare
7
MAINTAINING YOUR VEHICLE 551

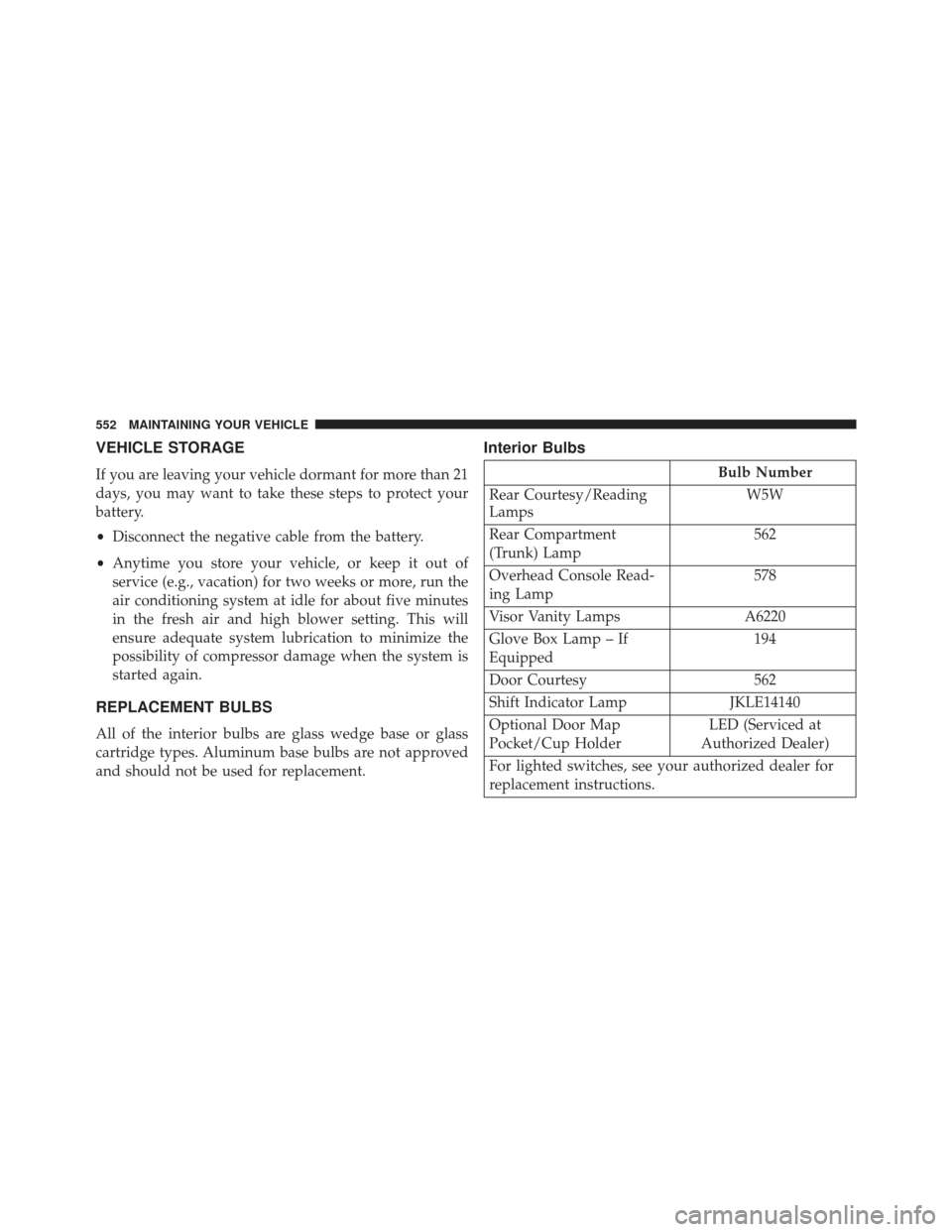

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Interior Bulbs
Bulb Number
Rear Courtesy/Reading
Lamps W5W
Rear Compartment
(Trunk) Lamp 562
Overhead Console Read-
ing Lamp 578
Visor Vanity Lamps A6220
Glove Box Lamp – If
Equipped 194
Door Courtesy 562
Shift Indicator Lamp JKLE14140
Optional Door Map
Pocket/Cup Holder LED (Serviced at
Authorized Dealer)
For lighted switches, see your authorized dealer for
replacement instructions.
552 MAINTAINING YOUR VEHICLE

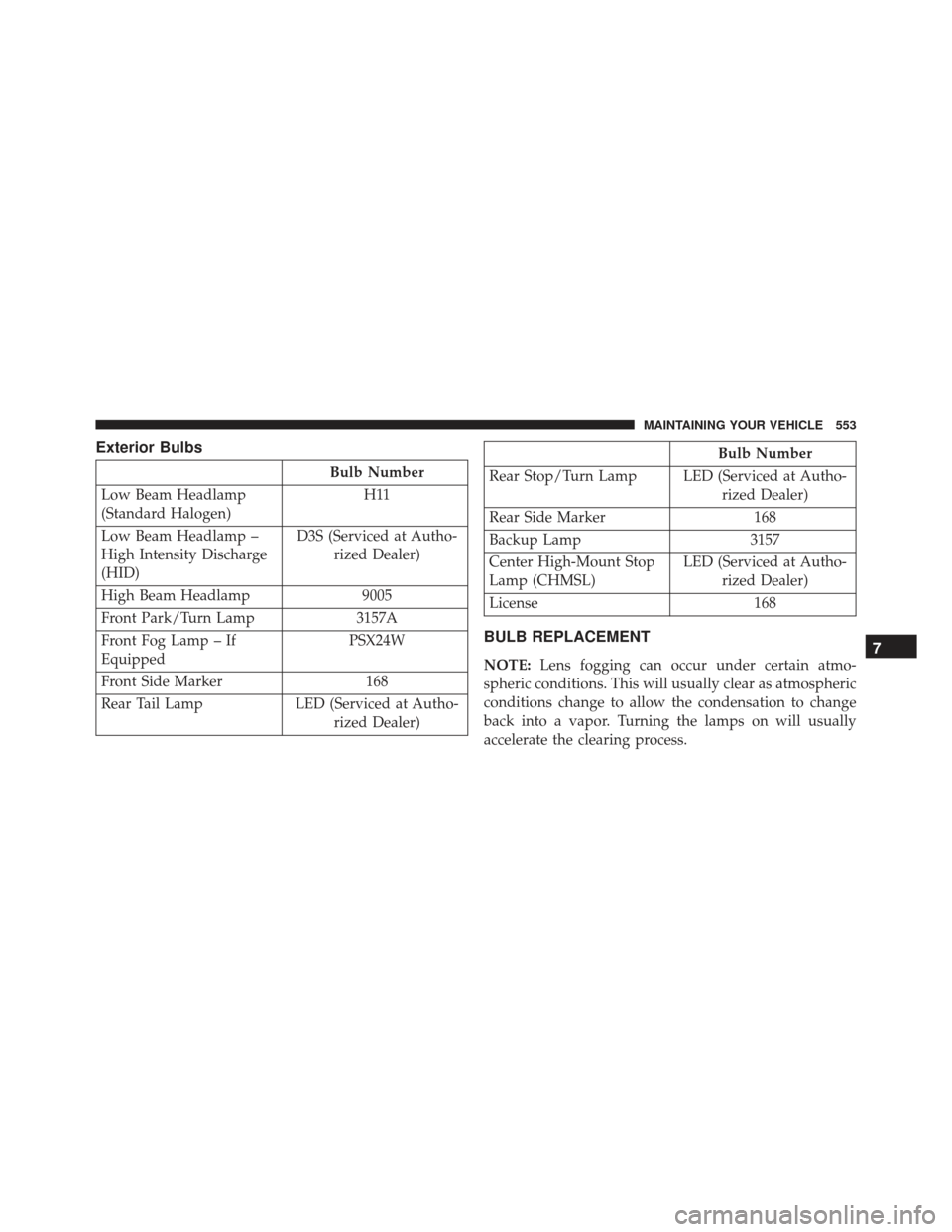

Exterior Bulbs
Bulb Number
Low Beam Headlamp
(Standard Halogen) H11
Low Beam Headlamp –
High Intensity Discharge
(HID) D3S (Serviced at Autho-
rized Dealer)
High Beam Headlamp 9005
Front Park/Turn Lamp 3157A
Front Fog Lamp – If
Equipped PSX24W
Front Side Marker 168
Rear Tail Lamp LED (Serviced at Autho- rized Dealer)
Bulb Number
Rear Stop/Turn Lamp LED (Serviced at Autho- rized Dealer)
Rear Side Marker 168
Backup Lamp 3157
Center High-Mount Stop
Lamp (CHMSL) LED (Serviced at Autho-
rized Dealer)
License 168
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
7
MAINTAINING YOUR VEHICLE 553

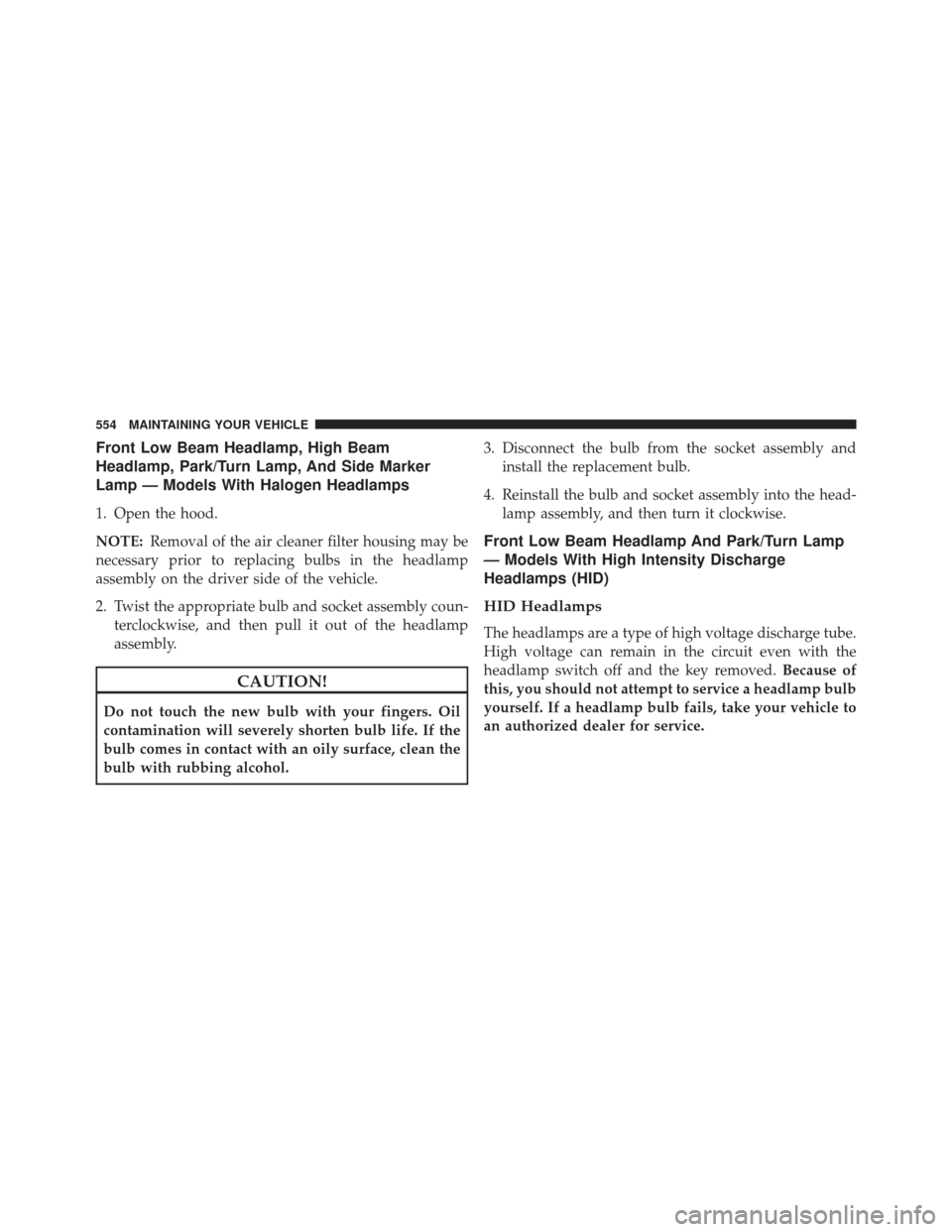

Front Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp, And Side Marker
Lamp — Models With Halogen Headlamps
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun- terclockwise, and then pull it out of the headlamp
assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol. 3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly into the head- lamp assembly, and then turn it clockwise.
Front Low Beam Headlamp And Park/Turn Lamp
— Models With High Intensity Discharge
Headlamps (HID)
HID Headlamps
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
554 MAINTAINING YOUR VEHICLE

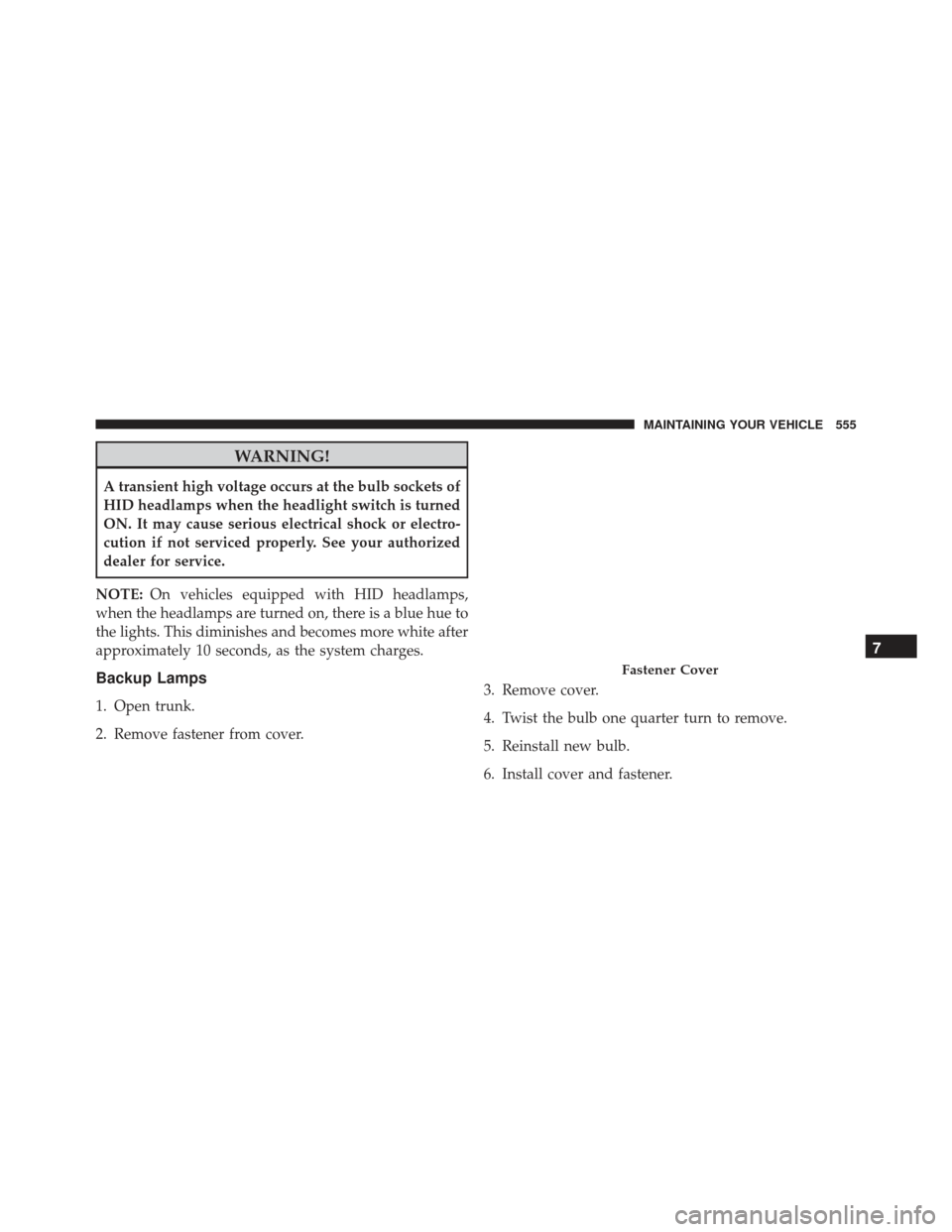

WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlight switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
NOTE: On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
Backup Lamps
1. Open trunk.
2. Remove fastener from cover. 3. Remove cover.
4. Twist the bulb one quarter turn to remove.
5. Reinstall new bulb.
6. Install cover and fastener.
Fastener Cover
7
MAINTAINING YOUR VEHICLE 555

License Lamp
1. Remove the screws securing the lamp to the rearfascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and install the replacement bulb.
4. Reinstall the bulb and socket assembly.
5. Reattach the lamp to the rear fascia, and then installthe screws.
Socket Assembly
1 — License Lamp Bulb
2 — Socket
556 MAINTAINING YOUR VEHICLE

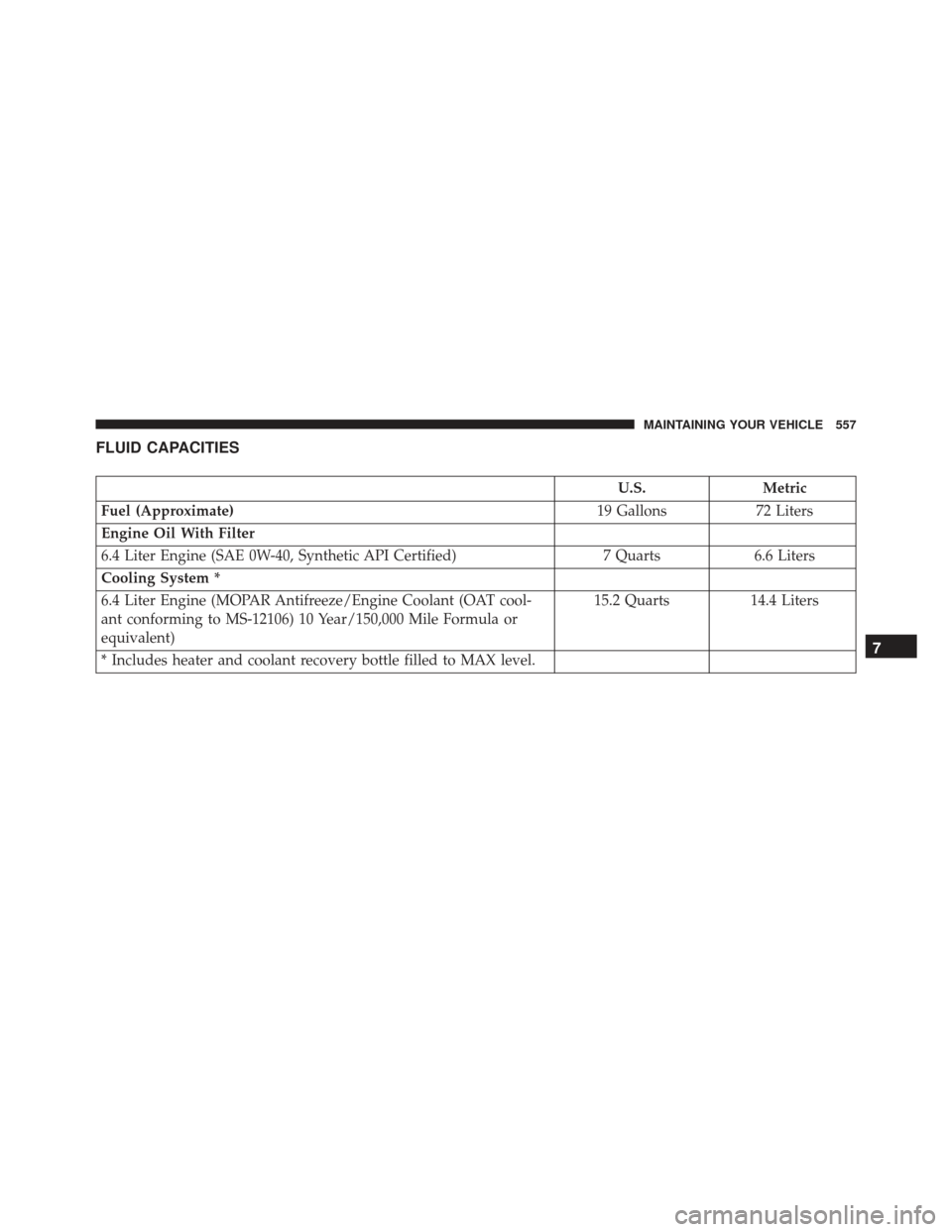

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 19 Gallons72 Liters
Engine Oil With Filter
6.4 Liter Engine (SAE 0W-40, Synthetic API Certified) 7 Quarts6.6 Liters
Cooling System *
6.4 Liter Engine (MOPAR Antifreeze/Engine Coolant (OAT cool-
ant conforming to MS-12106) 10 Year/150,000 Mile Formula or
equivalent) 15.2 Quarts
14.4 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 557

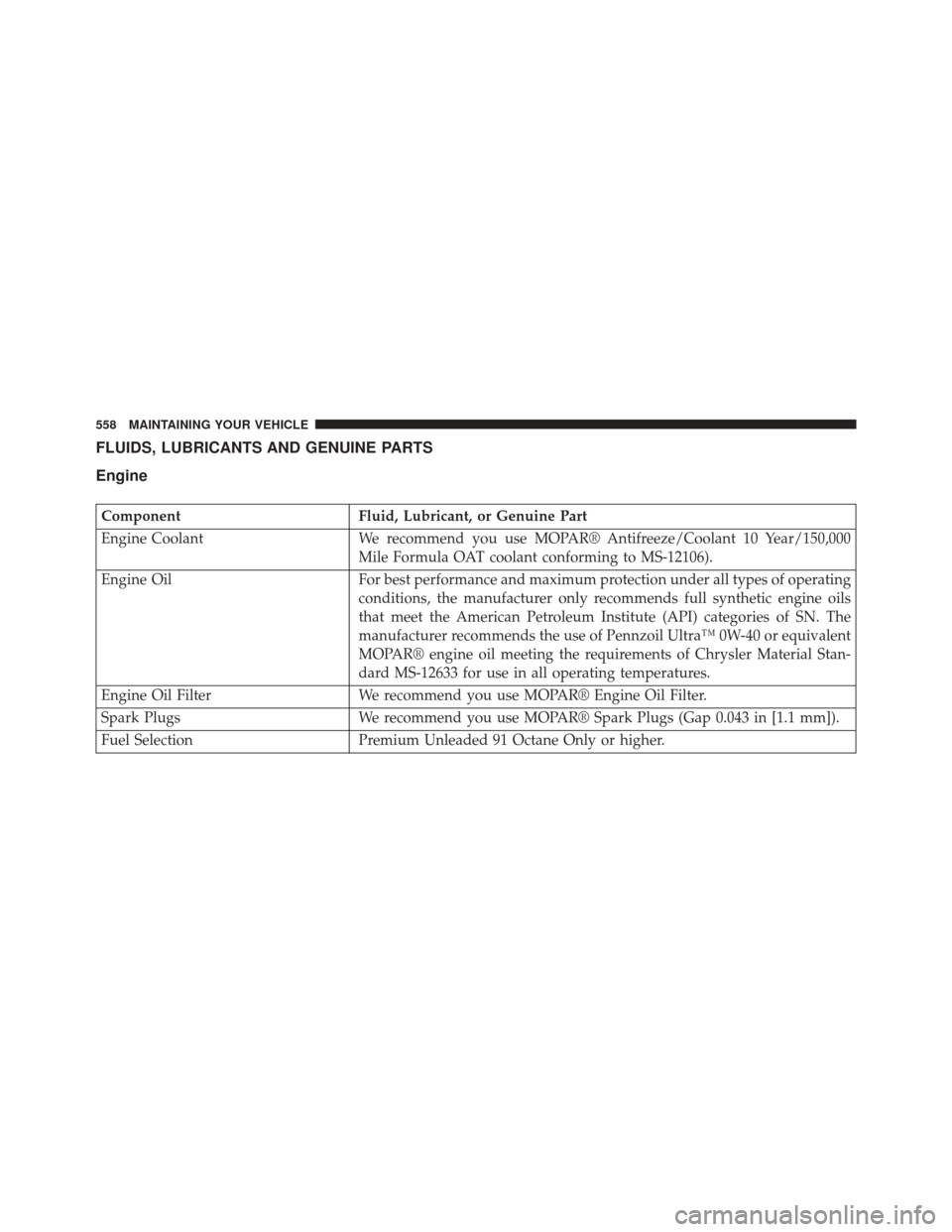

FLUIDS, LUBRICANTS AND GENUINE PARTS
