•Hazard switch off
• Brake switch inactive (brake pedal not pushed)
• Battery at an acceptable charge level
• Check engine light shall not be present
• PANIC button not pushed
• System not disabled from previous remote start event
• Vehicle alarm system indicator flashing
• Ignition in STOP/OFF position
• Fuel level meets minimum requirement
• Vehicle Security Alarm is not signaling an intrusion
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.
• Keep key fobs away from children. Operation of the
Remote Start System, windows, door locks or other
controls could cause serious injury or death.
Remote Start Abort Message On The Instrument
Cluster Display — If Equipped
The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Aborted — Door Open
• Remote Start Aborted — Hood Open
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — Trunk Open
• Remote Start Disabled — Start Vehicle To Reset
The message will stay active until the ignition is turned to
the ON/RUN position.
To Enter Remote Start Mode
Push and release the remote start button on the key fob
twice within five seconds. The vehicle doors will lock, the
parking lights will flash, and the horn will chirp twice (if
programmed). Then, the engine will start, and the vehicle
will remain in the Remote Start mode for a 15-minute cycle.
3
GETTING TO KNOW YOUR VEHICLE 29

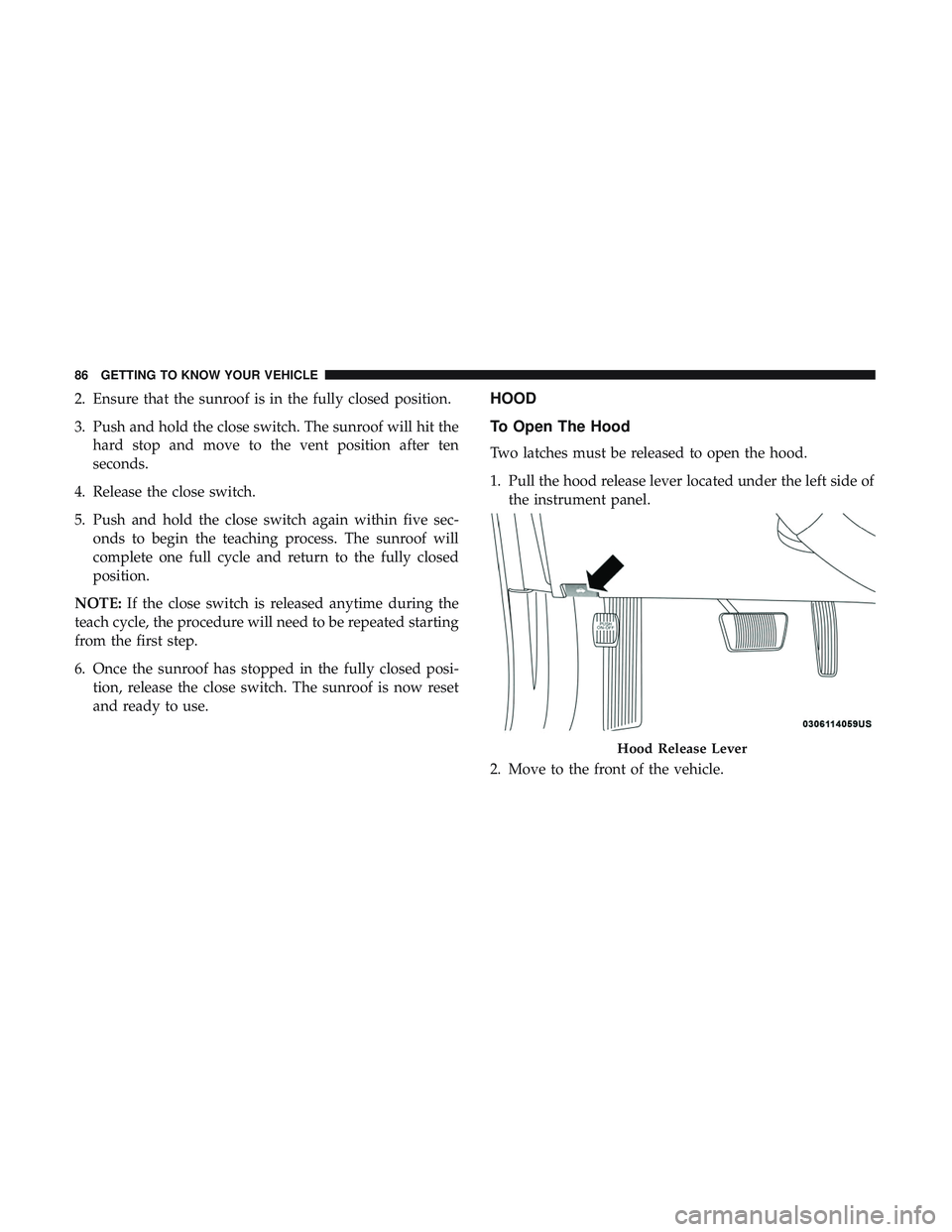

2. Ensure that the sunroof is in the fully closed position.
3. Push and hold the close switch. The sunroof will hit thehard stop and move to the vent position after ten
seconds.
4. Release the close switch.
5. Push and hold the close switch again within five sec- onds to begin the teaching process. The sunroof will
complete one full cycle and return to the fully closed
position.
NOTE: If the close switch is released anytime during the
teach cycle, the procedure will need to be repeated starting
from the first step.
6. Once the sunroof has stopped in the fully closed posi- tion, release the close switch. The sunroof is now reset
and ready to use.HOOD
To Open The Hood
Two latches must be released to open the hood.
1. Pull the hood release lever located under the left side ofthe instrument panel.
2. Move to the front of the vehicle.
Hood Release Lever
86 GETTING TO KNOW YOUR VEHICLE

3. Reach under the center front edge of the hood and pushand hold the safety catch lever to the left.
4. Lift the hood upward to the open position.
To Close The Hood
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
CAUTION!
To prevent possible damage, do not slam the hood to
close it. Lower hood to approximately 12 inches (30 cm)
and drop the hood to close. Make sure hood is fully
closed for both latches. Never drive vehicle unless
hood is fully closed, with both latches engaged.
TRUNK
Opening
The trunk can be opened from inside the vehicle using the
power trunk button located on the instrument panel to the
left of the steering wheel.
The trunk lid can be released from outside the vehicle by
pushing the trunk button on the key fob twice within five
seconds or by using the external release switch located on
the underside of the decklid overhang. The release feature
will function only when the vehicle is in the unlock
condition.
With the ignition in the ON/RUN position, the trunk open
symbol will display in the instrument cluster indicating
that the trunk is open. The odometer display will reappear
once the trunk is closed.
Safety Catch Lever Location
3
GETTING TO KNOW YOUR VEHICLE 87

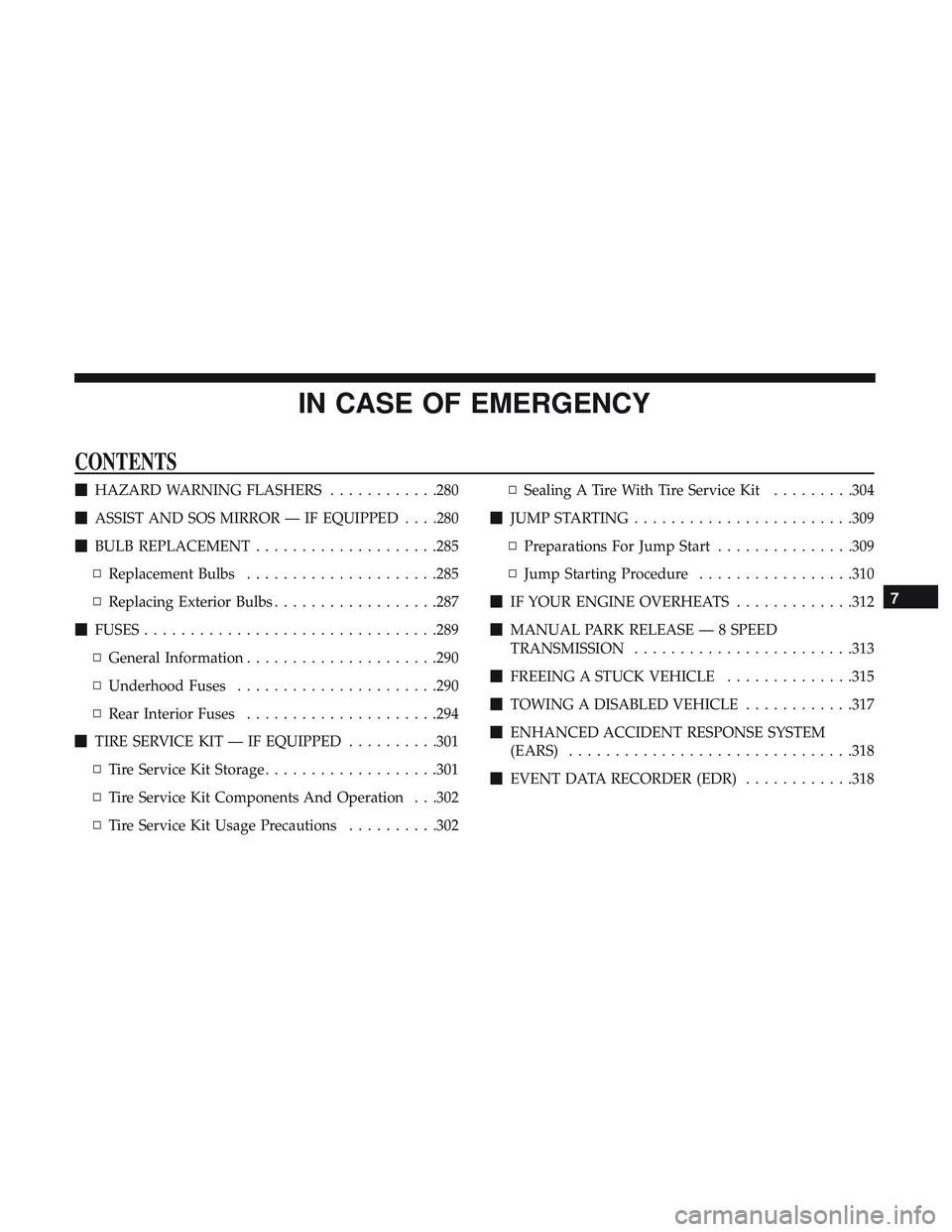

IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ............280
 ASSIST AND SOS MIRROR — IF EQUIPPED . . . .280
 BULB REPLACEMENT ....................285
â–« Replacement Bulbs .....................285
â–« Replacing Exterior Bulbs ..................287
 FUSES ............................... .289
â–« General Information .....................290
â–« Underhood Fuses ..................... .290
â–« Rear Interior Fuses .....................294
 TIRE SERVICE KIT — IF EQUIPPED ..........301
â–« Tire Service Kit Storage ...................301
â–« Tire Service Kit Components And Operation . . .302
â–« Tire Service Kit Usage Precautions ..........302â–«
Sealing A Tire With Tire Service Kit .........304
 JUMP STARTING ........................309
â–« Preparations For Jump Start ...............309
â–« Jump Starting Procedure .................310
 IF YOUR ENGINE OVERHEATS .............312
 MANUAL PARK RELEASE — 8 SPEED
TRANSMISSION ........................313
 FREEING A STUCK VEHICLE ..............315
 TOWING A DISABLED VEHICLE ............317
 ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) ...............................318
 EVENT DATA RECORDER (EDR) ............318
7

•Noise (objectionable squeal, squeak, or rumble is heard
or felt while drive belt is in operation)
Some conditions can be caused by a faulty component such
as a belt pulley. Belt pulleys should be carefully inspected
for damage and proper alignment.
Belt replacement on some models requires the use of
special tools, we recommend having your vehicle serviced
at an authorized dealer.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should be
lubricated periodically with a lithium based grease, such as
Mopar Spray White Lube to assure quiet, easy operation
and to protect against rust and wear. Prior to the applica-
tion of any lubricant, the parts concerned should be wiped
clean to remove dust and grit; after lubricating excess oil
and grease should be removed. Particular attention should
also be given to hood latching components to ensure
proper function. When performing other underhood ser-
vices, the hood latch, release mechanism and safety catch
should be cleaned and lubricated. The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as Mopar Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumulations
of salt or road film.
Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.
336 SERVICING AND MAINTENANCE

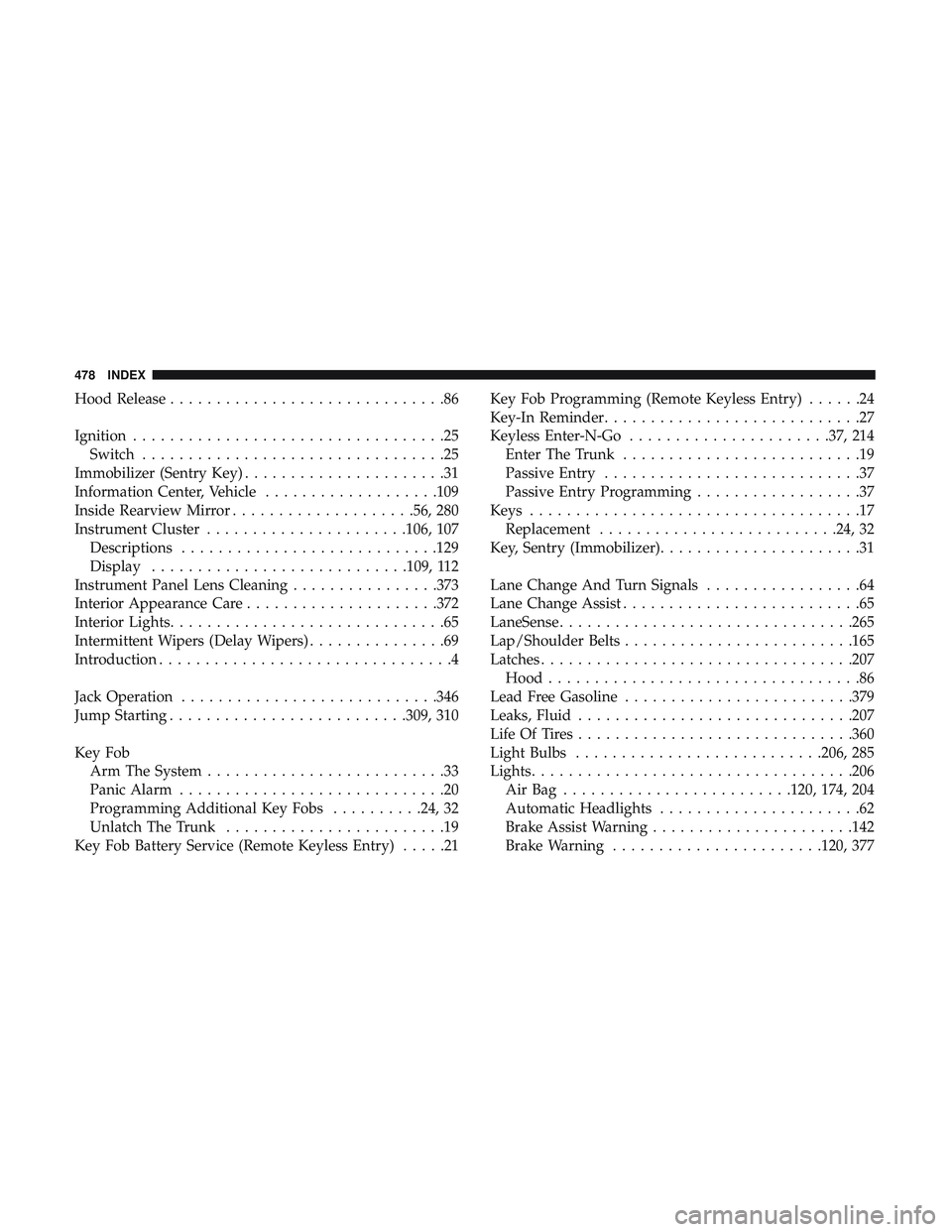

Hood Release..............................86
Ignition ..................................25
Switch .................................25
Immobilizer (Sentry Key) ......................31
Information Center, Vehicle ...................109
Inside Rearview Mirror ....................56, 280
Instrument Cluster ..................... .106, 107
Descriptions ............................129
Display ............................109, 112
Instrument Panel Lens Cleaning ................373
Interior Appearance Care .....................372
Interior Lights ..............................65
Intermittent Wipers (Delay Wipers) ...............69
Introduction ................................4
Jack Operation ............................346
Jump Starting ..........................309, 310
Key Fob Arm The System ..........................33
Panic Alarm .............................20
Programming Additional Key Fobs ..........24, 32
Unlatch The Trunk ........................19
Key Fob Battery Service (Remote Keyless Entry) .....21Key Fob Programming (Remote Keyless Entry)
......24
Key-In Reminder ............................27
Keyless Enter-N-Go ..................... .37, 214
Enter The Trunk ..........................19
Passive Entry ............................37
Passive Entry Programming ..................37
Keys ....................................17
Replacement ..........................24, 32
Key, Sentry (Immobilizer) ......................31
Lane Change And Turn Signals .................64
Lane Change Assist ..........................65
LaneSense ............................... .265
Lap/Shoulder Belts ........................ .165
Latches ................................. .207
Hood ..................................86
Lead Free Gasoline ........................ .379
Leaks, Fluid ............................. .207
Life Of Tires ............................. .360
Light Bulbs .......................... .206, 285
Lights .................................. .206
A i

rBag .........................120, 174, 204
Automatic Headlights ......................62
Brake Assist Warning ..................... .142
Brake Warning .......................120, 377
478 INDEX

Passive Entry..............................37
Performance ...........................113,417
Personalized Main Menu .....................391
Pets ................................... .203
Placard, Tire And Loading Information ...........352
Power Brakes ............................... .377
Deck Lid Release .........................87
Distribution Center (Fuses) ..................294
Door Locks ..............................36
Mirrors ................................58
Outlet (Auxiliary Electrical Outlet) ............101
Seats ..................................42
Steering ...............................234
Sunroof ................................83
Tilt/Telescoping Steering Column ..............54
Windows ...............................80
Power Seats Forward ................................43
Lumbar ................................44
Rearward ...............................43
Recline .................................43
Power Steering Fluid .....................385, 387
Pregnant Women And Seat Belts ................171Pretensioners
Seat Belts ............................. .171
Radial Ply Tires ............................358
Radiator Cap (Coolant Pressure Cap) .............341
Radio Frequency General Information ................25, 31, 33, 40
Radio Operation .......................... .448
Rain Sensitive Wiper System ...................70
Rear Axle (Differential) ..................... .346
Rear Camera ............................. .269
Rear Cross Path ............................151
Rear ParkSense System ..................... .259
Rear Seats, Folding ..........................50
Recreational Towing ........................ .275
Reformulated Gasoline .......................380
Refrigerant ............................332, 333
Release, Hood ..............................86
Reminder, Lights On .........................63
Reminder, Seat Belt ........................ .164
Remote Keyless

Entry
Arm The Alarm ..........................33
Panic Alarm .............................20
Programming Additional Key Fobs ..........24, 32
Unlatch The Trunk ........................1912
INDEX 481

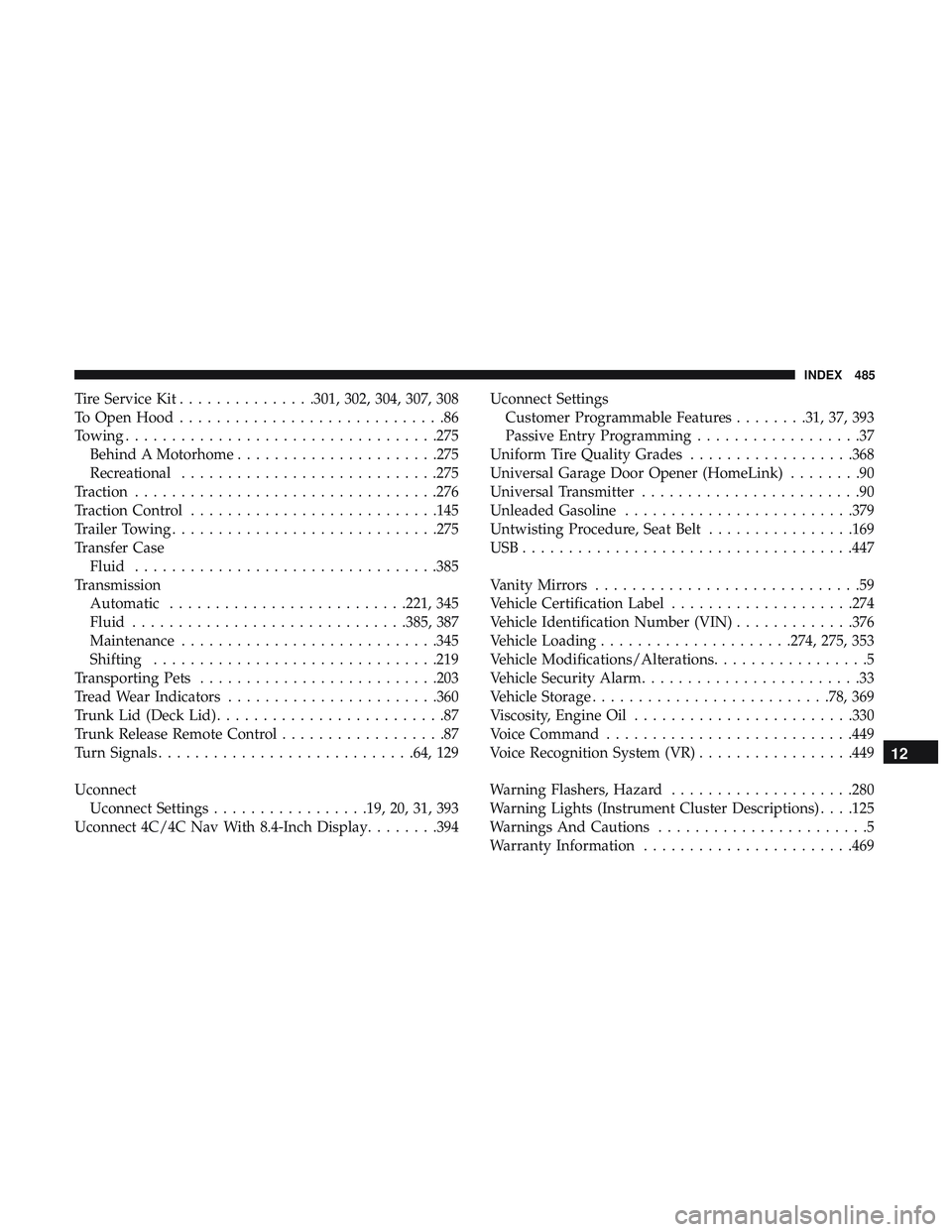

Tire Service Kit...............301, 302, 304, 307, 308
To Open Hood .............................86
Towing ................................. .275
Behind A Motorhome ..................... .275
Recreational ............................275
Traction .................................276
Traction Control .......................... .145
Trailer Towing ............................ .275
Transfer Case Fluid .................................385
Transmission Automatic ..........................221, 345
Fluid ............................. .385, 387
Maintenance ............................345
Shifting ...............................219
Transporting Pets ..........................203
Tread Wear Indicators .......................360
Trunk Lid (Deck Lid) .........................87
Trunk Release Remote Control ..................87
Turn Signals ............................64, 129
Uconnect Uconnect Settings .................19, 20, 31, 393
Uconnect 4C/4C Nav With 8.4-Inch Display ........394Uconnect Settings
Customer Programmable Features ........31, 37, 393
Passive Entry Programming ..................37
Uniform Tire Quality Grades ..................368
Universal Garage Door Opener (HomeLink) ........90
Universal Transmitter ........................90
Unleaded Gasoline ........................ .379
Untwisting Procedure, Seat Belt ................169
USB....................................447
Vanity Mirrors .............................59
Vehicle Certification Label ....................274
Vehicle Identification Number (VIN) .............376
Vehicle Loading .....................274, 275, 353
Vehicle Modifications/Alterations .................5
Vehicle Security Alarm ........................33
Vehicle Storage ..........................78, 369
Viscosity, Engine Oil ....................... .330
V oice

Command .......................... .449
Voice Recognition System (VR) .................449
Warning Flashers, Hazard ....................280
Warning Lights (Instrument Cluster Descriptions) . . . .125
Warnings And Cautions .......................5
Warranty Information .......................469
12
INDEX 485
